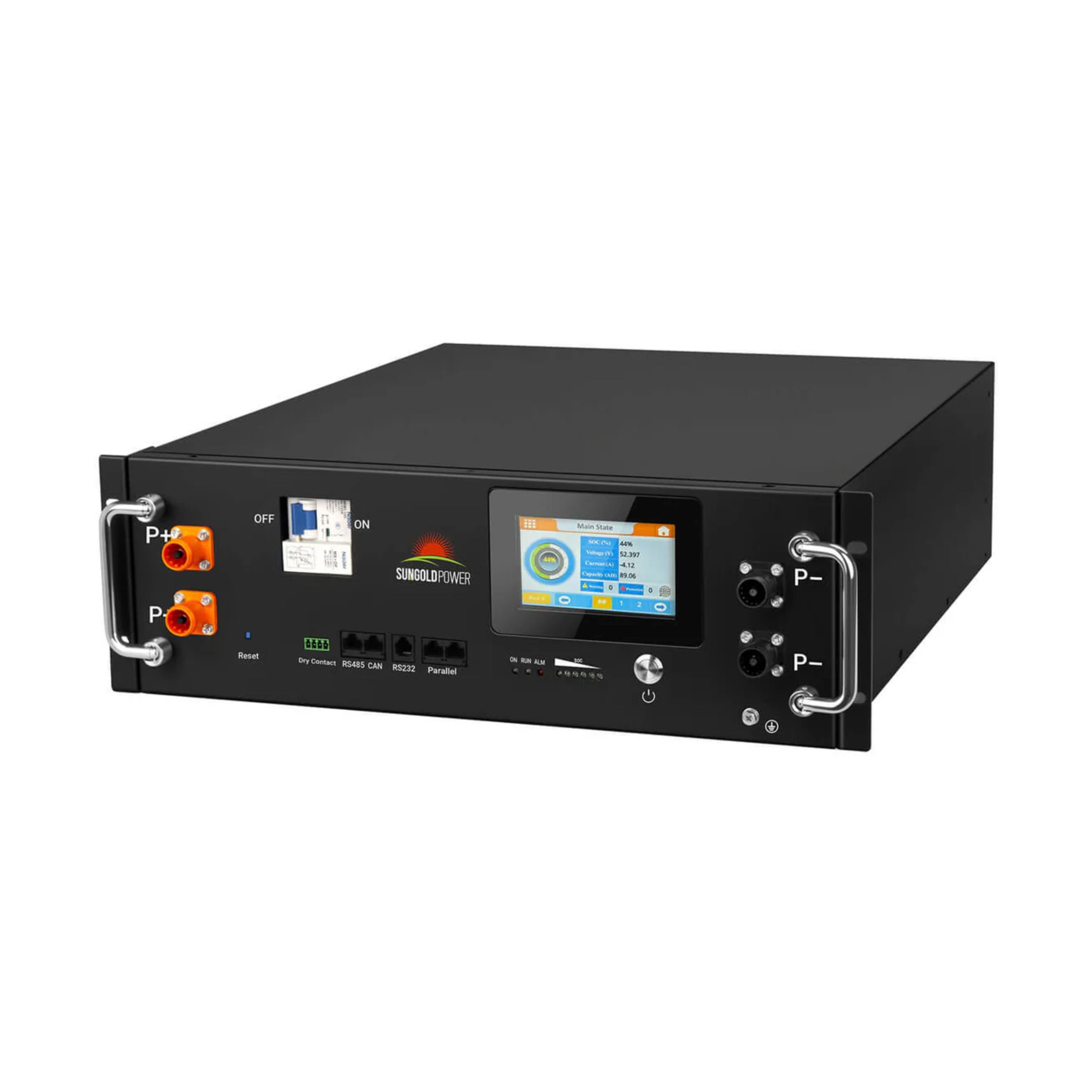

The SunGold Power CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack Puts 5.12kWh, EVE Cells and Wi-Fi Monitoring in One Rack Unit
The SunGold Power CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack is a 51.2V, 100Ah LiFePO4 battery that stores 5.12kWh. It is built with Tier-1 EVE Energy cells, a color LCD screen and built-in Wi-Fi and Bluetooth, so you can check the battery on the front panel or from your phone.
It is designed for homes. Use it as emergency backup where the grid is unreliable, pair it with solar to use more of your own power, or shift usage away from high-rate hours. Up to 15 packs can run in parallel as your system grows.

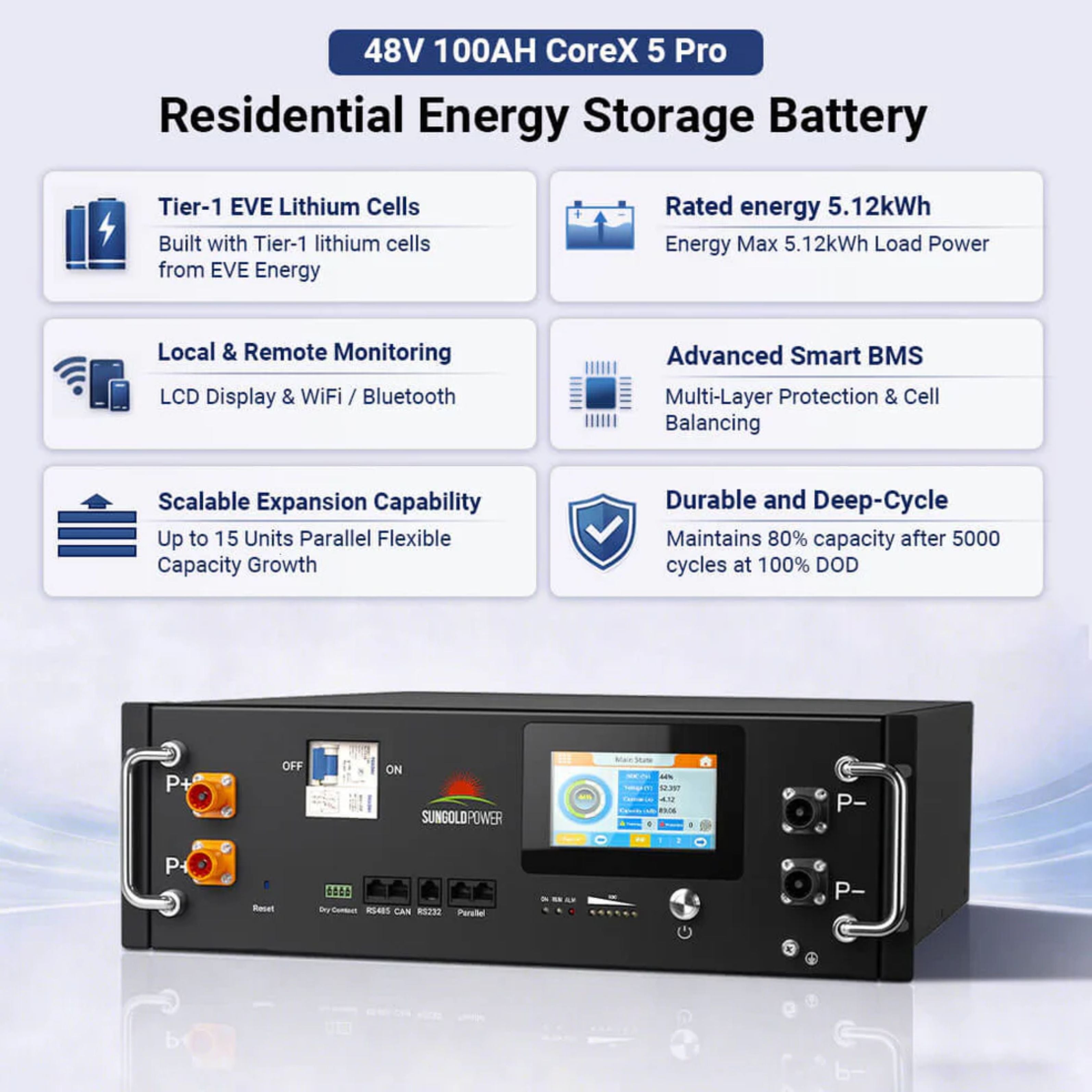

SunGold Power CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack Features

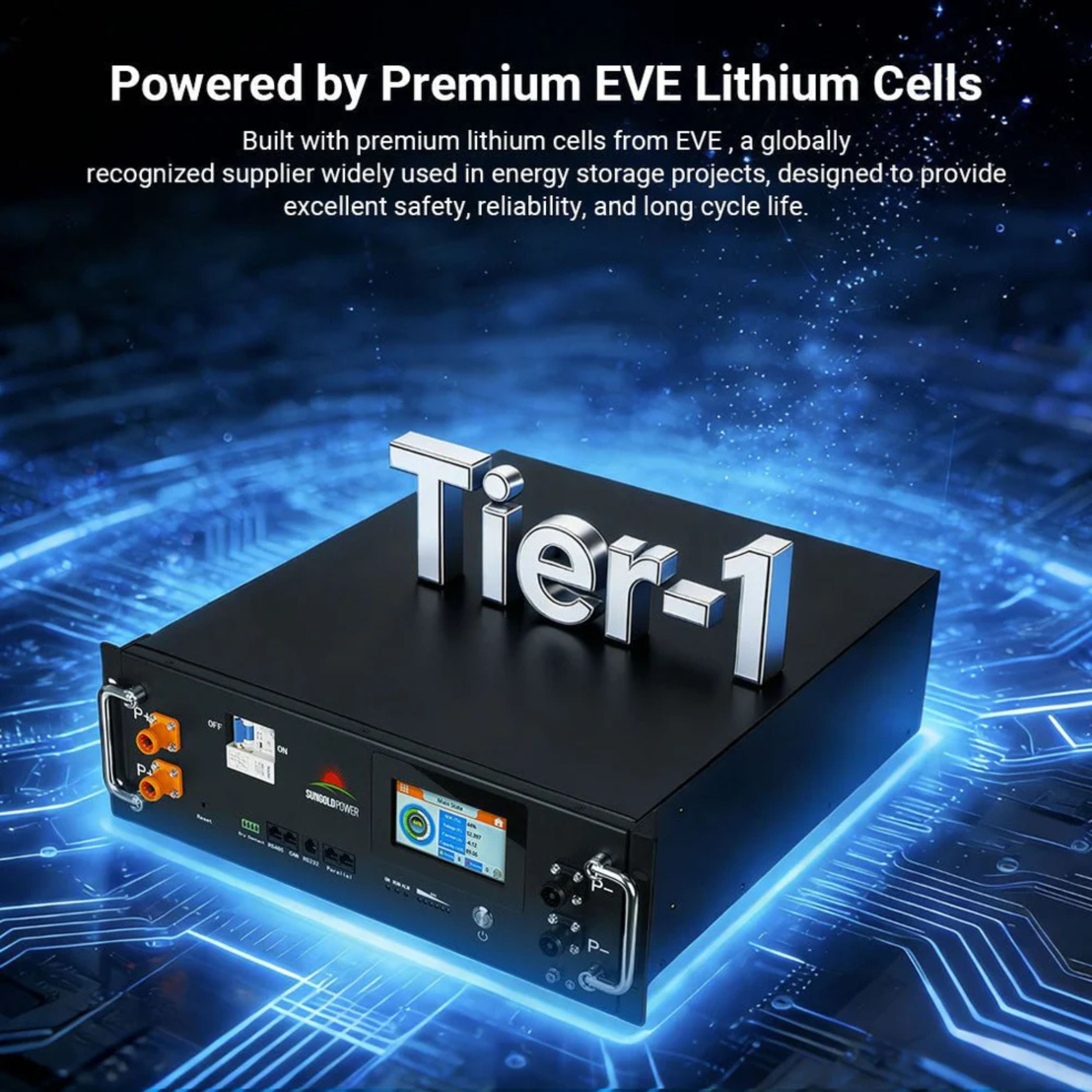

Tier-1 EVE Lithium Cells

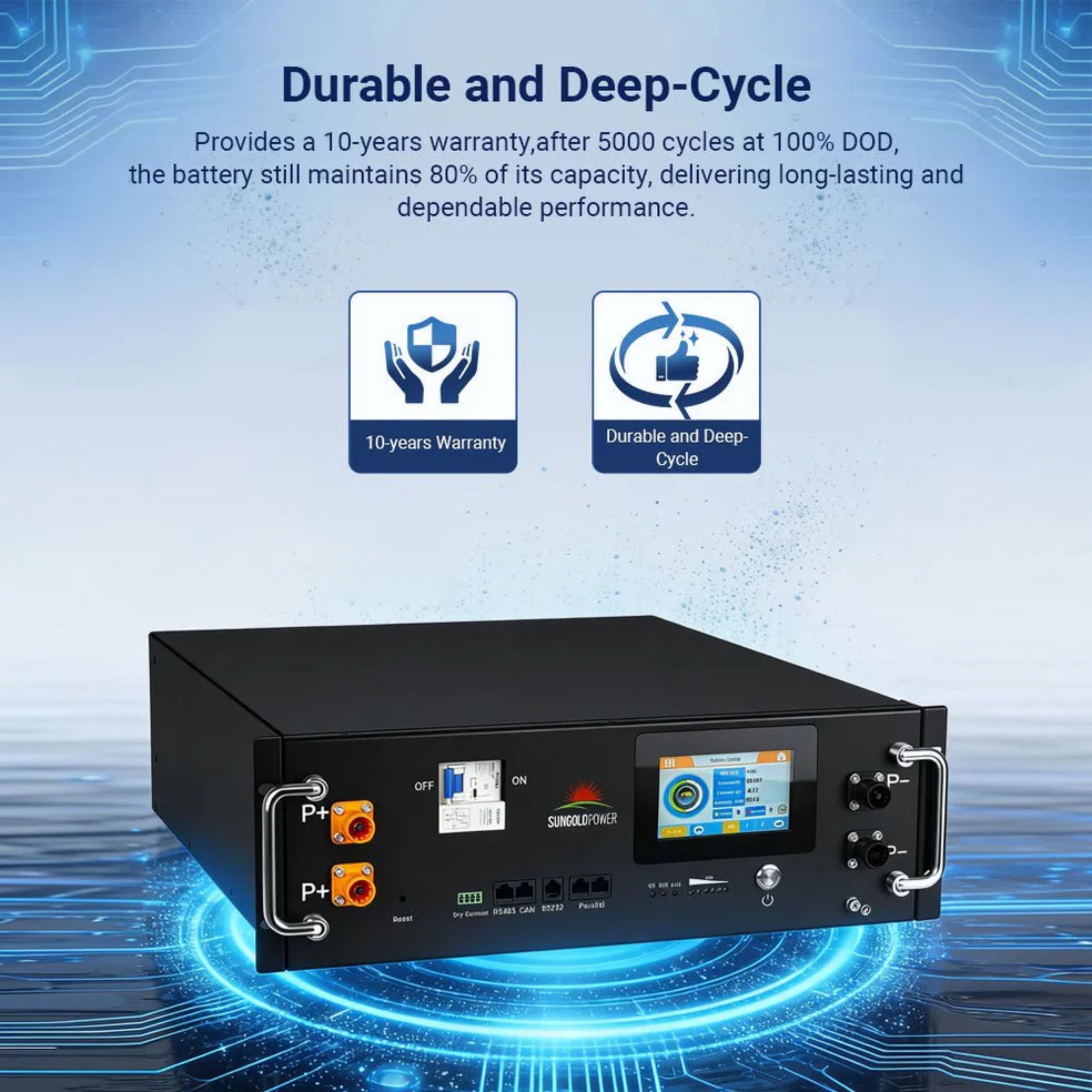

The 16 cells in series are EVE Energy LiFePO4 cells. SunGold rates the pack to keep 80% of its capacity after 5000 cycles at 100% depth of discharge, and backs it with a 10-year warranty.
Wi-Fi and Bluetooth App Monitoring
The app connects locally over Bluetooth with no account needed, or remotely over Wi-Fi from anywhere. It shows voltage, current, temperature, status, SOC and SOH, and it can install firmware updates over the air.
Color LCD on the Front Panel
The display shows state of charge, voltage, current, capacity and any alarms. When packs run in parallel, the master unit shows the average SOC, average voltage and total current for the whole bank.
Smart BMS With a Charge Current Limit
The BMS monitors cell voltage, current and temperature, balances the cells, and protects against over-voltage, under-voltage, over-current, short circuits, and high or low temperature. A 20A charging current limit is on by default and steps in when charge current reaches 90A.

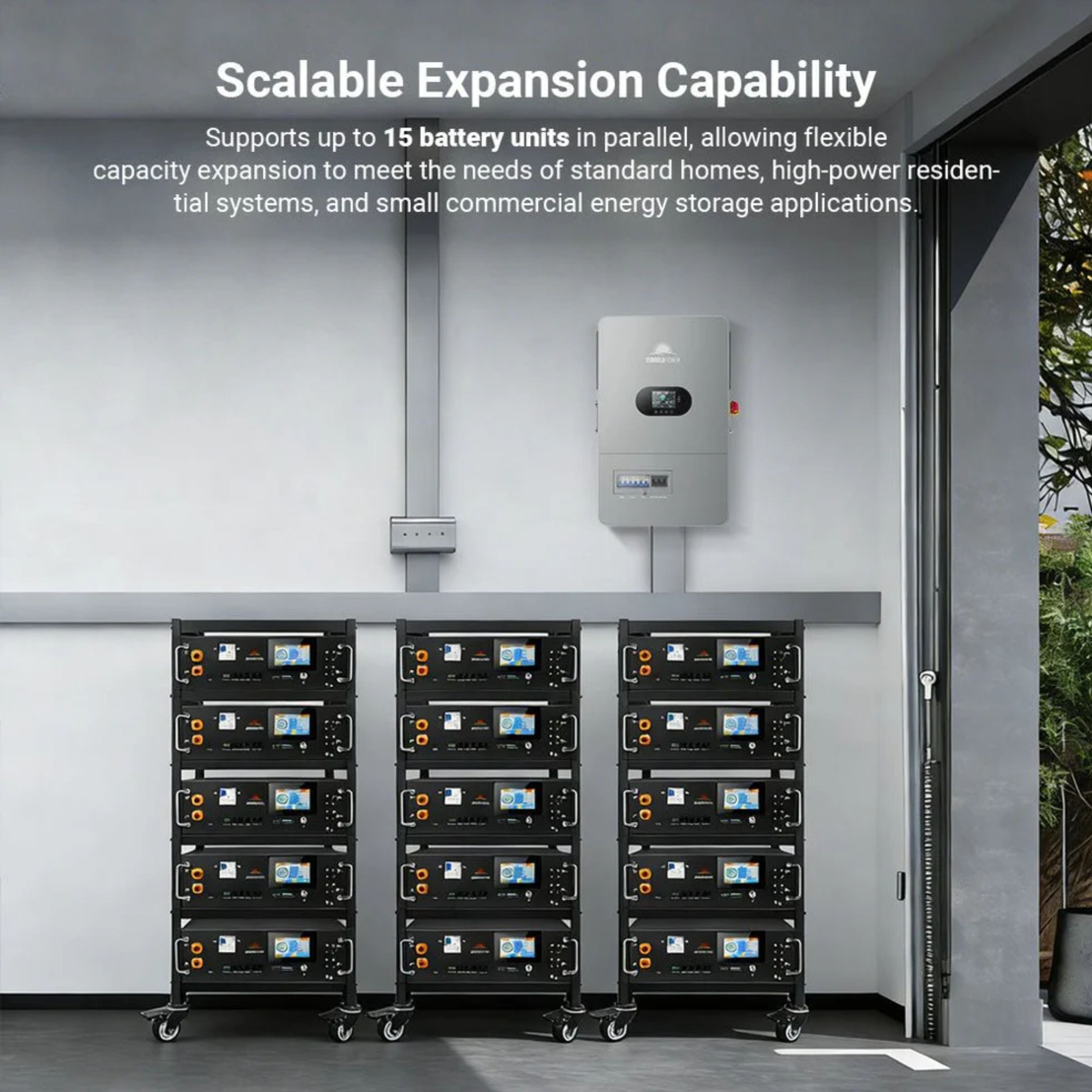

Parallel Up to 15 Packs
Connect up to 15 packs in parallel. For systems up to 100A, use the included parallel cables. Above 100A, SunGold calls for a busbar connection.
Quick-Connect Power Plugs
The power cables use color-coded quick-connect plugs that insert into matching sockets, which helps prevent reversed connections. The front panel also has a breaker, a power button and a reset button.
Real-World Applications
Emergency home backup. Keep household circuits powered when the grid is unstable, using a compatible 48V inverter.
Solar self-consumption. Store solar power during the day and use it at night instead of buying grid power.
Peak shaving. In areas with large peak and off-peak price gaps, charge during low-rate hours and discharge during high-rate hours.
Growing rack systems. Start with one pack and add more on a rack as your needs change.
How It Compares to Common Alternatives
Versus a wall-mounted battery. A rack battery stacks with others in a rack or sits on the floor, so several packs share one footprint. A wall-mounted battery needs wall space for each unit.
Versus a battery without app monitoring. With Wi-Fi and Bluetooth built in, you can check charge level, alarms and cell data from your phone, at home or away.
Versus a lead-acid battery bank. This pack adds a BMS, inverter communication and remote monitoring, and SunGold rates it for 5000 cycles at 100% depth of discharge.
Is This Server Rack Battery the Right Fit
-

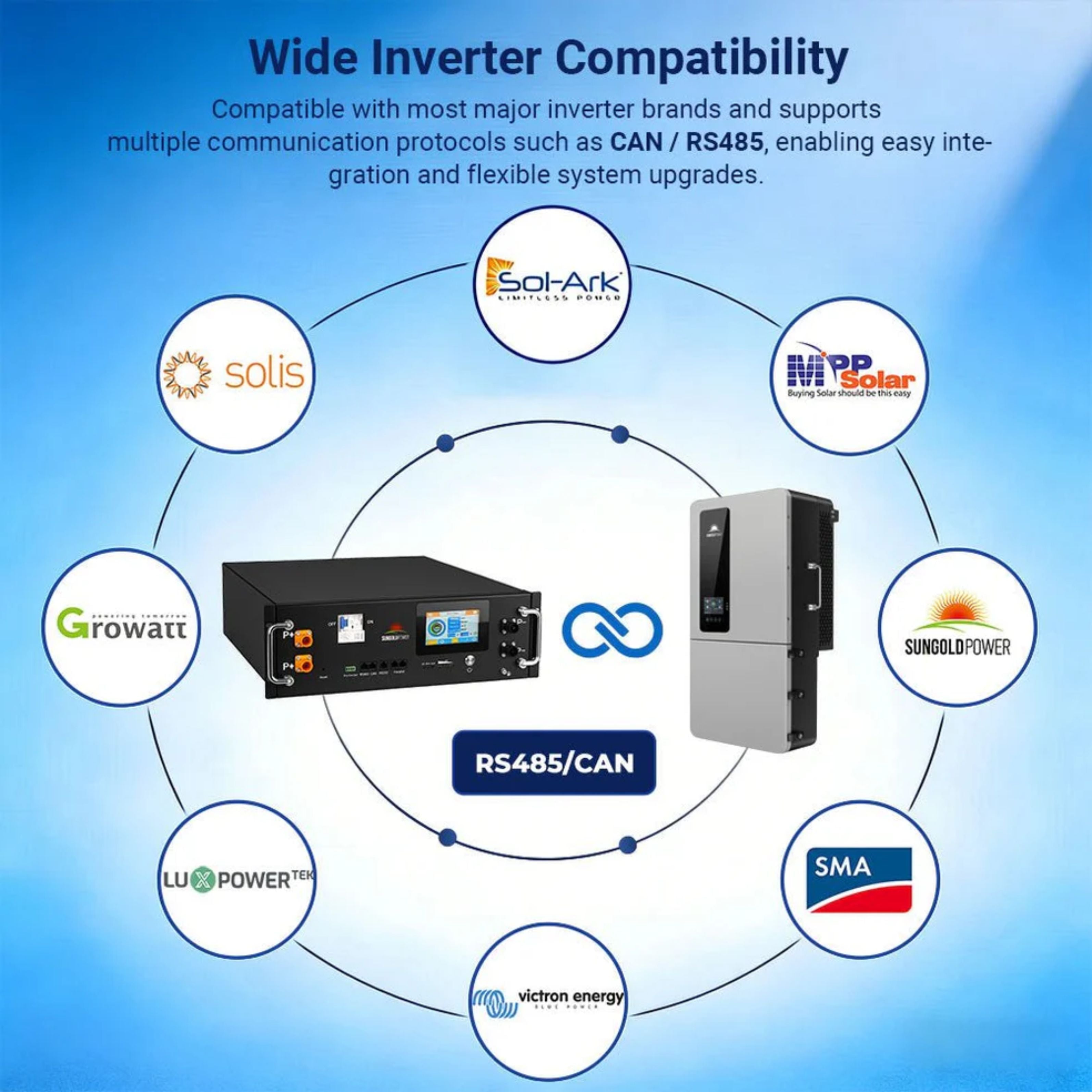

Inverter. Requires a 48V inverter with CAN or RS485 communication.
-
Location. Indoors or under a professional rain shelter only. The pack is IP20 rated.
-
Mounting. Place it on a solid, level, dry floor or install it on a rack. A rack bracket is not in the box.
-
Weight. About 94.8 lb per pack.
-
Wi-Fi. The module works on 2.4GHz networks only.
This may be a good fit if
- You want to monitor your battery from your phone
- You prefer a rack-style battery
- You are building home backup or solar storage
- You may add packs later
Common Questions
Can I Use Bluetooth and Wi-Fi at the Same Time?
No. They work one at a time. After you bind the pack to Wi-Fi, you need to unbind it before switching back to Bluetooth.
Which Communication Port Connects to the Inverter?
The pack has both RS485 and CAN ports for the inverter. Use either one, and check that the pin definitions match your inverter.
What Happens When Charge Current Gets High?
With the current limit on, the pack drops charging to 20A when charge current reaches 90A. With the limit off, charge over-current protection trips at 96A.
Can the CoreX 5 Pro Be Wired in Series?
No. Packs can be used alone or in parallel, up to 15, but not in series.

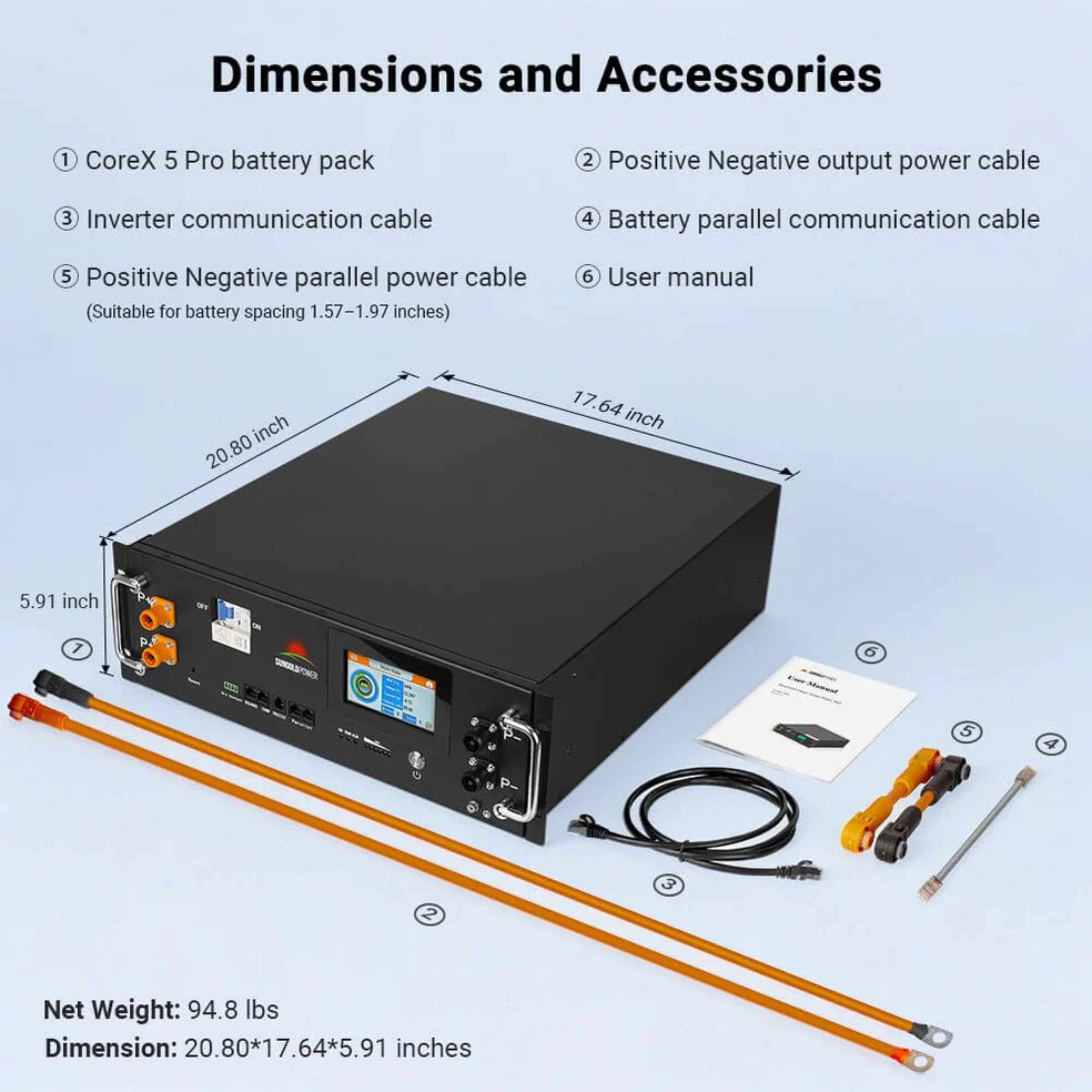

What's Included
SunGold's box list below is for one battery pack. The 2 Batteries and 4 Batteries options ship 2 or 4 of the same battery pack.
- 1 x CoreX 5 Pro Battery Pack
- 1 x Positive Output Power Cable
- 1 x Negative Output Power Cable
- 1 x Positive Parallel Power Cable
- 1 x Negative Parallel Power Cable
- 1 x Pack-Inverter Communication Cable
- 1 x Pack Parallel Communication Cable
- 1 x Product Factory Test Report
- 1 x Product Certificate
- 1 x User Manual
SunGold's box list doesn't include the black stacking brackets shown in the 2 and 4 battery photos. The CoreX 5 Pro battery bracket set is sold separately.
Rack Storage You Can Check From Your Phone
The SunGold Power CoreX 5 Pro Server Rack 48V 100AH Residential Energy Storage Battery Pack gives a 48V home system 5.12kWh of EVE-cell storage with Wi-Fi and Bluetooth monitoring and room for 15 packs. At Outbound Power, we help customers size battery banks and inverters for home backup and solar. If you have questions, our team is happy to help.
SunGold Power CoreX 5 Pro Specifications
|
| Electrical Characteristics |
| Product Model |
CoreX 5 Pro |
| Configuration |
1P16S |
| Battery Type |
Lithium iron phosphate (EVE Energy cells) |
| Rated Capacity |
100Ah |
| Rated Voltage |
51.2V |
| Rated Energy |
5.12kWh |
| Voltage Range |
43.2V~56.8V |
| Charging Current Limit |
20A (on by default, triggers at charge current ≥90A) |
| Standard Charge / Discharge Current |
50A |
| Maximum Charge Current |
95A |
| Maximum Discharge Current |
100A |
| Cycle Life |
80% capacity after 5000 cycles at 100% DOD |
| Communication and Expansion |
| Inverter Communication |
CAN / RS485 |
| Parallel Communication |
RS485 (input and output ports) |
| Debug Port |
RS232 |
| Monitoring |
Color LCD display, Wi-Fi and Bluetooth app |
| Wi-Fi Band |
2.4GHz only |
| Dry Contact |
Yes |
| Max. Parallel Packs |
15 (busbar connection required above 100A system current) |
| Operating Conditions |
| Recommended Temperature Range for Use |
50°F~113°F (10°C~45°C) |
| Operating Temperature |
Charge 39.2°F~131°F (4°C~55°C), Discharge -4°F~131°F (-20°C~55°C) |
| Humidity Range |
5~85% RH, no condensation |
| Storage Temperature |
Within 1 month -4°F~113°F (-20°C~45°C), within 1 year 32°F~95°F (0°C~35°C) |
| Storage Humidity |
<60% RH, no condensation |
| Application Altitude |
≤3000m (9842.5ft) |
| IP Rating |
IP20 |
| Installation |
Indoors or in a professional rain shelter |
| Mechanical Characteristics |
| Dimensions (D x W x T) |
20.08 x 17.4 x 5.14 inch (510 x 442 x 130.5mm) |
| Weight |
94.8 lb (43 ±2kg net) |
| Warranty |
| Warranty |
10 years |
