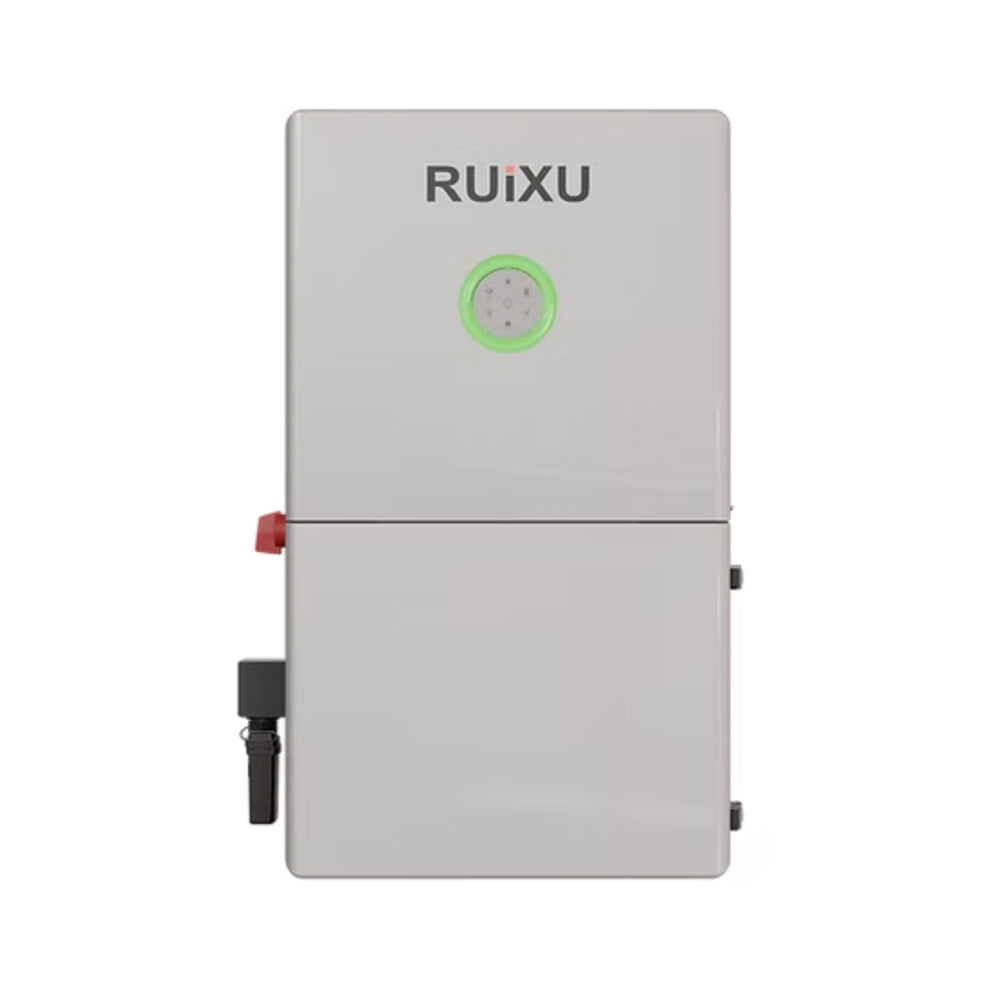

Experience seamless power wherever you go with the RUiXU RX-12K 11.4kW Hybrid Inverter. Whether it's ensuring your home's backup during outages, enhancing your RV travel comfort, powering off-grid escapades, or supporting mobile worksites, the RUiXU RX-12K guarantees consistent, dependable power.
The RUiXU RX-12K excels in diverse scenarios, such as providing backup power to facilitate off-grid living with reliability, and empowering worksites with robust energy solutions.
Unlike typical inverters that might falter in peak demand periods, the RX-12K's high output and hybrid functionalities offer a comprehensive solution, empowering you with flexible energy management options and robust reliability.
The RUiXU RX-12K 11.4kW Inverter stands as a beacon of innovation and adaptability in portable and backup power solutions. With its versatile features, robust capacity, and community support, it's crafted to meet the diverse needs of homeowners, RV enthusiasts, off-grid adventurers, and mobile businesses. Empower your energy strategy with a product that delivers peace of mind and robust performance.
With its AC coupling capability, this inverter smoothly integrates into existing solar systems, both on-grid and off-grid, ensuring a hassle-free transition to enhanced energy independence.
The RUiXU RX-12K operates efficiently across multiple scenarios—whether running off-grid, utilizing grid assist, or even selling excess power back to the grid, giving you unparalleled control over your energy use.
Offering a split-phase output with 120/240V for single units or 120/208V for service operations, this inverter accommodates various voltage requirements, enhancing compatibility across applications.
Prepared for any situation, the RX-12K supports grid and diesel generators separately, allowing energy storage from diesel generators—essential during prolonged power outage scenarios.
With a remarkable 11.4kW output and an integrated 200A transfer relay, this inverter supports comprehensive home backup power, maintaining your lifestyle uninterrupted.
Equipped with a rapid shutdown function, safety is maximized, ensuring compliance with electrical standards and peace of mind.
Rated IP65 for superior protection, the RX-12K stands resilient against dust and water, making it suitable for both indoor and outdoor installations.
Supporting both lithium and lead-acid batteries, this inverter offers flexible battery configurations, adapting to your specific setup and future upgrades.
With up to four Maximum Power Point Tracking (MPPT) systems, the RX-12K ensures optimal solar energy usage, increasing efficiency and sustainability.
Its UPS function boasts a switch time of ≤ 20ms, providing an uninterrupted power supply to critical loads, maintaining essential operations seamlessly.
RUiXU provides a 10-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
RUiXU RX-12K 11.4kW Inverter Specifications |
|
|---|---|
| PV String Input | |
| Max PV Array Power @STC | 17,100 W |
| Max DC Voltage | 600 V |
| MPPT Voltage Range | 90 – 510 V |
| Nominal DC Voltage | 380 V |
| Start Voltage | 100 V |
| Min Input Voltage | 80 V |
| Max Input Current | 16 A × 4 |
| Max Short-Circuit Current | 19.2 A × 4 |
| No. of Strings per MPPT | 1 / 1 / 1 / 1 |
| No. of MPPT | 4 |
| DC Switch | Integrated |
| Battery Port Connection | |
| Battery Type | Lead-acid / Lithium battery |
| Voltage Range | 40 – 60 V |
| Start Voltage | 42 V |
| Max Charging/Discharging Current | 228 A |
| AC Output (On-Grid) | |
| Rated AC Power @240 V AC | 11,400 W |
| Rated AC Current @208/240 V AC | 47.5 A |
| Rated AC Voltage / Range | L1/L2/N/PE 120 V (split-phase), L1/L2/PE 240 V AC ; 120 V = 106 – 132 V ; 240 V = 211 – 264 V |
| Rated Output Frequency / Range | 50 Hz = 47 – 53 Hz ; 60 Hz = 57 – 63 Hz |
| Power Factor | 0.8 leading – 0.8 lagging |
| Total Harmonic Distortion (THDi) | < 3% |
| AC Output (Back-Up Mode) | |
| Rated Apparent Power | 5,700 VA @ 120 V / 11,400 VA @ 240 V |
| Rated AC Current | 47.5 A |
| Peak Output Power (1 min) | 12,540 VA @ 240 V |
| Peak Output Power (10 s) | 17,100 VA |
| Rated Output Voltage | 120 / 240 V |
| Rated Output Frequency / Range | 50 Hz = 45 – 55 Hz ; 60 Hz = 55 – 65 Hz |
| Output THDV (@ Linear Load) | < 3% |
| Switching Time | < 10 ms |
| AC Input (GEN) | |
| Max Continuous Input Power @240 V | 11,400 W |
| Rated Voltage | 240 V |
| Rated Current | 47.5 A |
| Efficiency | |
| Maximum Efficiency | 97.20% |
| CEC Efficiency | 96.50% |
| AC-Battery Maximum Efficiency | 94.20% |
| Protection & Features | |
| Overvoltage Protection | Integrated |
| ISO Monitoring | Integrated |
| DC Component Monitoring | Integrated |
| Ground Fault Current Monitoring | Integrated |
| Grid Monitoring | Integrated |
| AC Output Short Circuit Protection | Integrated |
| AC Grounding Detection | Integrated |
| DC Surge Protection | Type II |
| AC Surge Protection | Type II |
| Island Protection Monitoring | Integrated |
| AFCI | Integrated |
| RSD | Integrated |
| Interface | |
| Display | LED / App (via Bluetooth) |
| Communication Port | RS485 / Wi-Fi / CAN |
| Optional Communication | Wi-Fi / 4G |
| Load Monitoring | 24 hours |
| General Data | |
| Topology Type | Transformer-less (DC–AC) |
| Standby Power Consumption | < 35 W |
| Operating Temperature Range | -40 °C to +60 °C (-40 °F to 140 °F) |
| Cooling Method | Air-fan cooling |
| Relative Humidity | 0% – 100% RH (no condensation) |
| Altitude | < 2000 m |
| Noise Level | < 50 dB |
| Ingress Protection | NEMA 4X |
| Mounting | Wall mounting |
| Dimensions (H × W × D) | 810 × 470 × 247 mm (31.89 × 18.50 × 9.72 in) |
| Weight | 48 kg (105.82 lb) |
| Warranty | 10 Years |
| Applicable Standards | UL 1741, UL 1741SB, IEEE 1547 & 1547.1, UL 1699B, UL 1998, CSA C22.2 No.107.1, FCC Part 15 Class B, Rule 21, HE CO 14H |
