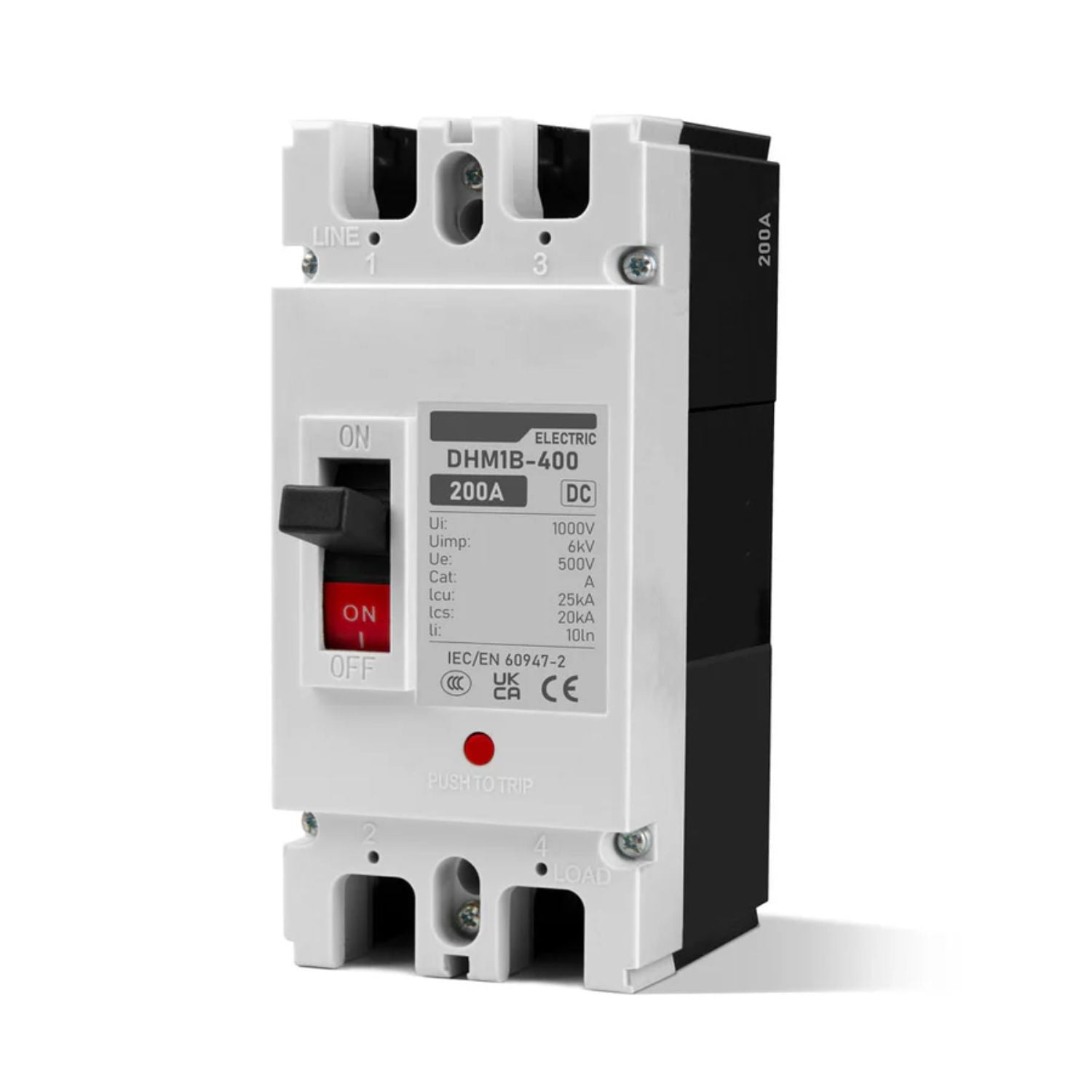

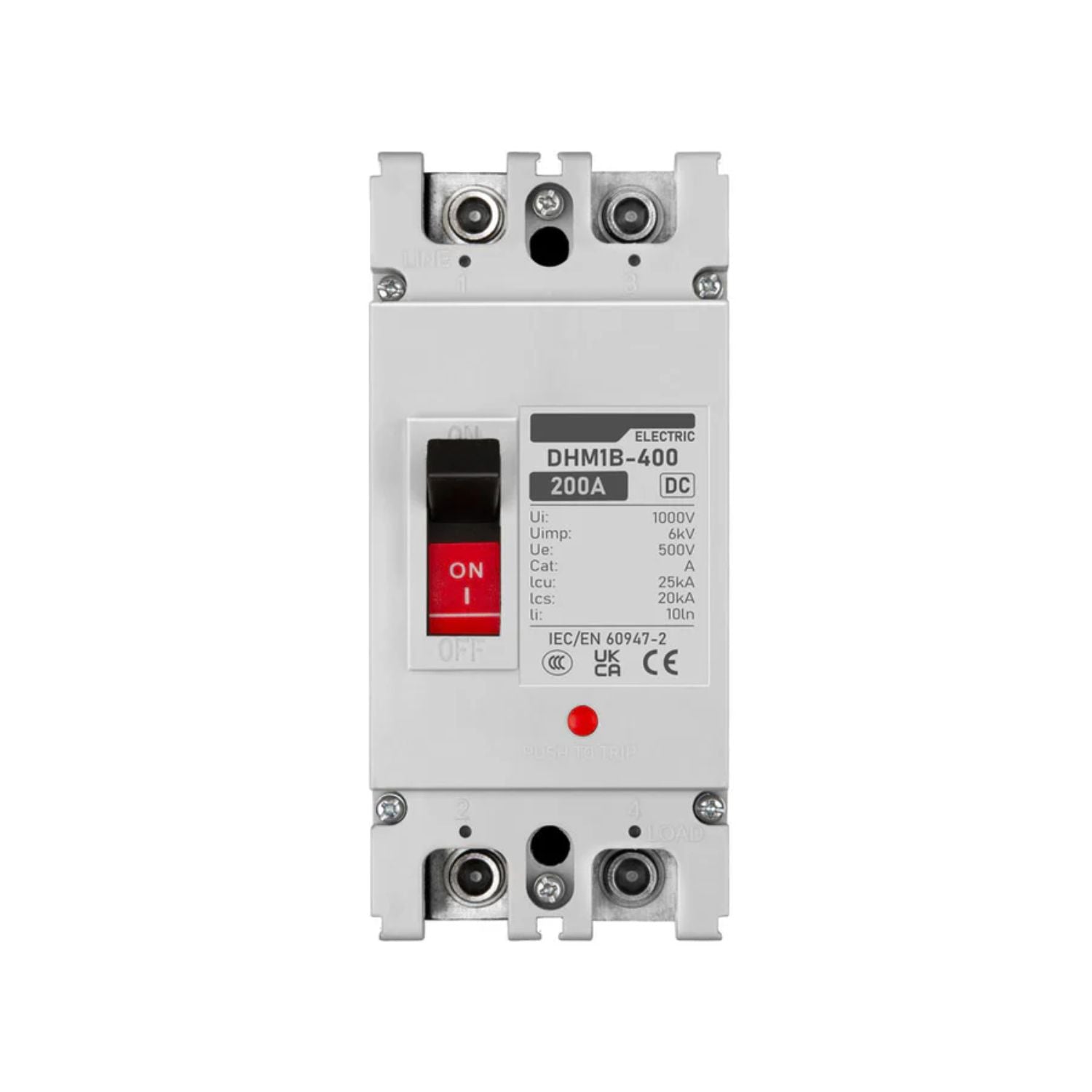

The SunGold Power 200 Amp DC Breaker (DHM1B-200) is a 500V DC battery disconnect breaker for main power, solar, UPS, and power station applications. It uses a thermal magnetic trip mechanism to protect against overloads and short circuits, and it provides a manual isolation point between your batteries and inverter.
SunGold includes 200A DC breakers in many of its off-grid kits between the battery bank and inverter.
The breaker responds to sustained overloads (thermal) and to short circuits (magnetic), protecting cables and equipment.
Switch the breaker off to isolate the battery bank for maintenance or emergencies.
SunGold notes the breaker installs easily in compartments and is accessible from the front.
Battery to inverter connections. Protect the main DC cables in a solar system.
UPS and backup systems. Add overcurrent protection and isolation.
Power stations and data centers. Protect DC distribution circuits.
Versus the 400 Amp breaker. Choose the 400A model for larger inverters and higher battery currents.
Versus ANL or class T fuses. A breaker resets after a trip and doubles as a disconnect switch.
Overloads and short circuits, through a thermal magnetic trip.
Yes. SunGold lists it as a battery disconnect switch.
The SunGold Power 200 Amp DC Breaker is a small part of a solar or battery system, but the right components keep everything safe and working together. At Outbound Power, we help customers choose the right components to complete and protect their solar and battery systems. If you have questions, our team is happy to help.
SunGold Power 200 Amp DC Breaker Specifications |
|
|---|---|
| Model | DHM1B-200 |
| Rated Current | 200A |
| Rated Voltage | 500V DC |
| Trip Type | Thermal magnetic |
| Functions | Overload protection, short circuit protection, circuit isolation |
| Applications | Photovoltaic, UPS, battery, data center DC systems |
