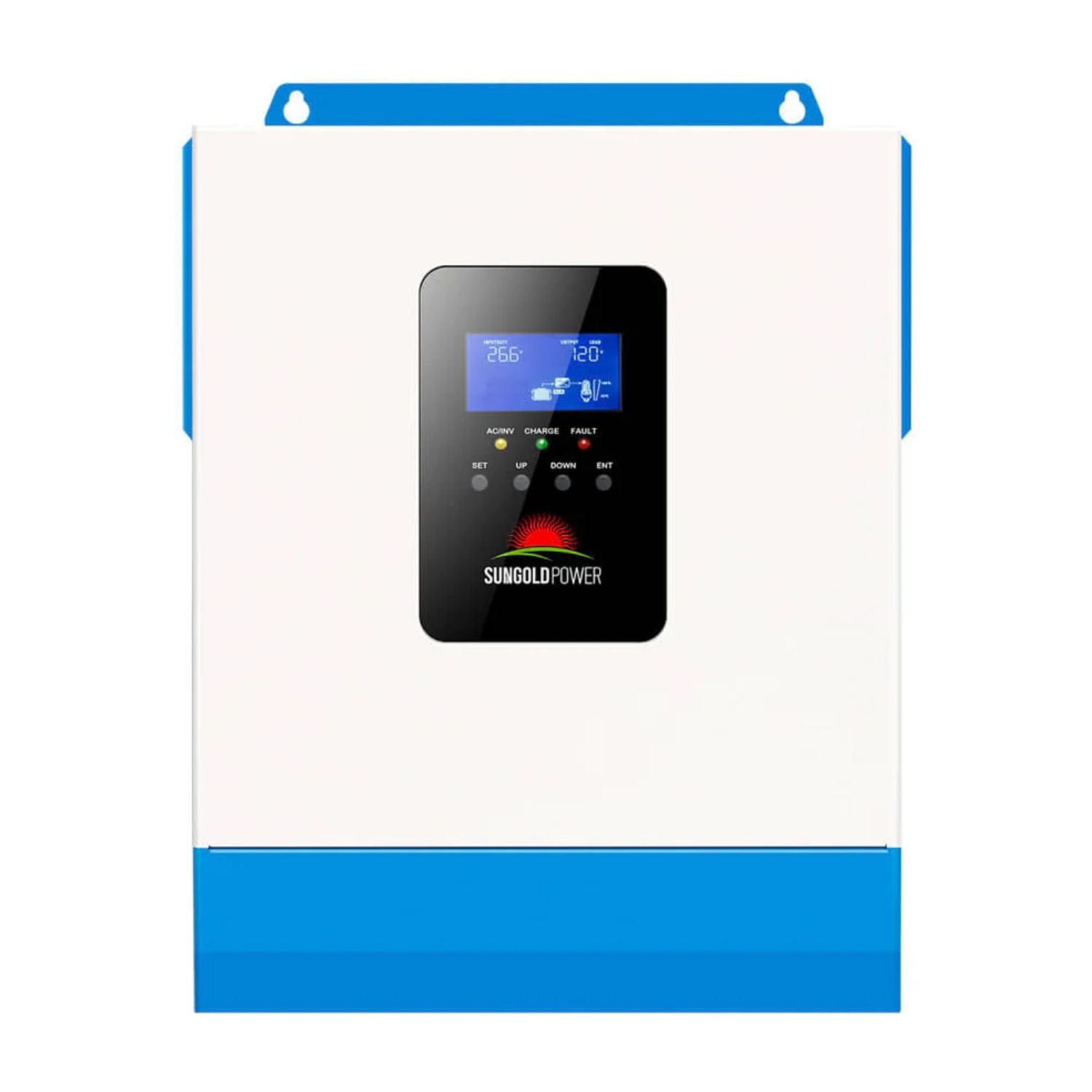

The SunGold Power 3000W 24V Solar Inverter Charger Runs 120V Loads From a 24V Battery With a Choice of High- or Low-Voltage Solar Input

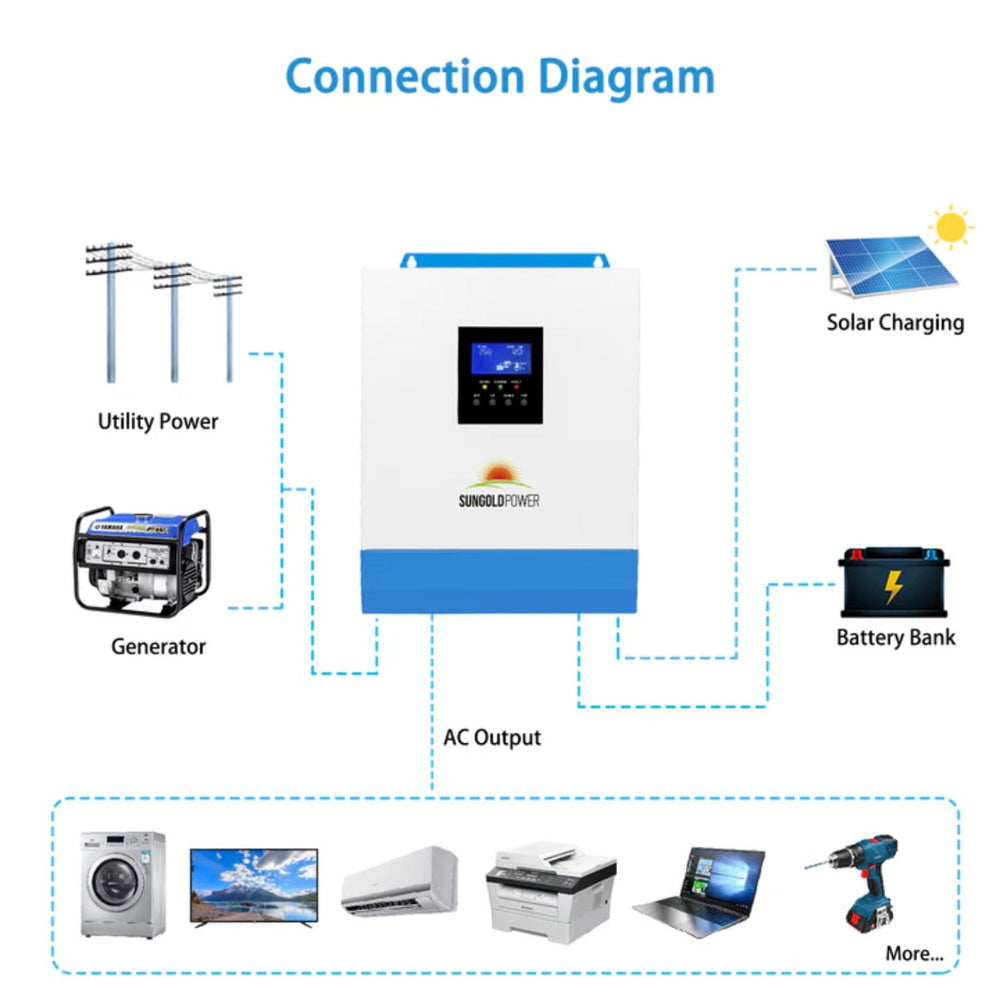

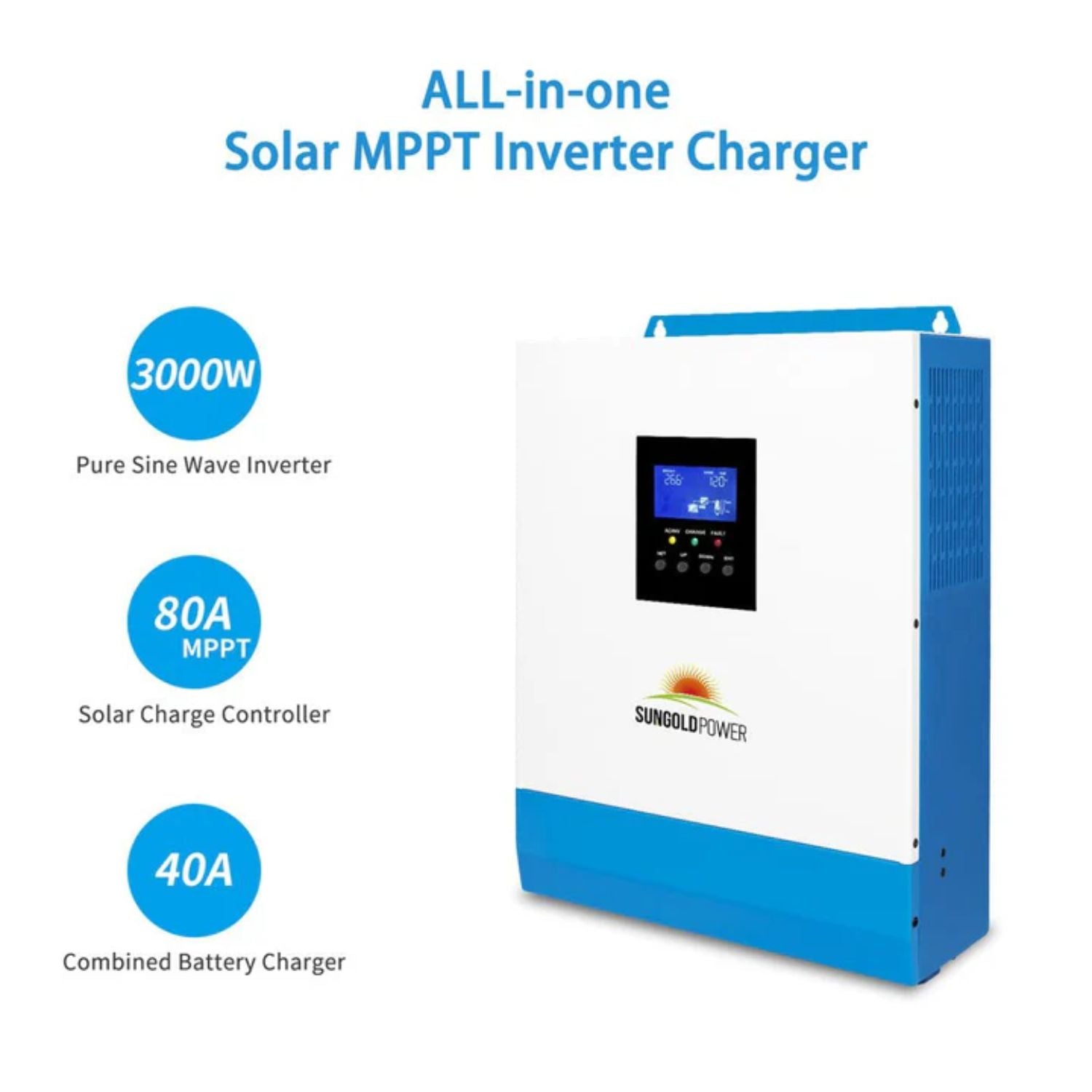

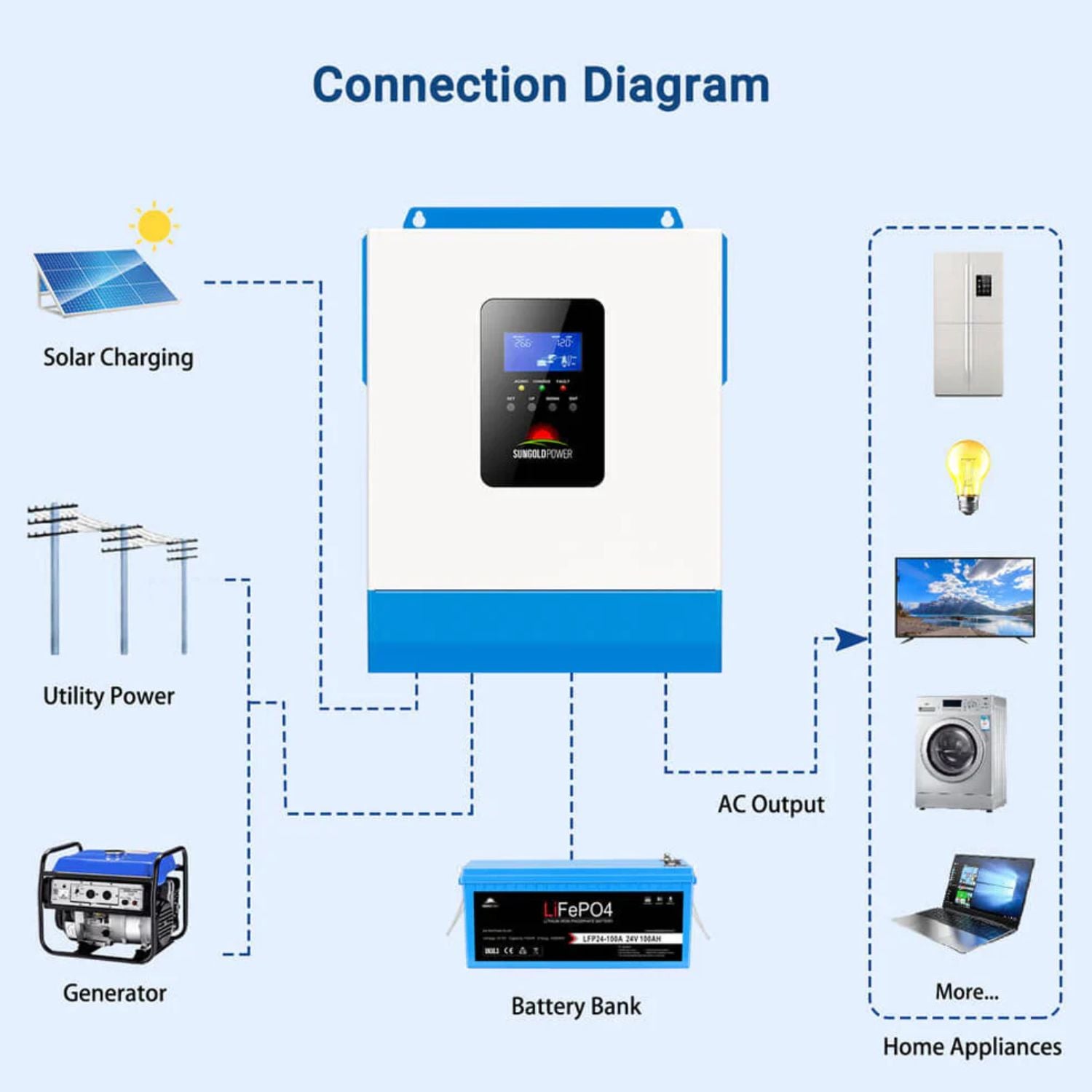

The SunGold Power 3000W 24V Solar Inverter Charger combines a 3000W pure sine wave inverter, an MPPT solar charge controller and a 40A AC charger in one compact, transformer-less unit. It runs on a 24V battery bank and supplies 120V AC power, with a 10ms switch to battery when grid or generator power drops.

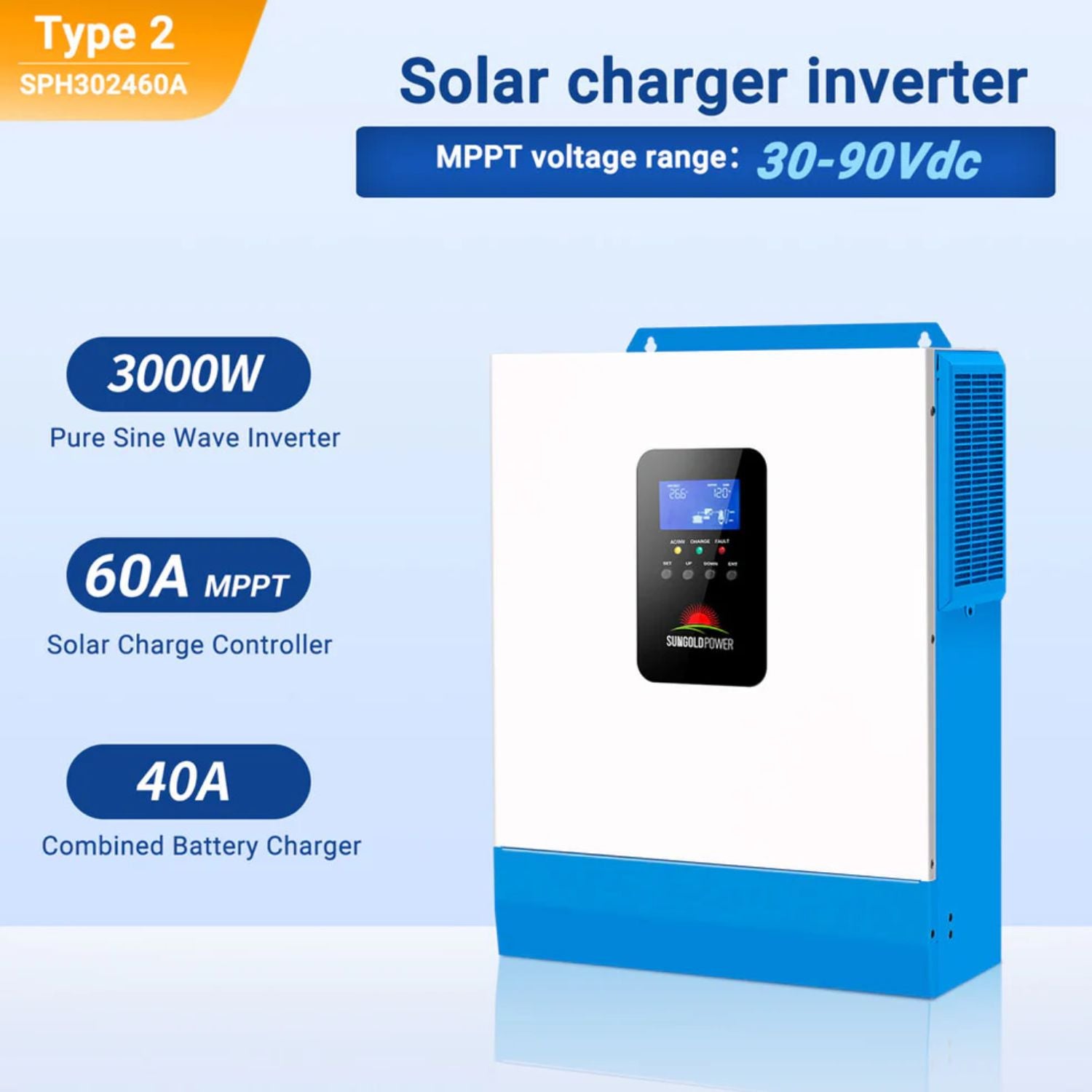

It comes in two SunGold models. The SPH302480A has an 80A MPPT controller for high-voltage arrays from 120 to 450V. The SPH302460A has a 60A MPPT controller for low-voltage arrays from 30 to 108V. Both suit small off-grid cabins, sheds, workshops and home backup for essential loads.
SunGold Power 3000W 24V Solar Inverter Charger Features
3000W Pure Sine Output With a 6000VA Peak
The inverter delivers 3000W of 120V pure sine wave power with a 6000VA peak and a 2HP loaded motor capability. A switch selects 50Hz or 60Hz output. Pure sine output suits household appliances, power tools and electronics.

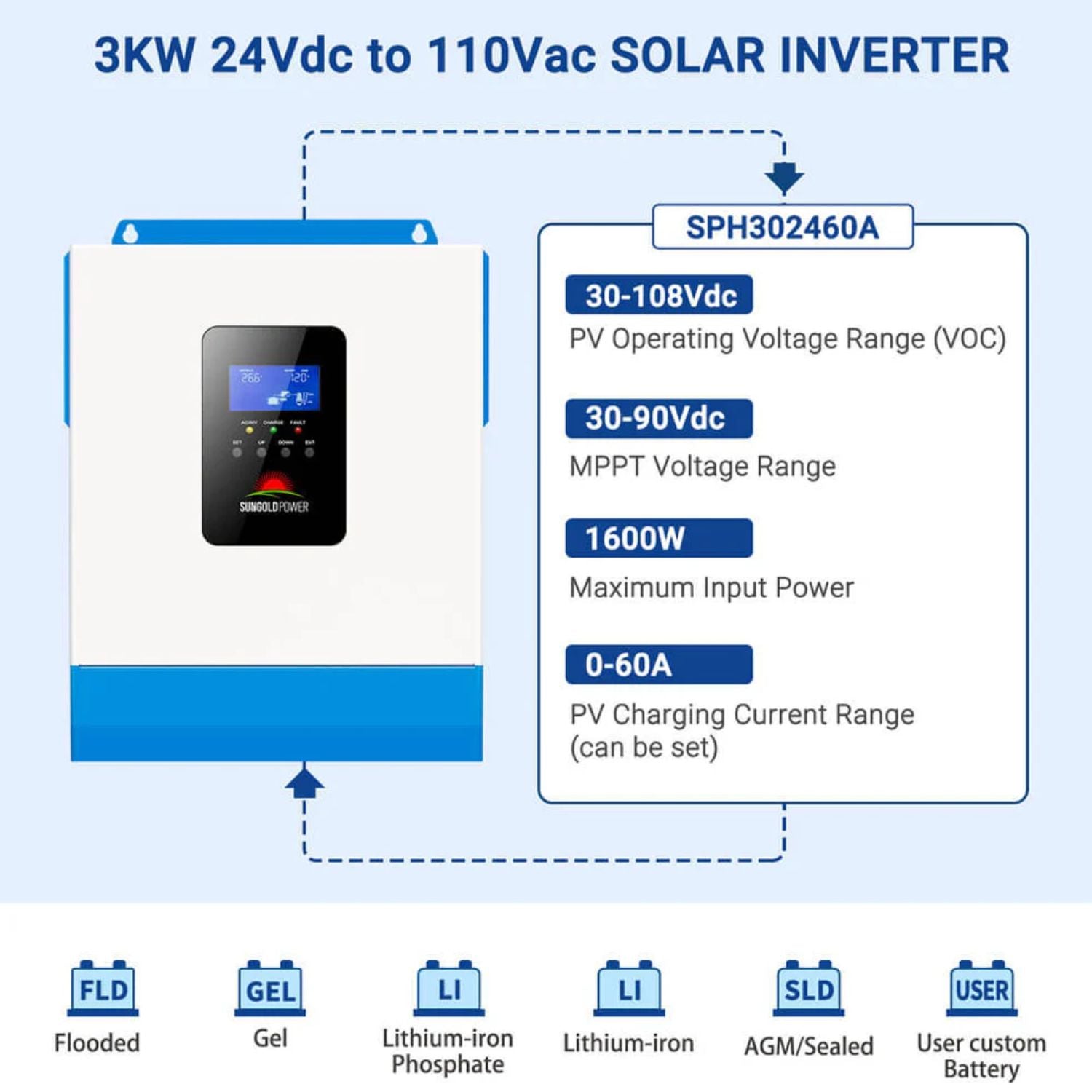

Two MPPT Versions for Different Arrays
The SPH302480A accepts up to 4000W of PV with a 450V open circuit limit and a 120-400V MPPT range, so you can wire panels in long series strings. The SPH302460A accepts up to 1600W with a 108V limit and a 30-90V MPPT range for smaller arrays. Both are rated at 99.9% MPPT efficiency.

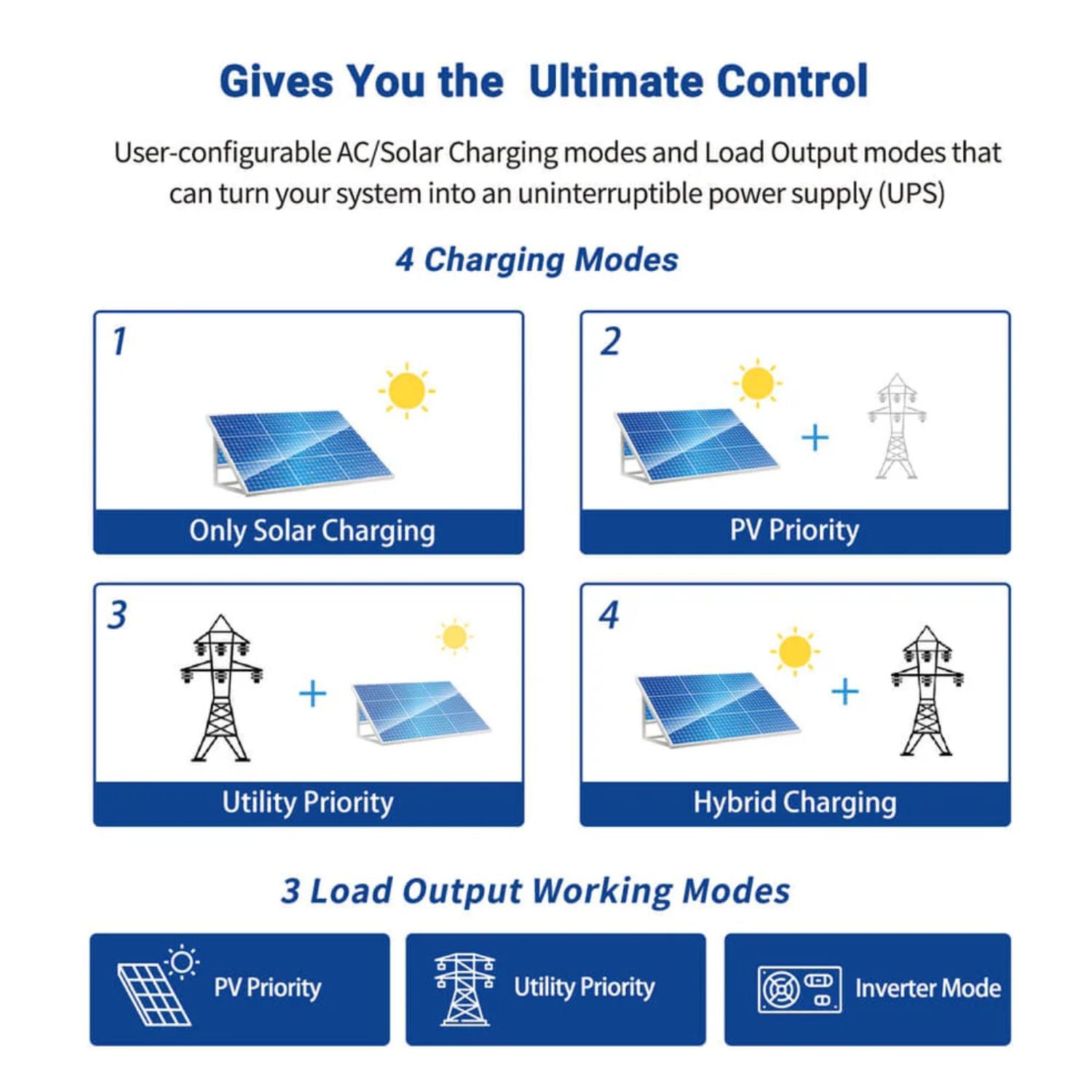

40A AC Charger and Four Charging Modes
The AC charger supplies up to 40A from the grid or a generator. Choose PV priority, mains priority, hybrid or solar only charging. In hybrid mode, the maximum combined charge current is 80A on the SPH302480A and 100A on the SPH302460A.
UPS Function With a 10ms Switch
Three output modes (PV priority, mains priority and inverter priority) decide where loads draw power. If grid power fails or solar is not enough, the inverter switches to the battery within 10ms so connected electronics keep running.
Works With Lead-Acid and Lithium Batteries
The unit supports 24V AGM or sealed, gel, flooded and lithium batteries, plus a user mode for custom settings. PV or grid power can activate a sleeping lithium battery, and the charge voltage range is 20-33V.
Generator Auto-Start and Optional Monitoring

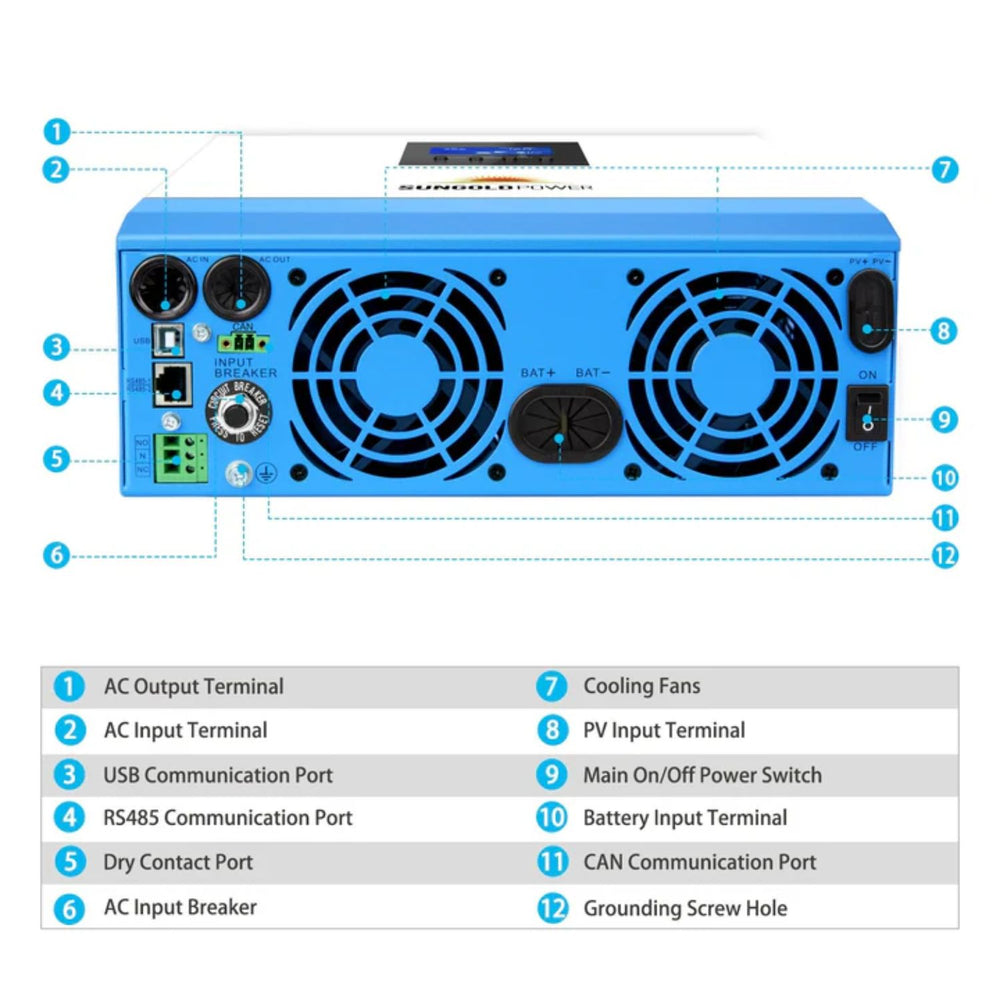

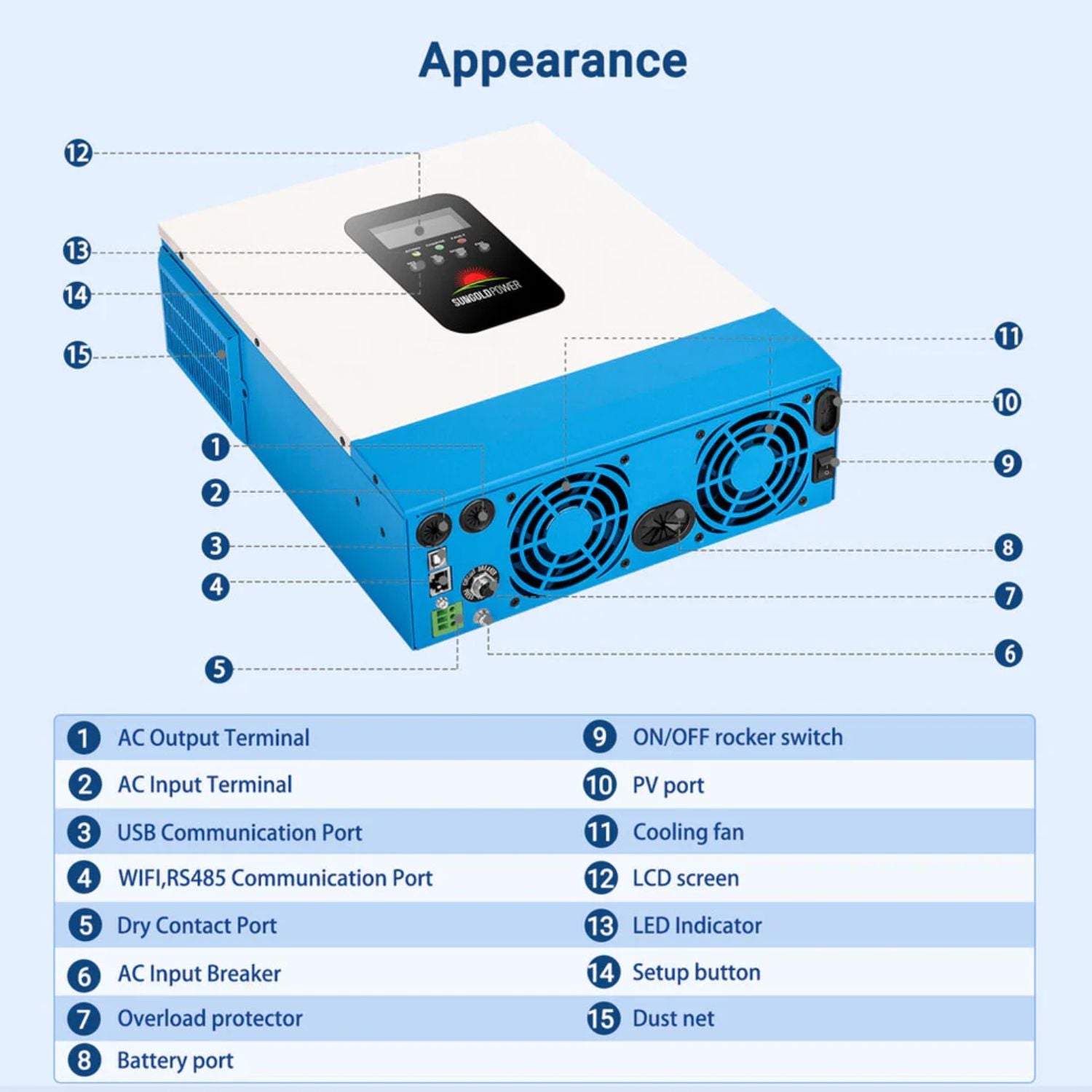

A dry contact can send a signal to start and stop a generator for battery charging. Optional Wi-Fi or GPRS monitoring modules connect through the RS485 port, and a USB port is also built in.
Power Saver Mode and Protection
Idle draw is 50W, or 25W in power saver mode. Protection covers short circuit, over-voltage, under-voltage, overload, over-discharge and reverse polarity.
Real-World Applications
Small off-grid cabins. Run lights, a refrigerator and electronics from solar and a 24V bank.
Sheds and workshops. Power 120V tools and lighting away from the main panel.
Home backup for essentials. Keep a refrigerator, lights and electronics on during outages, with the grid recharging the battery when it returns.
Generator-assisted systems. Let the dry contact start a generator when the battery needs charging.
How It Compares to Common Alternatives
SPH302480A versus SPH302460A. Pick the SPH302480A for higher-voltage series strings up to 4000W and 80A of solar charging. Pick the SPH302460A for a low-voltage array of up to 1600W, with 60A of solar charging.
Versus separate components. One unit replaces an inverter, an MPPT charge controller, an AC charger and a transfer switch, with one display and one settings menu.
Versus a portable power station. A power station has its battery built in. This unit connects to a 24V battery bank you size yourself, so capacity can grow with the bank.
Is This 24V Inverter Charger the Right Fit
-
Battery bank. Requires a 24V bank (minimum start voltage 22V). SunGold's manuals call for 2 AWG battery cable and a 2P-160A breaker.
-
Solar array. Match the model to your string voltage: 120-450V for the SPH302480A, 30-108V for the SPH302460A.
-
AC power. 120V output and 110V input (90-140VAC range) with a 40A bypass breaker. It does not supply 240V.
-
Certification. SunGold provides a UL1741 certificate for the SPH302460A.
-

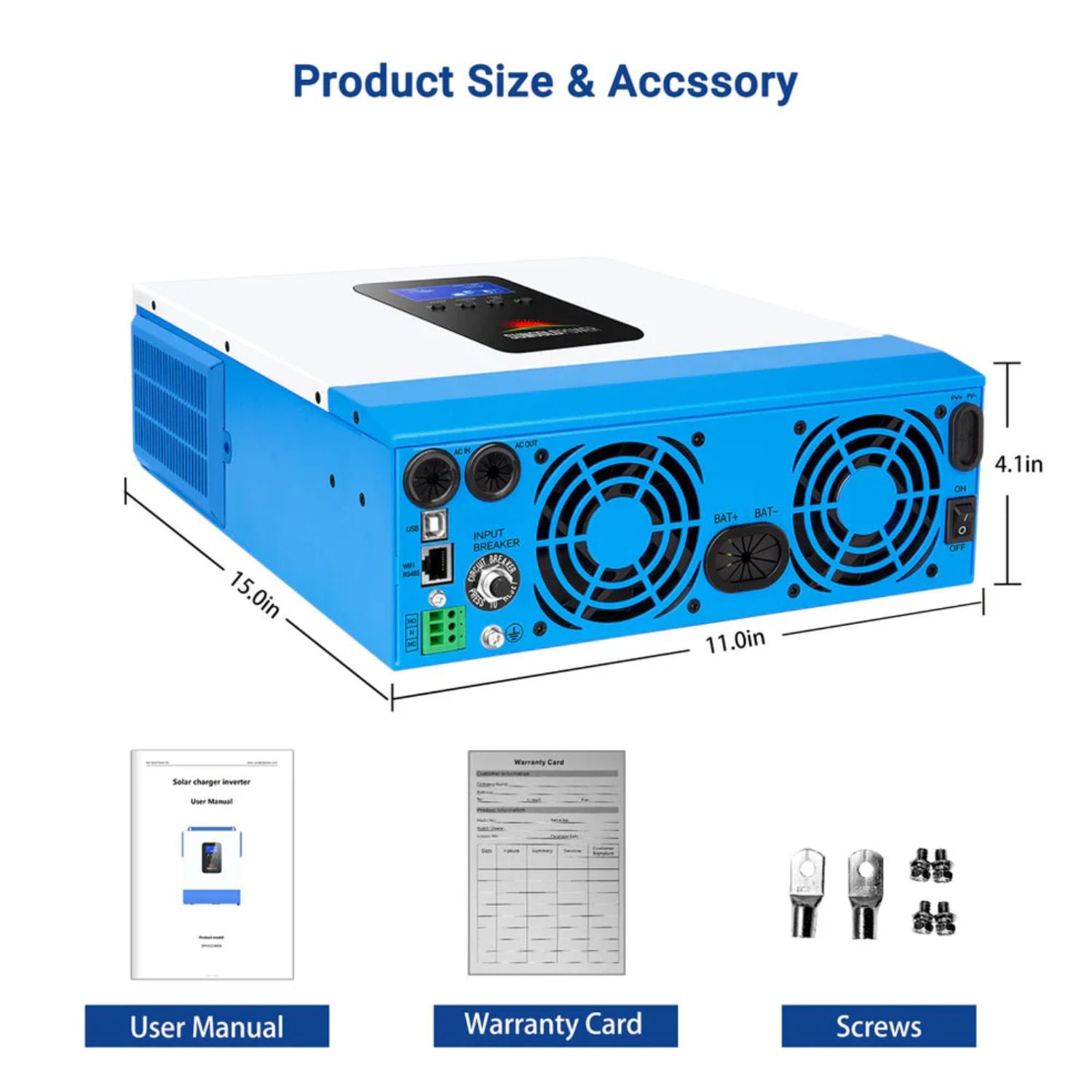

Size and weight. 15.0 x 11.0 x 4.1 inches. 16.8 lbs for the SPH302480A and 15.0 lbs for the SPH302460A.
This may be a good fit if
- You need up to 3000W of 120V power
- You run a 24V lead-acid or lithium bank
- You want solar and grid charging in one unit
- You want automatic generator starting
Common Questions
Which Version Should I Choose?
It depends on your array. If your panels are wired in series to 120V or more, choose the SPH302480A. If your array runs between 30 and 108V, choose the SPH302460A.
Can It Start a Generator Automatically?
Yes. The dry contact can switch a generator on to charge the battery and off again when charging is done.
Can It Run Without Grid Power?
Yes. With no grid or generator connected, the system runs normally and the battery and solar panels power the loads.
Does It Work With Lithium Batteries?
Yes. It supports lithium and lead-acid batteries, and grid or solar power can wake a lithium battery that has gone to sleep.
What's Included
SPH302480A [PV120-450V / MPPT120-400V]
- 1 x SunGold Power 3000W 24V Solar Inverter Charger (SPH302480A)
SPH302460A [PV30-108V / MPPT30-90V]
- 1 x SunGold Power 3000W 24V Solar Inverter Charger (SPH302460A)
A Compact Hub for Small 24V Solar Systems
The SunGold Power 3000W 24V Solar Inverter Charger brings 3000W of 120V pure sine power, MPPT solar charging and a 40A AC charger together in one unit, with a model for high- or low-voltage arrays. At Outbound Power, we help customers pick the right version, size 24V battery banks and plan solar strings. If you have questions, our team is happy to help.
SunGold Power 3000W 24V Solar Inverter Charger Specifications
|
| Models |
SPH302480A (80A MPPT) / SPH302460A (60A MPPT) |
| Inverter Mode |
| Rated Output Power |
3000W |
| Output |
Pure Sine Wave |
| Peak Power |
6000VA |
| AC Output |
120VAC, 50Hz/60Hz |
| Loaded Motor Capability |
2HP |
| Rated Battery Voltage |
24VDC (minimum start-up voltage 22V) |
| Bypass Breaker Current |
40A |
| Idle Power |
50W |
| Power Saver Mode Idle Consumption |
25W |
| SPH302480A MPPT Solar Charging |
| Maximum Input Power |
4000W |
| PV Charging Current |
0-80A |
| Max. PV Open Circuit Voltage |
450V |
| PV Operation Voltage Range |
120-450VDC |
| MPPT Voltage Range |
120-400VDC |
| Recommended PV Wire |
12 AWG |
| SPH302460A MPPT Solar Charging |
| Maximum Input Power |
1600W |
| PV Charging Current |
0-60A |
| Max. PV Open Circuit Voltage |
108V |
| PV Operation Voltage Range |
30-108Vdc |
| MPPT Voltage Range |
30-90Vdc |
| AC Charging Mode |
| Rated AC Input |
110V, 50Hz/60Hz |
| Input Voltage Range |
90VAC-140VAC |
| Conversion Time |
10ms |
| Battery Type |
Lead acid and lithium battery |
| Maximum Charging Current |
40A |
| Charging Voltage Range |
20-33VDC |
| Max. Hybrid Charging Current (AC + PV) |
SPH302480A: 0-80A / SPH302460A: 0-100A |
| Short-Circuit Protection |
Breakers and fuses |
| Overcharge Protection |
Automatically alerts and turns off charging after 1 min |
| General |
| MPPT Efficiency |
99.9% |
| Communication |
SPH302480A: USB / CAN / RS485 (Wi-Fi/GPRS) / Dry contact; SPH302460A: USB / RS485 (Wi-Fi/GPRS) / Dry contact |
| Generator Auto-Start |
Dry contacts |
| Size |
15.0 x 11.0 x 4.1 in |
| Net Weight |
SPH302480A: 16.8 lbs / SPH302460A: 15.0 lbs |
| Noise |
≤60dB |
| Operating Temperature Range |
-10°C to 55°C |
| Cooling Fan |
Yes |
| Certification |
SPH302460A: UL1741 certificate of compliance |
