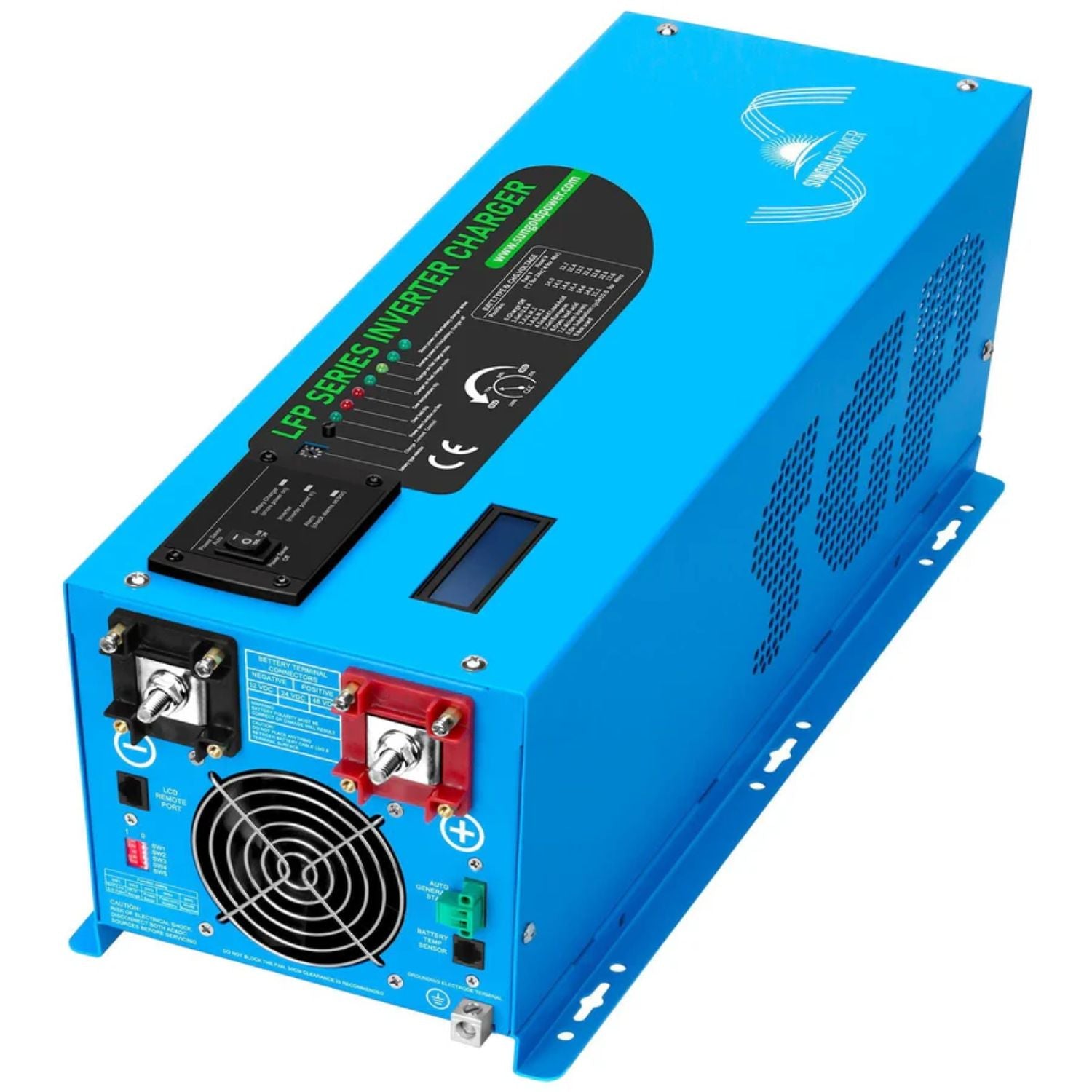

The SunGold Power 3000W DC 24V Pure Sine Wave Inverter With Charger Brings 3000 Watts of 120V Output and a 40A Charger to 24V Battery Banks
The SunGold Power 3000W DC 24V Pure Sine Wave Inverter With Charger converts 24V DC from your battery bank into 3000W of 120VAC pure sine wave power. The same LFP Series case holds a 40A battery charger and an automatic AC transfer switch, so one unit handles inverting, charging and switching between shore or grid power and the battery.
It suits RVs, trailers, motorhomes, truck campers, boats and backup or off-grid systems built on 24V. Compared with a 12V setup at the same wattage, SunGold specifies a lighter minimum DC cable for this model, which can simplify the run from the battery bank.
SunGold Power 3000W DC 24V Pure Sine Wave Inverter With Charger Features

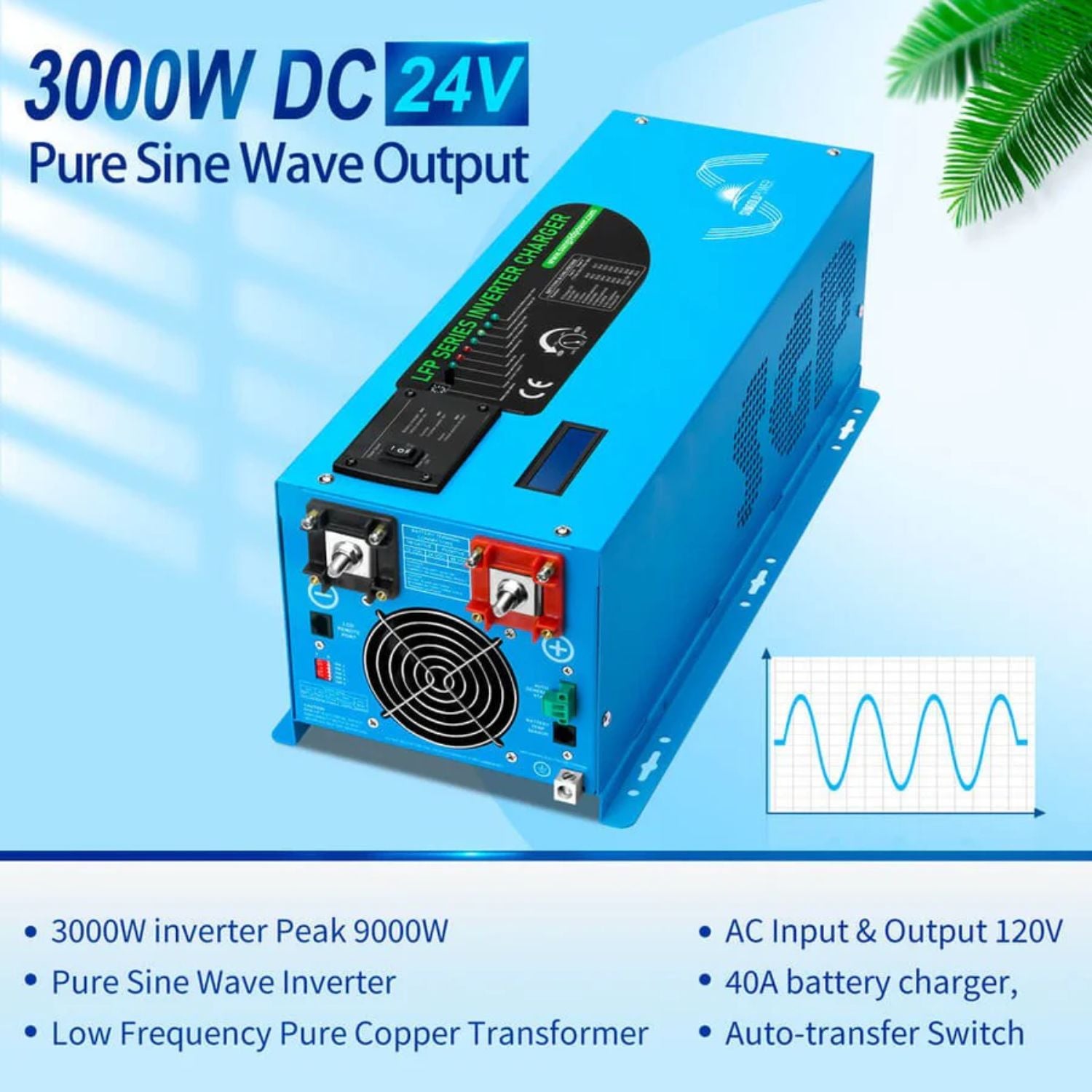

3000W Continuous and 9000W Surge
The inverter delivers 3000W continuously and boasts a 300% surge capacity of 9000W for 20 seconds. SunGold rates it to start a 3HP motor, so tools and equipment with high start-up current keep running longer.
40A Multi-Stage Charger

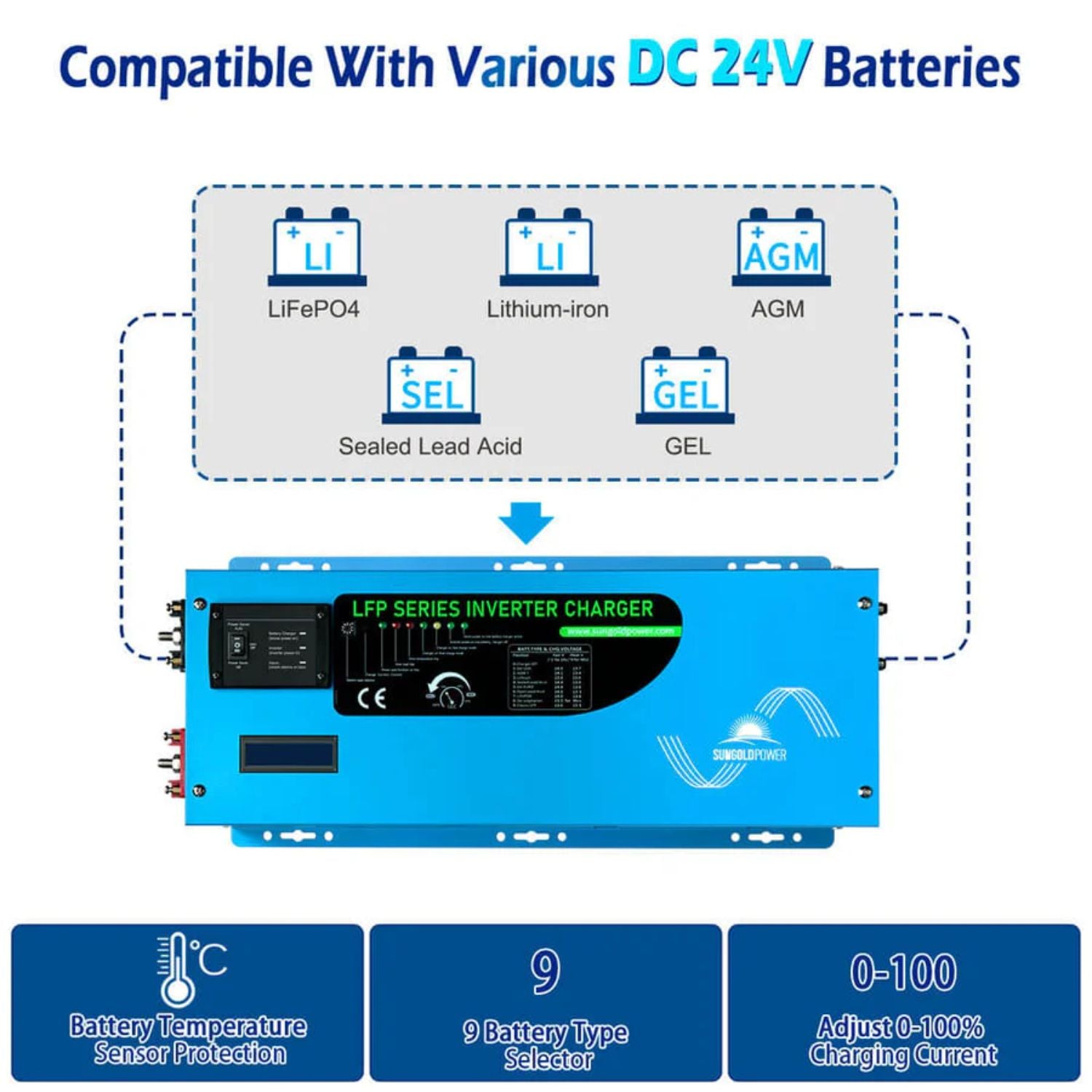

When AC is present, the built-in charger refills the 24V bank at up to 40A. A linear switch adjusts the maximum from 0% to 100%, and nine battery type settings cover gel, AGM, sealed lead acid, lithium and LiFePO4. Setting the selector to 0 turns the charger off if another charger handles the bank.
Low Battery Protection You Can Set
The low battery alarm sounds between 21.0Vdc and 22.0Vdc, and the trip point is set at 20.0Vdc or 21.0Vdc with SW1. After a low voltage shutdown, the inverter restarts on its own once the battery recovers to 26Vdc, with the power switch left on.
Conformal Coated Electronics
SunGold describes this model as marine coated and protected. The PCB carries a conformal coating that makes it water, rust and dust resistant and helps it withstand corrosion from salty air. The unit is not splash proof, so it still belongs in a dry location.

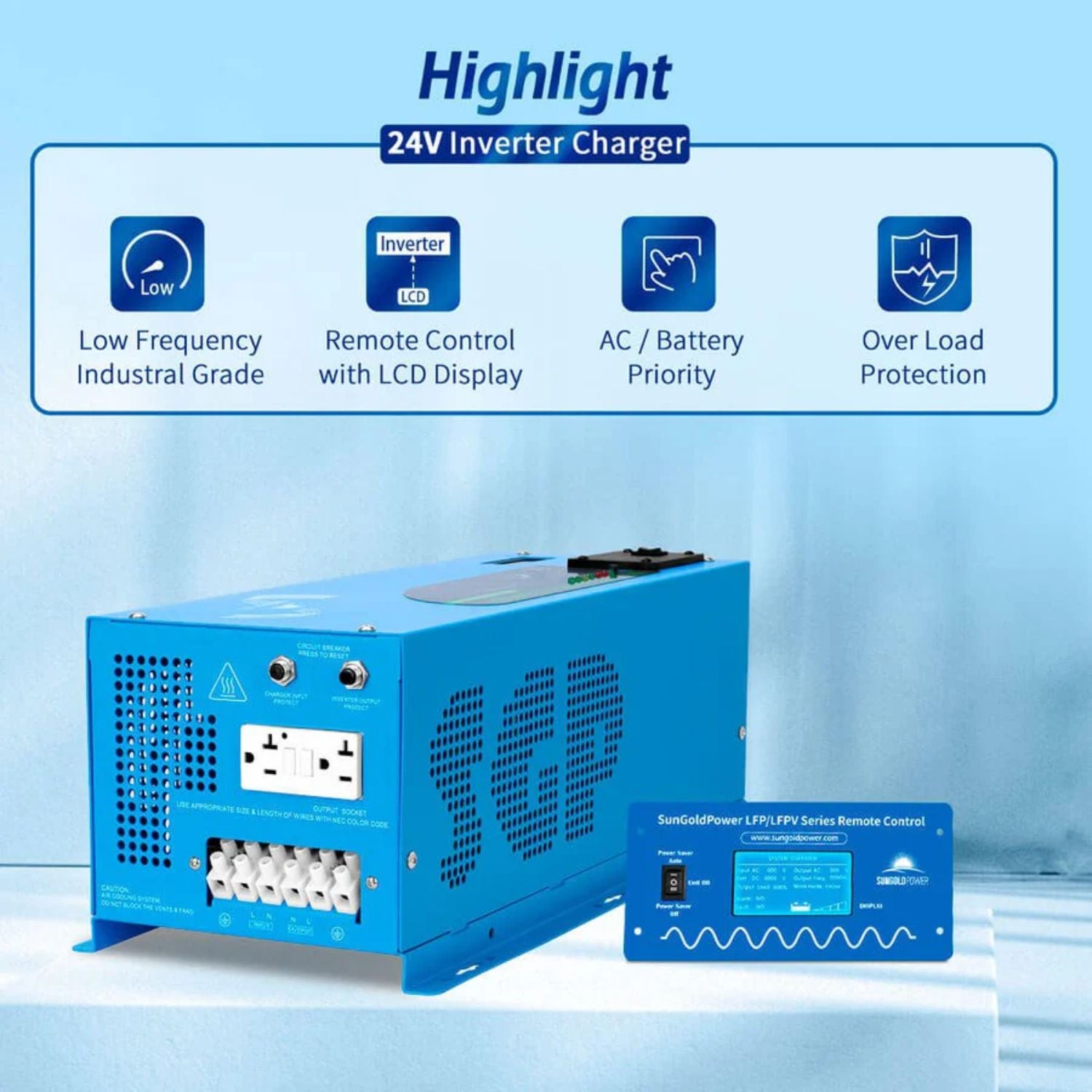

GFCI Outlet, LCD and Remote Control
A GFCI socket adds outlet protection, the LCD shows input, output and battery status, and the included remote control lets you switch modes from a distance.
Fast Automatic Transfer
When AC input fails, the inverter takes over the loads with a typical transfer time of 10ms or less. When AC returns, a 15-second delay lets a generator stabilize. On 120V single phase models like this one, an internal relay bonds output neutral to ground in inverter mode and opens it when external AC is connected.
Real-World Applications
24V RVs and motorhomes. Power 120V appliances and outlets from a 24V house bank, and recharge from shore power through the same unit.
Boats. The coated circuit board helps in salty air, as long as the inverter is mounted out of spray.
Backup power. Keep essential circuits running through outages, with the charger topping up the bank when the grid returns.
Off-grid cabins. Use battery priority to run from the bank and fall back on generator or utility power when voltage drops.
How It Compares to Common Alternatives
Versus the 12V version of this inverter. Both are rated 3000W with a 9000W surge. SunGold's manual lists a 90A charger and AWG4/0 minimum cable for the 12V version, against 40A and AWG1/0 for this 24V model.
Versus the 4000W 24V model. The 4000W version raises the surge to 12000W, the motor rating to 4HP and the charger to 50A ±5A.
Versus separate components. An inverter, a charger and a transfer switch bought separately need more wiring and space. This unit combines all three behind one display.
Is This 24V Inverter Charger the Right Fit
Battery voltage. It works only with a 24V battery bank, including lithium batteries at 24V.
AC source. 120VAC grid, shore or generator power, within 90 to 135VAC or 100 to 135VAC.
Cabling. SunGold lists AWG1/0 as the minimum DC cable for a 3 meter run. Longer runs need a larger cross section.
Installation. Mount it in a ventilated, dry, dust-free spot close to the batteries.

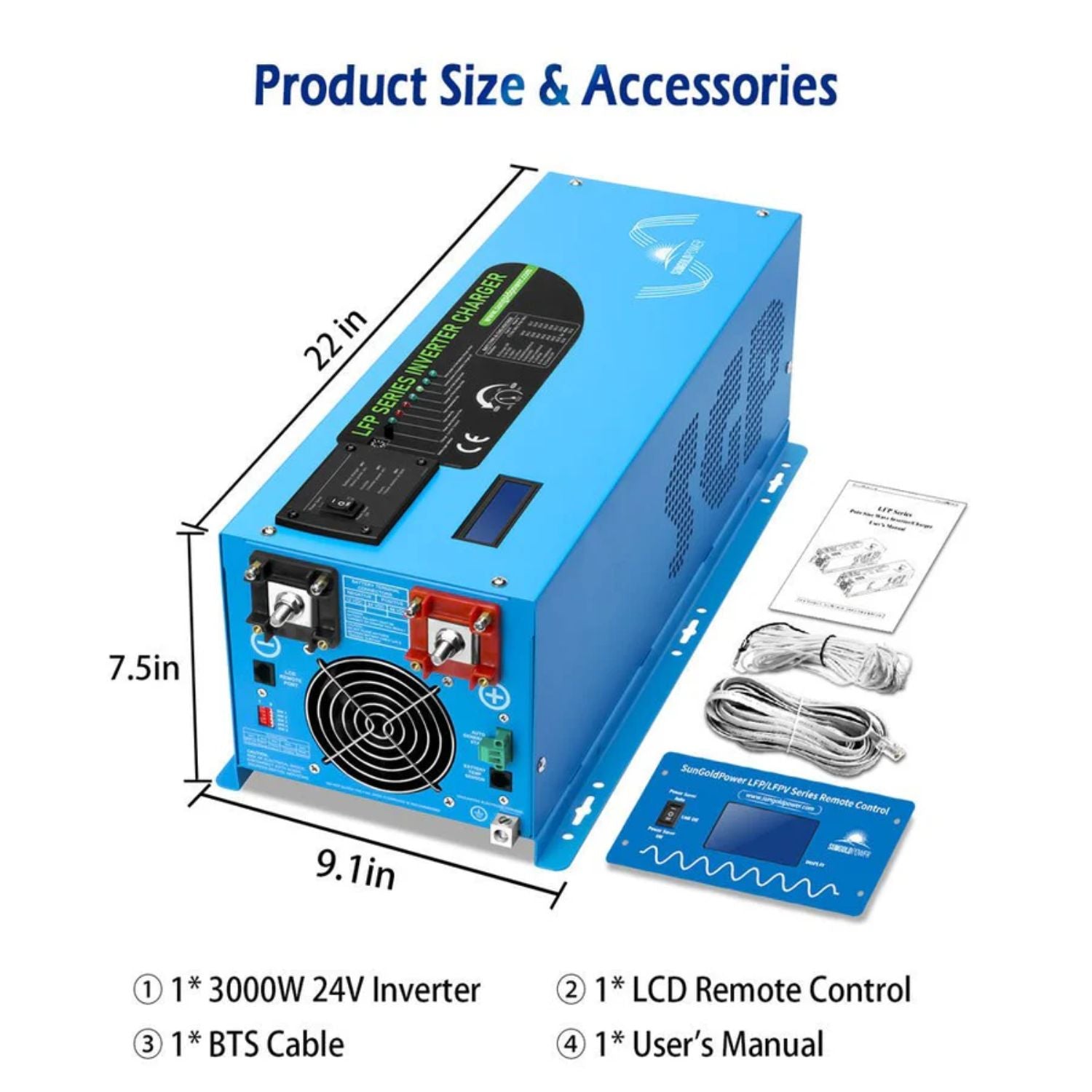

Size. 22.05 x 9.1 x 7.5 inches and 48.5 lb.
This may be a good fit if
Your system runs on a 24V battery bank
Your loads stay within 3000W continuous
You want a GFCI outlet on the unit
You need automatic transfer to battery
Common Questions
Does the Inverter Shut Off at the Low Battery Warning?
It depends on AC. With AC input connected, the inverter starts charging the battery at the low battery alarm until voltage returns to a safe range. Without AC, the alarm sounds at 21V and the inverter shuts down at 20V.
Will It Work With Lithium Batteries?
Yes, as long as the battery bank is 24V.
Do LiFePO4 Batteries Need a Separate BMS?
Normally no. LiFePO4 batteries usually have a built-in BMS, so you do not need to connect another one.
How Long Will It Run on Battery?
Runtime depends mostly on the battery. Battery capacity, power draw and depth of discharge are the keys to estimating it.
What Are the Installation Requirements?
Mount it in a well-ventilated area, keep it close to the batteries to shorten cables and limit voltage drop, and choose a dry, dust-free location.
What's Included
1 x 3000W 24V Low Frequency Pure Sine Inverter (LFP3K24V120VSG)
1 x English Manual
1 x Remote Control
1 x BTS Cable
3000 Watts of 120V Power for 24V Systems
The SunGold Power 3000W DC 24V Pure Sine Wave Inverter With Charger gives a 24V system 3000W of pure sine wave output, a 40A charger and automatic transfer in one coated, wall-mounted unit. At Outbound Power, we help customers plan 24V battery banks, cabling and inverters for RVs, boats and backup power. If you have questions, our team is happy to help.
SunGold Power 3000W DC 24V Pure Sine Wave Inverter With Charger Specifications
Model
LFP3K24V120VSG
Inverter Output
Continuous Output Power
3000W
Surge Rating
9000W (20 seconds)
Capable of Starting Electric Motor
3HP
AC Output Voltage
120VAC
Output Frequency
50Hz or 60Hz (set by SW4)
Output Waveform
Pure sine wave (bypass mode)
Typical Transfer Time
10ms (max)
Nominal Efficiency
>88%
Line Mode Efficiency
>95%
Outlet
GFCI socket
DC Input
Nominal Input Voltage
24.0Vdc
Minimum Start Voltage
20.0Vdc
Low Battery Alarm
21.0Vdc to 22.0Vdc
Low Battery Trip
20.0Vdc to 21.0Vdc (select by SW1)
High Voltage Alarm
32.0Vdc
Low Battery Voltage Restart
26Vdc
Idle Consumption
39W
Power Saver Mode Idle Consumption
16W
Minimum DC Cable (3m Run)
AWG1/0
AC Charger
AC Input Voltage
120VAC
AC Input Range (Grid or Generator)
90V to 135VAC / 100V to 135VAC (select by SW2)
Charger Rate
40A max
Adjustable Charge Current
Off, 0% to 100%
Battery Type Settings
9
Charging
3-step intelligent battery charger
Over Charge Protection Shutdown
31.4V
Charger Breaker Rating
30A
Bypass Breaker Rating
30A
General
Display
LCD
Remote Control
Included
Battery Temperature Sensor
BTS cable included
Circuit Board
Conformal coated
Mounting
Wall mount
Working Temperature
-10°C to 40°C
Unit Weight
48.5 lb
Unit Size
22.05 x 9.1 x 7.5 in
Shipping Weight
57 lb
Shipping Size
26.8 x 13.4 x 13 in
Standard Warranty
1 Year
SunGold Power LFP3K24V120VSG Manual
SunGold Power LFP3K24V120VSG Data Sheet
