The SunGold Power 5000W 48V Solar Charger Inverter Pairs 5000W of 120V Pure Sine Power With Up to 5500W of Solar Input

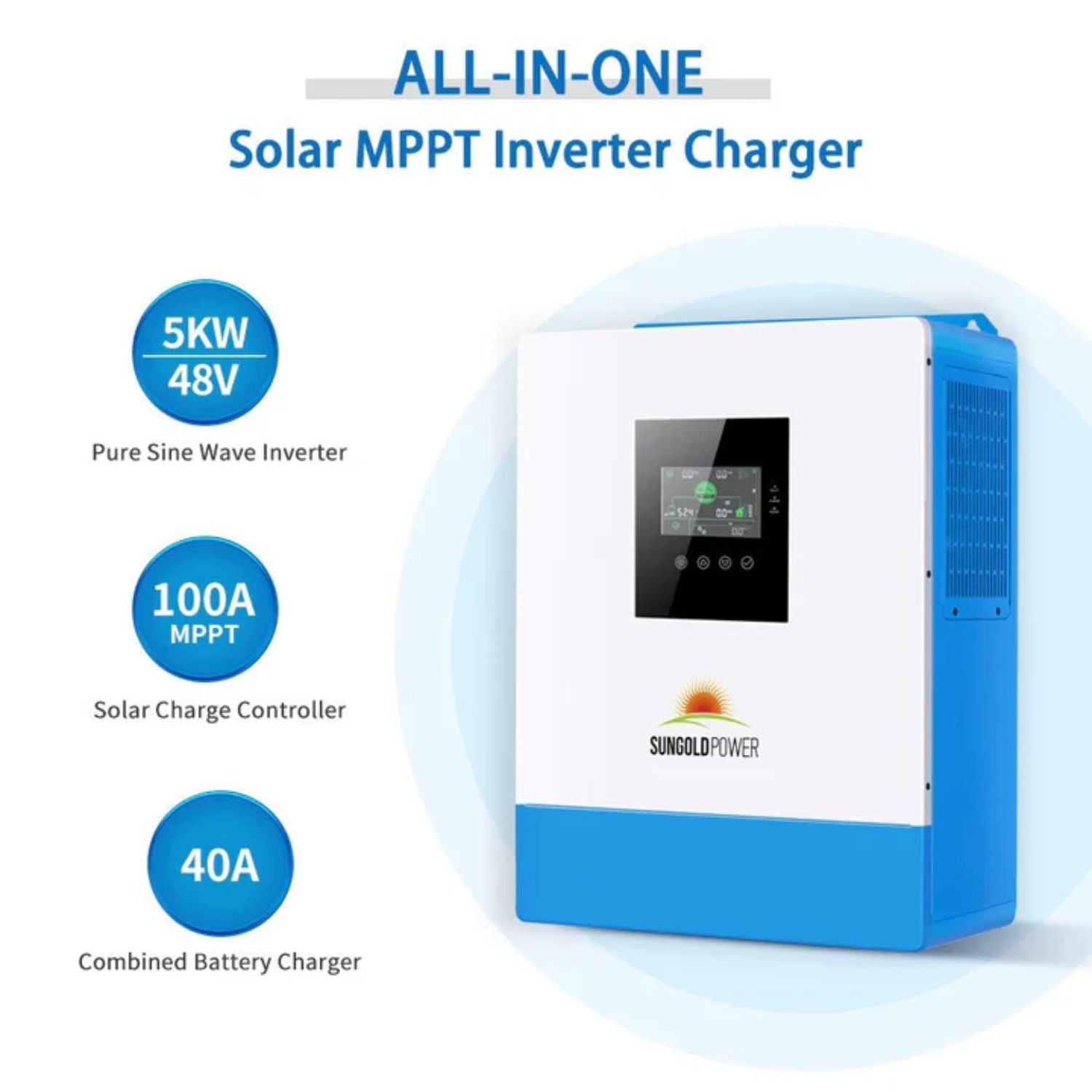

The SunGold Power 5000W 48V Solar Charger Inverter combines a 5000W pure sine wave inverter, an MPPT solar charge controller and a 40A AC charger in one wall-mounted unit. It runs on a 48V battery bank, accepts a solar array of up to 5500W at up to 500V, and supplies 120V AC power.
It comes in two SunGold models. The SPH504880A is a single, standalone unit with an 80A MPPT controller. The SPH5048P has a 100A MPPT controller and can run in parallel with up to five more units for split phase or three-phase systems. Both suit cabins, home backup, workshops and RVs.
SunGold Power 5000W 48V Solar Charger Inverter Features
5000W Pure Sine Output With a 10000VA Peak
Both models deliver 5000W of rated output at 120Vac, adjustable to 100, 105 or 110Vac, with a 10000VA peak and a 4HP loaded motor capacity. SunGold lists refrigerators, computers, televisions, ovens and air conditioners among the loads it can power.
Up to 5500W of Solar on a 500V Input
The MPPT input accepts up to 500Vdc open circuit, with a 120-450Vdc MPPT range and 5500W of maximum PV input. Solar charging reaches 80A on the SPH504880A and 100A on the SPH5048P. A high-voltage input lets you wire more panels in series.
40A AC Charger for Grid or Generator
The built-in AC charger is adjustable from 0 to 40A and works with lead acid or lithium batteries. With solar and AC charging together, the maximum charge current is 80A on the SPH504880A and 100A on the SPH5048P.
Uninterrupted Power With a 10ms Transfer
When grid or generator power drops, the inverter switches between bypass and battery power in a typical 10ms. A 63A bypass breaker protects the AC pass-through.
Parallel Operation on the SPH5048P

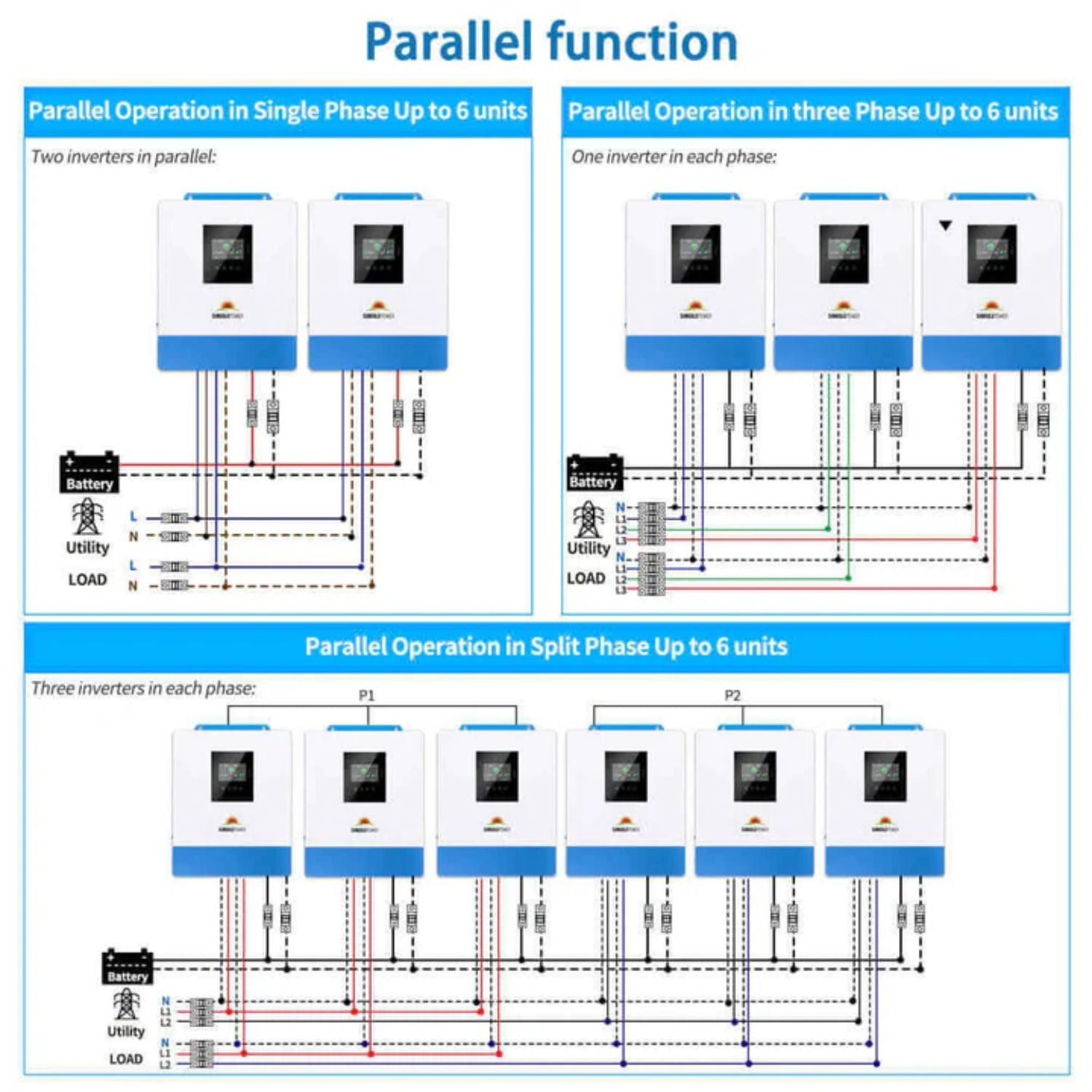

Up to six SPH5048P units can be paralleled for 30kW. Two or more units can supply 120/240V split phase, and three or more can supply 208V three-phase. Each SPH5048P comes with a DB15 parallel communication line and a current sharing detection line. The SPH504880A is not parallel capable.
Battery Support and BMS Communication

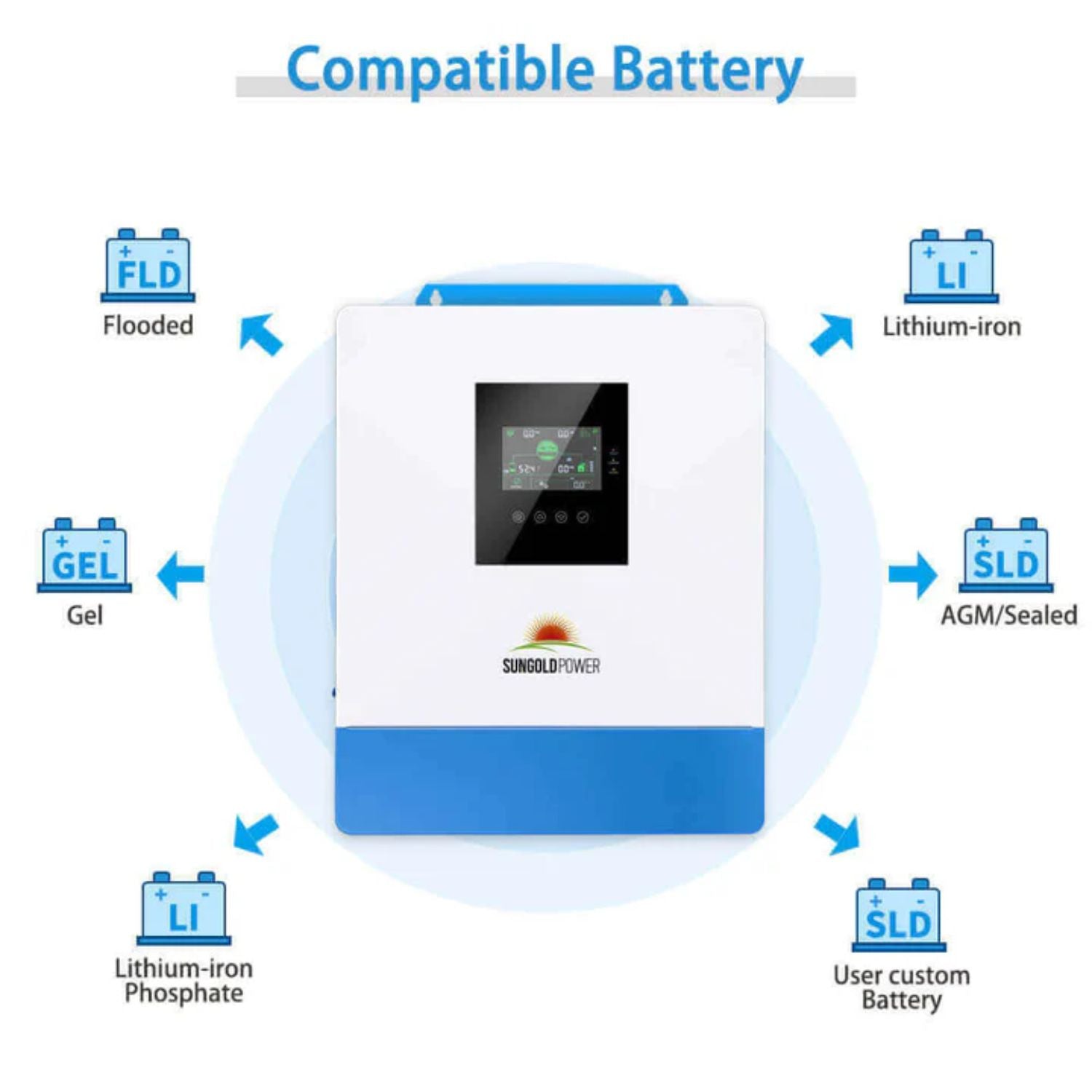

The inverter works with 48V AGM or sealed, gel, flooded and lithium batteries, plus a user mode for custom settings, with a 40-60V charging range. An RS485 port connects to a lithium battery BMS, and PV or grid power can activate a sleeping lithium battery.
Power Saving Mode and Protection
Power saving mode cuts idle draw to 20-25W, compared with 45-50W with it off. Protection covers overload, output short circuit, over-voltage, under-voltage and reverse polarity, and a variable speed fan handles cooling.
Real-World Applications

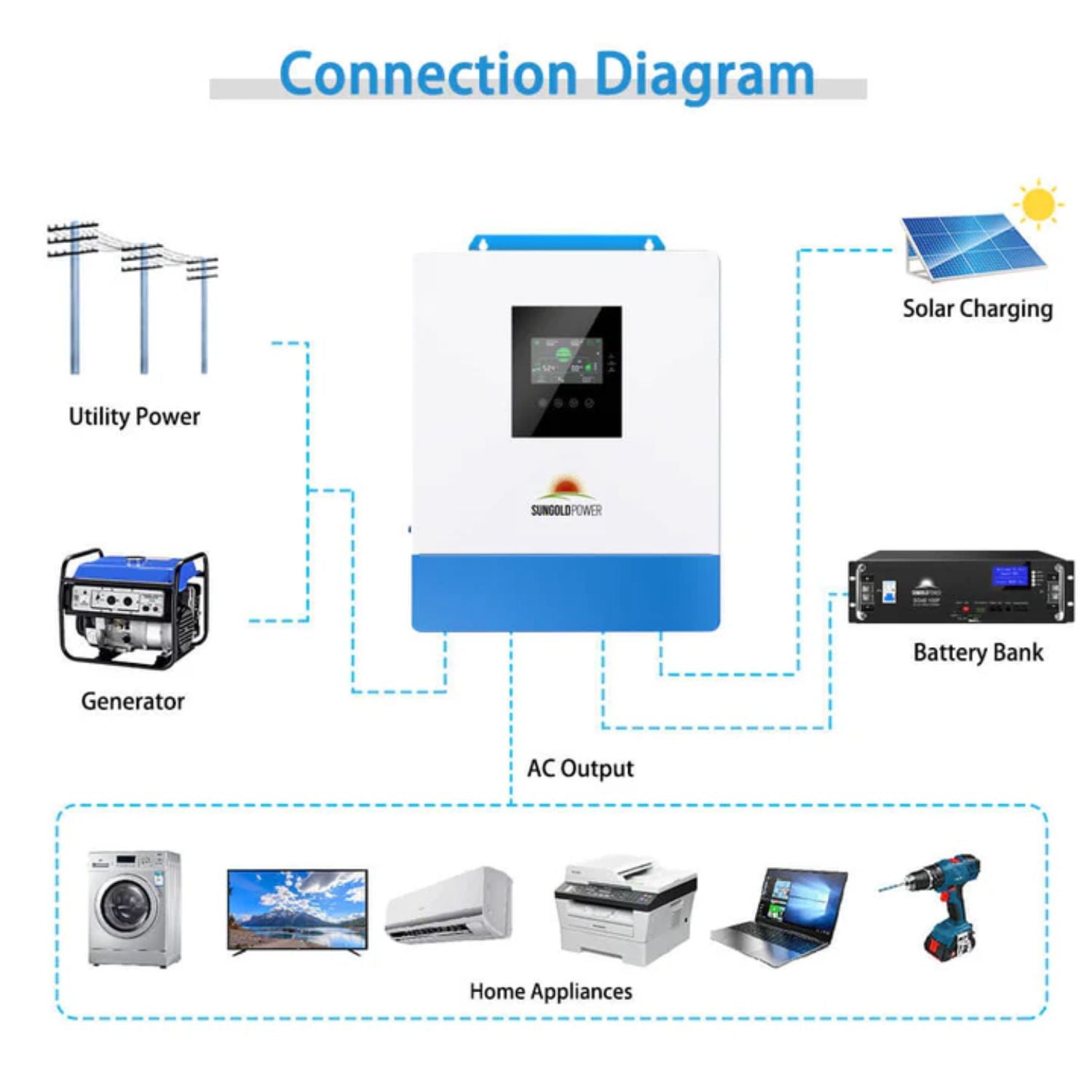

Cabins and off-grid homes. Run 120V loads from solar and a 48V bank, with a generator for backup charging.
Home backup. Keep refrigerators, lights and electronics on during outages, with the grid recharging the battery when it returns.
Workshops and outbuildings. Power tools and lighting from a solar array and battery bank.
Larger systems built in steps. Start with one SPH5048P and add units for more power or 240V output.
How It Compares to Common Alternatives

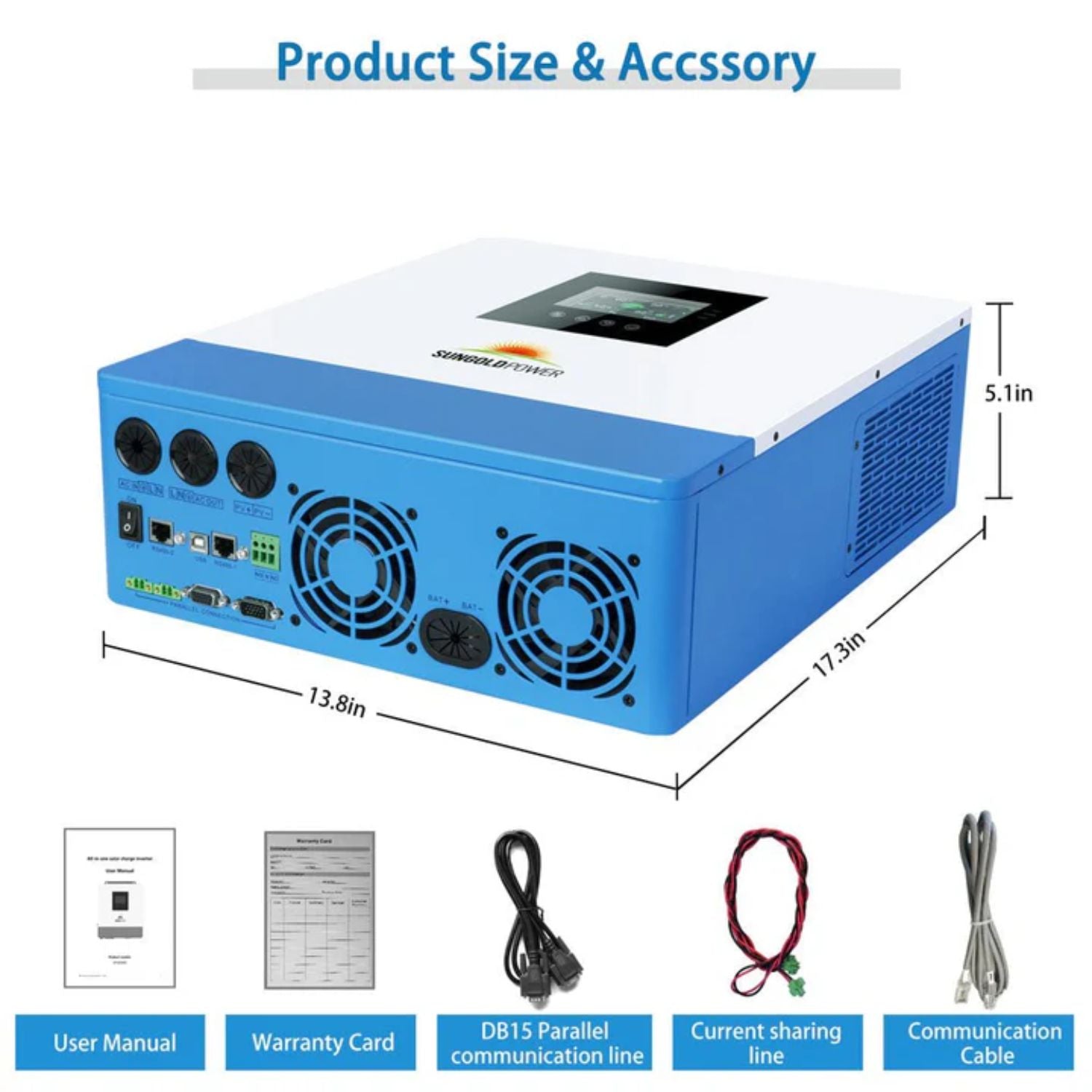

SPH504880A versus SPH5048P. Both share the 5000W inverter, 500V solar input and 40A AC charger. The SPH5048P adds 100A solar charging and parallel operation, and it measures 17.3 x 13.8 x 5.1 inches at 28.66 lbs. The SPH504880A is smaller at 16.77 x 12.68 x 4.96 inches and 25.35 lbs.
Versus SunGold's 3000W 24V model (SPH302480A). That model runs on a 24V battery with 3000W of output and 4000W of solar at up to 450V. The 5000W models move to a 48V bank with more output and solar capacity.
Versus a split phase inverter. A single unit of either model supplies 120V only. For 240V loads, plan on two or more SPH5048P units in parallel.
Is This Solar Charger Inverter the Right Fit
-
Battery bank. Requires a 48V bank within 40-60Vdc. Minimum start voltage is 44V.
-
Solar array. Up to 500Vdc open circuit and 5500W, within a 120-450Vdc MPPT range.
-
AC input. 110/120Vac grid or generator, 90-140Vac range.
-
Multi-unit options. The 2, 3 and 6 inverter options are quantities of the SPH504880A, which SunGold lists as not parallel capable. For a paralleled system, choose the SPH5048P.
-
Certification. SunGold lists UL1741 certification for both models.
This may be a good fit if
- You need 5000W of 120V power
- You run a 48V lithium or lead-acid bank
- You have a high-voltage solar string
- You may grow into a parallel system
Common Questions
What Appliances Can a 5000W Inverter Power?
Home appliances, heating and cooling devices, LED lighting, electronics, power tools and RV loads, as long as the total stays within its rating.
Can These Inverters Be Used in Parallel?
Only the SPH5048P. Up to six units can be paralleled for 30kW in 120V single phase, 120/240V split phase or 208V three-phase. The SPH504880A cannot be paralleled.
Which Charging Modes Are Available?

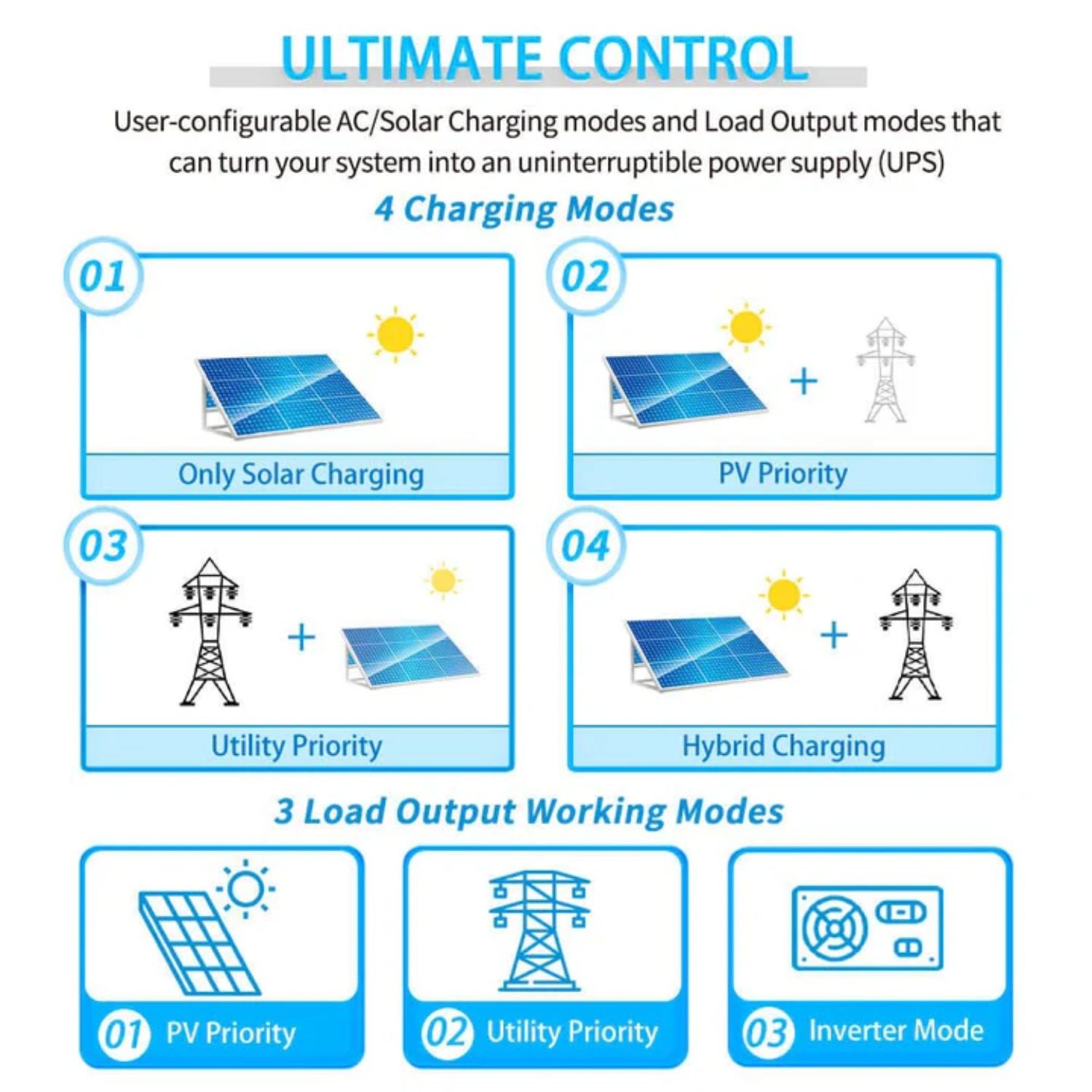

The SPH504880A offers solar only, mains priority, solar priority and hybrid charging. The SPH5048P offers hybrid and solar only charging, plus time slot control to set grid and battery priority around peak and valley tariffs.
What Protections Are Built In?
The inverter alarms or shuts off for overload, over-temperature, short circuit, low voltage, over-voltage and reverse polarity.
What's Included
5000W | 80A MPPT

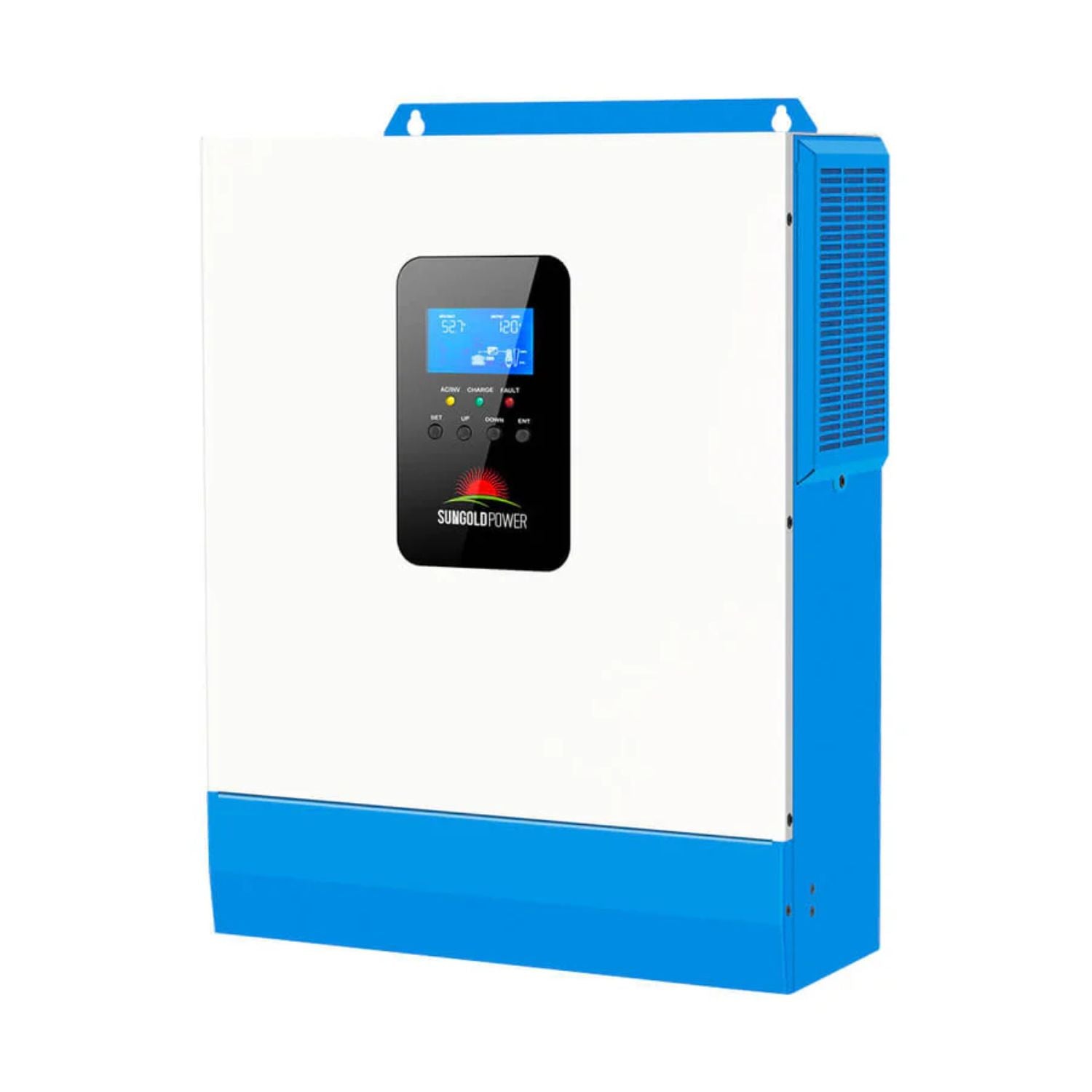

- 1 x SunGold Power 5000W 48V Solar Charger Inverter (SPH504880A)
5000W | 100A MPPT | Parallel-Ready
- 1 x SunGold Power 5000W 48V Solar Charger Inverter (SPH5048P)
- 1 x DB15 Parallel Communication Line
- 1 x Current Sharing Detection Line

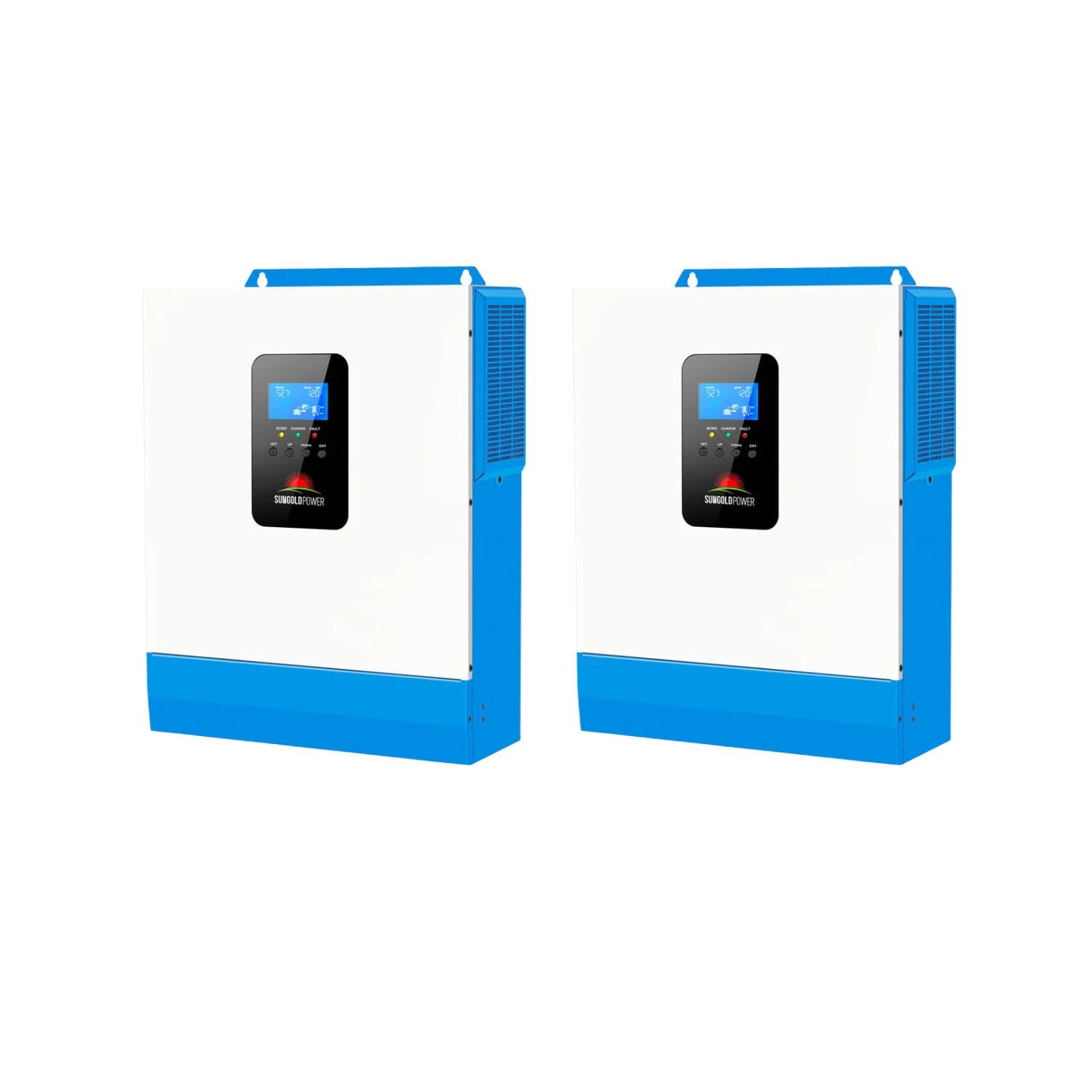

2 Inverters Option

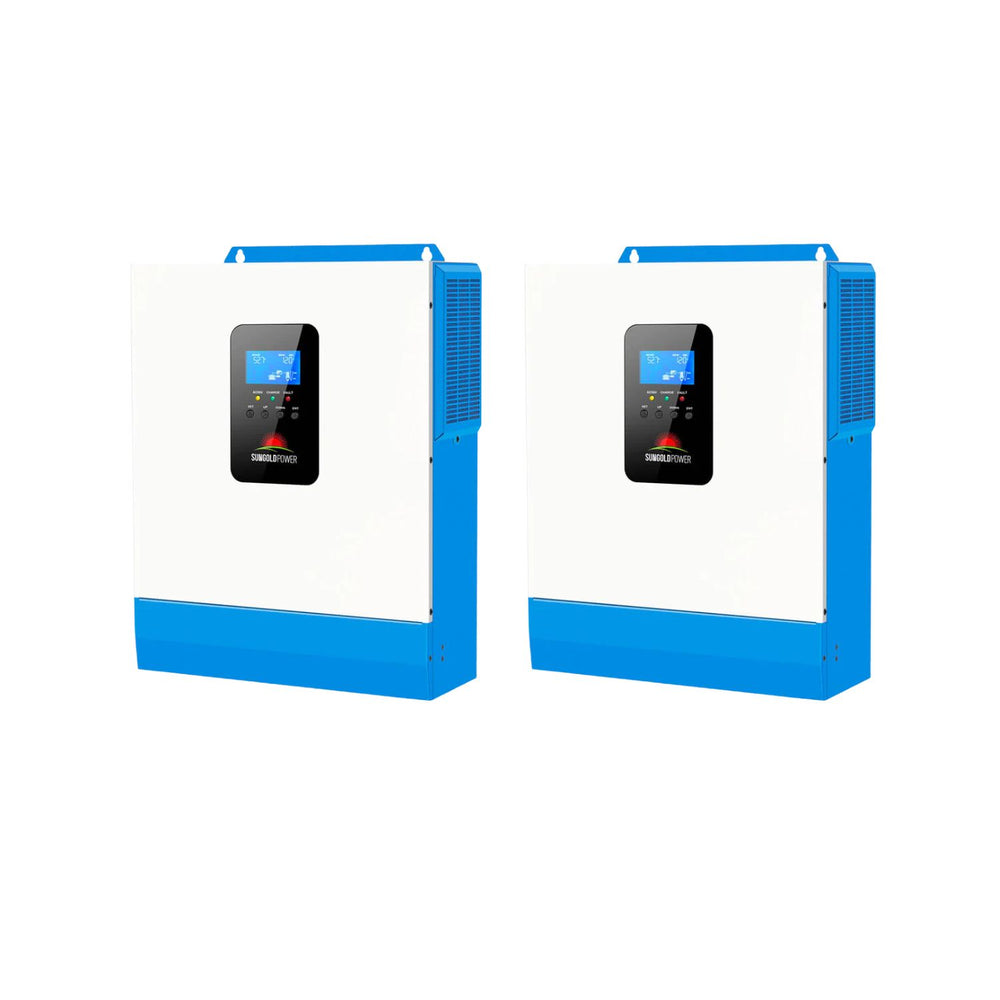

- 2 x SunGold Power 5000W 48V Solar Charger Inverter (SPH504880A)
3 Inverters Option

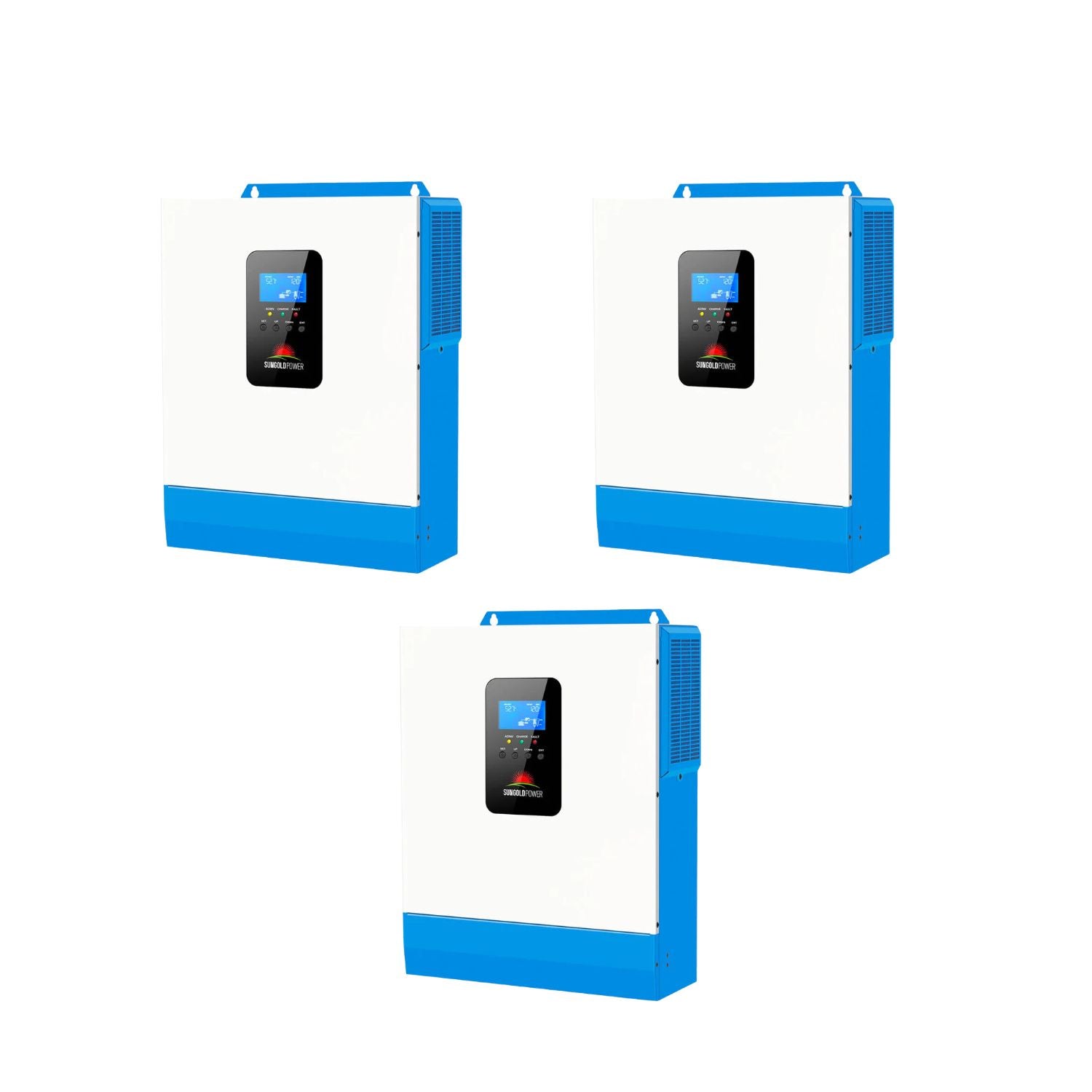

- 3 x SunGold Power 5000W 48V Solar Charger Inverter (SPH504880A)

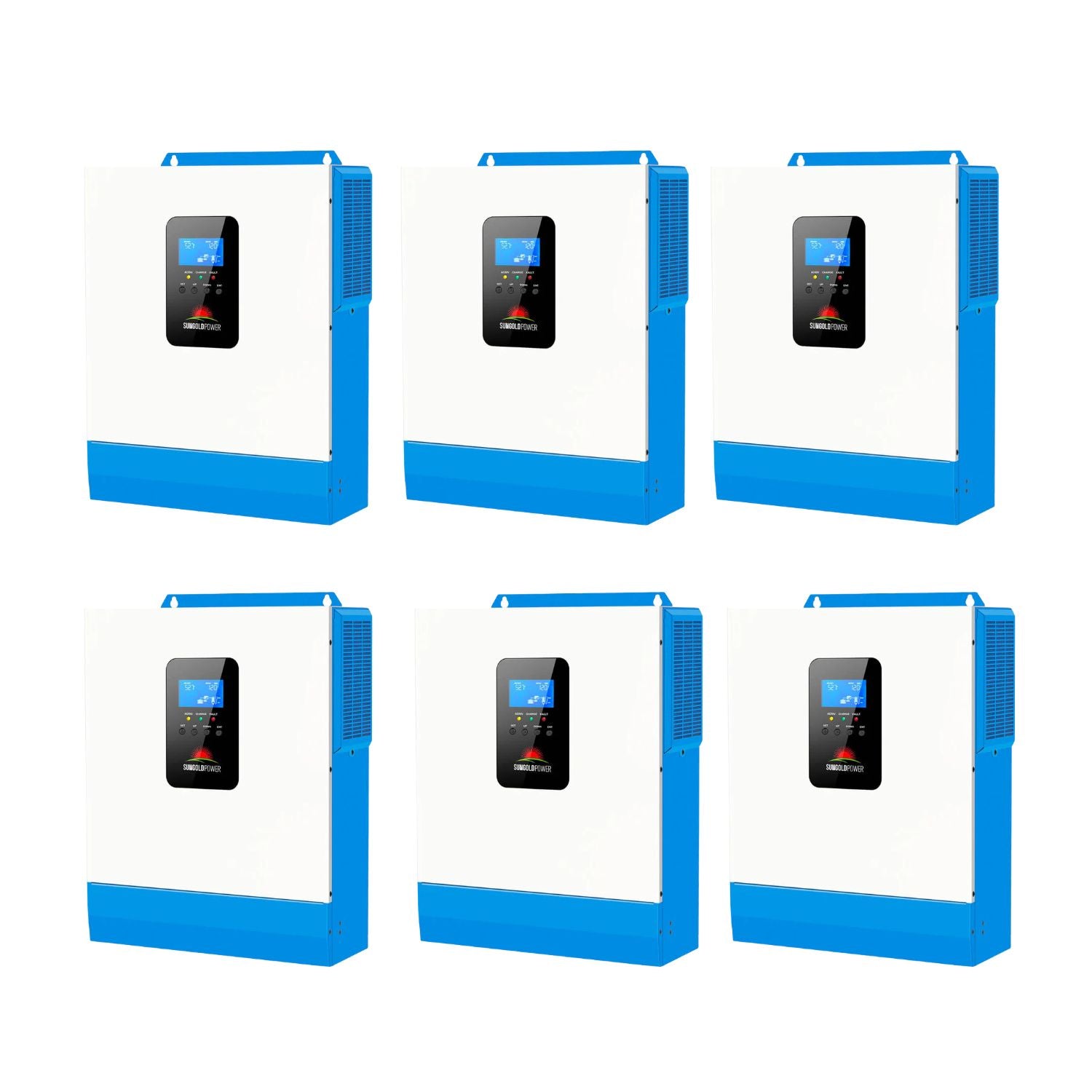

6 Inverters Option
- 6 x SunGold Power 5000W 48V Solar Charger Inverter (SPH504880A)
Solar, Battery and Grid Power in One Unit
The SunGold Power 5000W 48V Solar Charger Inverter brings a 5000W inverter, a 500V MPPT controller and a 40A AC charger together for 48V systems, with a parallel-ready SPH5048P for systems that will grow. At Outbound Power, we help customers choose between models, size battery banks and plan solar arrays. If you have questions, our team is happy to help.
SunGold Power 5000W 48V Solar Charger Inverter Specifications
|
| Models |
SPH504880A (80A MPPT) / SPH5048P (100A MPPT, parallel) |
| Parallel Capability |
SPH504880A: No / SPH5048P: Yes, up to 6 units |
| AC Mode |
| Rated Input Voltage |
110/120Vac |
| Input Voltage Range |
90-140Vac (+2%) |
| Frequency Range |
47-55Hz (50Hz); 57-65Hz (60Hz) |
| Overload / Short-Circuit Protection |
Circuit breaker |
| Max. Efficiency |
92% |
| Conversion Time (Bypass and Inverter) |
10ms (typical) |
| Max. Bypass Overload Current |
63A |
| Inverter Mode |
| Output Waveform |
Pure sine wave |
| Rated Output Power |
5000W |
| Rated Output Voltage |
120Vac (100/105/110Vac settable) |
| Peak Power |
10000VA |
| Loaded Motor Capacity |
4HP |
| Overload Protection |
102-110% load: output off after 5 minutes; 110-125%: after 10 seconds; over 125%: after 5 seconds |
| Output Short-Circuit Protection |
Breaker |
| Bypass Breaker |
63A |
| Rated Battery Input Voltage |
48V (minimum start voltage 44V) |
| Battery Voltage Range |
40.0-60Vdc ± 0.6Vdc |
| Power Saving Mode |
Idle consumption 20-25W |
| Power Saving Off |
Idle consumption 45-50W |
| AC Charger |
| Battery Type |
Lead acid or lithium battery |
| Max. Charge Current (Adjustable) |
0-40A |
| Charge Voltage Range |
40-60Vdc |
| Short-Circuit Protection |
Circuit breaker and blown fuse |
| Circuit Breaker |
63A |
| Overcharge Protection |
Alarm and turn off charging after 1 minute |
| PV Charging |
| Max. PV Open Circuit Voltage |
500Vdc |
| PV Operation Voltage Range |
120-500Vdc |
| MPPT Voltage Range |
120-450Vdc |
| Max. PV Input Power |
5500W |
| PV Charging Current (Adjustable) |
SPH504880A: 80A / SPH5048P: 100A |
| Max. Hybrid Charge Current (AC + PV) |
SPH504880A: 80A / SPH5048P: 100A |
| Charge Short-Circuit Protection |
Blown fuse |
| Wiring Protection |
Reverse polarity protection |
| General |
| Certification |
SPH504880A: CE (IEC62109-1) / FCC / SAA, UL1741 certificate of compliance / SPH5048P: CE (IEC62109-1) / FCC / UL1741, UL1741 Listed by ETL |
| EMC |
EN61000 |
| Operating Temperature |
-10°C to 55°C (14°F to 131°F) |
| Storage Temperature |
-25°C to 60°C (-13°F to 140°F) |
| Noise |
≤60dB |
| Cooling |
Forced air cooling, variable speed fan |
| Communication |

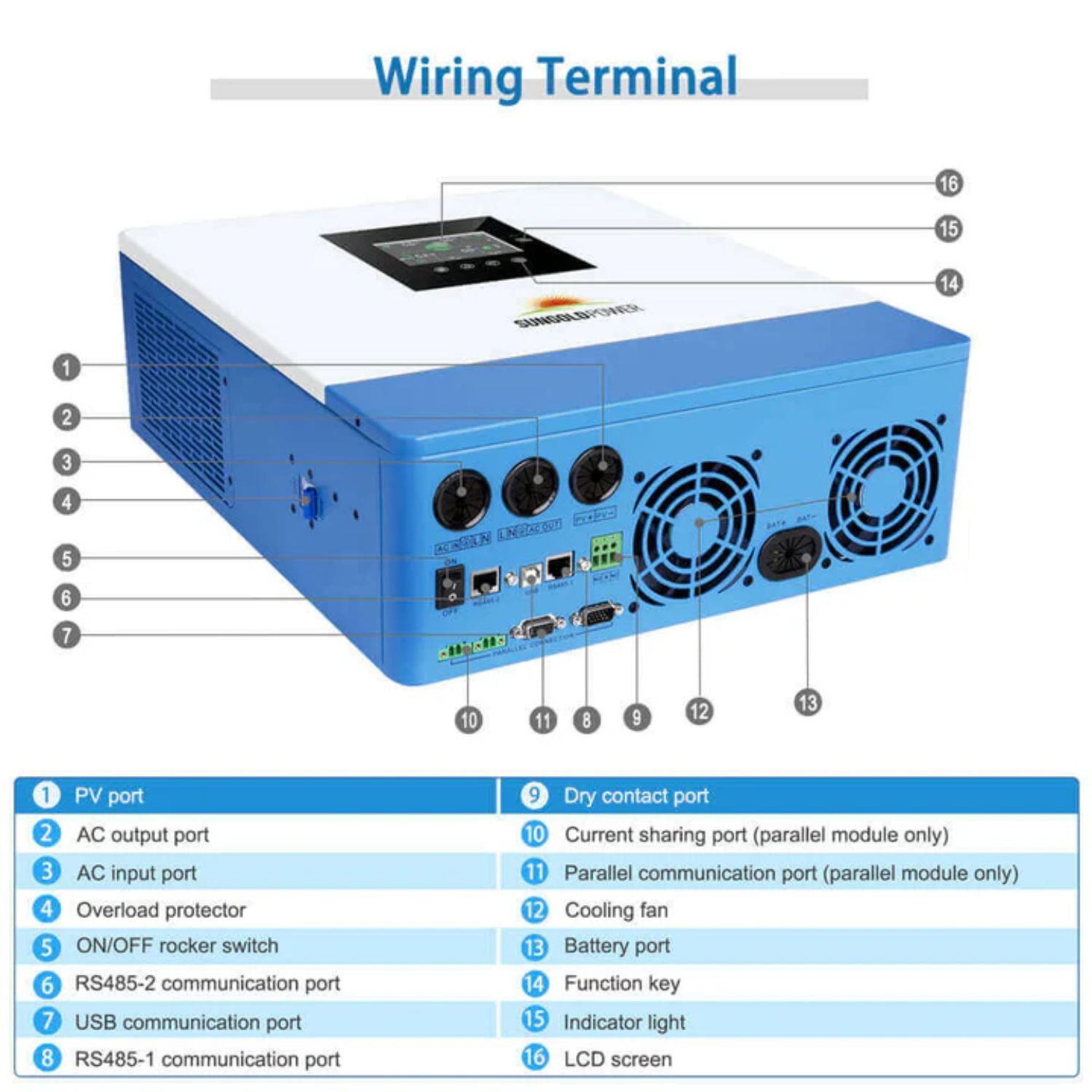

USB / RS485 (Wi-Fi/GPRS) / Dry contact |
| Dimensions |
SPH504880A: 16.77 x 12.68 x 4.96 in / SPH5048P: 17.3 x 13.8 x 5.1 in |
| Weight |
SPH504880A: 25.35 lbs / SPH5048P: 28.66 lbs |
