The SunGold Power 5kW 48VDC Off-Grid Solar Kit Is a 48V Starter System With 1200W of Solar, a 5.12kWh Battery and Room to Expand

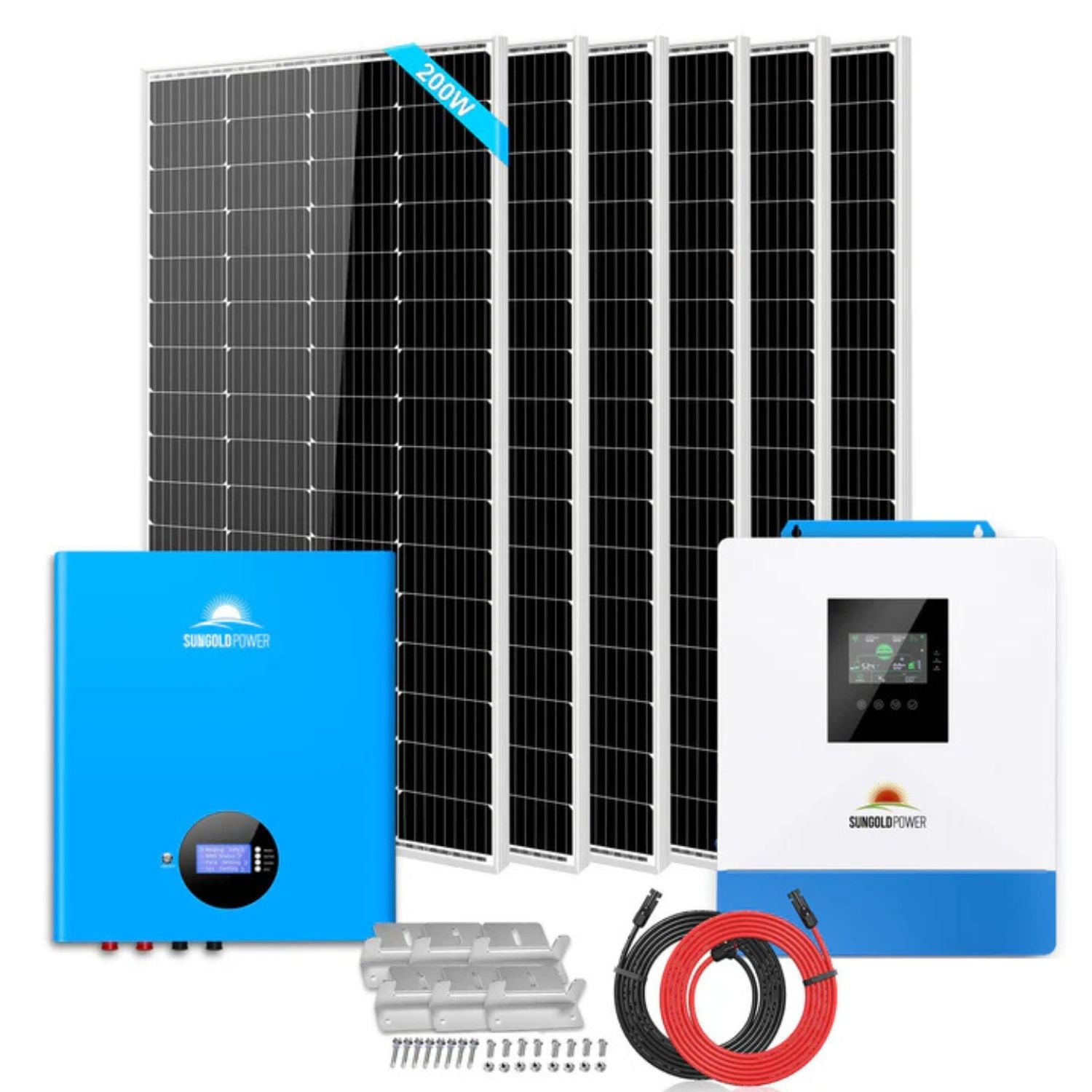

The SunGold Power 5kW 48VDC Off-Grid Solar Kit (SGM-5K5E) is SunGold's starter package for a 48V off-grid system. It pairs a 5000W pure sine wave solar inverter, the Wi-Fi model, with six 200W monocrystalline panels and one 51.2V 100Ah wall-mounted LiFePO4 battery that stores 5.12kWh.
It is meant for people who want to start with a modest array and one battery, then build out. The inverter accepts far more solar than the kit includes, the battery is designed to expand in parallel, and up to six identical inverters can be paralleled when you need more output.
SunGold Power 5kW 48VDC Off-Grid Solar Kit Features
5000W of Pure Sine Wave Power at 120V
The inverter is rated for 5000W continuous with a 10000VA peak and a loaded motor capacity of 4HP. Output is 120VAC, which covers household and office loads such as refrigerators, computers, televisions and ovens.

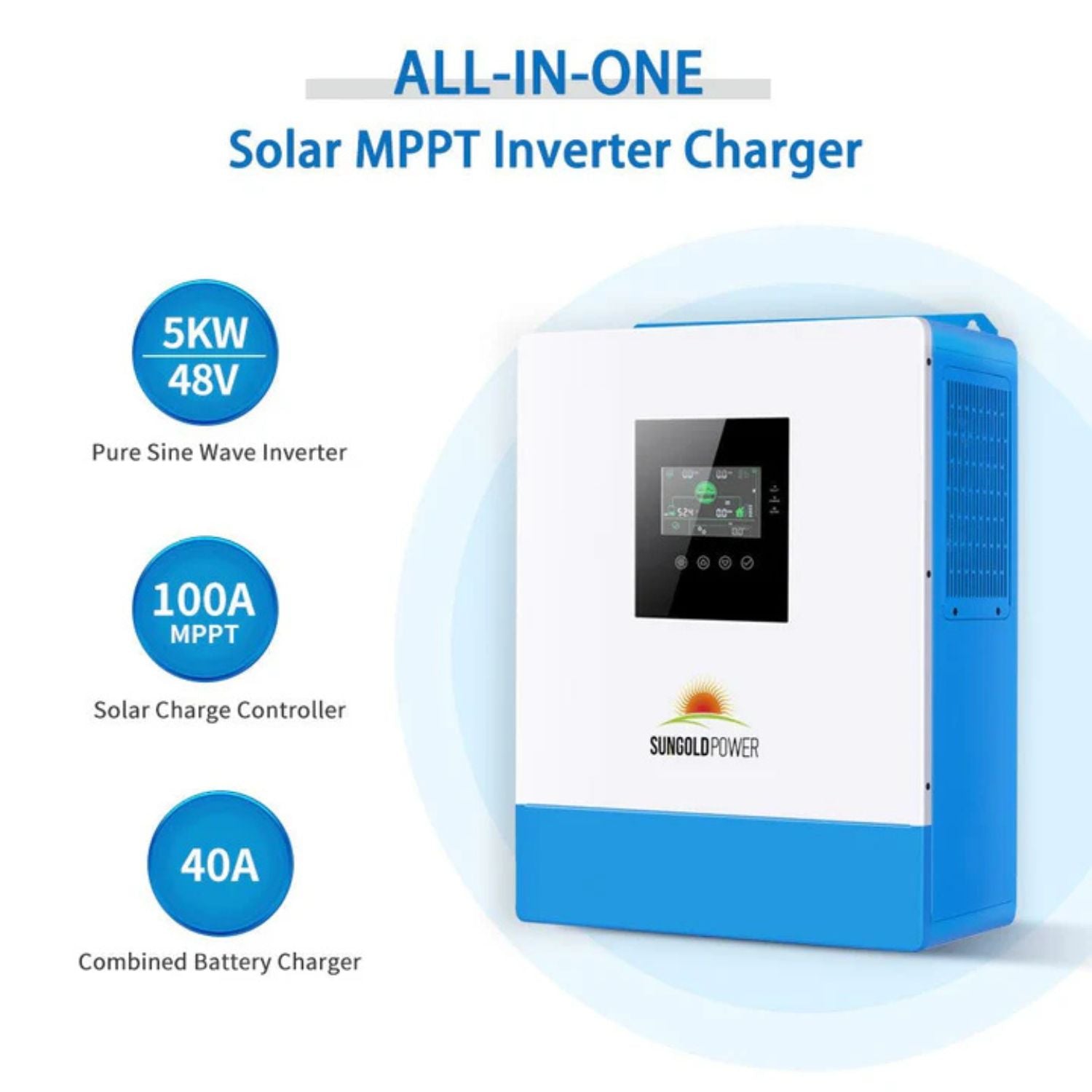

100A MPPT With Headroom for More Panels
The built-in MPPT charger accepts up to 5500W of PV at up to 500V open circuit, with a 120-450VDC MPPT range. The kit's 1200W array uses a small share of that, so adding panels later does not mean replacing the inverter.

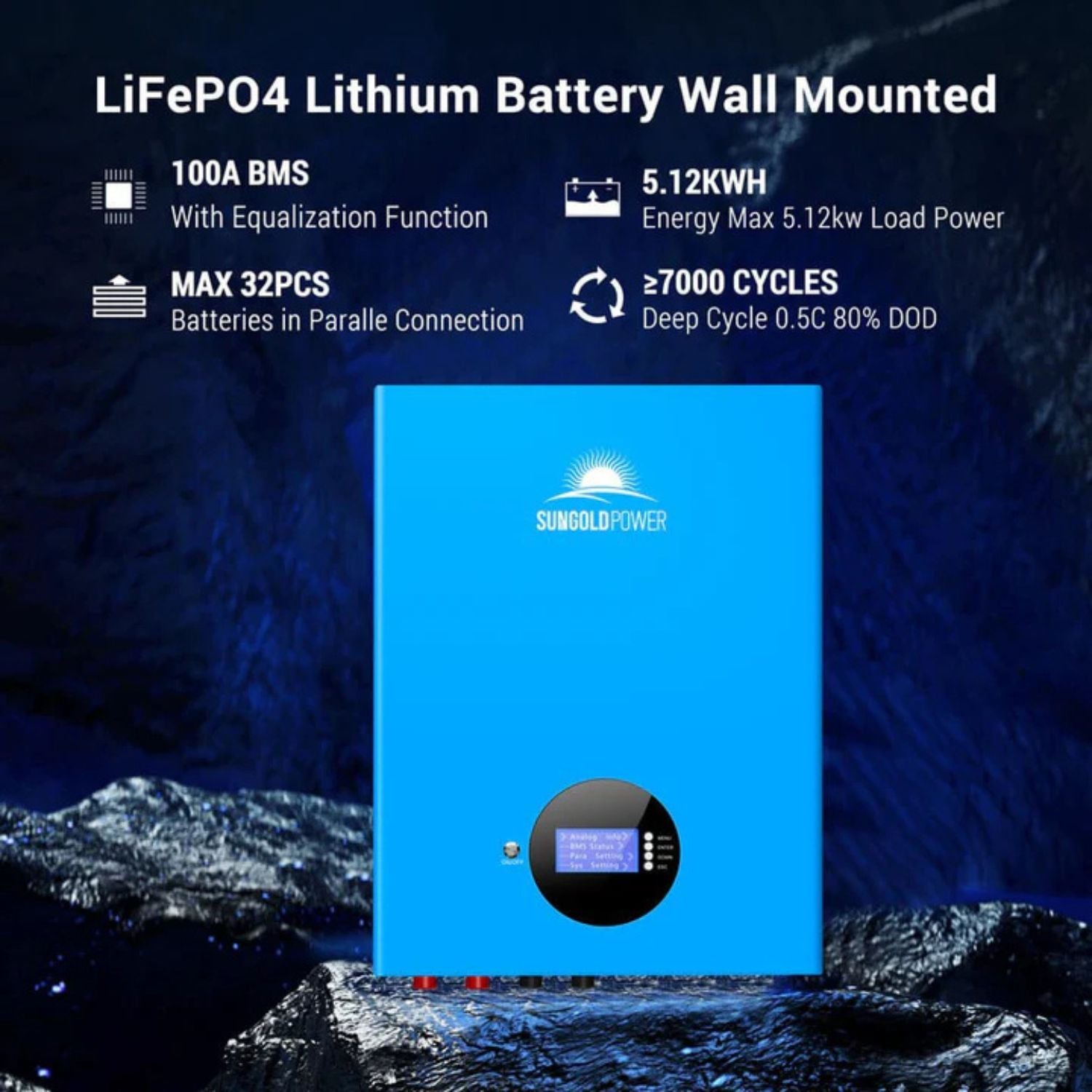

Wall-Mounted 5.12kWh Lithium Battery
The SG48100M battery is a 51.2V 100Ah LiFePO4 unit rated for 7000 cycles and a calendar life of 15 years or more. Its BMS monitors cell voltage, current and temperature and protects against overcharge, deep discharge, overloading, overheating and short circuit.
Built to Expand
Up to six identical inverters can be paralleled for 120VAC single phase, 240VAC split phase or 208V three phase output. The battery side scales too, with up to 63 SG48100M units in parallel.
Wi-Fi Monitoring
The kit uses the Wi-Fi model of the inverter, so you can follow the system's performance and energy data in an app instead of walking to the inverter.
Flexible Charging and Output Modes
Four charging modes (AC Priority, Solar Priority, Only Solar and Mains and Solar hybrid) and four output modes let you set how solar, battery and grid or generator power are used. The AC charger adds up to 40A, and transfer takes 10ms.
Listed Inverter and Battery
The inverter is UL1741 Listed by ETL, and the battery is certified to UL1973.
Real-World Applications
A first off-grid cabin system. Start with lights, a fridge and electronics, then add panels and batteries as you learn your usage.
Backup for essential circuits. Keep key 120V loads running during outages, with solar refilling the battery.
Workshops and outbuildings. Power tools and equipment away from the main panel.
Phase one of a larger build. Install the inverter now and grow toward a bigger array, more storage or split phase output later.
How It Compares to Common Alternatives
Versus buying a larger kit up front. This kit keeps the first step small, with one battery and six panels. Because the inverter takes up to 5500W of solar and the battery supports parallel expansion, you can add capacity as needs grow.
Versus separate inverter, charger and controller. One unit combines the inverter, the MPPT solar charger and the AC charger, with one display and one app to watch.
Versus a split phase inverter. A single unit here delivers 120V only. 240V split phase output comes from paralleling identical inverters.
Is This Solar Kit the Right Fit
-
Battery voltage. The inverter needs a 48V bank and starts at a minimum of 44V.
-
AC output. One inverter supplies 120VAC. Plan on paralleled units if you need 240V.
-
Solar input. Arrays must stay within 120-500VDC and below 500V open circuit.
-
Storage. One 5.12kWh battery is a starting point. Heavier evening loads may call for more.
-
Installation. Wiring must follow national and local electrical codes. The battery hangs on a wall and measures 23 x 16.5 x 6 inches.
This may be a good fit if
- You want to start small with a 48V system
- You run 120V household loads
- You plan to add panels or batteries later
- You want app-based Wi-Fi monitoring
Common Questions
What Comes With the SGM-5K5E Kit?
The inverter, six 200W panels, one 51.2V 100Ah battery, 50 feet of PV extension cable, six sets of Z-brackets, a 160A DC breaker, a 25A PV breaker and a 4AWG cable set.
Can This 5000W Solar System Be Expanded?
Yes. SunGold designed it so you can add more inverters, solar panels and batteries later for a more powerful system.
How Many Inverters Can Run in Parallel?
Up to six, for up to 30kW of output.
Which Batteries Does the Inverter Support?
It works with 48V AGM, sealed, gel, flooded and lithium batteries, plus a user mode for custom settings. An RS485 port handles BMS communication.
What's Included
- 1 x 5000 Watt 48V DC 120V Output Inverter (Wi-Fi Model)
- 6 x 200 Watt Monocrystalline Solar Panels
- 1 x 100Ah 51.2V LiFePO4 Battery
- 1 Set x 50 Feet Solar Extension Cables (Inverter PV Input)
- 6 x Sets of Mounting Z-Brackets
- 1 x 160A DC Breaker
- 1 x 25A PV Breaker
- 1 Set x 4AWG Cable (Breaker to Inverter Connection)
A 48V Foundation You Can Build On
The SunGold Power 5kW 48VDC Off-Grid Solar Kit starts you with 5000W of 120V power, 1200W of solar and a 5.12kWh battery, with a clear path to grow. At Outbound Power, we help customers plan off-grid systems that start small and expand. If you have questions, our team is happy to help.
SunGold Power 5kW 48VDC Off-Grid Solar Kit (SGM-5K5E) Specifications
|
| Kit Summary |
| Kit Model |
SGM-5K5E |
| Inverter |
5000W 48V solar inverter charger, 120V output, Wi-Fi model (SPH5048P) |
| Battery Bank |
1 x 51.2V 100Ah wall-mounted LiFePO4 battery (5.12kWh) |
| Solar Array |
6 x 200W monocrystalline panels (1200W total) |
| System Voltage |
48V DC |
| AC Output |
120VAC pure sine wave |
| Certifications |
Inverter UL1741 Listed by ETL; battery UL1973 |
| Inverter (SPH5048P) |
| Rated Output Power |
5000W |
| Peak Power |
10000VA |
| Loaded Motor Capacity |
4HP |
| Rated Output Voltage |
120Vac (100/105/110Vac settable) |
| Output Waveform |
Pure sine wave |
| Rated Battery Voltage |
48V (minimum start voltage 44V) |
| Battery Voltage Range |
40.0Vdc-60Vdc |
| Max PV Input Power |
5500W |
| Max PV Open Circuit Voltage |
500Vdc |
| PV Operating Voltage Range |
120-500Vdc |
| MPPT Voltage Range |
120-450Vdc |
| PV Charging Current |
Up to 100A (can be set) |
| AC Charging Current |
0-40A (can be set) |
| Max Hybrid Charging Current |
100A |
| AC Input Voltage Range |
90Vac-140Vac |
| Conversion Time |
10ms (typical) |
| Bypass Breaker |
63A |
| Max Efficiency |
92% |
| Parallel Operation |
Up to 6 units (30kW) |
| Communication |
USB, RS485 (WiFi/GPRS), dry contact |
| Operating Temperature |
14°F to 131°F (-10°C to 55°C) |
| Noise |
≤60dB |
| Dimensions |
17.3 x 13.8 x 5.1 in |
| Weight |
28.66 lbs |
| Certification |
UL1741 Listed by ETL |
| Battery (SG48100M) |
| Chemistry |
Lithium iron phosphate |
| Mounting |
Wall-mounted |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
100Ah |
| Nominal Energy |
5.12kWh |
| Max Continuous Charge/Discharge Current |
100A |
| Standard Charge/Discharge Current |
50A |
| Charging Limited Voltage |
57.6V |
| Discharge Cut-Off Voltage |
43.2V |
| Cycle Life |
≥7000 (80% DOD) |
| Calendar Life |
≥15 years |
| Communication |
RS232/RS485/CAN |
| Parallel Expansion |
Up to 63 batteries |
| Operating Temperature |
Charging 32°F to 113°F, discharging -4°F to 140°F |
| Dimensions |
23 x 16.5 x 6 inch |
| Certification |
UL1973 |

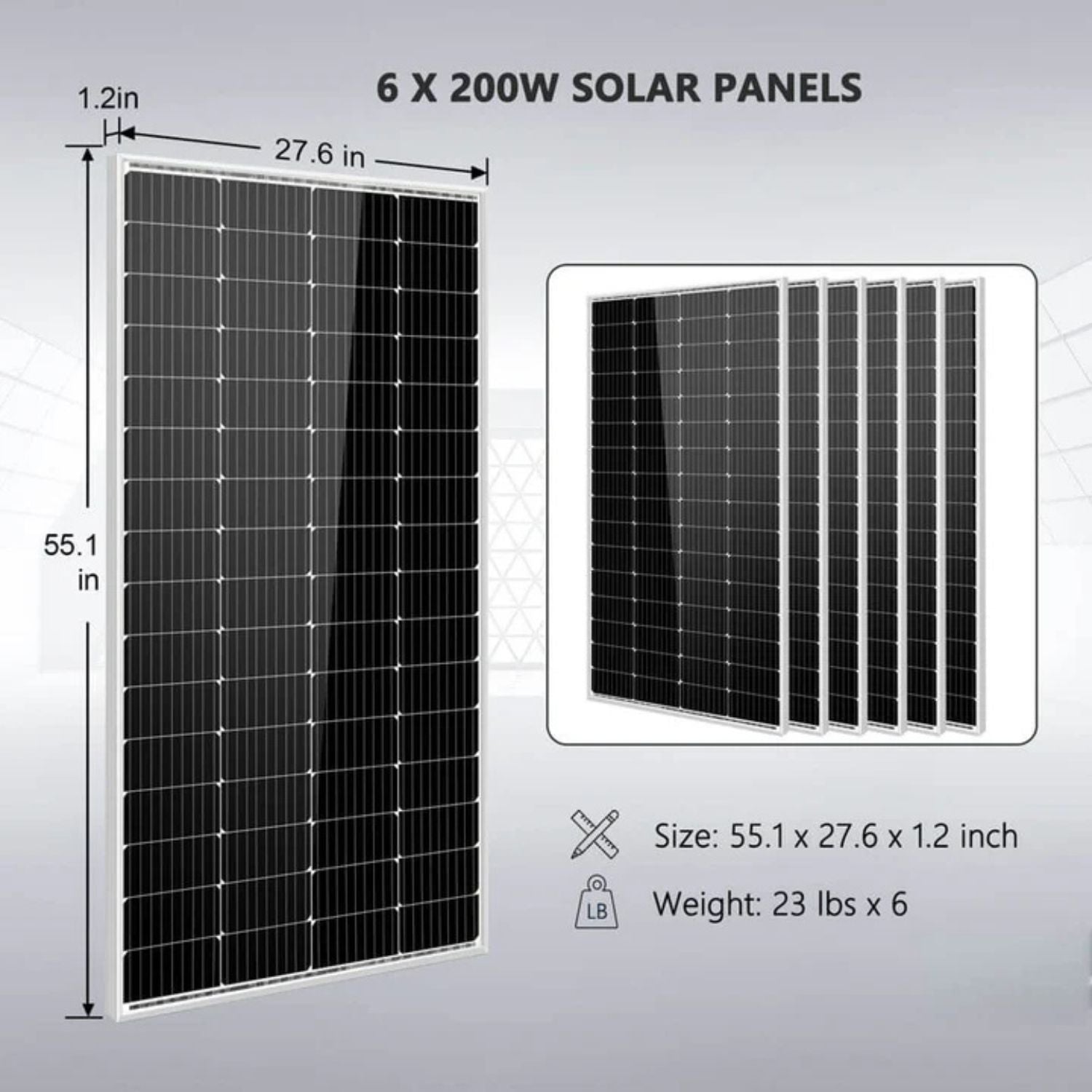

| Solar Panels (SG200WM, Each) |
| Peak Power |
200W |
| Open Circuit Voltage (Voc) |
43.39V |
| Max Power Voltage (Vmp) |
36.16V |
| Max Power Current (Imp) |
5.53A |
| Short Circuit Current (Isc) |
5.86A |
| Module Efficiency |
20.41% |
| Max System Voltage |
1000V |
| Dimensions |
55.1 x 27.6 x 1.2 inch (1400 x 700 x 30mm) |
| Weight |
23.32lbs (10.6kg) |
