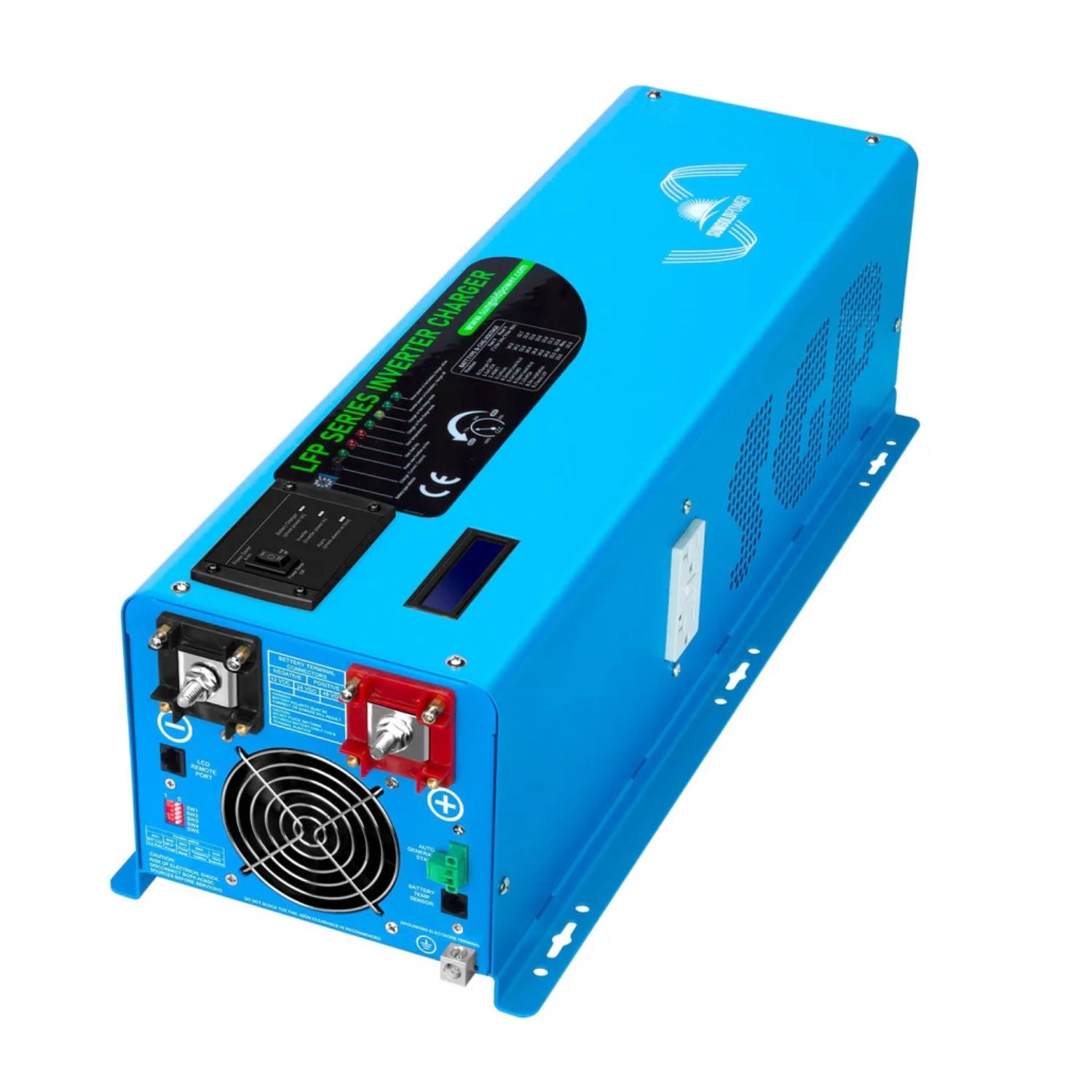

The SunGold Power 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger Supplies 6000 Watts at 240V and 3000 Watts per 120V Leg
The SunGold Power 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger is a low-frequency LFP Series unit that combines a 6000W inverter, a 90A battery charger and an AC auto-transfer switch. It runs on a 24V battery bank, requires 240VAC input, and outputs 120VAC and 240VAC pure sine wave power.
SunGold builds it for running a whole small home, a business, an RV system, a trailer or a boat, in off-grid systems or as an emergency backup supply. With two hot legs, it can feed a 240V panel that is already in place.

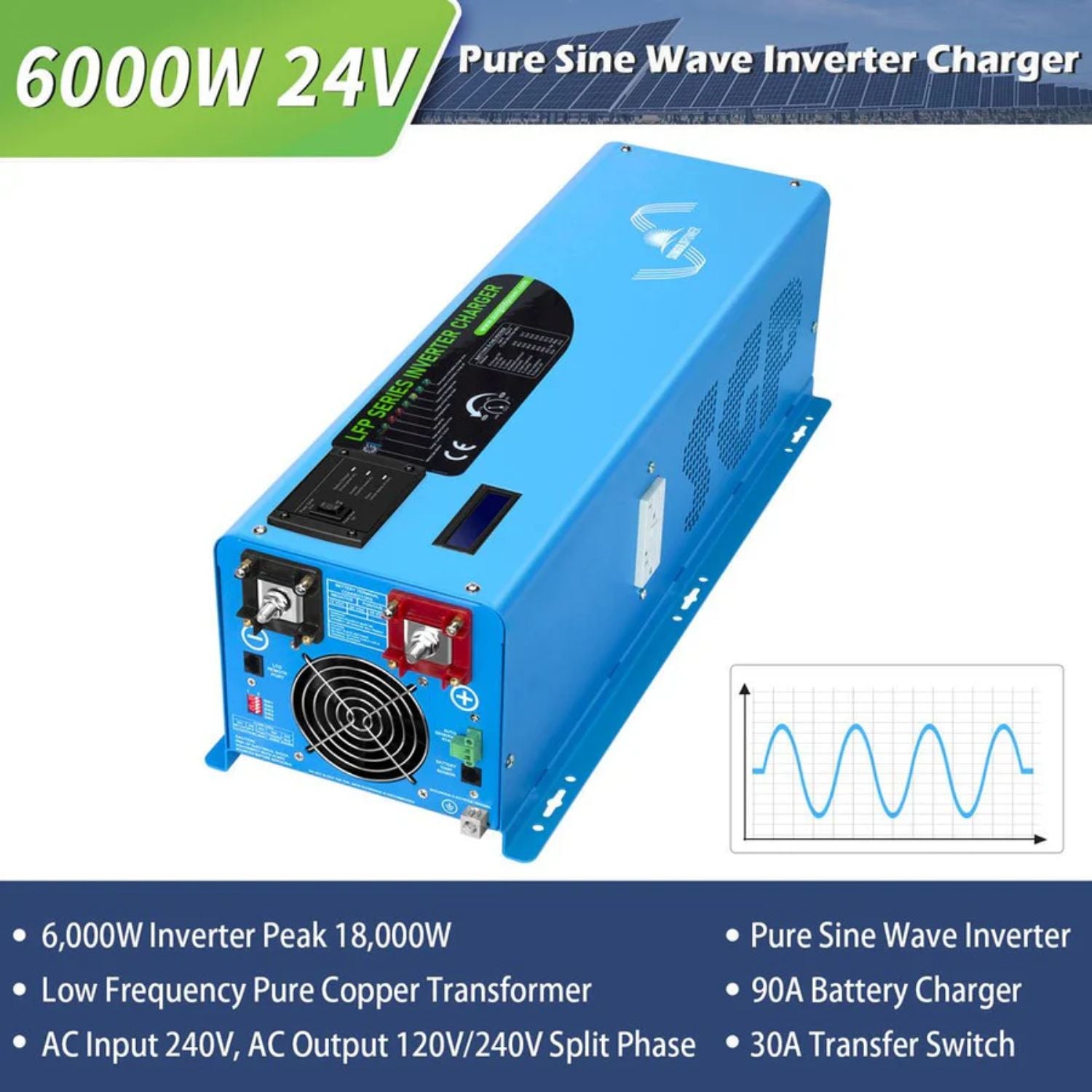

SunGold Power 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger Features
6000W Split Phase Output
Each leg supplies 3000W. Connect a 240V load and the inverter can deliver the full 6000W. Connect 120V loads and each 120V leg delivers up to 3000W. That split matters when you plan which circuits go on which leg.
18000W Surge and a 6HP Motor Rating
The inverter handles 18000W for 20 seconds, three times its continuous rating, and SunGold rates the 6KW models to start a 6HP electric motor. That reserve covers well pumps, air compressors and other heavy start-up loads.
90A Built-In Charger

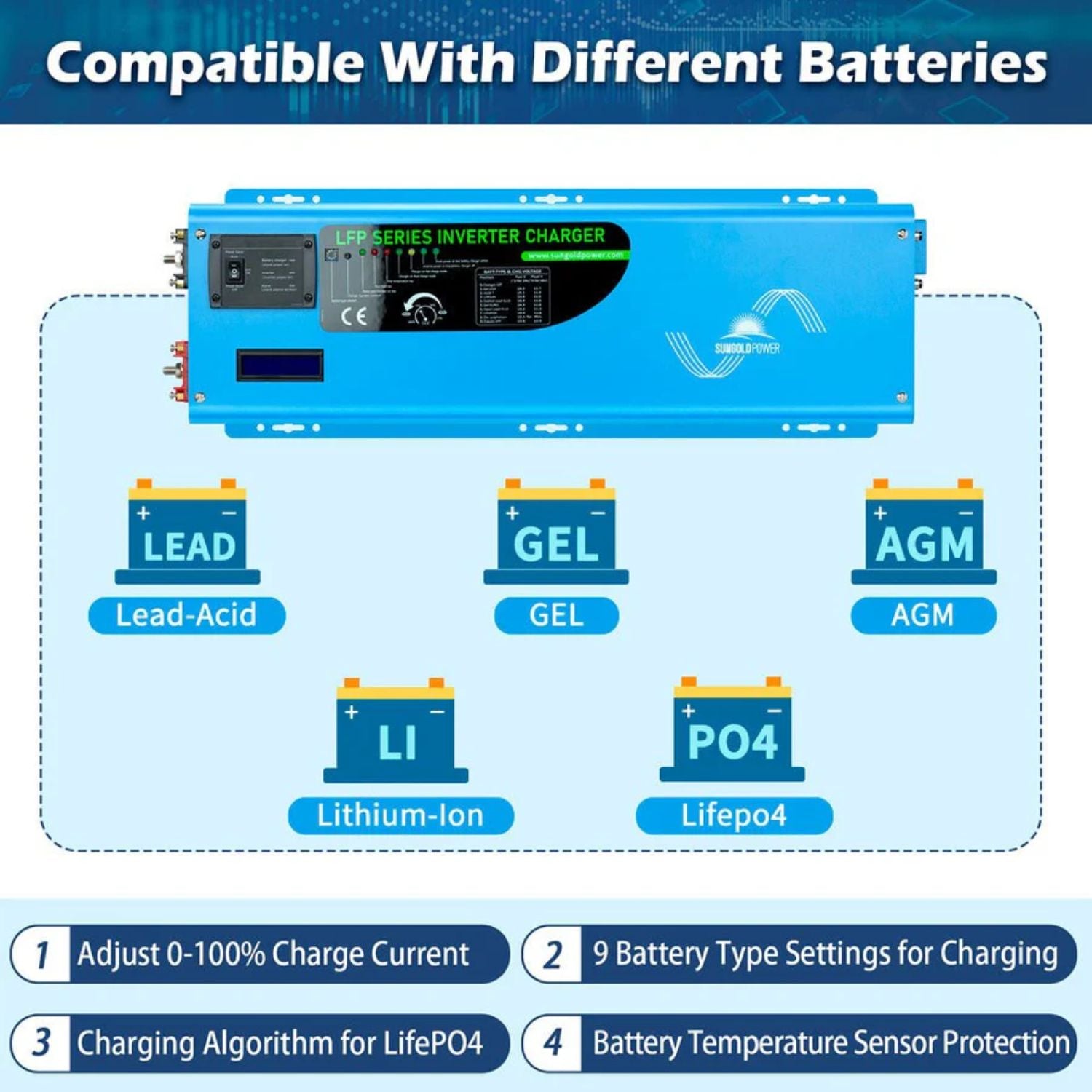

From grid or generator power, the charger refills the 24V bank at 90A ±5A. Charge current adjusts from 0% to 100% with a linear switch, and nine battery type settings cover gel, AGM, sealed lead acid, lithium and LiFePO4.
Two Cooling Fans
The 6KW models use two controlled DC fans. Their speed rises with heat sink temperature, charge current and load, with a noise target under 60dB at 1m.
Transfer in About 10 Milliseconds
The transfer switch moves loads between shore power and battery power automatically within about 10 milliseconds. When AC returns, a 15-second delay gives a generator time to stabilize before the loads transfer back.
LCD Status and Fault Messages
The LCD shows AC input status and voltage, output voltage and frequency, battery voltage and output load. When the AC input is missing or out of range, it displays "AC abnormal".

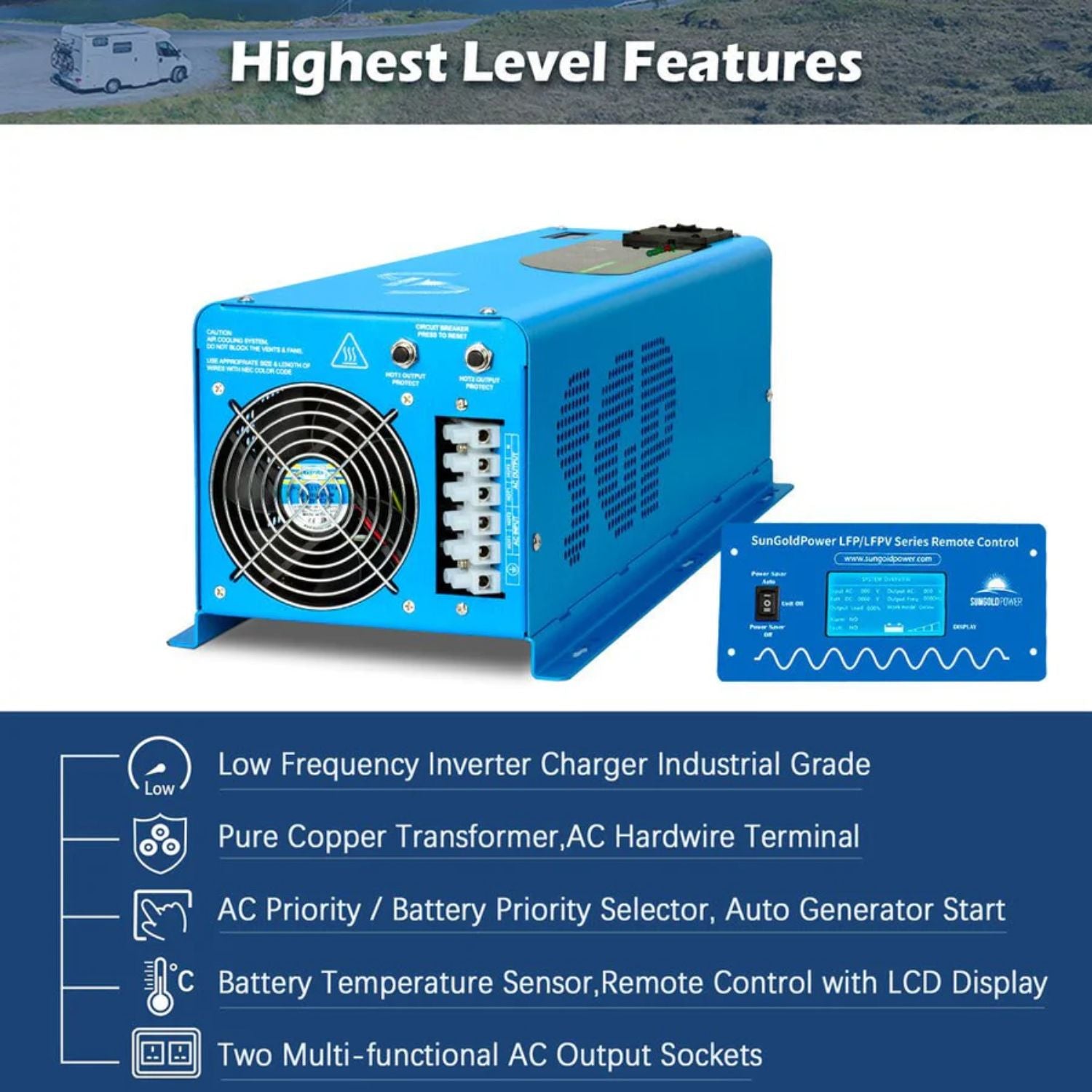

Priority Modes and Auto Generator Start

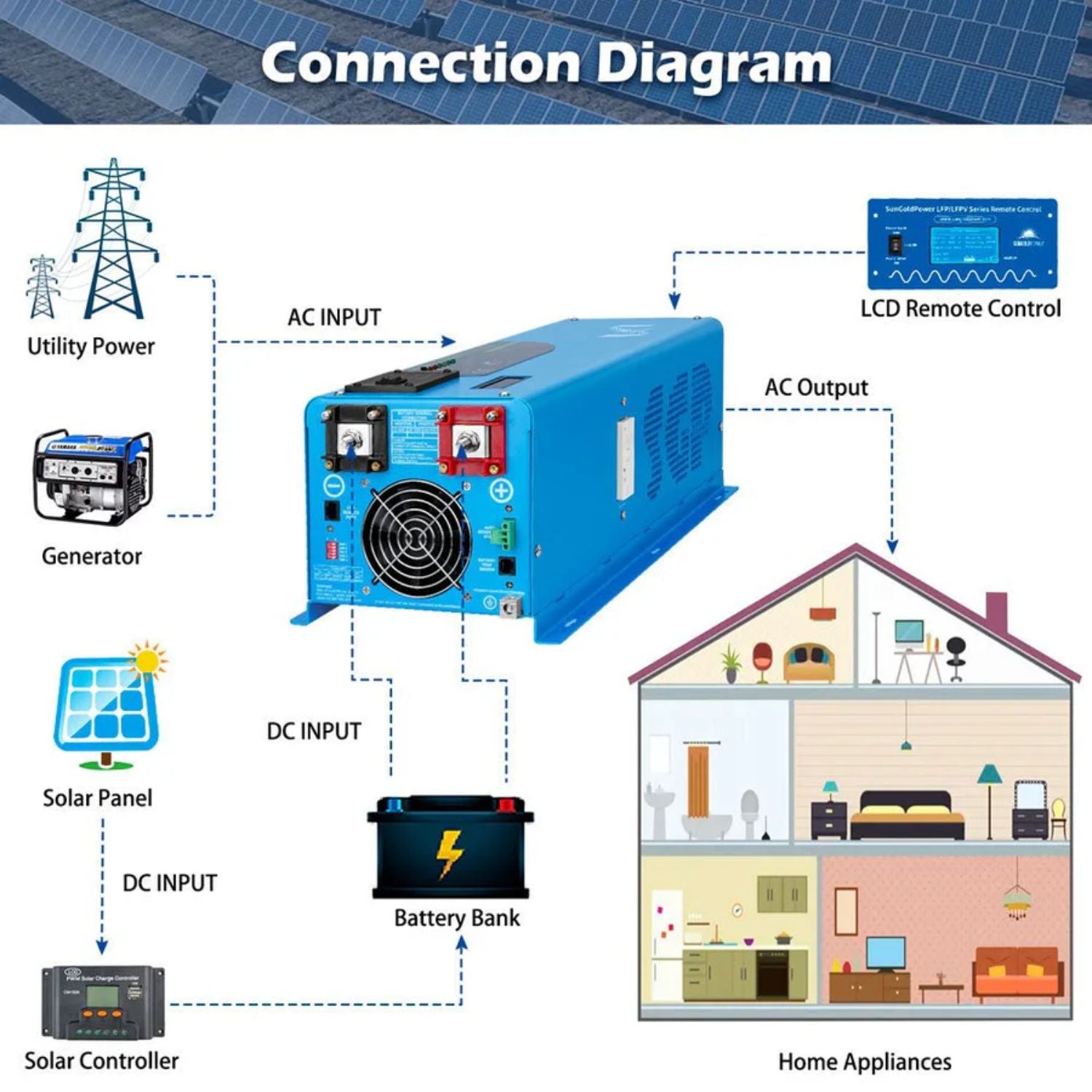

AC priority is the default, and SW5 switches the inverter to battery priority for solar or wind systems with grid backup. The inverter can also start and stop a generator with auto start capability based on battery voltage.

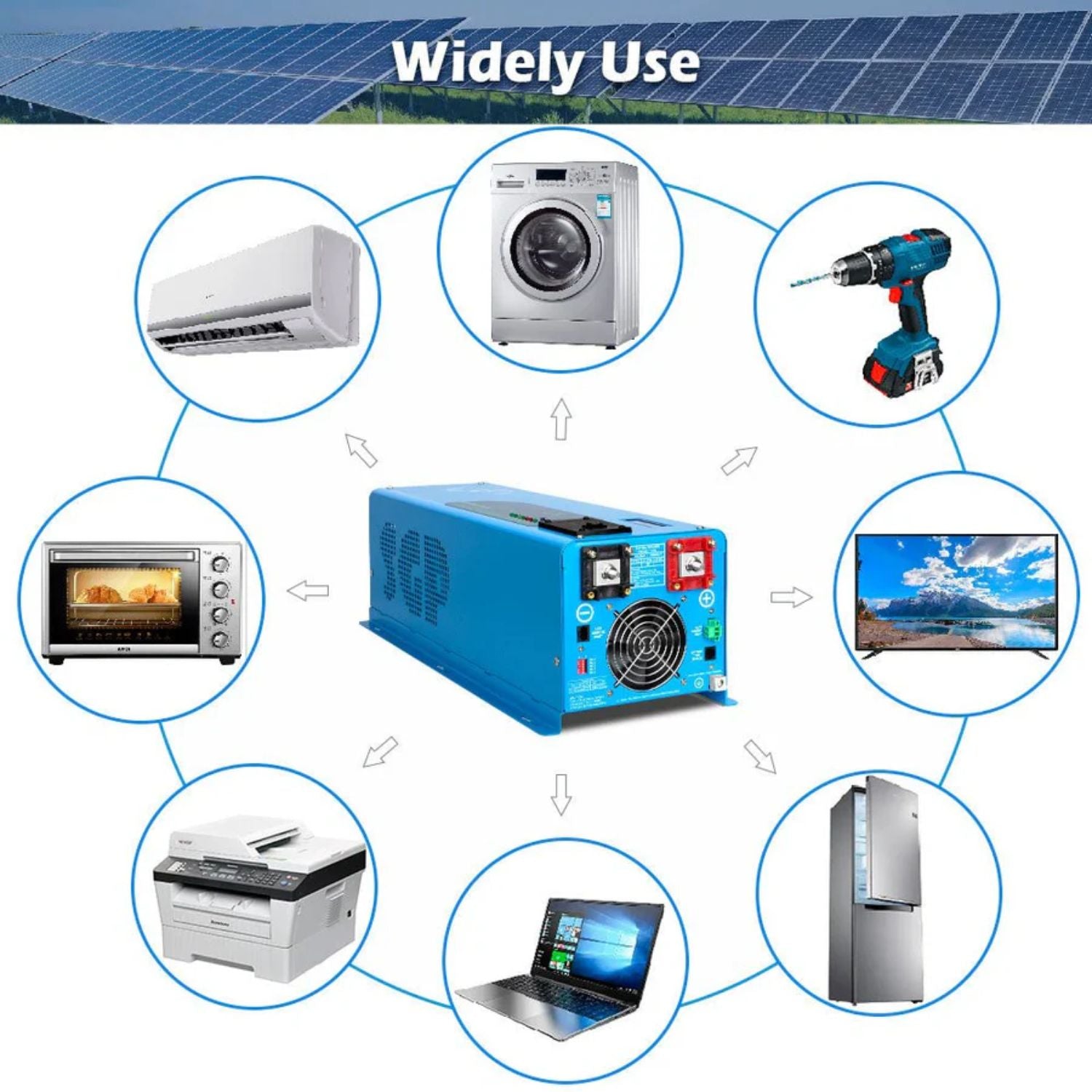

Real-World Applications
Whole small homes. Run a 240V panel with appliances, pumps and lighting from a 24V battery bank.
Off-grid cabins. Pair with a separate solar charge controller and use battery priority, keeping a generator for cloudy stretches.
Businesses and shops. Back up 240V equipment and 120V circuits through grid outages.
RV systems and boats. Bring 240V capability to a large 24V installation.
How It Compares to Common Alternatives
Versus the 4000W 24V split phase model. The 4KW unit has a 12000W surge, a 4HP motor rating and a 50A ±5A charger. This model adds 2000W of output and a larger charger, and SunGold lists AWG4/0 as its minimum DC cable against AWG1/0 for the 4KW.
Versus the 6000W 48V model. SunGold's manual lists a 60A ±5A charger for the 48V version, which runs on a 48V bank and uses AWG1/0 minimum cable. Choose by the battery voltage you already have.
Versus a 120V-only inverter. A single phase 120V inverter cannot run 240V appliances or feed both legs of a panel. This model supplies both voltages from one unit.
Is This Split Phase Inverter Charger the Right Fit
Continuous load. SunGold advises keeping continuous loads around 4800W or less for efficiency and to avoid overheating.
AC input. Requires 240VAC, within 140 to 270VAC or 184 to 253VAC.
Battery bank. Requires a 24V bank. SunGold lists AWG4/0 as the minimum DC cable for a 3 meter run.
Location. Dry, clean, cool and ventilated, with at least 30cm of clearance for airflow.
Size. 25.6 x 9.1 x 7.5 inches and 76.7 lb.
This may be a good fit if
You want to run a small home from 24V
You need 240V loads up to 6000W
You charge from a 240V generator or grid
You want a 90A charger built in
Common Questions
What Does 240V Split Phase Mean?
It has two outputs, 120V and 240V. One leg is 3000W. With a 240V load, the inverter delivers 6000W. With a 120V load, a single leg delivers 3000W.
Can It Charge LiFePO4 Batteries?
Yes. It can charge lithium batteries, including LiFePO4. Check the manual for the matching battery type setting.
How Much Power Can It Provide Continuously?
It is rated for 6000W, but SunGold advises keeping continuous loads around 4800W or less. Include the starting watts of motor appliances when you add up your loads.
What Does "AC Abnormal" on the Screen Mean?
It appears when no AC is connected and the unit is inverting, when the AC voltage is outside the accepted range, or in battery priority mode while the battery is still charged. In all three cases this is normal.
Is It Suitable for Off-Grid Systems?
Yes. It supports a wide range of loads. Size the battery bank properly and plan your power use for efficient operation.

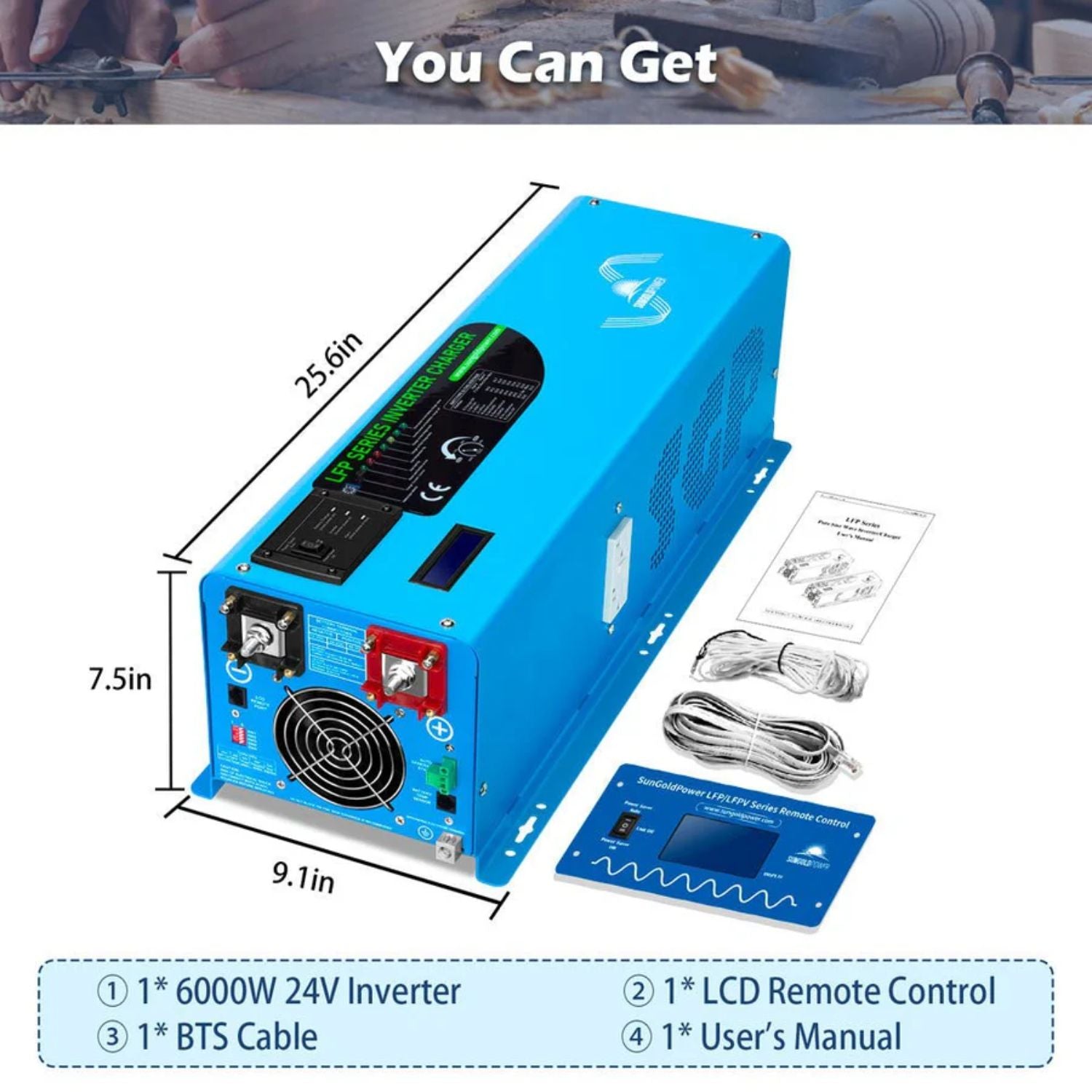

What's Included
1 x 6000W 24V Low Frequency Pure Sine Inverter (LFP6K24V240VSP)
1 x English Manual
1 x Remote Control
1 x BTS Cable
Whole-Home Split Phase Power on 24V
The SunGold Power 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger turns a 24V bank into 6000W of 120V and 240V pure sine wave power, with an 18000W surge and a 90A charger. At Outbound Power, we help customers balance loads across both legs and size the batteries behind them. If you have questions, our team is happy to help.
SunGold Power 6000W DC 24V Split Phase Pure Sine Wave Inverter With Charger Specifications
Model
LFP6K24V240VSP
Inverter Output
Continuous Output Power
6000W (3000W per leg)
Surge Rating
18000W (20 seconds)
Capable of Starting Electric Motor
6HP
AC Output Voltage
120V and 240V (split phase)
Output Frequency
50Hz or 60Hz (set by SW4)
Output Waveform
Pure sine wave (bypass mode)
Typical Transfer Time
10ms (max)
Nominal Efficiency
>88%
Line Mode Efficiency
>95%
DC Input
Nominal Input Voltage
24.0Vdc
Minimum Start Voltage
20.0Vdc
Low Battery Alarm
21.0Vdc to 22.0Vdc
Low Battery Trip
20.0Vdc to 21.0Vdc (select by SW1)
High Voltage Alarm
32.0Vdc
Low Battery Voltage Restart
26Vdc
Idle Consumption
77W
Power Saver Mode Idle Consumption
29W
Minimum DC Cable (3m Run)
AWG4/0
AC Charger
AC Input Voltage
240V
AC Input Range (Grid or Generator)
140V to 270VAC / 184V to 253VAC (select by SW2)
Charger Rate
90A ±5A
Adjustable Charge Current
Off, 0% to 100%
Battery Type Settings
9
Charging
3-step intelligent battery charger
Over Charge Protection Shutdown
31.4V
General
Display
LCD
Remote Control
Included
Battery Temperature Sensor
BTS cable included
Cooling
Two controlled DC fans
Mounting
Wall mount
Working Temperature
-10°C to 40°C
Unit Weight
76.7 lb
Unit Size
25.6 x 9.1 x 7.5 in
Shipping Weight
85.5 lb
Shipping Size
30.3 x 13.4 x 12.8 in
Standard Warranty
1 Year
SunGold Power LFP6K24V240VSP Manual
SunGold Power LFP6K24V240VSP Data Sheet
