Wagan Tech Pure Line 1000W Pure Sine Inverter (ETL) | 12V

|
SKU: 3804
Original Price $429.95
Current Price $382.38

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.
Availability: Translation missing: en.general.icons.icon_check_circle icon Only 10 left!

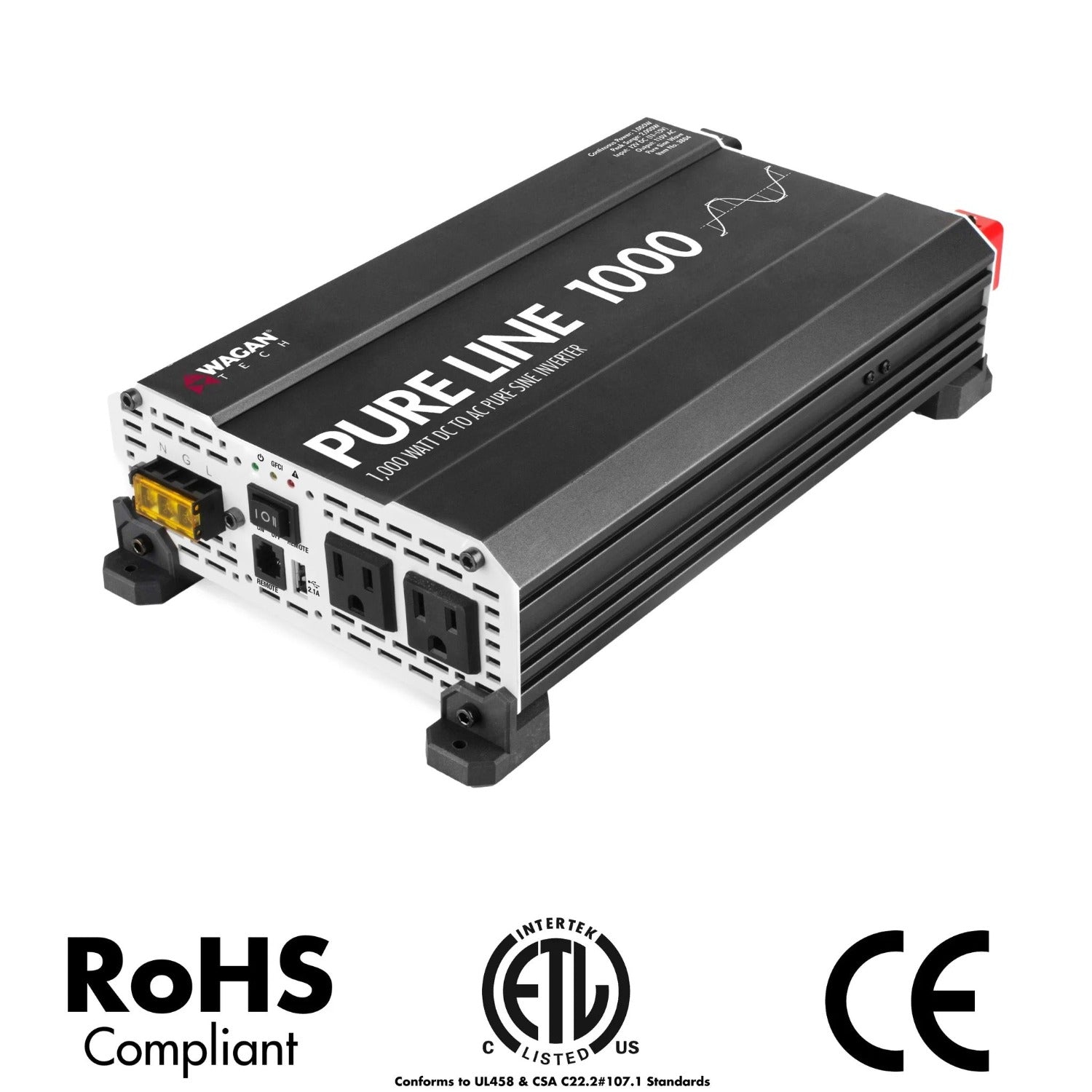

Wagan Pure Line 1000W pure sine inverter in black and silver with two AC outlets on the front panel, above RoHS, ETL and CE marks

The Wagan Pure Line 1000W Pure Sine Inverter Turns Your 12V Battery Into Clean 115V AC Power for Electronics, Tools and Appliances

The Wagan Pure Line 1000W Pure Sine Inverter converts 12 volt DC battery power into 115 volt, 60 Hz pure sine wave AC. It delivers 1,000 watts continuously and handles startup surges up to 2,000 watts. It has two grounded AC outlets, a 2.1A USB port and high output terminals for hard-wired loads.

It's built for vehicles, RVs, boats, trucks, campers and off-grid setups that need household-style power for laptops, small appliances, lighting and tools. It's ETL certified to UL 458 and CSA C22.2 No. 107.1 standards, and the circuit board has a conformal coating.


Wagan Pure Line 1000W Pure Sine Inverter Features

Pure Sine Wave Output for Sensitive Electronics

The Pure Line delivers a true AC sine wave like the power from a utility outlet. Wagan designed it so audio and video systems, computers and communications equipment operate properly, and motorized appliances run cooler, quieter and more efficiently. Total harmonic distortion is under 3%.

TrueRated 1,000 Watts With a 2,000 Watt Surge

TrueRated is Wagan's term for an inverter that is tested at its full rated load and sustains that load continuously for 24 hours. The 2,000 watt momentary surge helps start motorized loads. Many appliances draw about twice their running load at startup and some draw up to eight times, so check before you plug in.

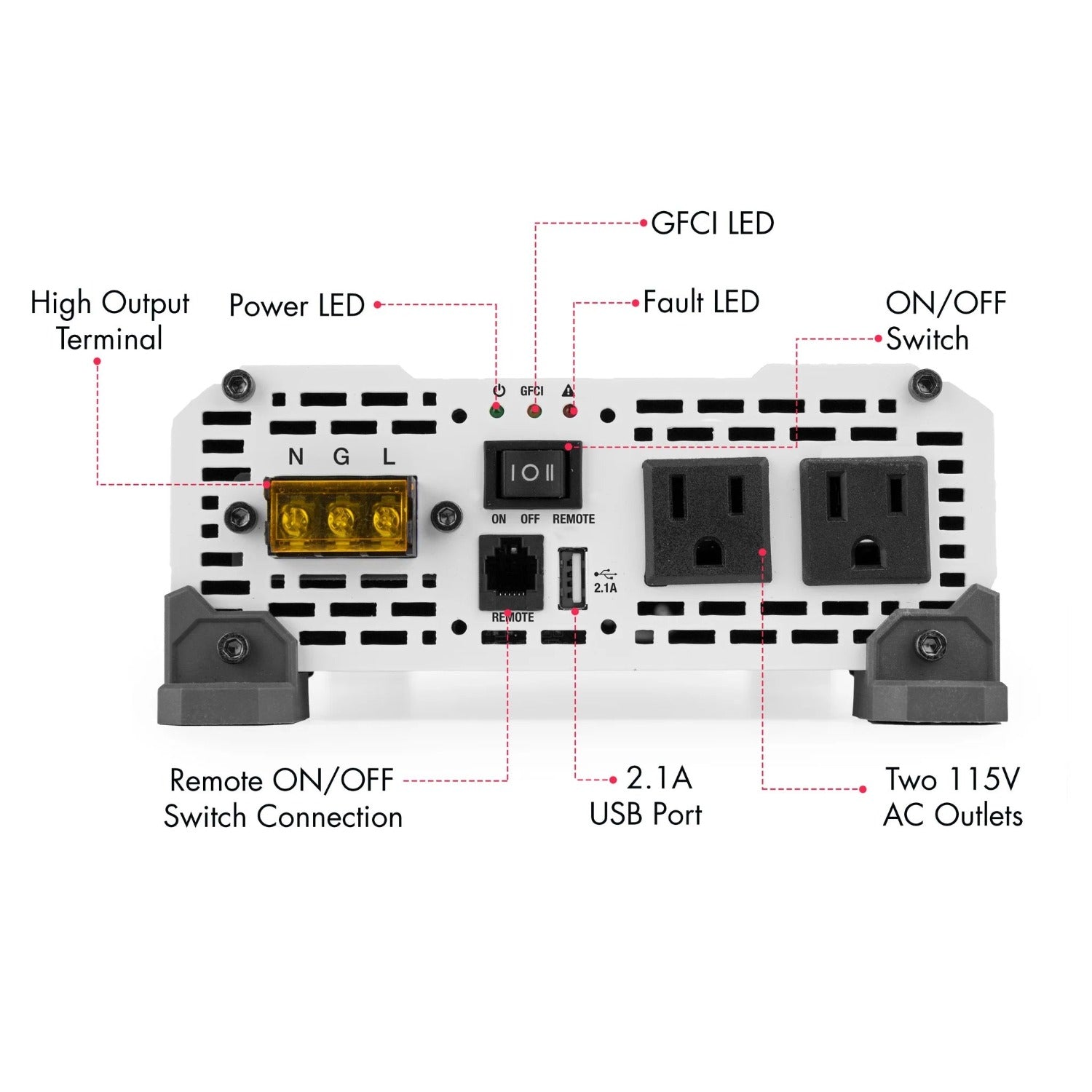

Outlets, USB and High Output Terminals

Two grounded, ground fault protected outlets (NEMA 5-15) supply up to 8.3 amps at 115V AC. For a device that needs more than 8.3 amps, or to feed distributed wiring, three insulated high output terminals (neutral, ground and live) sit behind a screw-down cover. Any wiring connected there must follow National Electric Code gauge recommendations. A 5V, 2.1A USB port charges phones, tablets and e-readers.

Status Lights and Built-In Protection

A green LED shows normal operation, a yellow LED shows a ground fault trip, and a red LED lights when the inverter shuts down for heat, overload, low voltage or high voltage. An internal alarm buzzes at 10.5V to warn of a low battery, and the inverter shuts itself off at 10.0V. It also shuts down above 16.5V and on overload, while twin load and temperature controlled fans manage heat.

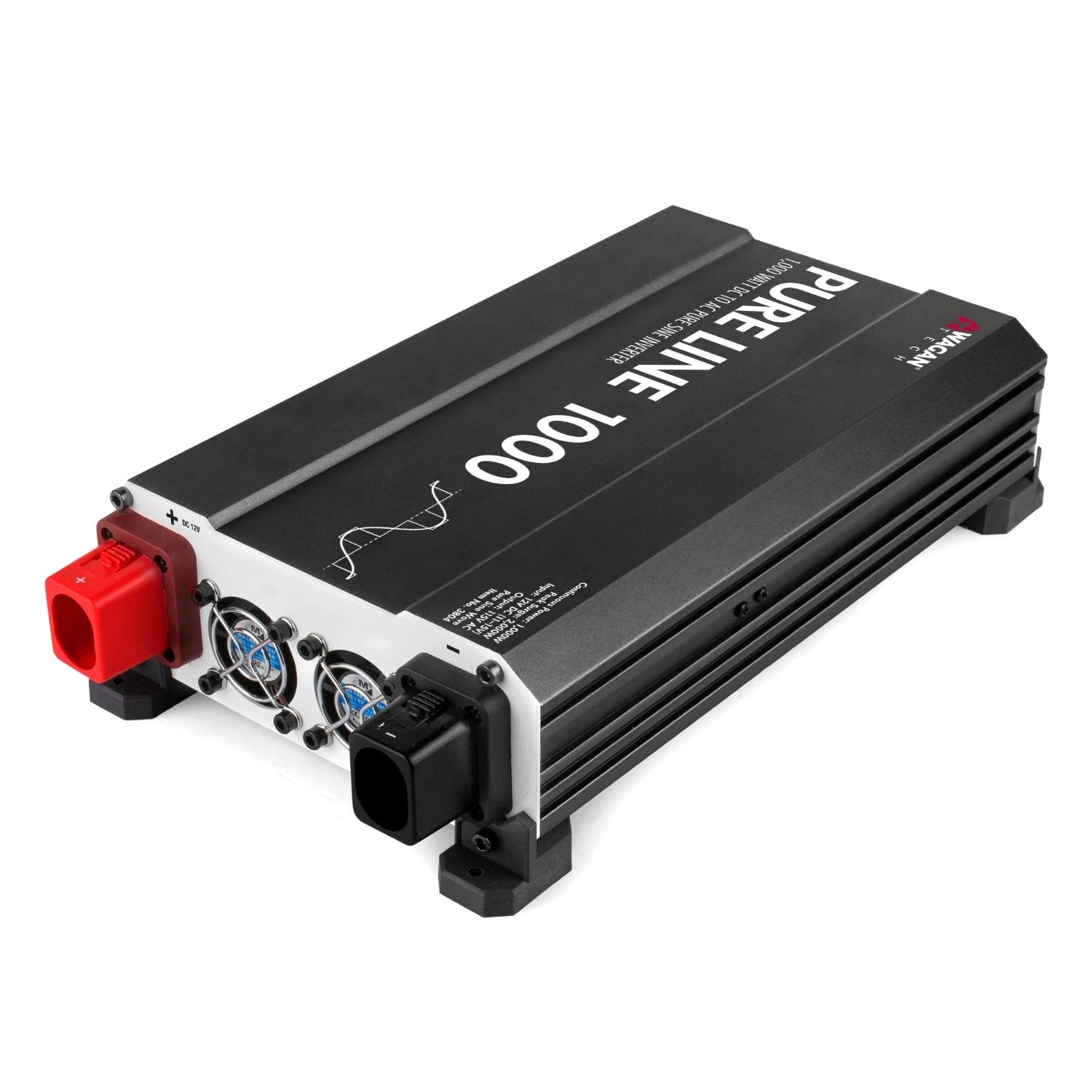

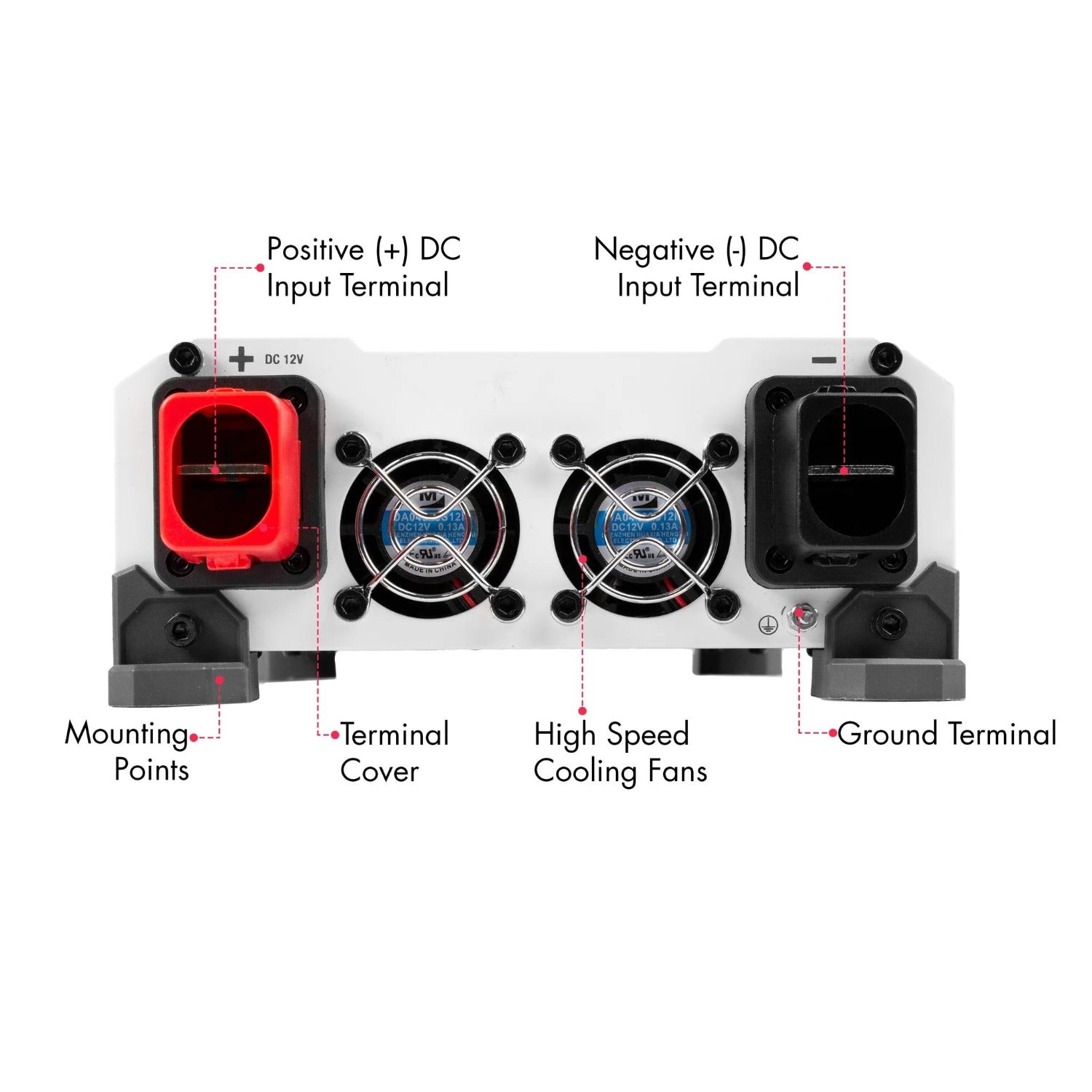

Grounding and Covered Terminals for a Secure Install

Solid mount DC terminals have removable safety covers to lower the risk of an accidental short. A separate ground terminal lets you bond the case to a vehicle chassis or boat grounding system, and it also helps reduce noise from power conversion around radio frequency devices. Neutral is bonded to ground inside the inverter, as with utility power, and mounting points let you secure the unit.

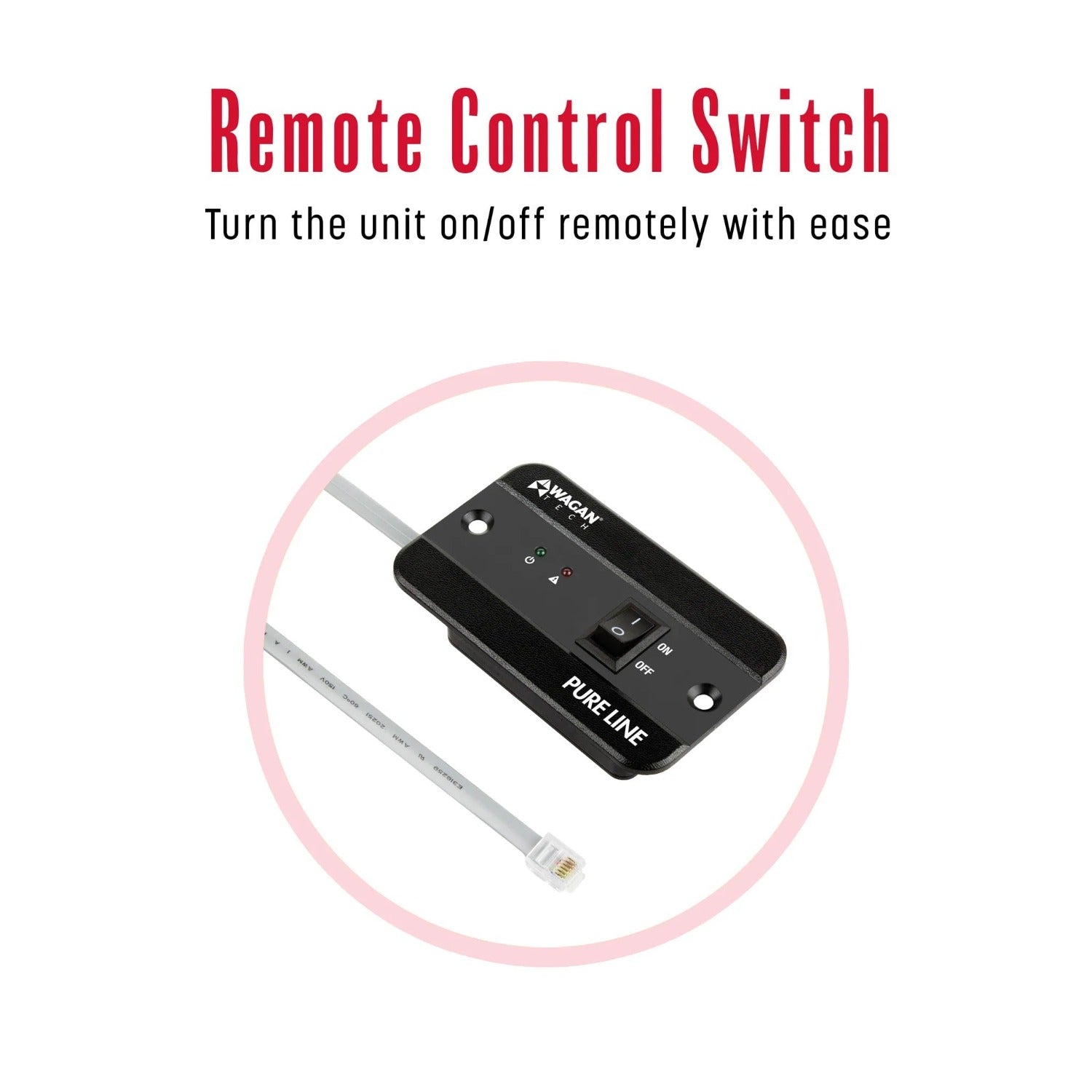

Ready for a Wired Remote

The power switch has On, Off and Remote positions. Plug Wagan's optional Pure Line Inverter Remote (item 5603, sold separately) into the front-panel remote connection and set the switch to Remote to control the inverter from a more convenient spot.


Real-World Applications

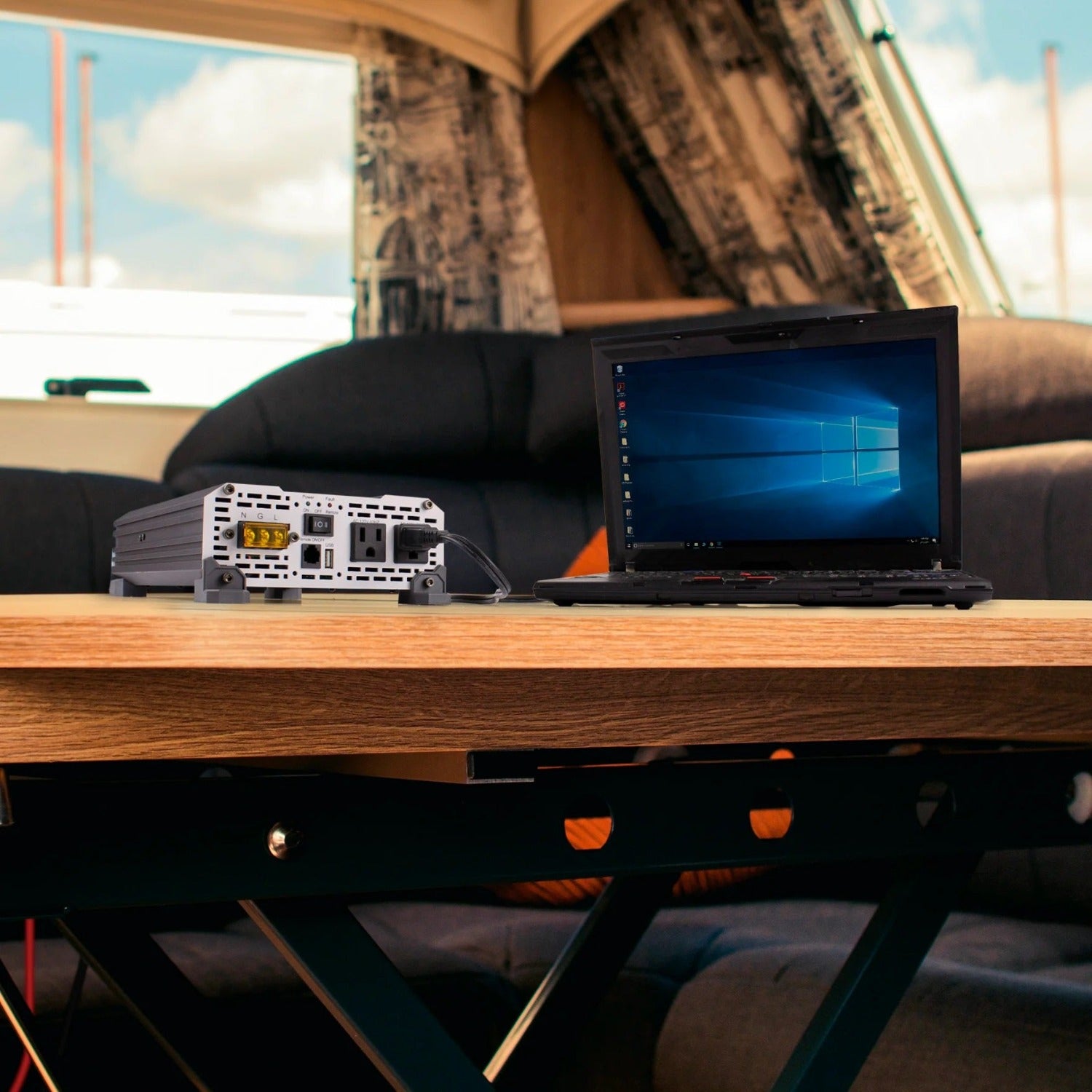

RVs and campers. Run a laptop, lights or a small kitchen appliance from your house battery bank.

Work trucks. Power corded tools and chargers that fit within the 1,000 watt continuous rating.

Boats. Bond the ground terminal to the boat's grounding system and power electronics from a deep-cycle battery.

Off-grid setups. Feed a small distributed AC circuit through the high output terminals, wired to code.


Practical Comparison

Pure Line 1000W Versus a Modified Sine Inverter

A modified sine inverter does not reproduce the true sine wave of utility power. The Pure Line does, which is why Wagan aims it at sensitive electronics such as audio and video gear, computers and communications equipment, and at motorized appliances. If your devices fall into those groups, choose a pure sine model like this one.

AC Outlets Versus the High Output Terminals

The outlets handle plug-in loads up to 8.3 amps. The high output terminals serve a single 115V device that needs more current, or hard-wired outlets elsewhere in your rig. Either way, keep the total AC load within 1,000 watts continuous.


Buyer Guidance

Plan the Battery, Fuse and Cables

Wagan specifies deep-cycle, sealed lead acid batteries when the battery sits indoors or inside a vehicle or vessel. To estimate battery current at 12 volts, divide the AC load in watts by 10, and plan extra capacity for heavy discharge. Fit a 100 amp ANL fuse in the positive cable no more than 1 foot from the battery. The supplied cables suit round-trip runs up to 5 feet in a vehicle with the engine running. For longer round trips, Wagan lists 4 AWG at 6 feet, 2 AWG at 8 to 10 feet, 0 AWG at 12 to 16 feet and 00 AWG at 18 to 20 feet. Double-check polarity before you connect, because Wagan warns that reversed battery connections damage the inverter and void the warranty.

Mounting, Grounding and Ventilation

Mount the inverter in a dry, secure spot away from heat and anything combustible, with open airflow front and rear, and horizontally if it goes on a wall. Connect the ground terminal with insulated 10 gauge copper wire to the vehicle chassis, the boat's grounding system or the battery's negative terminal, never directly to the inverter's own negative terminal. The operating range is -4°F to 104°F (-20°C to 40°C).

This May Be A Good Fit If

  • You run a 12V battery system in an RV, truck, boat or camper
  • Your AC loads total 1,000 watts or less
  • You power laptops, audio gear or other sensitive electronics
  • You want the option of a wired remote switch

Common Questions

What Size Fuse Does It Need?

Wagan specifies a 100 amp ANL fuse and fuse holder in the positive battery cable, placed no more than 1 foot from the battery's positive terminal.

What Happens When the Battery Runs Low?

The internal alarm buzzes at about 10.5V. If voltage keeps falling, the inverter shuts down at about 10.0V and the red fault LED lights. Reduce the load, recharge the battery and check the DC cables.

Can I Use an Extension Cord?

Yes, for temporary use. Keep the cord 100 feet or shorter, and use a safety-approved cord of 14 AWG or heavier.

How Do I Reset a Ground Fault Trip?

When the yellow LED lights, disconnect your appliances, then turn the inverter's switch off and back on.

What Warranty Does It Carry?

Wagan warrants it to the original purchaser for two years from the purchase date against defects in material and workmanship.


What's Included

  • 1 x Pure Line 1000W Pure Sine Wave Power Inverter
  • 1 x Set of 3 Ft 6 AWG DC Power Cables

Clean AC Power From Your 12V Battery

The Wagan Pure Line 1000W Pure Sine Inverter gives your 12V system 1,000 watts of TrueRated pure sine power, two outlets, USB charging and hard-wire terminals, with ground fault protection and remote capability built in. If you'd like help sizing your battery bank, fuse or cables, the Outbound Power team is happy to help.


Wagan Tech Pure Line 1000W Pure Sine Inverter (ETL) 12V Specifications

Model 3804
Output
Continuous Power (TrueRated) 1,000W, 24-hour continuous
Surge Power 2,000W
Output Waveform Pure sine wave
AC Output Voltage 115V AC
Frequency 60Hz
Total Harmonic Distortion Less than 3%
Efficiency Up to 90%
No Load Current Draw Less than 1.0A
DC Input
Input Voltage 12V DC
Operating Input Range 11V to 15V DC
Low Battery Alarm 10.5V ± 0.5V DC
Low Battery Shutdown 10.0V ± 0.5V DC
Over Voltage Shutdown 16.5V ± 0.5V DC
DC Terminals Solid mount positive and negative, removable safety covers
Included DC Cables 36 in. (3 ft), 6 AWG, ring connectors
Outlets and Ports
AC Outlets 2 grounded NEMA 5-15, ground fault protected
AC Outlet Current Up to 8.3A at 115V AC
High Output AC Terminals 3 insulated (neutral, ground, live), for loads over 8.3A
USB Power Port 5V, 2.1A
Power Switch On, Off, Remote
Remote Switch Connection Yes, wired remote item 5603 sold separately
Indicators Power LED (green), ground fault LED (yellow), fault LED (red)
Protection
Overload Automatic shutdown
Overheating Cooling fans with automatic shutdown
Short Circuit Internal fuses
Ground Fault Ground fault protected outlets
Low Battery Audible alarm and automatic shutdown
Neutral to Ground Bond Yes
Grounding Separate ground terminal (true ground)
Cooling Twin fans, load and temperature controlled
Circuit Board Conformal coating
Installation
Recommended Battery Fuse 100A ANL
Fuse Location Within 1 ft of battery positive terminal
Supplied Cables Round trip up to 5 ft, vehicle engine running
Cable Gauge, 6 ft Round Trip 4 AWG
Cable Gauge, 8 to 10 ft Round Trip 2 AWG
Cable Gauge, 12 to 16 ft Round Trip 0 AWG
Cable Gauge, 18 to 20 ft Round Trip 00 AWG
Battery Type Deep-cycle sealed lead acid
Battery Current Estimate AC load in watts divided by 10 = DC amps at 12V
Ground Wire Insulated 10 gauge copper
Wall Mounting Horizontal
Extension Cord 100 ft max, 14 AWG or heavier
Physical

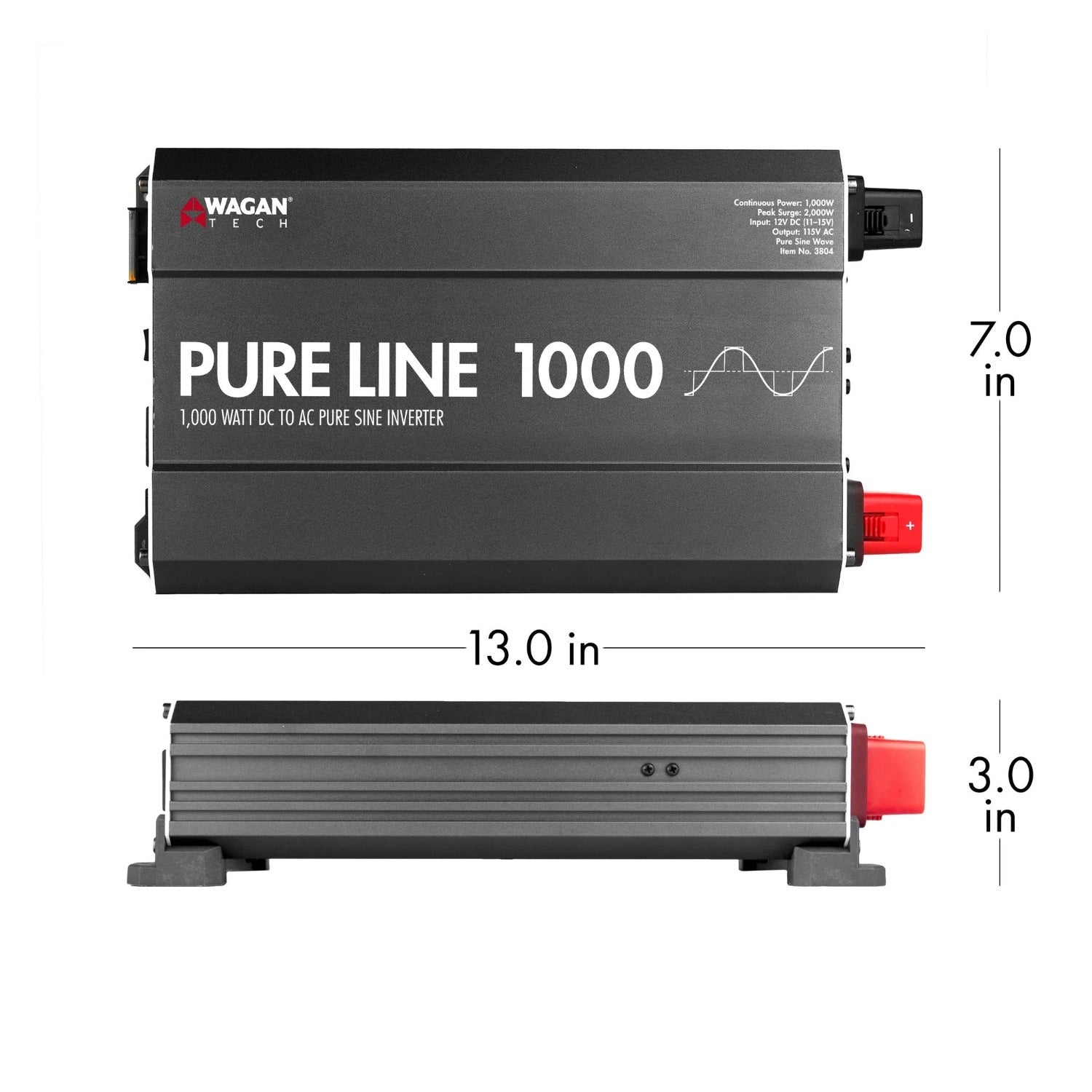

Dimensions 13.0 x 7.0 x 3.0 in
Net Weight 6.0 lb
Operating Temperature -4°F to 104°F (-20°C to 40°C)
Certifications and Warranty
Certifications ETL certified to UL 458 and CSA C22.2 No. 107.1, RoHS compliant, CE
Warranty 2 years, original purchaser
