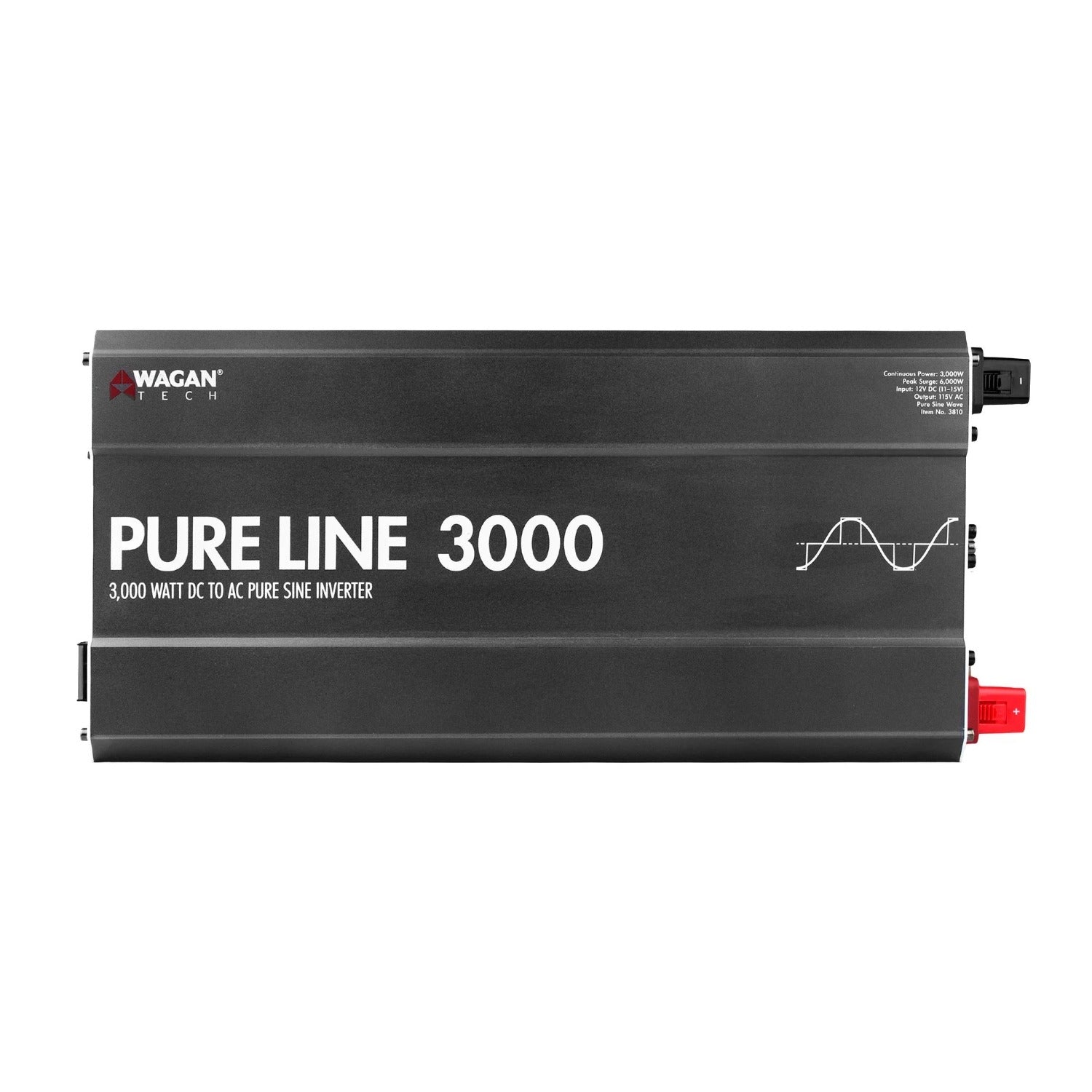

Wagan Tech Pure Line 3000W Pure Sine Inverter (ETL) | 12V

Wagan Tech Pure Line 3000W Pure Sine Inverter For Reliable 12V AC Power

Pure sine wave output is an important consideration when powering sensitive electronics and motor-driven equipment. According to the Wagan Tech manual, the Pure Line 3000 produces a true AC sine wave comparable to commercial power. The manual specifically identifies audio/video systems, computers, communications equipment, and motorized appliances as applications that can benefit from pure sine wave AC.

This inverter accepts 12V DC input and delivers 115V AC at 60Hz, with a rated continuous output of 3,000 watts and a peak surge capability of 6,000 watts. That makes proper system planning especially important: the connected battery bank, DC cabling, fuse protection, and expected loads should all be selected for the inverter's power requirements.

Wagan Tech Pure Line 3000W Features For Practical Power Planning

Pure Sine Wave Output For Sensitive Electronics

The Pure Line 3000 produces a pure sine wave AC output with less than 3% total harmonic distortion. This type of output is designed for equipment that benefits from clean AC power, including computers, audio/video equipment, communications equipment, and motorized appliances. It delivers 115V AC at 60Hz for compatible North American equipment.

3,000 Watts Of Continuous Power So You Can Run Larger Loads

With TrueRated™ power of 3,000 watts for 24-hour continuous operation, the inverter is built around a substantial AC output capacity. Customers should still calculate the total continuous load before use and keep connected equipment within the 3,000-watt maximum specified by Wagan Tech.

6,000-Watt Surge Capacity For Motor Startup Demands

Some appliances and tools require more power briefly when starting than they consume during normal operation. The Pure Line 3000 provides a 6,000-watt peak surge rating to help handle these momentary demands. Wagan Tech notes that startup loads can vary significantly, so the starting requirements of each appliance should be considered before connection.

Up To 90% Efficiency For More Effective Battery Use

The inverter is specified with a maximum efficiency of up to 90%. Actual performance depends on operating conditions and load, but the efficiency specification is useful when planning a battery-powered AC system where available DC energy matters. The manual also provides guidance for estimating battery requirements based on appliance wattage and operating time.

Multiple AC Outputs So You Can Power Compatible Equipment

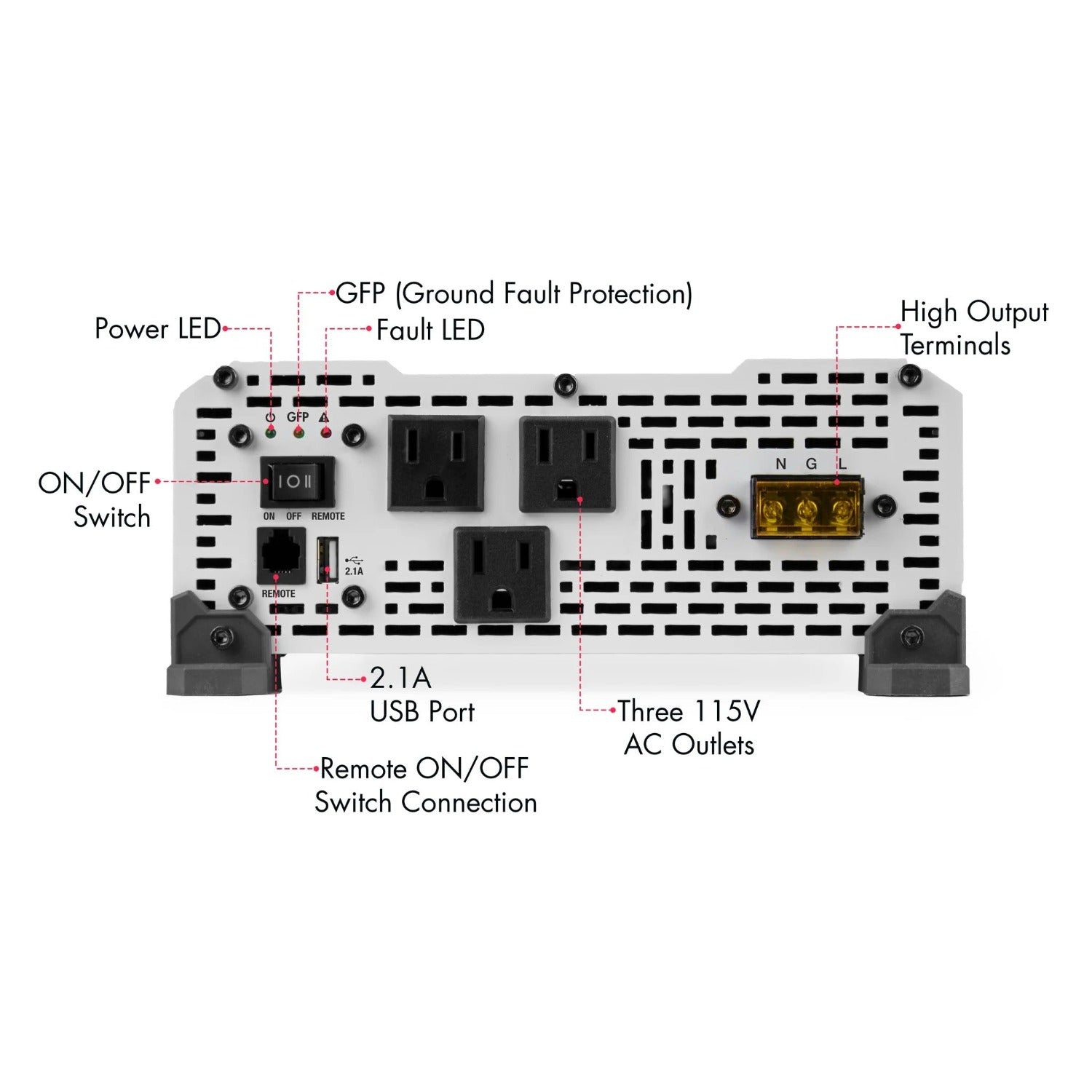

The Pure Line 3000 includes three North American standard AC output sockets. It also has high-output AC terminals for 115V AC devices requiring more than 15 amps or for connection to distributed wiring with multiple AC outlets. Directly connected AC wiring must follow the applicable wiring recommendations stated in the manual.

USB Power For Convenient Small-Device Charging

A dedicated 5V, 2.1A USB power port provides an additional option for powering or charging small electronics such as smartphones, tablets, and e-readers. This gives the inverter a useful low-power convenience feature alongside its much larger AC output capability.

Protection Features For More Informed Operation

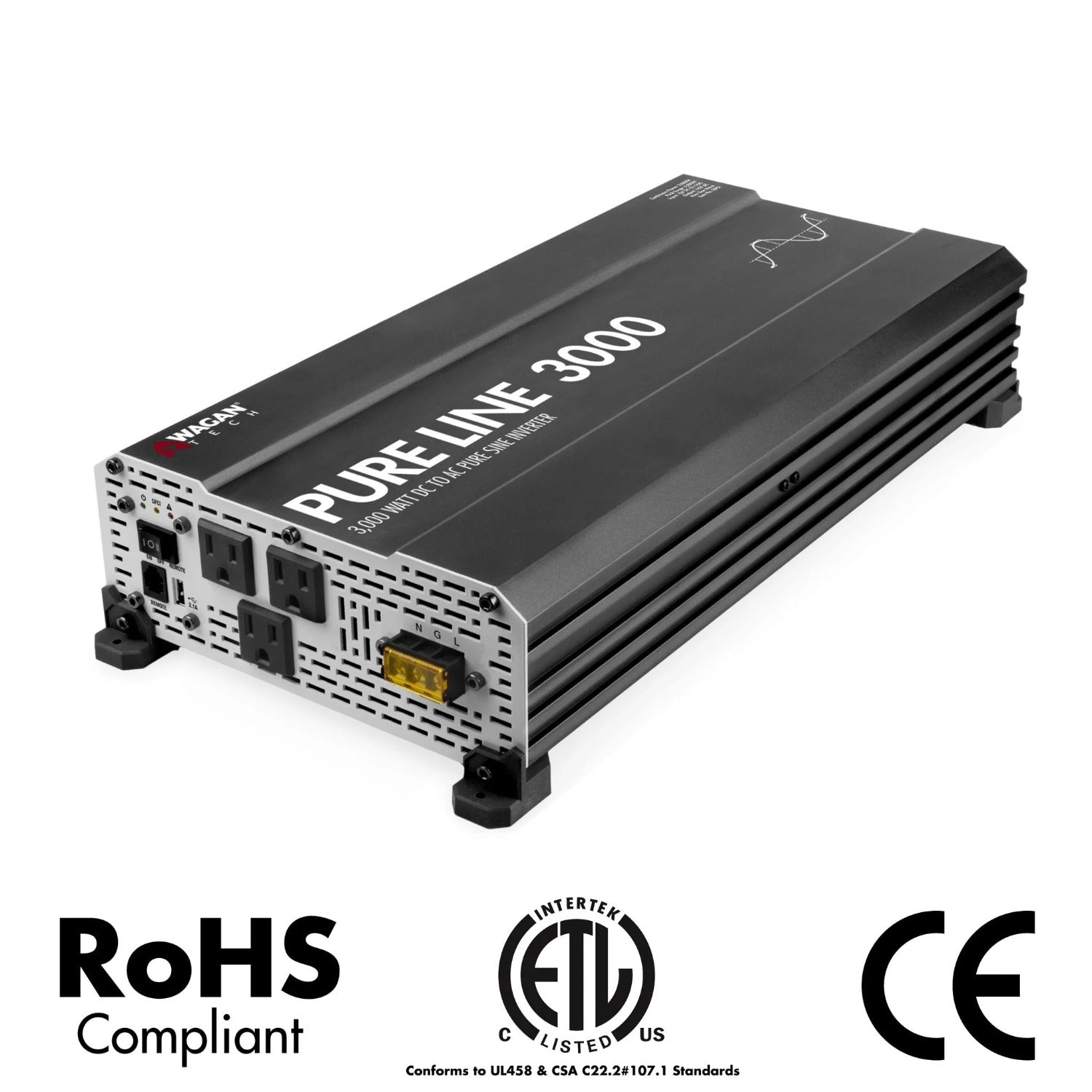

The Pure Line 3000 includes ETL certification identified in the manual as UL458 and CSA 22.2, along with ground fault protection, DC terminal protection, conformal coating for circuit protection from dust and moisture, and protective covers over the DC terminals. Its front panel also provides operating, ground fault, and fault indicators to help identify operating conditions.

Real-World Uses For The Pure Line 3000

The manual describes the Pure Line 3000 as a mobile power product intended to power AC appliances in a vehicle, while its installation guidance also addresses vehicle, vessel, and fixed-location installations. This makes it particularly relevant for customers building a properly engineered 12V battery-based AC power system where a 3,000-watt inverter is appropriate.

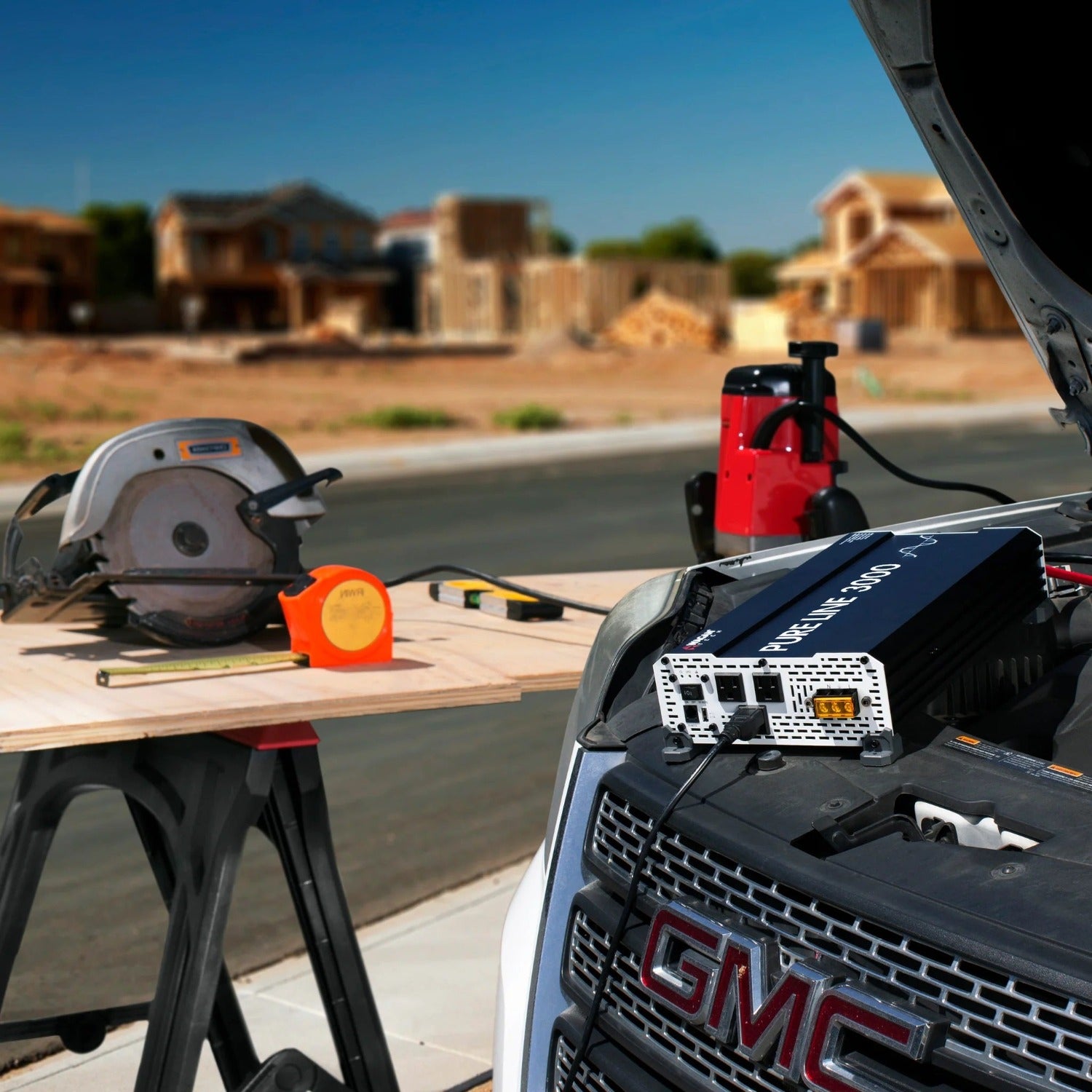

• Vehicle Power Systems — Convert power from a 12V DC battery source into 115V AC for compatible equipment.
• Marine Applications — The manual provides grounding guidance for installations involving a boat or vessel.
• Fixed-Location Power Systems — The installation instructions also address fixed installations and appropriate grounding.
• Mobile Power Equipment — The Pure Line 3000 is specifically described as an addition to mobile power equipment.

For any of these applications, the inverter should be treated as one component of a complete power system rather than as a standalone battery or generator. Battery capacity, expected runtime, charging requirements, cable distance, cable gauge, and maximum appliance wattage all need to be considered during system planning.

How The Pure Line 3000 Compares To Other Power Options

The Pure Line 3000 is an inverter, not an energy-storage device. It converts 12V DC power into 115V AC power, so it requires an appropriate 12V DC power source and a properly planned battery system. That distinguishes it from an all-in-one power station, where the battery and inverter are typically integrated into one enclosure.

It also serves a different role from a fuel-powered generator. Rather than producing electricity from fuel, the Pure Line 3000 takes energy already available from a 12V DC source and makes it available as AC power. For customers who already have or are planning a suitable 12V battery bank, this format can provide a straightforward path to higher-output AC power without treating the inverter itself as the energy-storage component.

Buyer Guidance For Choosing The Right 12V Inverter

The most important question is not simply whether an appliance's running wattage is below 3,000 watts. Startup demand matters too, particularly for equipment with motors. Wagan Tech advises users to account for startup surge and not exceed the inverter's 6,000-watt momentary surge rating.

This May Be A Good Fit If

• You need 115V AC power from a 12V DC source.
• Your planned continuous AC load stays within 3,000 watts.
• Your equipment can operate from a 115V, 60Hz pure sine wave supply.
• You need additional surge capacity for compatible motorized equipment.
• You are prepared to plan the battery bank, cabling, fuse protection, and grounding correctly.

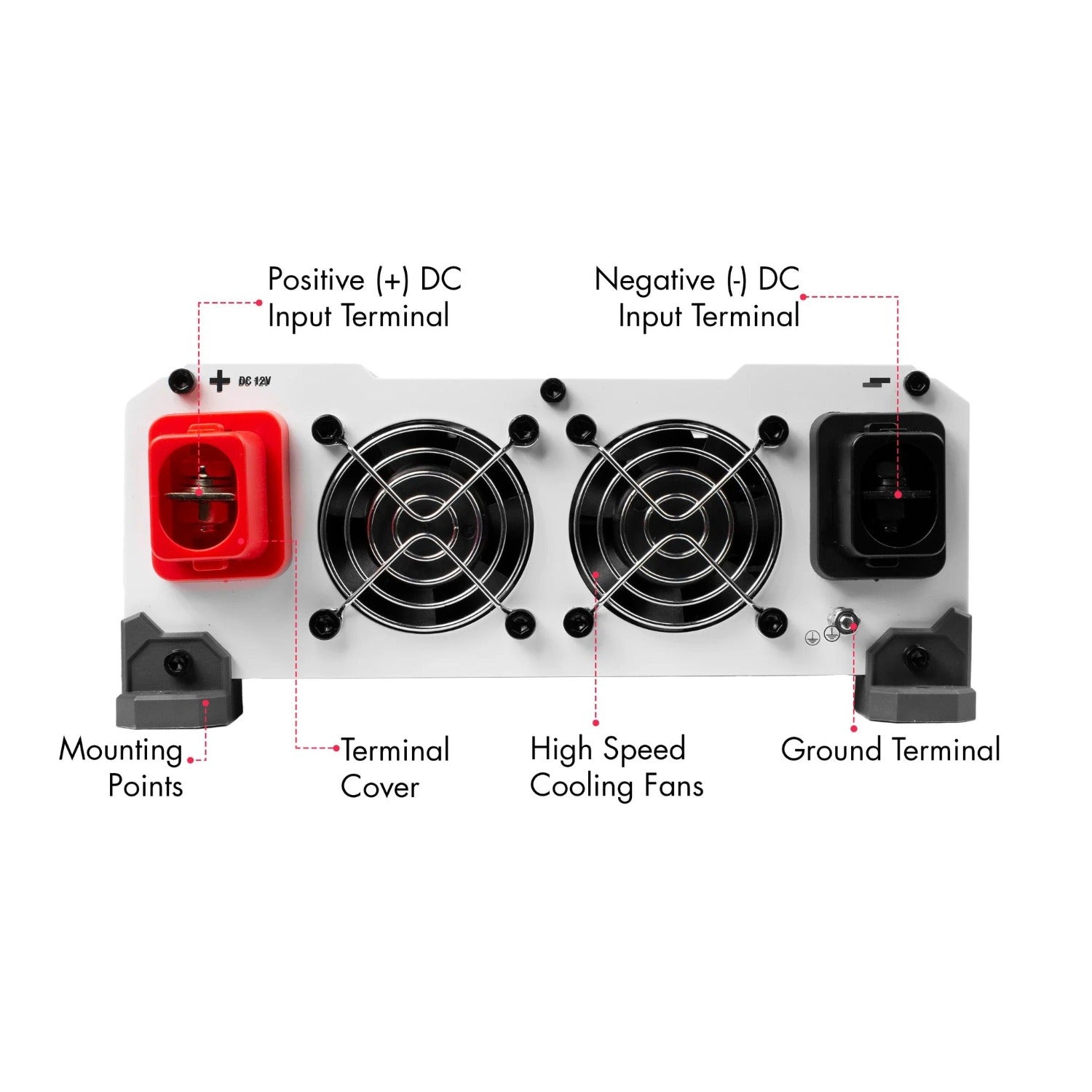

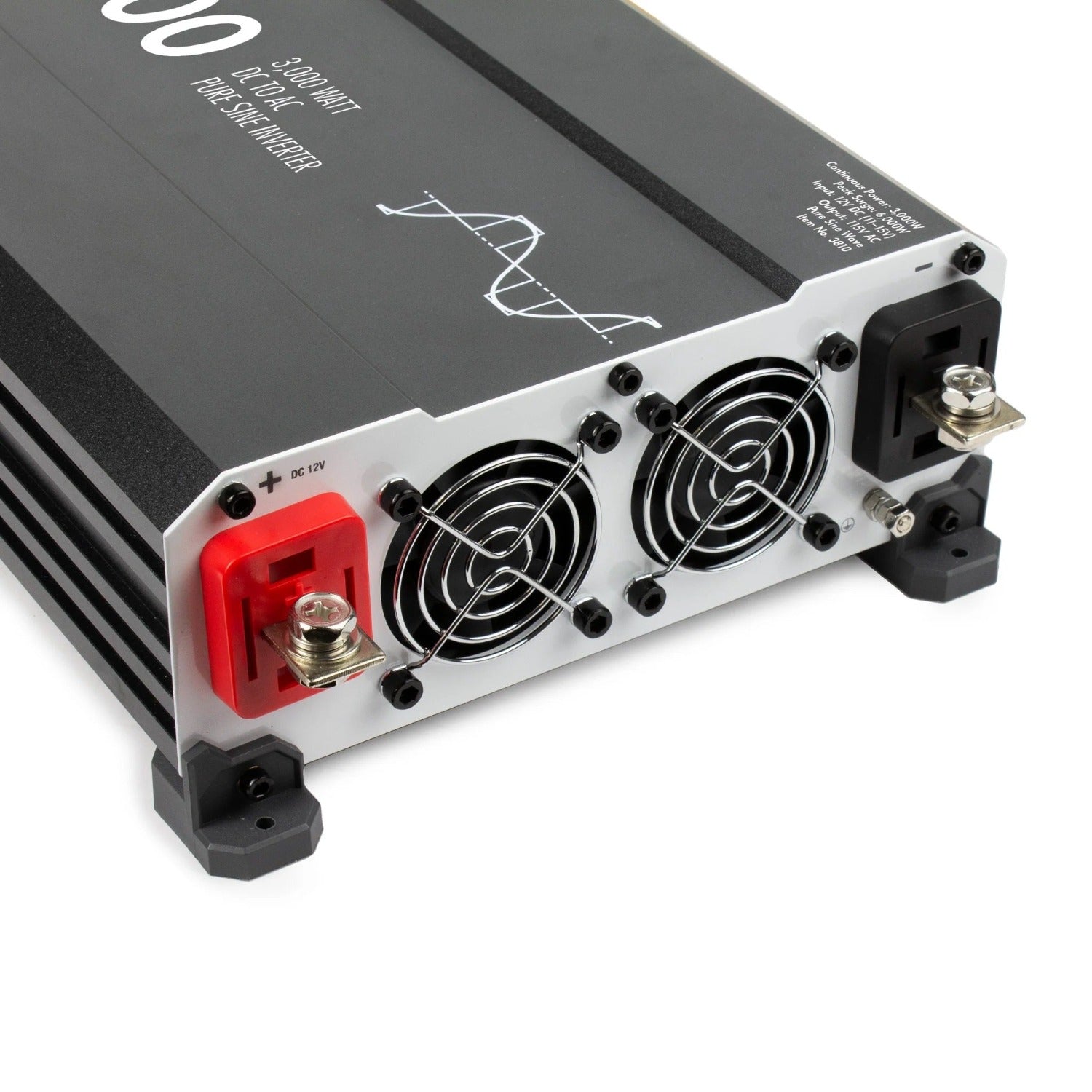

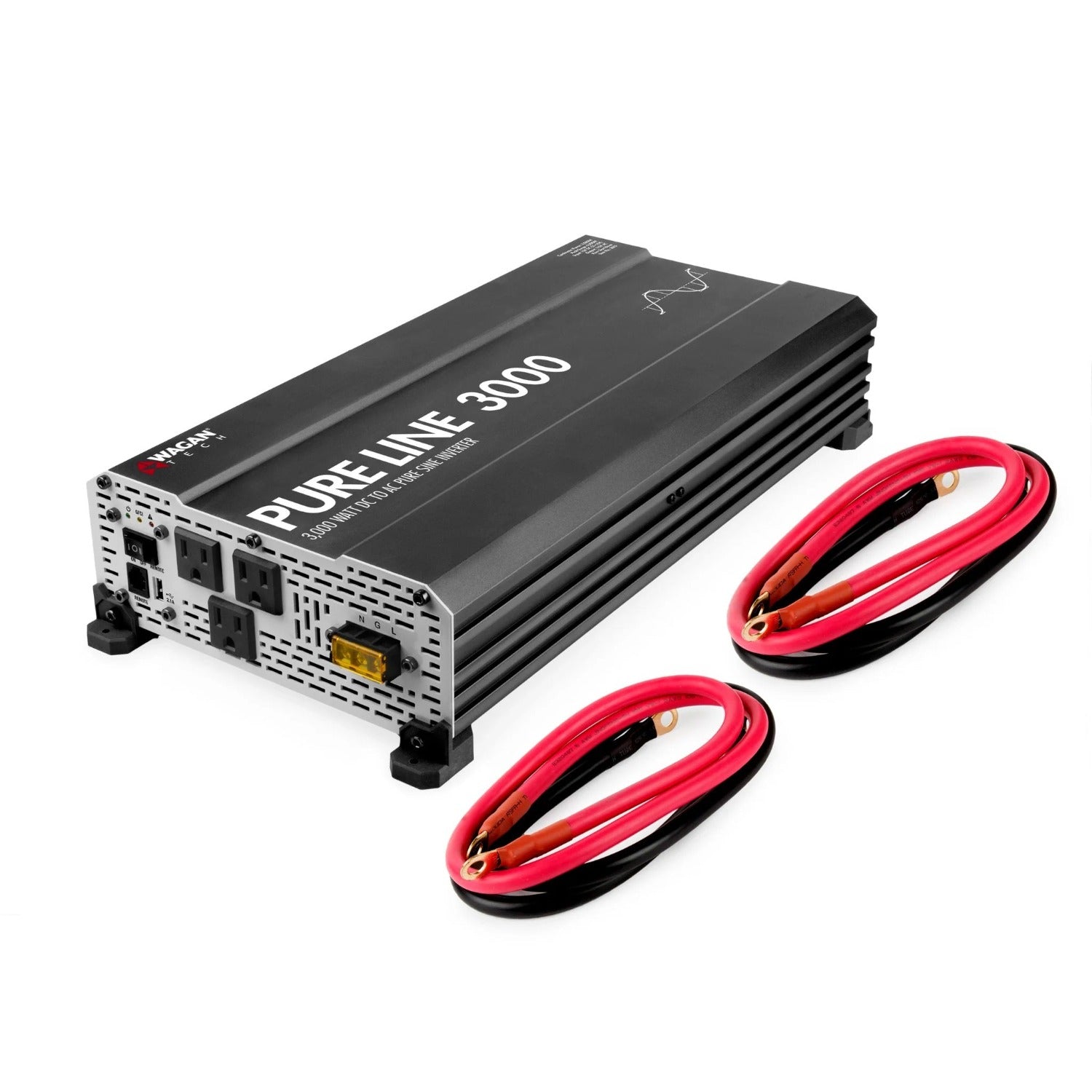

Installation deserves particular attention. The manual calls for proper DC cable sizing, a fuse close to the battery's positive terminal, secure connections, adequate airflow, and appropriate grounding. The supplied DC cable is 36 inches long and uses two 4 AWG cables with ring connectors, while the manual provides additional cable-sizing guidance for different installation distances.

The inverter is designed for a 12V DC power source only. It should be kept dry and well ventilated, away from direct heat sources and combustible materials. Incorrect battery polarity can damage the inverter, and the manual warns against exceeding the 3,000-watt maximum AC load.

Common Questions About The Wagan Tech Pure Line 3000W

What Type Of Power Does The Pure Line 3000 Produce?

It produces pure sine wave AC power at 115V and 60Hz. Its specified total harmonic distortion is less than 3%.

How Much Power Can The Inverter Deliver?

The inverter is rated for 3,000 watts of continuous TrueRated™ power, with a 6,000-watt peak surge capability. Connected equipment should not exceed the specified maximum load.

Does It Work With A 12V Battery System?

Yes. The Pure Line 3000 is designed to operate from a 12V DC power source. Battery capacity and system configuration should be planned around the intended loads and operating time.

Does It Include USB Power?

Yes. The inverter has a 5V, 2.1A USB power port for powering or charging compatible small electronic devices.

Does It Have A Remote Control Option?

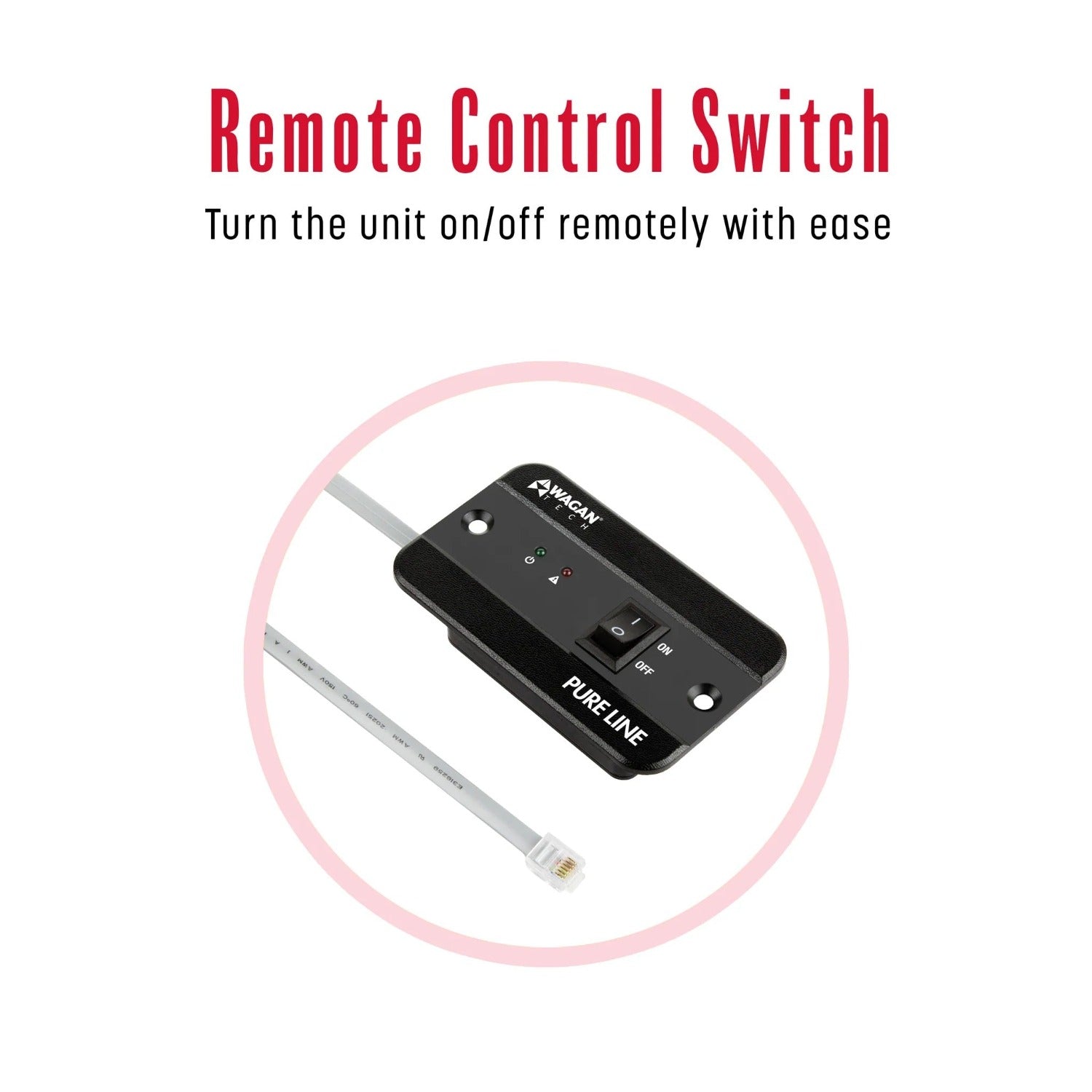

The inverter has a remote switch connection, and the manual identifies a wired remote control as an optional accessory sold separately under item number AA5603.

Choose The Wagan Tech Pure Line 3000W With Confidence

The Wagan Tech Pure Line 3000W Pure Sine Inverter (ETL) | 12V brings substantial AC output, pure sine wave power, useful surge capacity, USB charging, multiple AC connection options, and documented protection features into a single 12V inverter platform. Its 3,000-watt continuous rating makes proper system planning essential, but for customers whose battery setup and loads align with its specifications, it provides a practical foundation for mobile or fixed-location AC power.

At Outbound Power, we believe the right power equipment starts with understanding the actual load, the available energy source, and how the system will be used. If the Pure Line 3000 matches your voltage, output, surge, and installation requirements, it can be a capable component of a thoughtfully designed 12V power system. Review your battery capacity, load requirements, cabling, grounding, and installation conditions before purchase so your complete setup is planned around the equipment's specifications.
