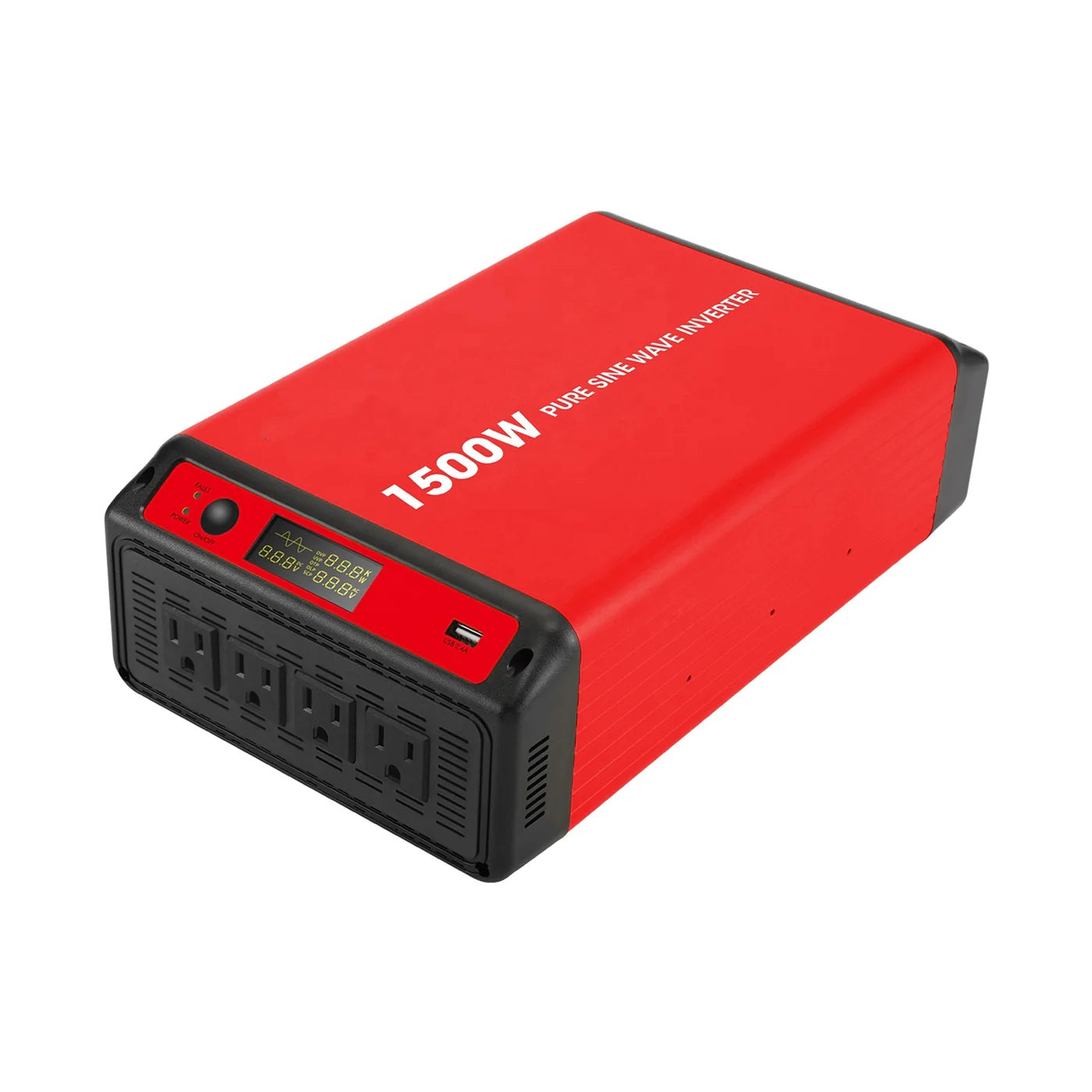

The ACOPower 1500W 12V Pure Sine Wave Inverter converts DC power from a 12 volt battery bank into 120 volt AC power with a true sine wave output, the same kind of power supplied by the utility grid. It delivers 1,500 watts continuously with 3,000 watts of surge to start motors and compressors, enough to run a TV, laptops, a small fridge, fans, lights and phone chargers.
Because the output is pure sine wave, it runs sensitive electronics, variable speed tools, chargers and appliances with motors without the buzzing, overheating or glitches that modified sine wave inverters can cause. It is a good fit for RVs, vans, boats, cabins, work trucks and home backup systems.
The inverter supplies 1,500 watts around the clock and briefly doubles that to 3,000 watts when a refrigerator, pump or power tool starts up.
Clean 120VAC output with low harmonic distortion protects electronics and lets motors run cooler and quieter.

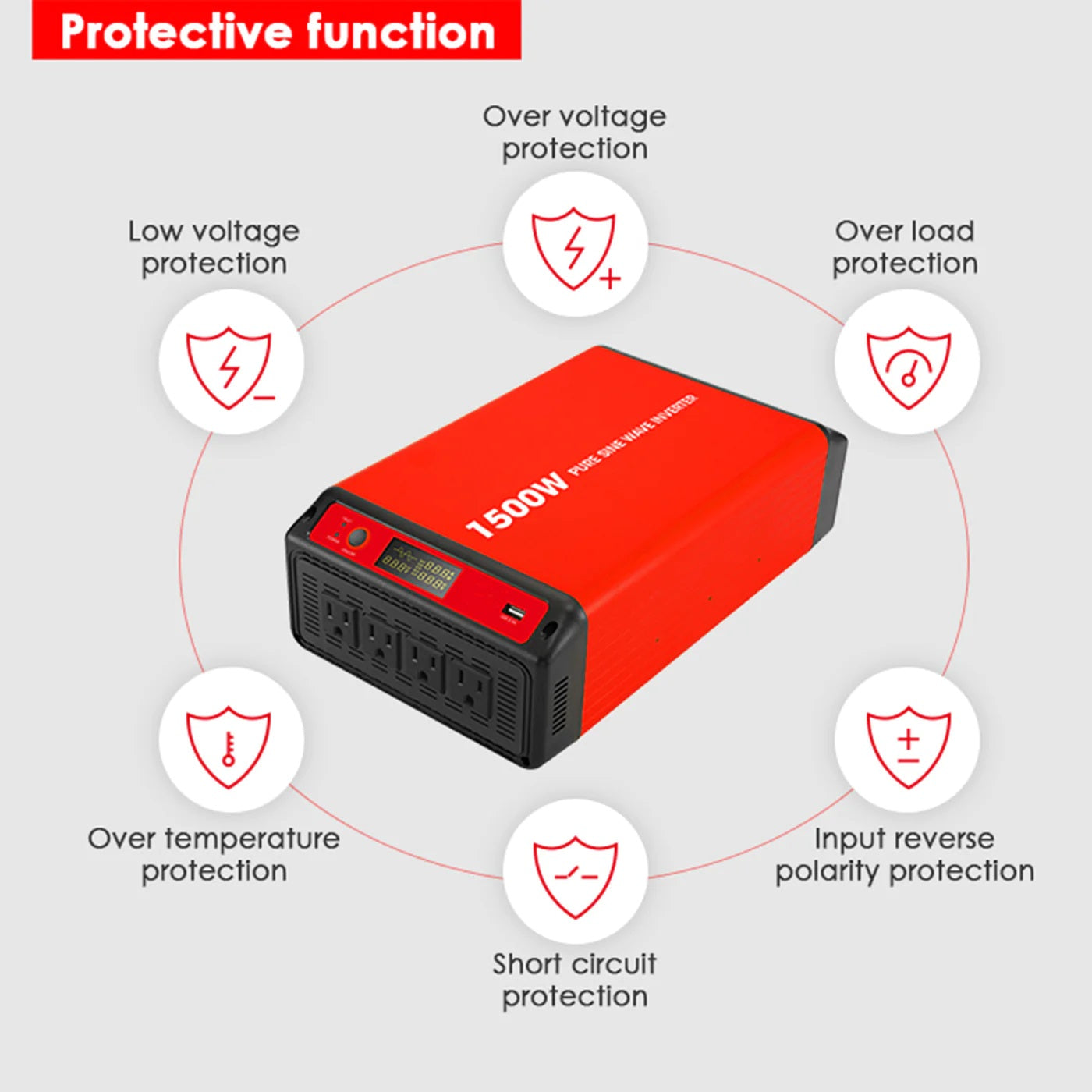

The inverter shuts down on low battery voltage, high input voltage, overload, output short circuit and over-temperature, then recovers when conditions return to normal. Under-voltage shutdown is 10.5V and over-voltage protection is 15.5V on 12V models, according to ACOPower's manual.

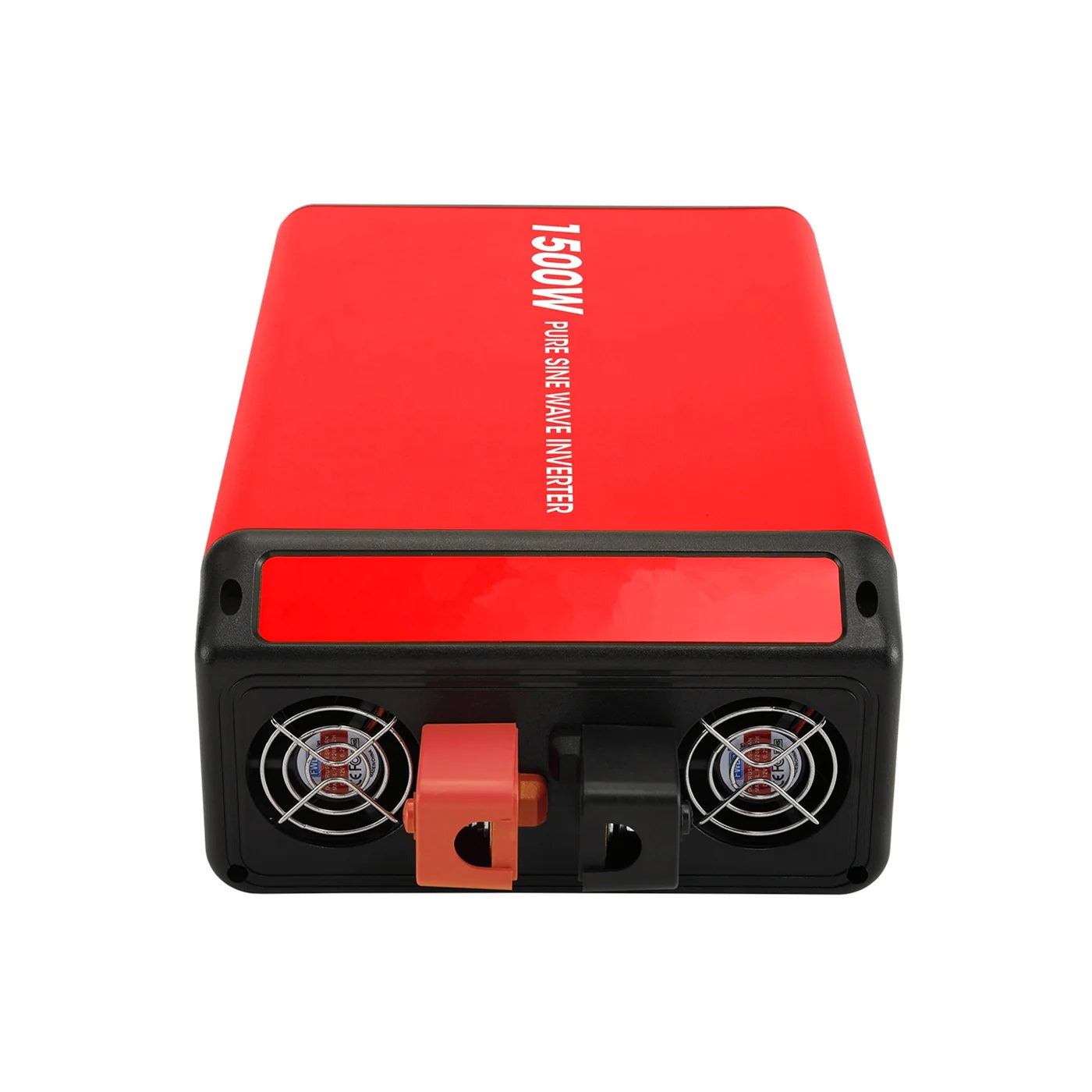

High-speed cooling fans keep internal temperatures down under heavy loads and switch on automatically as the inverter warms up.

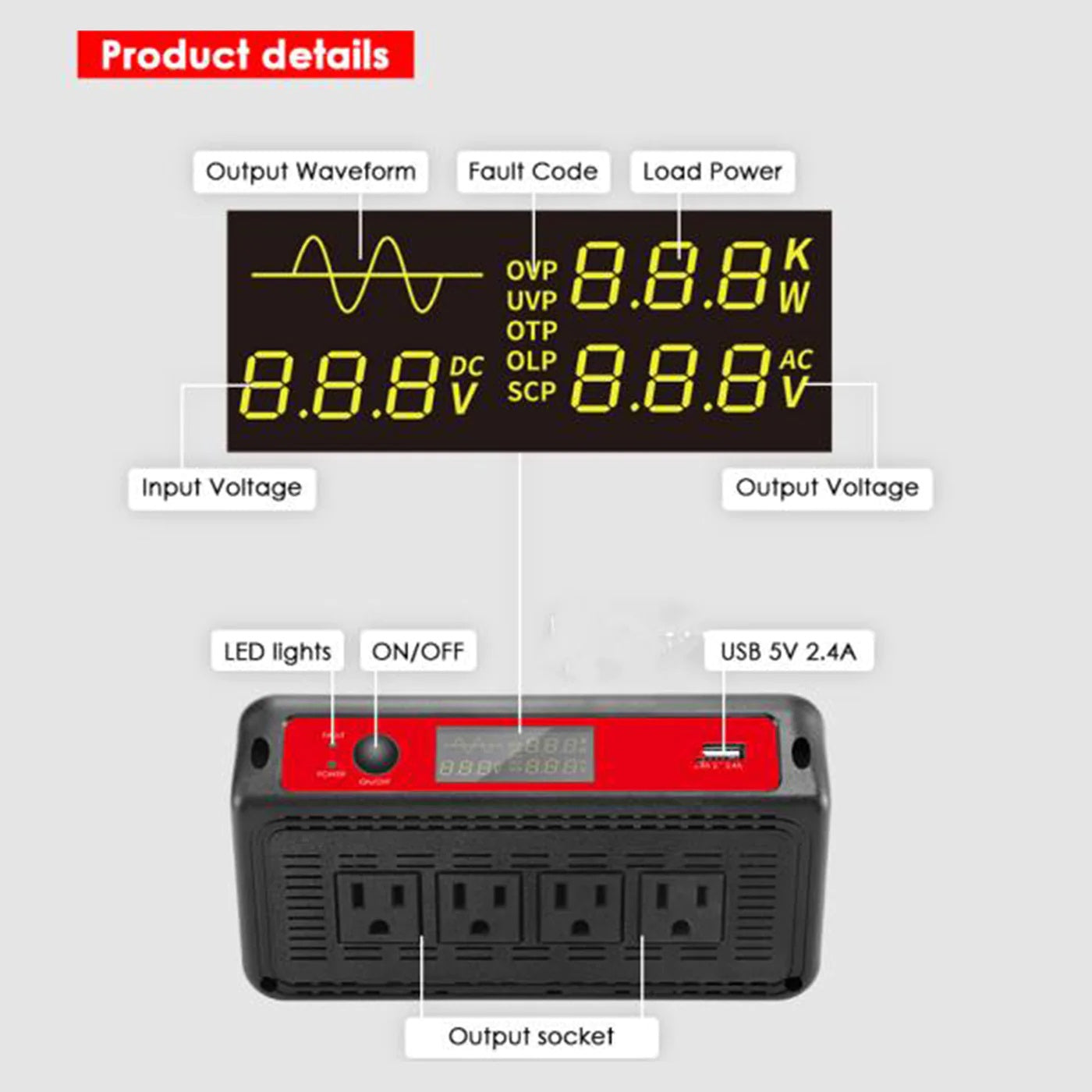

An LCD and LED display shows operating status, and the inverter accepts an optional remote panel for on and off control from a distance. A 5V USB port (2.4A) charges phones and tablets directly.
RVs and vans. Run 120V outlets and appliances from your house batteries while boondocking.
Off-grid solar systems. Pair with solar panels, a charge controller and batteries for cabin power.
Work trucks. Power tools and chargers on the job site from an auxiliary battery.
Home backup. Keep a refrigerator, lights and internet equipment running during an outage.
Versus modified sine wave inverters. Modified sine units cost less but can make motors run hot and cause problems with electronics and some chargers. Pure sine is the safer choice for mixed loads.
Versus the 3,000W model. The 3000W model handles larger appliances like microwaves and coffee makers but needs heavier cables and a bigger battery bank.
Versus inverter chargers. An inverter charger adds a built-in battery charger and transfer switch for shore power. A standalone inverter is simpler and works well when charging comes from solar or an alternator.
This may be a good fit if
At full load the inverter draws about 150A from a 12V battery. For regular heavy use, a lithium bank of 200Ah or more, or a larger lead-acid bank, is a sensible starting point.
Most residential and RV refrigerators run well on a pure sine inverter of this size, as long as their starting surge is within 3,000W.
ACOPower lists a no-load draw of 650mA. Turn the inverter off when you do not need AC power to save battery.

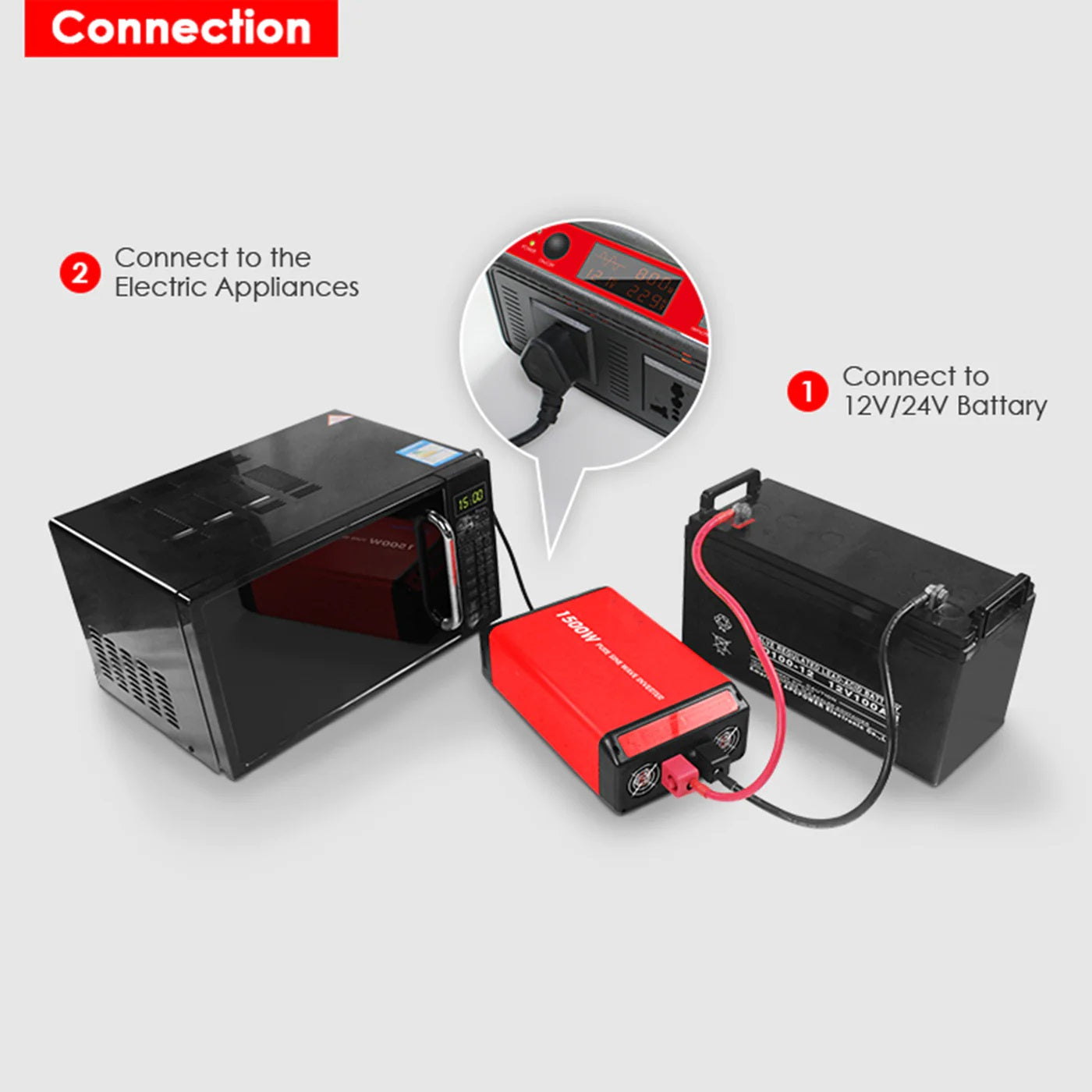

Yes. Install a fuse or circuit breaker in the positive cable as close to the battery as practical.
The ACOPower 1500W 12V Pure Sine Wave Inverter delivers 1,500 watts of grid-quality power with the surge capacity and protection needed for everyday off-grid use. At Outbound Power, we help customers size inverters, batteries and cabling. If you have questions, our team is happy to help.
ACOPower 1500W Power Inverter 12VDC to 120VAC Specifications |
|
|---|---|
| Model | HY-INV1.5KW |
| Input Voltage | 12VDC |
| Output Voltage | 120VAC |
| Continuous Power | 1,500W |
| Surge Power | 3,000W |
| Waveform | Pure sine wave |
| Max DC Input Current | 150A |
| No-Load Current Draw | 650mA |
| Remote Standby Draw | 1mA |
| Efficiency | 90% |
| THD | 3% or less |
| Frequency | 60Hz |
| Low Voltage Shutdown | 10.5V ±0.5V |
| High Voltage Protection | 15.5V ±0.5V |
| Over-Temperature Shutdown | 85°C ±5°C |
| USB Output | 5V, 2.4A |
| Display | LCD and LED |
| Cooling | Temperature-controlled fan |
| Protection | Low and high input voltage, overload, short circuit, over-temperature |
| Dimensions | 329 + 34 x 191 x 98 mm (12.94 + 1.34 x 7.52 x 3.86 in) |
| Weight | 3.54 kg (7.8 lbs) |
| Workmanship Warranty | 1 year |
