The Anker SOLIX Home Backup Kit Puts Up to Six Essential Home Circuits on Your F3000, F2600 or F2000 Through a 30 Amp Manual Transfer Switch
The Anker SOLIX Home Backup Kit pairs a Pro/Tran 2 30 Amp, 6-circuit manual transfer switch with a cable, and Anker lists it for the Anker SOLIX F3000, F2600 and F2000. The switch manages up to six circuits, each rated for up to 15 amps single-pole, with color-coded wattmeters and an L5-30 power inlet. Anker lists the kit at 120V and the switch at 125V.
It's for owners of those power stations who want selected household circuits ready for backup power instead of running extension cords. Anker states that the switch is to be installed only by a qualified electrician with a thorough knowledge of all applicable electrical and building codes. Use a licensed electrician, and expect local codes and permits to apply.
Anker SOLIX Home Backup Kit Features
Six 15 Amp Circuits
Anker says you can manage up to six circuits, each rated for up to 15 amps single-pole (15A 1-pole). Pick the circuits that matter most to your household when the grid is down.
Color-Coded Wattmeters and an L5-30 Power Inlet
The color-coded wattmeters let you see the power your F3000, F2600 or F2000 is supplying at a glance, then manage the load to match. The switch takes power through an L5-30 power inlet.
Hinged, Non-Metallic Cover
A hinged, non-metallic cover keeps the toggle switches and breakers protected and gives the installation a finished appearance.
UL 1008 and NEC Article 702
Anker lists UL Standard 1008 under the switch's safety and certifications, and says it meets all requirements of Article 702 of the NEC (ANSI/NFPA 70). Anker also lists protection against back-feeding among its safety features.
Real-World Applications
Home backup during outages. When the power goes out, move your chosen circuits over to the power station so the essentials on them keep running.
Adding home backup to a power station you own. If you already own an F3000, F2600 or F2000, this kit connects it to up to six household circuits without replacing the power station.
Managing load through a long outage. Watch the wattmeters and manage the circuits accordingly, keeping the load within what your power station can supply.
Practical Comparison
Home Backup Kit Versus Extension Cords
Extension cords only reach appliances you can unplug and move. The Home Backup Kit connects the power station to the chosen circuits themselves, so whatever is wired to those circuits can run from it.
Six Chosen Circuits Versus Backing Up Everything
The switch covers up to six 15 amp single-pole circuits at 120V, not your whole panel. Choose the circuits for the essentials you can't do without.
Buyer Guidance
Installation and Permits
The switch connects to your home's electrical panel, so a licensed electrician should install it, and local codes, permits and any required inspection apply. Talk through which circuits to include and where the power station will sit when it's connected.
This May Be A Good Fit If
- You own an F3000, F2600 or F2000
- You want up to six essential circuits backed up
- Your essential circuits are 120V, 15 amp single-pole
- You'd rather flip switches than run extension cords
Common Questions
Can a Circuit Larger Than 15 Amps Go on This Switch?
Anker rates each of the six circuits for up to 15 amps single-pole. If an essential circuit is larger, ask your electrician about other options before you order.
Does It Back Up 240V Circuits?
Anker lists this kit at 120V and the switch at 125V, with single-pole circuits, so it is set up for 120V circuits.
What Warranty Does It Have?
The kit is covered by Anker's limited warranty. Ask the Outbound Power team for the current terms.

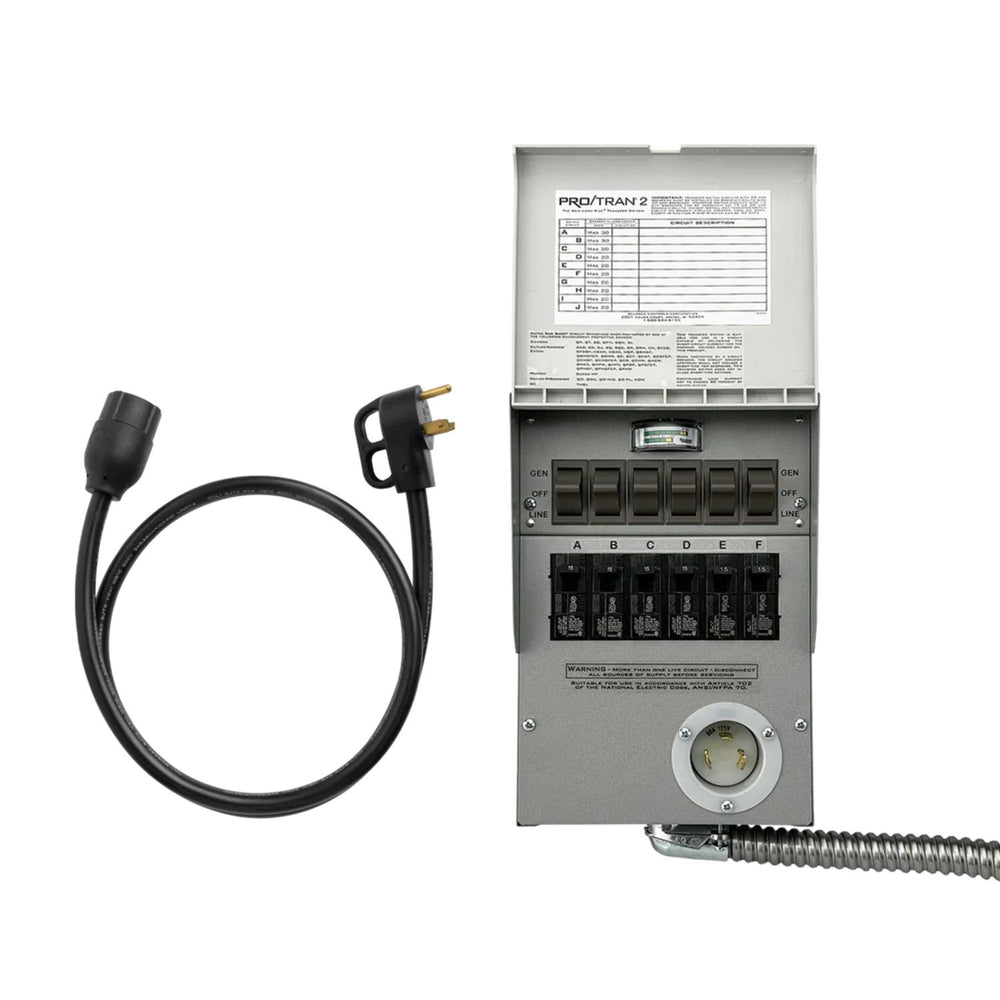

What's Included
- 1 x 6-Circuit Manual Transfer Switch (120V, 30 Amp)
- 1 x Cable
Six Essential Circuits on Stored Power
The Anker SOLIX Home Backup Kit gives your F3000, F2600 or F2000 up to six 15 amp circuits through a 30 Amp manual transfer switch with color-coded wattmeters and an L5-30 inlet. If you'd like help deciding which circuits to back up, the Outbound Power team is happy to help.
Anker SOLIX Home Backup Kit Specifications
|
| Electrical |
| Kit Voltage |
120V |
| Switch Rating |
125V, 30 Amp |
| Circuits |
6 |
| Circuit Rating |
Up to 15A each, single-pole (15A 1-pole) |
| Power Inlet |
L5-30 |
| Compatibility |
| Power Stations |
Anker SOLIX F3000, F2600, F2000 |
| Construction |
| Switch Type |
Pro/Tran 2 manual transfer switch |
| Wattmeters |
Color-coded |
| Cover |
Hinged, non-metallic |
| Certification |
UL Standard 1008 |
| Code Compliance |
NEC Article 702 (ANSI/NFPA 70) |
