EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit | 30.72-92.16kWh | 7200W | 5.6kW Solar Input

by EcoFlow
|
SKU: OBP-EFDPUDK-5BP-8SP
Sold out
$17,350.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.

We Beat Any Price

Found the same price or less? Just ask & we'll beat it.

Options
Availability: Translation missing: en.general.icons.icon_check_circle icon Out of stock
EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit with stacked batteries, solar panels, Smart Home Panel 2 and trolleys

The EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit Backs Up Your Home Circuits With Smart Home Panel 2 and Expandable LFP Storage

The EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit builds a whole-home backup system around EcoFlow's Smart Home Panel 2. Each DELTA Pro Ultra inverter delivers 7200W at 120/240V, each battery stores 6144Wh, and Rich Solar 400W rigid solar panels recharge the system.

It suits homeowners who want automatic outage backup for up to 12 home circuits, with solar charging and app control. This page offers three kits: Starter with one inverter, five batteries and 8 panels, Advanced with two inverters, 10 batteries and 16 panels, and Deluxe with three inverters, 15 batteries and 24 panels.

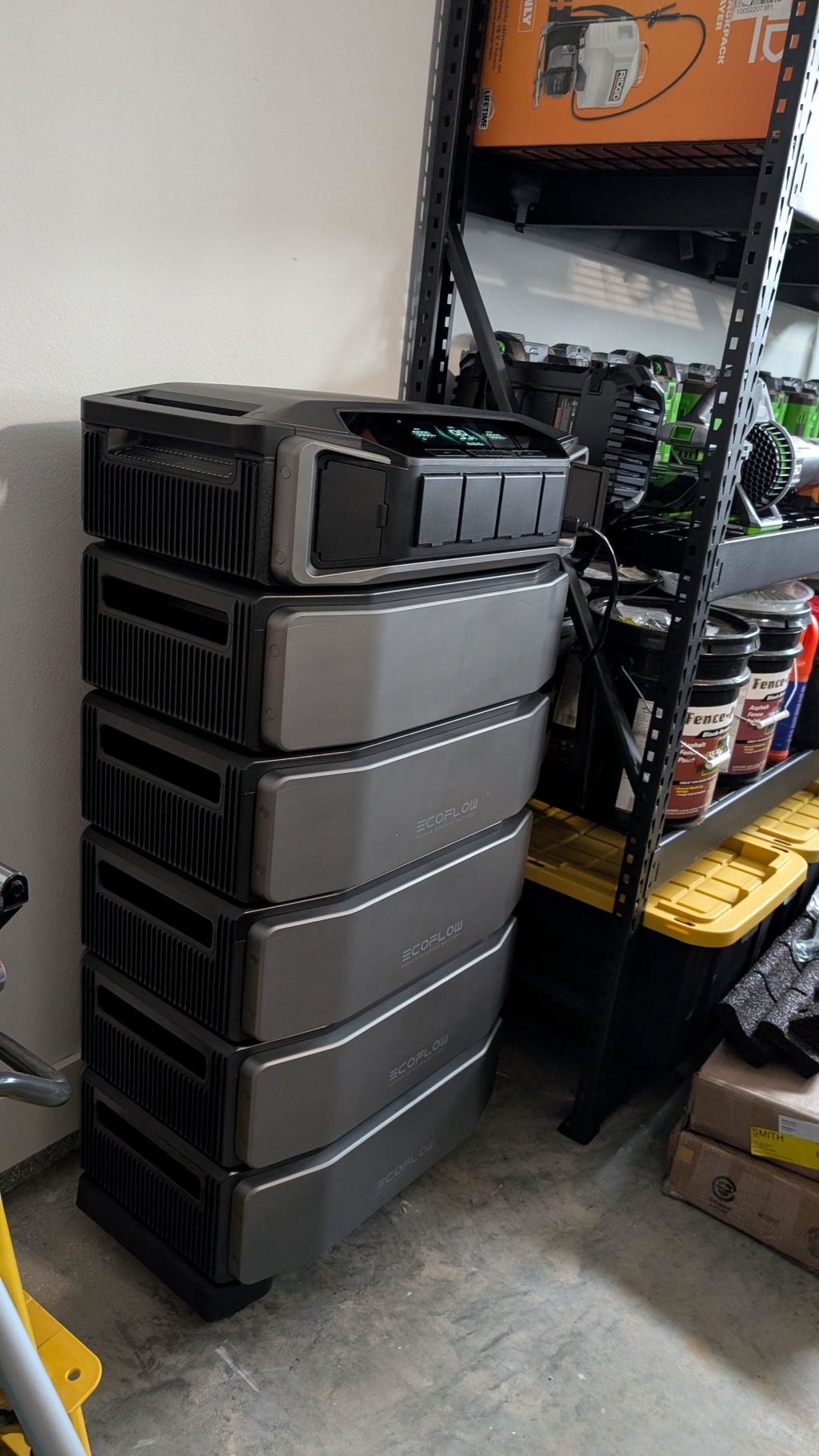

DELTA Pro Ultra With Stackable Batteries In A Garage


EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit Features

7200W per Inverter at 120V and 240V

Each inverter supplies 7200W of pure sine power at 120/240V. EcoFlow rates one set at 7.2kW with a 10.8kW peak, two sets at 14.4kW, and three inverters on a Smart Home Panel 2 at 21.6kW. For compressor appliances such as central air, keep the combined rating within 120A LRA or 20A RLA per inverter.

Up to Five Batteries per Inverter

Each DELTA Pro Ultra Battery stores 6144Wh in LFP cells and keeps 80% or more state of health after 3,500 cycles at 0.5C and 77°F (25°C). One inverter supports up to five batteries, which EcoFlow puts at about 30kWh, and three inverters with 15 batteries reach about 90kWh. The Deluxe Kit fills all three inverter connections on the panel.

Smart Home Panel 2 Auto-Switchover

Smart Home Panel 2 is a 12-circuit subpanel that connects to your main panel and up to three DELTA Pro Ultra inverters. With EPS mode on, it switches to battery power in 20 ms. With EPS mode off, the switch takes about 5 seconds. Its distribution panel and battery connection box can be installed together or apart.

Circuit Priorities, Storm Guard and Savings Modes

In the EcoFlow app you sort circuits into three levels: powered while the batteries have charge, powered when the battery is at or above a level you set (50% by default), and not powered during an outage. Storm Guard fully charges the batteries when severe weather will hit your area within 24 hours. Above the backup reserve level (50% by default), you can choose Self-Powered, Scheduled Tasks or TOU savings mode.

5.6kW of Solar Input per Inverter

Each inverter has a High-PV input (80–450V, 15A, 4000W max) and a Low-PV input (30–150V, 15A, 1600W max), and EcoFlow lists up to 16.8kW across three inverters. For third-party panels such as the kit's Rich Solar 400W rigid panels, EcoFlow recommends panels of 400W or more with MC4-compatible connectors, wired in series within each input's range.

Trolleys and the PowerInsight Monitor

Each kit includes one DELTA Pro Ultra Trolley per inverter, which holds one inverter and one battery so you can move that set more easily. The Advanced and Deluxe Kits add EcoFlow PowerInsight, a 10-inch home energy monitor for checking your system's energy data at a glance.


Real-World Applications

Whole-home outage backup. Keep the circuits you choose running through an outage, with the most important ones powered first.

Solar self-consumption. Self-Powered mode charges the batteries only from solar once they are above the backup reserve, reducing how much grid power your home uses.

Time-of-use rate plans. TOU mode charges during low-rate hours and powers your home during high-rate hours.


How It Compares to Common Alternatives

Versus a smaller kit. The Starter Kit gives one inverter's 7200W and about 30kWh. The Advanced Kit's two inverters are rated at 14.4kW, and the Deluxe Kit's three reach 21.6kW and about 90kWh.

Versus a traditional subpanel. A standard subpanel only distributes power, and its breakers are controlled by hand. Smart Home Panel 2 adds auto-switchover, circuit control from the app, energy data and savings modes.

Versus a transfer switch setup. EcoFlow also supports one DELTA Pro Ultra on a 30A transfer switch, or two through the EcoFlow 50 Amp Hub and a 50A transfer switch. Smart Home Panel 2 is the option that connects three.


Is This Solar Kit the Right Fit

  • Professional installation. Only qualified electrical personnel should install Smart Home Panel 2. Installers survey the site and handle any permit, and your power is off for about 30 minutes.
  • Subpanel only. Smart Home Panel 2 can't serve as a main panel or service equipment, and it is designed for residential use.
  • Outlets while connected. The DELTA Pro Ultra's AC outlets are not available while it is connected to Smart Home Panel 2.
  • Solar code rules. Solar circuits on or in buildings need an NEC rapid shutdown function, installed by a qualified electrician or installer.
  • Weight and placement. Each inverter weighs about 70.8 lb (32.1 kg) and each battery about 111.3 lb (50.5 kg). With 3 or more batteries, fit the EcoFlow Fixing Metal Tab, sold separately.

This may be a good fit if

  • You want automatic backup for up to 12 home circuits
  • You plan to install a permanent solar array
  • You want circuit priorities and TOU savings in one app
  • You have a qualified electrician for the installation

Common Questions

Can I Still Connect a Generator?

Yes. Smart Home Panel 2 works with 3–12kW generators through an inlet box, wired by qualified electrical personnel. If the generator has a bonded neutral, have an electrician remove the ground-neutral bond first. On generator supply, savings modes and EPS mode are not available.

Can I Plug Appliances Into the DELTA Pro Ultra?

Not while it is connected to Smart Home Panel 2, because its AC outlets are unavailable. On its own, each inverter offers six AC outlets, USB-C, USB-A and a 12V DC output.

What Warranty Does the System Have?

EcoFlow lists a 5-year warranty on the DELTA Pro Ultra inverter and a 5-year warranty on the battery, and a 10-year warranty on Smart Home Panel 2. For the Rich Solar panel warranty, ask the Outbound Power team.


What's Included

  • 1 x EcoFlow Smart Home Panel 2
  • With the Smart Home Panel 2: 1 x EcoFlow Power Input/Output Cable, 1 x Installation Guide, 1 x Marking-Off Template, 1 x Warranty Card
  • 1, 2 or 3 x EcoFlow DELTA Pro Ultra Inverter (Starter, Advanced or Deluxe Kit)
  • With Each Inverter: 1 x Portable Stand, 4 x Supporting Legs, 4 x M6x20 Screws, 4 x Side Mount Casters, 1 x Disassembly and Assembly Tool, 1 x Solar to Low-PV Port Charging Cable, 1 x AC Charging Cable, 1 x User Manual and Warranty Card
  • 5, 10 or 15 x EcoFlow DELTA Pro Ultra Battery, Each With 1 x Battery Connection Cable
  • 8, 16 or 24 x Rich Solar 400W Rigid Solar Panel
  • 1, 2 or 3 x EcoFlow DELTA Pro Ultra Trolley (One per Inverter)
  • Advanced and Deluxe Kits: 1 x EcoFlow PowerInsight Home Energy Monitor

Whole-Home Backup Built Around Your Circuits

The EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit combines Smart Home Panel 2, 7200W DELTA Pro Ultra inverters, 6144Wh LFP batteries and Rich Solar 400W panels in three sizes. If you have questions about which kit fits your home, the Outbound Power team is happy to help.


EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit Videos


EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit Specifications

General
Inverter Model EFYJ751-PCS-US
Battery Model EFYJ751-BP

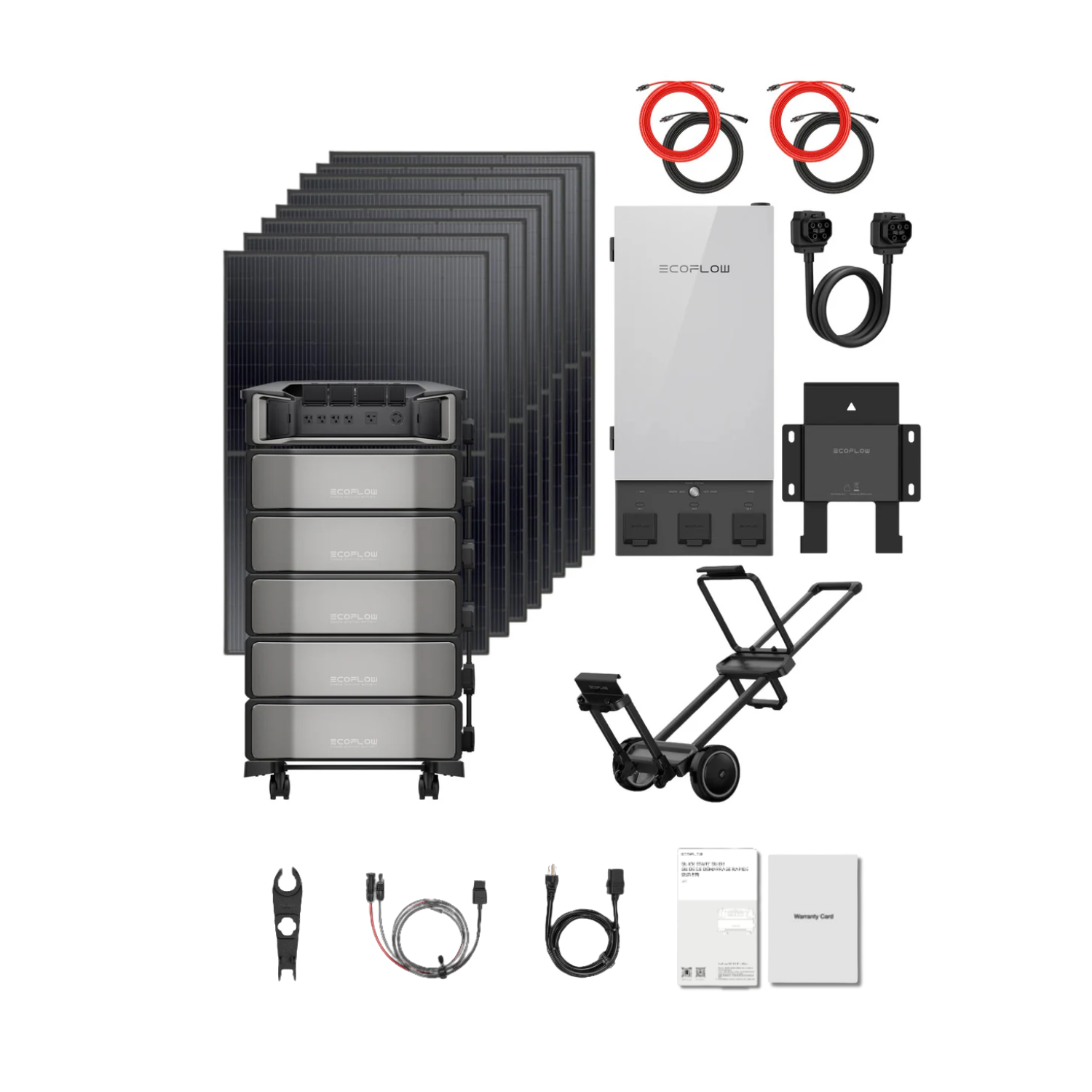

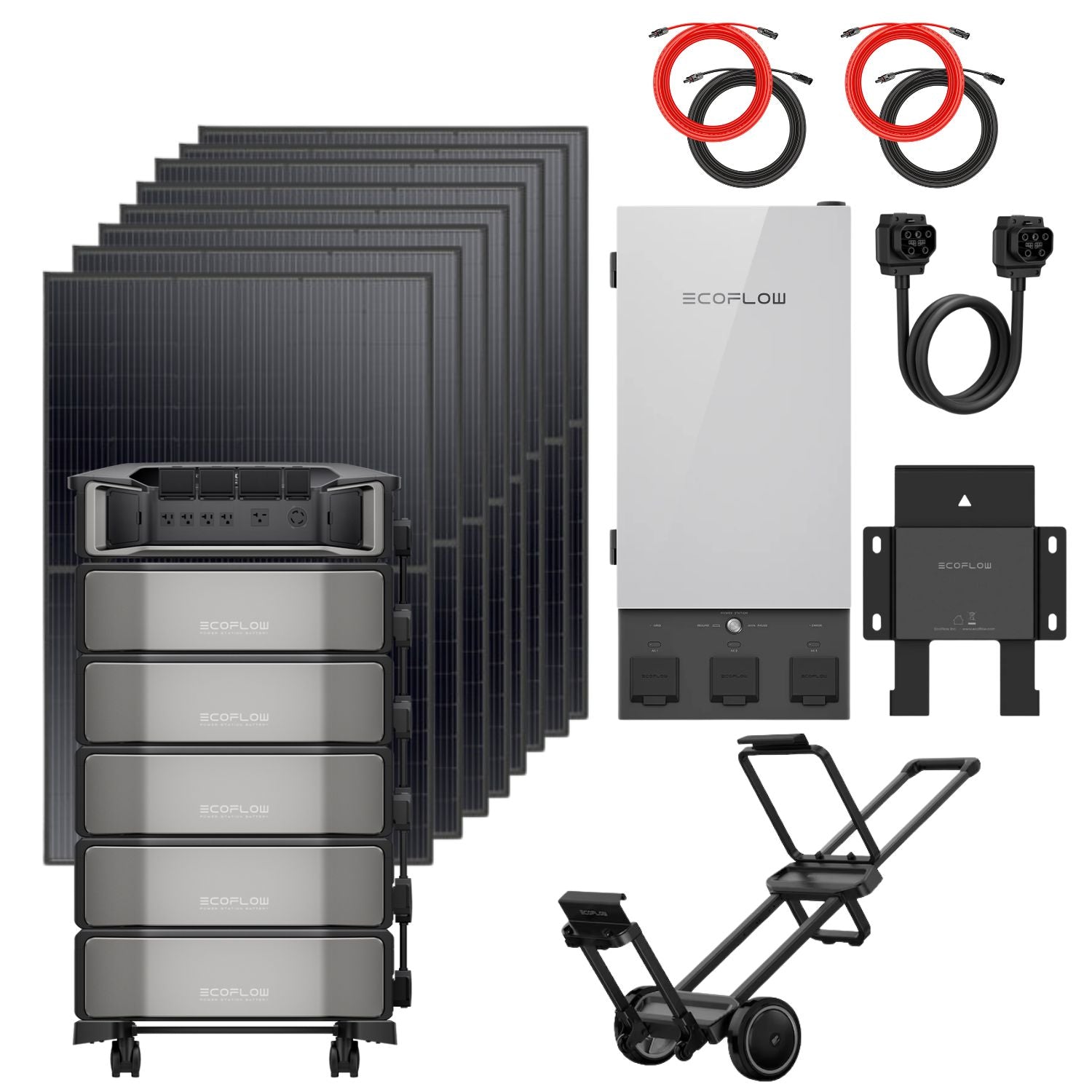

Starter Kit 1 inverter, 5 batteries, 8 solar panels

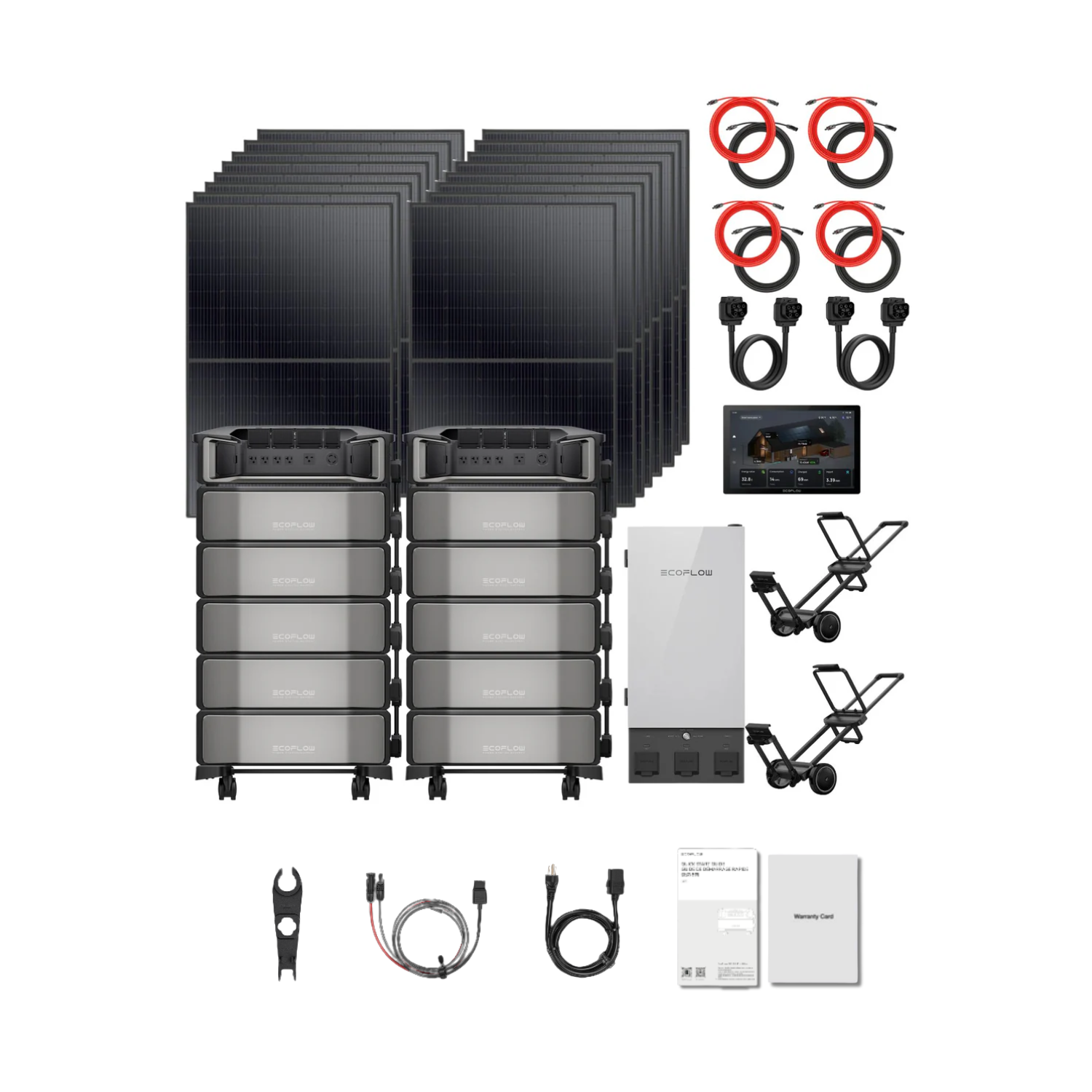

Advanced Kit 2 inverters, 10 batteries, 16 solar panels

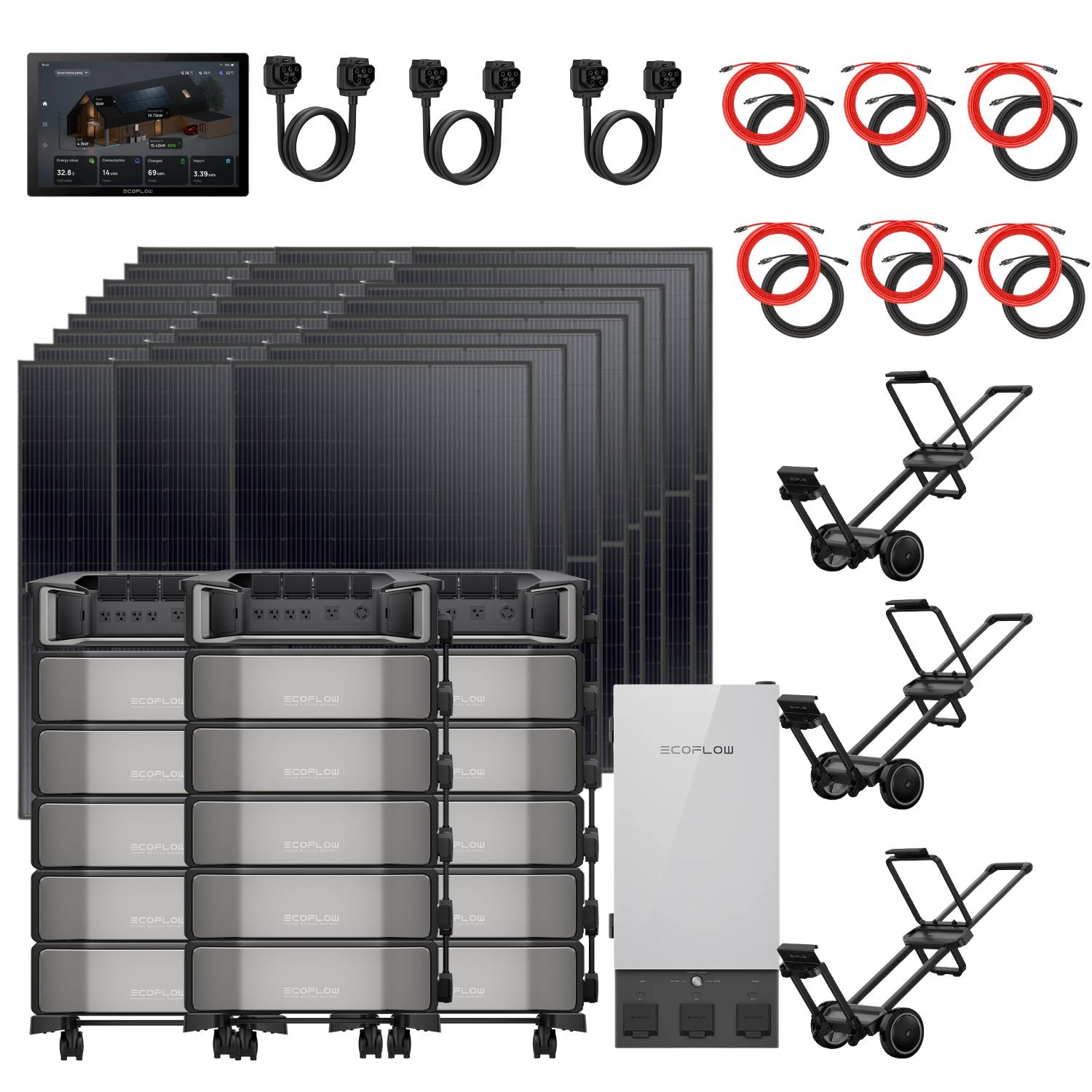

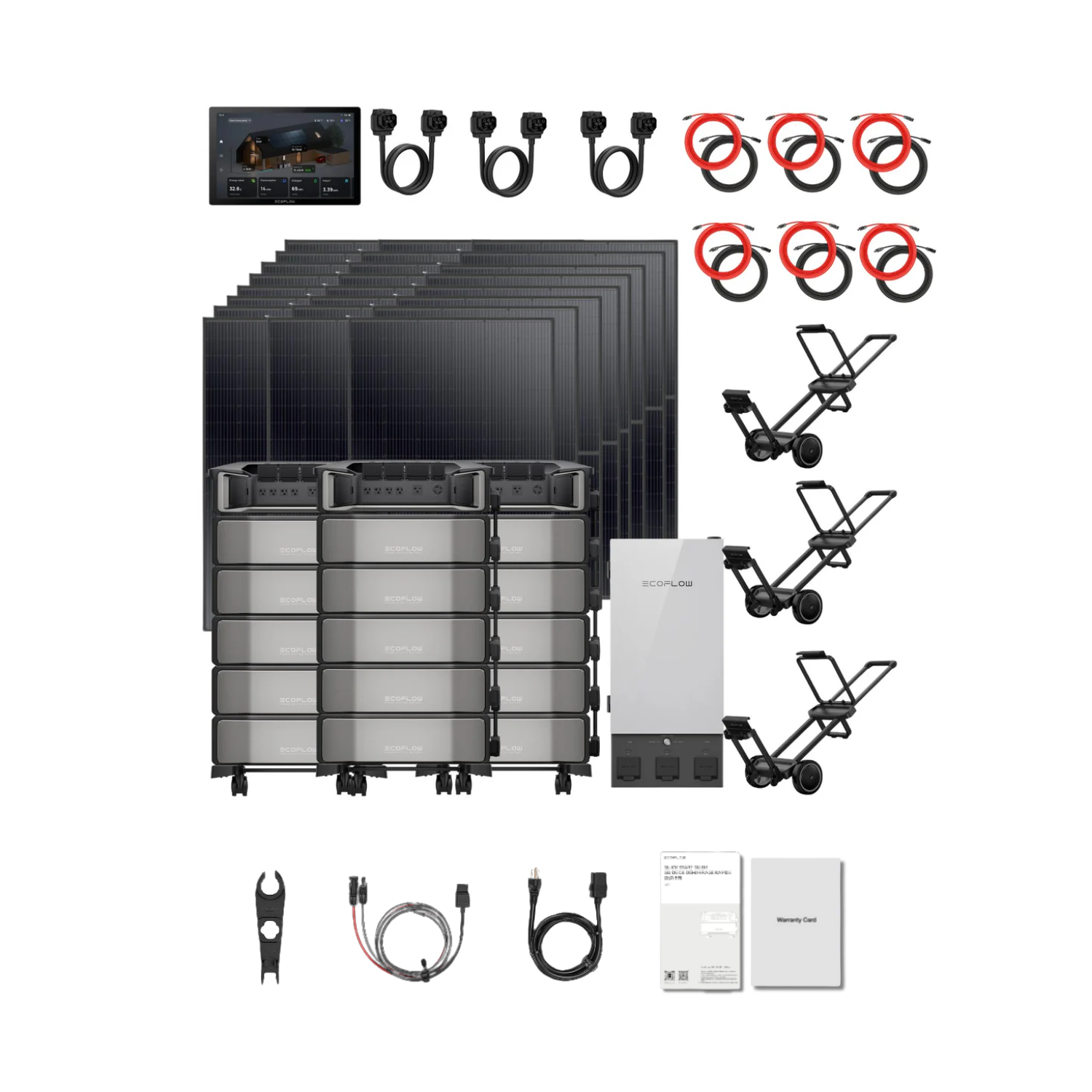

Deluxe Kit 3 inverters, 15 batteries, 24 solar panels
Solar Panels Rich Solar 400W rigid
Capacity and Battery
Capacity per Battery 6144Wh (102.4V, 60Ah)
Cell Chemistry LFP
Cycle Life 80%+ state of health after 3,500 cycles
Cycle Test Conditions 0.5C/0.5C at 77°F (25°C)
Batteries per Inverter Up to 5 (about 30kWh)
3 Inverters and 15 Batteries About 90kWh
Battery Self-Heating Starts automatically below 32°F (0°C)
AC Output (Each Inverter)
Rated AC Output 7200W total, 120/240V, 60Hz, pure sine wave
Peak Output, 1 Set 10.8kW
Output, 2 Sets 14.4kW
Output, 3 Inverters 21.6kW with Smart Home Panel 2
AC Outlets 6 (4 x 120V 20A, 1 x 120V 30A, 1 x 120/240V 30A)
UPS Switchover Online UPS 0 ms, backup UPS under 20 ms
Compressor Loads Up to 120A LRA or 20A RLA per inverter
DC and USB Output (Each Inverter)
USB-C Outputs 2 x 5/9/12/15/20V 5A, 100W max each
USB-A Outputs 2 x 5V 2.4A, 12W max each, 24W total
12V DC Output 12.6V 30A, 378W max
Charging Input (Each Inverter)
AC Charging Input 100-120V 15A or 200-240V 12.5A, 50/60Hz
Power Input/Output Port 100-120V 30A or 200-240V 30A, 50/60Hz
High-PV Input 80-450V, 15A max, 4000W max
Low-PV Input 30-150V, 15A max, 1600W max
Solar Input per Inverter 5.6kW
Solar Input, 3 Inverters Up to 16.8kW
Smart Home Panel 2
AC Voltage (Nominal) 120V/240V
Feed-In Type Split phase
Maximum Current Rating 100A panel / 90A storage
Busbar Rating 120A
Input Short-Circuit Current 10kA max
Load Branches 12
Inverters Supported Up to 3 DELTA Pro Ultra
Auto-Switchover 20 ms with EPS mode on, about 5 s off
Compatible Generator 120V single phase or 240V split phase, 3-12kW
Distribution Panel Enclosure NEMA Type 3R
Connection Box Enclosure NEMA Type 1
Communication Ethernet, Wi-Fi, Bluetooth
Operating Temperature -22°F to 122°F (-30°C to 50°C)
Operating Humidity Up to 100% RH, condensing
Altitude Up to 2000 m (6562 ft)
Dimensions 32.4 x 14.9 x 6.7 in (823.7 x 379 x 170 mm)
Weight 52.9 lb (24 kg)
Size and Weight
Inverter Dimensions 27.2 x 18.9 x 8.4 in (690 x 481 x 214 mm)
Inverter Weight Approx. 70.8 lb (32.1 kg)
Battery Dimensions 26 x 18 x 8 in (660 x 455 x 204 mm)
Battery Weight Approx. 111.3 lb (50.5 kg)
Environment
Charge Temperature -4°F to 113°F (-20°C to 45°C)
Discharge Temperature -4°F to 113°F (-20°C to 45°C)
IP Rating IP54 (inverter and battery)
Noise Under 30 dB in most scenarios
Connectivity
DELTA Pro Ultra Wi-Fi and Bluetooth
App EcoFlow app
Warranty
DELTA Pro Ultra Inverter 5 years
DELTA Pro Ultra Battery 5 years
Smart Home Panel 2 10 years

EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit Manuals

EcoFlow DELTA Pro Ultra Manual

EcoFlow DELTA Pro Ultra Manual for the EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit

EcoFlow DELTA Pro Ultra Quick Start Guide

EcoFlow DELTA Pro Ultra Quick Start Guide for the EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit

EcoFlow DELTA Pro Ultra LCD Icon List

EcoFlow DELTA Pro Ultra LCD Icon List for the EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit

EcoFlow DELTA Pro Ultra Solar Panel Connection Guide

EcoFlow DELTA Pro Ultra Solar Panel Connection Guide for the EcoFlow DELTA Pro Ultra Smart Home Deluxe Solar Kit
