EMP Shield 3-Phase 120-208V Concealed Model Fits Inside Flush-Mounted Panels And Reports Each Phase On A Remote LED Box
The 3P-120-208-RL is the concealed version of EMP Shield's 120/208V three-phase unit. EMP Shield designed it for flush-mounted electrical panels, where the unit is secured inside the breaker box instead of on the wall beside it. EMP Shield says this industrial unit provides tested protection from electromagnetic pulses in all three phases (E1, E2 and E3), coronal mass ejections (CME), lightning and power surges.
It suits facilities on 120/208V three-phase service whose panels are recessed into the wall, and owners who would rather not add a box to the outside. EMP Shield's three-phase series is aimed at businesses, agricultural operations, industrial facilities and remote infrastructure.
EMP Shield 3-Phase 120-208V Concealed Model Features
Secured Inside The Breaker Box
For non-surface-mount installs, EMP Shield says to secure the unit inside the breaker box and connect the LED box on the exterior. Nothing but a small indicator box shows on the wall. EMP Shield says the RL version comes with a terminal block for 12 AWG copper wire.
Remote P1, P2 And P3 Indicators

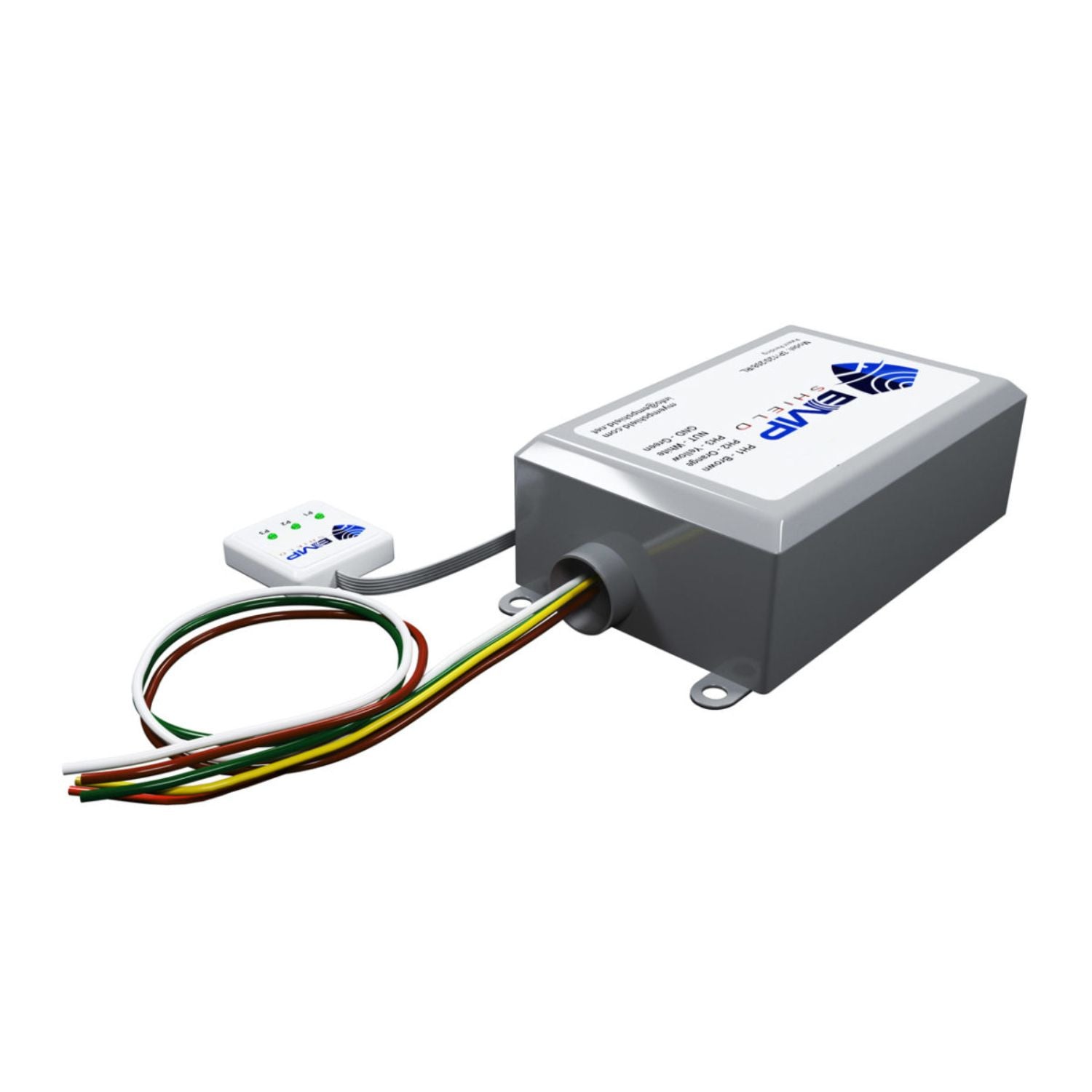

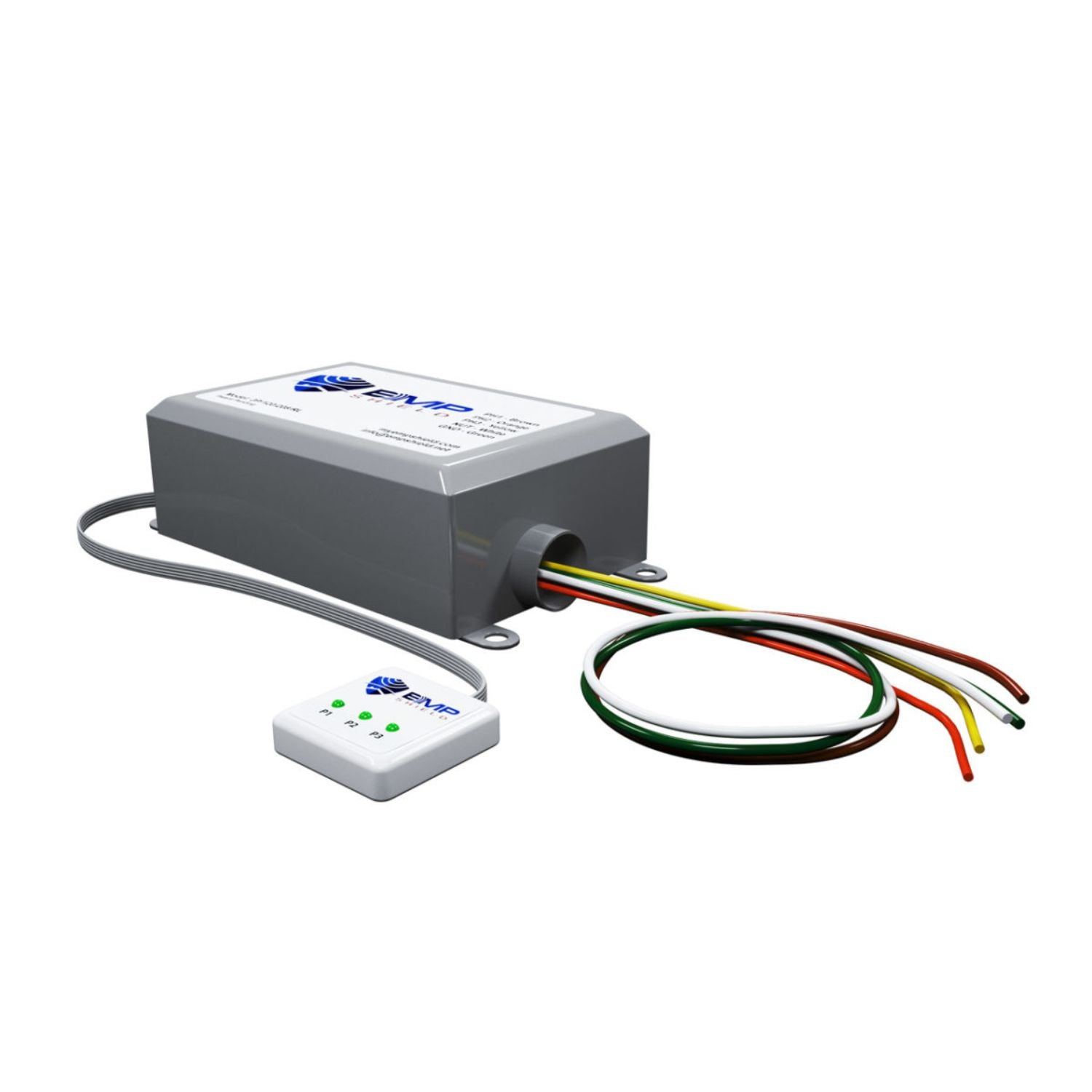

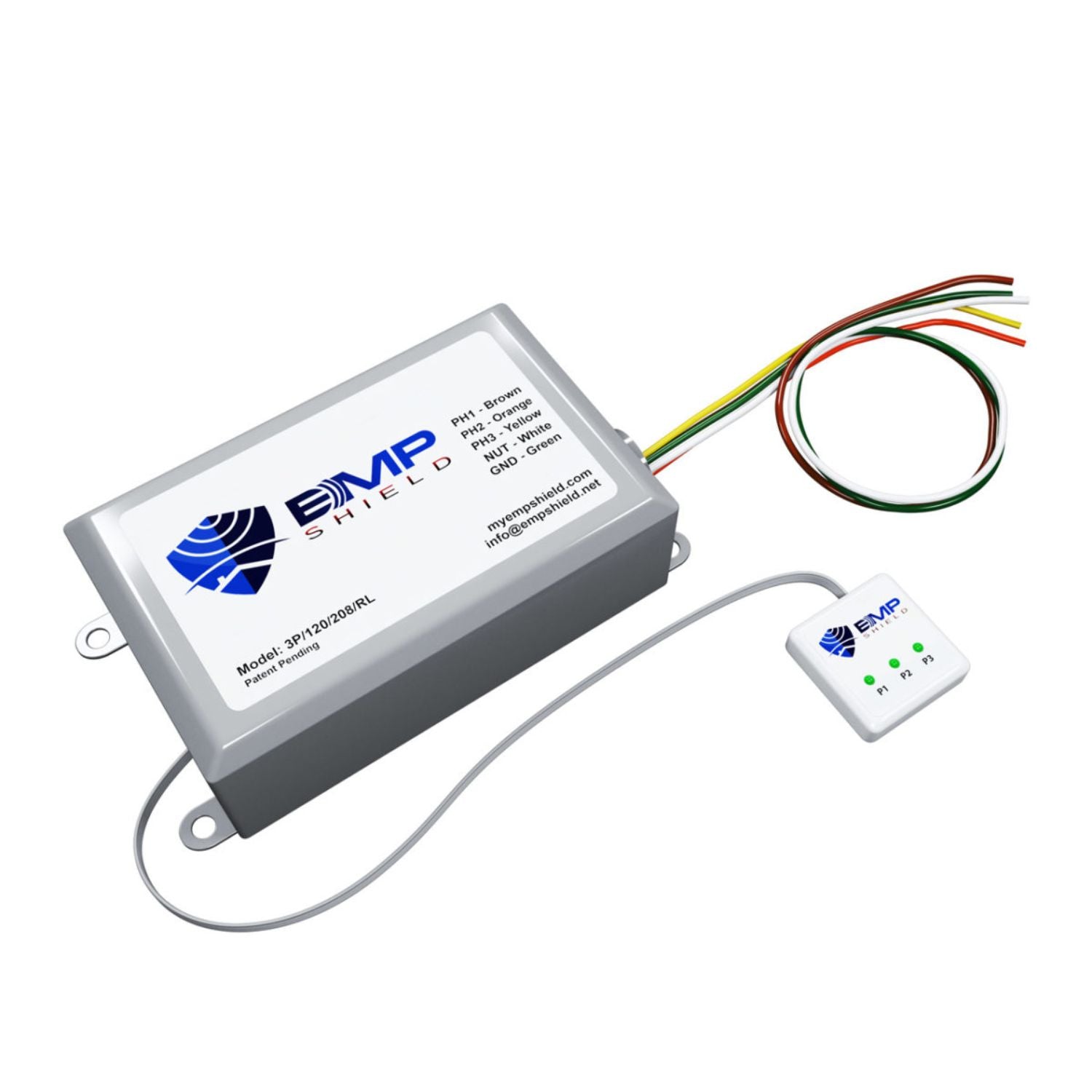

The remote LED box carries three green lights marked P1, P2 and P3, one for each phase. When power comes back on after installation, EMP Shield says the lights turn on to show the unit is in place and monitoring. Staff can check all three phases without opening the panel.
Rated For 228kA On Each Phase
Each phase can take a surge of up to 228kA by EMP Shield's rating, with a nominal discharge current of 114kA per mode. Protection runs phase-to-phase, phase-to-neutral and phase-to-ground.
Shunts Over-Voltage In Under A Nanosecond
EMP Shield states that shunting begins in less than one nanosecond once over-voltage is detected. Every phase is independently fused with its own solid-state semiconductor circuitry, and EMP Shield lists IEEE C62.41-1991 category A and B combination wave suppression.
NEMA 4 Housing With One Conduit Port
The unit is enclosed in NEMA 4 plastic with a single conduit entrance port. EMP Shield, a veteran-owned company, manufactures its units in Kansas, USA.
Lab Testing Reported By EMP Shield
According to EMP Shield, its testing at Keystone Compliance covered MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105. As EMP Shield notes, Keystone Compliance does not personally endorse any products. EMP Shield also states it is listed by the Department of Homeland Security in an EMP resilience report and calls its 3-phase units UL 1449 Type 2 compliant.
Real-World Applications
Business Facilities. Companies with a flush-mounted 120/208V three-phase panel can add protection without changing how the electrical area looks.
Farms And Agricultural Buildings. Agricultural operations are on EMP Shield's list for its three-phase series, and remote lights make status checks quick during rounds.
Industrial Facilities. Guarding a facility's critical three-phase electrical infrastructure against EMPs, lightning and high-voltage surges is the stated purpose of the series.
Remote Infrastructure. Remote infrastructure is also on EMP Shield's list for the series, and the LED box gives a visiting technician a fast read on each phase.
Practical Comparison
Concealed RL Model Versus Wired W Model
The wired 3P-120-208-W is meant for surface-mounted panels, mounts outside the panel and has its phase lights on its own cover. The RL model hides inside a flush-mounted panel and reports through the separate LED box. Panel style decides between them.
Concealed 3-Phase Unit Versus Faraday Cage
A Faraday cage protects spare parts and electronics stored in it while they sit idle. The concealed three-phase unit protects the panel and the running equipment it feeds.
120/208V Concealed Versus 277/480V Concealed
EMP Shield builds the concealed design in both of its three-phase voltages. This one is for 120/208V service; the 3P-277-480-RL covers 277/480V panels.
Buyer Guidance
Checking Panel Voltage First
Before installing, EMP Shield says to measure the panel's line-to-neutral voltage. The system voltage must not exceed the maximum continuous RMS voltage shown on the unit's label.
Who Should Install It
EMP Shield recommends professional installation by a licensed electrician who follows local codes. The unit needs a disconnect such as 20-amp breakers or a 20-amp fused disconnect, located as close as possible to each service entrance lug. Leads should be short, without long loops or coiled extra wire, and at least one inch of clearance should be left from the edge of the panel cover.
This May Be A Good Fit If
- Your site runs on 120/208V three-phase power
- Your electrical panel is flush-mounted
- You want phase lights outside a closed panel
- A licensed electrician will handle installation
Common Questions
Can I Check The Unit Without Opening The Panel?
Yes. The LED box mounts on the exterior of the breaker box, so the P1, P2 and P3 lights stay visible with the panel closed.
How Is The RL Version Wired?
EMP Shield says the RL version comes with a terminal block for 12 AWG copper wire, while the W version has preconnected leads. The unit is for copper or copper-clad wire only.
Will It Survive A Sustained Over-Voltage?
EMP Shield cautions that its devices may not survive sustained overvoltages. They are built to handle high-voltage transients.
What Are The Warranty Terms?
EMP Shield's 10-year limited warranty covers defects in materials and workmanship through repair or replacement. If lightning destroys the unit, EMP Shield replaces it for $50 when the destroyed unit is sent back. A separate EMP Shield policy can reimburse damaged connected electronics up to $25,000 when conditions are met, among them a licensed electrician install and a claim within 30 days.
What's Included
- 1 x EMP Shield 3P-120-208-RL Concealed 3-Phase Unit With Remote LED Box
Protection That Stays Out Of Sight
The EMP Shield 3-Phase 120-208V Concealed Model gives a flush-mounted 120/208V panel EMP, CME, lightning and surge protection from inside the breaker box, with a remote light for each phase. If you need help matching the model to your panel, the Outbound Power team can walk you through it.
EMP Shield 3-Phase 120-208 Volt AC Concealed Model With External LEDs Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
3P/120/208V/RL |
| SKU |
3P-120-208-RL |
| Version |
Concealed, remote LED |
| Electrical |
| Voltage |
120/208V AC 3-phase |
| Nominal Discharge Current (In) |
114kA per mode |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Phase-to-Phase, Phase-to-Neutral, Phase-to-Ground |
| Response Time |
Less than 1 nanosecond (per EMP Shield) |
| Phase Fusing |
Each phase independently fused |
| Circuitry |
Solid-state semiconductor, each phase |
| Protection |
| Threats Covered |
EMP (E1, E2, E3), CME, lightning, power surges |
| Surge Standard |
UL 1449 Type 2 compliant (per EMP Shield) |
| Combination Wave |
IEEE C62.41-1991 category A & B |
| Test Lab |
Keystone Compliance (per EMP Shield) |
| Test Standards |
MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Installation |
| Installation |
Professional installation recommended, licensed electrician |
| Connects To |
Service panels, MCCs or transfer switches |
| Disconnect |
20-amp circuit breakers or 20-amp fused disconnect |
| Conductor |
Copper or copper-clad wire only |
| Panel Type |
Flush-mounted panels |
| Mounting |
Inside the breaker box |
| LED Box |
Mounts on the panel exterior |
| Wiring |
Terminal block, 12 AWG copper wire |
| Diagnostic LEDs |
3 green (P1, P2, P3) in the remote LED box |
| Voltage Check |
Measure panel voltage line to neutral |
| Lead Routing |
Short leads, no long loops or coiled wire |
| Panel Cover Clearance |
At least 1 inch |
| Conduit Ports |
1 |
| Physical |
| Enclosure |
NEMA 4 plastic |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship |
| Lightning Replacement |
$50 with the destroyed unit sent in |
| Connected Equipment Policy |
Up to $25,000, conditions apply |
EMP Shield 3P-120-208-RL Manual
