EMP Shield Dual 24 Volt DC Protection Covers Two Matching 24V Solar Systems From A Single Unit
The EMP Shield Dual 24V, model Dual/DC/24V/W, places two DC EMP Shields inside one gray enclosure. EMP Shield says this model should be used on solar systems that have two matching inverters or charge controllers with an operational voltage of 24V. Each half has its own positive and negative leads, and one green wire grounds both.
It's meant for owners of 24V DC systems who want EMP and surge protection on two parallel power paths without hanging two separate boxes. EMP Shield names standalone solar systems, off-grid cabins, battery banks and mobile power setups as the kinds of DC systems its DC and Dual DC series are built to protect.
EMP Shield Dual 24 Volt DC Protection Features
Two 24V Circuits In One Housing Saves Space
EMP Shield designs its Dual DC models to save space by combining two DC EMP Shields in a single device. For a 24V installation with twin charge controllers, that means one enclosure to mount and one ground wire to run.
Response In Under One Nanosecond
EMP Shield states the unit begins shunting over-voltage in less than one nanosecond, using technology it calls SightSpeed. The idea is to send that excess energy away from your 24V equipment rather than through it.
114kA Per Circuit And Three Protection Modes
EMP Shield rates its DC and Dual DC series at a nominal discharge current (In) of 114kA per circuit and a surge capacity of 228kA per phase. Its protection modes are positive-to-negative, positive-to-ground and negative-to-ground, and each 24V system gets its own protected path.
IP66 Enclosure For Harsh Weather
The enclosure carries an IP66 rating (EMP Shield's rating), and EMP Shield says the unit can be used outdoors in extreme weather. Four mounting tabs on the housing give you fixed points to secure it.
Color-Coded Leads For Each System

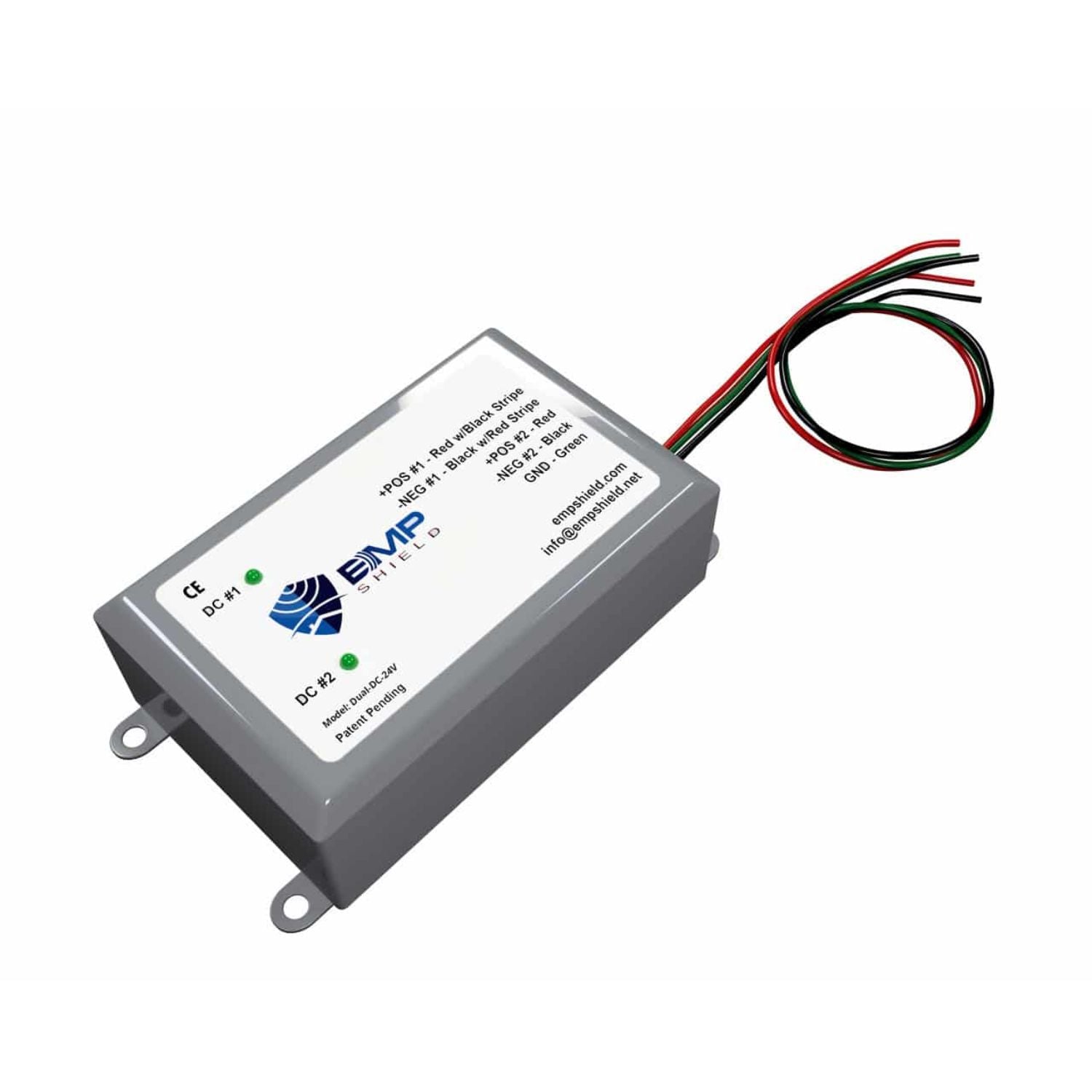

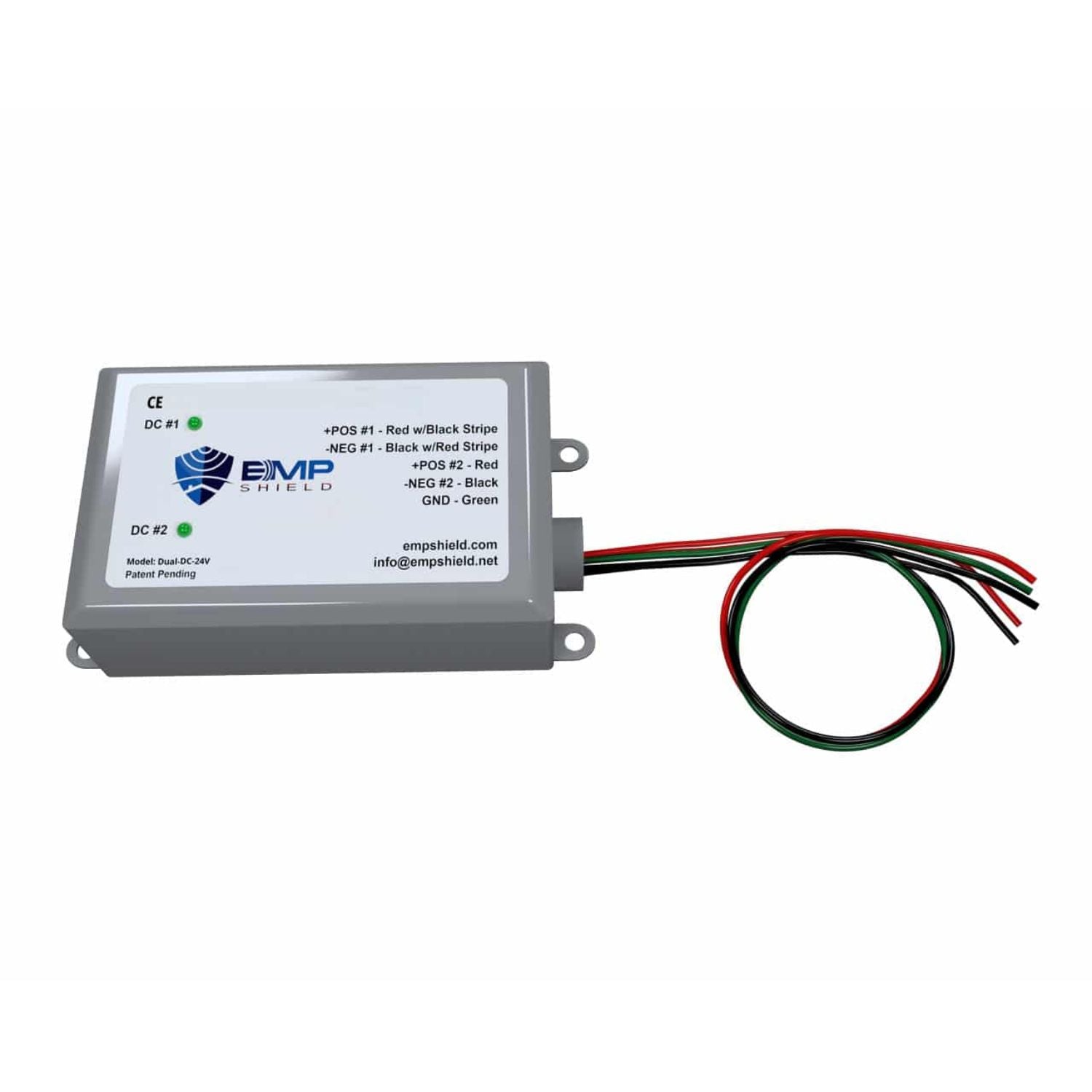

One pair of leads is solid red for positive and solid black for negative. The other pair is red with a black stripe for positive and black with a red stripe for negative. Green is ground. Two green lights on the label, marked DC #1 and DC #2, follow the label's numbering of the wire pairs.
Real-World Applications
Off-Grid Cabins. EMP Shield lists off-grid cabins among the DC systems its series is made for. A cabin array that feeds two matching 24V charge controllers can route both PV inputs through this one unit.
RVs, Campers And Marine Use. EMP Shield names RVs, campers and marine applications for its DC series. Where a rig carries two 24V charge controllers of the same type, the dual model covers both from one mounting spot.
Battery Backup Systems. Residential, commercial and industrial battery backup systems appear on EMP Shield's list of uses. The dual unit suits backup setups that charge through two identical 24V charge controllers.
Practical Comparison
EMP Shield Dual 24V Versus Two Single 24V Units
EMP Shield offers its DC series in single and dual versions at the same voltage points, 24V included. Two single units mean two enclosures, two ground wires and two mounting locations, while the dual places both circuits in one device. A single 24V unit still makes sense when you have only one charge controller or inverter at that voltage.
EMP Shield Dual 24V Versus A Plug-In Power Strip Surge Protector
A plug-in power strip protects only the AC devices plugged into it. The dual 24V unit is wired into the DC lines between your solar panels and charge controllers instead.
EMP Shield Dual 24V Versus A Faraday Bag
A Faraday bag is meant for spare electronics stored unplugged. A running solar system can't sit inside one, while the dual unit stays wired in as both 24V systems operate.
Buyer Guidance
Match The Voltage To Your Devices
EMP Shield's selection rule is to choose your shield by the maximum input voltage of the first device after the PV array. That device is most often a charge controller in off-grid systems or an inverter in grid-tied systems. For this dual, EMP Shield also calls for two matching devices with an operational voltage of 24V.
Where It Connects And Who Should Install It
In EMP Shield's dual drawing, each solar system runs from its panels to its own charge controller and battery, and the dual unit connects to both charge controller PV inputs. EMP Shield's $25,000 protection policy lists installation by a licensed electrician among its conditions, so plan on a licensed electrician for the work.
This May Be A Good Fit If
- You run two matching 24V charge controllers or inverters
- You want both systems covered from one enclosure
- Your equipment sits outdoors or in a hot or cold space
- You want EMP, lightning and surge protection on the DC side
Common Questions
Can One Dual Unit Cover Two Systems At Different Voltages?
EMP Shield describes this model for two matching inverters or charge controllers at 24V. If your two systems run at different voltages, the selection rule points to a shield chosen for each device on its own.
What Threats Is It Designed For?
EMP Shield states its products protect against all three phases of an EMP (E1, E2 and E3), CMEs and solar flares, lightning and power surges. EMP Shield reports testing at Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105, and notes that Keystone Compliance does not endorse any products. It also states it is listed by the Department of Homeland Security in the department's EMP Resilience Report.
What Warranty Comes With It?
EMP Shield gives a 10-year limited warranty against defects in materials and workmanship, with repair or replacement. If lightning destroys the unit, EMP Shield replaces it for $50 when you send in the destroyed one. A separate EMP Shield policy can reimburse damaged connected electronics up to $25,000 when its conditions are met, such as a licensed electrician install and a claim within 30 days.
What's Included
- 1 x EMP Shield Dual DC 24V Unit
Two 24V Systems Covered In One Step
The EMP Shield Dual 24 Volt DC Protection unit gives two matching 24V charge controllers or inverters their own surge path in a single housing, with one shared ground. If you'd like help confirming your voltage or planning the install, the Outbound Power team is glad to help.
EMP Shield Dual 24 Volt DC Solar Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
Dual/DC/24V/W |
| SKU |
Dual-DC-24V-W |
| Type |
Dual DC (2 DC EMP Shields in one unit) |
| Electrical |
| Voltage Point |
24V DC |
| Intended Use (EMP Shield) |
2 matching inverters or charge controllers, 24V operational voltage |
| Protected Circuits |
2 (DC #1 and DC #2) |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response (EMP Shield) |
Begins shunting over-voltage in less than 1 nanosecond (SightSpeed) |
| Protection |
| Threats Addressed (EMP Shield) |
EMP (E1, E2, E3), CME / solar flares, lightning, power surges |
| Testing (EMP Shield) |
Keystone Compliance - MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| DHS Listing (EMP Shield) |
Listed in DHS EMP Resilience Report |
| Installation |
| Connection |
Across DC positive / negative / ground |
| Location (EMP Shield drawing) |
Charge controller PV input of each system |
| Selection Rule (EMP Shield) |
Max input voltage of first device after the PV array |
| Circuit #1 Leads |
+POS Red w/Black Stripe, -NEG Black w/Red Stripe |
| Circuit #2 Leads |
+POS Red, -NEG Black |
| Ground |
1 Green wire (GND), shared |
| Indicator Lights |
DC #1 and DC #2 (green) |
| Installer |
Licensed electrician (EMP protection policy condition) |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield) |
| Outdoor Use (EMP Shield) |
Extreme weather, hot and cold climates |
| Mounting |
4 mounting tabs |
| Made In |
Kansas, USA |
| Warranty |
| Limited Warranty (EMP Shield) |
10 years, defects in materials and workmanship |
| Lightning Replacement (EMP Shield) |
$50 with destroyed unit |
| Connected Equipment Policy (EMP Shield) |
Up to $25,000, conditions apply (claim within 30 days) |
EMP Shield Dual-DC-24V-W Manual
