EMP Shield Dual 300-420 Volt DC Protection Covers A Matched Pair Of 300-420V Inverters Or Charge Controllers
Inside the EMP Shield Dual 300-420V (model Dual/DC/300-420V/W) are two DC EMP Shields set at the 300-420V voltage point. EMP Shield says this model belongs on solar systems with two matching inverters or charge controllers that have an operational voltage of 300 to 420V, and it names the unit for solar and wind use.
Grid-tied and off-grid owners with twin equipment in this voltage band are the people it's built for. EMP Shield's Dual DC design folds two shields into one device to save space, so a matched pair of 300-420V devices needs just one housing.
EMP Shield Dual 300-420 Volt DC Protection Features
Twin 300-420V Shields Under One Cover

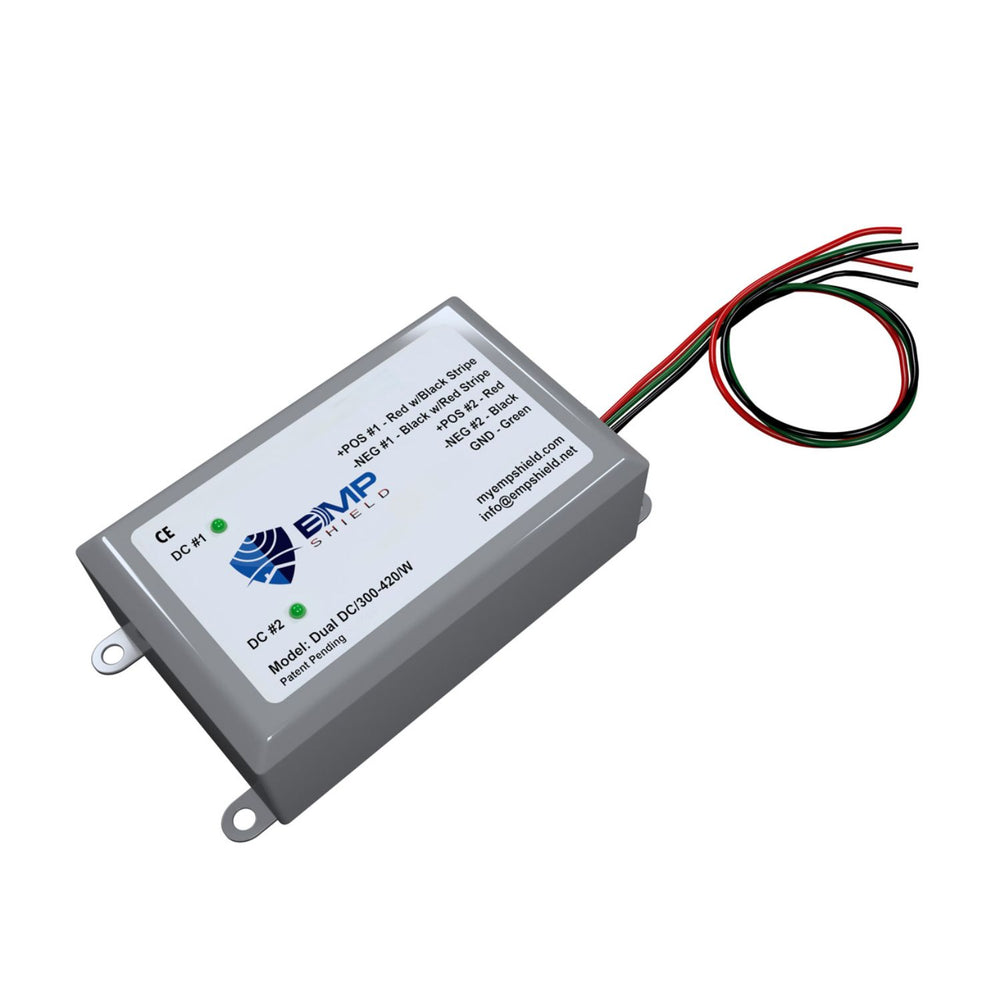

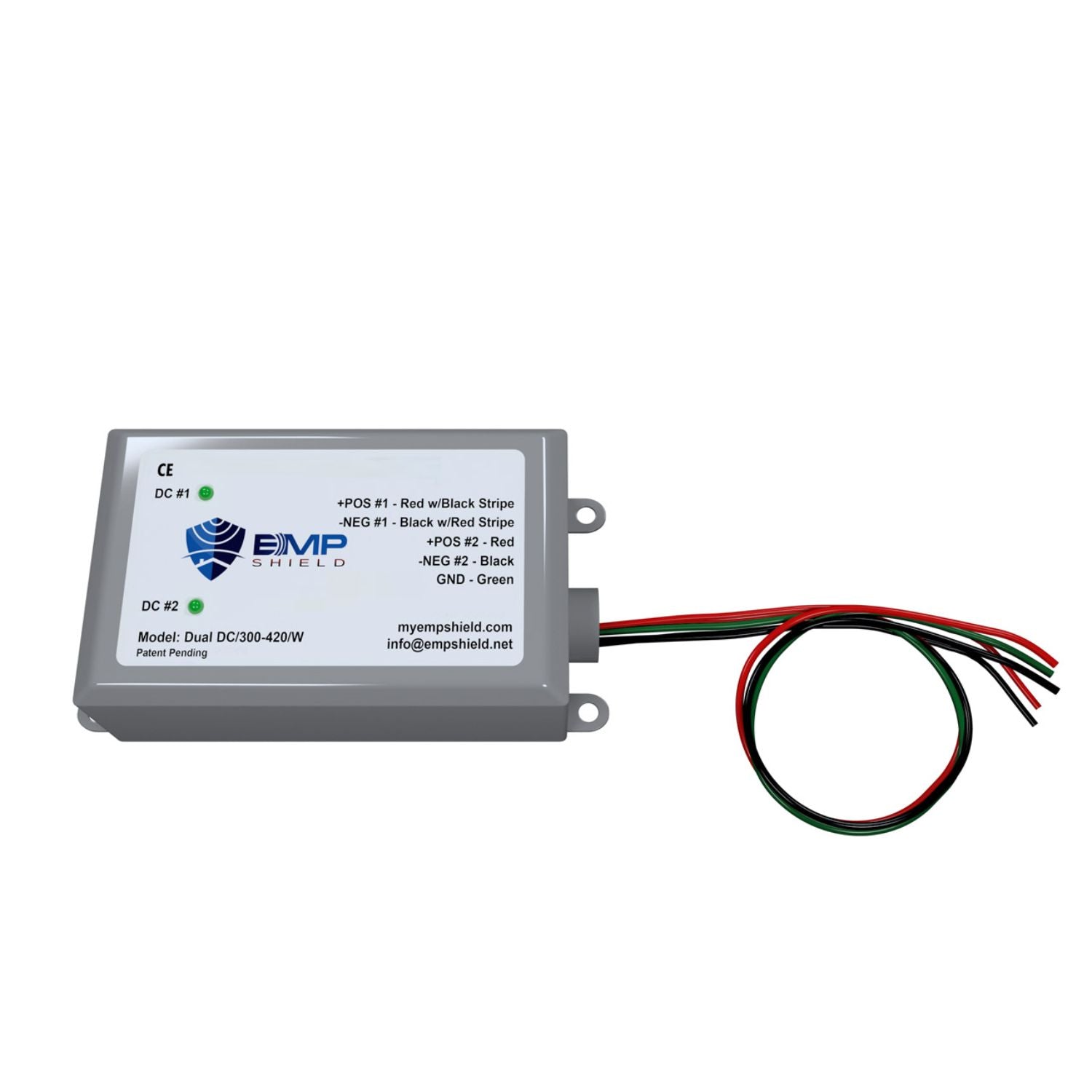

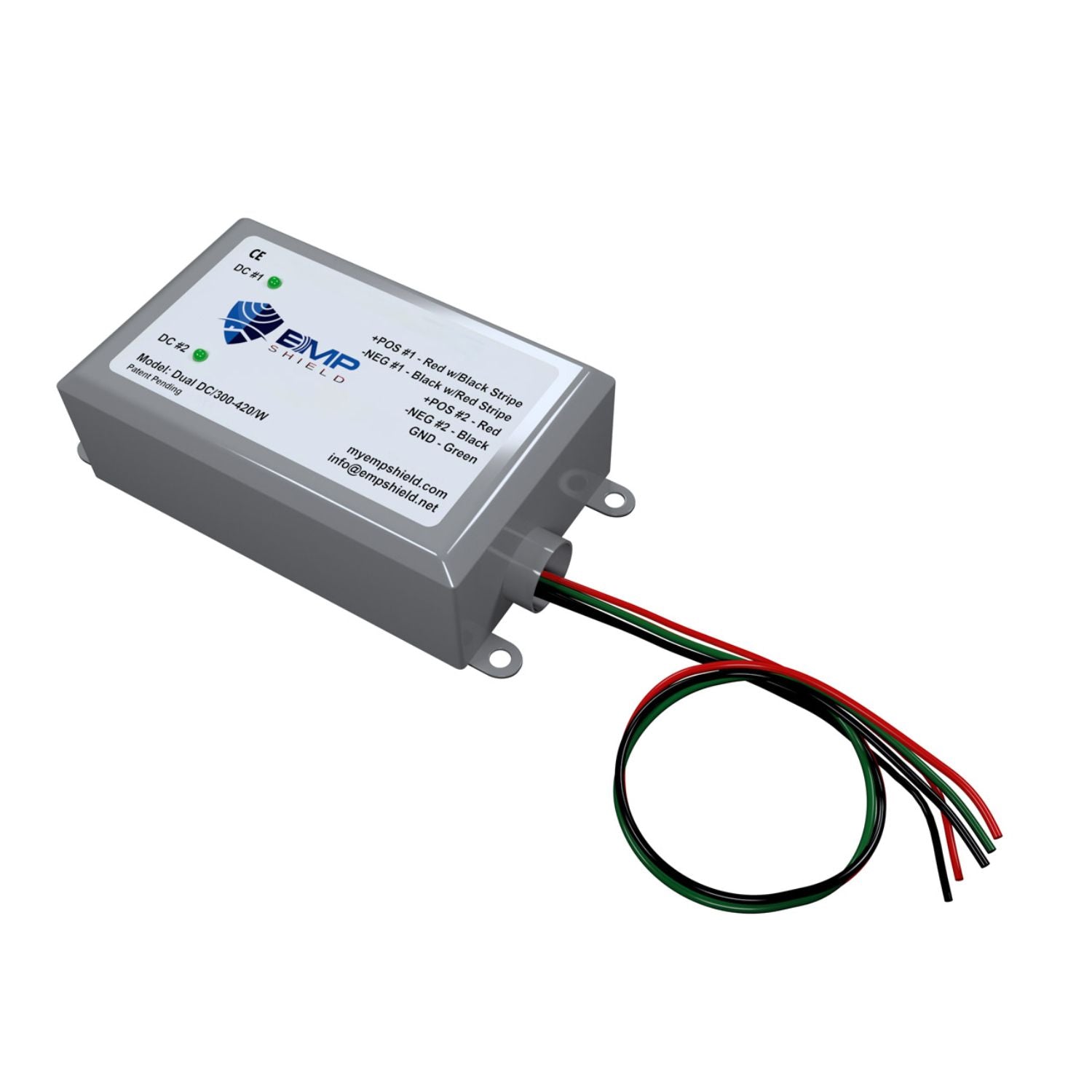

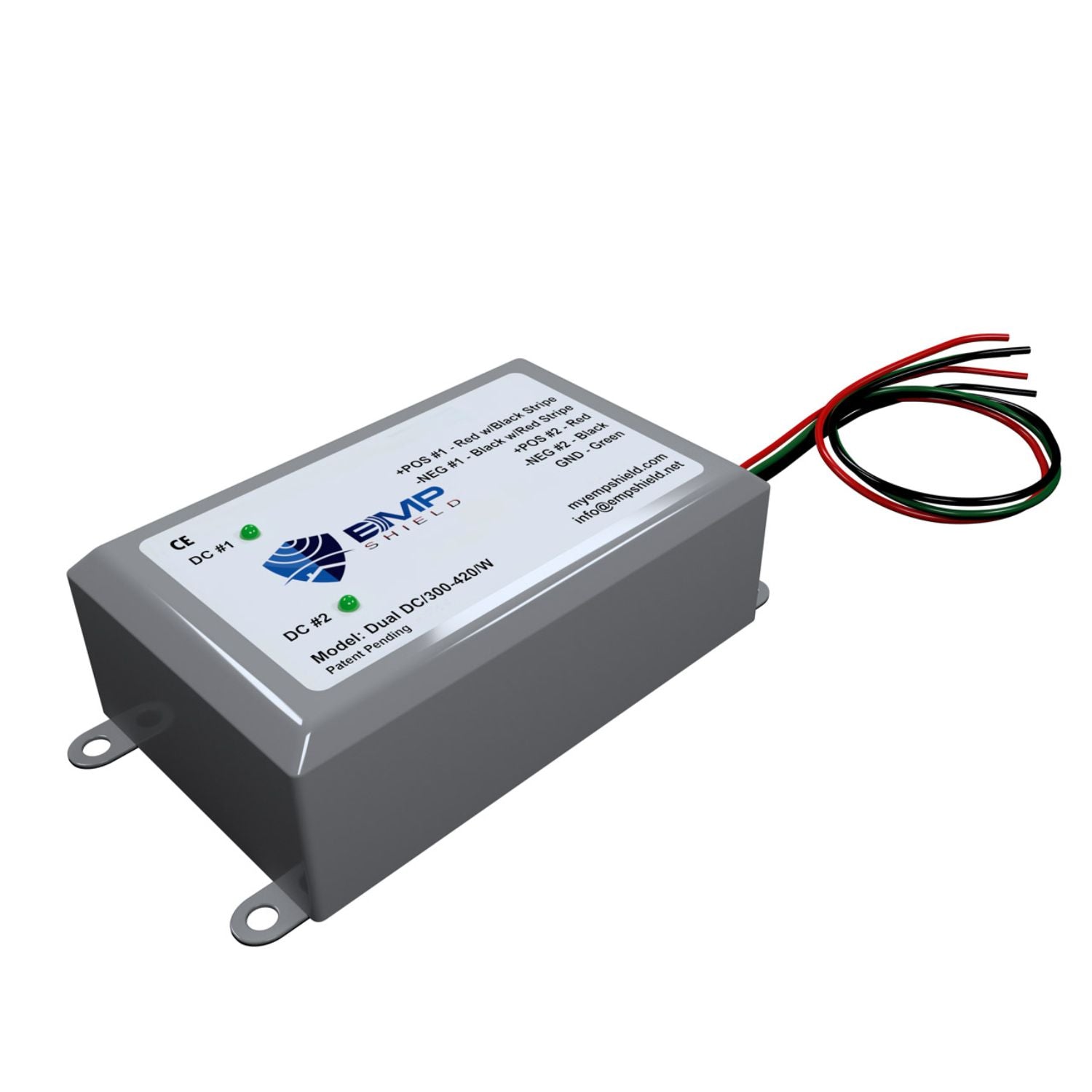

Each of the two internal shields serves one device. The label tracks them as DC #1 and DC #2, each with a green light, and the striped and solid lead pairs keep the two systems apart.
114kA Nominal Discharge Per Circuit
EMP Shield specifies a nominal discharge current (In) of 114kA per circuit for its DC and Dual DC series. Alongside it, EMP Shield lists 228kA per phase of surge capacity.
Shunting Begins In Less Than One Nanosecond
EMP Shield credits its SightSpeed technology with beginning to shunt over-voltage in less than one nanosecond. That fast start is meant to move surge energy away from 300-420V inverters and charge controllers.
Wired Across The DC Pair And Ground
The unit connects across DC positive, negative and ground circuits. EMP Shield gives three modes of protection for those connections, positive-to-negative, positive-to-ground and negative-to-ground.
An IP66 Housing For Hot And Cold Climates
Extreme hot and cold climates are within the conditions EMP Shield lists for this housing, which carries EMP Shield's IP66 rating. Mounting tabs at each corner let the installer fasten it securely.
Real-World Applications
Grid-Tied Solar With Two Inverters. EMP Shield notes that in grid-tied systems the first device after the PV array is most commonly an inverter. A grid-tied system with two matching 300-420V inverters is the kind of setup this dual describes.
Off-Grid Twin Charge Controllers. EMP Shield names off-grid solar and wind energy systems for its DC series. An off-grid build with two identical 300-420V charge controllers can connect both to this unit.
Critical Infrastructure. Critical infrastructure is on EMP Shield's list of DC applications. Sites that depend on two matching DC devices in this range can protect both with one dual unit.
Industrial Battery Backup. Industrial battery backup is one of the system types EMP Shield points to for DC protection. A backup system charged through a matched pair of 300-420V devices fits the dual model.
Practical Comparison
EMP Shield Dual 300-420V Versus A Single 300-420V Unit
With only one device in this range, EMP Shield's single DC/300-420V/W is the counterpart. The dual handles two matched devices from one housing, with DC #1 and DC #2 lights and a shared ground lead. Your device count decides between them.
EMP Shield Dual 300-420V Versus Dual 600V
EMP Shield sells both as Dual DC models with the same series ratings. They differ by voltage point, 300-420V versus 600V. The right pick comes down to which voltage point your equipment actually falls under.
EMP Shield Dual 300-420V Versus A Plug-In Power Strip Surge Protector
Plug-in power strips guard AC equipment at the outlet. They aren't part of the DC run from your panels to your inverters or charge controllers. The dual is wired into that DC run on both systems.
Buyer Guidance
Reading Your Equipment Before You Choose
Find the maximum input voltage on the first device after your PV array, the figure EMP Shield uses to match a shield to a system. Then confirm the two devices are the same and run at 300 to 420V, as EMP Shield describes for this dual. If they differ, plan on a separate shield sized for each device.
Professional Installation
Hire a licensed electrician. EMP Shield's connected equipment policy, which can reimburse up to $25,000, makes a licensed electrician install one of its conditions. On EMP Shield's dual drawing, both charge controllers' PV terminals receive a lead pair, and the green lead ends at ground.
This May Be A Good Fit If
- You have two identical inverters or charge controllers rated 300-420V
- Your solar system is grid-tied or off-grid
- You need one housing in place of two
- Your equipment area gets very hot or very cold
Common Questions
Is This Model Right For A Grid-Tied System?
It can be. EMP Shield says that in grid-tied systems the device to check is usually the inverter. If you have two matching inverters in the 300-420V range, this dual matches EMP Shield's description.
How Many Ground Wires Does It Have?
One. Both internal shields share a single green GND lead, while each system has its own positive and negative pair.
Where Is It Made And How Was It Tested?
EMP Shield states its units are made in Kansas, USA, by a veteran-owned company. EMP Shield also reports testing at Keystone Compliance to MIL-STD-461G, MIL-STD-188-125-1, MIL-STD-464C and RS-105, adding that Keystone Compliance doesn't endorse products, and says it is listed in the Department of Homeland Security's EMP Resilience Report.
What Warranty Applies?
When a unit has a defect in materials or workmanship within 10 years, EMP Shield's limited warranty calls for repair or replacement. Lightning damage that destroys the unit is handled with a $50 replacement once the destroyed unit is returned. EMP Shield's protection policy for connected electronics, up to $25,000, has its own conditions, among them filing within 30 days.
What's Included
- 1 x EMP Shield Dual DC 300-420V Unit
Matched 300-420V Equipment, Matched Protection
If two identical 300-420V inverters or charge controllers follow your array, the EMP Shield Dual 300-420 Volt DC Protection unit gives each its own circuit in a single housing that EMP Shield rates IP66. Questions about your system's voltage? The Outbound Power team can help you sort it out.
EMP Shield Dual 300-420 Volt DC Solar & Wind Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
Dual/DC/300-420V/W |
| SKU |
Dual-DC-300-420-W |
| Type |
Dual DC (2 DC EMP Shields in one unit) |
| Named For (EMP Shield) |
Solar and wind systems |
| Electrical |
| Voltage Point |
300-420V DC |
| Intended Use (EMP Shield) |
2 matching inverters or charge controllers, 300-420V operational voltage |
| Protected Circuits |
2 (DC #1 and DC #2) |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response (EMP Shield) |
Begins shunting over-voltage in less than 1 nanosecond (SightSpeed) |
| Protection |
| Testing (EMP Shield) |
Keystone Compliance - MIL-STD-461G, MIL-STD-188-125-1, MIL-STD-464C, RS-105 |
| DHS Listing (EMP Shield) |
Listed in DHS EMP Resilience Report |
| Installation |
| Connection |
Across DC positive / negative / ground |
| Location (EMP Shield drawing) |
Charge controller PV input of each system |
| Selection Rule (EMP Shield) |
Max input voltage of first device after the PV array (inverter in grid-tied systems) |
| Circuit #1 Leads |
+POS Red w/Black Stripe, -NEG Black w/Red Stripe |
| Circuit #2 Leads |
+POS Red, -NEG Black |
| Ground |
1 Green wire (GND), shared |
| Indicator Lights |
DC #1 and DC #2 (green) |
| Installer |
Licensed electrician (EMP protection policy condition) |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield) |
| Climate (EMP Shield) |
Extreme hot and cold conditions |
| Mounting |
Mounting tab at each corner |
| Made In |
Kansas, USA (veteran-owned company) |
| Warranty |
| Limited Warranty (EMP Shield) |
10 years, defects in materials and workmanship |
| Lightning Replacement (EMP Shield) |
$50 with destroyed unit |
| Connected Equipment Policy (EMP Shield) |
Up to $25,000, conditions apply (claim within 30 days) |
