EMP Shield Dual 90-120 Volt DC Protection Gives Two Matching 90-120V Solar Or Wind Devices Their Own Surge Path
Model Dual/DC/90-120V/W, the EMP Shield Dual 90-120V, packs two DC EMP Shields set at the 90-120V voltage point into one enclosure. Per EMP Shield, the right home for it is a solar system whose two matching inverters or charge controllers operate at 90 to 120V. The product name covers solar panel and wind systems.
Consider it if your array feeds a pair of identical devices that work in this range and you'd rather mount one unit than two. EMP Shield builds the DC series so charge controllers, inverters, energy storage and the devices connected to them stay safe and operational through EMPs, lightning and power surges.
EMP Shield Dual 90-120 Volt DC Protection Features
Two Circuits Set At The 90-120V Point
The housing holds two complete EMP Shield DC circuits at the 90-120V voltage point. EMP Shield also makes this voltage point as a single model, DC/90-120V/W, and the dual pairs two of them in one device to save space.
SightSpeed Detection Below One Nanosecond
EMP Shield says its units detect over-voltage events in less than one nanosecond and then shunt the excess energy away from connected equipment. The company calls this SightSpeed technology.
228kA Surge Capacity Per Phase
For the DC and Dual DC series, EMP Shield lists a surge capacity of 228kA per phase and a nominal discharge current of 114kA per circuit. Those ratings apply across the series, the 90-120V point included.
Three Modes Across Each DC Circuit
Every circuit is wired across DC positive, negative and ground. The three protection modes EMP Shield names are positive-to-negative, positive-to-ground and negative-to-ground.

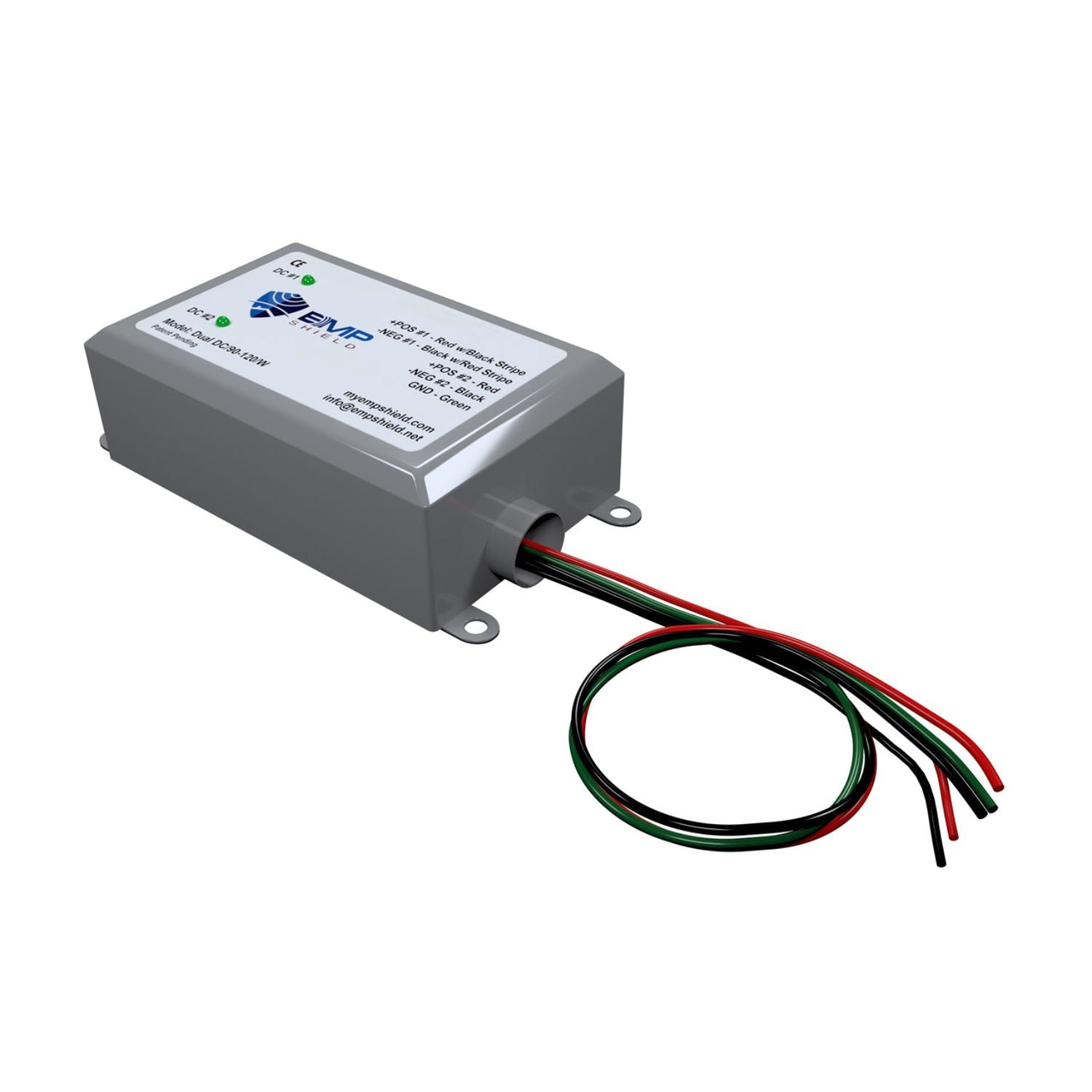

Weather-Rated Housing With Four Mounting Tabs
EMP Shield gives the enclosure an IP66 rating and says it is suited to outdoor use in extreme weather. Four tabs on the housing let you fasten it in place.

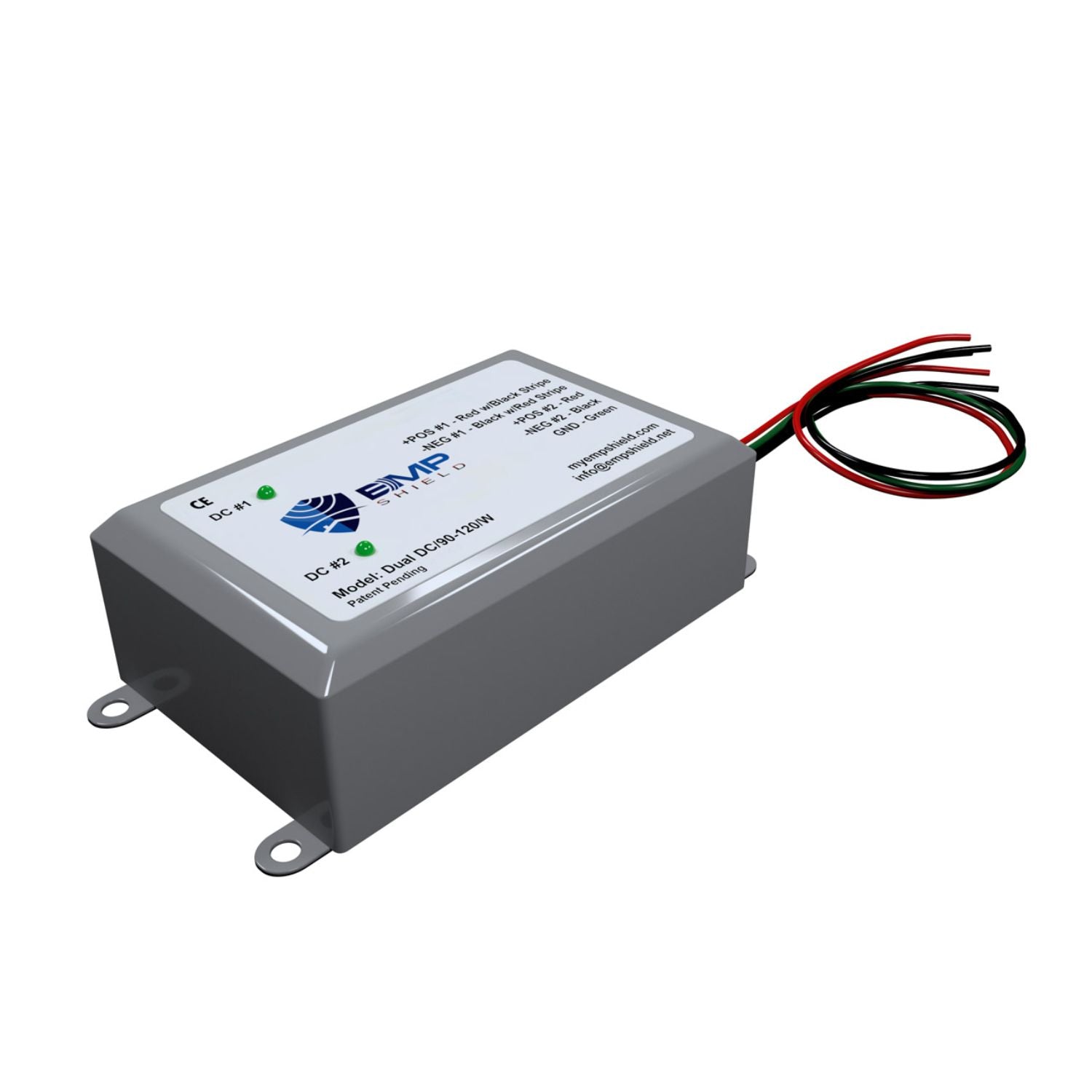

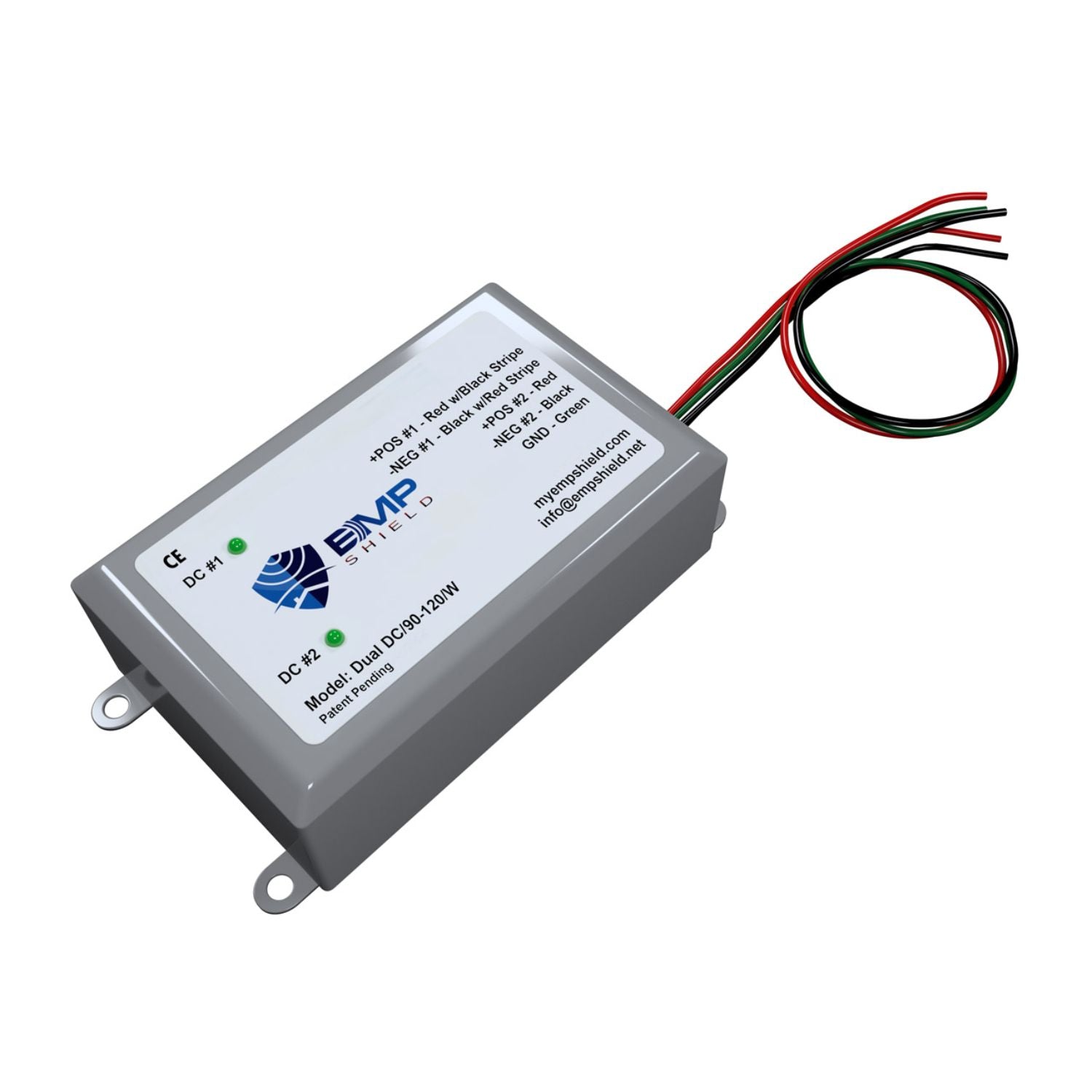

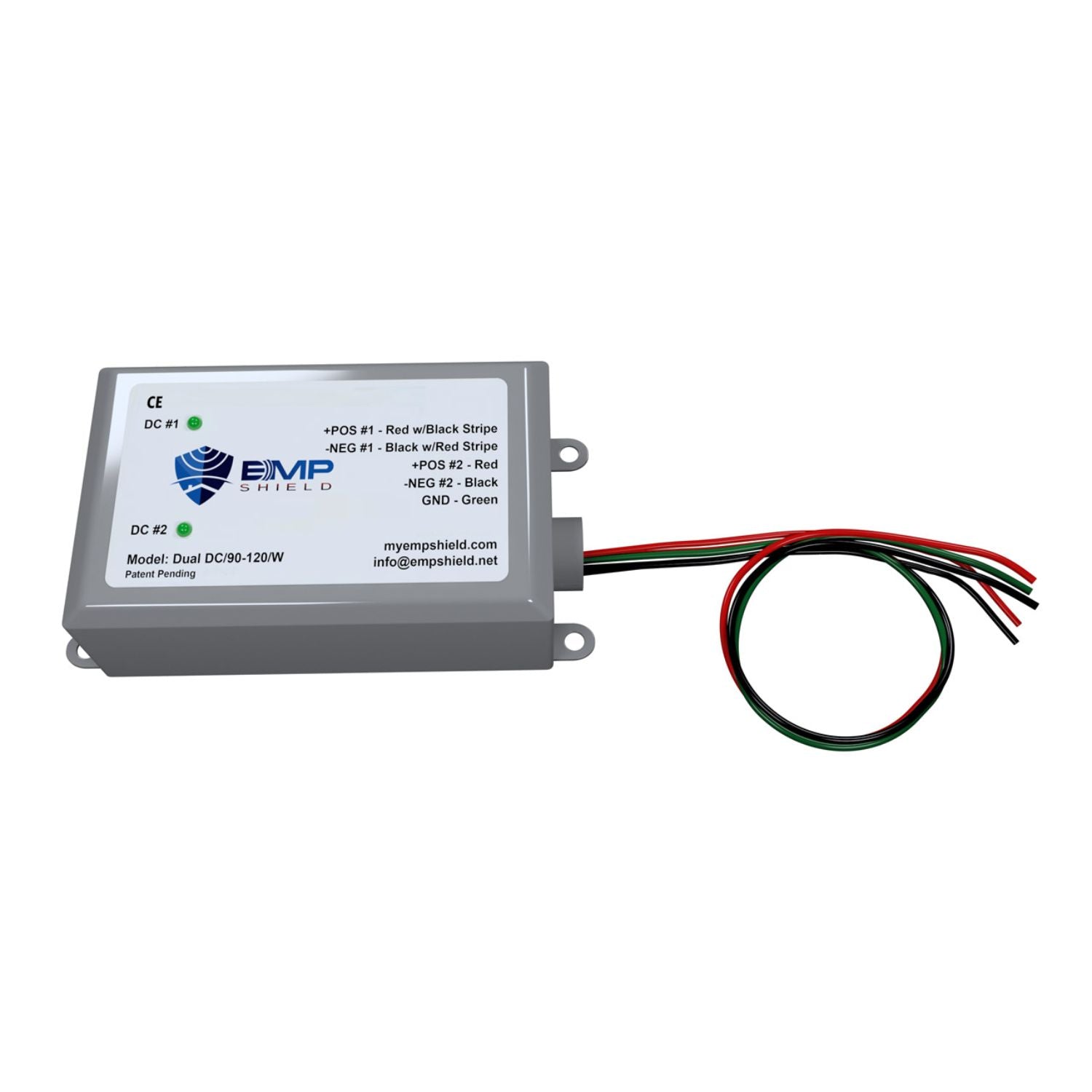

Two Labeled Lights And Five Labeled Leads
The top label shows one green light for DC #1 and another for DC #2. It also lists all five leads by color, so each system's wiring stays clear during the install.
Real-World Applications
Off-Grid Solar Panel Systems. EMP Shield's product name points to solar panel systems, and off-grid solar heads its list of uses for the DC series. Where two identical 90-120V charge controllers follow the array, both PV inputs can run to this dual.
Wind Energy Systems. Wind is also in the product name, and EMP Shield names off-grid wind energy systems for its DC protection. A wind setup built around two matching devices in this range is the case the dual is named for.
Remote Monitoring Stations. EMP Shield includes remote monitoring stations among the uses for its DC series. Where such a station relies on two matching 90-120V devices, one housing protects both.
Practical Comparison
EMP Shield Dual 90-120V Versus A Single 90-120V Unit
The single DC/90-120V/W covers one charge controller or inverter. The dual puts two of those circuits in one enclosure with one shared ground wire. If you have one device in this range, the single is the match, and if you have two matching devices, the dual saves you a second housing.
EMP Shield Dual 90-120V Versus A Plug-In Power Strip Surge Protector
A power strip sits at an AC wall outlet and serves whatever plugs into it. Your PV wiring never passes through it. This dual is installed on the DC side, across the positive, negative and ground of each system.
EMP Shield Dual 90-120V Versus Dual 220-300V
These two duals share the same EMP Shield ratings and differ by voltage point. The right one is the model that matches your devices, so check the equipment before choosing between them.
Buyer Guidance
Confirm Your Devices Fall In The 90-120V Range
Begin with the first device after your PV array, because EMP Shield bases selection on that device's maximum input voltage. In an off-grid system that's most commonly a charge controller, and in a grid-tied system it's most commonly an inverter. This dual is for a pair of those devices that match and operate at 90 to 120V, per EMP Shield.
Installation And Grounding
EMP Shield's dual drawing runs one lead pair to each system's charge controller PV input and a single green wire to ground. Use a licensed electrician, because EMP Shield's protection policy for connected equipment lists a licensed electrician install as a condition.
This May Be A Good Fit If
- Two matching 90-120V devices follow your PV array
- Your system is solar, wind or both
- You want one enclosure and one ground wire
- Your site sees extreme heat, cold or weather
Common Questions
What Does 90-120V Refer To?
It's the voltage point of this model. EMP Shield describes it for two matching inverters or charge controllers with an operational voltage of 90 to 120V, and it also says to choose by the maximum input voltage of the first device after the PV array.
Do Both Systems Share A Ground?
Yes. EMP Shield's dual drawing shows one green ground wire from the unit to ground, with a separate positive and negative lead for each system.
What Has EMP Shield Tested And Listed?
The standards EMP Shield lists for its Keystone Compliance testing are RS-105, MIL-STD-461G, MIL-STD-464C and MIL-STD-188-125-1, and EMP Shield points out that Keystone Compliance doesn't endorse any products. Homeland Security, EMP Shield says, lists the company in its EMP Resilience Report. EMP Shield names E1, E2 and E3 EMP phases, CMEs, lightning and power surges as the threats its products address.
What Coverage Does EMP Shield Offer?
EMP Shield backs the unit with a 10-year limited warranty on materials and workmanship, repairing or replacing a defective unit. It offers a $50 replacement when lightning destroys the unit and you return the destroyed one. Under a separate EMP Shield policy, damaged connected electronics can be reimbursed up to $25,000 if conditions are met, including a claim within 30 days.
What's Included
- 1 x EMP Shield Dual DC 90-120V Unit
One Housing For Both 90-120V Systems
The EMP Shield Dual 90-120 Volt DC Protection unit keeps two matching 90-120V devices on separate protected circuits inside one weather-rated enclosure. Tell the Outbound Power team about your charge controllers or inverters, and we'll help you check that this is the right voltage point.
EMP Shield Dual 90-120 Volt DC Solar Panel & Wind Protection Specifications
|
| Model |
| Brand |
EMP Shield |
| Model |
Dual/DC/90-120V/W |
| SKU |
Dual-DC-90-120/W |
| Type |
Dual DC (2 DC EMP Shields in one unit) |
| Named For (EMP Shield) |
Solar panel and wind systems |
| Electrical |
| Voltage Point |
90-120V DC |
| Intended Use (EMP Shield) |
2 matching inverters or charge controllers, 90-120V operational voltage |
| Protected Circuits |
2 (DC #1 and DC #2) |
| Nominal Discharge Current (In) |
114kA per circuit |
| Surge Capacity |
228kA per phase |
| Protection Modes |
Positive-to-Negative, Positive-to-Ground, Negative-to-Ground |
| Response (EMP Shield) |
Detects and shunts over-voltage in less than 1 nanosecond (SightSpeed) |
| Protection |
| Threats Addressed (EMP Shield) |
EMP (E1, E2, E3), CMEs, lightning, power surges |
| Testing (EMP Shield) |
Keystone Compliance - RS-105, MIL-STD-461G, MIL-STD-464C, MIL-STD-188-125-1 |
| DHS Listing (EMP Shield) |
Listed in DHS EMP Resilience Report |
| Installation |
| Connection |
Across DC positive / negative / ground |
| Location (EMP Shield drawing) |
Charge controller PV input of each system |
| Selection Rule (EMP Shield) |
Max input voltage of first device after the PV array |
| Circuit #1 Leads |
+POS Red w/Black Stripe, -NEG Black w/Red Stripe |
| Circuit #2 Leads |
+POS Red, -NEG Black |
| Ground |
1 Green wire (GND), shared |
| Indicator Lights |
DC #1 and DC #2 (green) |
| Installer |
Licensed electrician (EMP protection policy condition) |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield) |
| Outdoor Use (EMP Shield) |
Extreme weather |
| Mounting |
4 mounting tabs |
| Warranty |
| Limited Warranty (EMP Shield) |
10 years, materials and workmanship |
| Lightning Replacement (EMP Shield) |
$50 with destroyed unit |
| Connected Equipment Policy (EMP Shield) |
Up to $25,000, conditions apply (claim within 30 days) |
EMP Shield Dual-DC-90-120-W Manual
