EMP Shield Dual DC MAX 600V Protection For Large Solar Applications

|
SKU: Dual-DC-600V
$639.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.

We Beat Any Price

Found the same price or less? Just ask & we'll beat it.

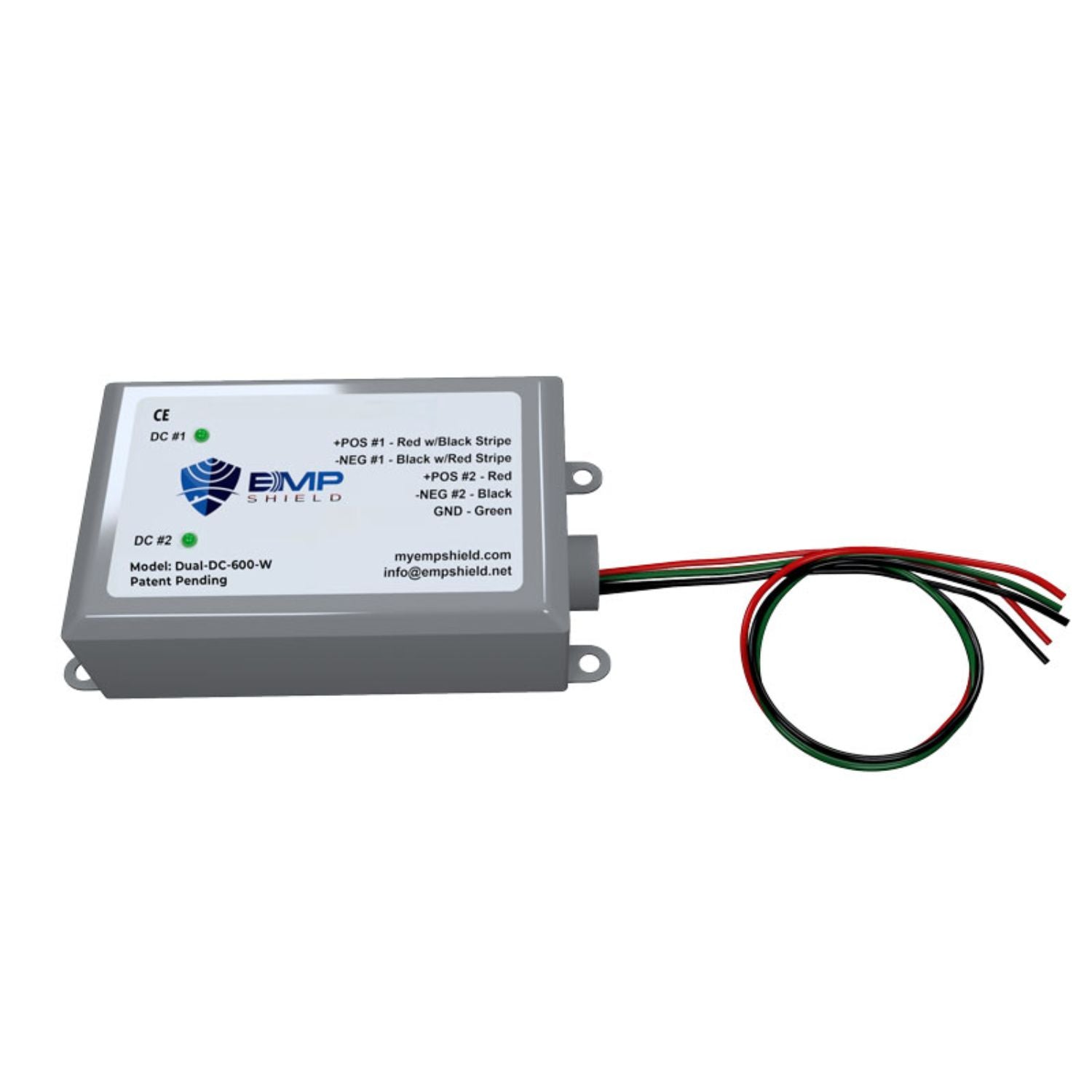

Front of the EMP Shield Dual DC 600V protector with the Dual/DC/600V/W label, DC #1 and DC #2 green lights and red, black and green leads exiting one side

EMP Shield Dual DC 600V Protection Guards Two Matching 600V Devices In Large Solar Applications From One Enclosure

EMP Shield names this model the Dual DC 600V for large solar applications. Its label reads Dual/DC/600V/W, and it holds two DC EMP Shields set at the 600V voltage point. EMP Shield describes its dual models as two shields in a single unit for solar systems that run two matching inverters or charge controllers.

Large solar systems built around a matched pair of 600V devices are the target. EMP Shield designs the Dual DC series to save space, so this one housing takes the place of two single 600V shields. Each internal shield connects across its own DC positive and negative, and both share one ground.


EMP Shield Dual DC 600V Protection Features

Two 600V Shields In A Single Device

EMP Shield builds this unit around two complete DC shields at 600V. On the label they appear as DC #1 and DC #2, each with a green light, so you can tell the two protected circuits apart at a glance.

Surge Ratings For The Dual DC Series

For the series, EMP Shield lists 114kA per circuit as the nominal discharge current (In) and 228kA per phase as the surge capacity. Those figures are given for the whole DC lineup, which EMP Shield offers in voltage options from 12V through 1000V.

Under One Nanosecond To React

EMP Shield's timing claim for SightSpeed is that shunting starts less than one nanosecond after an over-voltage appears. Surge energy is directed away from your 600V inverters or charge controllers.

Three Modes On Every DC Pair

Positive-to-negative is one of three modes EMP Shield lists, with positive-to-ground and negative-to-ground rounding out the set. On a large array, a surge between the conductors or from either one to ground falls within those modes.

IP66 Rating For Outdoor Placement

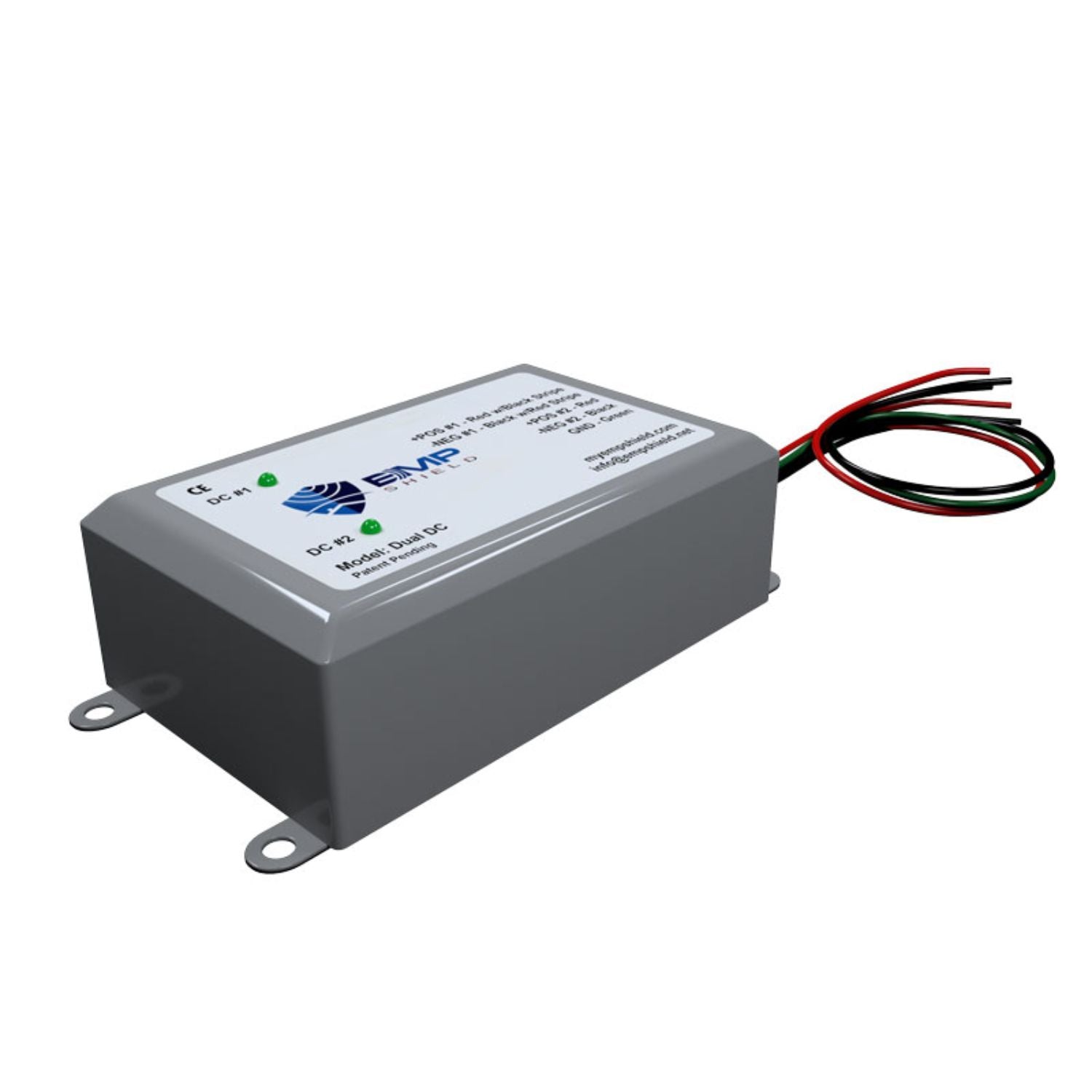

EMP Shield gives its units an IP66 rating for use in extreme hot and cold climate conditions, and it says its DC units can be used outdoors in extreme weather. The 600V dual has a gray housing with a mounting tab at each corner.


Real-World Applications

Large Solar Applications. EMP Shield titles this model for large solar applications. If your array feeds two matching 600V inverters or charge controllers, the dual protects both input circuits from one spot.

Business-Scale Battery Backup. Battery backup at commercial and industrial sites is one of the uses EMP Shield lists for the DC series. Where those systems charge through two identical 600V devices, one dual unit handles both.

Telecom And Communication Towers. EMP Shield also names telecom and communication towers. A tower power system with a matched pair of 600V devices could use this dual in place of two single units.


Practical Comparison

EMP Shield Dual DC 600V Versus A Single 600V Unit

EMP Shield's single DC/600V/W covers one device. If your large solar system has only one 600V inverter or charge controller, the single is enough. With two matching devices, the dual combines both circuits in one enclosure with one green ground lead.

EMP Shield Dual DC 600V Versus Dual 1000V

EMP Shield also lists a Dual/DC/1000V/W. Both are dual units with the same series ratings, so the choice rests on your equipment's voltage. Match the model to the maximum input voltage of the first device after your array.

EMP Shield Dual DC 600V Versus A Faraday Bag

Faraday bags hold small spare electronics that aren't in use. The inverters and charge controllers on a large solar array are working equipment and can't be bagged. The dual unit is hardwired to them and keeps protecting while they operate.


Buyer Guidance

Selecting The 600V Model

EMP Shield's selection rule centers on the maximum input voltage of the first device after the PV array, typically the charge controller off-grid or the inverter when the system is grid-tied. This model is EMP Shield's 600V point. If your devices' maximum input voltage falls between EMP Shield's listed points, ask the Outbound Power team before you order.

Installation On Two Systems

EMP Shield's dual drawing places the unit between two separate solar systems, with one lead pair on each charge controller's PV input and the green lead to ground. Because the $25,000 EMP Shield protection policy requires installation by a licensed electrician among other terms, hire one for the job.

This May Be A Good Fit If

  • Your large solar system uses two matching 600V devices
  • Mounting a single housing suits your equipment room
  • The installation site sees weather extremes
  • A licensed electrician will handle the wiring

Common Questions

What Does MAX 600V Mean In The Name?

It refers to this model's 600V voltage point. EMP Shield's rule is to pick a shield by the maximum input voltage of the first device after the PV array, so this is the model to look at when that maximum is 600V.

How Are The Two Systems Kept Separate?

By lead color. The label assigns red with a black stripe and black with a red stripe to #1, and solid red and solid black to #2. A single green lead is the ground for both.

What Does EMP Shield Say It Protects Against?

Its threat list reads E1, E2 and E3 for EMP, then CMEs and solar flares, lightning and power surges. It reports testing at Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105, notes Keystone Compliance doesn't personally endorse products, and states that Homeland Security lists it in an EMP Resilience Report.

How Does EMP Shield's Warranty Work?

There are three parts, all EMP Shield's terms. A 10-year limited warranty covers defects in materials and workmanship. Lightning that destroys the unit triggers a $50 replacement, with the destroyed unit shipped back to EMP Shield. Last, a protection policy separate from the warranty may pay back up to $25,000 for damaged connected electronics, subject to conditions such as a 30-day claim window.


What's Included

  • 1 x EMP Shield Dual DC 600V Unit

Two Large-Array Circuits, One Shield

The EMP Shield Dual DC 600V Protection unit gives a matched pair of 600V inverters or charge controllers separate protected circuits inside one housing. When you're ready to check your array's voltage or plan the install, the Outbound Power team is here to help.


EMP Shield Dual DC MAX 600V Protection For Large Solar Applications Specifications

Model
Brand EMP Shield
Model Dual/DC/600V/W
SKU Dual-DC-600V
Type Dual DC (2 DC EMP Shields in one unit)
Named For (EMP Shield) Large solar applications
Electrical
Voltage Point 600V DC
Intended Use (EMP Shield, dual models) 2 matching inverters or charge controllers
Protected Circuits 2 (DC #1 and DC #2)
Nominal Discharge Current (In) 114kA per circuit
Surge Capacity 228kA per phase
Protection Modes Positive-to-Negative, Positive-to-Ground, Negative-to-Ground
Response (EMP Shield) Begins shunting over-voltage in less than 1 nanosecond (SightSpeed)
Protection
Threats Addressed (EMP Shield) EMP (E1, E2, E3), CME / solar flares, lightning, power surges
Testing (EMP Shield) Keystone Compliance - MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105
DHS Listing (EMP Shield) Listed in DHS EMP Resilience Report
Installation
Connection Across DC positive / negative / ground
Location (EMP Shield drawing) Charge controller PV input of each system
Selection Rule (EMP Shield) Max input voltage of first device after the PV array
Circuit #1 Leads +POS Red w/Black Stripe, -NEG Black w/Red Stripe
Circuit #2 Leads +POS Red, -NEG Black
Ground 1 Green wire (GND), shared
Indicator Lights DC #1 and DC #2 (green)
Installer Licensed electrician (EMP protection policy condition)
Physical
Enclosure Rating IP66 (EMP Shield)
Outdoor Use (EMP Shield) Extreme weather, hot and cold climates
Mounting Mounting tab at each corner
Warranty
Limited Warranty (EMP Shield) 10 years, defects in materials and workmanship
Lightning Replacement (EMP Shield) $50 with destroyed unit
Connected Equipment Policy (EMP Shield) Up to $25,000, conditions apply (claim within 30 days)
