EMP Shield Lightning Protection for Vehicles | DC-12V-W

|
SKU: DC-12V-W
$399.00

Early Black Friday Price Drop Guarantee

  • Buy now, and if our price drops by Black Friday, we'll refund the difference.
  • Found it lower elsewhere? We'll beat it.

We Beat Any Price

Found the same price or less? Just ask & we'll beat it.

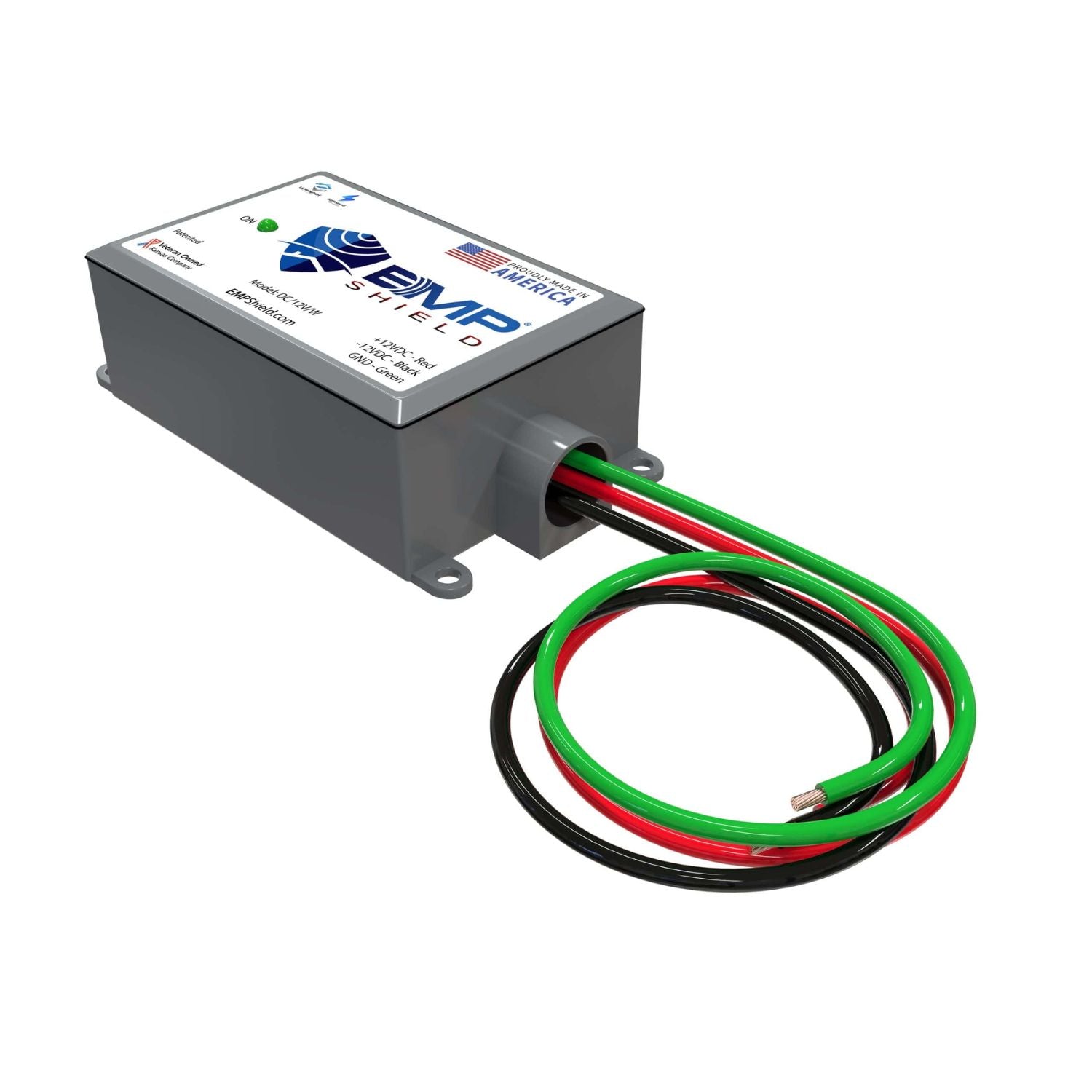

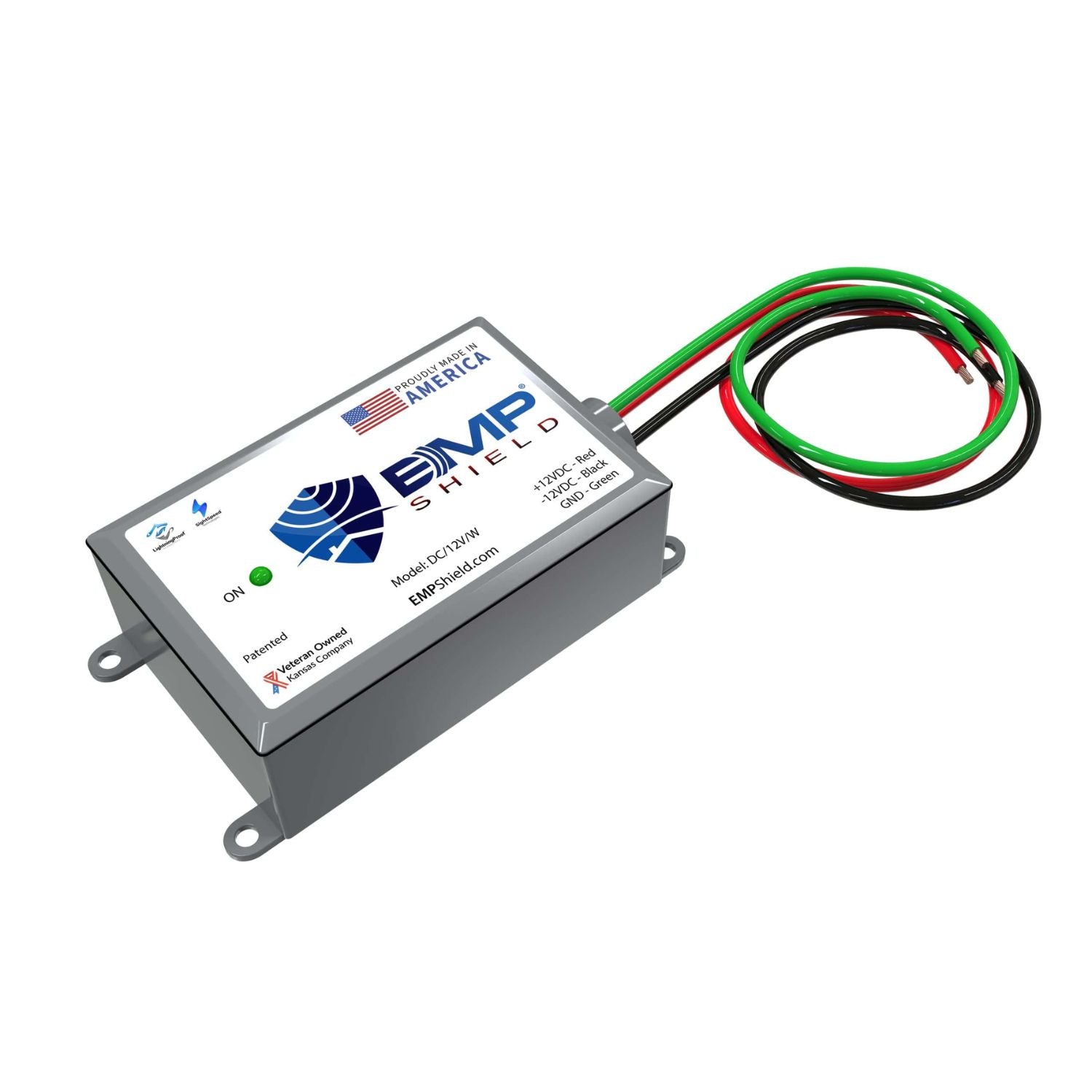

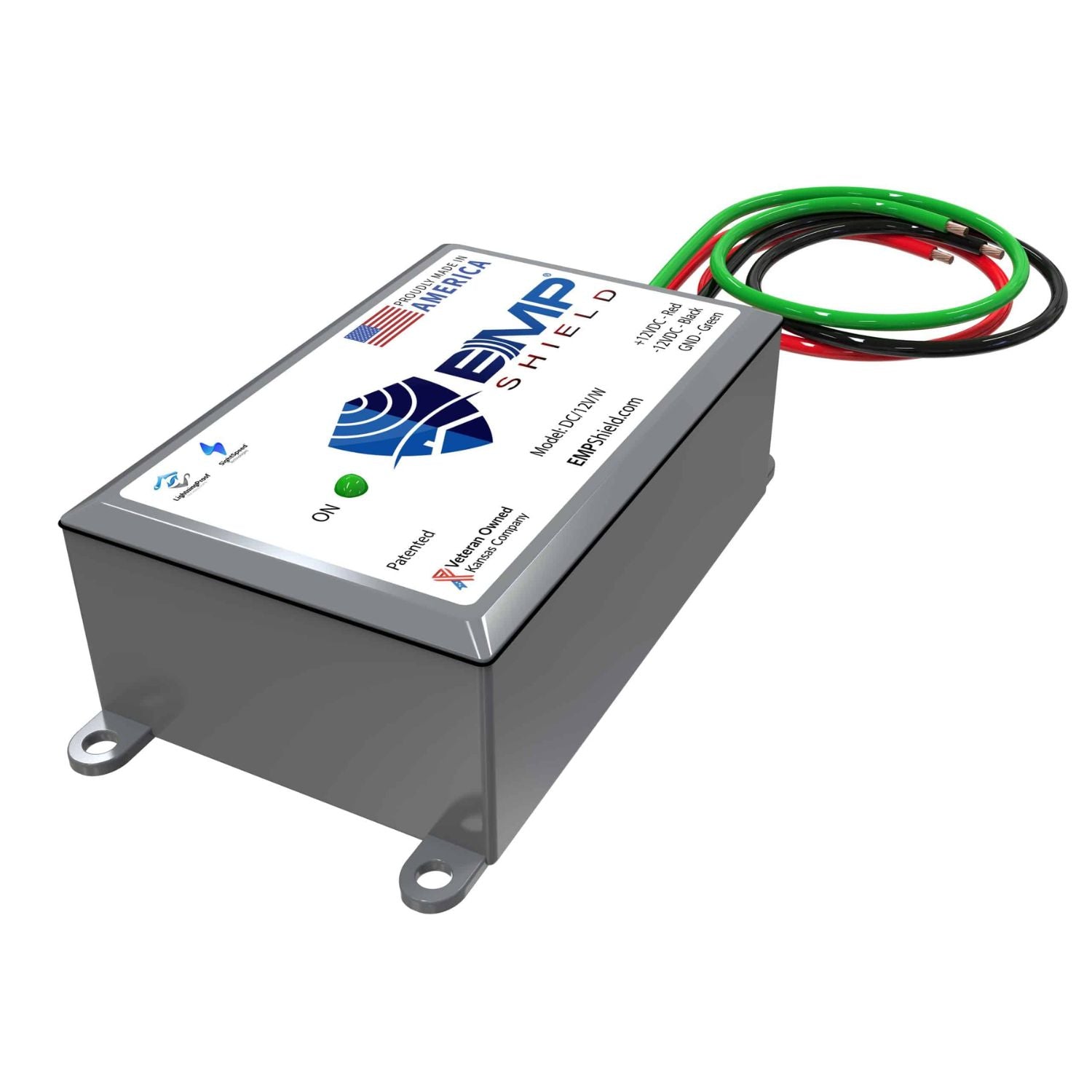

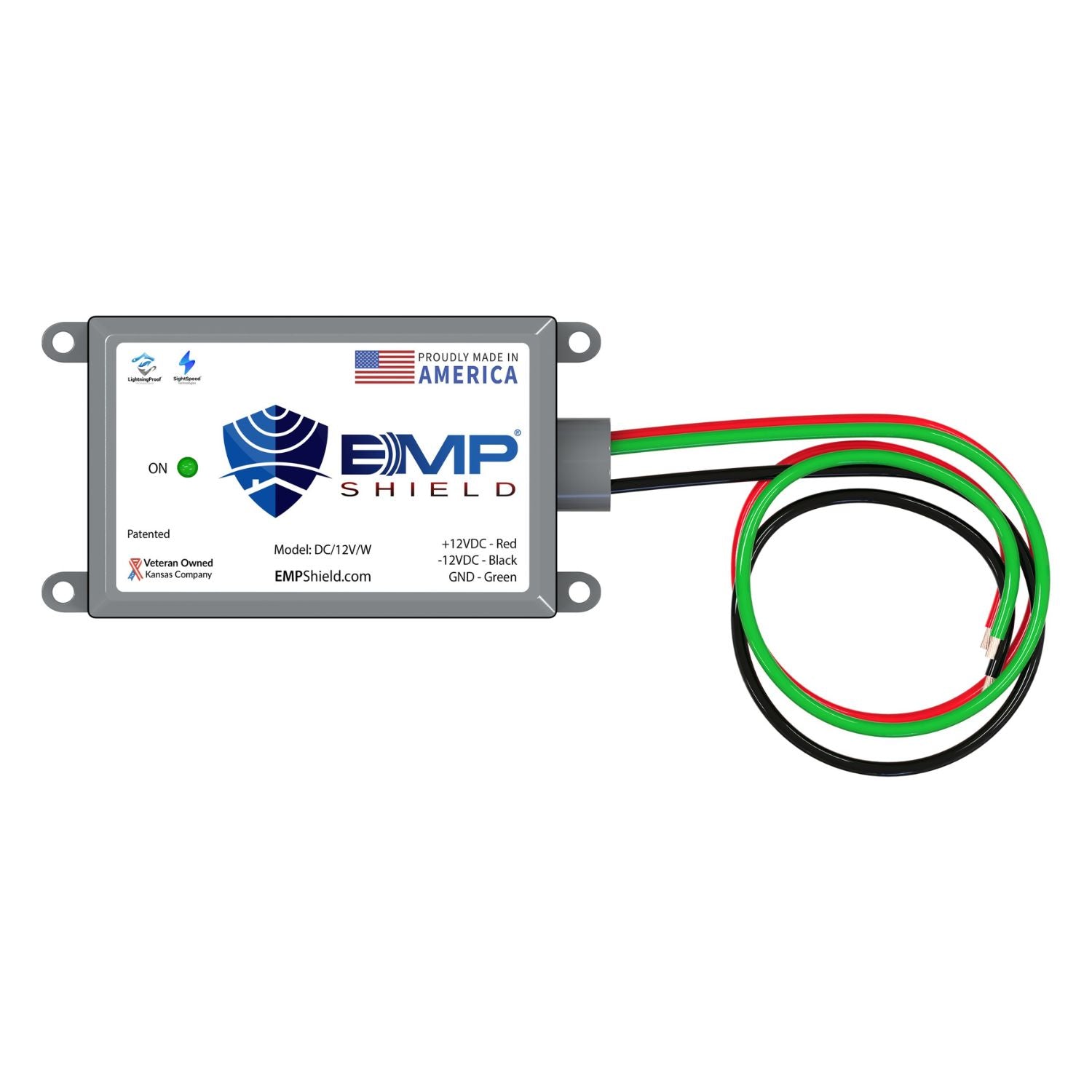

EMP Shield DC-12V-W vehicle unit, front view of the gray enclosure with the Model DC/12V/W label and red, black and green battery leads

EMP Shield Vehicle EMP Protection Connects to Your 12V Battery to Help Keep Engine Electronics Working After a Surge

The DC-12V-W is EMP Shield's original vehicle unit. It is a gray enclosure with three attached wires that connect straight to a 12V battery and to the vehicle chassis. EMP Shield built it to protect a car, truck, ATV, UTV or motorcycle from electromagnetic pulses (EMPs), lightning strikes and power surges.

This unit is for drivers who want transportation they can count on when something goes wrong. EMP Shield says it installs directly into the vehicle's 12V electrical system and helps keep the engine, critical electronics and onboard systems operational. Once wired in, it stays connected whether the vehicle is parked or moving.


EMP Shield Vehicle EMP Protection Features

Direct-to-Battery Connection With Its Own Ground

EMP Shield describes the installation as a direct-to-battery connection that includes grounding. Red goes to battery positive, black to battery negative and green to the chassis. EMP Shield lists the protection modes as battery-to-chassis ground and accessory circuits.

228kA Surge Capacity

EMP Shield rates the vehicle unit for a surge capacity of 228kA, with a nominal discharge current (In) of 114kA. In its own words, the unit can withstand up to 228,000 amps per phase.

Over-Voltage Shunting in Under One Nanosecond

EMP Shield says its technology detects an over-voltage event and begins shunting it in less than one nanosecond. The company calls this SightSpeed. The excess energy is sent away from your equipment so the vehicle's electronics can stay operational, according to EMP Shield.

Protection Against EMP, CMEs, Lightning and Surges

EMP Shield states the unit protects against all three phases of an EMP (E1, E2 and E3), coronal mass ejections (CMEs, or solar flares), lightning and power surges. EMP Shield reports testing at Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105, at 50 kV/m and 90 kV/m. Keystone Compliance does not endorse any product. EMP Shield also states its products are listed by the Department of Homeland Security in its EMP resilience report.

IP66-Rated Enclosure for the Engine Bay

The enclosure carries an IP66 rating (EMP Shield's rating), and EMP Shield says its units are for use in extreme hot and cold climate conditions. Four mounting tabs hold it in place, and a green LED marked ON sits on the front label. EMP Shield is a veteran-owned company that makes its units in Kansas.

10-Year Limited Warranty From EMP Shield

EMP Shield's warranty card gives a 10-year limited warranty against defects in materials and workmanship, with EMP Shield repairing or replacing the unit. If lightning destroys it, EMP Shield replaces it for $50 when you send in the destroyed unit. A separate EMP Shield protection policy can reimburse damaged connected electronics up to $25,000 when its conditions are met.


Real-World Applications

Cars and trucks. EMP Shield names cars and trucks first among the vehicles its 12V unit protects. Mount it in the engine compartment, connect it to the battery and chassis, and it guards the engine and onboard electronics from then on.

ATVs and UTVs. Off-road machines are on EMP Shield's list too, and its product photos show this model beside an ATV. If your ATV or UTV runs a 12V system, the same three-wire hookup applies.

Motorcycles. EMP Shield lists motorcycles for its vehicle protection. Check the open space on your bike first, because the smaller DC-12V-MICRO may be the easier fit on a crowded frame.

Vehicles kept ready for emergencies. EMP Shield frames vehicle protection around having reliable transportation when disaster strikes. A vehicle you keep set aside for that moment is a natural candidate.


Practical Comparison

DC-12V-W Versus DC-12V-MICRO

Both are EMP Shield 12V vehicle models listed under one set of specifications, and they share the same red, black and green wiring instructions. The DC-12V-W is the original, larger gray unit with corner mounting tabs, while the MICRO is the compact option. Choose the original when you have room and the MICRO when space is the limit.

Vehicle EMP Shield Versus a Faraday Bag

A Faraday bag or cage shields items stored inside it, such as spare electronics. It cannot cover a vehicle's wiring while the vehicle is in use. The DC-12V-W stays wired to the battery and chassis, so the vehicle itself is protected day to day.


Buyer Guidance

Where It Installs

EMP Shield's instructions show the unit in the engine compartment of a 2013 Hyundai Tucson, on the driver side above the wheel well. Clean the spot well, measure the wire needed to reach both battery terminals, then pick a chassis point for the green wire. That ground point must be at least 4 linear feet of conductor material, such as the vehicle chassis, from the battery negative. Use a dedicated bolt that is not already grounding another electrical system.

Who Should Install It

EMP Shield recommends that only a certified electrician or mechanic install the unit, and it warns that electricity can cause severe injury. Never touch the battery positive and negative at the same time. The only tool listed is a wrench, with a socket wrench suggested. Leave every sticker on the device.

This May Be A Good Fit If

  • Your car, truck, ATV, UTV or motorcycle has a 12V system
  • You want protection that stays wired to the battery
  • You have room under the hood for the original-size unit
  • You want EMP Shield's 10-year limited warranty

Common Questions

Does It Work on Vehicles With Other Voltages?

EMP Shield lists this model for 12V DC systems. If your vehicle runs a different voltage, talk with the Outbound Power team before you order.

Where Does Each Wire Connect?

Red goes to battery positive (+), black goes to battery negative (-) and green goes to a dedicated chassis bolt (G). EMP Shield recommends zip-tying the wires together and securing them out of the way.

Can I Install It Myself?

EMP Shield recommends a certified electrician or mechanic. Its protection policy also lists claim conditions, including installation by a licensed electrician, so check those terms first.


What's Included

  • 1 x EMP Shield DC-12V-W Vehicle Unit

Reliable Transportation When It Counts

EMP Shield Vehicle EMP Protection gives your 12V car, truck, ATV, UTV or motorcycle a dedicated surge path from the battery to the chassis, backed by EMP Shield's published ratings and 10-year limited warranty. If you have questions about fit, mounting space or installation, the Outbound Power team is happy to help.


EMP Shield Lightning Protection for Vehicles Specifications

Model
Brand EMP Shield
Model Number DC/12V/W
SKU DC-12V-W
Product Type Vehicle EMP and lightning protection
Smaller Sibling DC-12V-MICRO
Electrical
System Voltage 12V DC systems
Nominal Discharge Current (In) 114kA
Surge Capacity 228kA (up to 228,000 amps per phase, per EMP Shield)
Protection Modes Battery-to-Chassis Ground and Accessory Circuits
Response Time Begins shunting in less than 1 nanosecond (EMP Shield, SightSpeed)
Protection
Threats Covered (per EMP Shield) EMP E1, E2 and E3; CMEs (solar flares); lightning; power surges
Testing (per EMP Shield) Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105
Test Field Levels (per EMP Shield) 50 kV/m and 90 kV/m
Listing (per EMP Shield) Listed by the Department of Homeland Security in its EMP resilience report
Installation
Connection Direct-to-battery, includes grounding
Red Wire Battery positive (+)
Black Wire Battery negative (-)
Green Wire Dedicated chassis bolt (G)
Ground Point Distance At least 4 linear feet of conductor material from battery negative
Tool Needed Wrench (socket wrench suggested)
Recommended Installer Certified electrician or mechanic (EMP Shield)
Indicator Green ON LED
Physical
Enclosure Rating IP66 (EMP Shield's rating)
Climate Extreme hot and cold climate conditions (EMP Shield)
Enclosure Gray, 4 mounting tabs
Leads 3 attached wires (red, black, green)
Made In Kansas, USA
Warranty
Limited Warranty 10 years, defects in materials and workmanship (EMP Shield)
Lightning Replacement $50 with the destroyed unit (EMP Shield)
Connected Equipment Policy Up to $25,000 when policy conditions are met (EMP Shield)

EMP Shield DC-12V-W Manual

EMP Shield DC-12V-W Manual
