EMP Shield Micro Vehicle EMP Protection Fits Tight Engine Bays, ATVs and Motorcycles With the Same Rated Protection as the Original

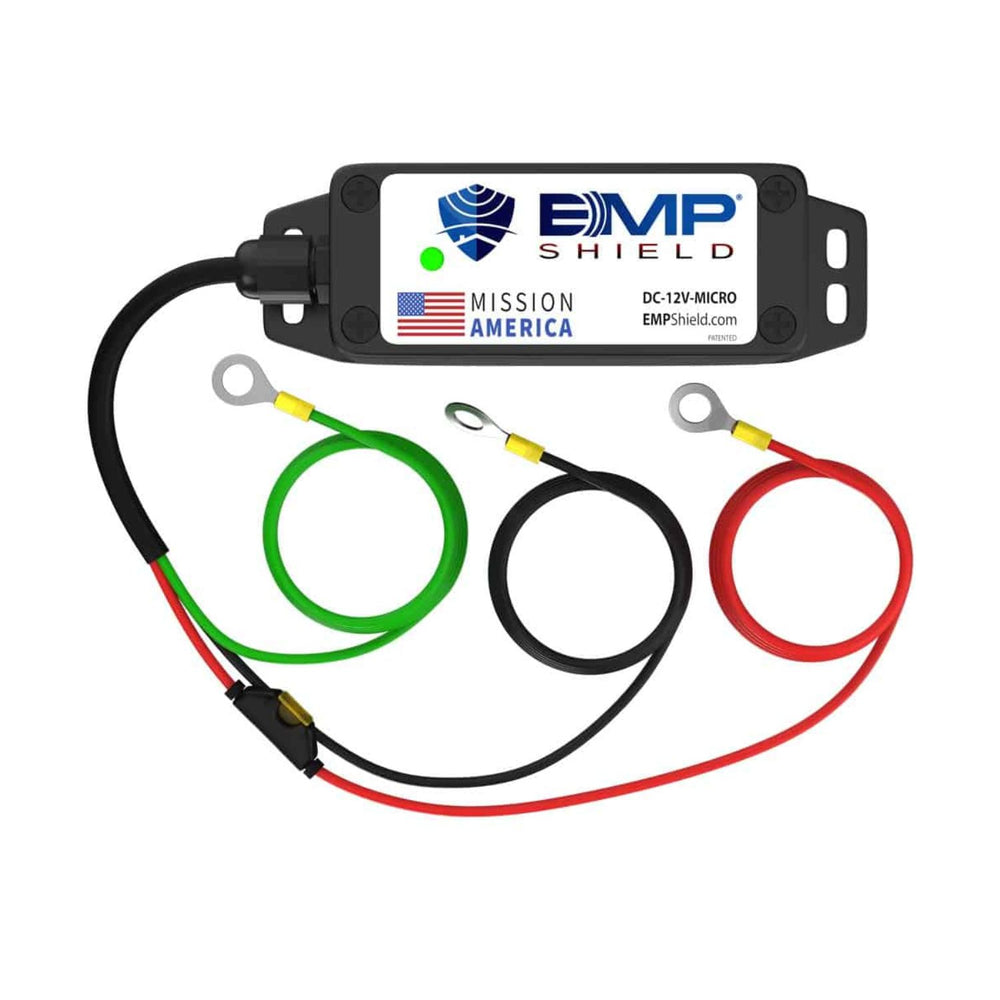

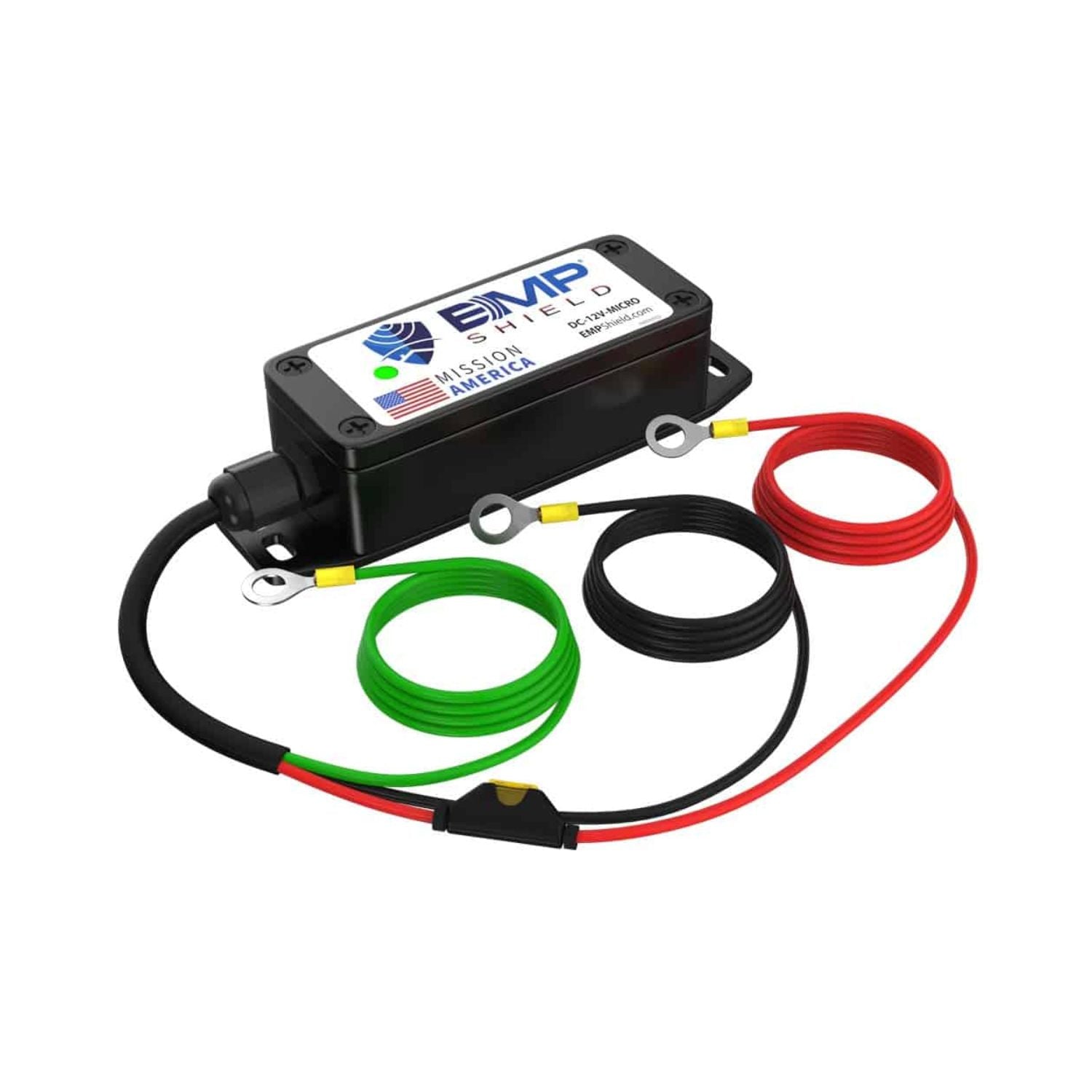

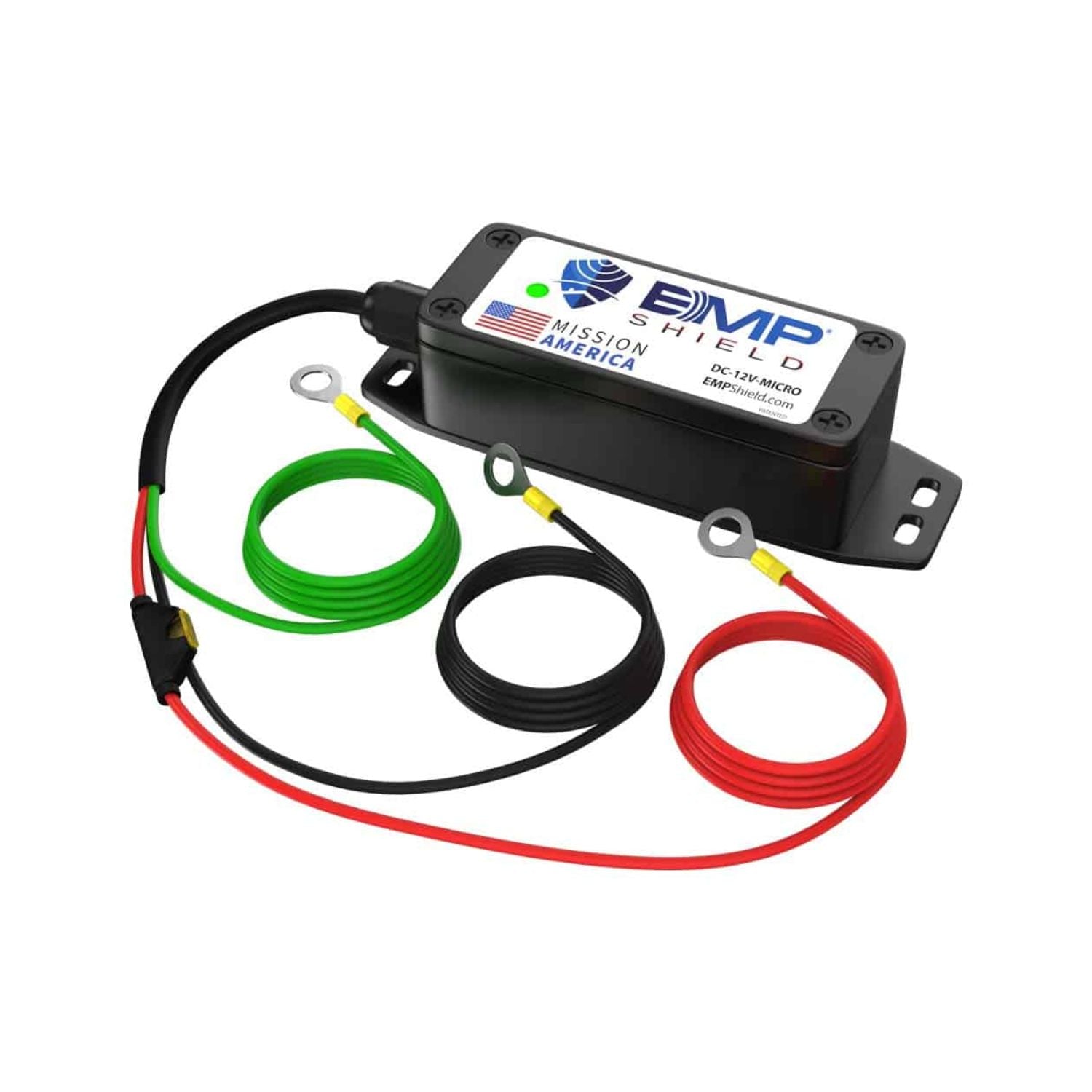

The DC-12V-MICRO is EMP Shield's compact unit for 12V vehicle electrical systems. EMP Shield says it is 78% smaller than its original vehicle model, the DC-12V-W, while keeping the same EMP, CME and lightning protection. The black enclosure has a green ON light and three leads, red, black and green, each finished with a ring terminal in EMP Shield's photos.
It is made for owners whose engine compartments have little spare room, and for small mobile platforms. EMP Shield sizes it for ATVs and motorcycles, and it lists cars, trucks, ATVs, UTVs and motorcycles for its vehicle units. Two industrial fasteners come with it, so you can move the MICRO from one vehicle to another.
EMP Shield Micro Vehicle EMP Protection Features
78% Smaller Than the Original Vehicle Model
By EMP Shield's figure, the MICRO takes up 78% less size than the DC-12V-W, so it can go where the original will not. Slotted mounting tabs on each end give you another way to secure it.
Low-Draw LED Indicator
EMP Shield says the MICRO's LED draws 150 times less energy than the original vehicle model's light, at 18.4 micro amps, while staying just as bright. A small draw like that is useful on a vehicle that sits between uses.
Two Industrial Fasteners Included
The box includes two industrial fasteners, which EMP Shield provides so you can swap the unit between vehicles. To mount it, clean the surface thoroughly, peel the plastic strips off a fastener, then press the adhesive side in place and hold it firmly for 15 seconds.
228kA Surge Capacity and Sub-Nanosecond Reaction
EMP Shield lists a 114kA nominal discharge current (In) and a 228kA surge capacity for its 12V vehicle models. It says its SightSpeed technology starts reacting in less than a nanosecond, draining over-voltage away before it can rise high enough to damage equipment.
EMP, CME and Lightning Coverage per EMP Shield
EMP Shield states the MICRO guards against all three EMP phases (E1, E2 and E3), coronal mass ejections, lightning and power surges. EMP Shield reports testing at Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C and RS-105, at field levels of 50 kV/m and 90 kV/m, and notes that Keystone Compliance does not endorse products. According to EMP Shield, the Department of Homeland Security lists its products in its EMP resilience report.
IP66 Enclosure and a 10-Year Limited Warranty
EMP Shield gives its units an IP66 rating for use in extreme hot and cold climates. Its warranty card covers defects in materials and workmanship for 10 years, with repair or replacement by EMP Shield. A unit destroyed by lightning is replaced for $50 when you send the old one in, and a separate EMP Shield protection policy can reimburse damaged connected electronics up to $25,000 when its conditions are met.
Real-World Applications
Motorcycles. EMP Shield calls out motorcycles as a size match for the MICRO. Its compact body suits bikes where there is no open engine bay to work with.
ATVs and UTVs. EMP Shield sizes the MICRO for ATVs and shows it in an off-road setting in its photos. The same three wires connect to the machine's 12V battery and frame.
Cars and trucks with crowded engine bays. Some engine compartments leave little room for add-ons. EMP Shield made the MICRO for exactly that situation, while keeping the same protection as the full-size unit.
Moving between vehicles. Because two fasteners are included, you can shift the MICRO from one vehicle to another. Keep in mind that only the vehicle it is wired to is protected at any given time.
Practical Comparison

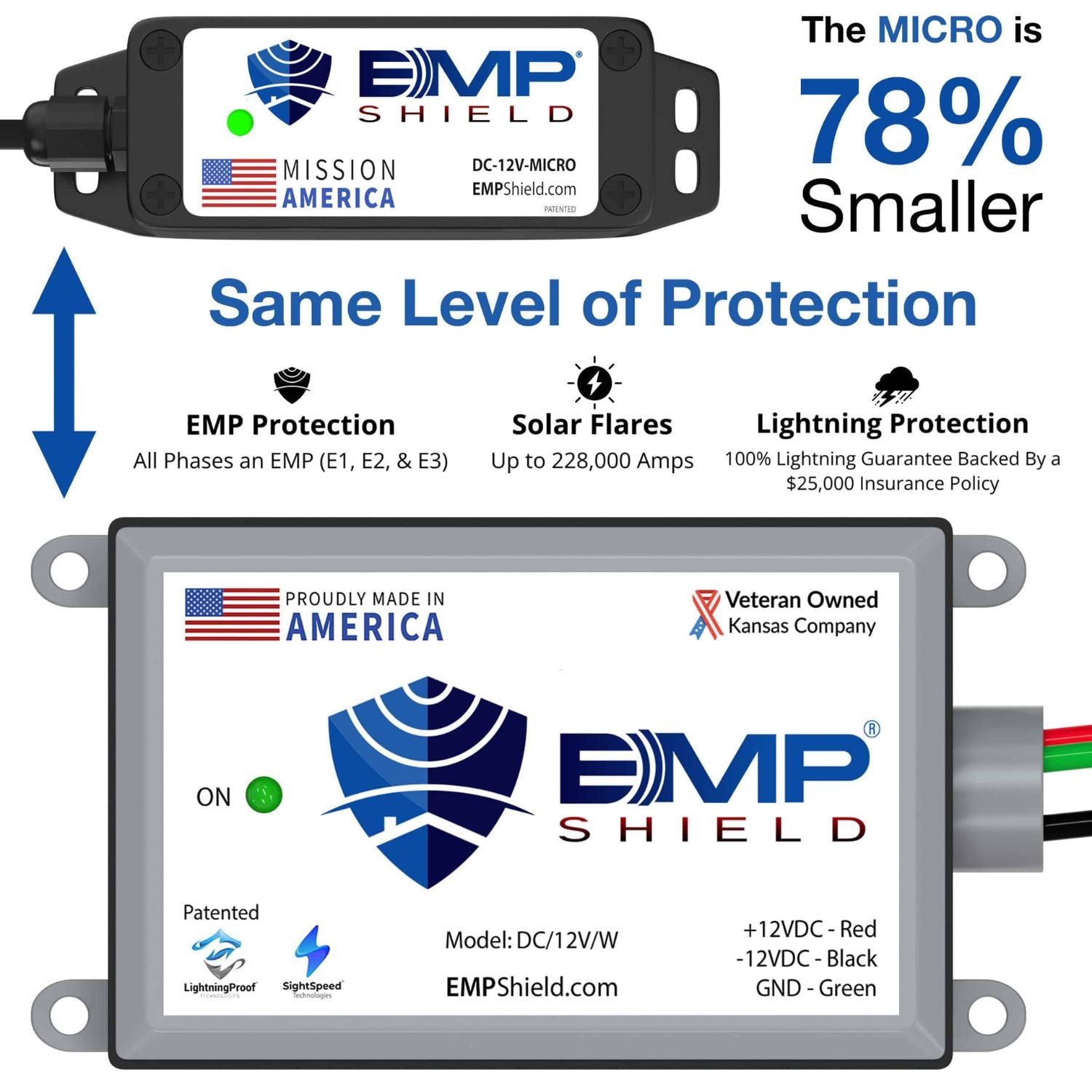

DC-12V-MICRO Versus DC-12V-W
EMP Shield says both carry the same EMP, CME and lightning protection, and both follow one set of wiring instructions. The MICRO is 78% smaller, has a black housing, uses a lower-draw LED and comes with two fasteners. The gray DC-12V-W is the larger original. If space is tight, the MICRO is the simpler choice.
Micro Vehicle Unit Versus a Faraday Bag
A Faraday bag or cage protects electronics only while they are sealed inside it. A motorcycle or ATV cannot ride around in one. The MICRO stays connected to the vehicle's battery and chassis, so its electrical system stays covered while you use it.
Buyer Guidance
Picking a Mounting Spot
Choose a suitable spot and clean it thoroughly so the fastener bonds well. EMP Shield's example puts its vehicle unit on the driver side of a 2013 Hyundai Tucson, in the engine compartment above the wheel well. Once the unit is in place, measure how much wire you need to reach the battery positive and negative. Then find a chassis point for the ground at least 4 linear feet of conductor material, like the frame, away from the battery negative.
Who Should Do the Wiring
EMP Shield recommends a certified electrician or mechanic for the job. Red connects to the battery positive, black to the battery negative and green to a dedicated chassis bolt that does not ground any other system. Do not touch both battery sides at once, and do not peel any stickers off the device. A wrench is the only tool EMP Shield lists.
This May Be A Good Fit If
- You ride a motorcycle, ATV or UTV with a 12V system
- Your engine bay has limited free space
- You want to move one unit between vehicles
- You want a low-draw indicator light
Common Questions
Is the Protection Lower Because the Unit Is Smaller?
No, according to EMP Shield. It says the MICRO has the same EMP, lightning and CME protection as its original vehicle model, and it lists both under the same 12V vehicle ratings.
How Much Power Does the LED Use?
EMP Shield puts the LED draw at 18.4 micro amps, which it describes as 150 times less energy than the original vehicle model's indicator.
Can I Move It to Another Vehicle Later?
Yes. EMP Shield includes two industrial fasteners for swapping the MICRO between vehicles.
What's Included
- 1 x EMP Shield Micro DC-12V-MICRO Vehicle Unit
- 2 x Industrial Fasteners
Compact Protection for Small Spaces
EMP Shield Micro Vehicle EMP Protection brings EMP Shield's rated 12V vehicle protection to engine bays, motorcycles and off-road machines with little room to spare. If you would like help confirming fit or planning the install, the Outbound Power team is ready to answer your questions.
EMP Shield Micro EMP & Lightning Protection For Vehicles Specifications
|
| Model |
| Brand |
EMP Shield |
| Model Number |
DC/12V/MICRO |
| SKU |
DC-12V-MICRO |
| Product Type |
Compact vehicle EMP and lightning protection |
| Size |
78% smaller than DC-12V-W (EMP Shield) |
| Electrical |
| System Voltage |
12V DC systems |
| Nominal Discharge Current (In) |
114kA |
| Surge Capacity |
228kA |
| Protection Modes |
Battery-to-Chassis Ground and Accessory Circuits |
| Response Time |
Begins reacting in less than 1 nanosecond (EMP Shield, SightSpeed) |
| LED Draw |
18.4 micro amps (EMP Shield) |
| LED Energy Use |
150x less than the original vehicle model (EMP Shield) |
| Protection |
| Threats Covered (per EMP Shield) |
EMP E1, E2 and E3; CMEs; lightning; power surges |
| Testing (per EMP Shield) |
Keystone Compliance to MIL-STD-188-125-1, MIL-STD-461G, MIL-STD-464C, RS-105 |
| Test Field Levels (per EMP Shield) |
50 kV/m and 90 kV/m |
| Listing (per EMP Shield) |
Listed by the Department of Homeland Security in its EMP resilience report |
| Installation |
| Connection |
Direct-to-battery, includes grounding |
| Red Wire |
Battery positive (+) |
| Black Wire |
Battery negative (-) |
| Green Wire |
Dedicated chassis bolt (G) |
| Ground Point Distance |
At least 4 linear feet of conductor material from battery negative |
| Mounting |
Industrial fastener; press and hold 15 seconds |
| Tool Needed |
Wrench |
| Recommended Installer |
Certified electrician or mechanic (EMP Shield) |
| Indicator |
Green ON LED |
| Physical |
| Enclosure Rating |
IP66 (EMP Shield's rating) |
| Climate |
Extreme hot and cold climate conditions (EMP Shield) |
| Enclosure |
Black, slotted mounting tabs |
| Leads |
Red, black and green with ring terminals |
| Made In |
Kansas, USA |
| Included |
| Industrial Fasteners |
2 |
| Warranty |
| Limited Warranty |
10 years, defects in materials and workmanship (EMP Shield) |
| Lightning Replacement |
$50 with the destroyed unit (EMP Shield) |
| Connected Equipment Policy |
Up to $25,000 when policy conditions are met (EMP Shield) |
