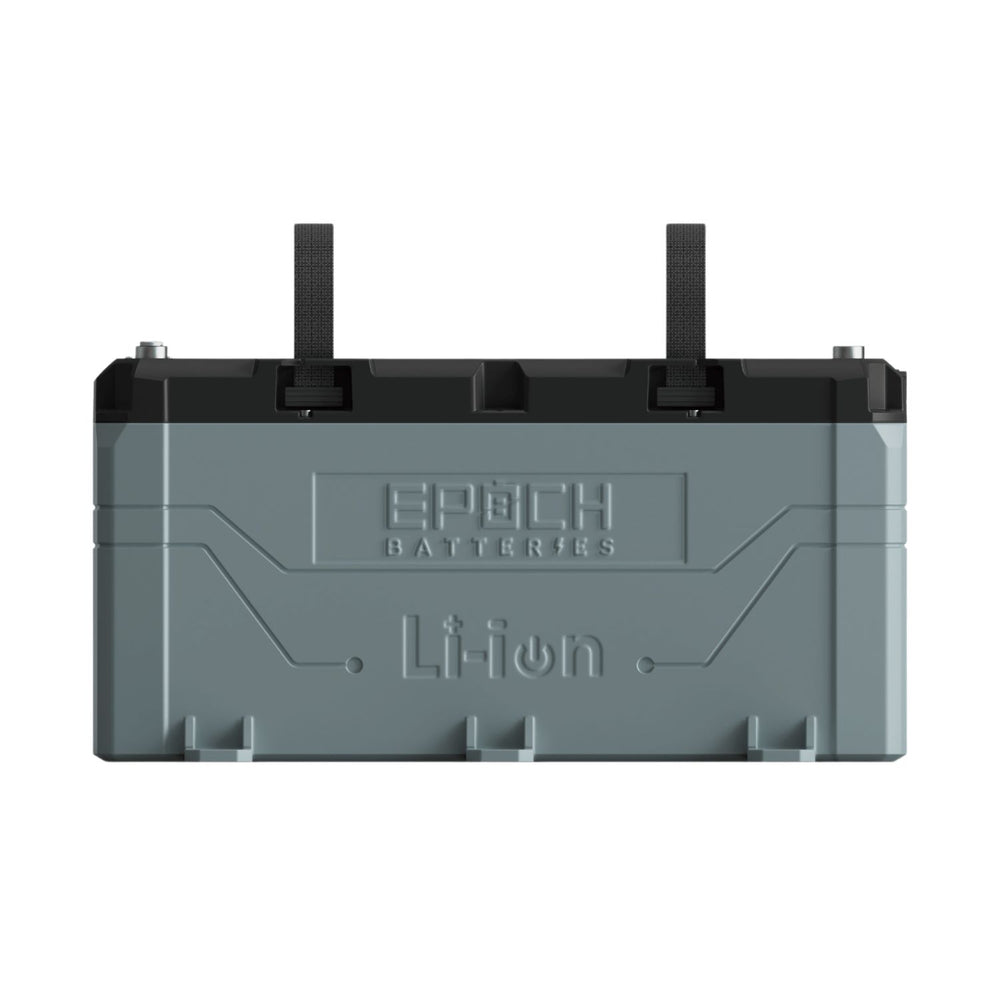

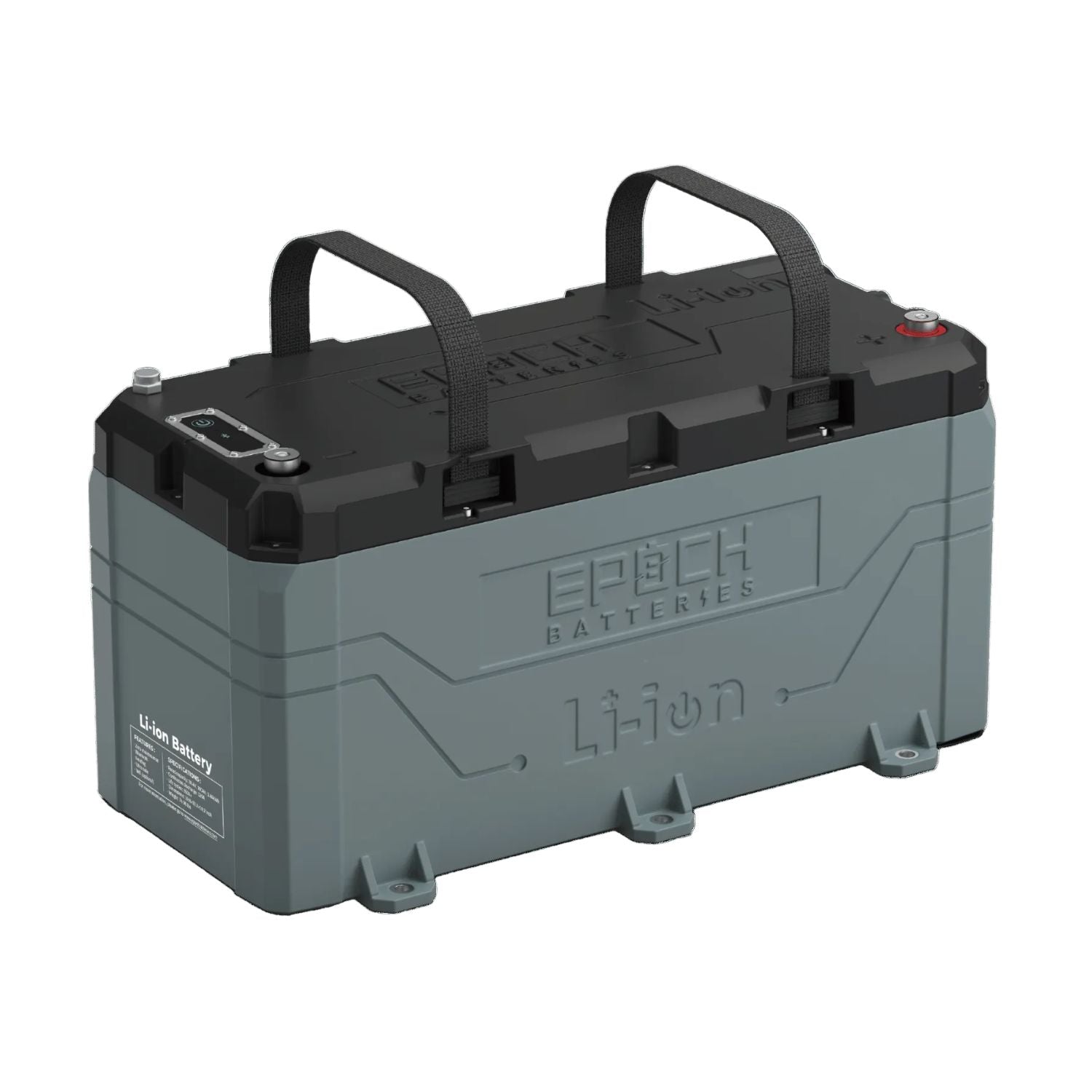

The Epoch Batteries 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery Replaces a Three-Battery 12V Trolling-Motor Bank With One Heated, Bluetooth Case
The Epoch B36100A-A is a 38.4V nominal, 100Ah lithium iron phosphate battery with 3,840Wh (3.84kWh) of nominal stored energy, built for 36V trolling motors and other 36V deep-cycle systems. One battery can replace a three-battery 12V lead-acid trolling-motor bank, with fewer interconnect cables and a cleaner layout in the compartment.
It's made for bass boats, fishing boats, pontoons, skiffs, aluminum boats and bay boats, plus 36V marine house power and solar, off-grid and backup systems built around 36V equipment. It is a deep-cycle battery and is not designed for engine cranking, outboard starting or golf carts.
Epoch Batteries 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery Features
Native 36V in One Case

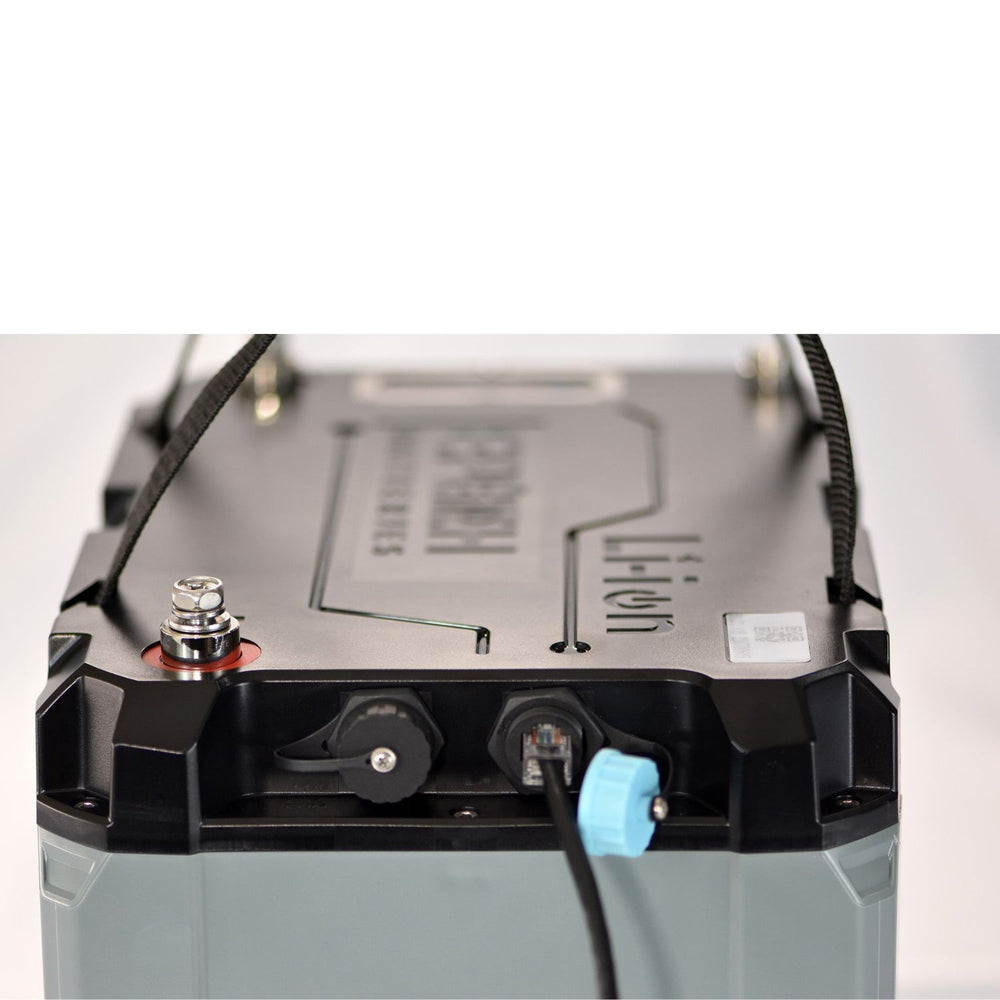

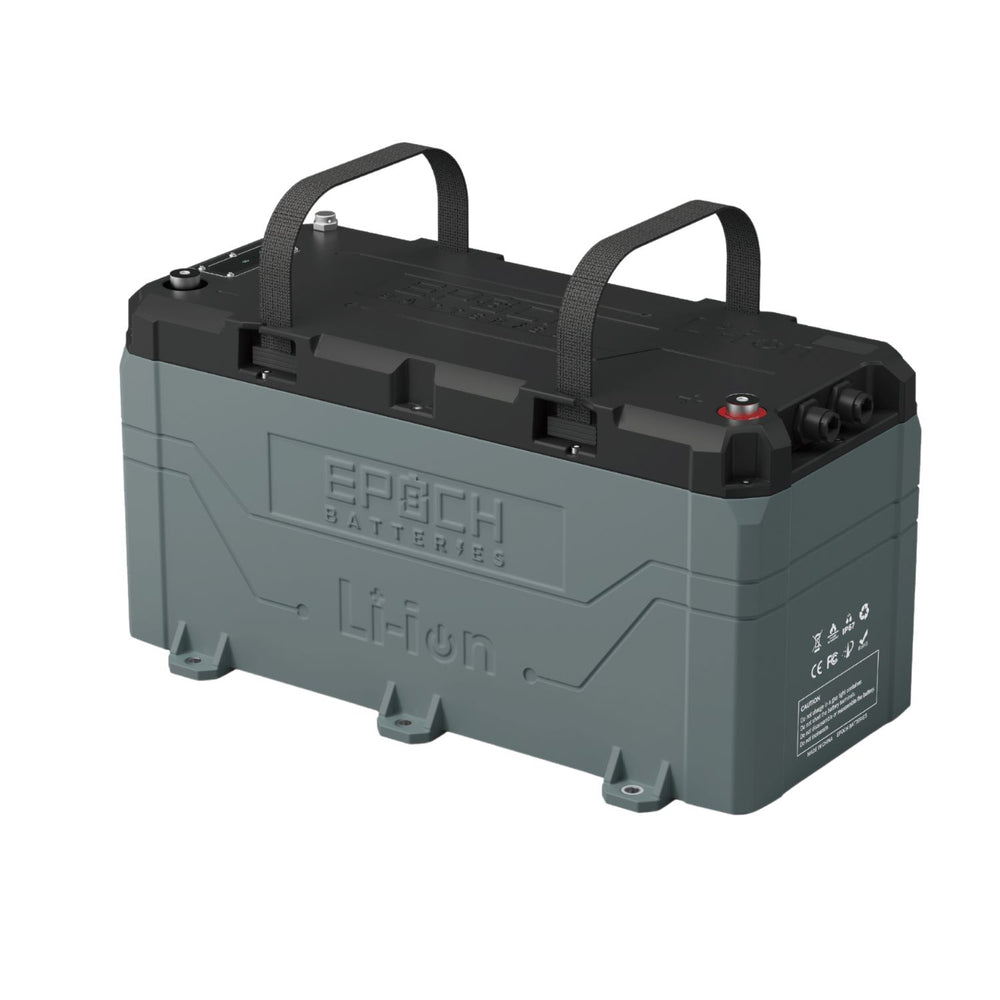

At 38.4V nominal, one battery runs a 36V trolling motor without wiring three 12V batteries together. It measures 20 x 10.25 x 11 in (508 x 260.4 x 279.4 mm), weighs about 75 lb (34.0 kg) and has M8 female terminals.
120A Continuous and 200A Peak Discharge
Epoch rates it for 120A maximum continuous discharge and 200A for up to 60 seconds, and recommends 50A (0.5C) for routine use. Size loads, conductors and overcurrent protection to the 120A continuous rating, since the 200A rating applies for 60 seconds only.
Internal Heating for Cold-Weather Charging
The battery is rated to charge from -20°C to 55°C (-4°F to 131°F) with heating. In cold weather the internal heater warms the cells first, and the BMS's low-temperature charge protection lets the cells charge only from 0°C to 55°C (32°F to 131°F). Leave the charger connected and switched on while the cells warm, since little or no charge current at first can be normal.
Bluetooth App and 10-Segment Battery Meter

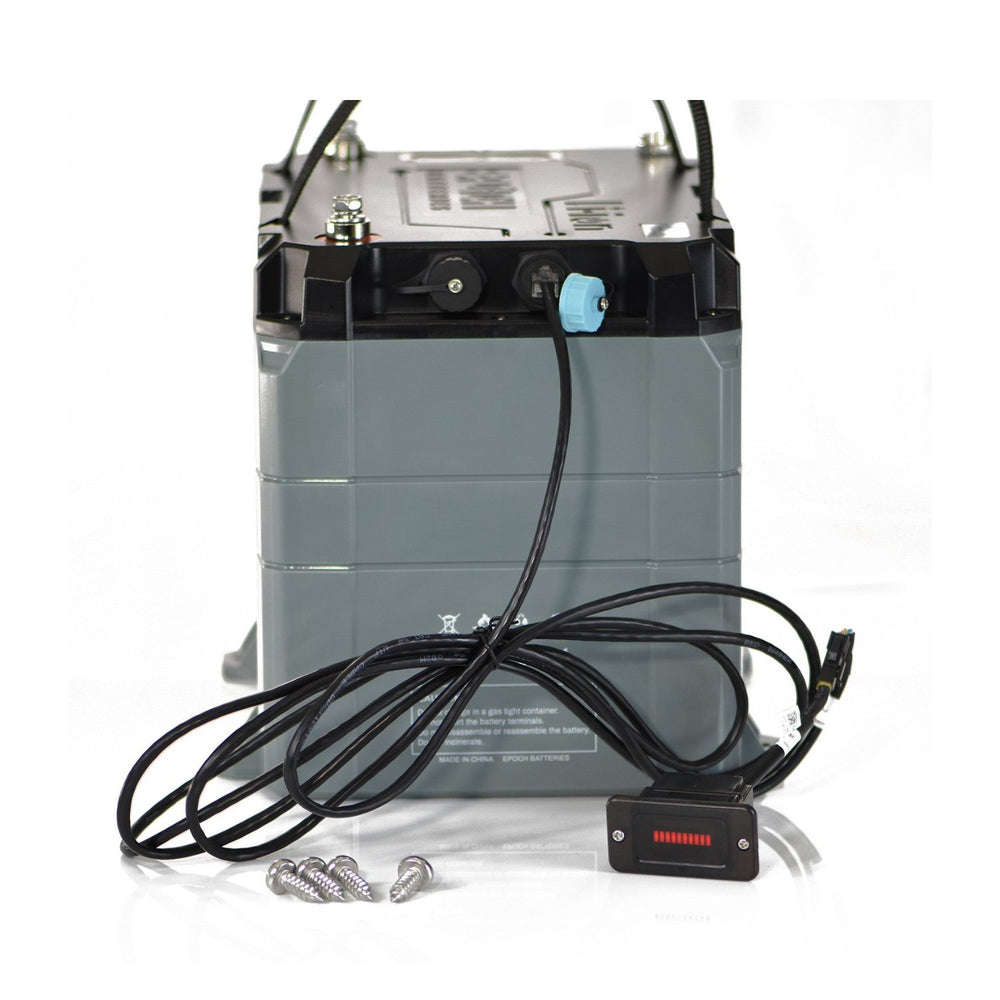

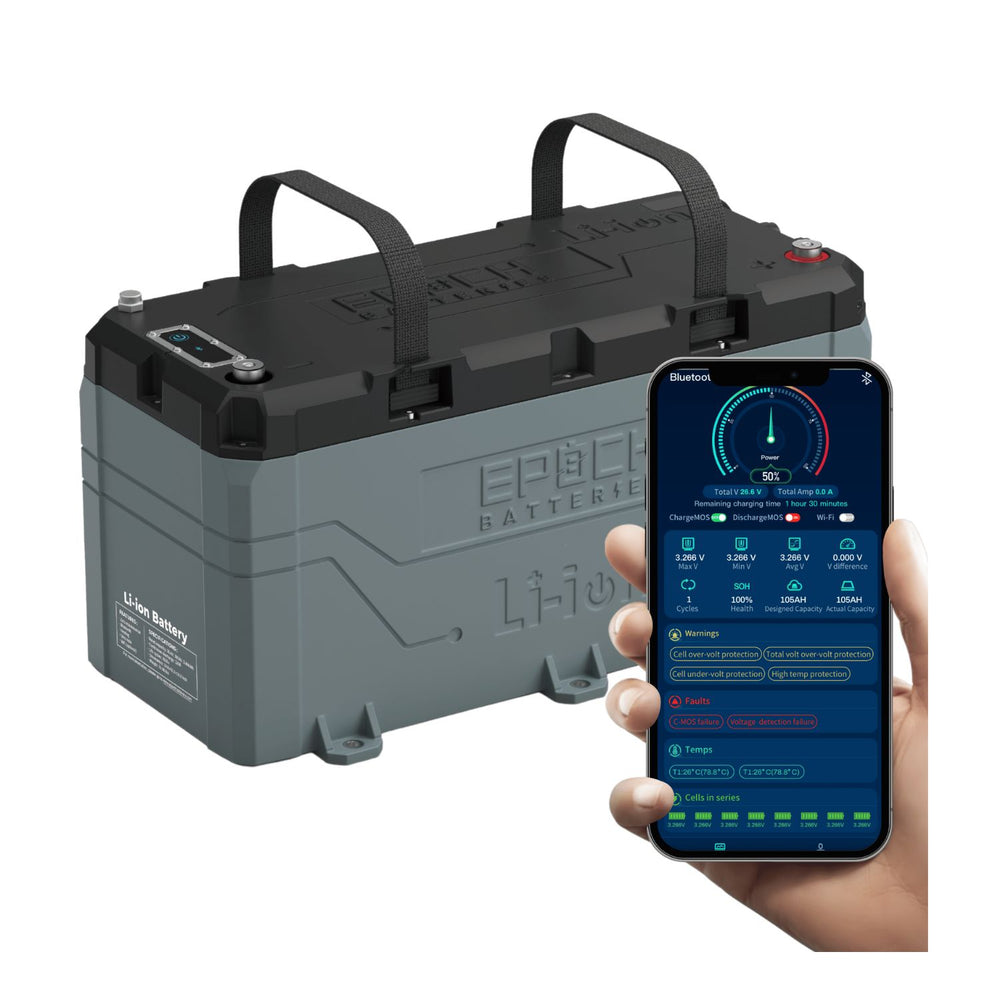

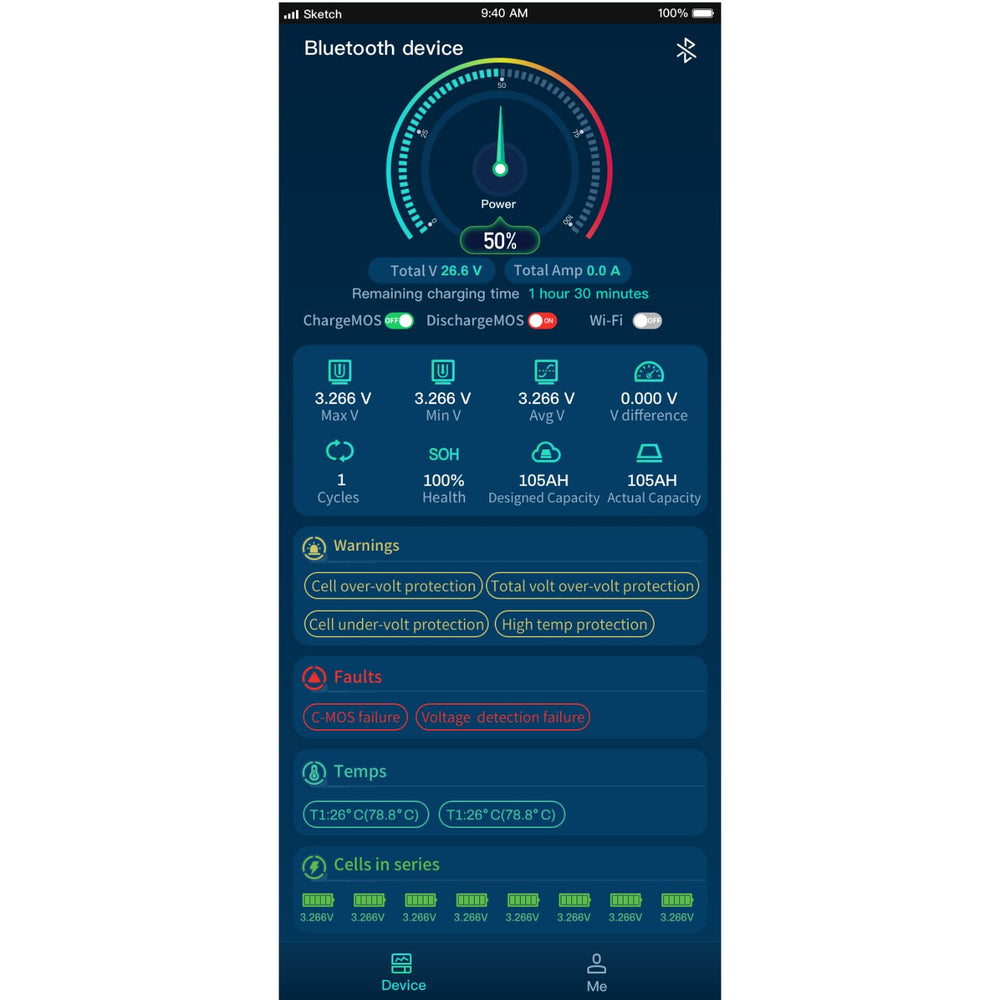

Built-in Bluetooth connects to the free Epoch Li-Ion app (iOS and Android) to show state of charge, voltage, current, temperature, cycle data and battery status. The included 10-segment meter, mounted at the console or near the trolling-motor controls, shows the remaining charge in 10% steps and sounds an alarm and flashes at 10%.
IP67 Enclosure for Wet Marine Locations
Epoch calls this IP67 enclosure waterproof. It is dust-tight and protected against temporary immersion up to 1 m for 30 minutes, which suits trolling-motor compartments and fishing boats. It is not rated for water jets, pressure washing or long-term submersion, so don't mount it where water can pool around the case.
Advanced BMS Protection
The BMS protects against overcharge, over-discharge, over-current, short circuit, and high and low temperature, and the battery balances its cells automatically. The BMS does not replace an external fuse or DC-rated breaker for your wiring, so install one as close as practical to the battery positive.
3,500+ Cycles and an 11-Year Limited Warranty
Epoch rates it for 3,500+ cycles, with no watering or acid service. It's backed by an 11-year limited warranty with free replacement in Years 1–3, then 40% off MSRP on a replacement battery in Years 4–11.
Real-World Applications
36V trolling motors. Epoch lists compatible 36V trolling motors from brands such as Minn Kota, Garmin and Lowrance, where the motor's voltage, current draw, fuse protection, charger profile and battery requirements match.
Bass, pontoon and bay boats. Swap three 12V batteries for one and free up compartment space, with the battery secured upright by a tray, strap or bracket rated for its 75 lb weight.
Long days on the water. Epoch plans runtime on 80% of nominal energy, about 3,072Wh (80Ah): roughly 8 hours at a 10A load, 12.3 hours at 250W or 6.1 hours at 500W. Up to four batteries in parallel extend that.
36V house power and solar. Run marine electronics and house loads in 36V systems, with suitable conversion for 12V devices, or build a solar, off-grid, cabin or backup system around 36V charging and inverter equipment.
How It Compares to Common Alternatives
Versus three 12V lead-acid batteries. One case replaces three in a 36V bank, with fewer interconnect cables and no watering. It is not a drop-in replacement for every installation, so confirm tray space, hold-downs, terminal clearance, cable size and charger profile first, and never mix it with lead-acid batteries in a bank.
Versus a cranking battery. This is a deep-cycle battery for trolling motors and 36V house loads. It is not designed for engine cranking or outboard starting, so keep a cranking-rated battery for the engine.
Is This 36V Battery the Right Fit
-
Parallel only. Up to 4 matched B36100A-A batteries in parallel (400Ah, 15.36kWh), of similar age, condition and firmware, each fully charged before connecting. Do not connect it in series.
-
Charger settings. Use a 36V LiFePO4 profile: 42.6–43.2V absorption, ending when current falls to 5A (C/20) or after 15 minutes, whichever comes first. Float disabled (preferred) or 40.0–40.8V, 39.6V re-bulk, equalization off and temperature compensation at 0 mV/°C. Keep all sources combined within 100A continuous.
-
Recommended charger. Epoch recommends its 36V 15A LiFePO4 charger (CHG-36V15A), which takes roughly 6.7–7 hours from fully discharged, plus taper and balancing time. A 12V, lead-acid, AGM or gel charger cannot charge this battery correctly.
-
Fit and terminals. 20 x 10.25 x 11 in and 75 lb (34.0 kg), with M8 female terminals. Install it upright and secure it so it cannot slide or tip, and tighten the terminal hardware firmly without over-tightening.
-
Alternator charging. Epoch highly recommends a DC-to-DC charger programmed for LiFePO4.
This may be a good fit if
- Your trolling motor is a 36V model
- You're replacing three 12V lead-acid batteries
- You fish in cold weather and charge below freezing
- You want state of charge on your phone and at the console
Common Questions
Can I Use My Existing 12V Marine Charger?
No. This is a 36V lithium battery, so it needs a 36V LiFePO4 charger or a programmable charger set to Epoch's LiFePO4 settings. A 12V charger, or a lead-acid, AGM or gel charger, cannot charge it correctly.
Why Won't the Battery Switch Off Right After Charging?
The battery balances its cells automatically, and while it is balancing, the BMS may keep it on to protect the cells. Wait 10–15 minutes after disconnecting the charger, then press and hold the power button until the blue LED goes out.
How Should I Store It?
Charge it before long-term storage, switch it off with the power button and store it at 0°C to 35°C (32°F to 95°F) for no more than 12 months. Check the state of charge at least every 3 months, since the warranty excludes batteries left uncharged for more than three months.
Do I Need to Register the Battery?
Yes, within 90 days of purchase for full warranty coverage. If it isn't registered, the warranty period begins from the battery's manufacturing date, and coverage applies only to the original purchaser.
What's Included
- 1 x Epoch 36V 100Ah Heated Bluetooth LiFePO4 Battery (B36100A-A)
- 1 x 10-Segment Battery Meter
One-Battery 36V Power for Your Trolling Motor
The Epoch Batteries 36V 100Ah (3.84kWh) LiFePO4 Lithium Battery gives a 36V trolling motor or deep-cycle system 3.84kWh in one IP67 case, with internal heating, Bluetooth monitoring and a battery meter included. If you have questions about charger settings, fit or parallel banks, the Outbound Power team is happy to help.
Epoch B36100A-A Specifications
|
| Electrical |
| Model |
B36100A-A |
| Battery type |
Heated Bluetooth deep-cycle LiFePO4 |
| System voltage class |
36V (38.4V nominal) |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell type |
Prismatic LiFePO4 |
| Cell configuration |
12S |
| Nominal voltage |
38.4V |
| Nominal capacity |
100Ah |
| Stored energy |
3,840Wh (3.84kWh) nominal |
| Runtime planning energy |
About 3,072Wh (80Ah), 80% of nominal |
| Operating voltage range |
30.0–43.8V |
| Maximum charge voltage |
43.8V |
| Cycle life |
3,500+ cycles |
| Charge and Discharge |
| Maximum continuous discharge |
120A (1.2C) |
| Recommended discharge current |
50A (0.5C) |
| Peak discharge |
200A for up to 60 s |
| Maximum continuous charge |
100A (1C), all sources combined |
| Recommended charge current |
50A (0.5C) |
| Peak charge |
150A for up to 10 s |
| Series connection |
Not supported (max. 1 in series) |
| Parallel connection |
Up to 4 batteries, plug and play |
| Maximum parallel bank |
400Ah / 15.36kWh |
| Recommended Charge Settings |
| Charge profile |
LiFePO4 (no lead-acid, AGM or gel profiles) |
| Bulk / absorption voltage |
42.6–43.2V |
| Absorption end |
Current ≤C/20 (5A) or 15 min, whichever comes first |
| Float voltage |
Disabled (preferred) or 40.0–40.8V |
| Re-bulk voltage |
39.6V |
| Temperature compensation |
0 mV/°C (off) |
| Equalization |
Disabled |
| BMS high-voltage cutoff |
43.8V |
| SOC recalibration voltage |
43.8V |
| Recommended charger |
Epoch 36V 15A LiFePO4 charger (CHG-36V15A) |
| Charge time with CHG-36V15A |
Roughly 6.7–7 h from empty, plus taper and balancing |
| Alternators |
DC-to-DC charger programmed for LiFePO4, highly recommended |
| Temperature |
| Charge (with heating) |
−20 to 55°C (−4 to 131°F) |
| Cell charge range |
0 to 55°C (32 to 131°F) |
| Discharge |
−20 to 60°C (−4 to 140°F) |
| Reconnect temperature |
50°C (122°F) |
| Storage, recommended |
0 to 35°C (32 to 95°F); max. 12 months |
| BMS and Protection |
| Overcharge |
Disconnects or limits operation to protect the cells |
| Over-discharge |
Disconnects or limits operation to protect the cells |
| Over-current |
Protects against sustained loads above ratings |
| Short circuit |
Rapid BMS cutoff |
| High temperature |
Disconnects outside the operating range |
| Low temperature |
Low-temperature charge protection; heater warms the cells |
| Cell balancing |
Automatic |
| External protection |
Fuse or DC-rated breaker close to the battery positive, required |
| Communication and Monitoring |
| Bluetooth |
Built in |
| App |
Epoch Li-Ion (iOS and Android) |
| App data |
State of charge, voltage, current, temperature, cycle data, status |

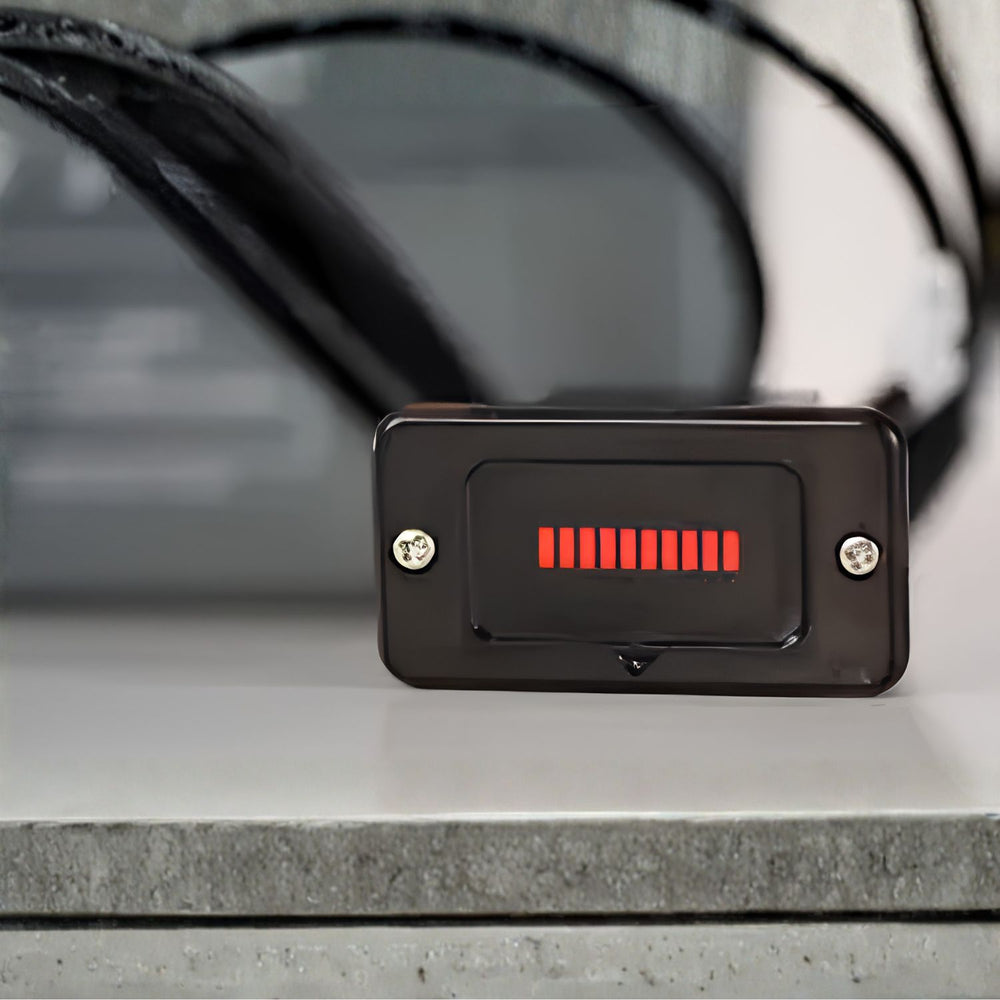

| Battery meter |
10-segment, included; shows charge in 10% steps |
| Low-charge alarm |
Meter sounds and flashes at 10% |
| On/off control |

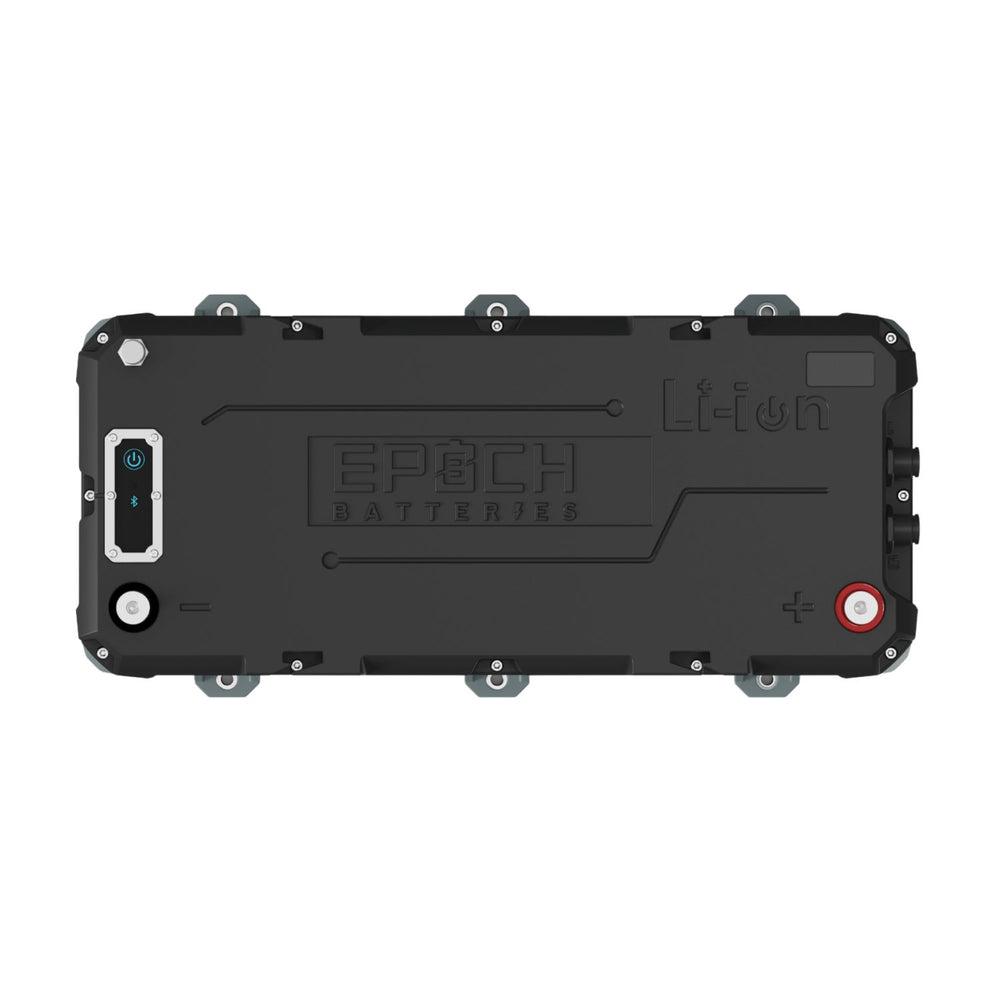

Power button on the lid; blue LED when on |
| Size and Weight |
| Dimensions (L x W x H) |
20 in x 10.25 in x 11 in (508 x 260.4 x 279.4 mm) |
| Weight |
75 lb (34.0 kg) |
| Terminals |
M8 female |
| Mounting |
Upright, secured with a tray, strap, bracket or enclosure rated for 75 lb |
| Case material |
ABS / PC blend, UL94-V0 |
| Enclosure |
IP67 per IEC 60529, dust-tight |
| Water protection |
Temporary immersion to 1 m for 30 min |
| Not rated for |
Water jets, pressure washing or long-term submersion |
| Certifications |
| Cells |
UL 1642, IEC 62619:2022 (cell level, not the complete battery) |
| Product |
CE, RoHS |
| Transport |
UN 38.3; Class 9 |
| Warranty |
| Warranty |
11-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–11 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase for full coverage |
| If not registered |
Warranty period starts from the manufacturing date |
| Transfer |
Non-transferable (original purchaser only) |
