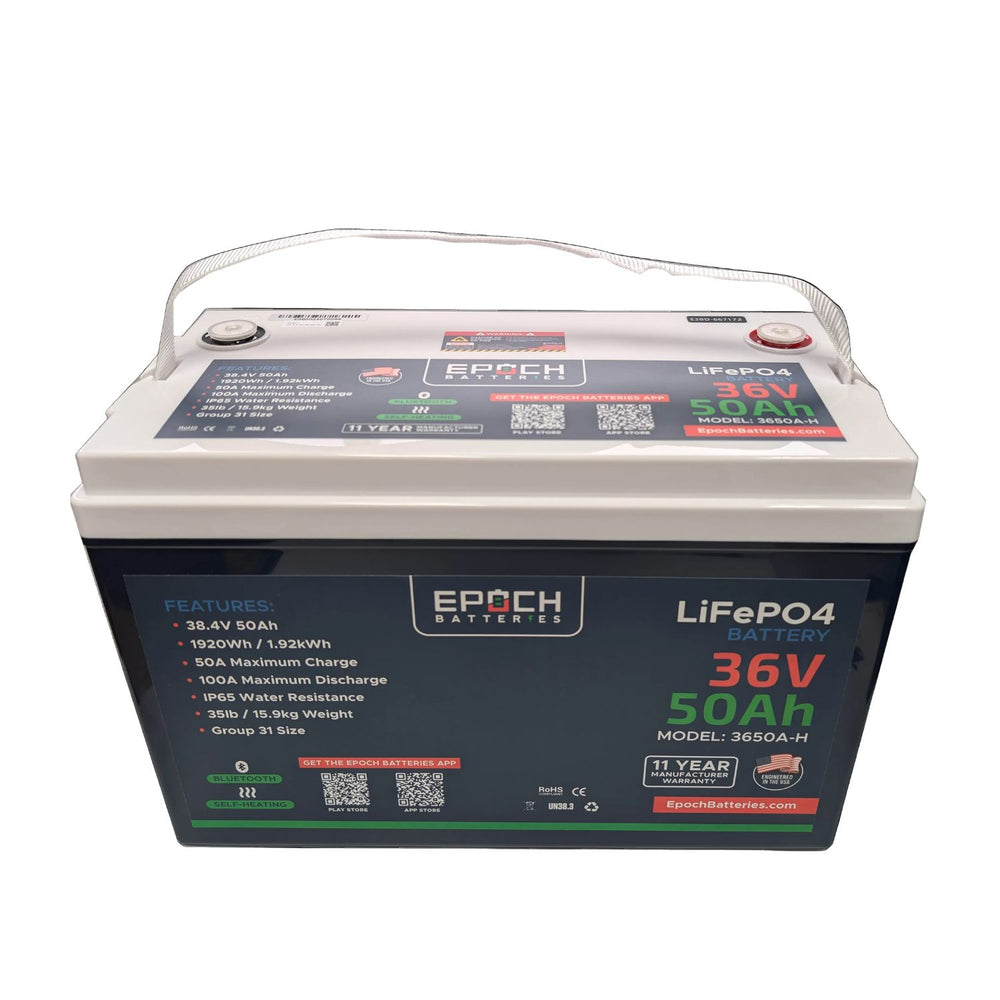

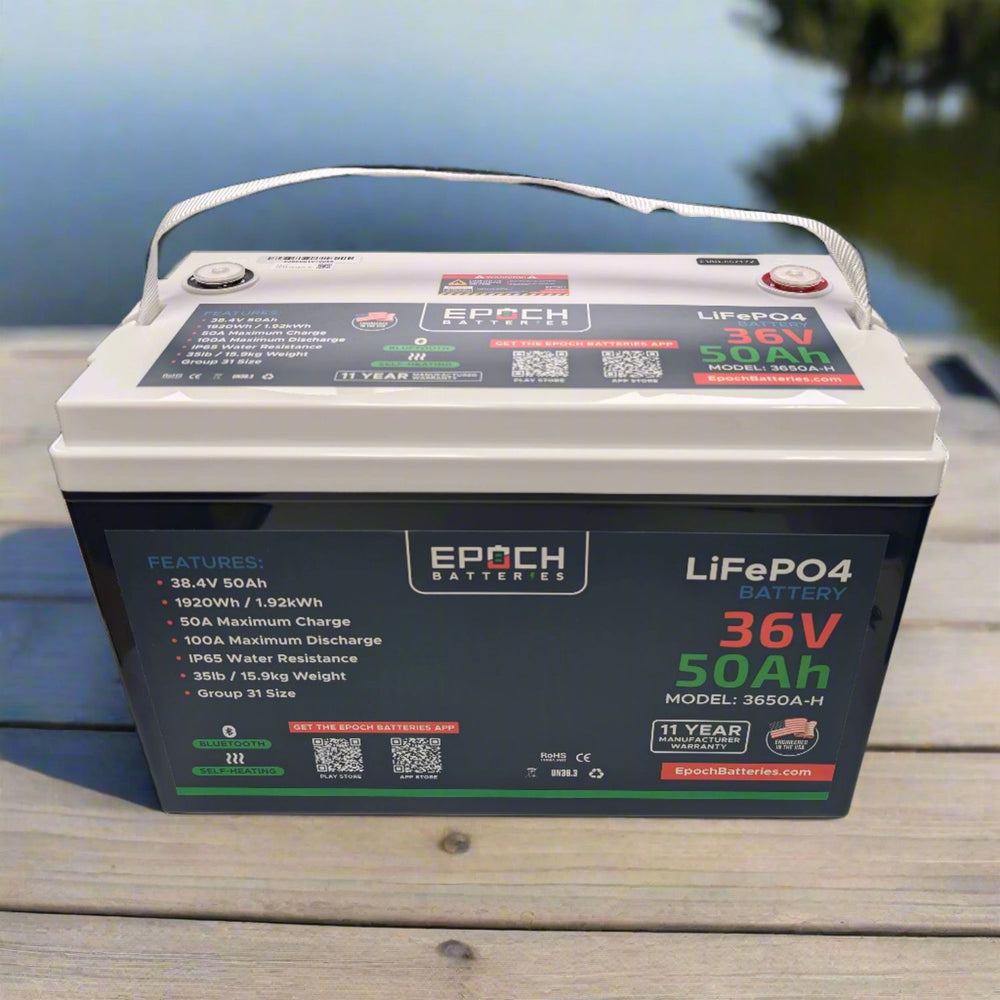

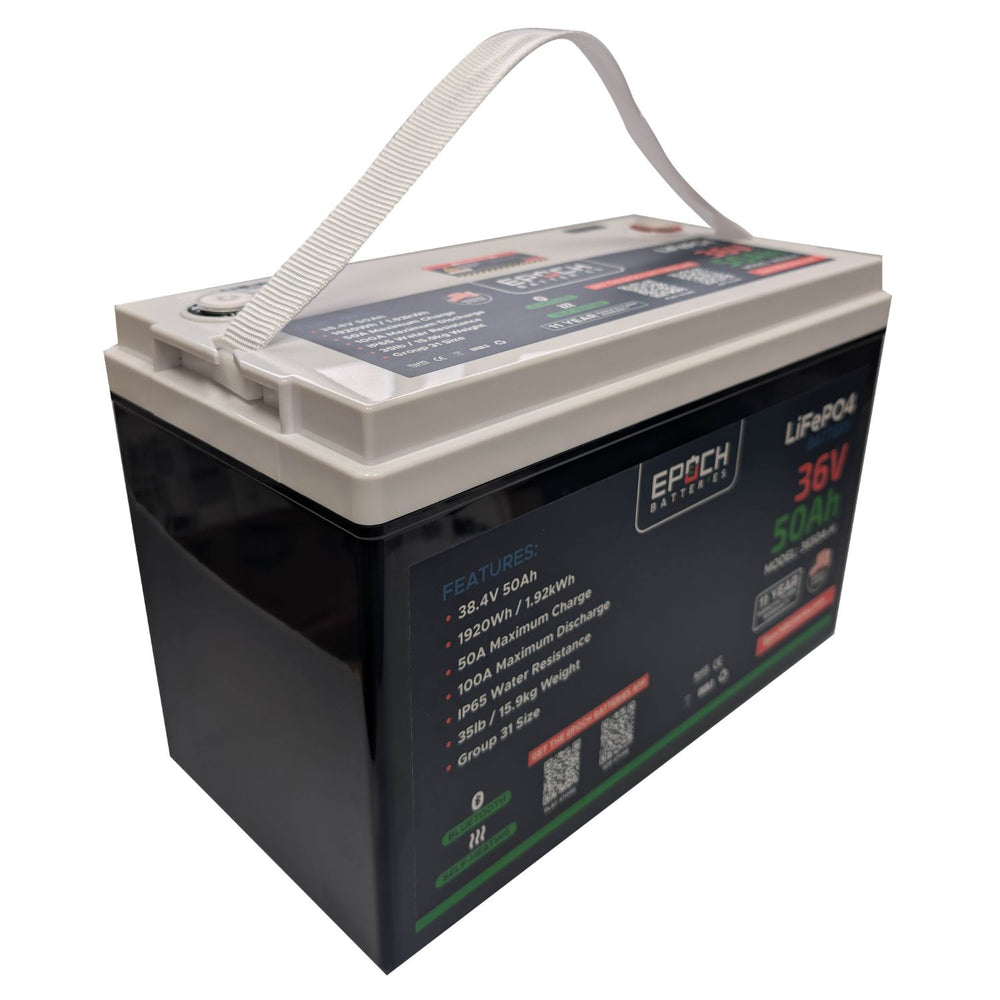

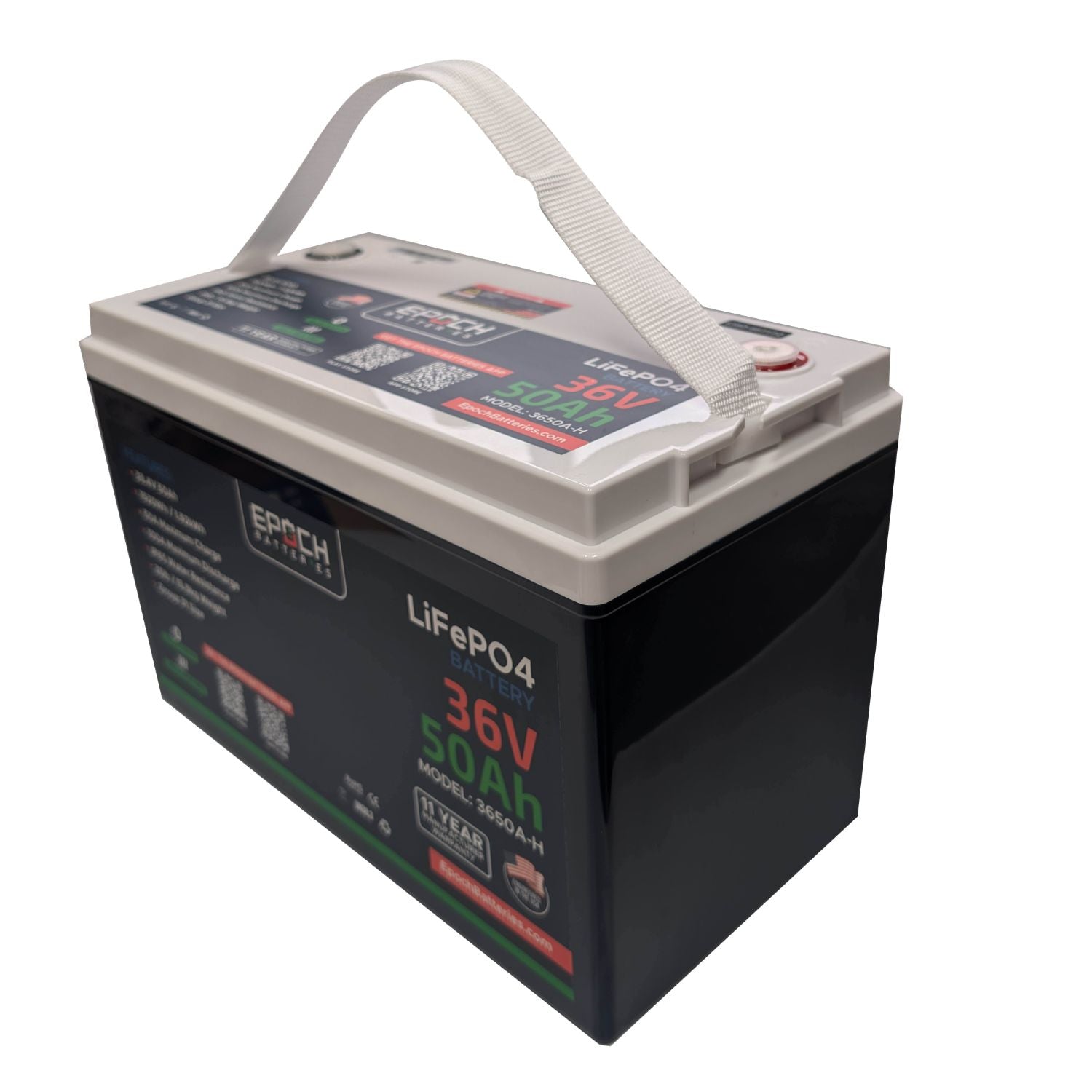

The Epoch Batteries 36V 50Ah (1.92kWh) LiFePO4 Battery Replaces a Three-Battery 12V Trolling Motor Bank With One 35 lb Battery
The Epoch 3650A-H is an Essential Series lithium iron phosphate battery rated at 38.4V nominal and 50Ah, for 1.92kWh (1,920Wh) of nominal stored energy in a BCI Group 31 footprint. It combines internal heating for cold-weather charging, Bluetooth monitoring through a shunt built into the BMS, and an IP65 enclosure.
It's made for 36V trolling motors on bass boats, fishing boats, pontoons, skiffs and aluminum boats, and for 36V house power, solar, off-grid and backup systems. It is a deep-cycle battery, not cranking-rated, so it is not for engine starting.
Epoch Batteries 36V 50Ah (1.92kWh) LiFePO4 Battery Features
One 36V Battery Instead of Three
At 38.4V nominal, one 3650A-H can replace a three-battery 12V lead-acid trolling motor bank, with no watering or acid service. The case measures 13.0 x 6.8 x 9.44 in (330.2 x 172.7 x 239.8 mm) and weighs 35 lb (15.9 kg). It suits many Group 31 installations, but check tray fit, terminal clearance and hold-downs first.
100A Continuous and 130A Peak Discharge
Epoch rates it for 100A maximum continuous discharge, with 25A recommended, and 130A for up to 10 seconds. Size continuous loads, conductors and overcurrent protection to the 100A rating, never to the peak.
Internal Heating That Uses Charger Power
At 0°C (32°F) the BMS pauses charging and incoming charge current powers the heating pads, as long as a charger is connected and supplying at least 0.5A. Charging resumes automatically at 5°C (41°F), and the cells never take charge below 0°C. The heater never uses stored battery energy, and the battery is rated to charge from -20°C to 55°C (-4°F to 131°F) with heating.
Bluetooth Monitoring With a Built-In Shunt
The free Epoch Li-Ion app for iOS and Android shows state of charge, voltage, current, temperature and battery status. Current is measured by a shunt built into the BMS, accurate to 0.2A on discharge, so you don't need an external shunt. A security PIN printed on the lid protects the connection, and you can change it in the app.
IP65 Dust-Tight, Water-Jet-Resistant Case
IP65 under IEC 60529 means dust-tight and protected against water jets from any direction. It suits many trolling motor, fishing boat and outdoor marine installs, but it is not submersible. Don't submerge or pressure-wash it, or mount it where water can pool.
4,000+ Cycles and an 11-Year Limited Warranty
The BMS protects against overcharge, over-discharge, over-current, short circuit and high or low temperature. Epoch rates the battery for 4,000+ cycles and backs it with an 11-year limited warranty: free replacement in Years 1–3, then 40% off MSRP on a replacement battery in Years 4–11.
Real-World Applications
36V trolling motors. Power a 36V trolling motor whose current requirements stay within the battery ratings. Epoch's planning figure uses 80% of nominal energy, about 1,536Wh (40Ah): a 10A average draw gives about 4.0 hours.
Longer fishing days. Add batteries in parallel, up to 4 for 200Ah and 7.68kWh at 38.4V nominal, when wind, current or heavier boats call for more runtime.
Boat electronics and 36V loads. Run onboard electronics and 36V auxiliary loads with properly matched wiring and fusing, protected from bilge water and salt spray.
Solar, off-grid and backup. Store energy in systems built around 36V charging and inverter equipment. Epoch's estimates for DC loads are about 15.4 hours at 100W, 6.1 hours at 250W and 3.1 hours at 500W.
How It Compares to Common Alternatives
Versus three 12V lead-acid batteries in series. One battery means one case to mount, fewer interconnects and no watering or acid service. It needs a 36V LiFePO4 charge profile, never a lead-acid, AGM or gel profile, and it must not share a bank with lead-acid batteries.
Versus a 36V lithium battery without heating or Bluetooth. This battery adds charger-powered heating for cold-weather charging and app readings of state of charge, current and temperature from its built-in shunt.
Versus a cranking battery. It is a deep-cycle battery and is not marketed as cranking-rated. Use a cranking-rated battery for engine starting, since repeated engine starting is excluded from warranty coverage.
Is This 36V Battery the Right Fit
-
Parallel only. Up to 4 matched 3650A-H batteries of similar age, condition and firmware, all at the same state of charge. Do not connect it in series. If one battery in a bank switches off, reduce the load, since the bank's current capability drops.
-
Charger settings. A 36V LiFePO4 profile at 42.6–43.2V bulk/absorption, ending at C/20 (2.5A) or after 15 minutes, float off (preferred) or 40.0–40.8V, 39.6V re-bulk, with equalization and temperature compensation disabled. Charge at 25A recommended, never more than 50A from all sources combined.
-
Cold charging. The heater needs a connected charger supplying at least 0.5A, and the app may show little or no charge current while it warms. If your charger has its own temperature sensor, set its limits to 0–55°C unless it has approved cold-charge logic.
-
Fit and installation. Mount it upright, secured with a tray, strap or bracket rated for 35 lb. Torque the M8 female terminals to 8–12 N·m (71–106 in-lb), and install a fuse or DC-rated breaker as close as practical to the positive terminal. Epoch offers a matching tray.
This may be a good fit if
- You run a 36V trolling motor
- You want one battery in place of three
- You charge in freezing weather
- You want app monitoring without an external shunt
Common Questions
Can I Wire It in Series?
No. This model is limited to one battery in series. To add runtime, connect up to 4 in parallel; two in parallel make a 36V 100Ah bank.
What Charger Should I Use?
A 36V charger with a LiFePO4 profile or programmable lithium settings, such as the Epoch 36V 15A LiFePO4 battery charger. For alternator charging, Epoch highly recommends a DC-to-DC charger programmed for LiFePO4.
Where Do I Find the Bluetooth PIN?
The original PIN is printed on a sticker on the battery's lid, next to the serial number and MAC address stickers. Photograph them before installation. If you change the PIN in the app, the sticker still shows the original, so keep a record of the new one.
How Should I Store It?
Charge it to about 50% or higher, disconnect loads and chargers, and store it dry at 0 to 35°C (32 to 95°F). Check it at least every 3 months, since a battery left uncharged for more than 3 months is excluded from warranty coverage.
What's Included
- 1 x Epoch 36V 50Ah Essential Series LiFePO4 Battery (3650A-H)
Lighter 36V Power for Your Trolling Motor
The Epoch Batteries 36V 50Ah (1.92kWh) LiFePO4 Battery gives a 36V trolling motor or house system 1.92kWh in one 35 lb battery, with charger-powered heating, Bluetooth monitoring and an IP65 case. If you have questions about charger settings, cold-weather charging or a parallel bank, the Outbound Power team is happy to help.
Epoch 3650A-H Specifications
|
| Electrical |
| Model |
3650A-H |
| Series |
Essential Series |
| Battery type |
Heated Bluetooth deep-cycle (not cranking-rated) |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell type |
Prismatic LiFePO4 |
| Cell configuration |
12S |
| Nominal voltage |
38.4V (36V system class) |
| Nominal capacity |
50Ah |
| Stored energy |
1,920Wh (1.92kWh), nominal |
| Runtime planning energy |
About 1,536Wh / 40Ah (80% of nominal) |
| Operating voltage range |
30.0–43.8V |
| Maximum charge voltage |
43.8V |
| Cycle life |
4,000+ cycles |
| Charge and Discharge |
| Maximum continuous discharge |
100A (2C) |
| Recommended discharge current |
25A (0.5C) |
| Peak discharge |
130A for up to 10 s |
| Maximum continuous charge |
50A (1C), all charging sources combined |
| Recommended charge current |
25A (0.5C) |
| Peak charge current |
120A for up to 10 s |
| Series connection |
Not supported (max 1 in series) |
| Parallel connection |
Up to 4 |
| Maximum parallel bank |
200Ah / 7.68kWh at 38.4V nominal |
| Bank batteries |
Matched 3650A-H, similar age, condition and firmware, same SOC |
| Recommended Charge Settings |
| Charger type |
36V LiFePO4 profile (no lead-acid, AGM or gel profiles) |
| Bulk / absorption voltage |
42.6–43.2V |
| Absorption end |
At C/20 (2.5A) or after 15 min, whichever comes first |
| Float voltage |
Disabled (preferred) or 40.0–40.8V |
| Re-bulk voltage |
39.6V |
| Equalization |
Disabled |
| Temperature compensation |
0 mV/°C (off) |
| Charger temperature limit |
0 to 55°C (32 to 131°F) unless approved cold-charge logic |
| BMS high-voltage cutoff |
43.8V |
| SOC recalibration |
43.8V |
| Alternator charging |
DC-to-DC charger programmed for LiFePO4 (highly recommended) |
| Compatible charger |
Epoch 36V 15A LiFePO4 battery charger |
| Temperature |
| Charge (with heating) |
−20 to 55°C (−4 to 131°F) |
| Low-temperature charge cut-off |
0°C (32°F) |
| Heater power source |
Incoming charge current only, never stored energy |
| Heater activation |
Charger connected, supplying at least 0.5A |
| Charging resumes |
Automatically at 5°C (41°F) |
| Heating system tested to |
−20°C (−4°F) |
| Rated external ambient |
Down to −40°C (−40°F) |
| Discharge |
−20 to 60°C (−4 to 140°F) |
| Storage (recommended) |
0 to 35°C (32 to 95°F), max. 12 months |
| Reconnect temperature |
50°C (122°F) |
| BMS and Protection |
| Voltage and current protection |
Overcharge, over-discharge, over-current, short circuit |
| Temperature protection |
High- and low-temperature disconnects |
| External protection |
Fuse or DC-rated breaker near the positive terminal (required) |
| Communication and Monitoring |
| Bluetooth |
Yes, Epoch Li-Ion app (iOS and Android) |
| App readings |
State of charge, voltage, current, temperature, battery status |
| Current sensing |
BMS-integrated shunt, 0.2A accuracy on discharge |
| Bluetooth security PIN |
Printed on the lid; changeable in the app |
| Lid labels |
PIN, serial number and MAC address stickers |
| Size and Weight |
| Dimensions (L x W x H) |
13.0 in x 6.8 in x 9.44 in (330.2 x 172.7 x 239.8 mm) |
| Group size |
BCI Group 31 |
| Weight |
35 lb (15.9 kg) |
| Terminals |
M8 female |
| Terminal torque |
8–12 N·m (71–106 in-lb) |
| Mounting orientation |
Upright |
| Case material |
ABS / PC blend, UL94-V0 |
| Enclosure |
IP65 (IEC 60529) |
| Water and dust |
Dust-tight; protected against water jets |
| Not rated for |
Submersion, pressure washing or pooled water |
| Matching tray |
Epoch battery tray for 3650A-H, sold separately |
| Certifications |
| Cells |
UL 1642; IEC 62619:2022 (cell level) |
| Compliance marks |
CE, RoHS |
| Transport |
UN 38.3, Class 9 |
| Warranty |
| Warranty |
11-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–11 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase for full coverage |
