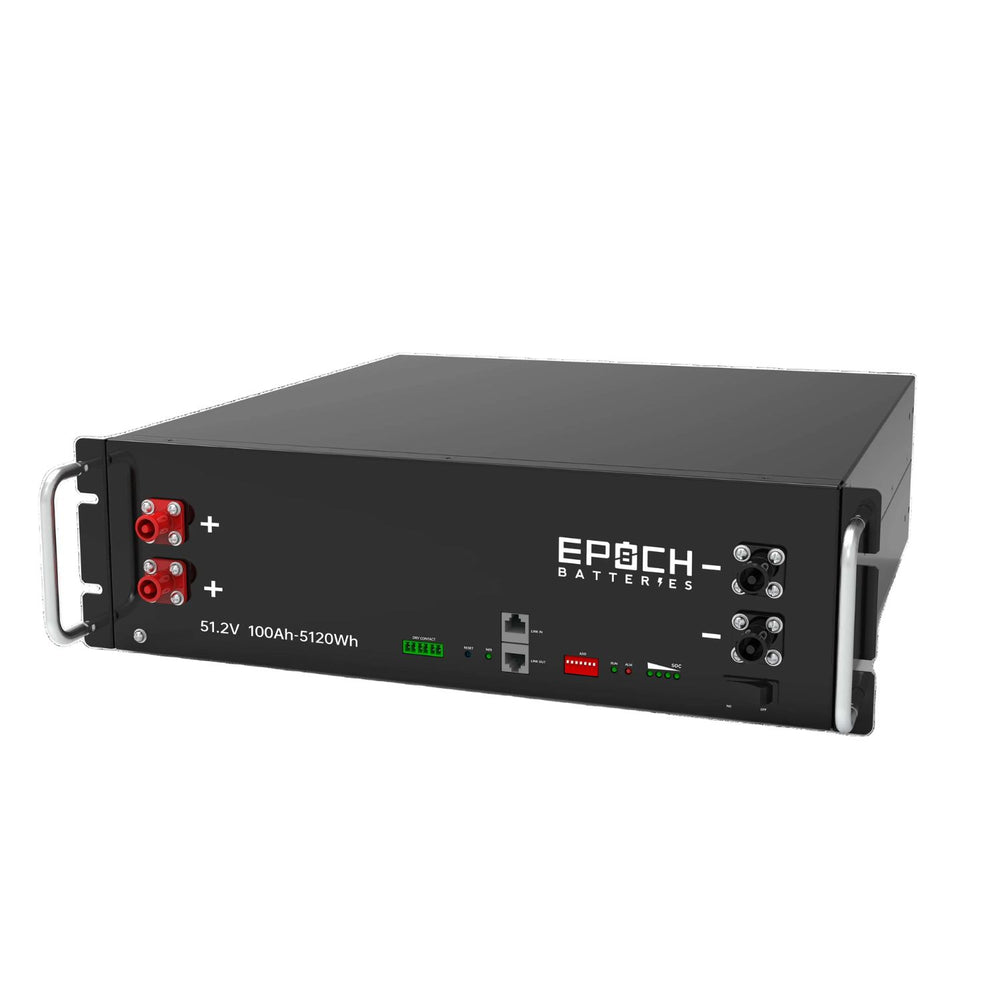

The Epoch Batteries 48V 100Ah (5.12kWh) Self-Heating Server Rack Lithium Battery Lets a Home or Off-Grid 48V Bank Grow One 3U Battery at a Time
The Epoch SR48100H is a 51.2V nominal, 100Ah lithium iron phosphate battery that stores 5.12kWh (5,120Wh at 0.2C), with 4.92kWh usable at 0.2C, in a metal 3U chassis for standard 19-inch racks and cabinets. It shares status and charge limits with compatible inverters over CAN or RS485, warms its cells for cold-weather charging and expands to 32 batteries in parallel.
It's built for 48V home energy storage and whole-house backup with compatible hybrid inverters, off-grid solar banks for homes, cabins and shops, protected 48V rack installs in RVs and expedition vehicles, and communications backup. It is an IP20 indoor battery with no Bluetooth, and it is not cranking-rated.
Epoch Batteries 48V 100Ah (5.12kWh) Self-Heating Server Rack Lithium Battery Features
Closed-Loop CAN and RS485 Inverter Communication
The BMS shares state of charge, alarms and charge and discharge limits with the inverter, which Epoch says maximizes performance and service life. Epoch lists CAN protocols for Victron, SMA, Studer Innotec, Sofar, Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk and Schneider, and RS485 for Voltronic, RCT, MPP Solar, Alpha-Outback and Phocos. Set the protocol with DIP switches 6 and 7 on the master battery.
Self-Heating for Cold Garages and Utility Rooms
When the battery is between -25°C and 5°C (-13°F to 41°F) and incoming charge current reaches at least 0.08C (8A), the heater warms the cells with that current until the battery reaches 12°C (54°F). The cells themselves charge only from -10°C to 50°C (14°F to 122°F) with inverter communication, which gives the battery its -25°C to 50°C charge rating with heating. In a parallel bank, all batteries heat together.
100A Continuous Discharge and 70A Charge
Epoch rates it for 100A maximum continuous discharge (starting temperature at or below 30°C), roughly 5,120W DC at 51.2V, with 119A for up to 5 minutes and 200A for up to 15 seconds. Maximum continuous charge is 70A from all sources combined. Epoch recommends 50A or less for both charging and discharging.
Plug-and-Play Parallel Expansion to 32 Batteries
Daisy-chain each battery's Link OUT to the next battery's Link IN, and addresses are assigned automatically. Only the master battery's Link IN connects to the inverter, and the BMS terminates the CAN bus on its own, so no 120Ω terminator is needed. A bank grows from 5.12kWh to 163.84kWh (3,200Ah).
3U Rack, Stack, Wall or Floor Mounting
The battery measures 17.4 x 18.1 x 5.2 in (442 x 460 x 133.5 mm), is 19.0 in (482.6 mm) wide across the rack ears and 20.1 in (510 mm) deep including the front handles, and weighs 101 lb (46 kg). Fasten the ears with M6 cage nuts and screws, or use the stack (up to 4 batteries), wall or floor kit, all sold separately.
Front-Panel Controls and Indicators
Every connection, control and indicator is on the front panel: power switch, RESET button, SOC, RUN, ALM and master/slave LEDs, the DIP switch, Link IN and Link OUT ports, a grounding point and plug-in power connectors (2 positive, 2 negative). A dry contact adds charge and discharge enable outputs and an optional rapid-shutdown input for the U.S. market.
UL 1973 Listing and 6,000+ Cycle Life
The battery is listed to UL 1973 (ANSI/CAN/UL 1973:2018) at pack level through ETL, and UL 9540 certification is pending. The BMS protects against overcharge, over-discharge, over-current, short circuit and reverse polarity, and high and low temperature, with a pre-charge circuit. Cells are rated for 6,000+ cycles at 0.2C and 90% DoD (25°C, to 60% of initial capacity).
Real-World Applications
Home energy storage and whole-house backup. Pair it with a compatible 48V hybrid inverter. Epoch's planning estimates use 80% of nominal energy (about 4,096Wh) per battery: about 8.2 hours at a 500W DC load and 16.4 hours at 250W, before inverter losses.
Off-grid solar banks. Power homes, cabins, shops and remote sites, starting with one battery and adding more in parallel as your loads grow.
Protected RV and expedition installs. Use it in 48V rack installations in RVs, motorhomes and expedition vehicles where it stays dry and is secured so it cannot slide or tip.
Communications backup. Back up ham radio and communications gear, or commercial fleet and specialty 48V systems.
How It Compares to Common Alternatives
Versus a sealed IP67 battery. This is an IP20 battery: finger-safe, but with no protection against water. If the install will see rain, condensation, washdown, salt air or bilge water, it needs a battery rated for that environment.
Versus open-loop charging. Without communication you can program 56.0V absorption and 54.6V float, but Epoch strongly recommends closed-loop CAN or RS485 so the BMS sets the inverter's charge and discharge limits.
Versus lead-acid or AGM batteries. It is not a drop-in replacement for every lead-acid or AGM installation, and it must never share a bank with lead-acid batteries.
Is This Server Rack Battery the Right Fit
-
Parallel only. Up to 32 matched SR48100H batteries of similar age, condition and firmware, charged to the same state of charge. Do not connect it in series.
-
Inverter settings. 56.0V absorption until current falls to 0.02C (2A), 54.6V float, 50.0V re-charge or generator start, equalization disabled, 48.0V low-voltage cut-off with a 52.0V restart, 4% low SOC cut-off and force charge enabled. For N batteries, set 70A x N maximum charge and 100A x N maximum discharge.
-
Cold charging. The heater needs at least 8A of incoming charge current, so keep the inverter or charger connected and supplying current while the cells warm.
-
Indoor, dry and upright. Install it indoors in a dry, ventilated space, never upside down or on its side, on a rack or shelf rated for about 101 lb (46 kg) per battery. Wall holders must support at least 50 kg (110 lb) per battery.
-
Cables and protection. The inverter communication cable (Version I, II or III) and all power, grounding and parallel cables are sold separately. Each power cable and terminal tolerates 125A at most, with 100A continuous suggested.
This may be a good fit if
- You're building a 48V home backup or off-grid bank
- Your inverter is on Epoch's CAN or RS485 list
- The battery will live in a dry, indoor rack or cabinet
- You want room to grow into a large parallel bank
Common Questions
Can I Install It in an Unheated Garage?
Yes, if the space is dry and protected. With at least 8A of incoming charge current, the heater warms the cells from as low as -25°C, and discharge is rated from -20°C to 50°C (-4°F to 122°F) with communication.
Does It Have Bluetooth?
No. You monitor it through the inverter over CAN or RS485 and through the front-panel LEDs.
What Does the Warranty Cover?
It has an 11-year limited warranty: free replacement in Years 1–3, then 40% off MSRP on a replacement battery in Years 4–11. Register within 90 days of purchase for full coverage, or the warranty period starts from the battery's manufacturing date.
How Should I Store It?
Keep it near 50% state of charge (not above 80% for long periods), switch it off with its power switch and store it at 15°C to 35°C (59°F to 95°F). Check the state of charge at least every 3 months and recharge as needed.
What's Included
- 1 x Epoch 48V 100Ah Self-Heating Server Rack LiFePO4 Battery (SR48100H)
- 1 x User Manual
Expandable 48V Storage for Rack-Mounted Systems
The Epoch Batteries 48V 100Ah (5.12kWh) Self-Heating Server Rack Lithium Battery gives a 48V system 5.12kWh per 3U battery, with closed-loop inverter communication, self-heating and room to grow to 32 in parallel. If you have questions about inverter settings, cables or sizing a bank, the Outbound Power team is happy to help.
Epoch SR48100H Specifications
|
| Electrical |
| Model |
SR48100H |
| Battery type |
Self-heating 3U server rack LiFePO4 |
| System voltage class |
48V (51.2V nominal) |
| Chemistry |
LiFePO4 (lithium iron phosphate) |
| Cell configuration |
16S1P |
| Nominal voltage |
51.2V |
| Nominal capacity |
100Ah (0.2C, 25°C) |
| Stored energy |
5,120Wh (5.12kWh) at 0.2C |
| Usable energy |
4.92kWh at 0.2C (96% DoD) |
| Runtime planning energy |
About 4,096Wh (80% of nominal) |
| Operating voltage range |
48.0–56.0V |
| Maximum charge voltage |
56.0V |
| End of discharge |
48.0V cut-off; 52.0V restart |
| Internal resistance |
≤30 mΩ (1 kHz AC, 50% SOC) |
| Self-discharge |
≤3% per month; ≤15% per year (sleep or power-off mode) |
| Cycle life |
6,000+ cycles to 60% of initial capacity |
| Cycle life conditions |
0.2C, 90% DoD, 25°C |
| Charge and Discharge |
| Maximum continuous discharge |
100A (starting temperature ≤30°C) |
| Recommended discharge current |
50A or less |
| Peak discharge |
119A for up to 5 min; 200A for up to 15 s |
| Continuous power at 51.2V |
Roughly 5,120W DC |
| Maximum continuous charge |
70A, all sources combined |
| Recommended charge current |
50A or less |
| Power cable and terminal rating |
125A max.; 100A continuous suggested |
| Series connection |
Not supported |
| Parallel connection |
Up to 32 batteries, plug and play |
| Maximum parallel bank |
3,200Ah / 163.84kWh |
| Recommended Charge Settings |
| Bulk / absorption voltage |
56.0V |
| Absorption end |
Hold 56.0V until current falls to 0.02C (2A) |
| Float voltage |
54.6V |
| Re-bulk (re-charge / generator start) |
50.0V |
| Maximum charge current limit |
70A per battery (70A x N) |
| Recommended charge current |
50A or less per battery (50A x N) |
| Maximum discharge current limit |
100A x N |
| Equalization |
Disabled |
| Low-voltage cut-off (inverter) |
48.0V; restart at 52.0V |
| Low SOC cut-off |
4% |
| Low SOC limit (grid-tied) |
10–20%, by inverter brand |
| Force charge |
Enable |
| Without communication |
56.0V absorption, 54.6V float |
| Alternators |
DC-to-DC charger programmed for LiFePO4, highly recommended |
| SOC correction |
Fully charge once a month |
| Temperature |
| Charge (with heating) |
−25 to 50°C (−13 to 122°F) |
| Cell charge range |
−10 to 50°C (14 to 122°F), with communication |
| Heater start |
−25 to 5°C (−13 to 41°F), incoming current ≥0.08C (8A) |
| Heater stop |
Battery at 12°C (54°F); 1 h later on the first full charge |
| Parallel banks |
All heat together; stop when all reach 12°C |
| Heater power |
Incoming charge current (not in the BMS current reading) |
| Discharge |
−20 to 50°C (−4 to 122°F), with communication |
| Discharge capacity at −20°C |
≥60% of 25°C capacity (0.2C, 6 h soak) |
| Discharge capacity at 0°C |
≥80% of 25°C capacity (0.2C, 6 h soak) |
| Operating environment |
Optimum 15 to 35°C (59 to 95°F) |
| Humidity |
5–90% RH, non-condensing |
| Altitude |
Below 3,000 m (9,843 ft) |
| Storage, recommended |
15 to 35°C (59 to 95°F), 5–75% RH |
| Storage, up to 6 months |
0 to 30°C (32 to 86°F) |
| Storage, up to 3 months |
−10 to 45°C (14 to 113°F) |
| Storage state of charge |
Near 50% (not above 80% for long periods) |
| BMS and Protection |
| Overcharge |
Stops charging |
| Over-discharge |
Stops discharging |
| Over-current |
Stops charging or discharging; locks after three consecutive events |
| Short circuit / reverse polarity |
Stops the output |
| High and low temperature |
Stops charging, discharging or both |
| Pre-charge circuit |
Yes |
| Current reporting |
Each BMS reports current above about 0.5A |
| Communication and Monitoring |
| Communication |
CAN / RS485 (RJ45 Link IN / Link OUT) |
| Bluetooth |
None |
| Indicators |
RUN, ALM, M/S and SOC LEDs |
| Controls |
Power switch; RESET button |
| Protocol setting |
DIP switches 6–7, master battery only |
| RS485 baud rate |
DIP 1: ON = 115,200; OFF = 9,600 |
| CAN inverters, protocol ID0 |
Victron, SMA, Studer Innotec, Sofar |
| CAN inverters, protocol ID1 |
Sol-Ark, Solis, Goodwe, Deye, Growatt, SAJ, LuxPower |
| CAN inverters, protocol ID1 (cont.) |
Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk |
| CAN inverters, protocol ID2 |
Schneider |
| RS485 inverters, protocol ID0 |
Voltronic, RCT, MPP Solar, Alpha-Outback, Phocos |
| Inverter communication cable |
Version I, II or III, sold separately |
| Bank addressing |
Automatic; Link OUT to the next Link IN |
| CAN termination |
Automatic (no 120Ω terminator) |
| Communication cable length |
Under 15 m (49 ft) |
| Power cable length |
Preferably under 10 m (33 ft) |
| Dry contact |
Charge and discharge enable outputs |
| Rapid shutdown |
Dry-contact input (optional, U.S. market) |
| Size and Weight |
| Rack format |
3U, standard 19-inch rack or cabinet |
| Dimensions (L x W x H) |
17.4 in x 18.1 in x 5.2 in (442 x 460 x 133.5 mm) |
| Width across rack ears |
19.0 in (482.6 mm) |
| Depth including handles |
20.1 in (510 mm) |
| Weight |
101 lb (46 kg), without accessories |
| Case |
Metal 3U chassis with front handles and rack ears |
| Terminals |
Plug-in power connectors: 2 positive, 2 negative |
| Grounding |
Grounding point on the front panel |
| Rack mounting |
M6 cage nuts and screws (not included) |
| Mounting kits |
Stack (max. 4), wall or floor kit, sold separately |
| Wall holder rating |
At least 50 kg (110 lb) per battery |
| Orientation |
Upright; never upside down or on its side |
| Enclosure |
IP20 per IEC 60529, indoor use only |
| Certifications |
| Product |
UL 1973 (ANSI/CAN/UL 1973:2018), ETL, pack level |
| UL 9540 |
Pending |
| Transport |
UN 38.3; Class 9 |
| Warranty |
| Warranty |
11-year limited warranty |
| Years 1–3 |
Free replacement |
| Years 4–11 |
40% off MSRP on a replacement battery |
| Registration |
Within 90 days of purchase for full coverage |
| If not registered |
Warranty period starts from the manufacturing date |
| Transfer |
Non-transferable (original purchaser only) |
