The Go Power! 190-Watt Solar Flex Eclipse Expansion Kit Adds a Second 190W Flexible Panel to Your Eclipse Solar Kit

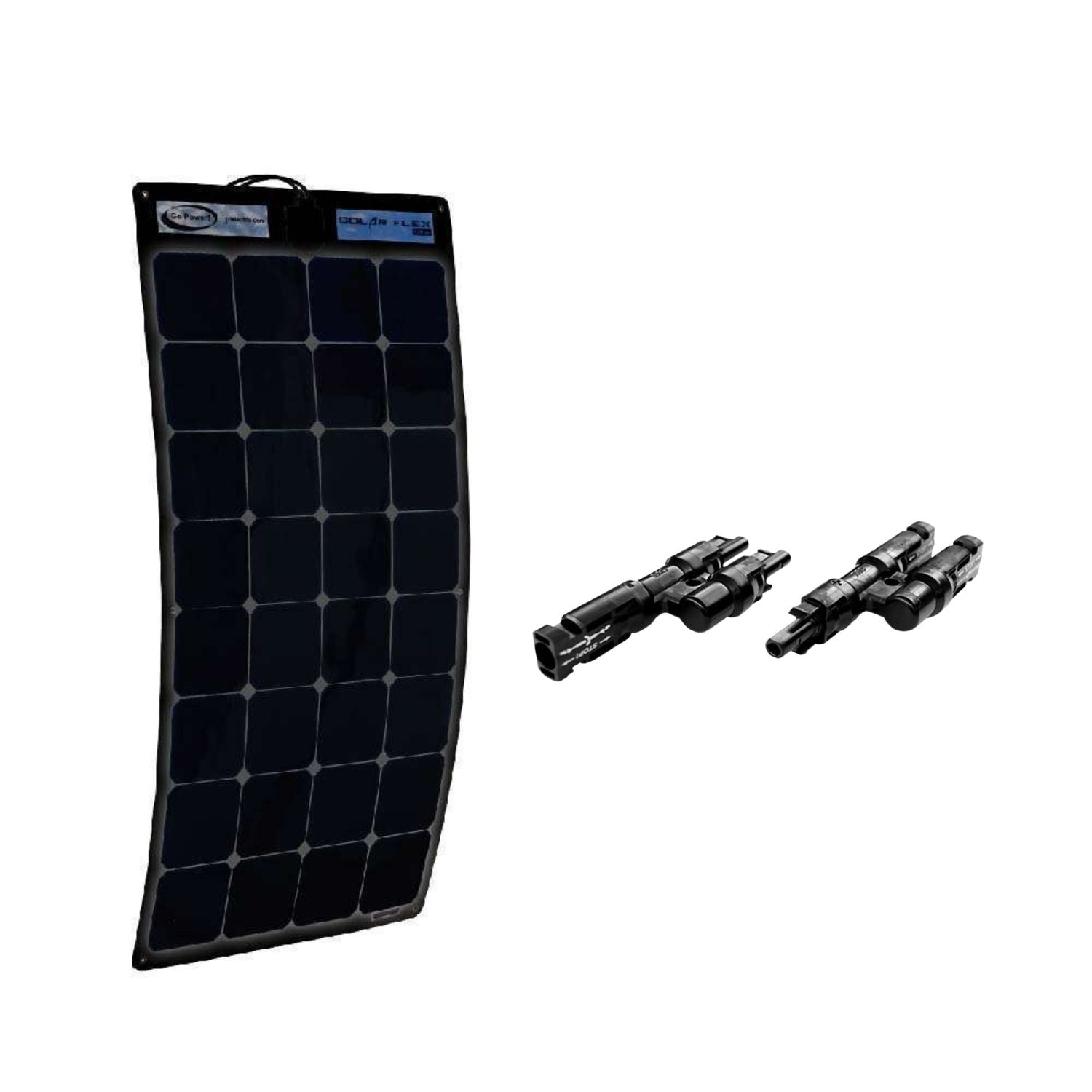

The Go Power! 190-Watt Solar Flex Eclipse Expansion Kit adds another 190 watts of solar to a Solar Flex Eclipse 190 kit already on your RV. It includes one black 190W Solar Flex panel, mounting hardware and two MC4 expansion branch connectors that join the new panel to the existing one in parallel.
There is no charge controller in this kit. The new panel feeds the 30A MPPT controller that came with your Eclipse kit. Go Power says its solar expansion kits of 100 watts or higher are compatible with one another.
Go Power! 190-Watt Solar Flex Eclipse Expansion Kit Features
A 190W Monocrystalline Flex Panel
The panel is rated 190W, with a maximum power voltage of 20.1V, a rated current of 9.89A, an open circuit voltage of 23.4V and a short circuit current of 10.72A at standard test conditions. Go Power lists 21% efficiency for its monocrystalline cells.
Thin, Light and Fully Laminated

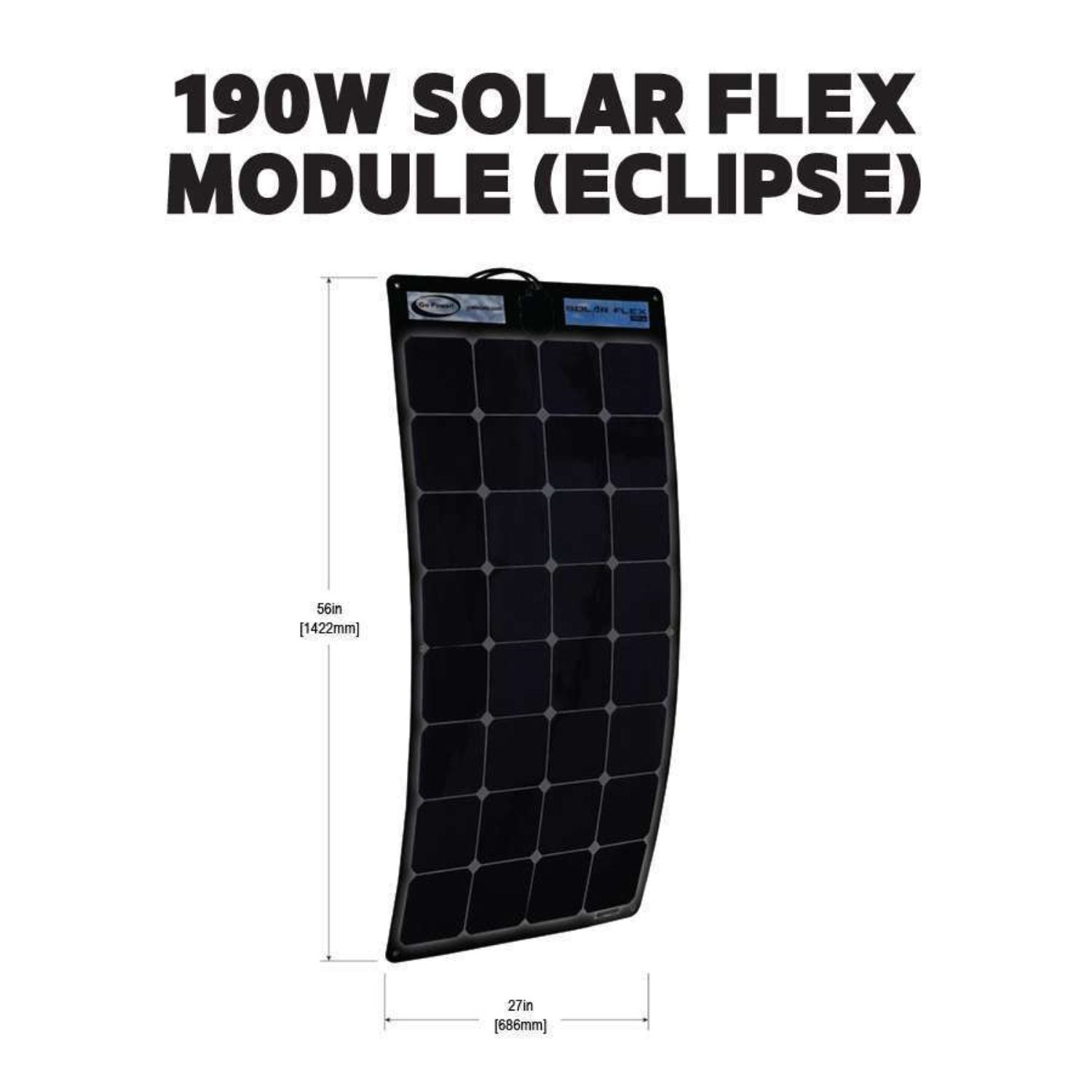

The panel measures 55.98 x 27.20 x 0.1 in, less than 1/8 in thick, and weighs 8.3 lb. Go Power says its flex modules weigh over 80% less than rigid panels. An impermeable lamination coats the whole module, with an ETFE top layer, a laminated TPT backsheet and stainless steel grommets.
Branch Connectors for Parallel Wiring

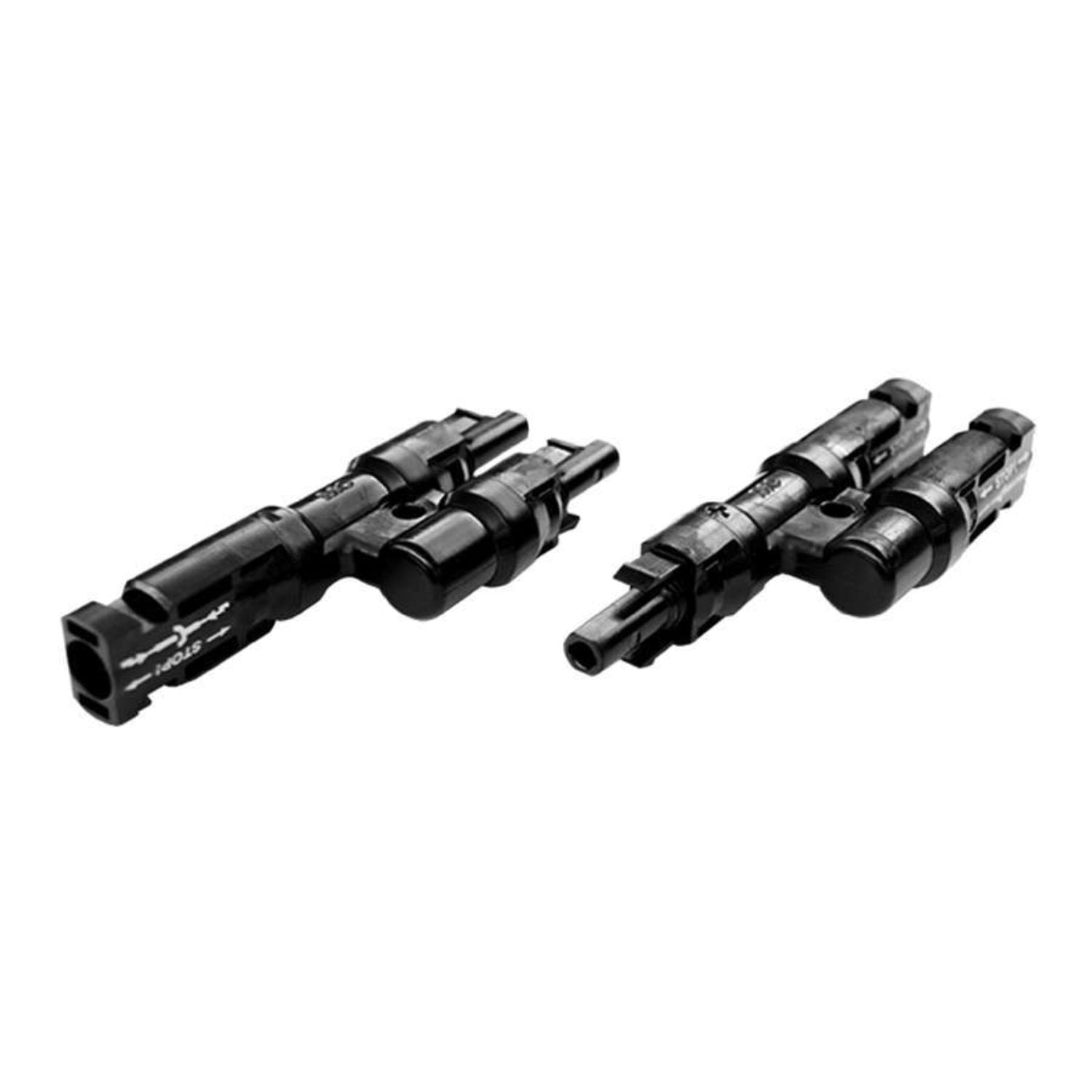

Two MC4 expansion connectors come in the box, one with 1 male and 2 female ends and one with 2 male and 1 female ends. They interlock with the panel leads so the new panel connects in parallel with your existing Eclipse panel. In parallel, the array keeps the voltage of one panel while the current adds up.
Follows Curved Surfaces
The lamination lets the panel contour to curved surfaces without custom mounts. Go Power's manual says it is designed to take a 30-degree bend from top to bottom, about 8 cm of deflection, with the junction box at the top end.
Real-World Applications
Growing an Eclipse kit. If your Solar Flex Eclipse 190 kit no longer keeps up, this kit doubles the panel wattage on the same controller, as shown in Go Power's Eclipse 190 plus expansion wiring diagram.
Curved roofs and mobile installs. Go Power describes Solar Flex panels for RVs, boats, work trucks, long-haul trailers and sleeper cabs, and the panel can be attached with adhesive or screws.
Practical Comparison
Expansion Kit Versus the Full 190-Watt Eclipse Kit
The full Solar Flex Eclipse 190 kit includes the panel, a GP-RVC-30-MPPT controller, a GP-RVC-R remote, 25 ft MC4 extension cables, a 30A fuse and wiring parts. The expansion kit includes only the panel, its mounting hardware and the two branch connectors, since it relies on the controller and cables you already have.
Buyer Guidance
Check the Array Limits
The Eclipse kit manual says added panels connect in parallel. It also says the array's open circuit voltage must not exceed 28 volts, the panels' combined maximum power current must not exceed 30A, and the sum of the panels' short circuit currents, times 1.25, must stay within the controller's rating. Check these limits before you add panels.
Mounting and Placement
Attach the panel with adhesive or screws through the grommets. Sealant and adhesive are not included, and the right one depends on your roof membrane, so use what your RV maker recommends. Place the panels as close together as possible, since each has 3.3 ft of cable from its junction box. Keep them at least 3 ft back from the front of the RV, over a flat, fire-resistant roof covering, and clear of shade from air conditioners.
This May Be A Good Fit If
- You own a Solar Flex Eclipse 190 kit
- You want more solar on the same controller
- Your roof needs a thin, light panel
- You can wire panels in parallel
Common Questions
Does This Kit Include a Charge Controller?
No. It connects to the controller in your existing Eclipse kit through the included branch connectors.
Will It Work With Other Go Power Kits?
Go Power says its expansion kits of 100 watts or higher are compatible with one another. The Eclipse manual shows this panel with the Solar Flex Eclipse 190 kit. Check the array limits of whichever controller you use.
Is Adhesive or Sealant Included?
No. The right sealant or adhesive depends on your roof membrane, so use the one your RV maker recommends.
What Warranty Does Go Power Give?
Go Power lists a 5-year power output warranty on the panel.
What's Included
- 1 x 190W Solar Flex Eclipse Solar Panel
- 1 x MC4 Expansion Connector, 1 Male 2 Female
- 1 x MC4 Expansion Connector, 2 Male 1 Female
- 4 x Solar Panel Mounting Feet
- 4 x 1/4 In Bolts
- 4 x 1/4 In Lock Nuts
- 8 x 1/4 In Washers
- 8 x #10-16 x 1 In Screws
Twice the Panel Power on Your Eclipse Kit
The Go Power! 190-Watt Solar Flex Eclipse Expansion Kit adds a second thin 190W panel to your Eclipse system with branch connectors that plug into your existing wiring. If you'd like help checking your controller's limits before you expand, the Outbound Power team is happy to help.

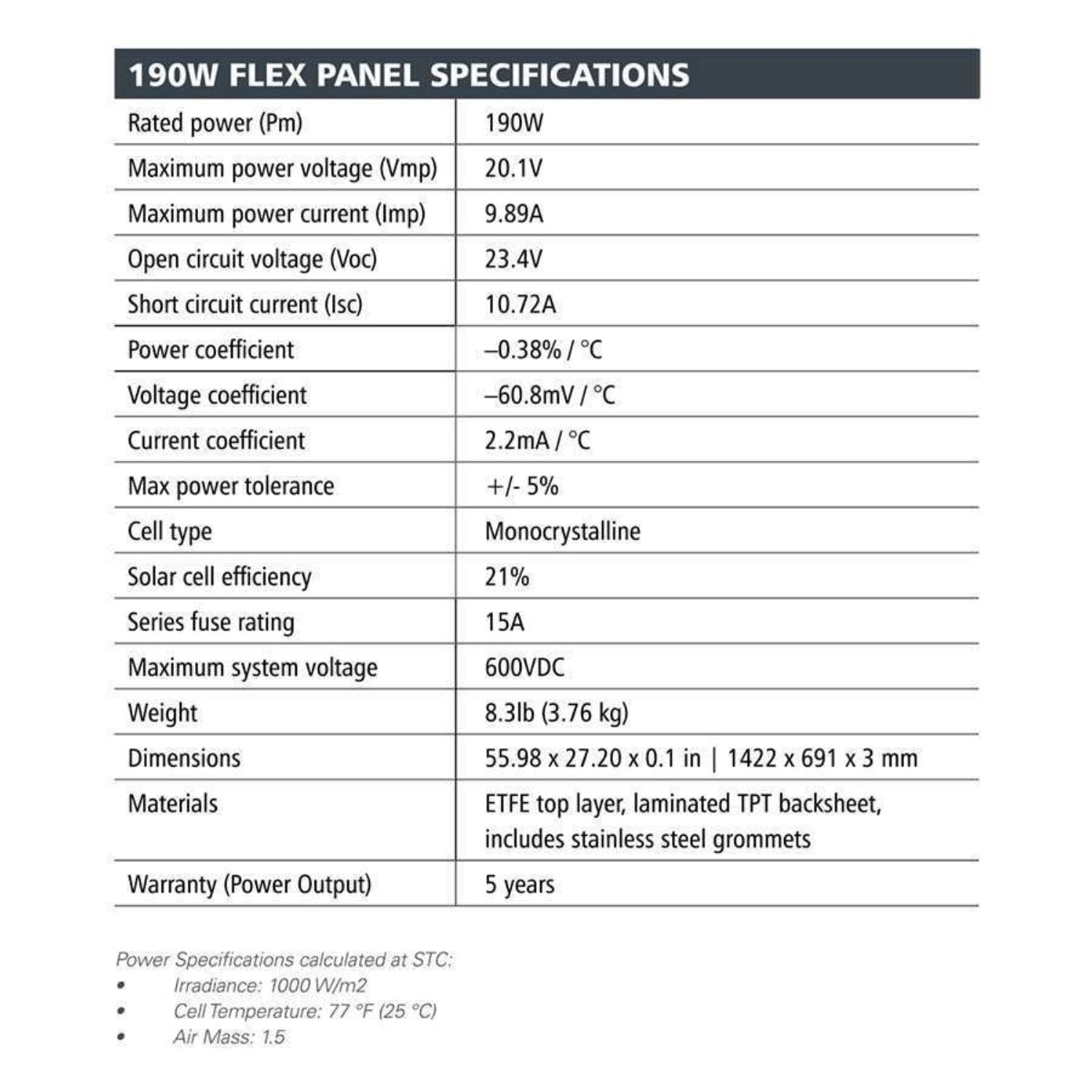

Go Power! 190-Watt Solar Flex Eclipse Expansion Kit Specifications
|
| Model |
GP-ECLIPSE-FLEX-190E |
| Kit Contents |
| Solar Panel |
1 x 190 W Solar Flex Eclipse, black |
| Branch Connectors |
2 x MC4 expansion connectors (1 male/2 female, 2 male/1 female) |
| Mounting Hardware |
4 mounting feet, 4 x 1/4 in bolts, 4 lock nuts, 8 washers, 8 #10-16 x 1 in screws |
| Charge Controller |
Not included, uses existing Eclipse kit controller |
| Solar Panel |
| Rated Power (Pm) |
190 W |
| Max Power Voltage (Vmp) |
20.1 V |
| Rated Current (Imp) |
9.89 A |
| Open Circuit Voltage (Voc) |
23.4 V |
| Short Circuit Current (Isc) |
10.72 A |
| Power Coefficient |
-0.38%/°C |
| Voltage Coefficient |
-60.8 mV/°C |
| Current Coefficient |
2.2 mA/°C |
| Max Power Tolerance |
+/- 5% |
| Cell Type |
Monocrystalline |
| Efficiency |
21% |
| Series Fuse Rating |
15 A |
| Max System Voltage |
600 VDC |
| Test Conditions |
STC, 1000 W/m2, 77°F (25°C), AM 1.5 |
| Max Bend |
30°, about 8 cm deflection |
| Materials |
ETFE top layer, laminated TPT backsheet, stainless steel grommets |
| Attachment |
Adhesive or screws |
| Connectors |
Solar branch connectors (MC4) |
| Lead Length |
3.3 ft from junction box |
| Junction Box |
IP67 (junction box maker's rating) |
| Certifications |
CE |
| Array Limits |
| Panel Wiring |
Parallel with existing panel |
| Max Array Voc |
28 V |
| Max Array Imp |
30 A |
| Current Sizing |
Sum of parallel Isc x 1.25, within controller rating |
| Physical |
| Dimensions |
55.98 x 27.20 x 0.1 in (1422 x 691 x 3 mm) |
| Thickness |
Less than 1/8 in (3 mm) |
| Weight |
8.3 lb (3.76 kg) |
| Color |
Black |
| Warranty |
| Solar Panel |
5 years power output |
