The Go Power! 220-Watt Solar Flex Kit Charges Your RV or Boat Battery From Two Thin Bendable Panels and a 30A Bluetooth Controller
The Go Power! 220-Watt Solar Flex Kit is a 12-volt solar charging kit with two 110W flexible monocrystalline panels, a GP-SB-PWM-30BT 30 amp single-bank PWM controller with Bluetooth, 25 ft red and black #10 solar output cables, solar connectors and mounting hardware.
Go Power built it for RVs and boats. The panels are only 3 mm thick and conform to almost any surface, and Go Power suggests pairing the kit with about 200Ah of AGM battery capacity or 100Ah of lithium.
Go Power! 220-Watt Solar Flex Kit Features
220 Watts From Two Flex Panels
Together the two panels are rated 220W, with a maximum power voltage of 19.7V, maximum power current of 12.0A, open circuit voltage of 22.9V and short circuit current of 13.0A. Each panel measures 44.6 x 21.4 x 0.1 in, and the pair weighs 5.82 lb.

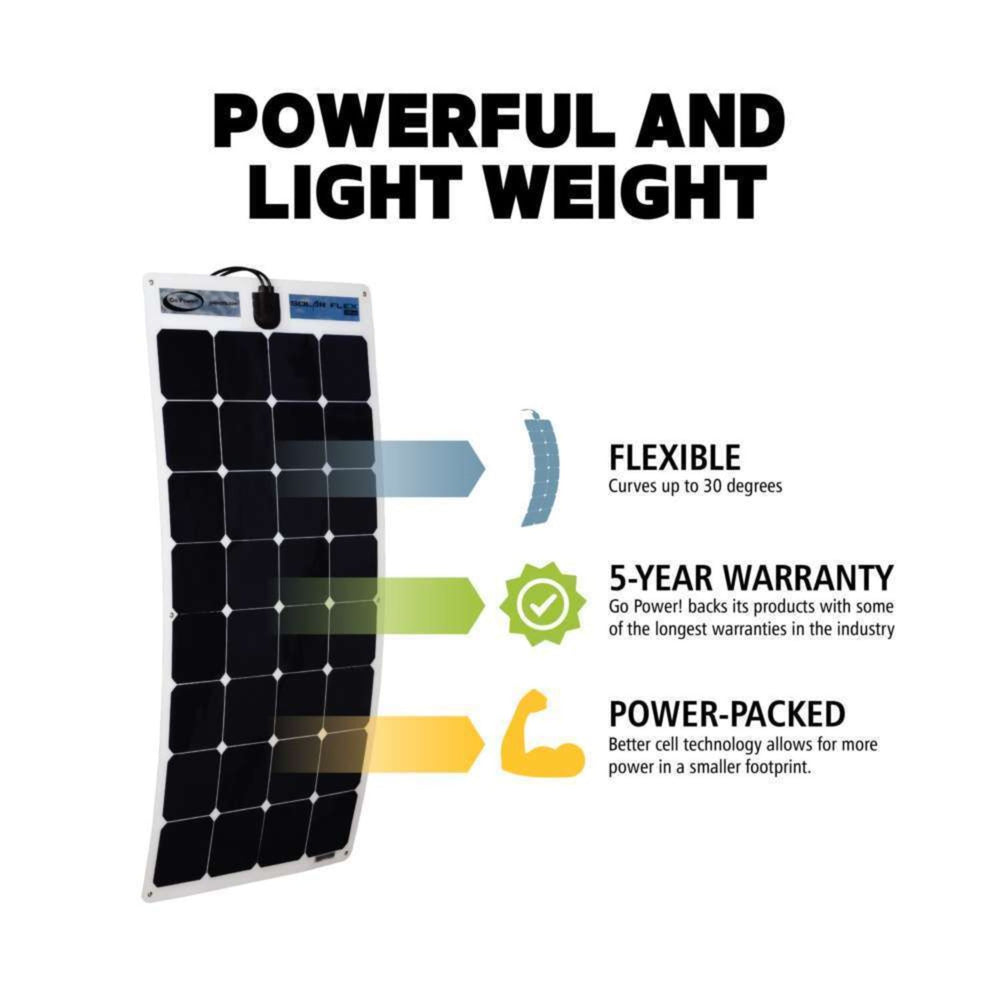

Bends Up to 30 Degrees
An impermeable lamination coats each module so it can contour and flex against curved surfaces. Go Power rates the panels for a bend of up to 30 degrees, so you don't need custom mounts. Go Power also says the thin, low-profile design is more aerodynamic than traditional rigid solar modules.
Adhesive or Screw Mounting
You can attach the panels with adhesive or with screws through the grommets provided. Go Power says the modules are 82% lighter, which suits lightweight RVs. Sealant and adhesive are not included, since the right product depends on your roof membrane.

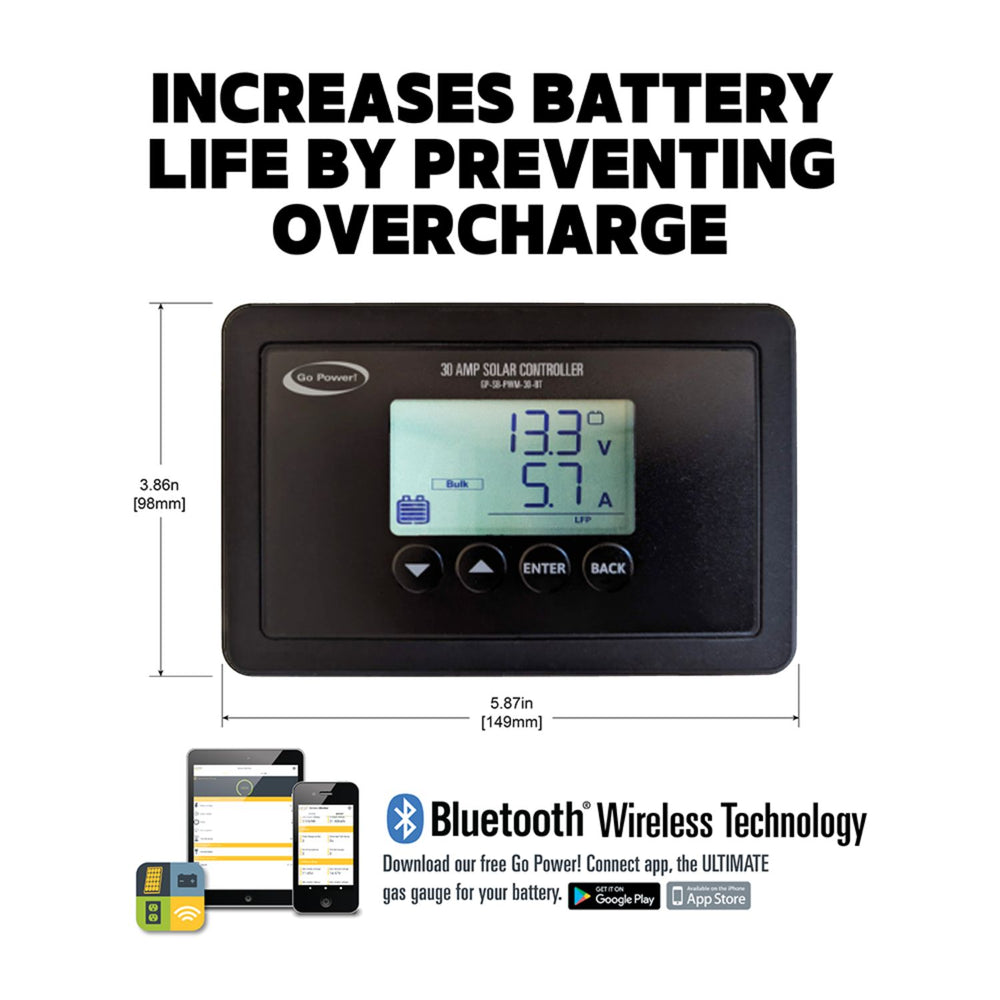

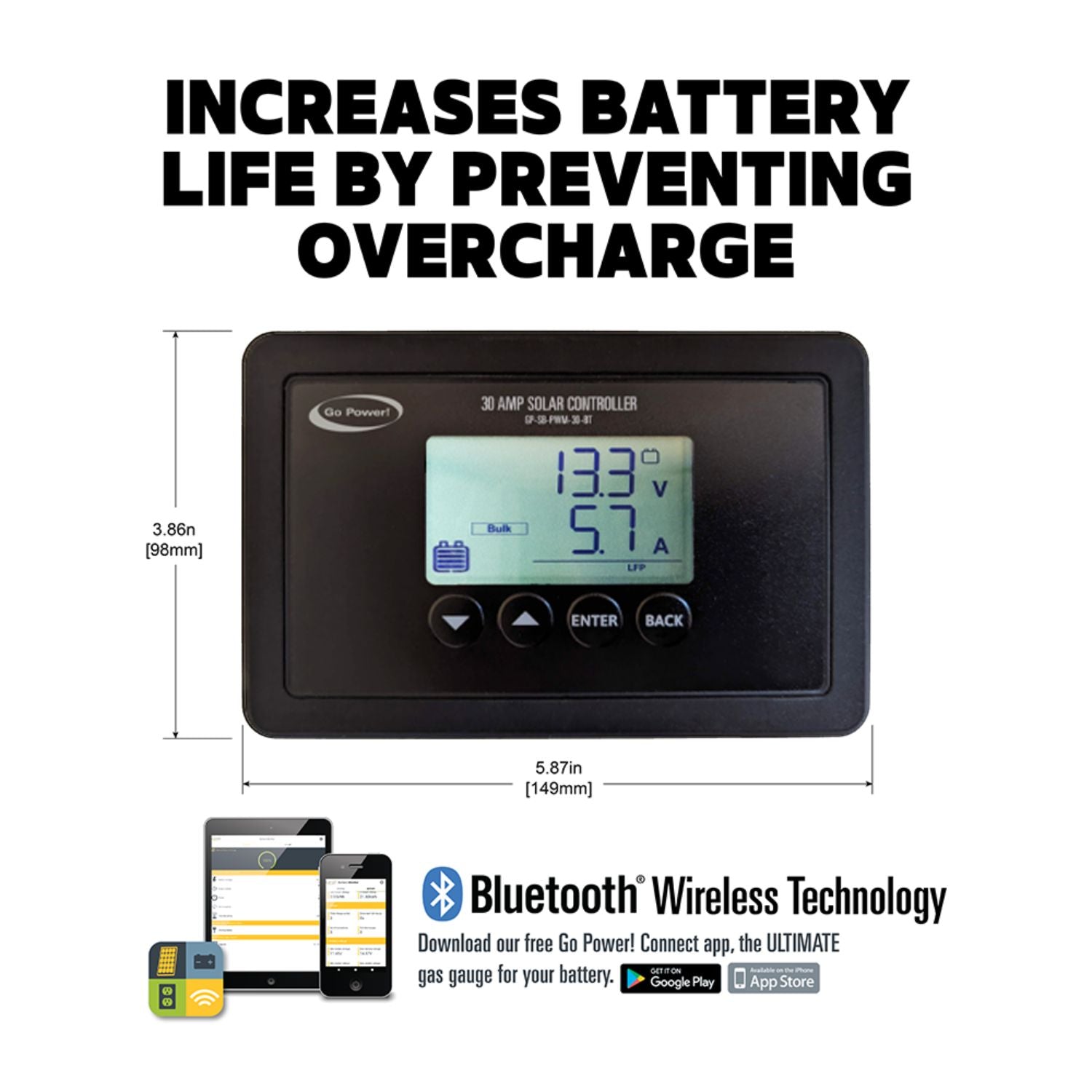

A 30A PWM Controller With Bluetooth
The GP-SB-PWM-30BT is a 12-volt, flush-mounted, single-bank controller rated for a continuous solar input of 30 amps and up to 600W of solar. It has an LCD screen, and Bluetooth lets you monitor the system in Go Power's free Go Power! Connect app. It installs with a screw cover plate.
Protection Against Wiring Errors
Go Power lists protection against battery and solar reverse polarity, short circuit and reverse current, battery and solar over voltage up to 50V, over temperature and over current. The controller is temperature compensated and rated to operate from -40 to 140°F.
Real-World Applications
RV trips away from hookups. The kit charges your 12V battery bank from the sun, and Go Power sizes it for about 200Ah of AGM or 100Ah of lithium battery.
Boats. Go Power designed the kit for boats as well as RVs. For marine use, the Solar Flex manual strongly recommends flame-retardant, chemically resistant cables and a mounting structure that stays rigid in heavy storms and resists long-term saltwater exposure.

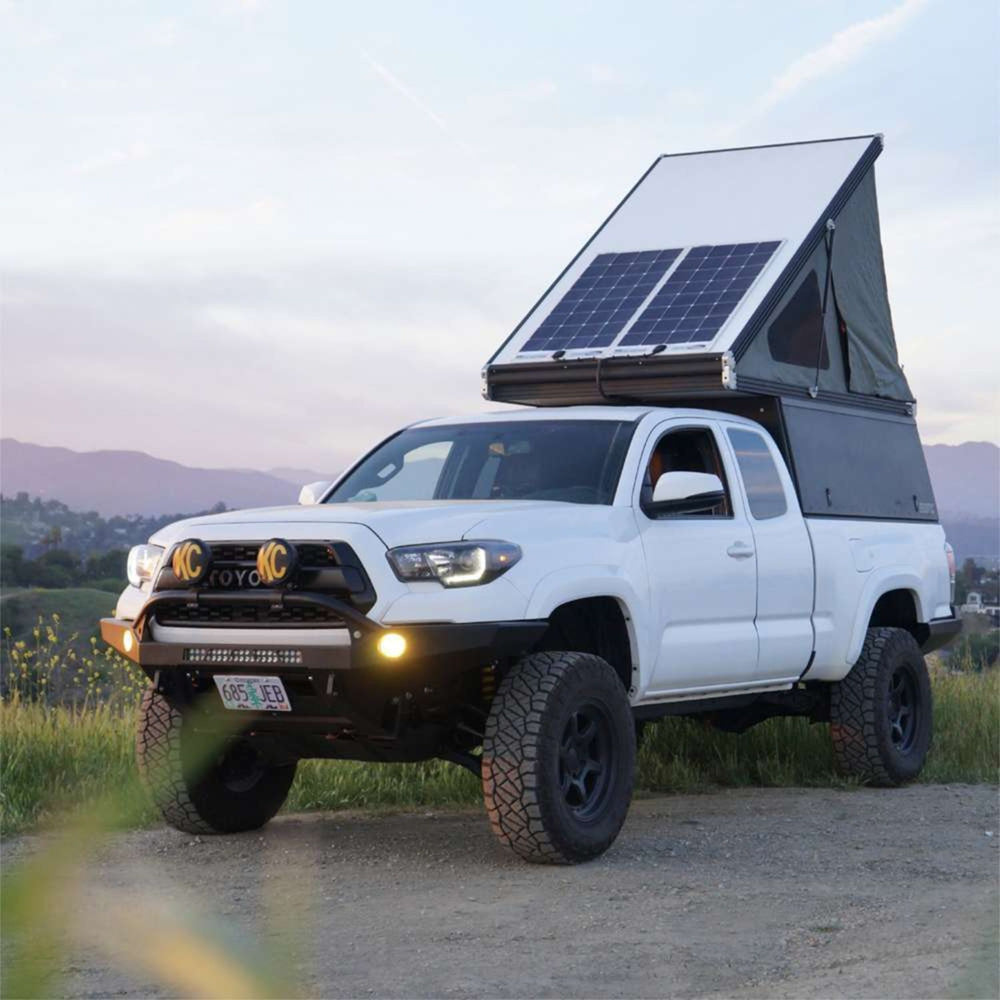

Curved and lightweight roofs. The panels follow curves up to 30 degrees and add little weight, which suits truck campers, vans and lightweight RVs.
Practical Comparison
220-Watt Solar Flex Kit Versus the 110-Watt Solar Flex Kit
Both kits use the same 110W Solar Flex panel and GP-SB-PWM-30BT controller. The 110-watt kit has one panel with 6.0A of maximum power current. The 220-watt kit doubles that to two panels and 12.0A.
Solar Flex Panels Versus Rigid Panels
Go Power says the Solar Flex design is more aerodynamic than traditional rigid modules and that its modules are 82% lighter. A rigid panel relies on its frame and mounting hardware, while the Solar Flex panels lie less than 1/8 in thick on the roof.
Buyer Guidance
Plan the Mounting
The Solar Flex manual says the mounting surface must stay rigid in all weather, and the panels will not stay flexible once fixed down. Flexing of the surface can damage the panels or cause a fire. Position the panels before you glue them, because they can't be moved afterward. Keep them close together, at least 3 ft back from the front of the RV, over a flat, fire-resistant roof covering, and clear of shade from air conditioners and vents.
Wiring and Battery
Go Power recommends installation by an RV technician or professional electrician. The manual says the array's open circuit voltage must not exceed 28 volts, the combined maximum power current must not exceed 30A, and the sum of the panels' short circuit currents in parallel, times 1.25, must stay within the controller's rating. Mount the controller vertically indoors, protected from the weather. The manual's wiring diagram shows a 30A fuse on the positive battery cable.
This May Be A Good Fit If
You have a 12V RV or boat battery bank
You run about 200Ah of AGM or 100Ah of lithium
Your roof is curved or weight-sensitive
You want Bluetooth monitoring on your phone
Common Questions
What Battery Size Does Go Power Suggest?
About 200Ah of AGM battery or 100Ah of lithium.
Can I Check Charging From My Phone?
Yes. The GP-SB-PWM-30BT connects by Bluetooth to the free Go Power! Connect app.
Is Adhesive Included?
No. Sealant and adhesive depend on your roof membrane, so use the product your RV maker recommends.
What Warranty Does Go Power Give?
Go Power lists a 5-year power output warranty on the solar panels and a 5-year warranty on the controller.

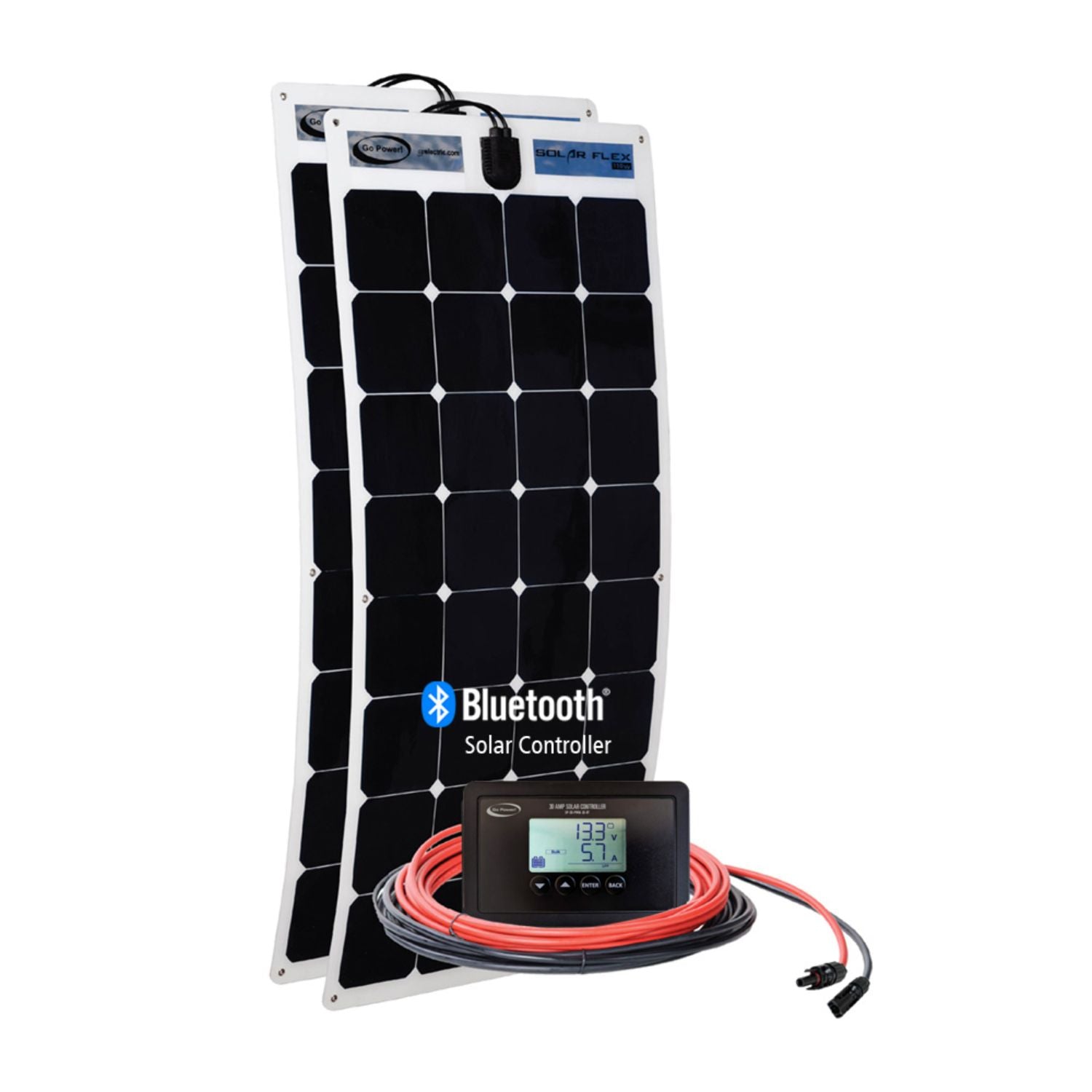

What's Included
2 x 110W Solar Flex Solar Panels
1 x GP-SB-PWM-30BT 30A PWM Bluetooth Solar Controller

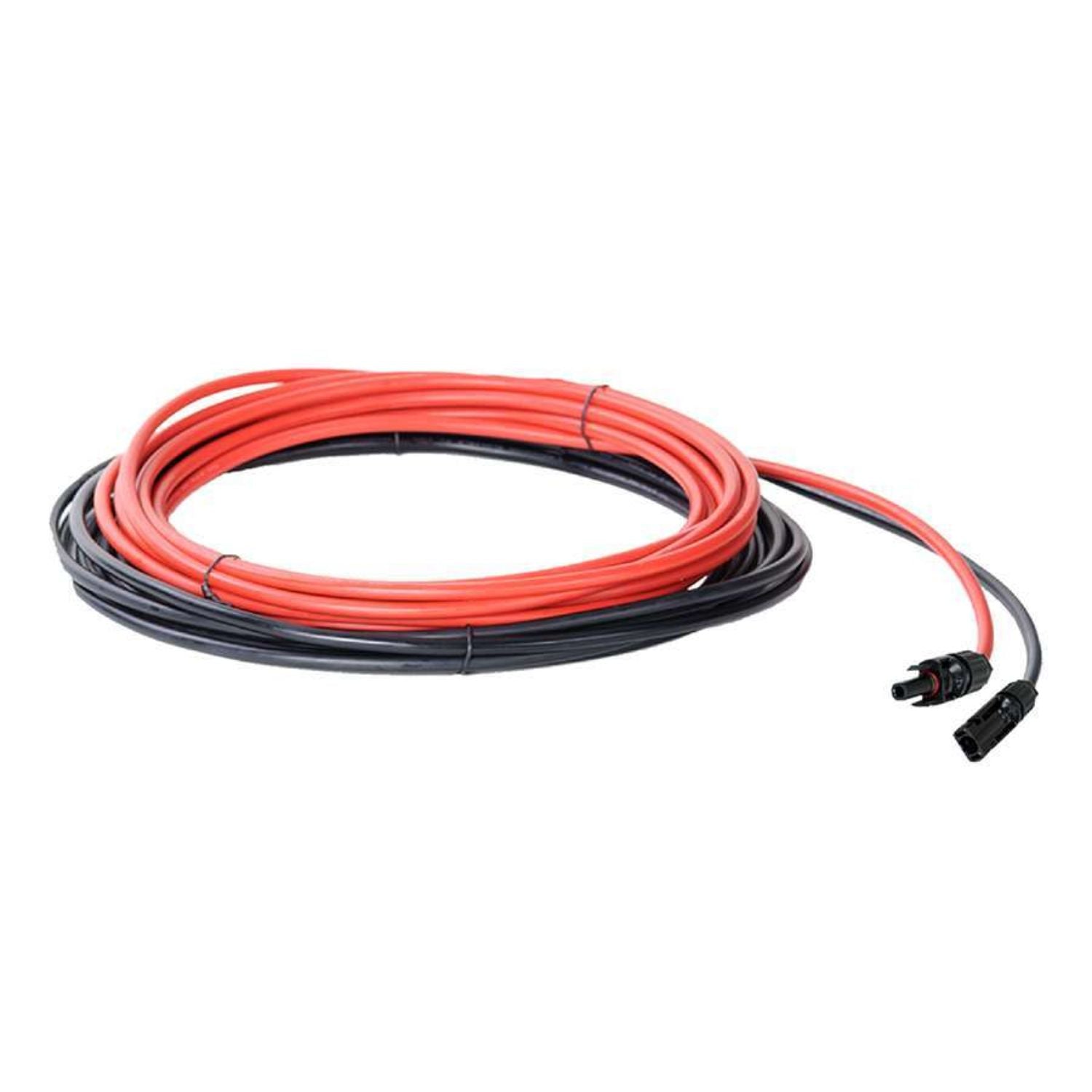

1 x Red Solar Output Cable, 25 Ft, #10
1 x Black Solar Output Cable, 25 Ft, #10
1 x Set of Mounting Hardware
Flexible Solar for RVs and Boats
The Go Power! 220-Watt Solar Flex Kit pairs two thin, bendable 110W panels with a 30A Bluetooth PWM controller and 25 ft cables to keep your 12V battery charged. If you'd like help sizing your battery bank or planning the install, the Outbound Power team is happy to help.
Go Power! 220-Watt Solar Flex™ Kit Specifications
Model
GP-FLEX-220
Kit Contents
Solar Panels
2 x 110 W Solar Flex, monocrystalline
Charge Controller
1 x GP-SB-PWM-30BT, 30 A PWM, Bluetooth
Solar Output Cables
1 x 25 ft red, 1 x 25 ft black, #10
Mounting Hardware
Included

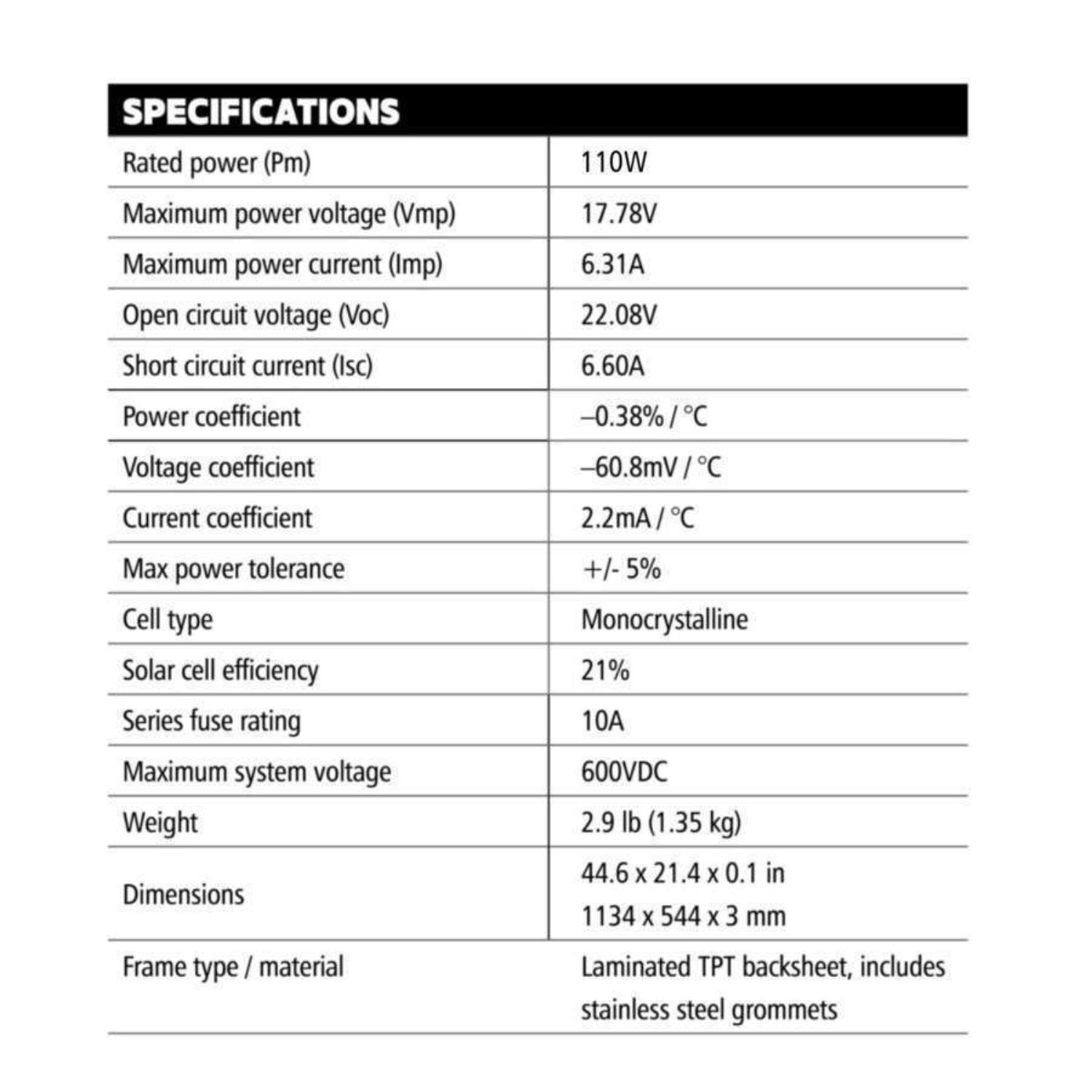

Solar Panels
Total Rated Power (Pm)
220 W
Max Power Voltage (Vmp)
19.7 V
Max Power Current (Imp)
12.0 A (both panels)
Open Circuit Voltage (Voc)
22.9 V
Short Circuit Current (Isc)
13.0 A (both panels)
Cell Type
Monocrystalline
Solar Cell Efficiency
21%
Series Fuse Rating
10 A
Max System Voltage
600 VDC
Max Recommended Bend
30°
Materials
Laminated TPT backsheet, stainless steel grommets
Attachment
Adhesive or screws, grommets provided
Lead Length
24 in (0.61 m)
Junction Box
IP67 (junction box maker's rating)

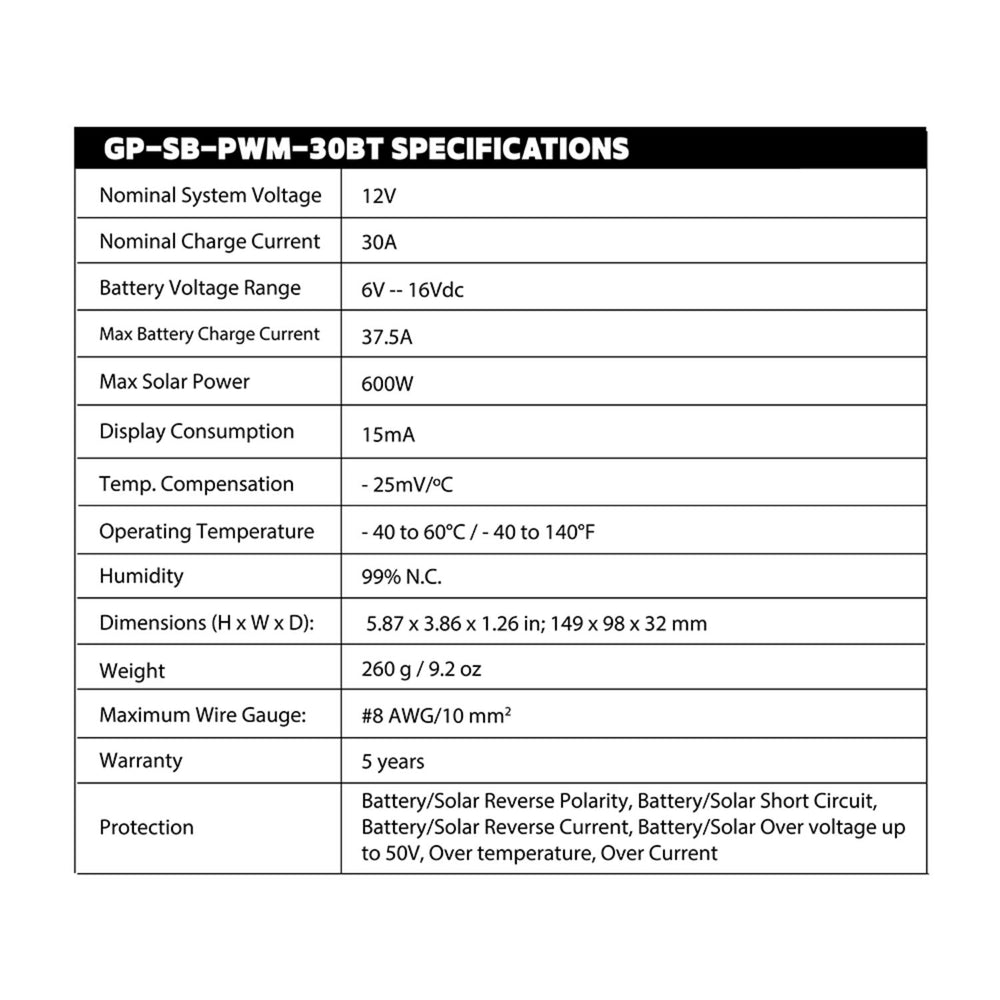

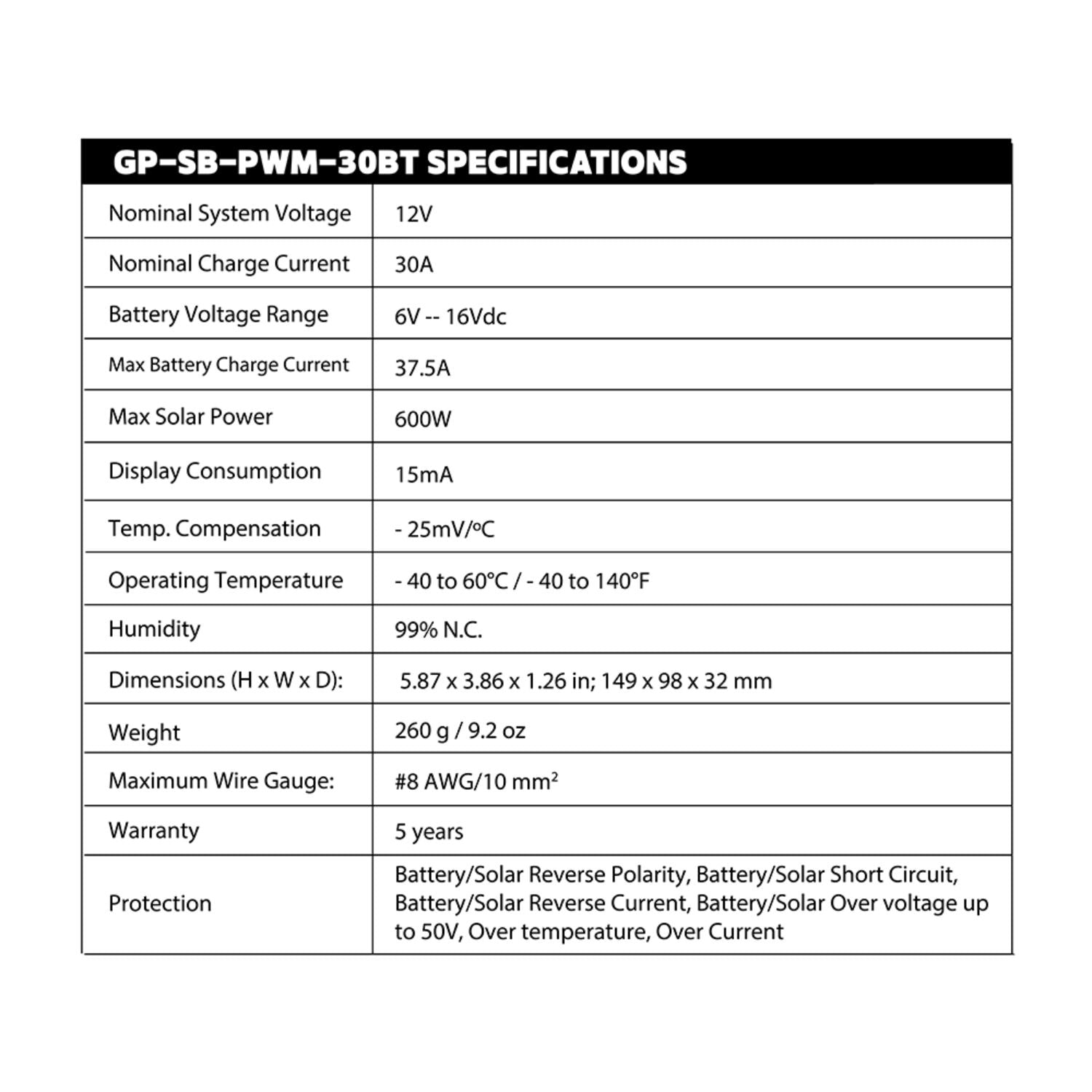

Charge Controller
Controller Model
GP-SB-PWM-30BT
Type
PWM, single bank, flush mount
Nominal System Voltage
12 V
Max Solar Array Current
30 A
Max Solar Power
600 W
Max Battery Charge Current
37.5 A
Battery Voltage Range
6 V to 15.5 V
Max Solar Panel Input Voltage
28 V
Operating Consumption
6 mA
Display Consumption
15 mA or less
Temperature Compensation
-24 mV/°C (-13 mV/°F)
Operating Temperature
-40 to 140°F (-40 to 60°C)
Humidity
99% non-condensing
Max Wire Gauge
#8 AWG (10 mm2)
Bluetooth
Yes, Go Power! Connect app
Protection
Battery/solar reverse polarity, short circuit and reverse current; battery/solar over voltage up to 50 V; over temperature; over current
Dimensions (H x W x D)
5.87 x 3.86 x 1.26 in (149 x 98 x 32 mm)
Weight
9.2 oz (260 g)
Mounting
Vertical, indoors
Array Limits
Max Array Voc
28 V
Max Array Imp
30 A
Current Sizing
Sum of parallel Isc x 1.25, within controller rating
Battery Fuse
30 A, positive cable (manual wiring diagram)
Battery
Suggested Battery Bank
200 Ah AGM or 100 Ah lithium
System Voltage
12 V
Physical

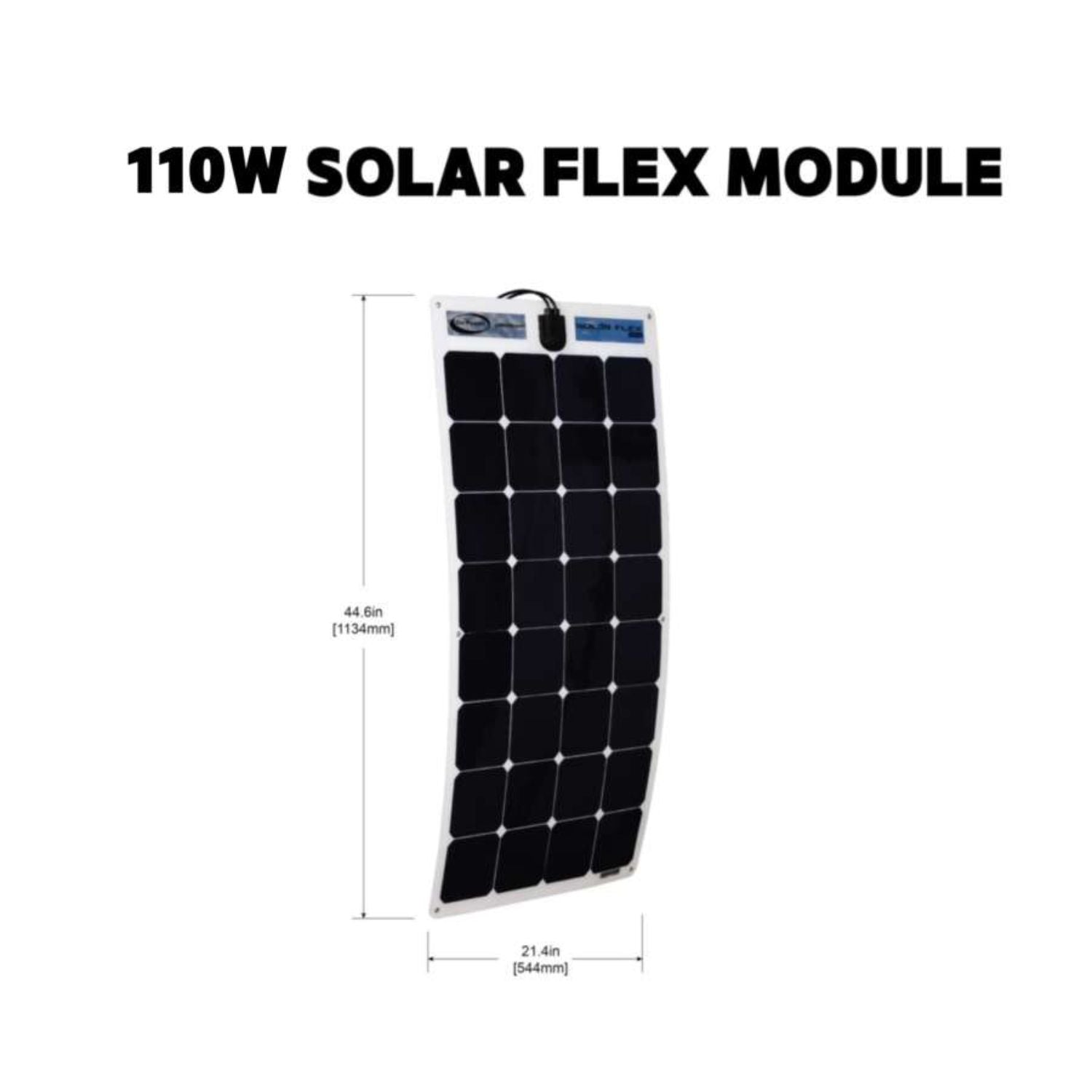

Panel Dimensions (each)
44.6 x 21.4 x 0.1 in (1134 x 544 x 3 mm)
Panel Thickness
Less than 1/8 in (3 mm)
Panel Weight (both)
5.82 lb
Warranty
Solar Panels
5 years power output
Charge Controller
5 years
Go Power! 220-Watt Solar Flex™ Kit Manuals and Documents
Go Power! Solar Flex Kits Manual (GP-FLEX-220)
Go Power! Solar Flex Kits Spec Sheet
