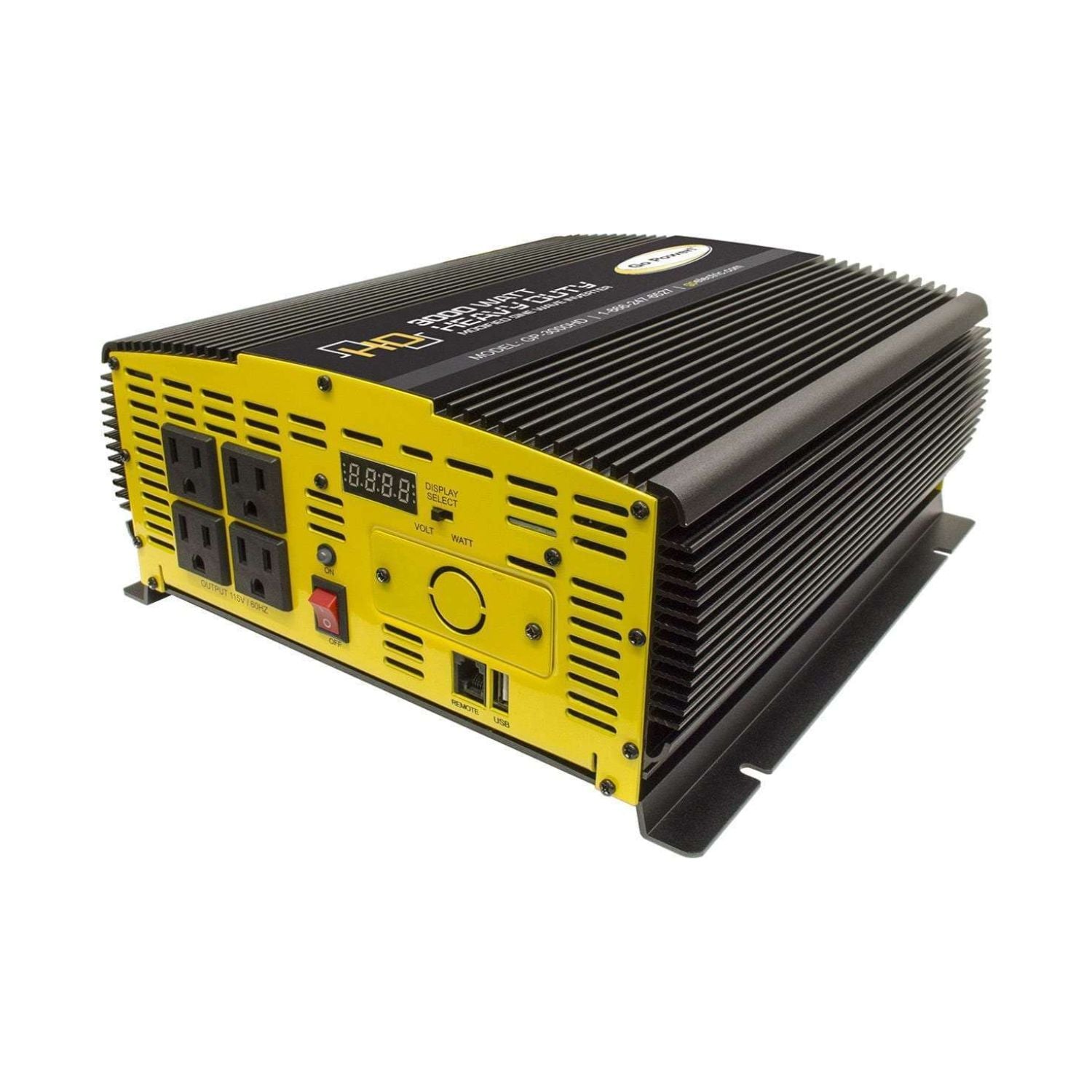

The Go Power! 3000 Watt Heavy-Duty Modified Sine Wave Inverter Runs Several Tools or Appliances at Once From a 12 Volt Battery Bank
The Go Power! GP-3000HD is a 3,000 watt modified sine wave inverter that changes 12 volt battery power into 120 volt AC. Connect it to a 12 volt battery bank, then plug into its four standard North American outlets or its 2.1 amp USB port. It delivers 3,000 watts continuously and handles start-up surges up to 6,000 watts.
Go Power built it to run several tools or appliances at once on a work truck, a job site or a backup power setup. A digital display shows battery voltage or output watts, and an optional remote lets you switch it from inside the cab or coach. For TVs, laptops on sensitive chargers and medical devices, Go Power recommends a pure sine wave model.
Go Power! 3000 Watt Heavy-Duty Modified Sine Wave Inverter Features
3,000 Watts Continuous With a 6,000 Watt Surge
The GP-3000HD supplies 3,000 watts of continuous power and up to 6,000 watts for brief start-up surges from motors and tools. It's rated at 85% efficiency or better, and it draws 1.2 amps or less when it's on with no load.
Four AC Outlets and a USB Port
Four standard North American outlets let you plug in several loads at once, as long as the total stays within the rating. A USB port rated 4.75 to 5.25 volts DC at 2.1 amps charges a phone or other USB device.
Digital Display for Battery Voltage and Watts
The front-panel display shows battery voltage and wattage, with a Display Select switch to move between volts and watts. You can watch your load and your battery without a separate meter.
Optional Remote On/Off
A remote port on the front accepts the optional Go Power! GP-HD-R remote, sold separately. With it installed, you can switch the inverter on and off from up to 25 feet (8 m) away. With the inverter's own switch off, it draws no current from the battery.
Low Battery Alarm, Protection and Fan Cooling
An alarm sounds when battery voltage drops to 10.5 volts, and the inverter shuts down at 10 volts (each ±0.5 V) to protect the battery. It's protected against overload, over-temperature, over and under voltage, and short circuits, and a single LED shows green for power and red for a fault. Thermostatically controlled fan cooling runs only when needed, and after an over-temperature shutdown it restarts on its own once it cools.
Real-World Applications
Work trucks. Run a 10 inch saw, which Go Power's manual lists at about 1,350 watts, alongside a 3/8 inch drill at about 350 watts.
Job sites. Keep several corded tools plugged into the four outlets and switch the inverter from the cab with the optional remote.
Backup power setups. Run lights and small appliances from a charged 12 volt deep-cycle bank through the outlets during an outage.
Practical Comparison
GP-3000HD Versus a Pure Sine Wave Inverter
A modified sine wave inverter is a lower-cost way to run tools, lights and resistive loads. A pure sine wave inverter is the type Go Power recommends for TVs, laptops on sensitive chargers and medical devices. The manual also notes that some devices in its typical-load table may need a pure sine wave inverter for proper operation.
GP-3000HD Versus GP-5000HD
Go Power's spec sheet rates the GP-5000HD at 5,000 watts continuous and 10,000 watts surge, against 3,000 and 6,000 watts for the GP-3000HD. Both have four outlets and draw 1.2 amps or less at no load. The GP-3000HD is rated 85% efficient or better versus 80% for the GP-5000HD, and it's 11.41 inches long and 10.54 pounds versus 18.50 inches and 15.65 pounds.
Buyer Guidance
Battery, Cable and Fuse
Connect it only to a 12 volt nominal battery bank, and add batteries in parallel only. The manual calls for deep-cycle lead-acid batteries such as 12 volt marine or RV deep-cycle batteries. Gel and AGM batteries can be used with special charging, but not automotive starting batteries. Use 4/0 AWG cable and an F-400 inline fuse or breaker in the positive cable, within 12 inches (31 cm) of the battery. Keep the inverter within 10 feet of the batteries and both cables under 10 feet (3 m) in total.
Mounting and Limits
Mount it horizontally in a dry, cool, ventilated spot with at least 2 inches of clearance, out of the engine compartment and away from the batteries and flammable materials. The manual calls it a vehicle accessory that isn't for a building's electrical system, and says it can't feed AC wiring where neutral and ground are bonded. Don't use it for medical devices or computers. Some refrigerator, freezer and pump motors may not start even within the rating.
This May Be A Good Fit If
- You run several tools or appliances from a 12 volt bank
- Your loads stay within 3,000 watts continuous
- You want four outlets, USB and a volt and watt display
- You'd like to switch it from the cab with a remote
Common Questions
Which Install Kit Do I Need?
Go Power lists the GP-DC-KIT5 install kit for the GP-3000HD. It supplies correctly rated 10 foot battery cables and a Class T fuse with its block between the battery and the inverter.
Can It Run a Microwave?
Check the rating sticker on the back of the oven. The manual says a microwave uses 40% to 100% more than its advertised cooking power, and that a typical 800 watt microwave draws about 1,200 watts. Keep the total load within 3,000 watts.
How Do I Set Up the Remote?
Switch the inverter off before plugging the GP-HD-R into the remote port. Once it's installed, leave the inverter's own switch on and use the remote to turn it on and off.
What Warranty Does It Carry?
Go Power's spec sheet lists a 1 year warranty for the GP-3000HD.
What's Included
- 1 x Go Power! GP-3000HD 3000 Watt Heavy-Duty Modified Sine Wave Inverter
Multi-Load AC Power for Work and Backup
The Go Power! 3000 Watt Heavy-Duty Modified Sine Wave Inverter gives your 12 volt bank four outlets, USB charging, a live volt and watt display and remote capability. If you'd like help sizing the batteries, cable or fuse for a 3,000 watt system, the Outbound Power team is happy to help.
Go Power! 3000 Watt Heavy-Duty Modified Sine Wave Inverter Specifications
|
| Model |
GP-3000HD |
| Output |
| Continuous Output Power |
3000 W (VA) |
| Maximum Surge Rating |
6000 W (VA) |
| Output Waveform |
Modified sine wave |
| Output Voltage |
100-120 VAC RMS +5/-15 |
| Frequency |
60 Hz ± 3 Hz |
| Efficiency |
≥85% |
| No-Load Current Draw |
≤1.2 A |
| DC Input |
| Input Voltage Range |
10.5-16 VDC |
| Nominal Battery Voltage |
12 V |
| DC Connection |
Positive and negative terminals, chassis ground stud |
| Input Over Voltage Protection |
16.5 VDC |
| Low Battery Alarm |
10.5 V (±0.5 V) |
| Low Battery Shutdown |
10 V (±0.5 V) |
| Recommended DC Cable |
4/0 AWG |
| Inline Fuse / Circuit Breaker |
F-400 |
| Outlets and Connections |
| AC Outlets |
4 standard North American |
| USB Ports |
1 |
| USB Output |
4.75-5.25 VDC / 2.1 A |
| Remote Option |
Yes, optional remote (sold separately) |
| Remote Range |
Up to 25 ft (8 m) |
| Display |
Digital, battery voltage or wattage (Display Select switch) |
| Indicators |
Single LED, green for power, red for fault |
| Protection |
| Protection |
Overload, over-temperature, over/under voltage, short circuit |
| Short-Circuit Response |
System shutdown |
| Over-Temperature Response |
Shuts down, restarts automatically once cooled |
| Installation |
| Battery Type |
12 V deep-cycle lead-acid; gel and AGM with special charging |
| Battery Connection |
Parallel only |
| Distance to Batteries |
Within 10 ft |
| Total DC Cable Length |
Under 10 ft (3 m), both cables together |
| Fuse Location |
Positive cable, within 12 in (31 cm) of the battery |
| Mounting |
Horizontal |
| Clearance for Airflow |
At least 2 in around the inverter |
| Physical |
| Cooling |
Thermostatically controlled fan |
| Operating Temperature |
32-104 °F (0-40 °C) |
| Storage Temperature |
14-122 °F (-10 to 50 °C) |
| Storage Humidity |
10-95% RH |
| Dimensions (L x W x H) |
11.41 x 9.92 x 4.13 in (290 x 252 x 105 mm) |
| Weight |
10.54 lb (4.78 kg) |
| Certifications and Warranty |
| Warranty |
1 year |
Go Power! 3000 Watt Heavy-Duty Modified Sine Wave Inverter Manuals and Documents
Go Power! GP-1750/3000/5000HD User Manual
Go Power! GP-1750/3000/5000HD Spec Sheet
