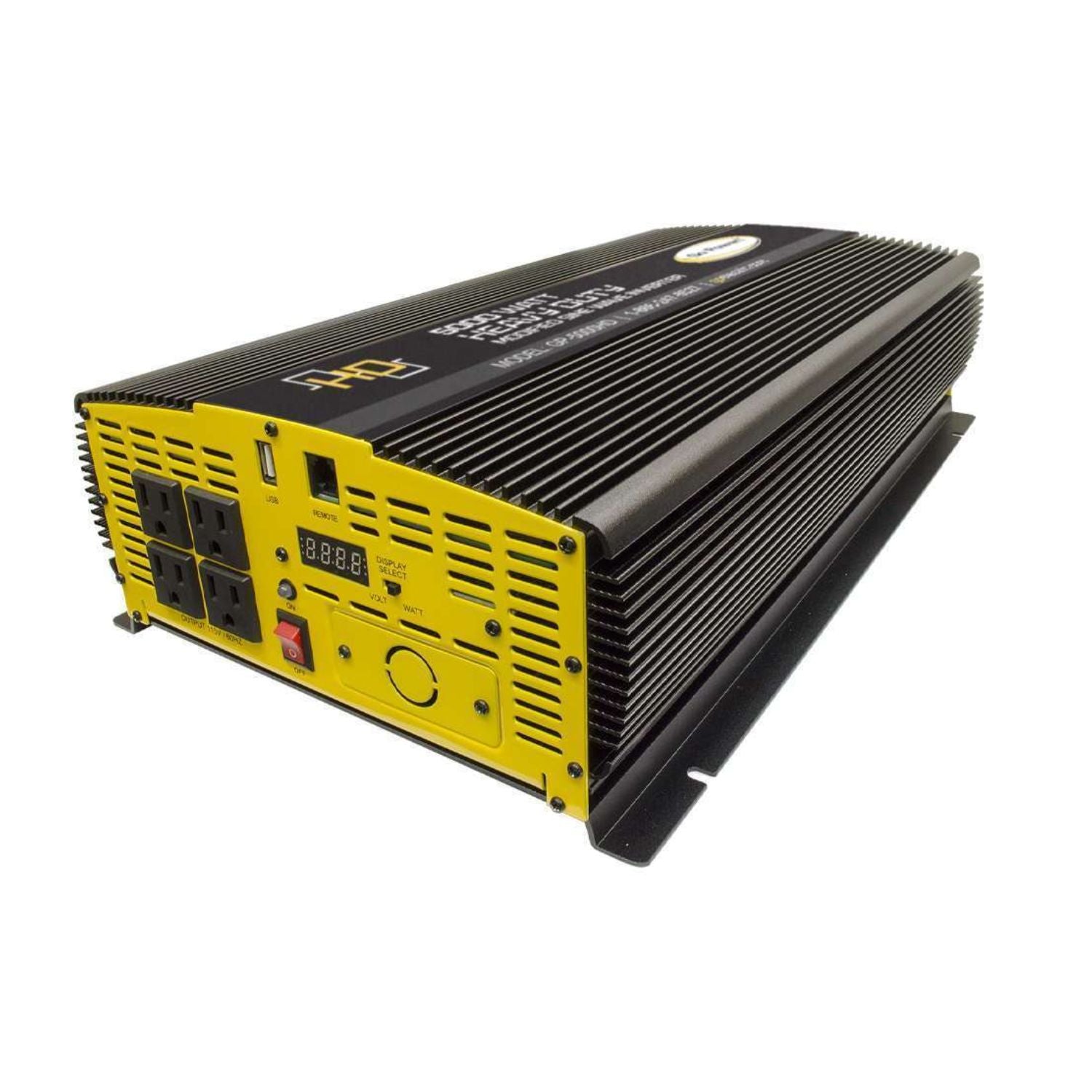

The Go Power! 5000 Watt Heavy-Duty Modified Sine Wave Inverter Handles Large Tool Loads and Multiple Appliances From a 12 Volt Battery Bank
The Go Power! GP-5000HD is a 5,000 watt modified sine wave inverter that changes 12 volt battery power into 120 volt AC. Connect it to a 12 volt battery bank, then plug into its four standard North American outlets or its 2.1 amp USB port. It delivers 5,000 watts continuously and handles start-up surges up to 10,000 watts.
Go Power built it for large tool loads and multiple appliances on commercial vehicles and backup power systems. A digital display shows battery voltage or output watts, and an optional remote lets you switch it from inside the cab or coach. For TVs, laptops on sensitive chargers and medical devices, Go Power recommends a pure sine wave model.
Go Power! 5000 Watt Heavy-Duty Modified Sine Wave Inverter Features
5,000 Watts Continuous With a 10,000 Watt Surge
The GP-5000HD supplies 5,000 watts of continuous power and up to 10,000 watts for brief start-up surges from motors and tools. Efficiency is rated at 80% or better, and it draws 1.2 amps or less when it's on with no load. With its switch off, the manual says it draws no current from the battery.
Four AC Outlets and a USB Port
Four standard North American outlets let you run several loads at once, as long as the total stays within the rating. A USB port rated 4.75 to 5.25 volts DC at 2.1 amps charges a phone or other USB device.
Digital Display for Battery Voltage and Watts
The front-panel display shows battery voltage and wattage, with a Display Select switch to move between volts and watts. On a system this size, it helps you keep an eye on both the load and the battery.
Optional Remote On/Off
A remote port on the front accepts the optional Go Power! GP-HD-R remote, sold separately. With it installed, you can switch the inverter on and off from up to 25 feet (8 m) away, such as from inside the cab.
Low Battery Alarm, Protection and Fan Cooling
An alarm sounds when battery voltage drops to 10.5 volts, and the inverter shuts down at 10 volts (each ±0.5 V) to protect the battery. It's protected against overload, over-temperature, over and under voltage, and short circuits, and a single LED shows green for power and red for a fault. Thermostatically controlled fan cooling runs only when needed, and after an over-temperature shutdown it restarts on its own once it cools.
Real-World Applications
Commercial vehicles. Run large tool loads, such as a 10 inch saw that Go Power's manual lists at about 1,350 watts, with other tools on the remaining outlets.
Backup power systems. Plug lights and appliances into the outlets and run them from a large, charged 12 volt deep-cycle bank during an outage.
Multiple appliances. Power more than one appliance at a time, such as a coffee maker at about 850 watts and a mini microwave at about 1,200 watts from the manual's typical-load table.
Practical Comparison
GP-5000HD Versus a Pure Sine Wave Inverter
A modified sine wave inverter is a lower-cost way to run tools, lights and resistive loads. A pure sine wave inverter is the type Go Power recommends for TVs, laptops on sensitive chargers and medical devices. The manual also notes that some devices in its typical-load table may need a pure sine wave inverter for proper operation.
GP-5000HD Versus GP-3000HD
Go Power's spec sheet rates the GP-3000HD at 3,000 watts continuous and 6,000 watts surge, against 5,000 and 10,000 watts for the GP-5000HD. Both have four outlets, draw 1.2 amps or less at no load and use 4/0 AWG cable with an F-400 fuse or breaker in the manual's table. The GP-5000HD is 18.50 inches long and 15.65 pounds versus 11.41 inches and 10.54 pounds.
Buyer Guidance
Plan the Battery Bank and Wiring Carefully
Go Power says the GP-5000HD draws over 400 amps from a 12 volt bank at full load. Have it installed with cable and fusing sized to the manual, which lists 4/0 AWG cable and an F-400 inline fuse or circuit breaker, mounted in the positive cable within 12 inches (31 cm) of the battery. The manual calls for 12 volt deep-cycle lead-acid batteries connected in parallel only. Gel and AGM batteries can be used with special charging, but not automotive starting batteries. Keep the inverter within 10 feet of the batteries and both cables under 10 feet (3 m) in total.
Mounting and Limits
Mount it horizontally in a dry, cool, ventilated spot with at least 2 inches of clearance, out of the engine compartment and away from the batteries and flammable materials. The manual calls it a vehicle accessory that isn't for a building's electrical system, and says it can't feed AC wiring where neutral and ground are bonded. Don't use it for medical devices or computers.
This May Be A Good Fit If
- You run large tool loads or several appliances at once
- You have a 12 volt battery bank sized for high current
- Your loads stay within 5,000 watts continuous
- You plan a professional install with heavy cable and fusing
Common Questions
What Cable and Fuse Does It Need?
The manual's wiring table lists 4/0 AWG cable and an F-400 inline fuse or circuit breaker for the GP-5000HD, with both cables under 10 feet in total. If you're unsure, talk to the Outbound Power team before you buy.
Can It Start Motor Loads?
Its 10,000 watt surge rating helps, but the manual warns that some induction motors in refrigerators, freezers and pumps need very high surge current and may not start. If battery voltage drops below 11 volts while a motor starts, check the connections and charge, and you may need a larger battery.
How Do I Set Up the Remote?
Switch the inverter off before plugging the GP-HD-R into the remote port. Once it's installed, leave the inverter's own switch on and use the remote to turn it on and off.
What Warranty Does It Carry?
Go Power's spec sheet lists a 1 year warranty for the GP-5000HD.
What's Included
- 1 x Go Power! GP-5000HD 5000 Watt Heavy-Duty Modified Sine Wave Inverter
High-Capacity AC Power for Demanding Loads
The Go Power! 5000 Watt Heavy-Duty Modified Sine Wave Inverter gives your 12 volt bank 5,000 watts, four outlets, USB charging, a live volt and watt display and remote capability. If you'd like help planning the battery bank, cable and fusing for it, the Outbound Power team is happy to help.
Go Power! 5000 Watt Heavy-Duty Modified Sine Wave Inverter Specifications
|
| Model |
GP-5000HD |
| Output |
| Continuous Output Power |
5000 W (VA) |
| Maximum Surge Rating |
10000 W (VA) |
| Output Waveform |
Modified sine wave |
| Output Voltage |
100-120 VAC RMS +5/-15 |
| Frequency |
60 Hz ± 3 Hz |
| Efficiency |
≥80% |
| No-Load Current Draw |
≤1.2 A |
| DC Input |
| Input Voltage Range |
10.5-16 VDC |
| Nominal Battery Voltage |
12 V |
| Battery Draw at Full Load |
Over 400 A at 12 V (Go Power) |

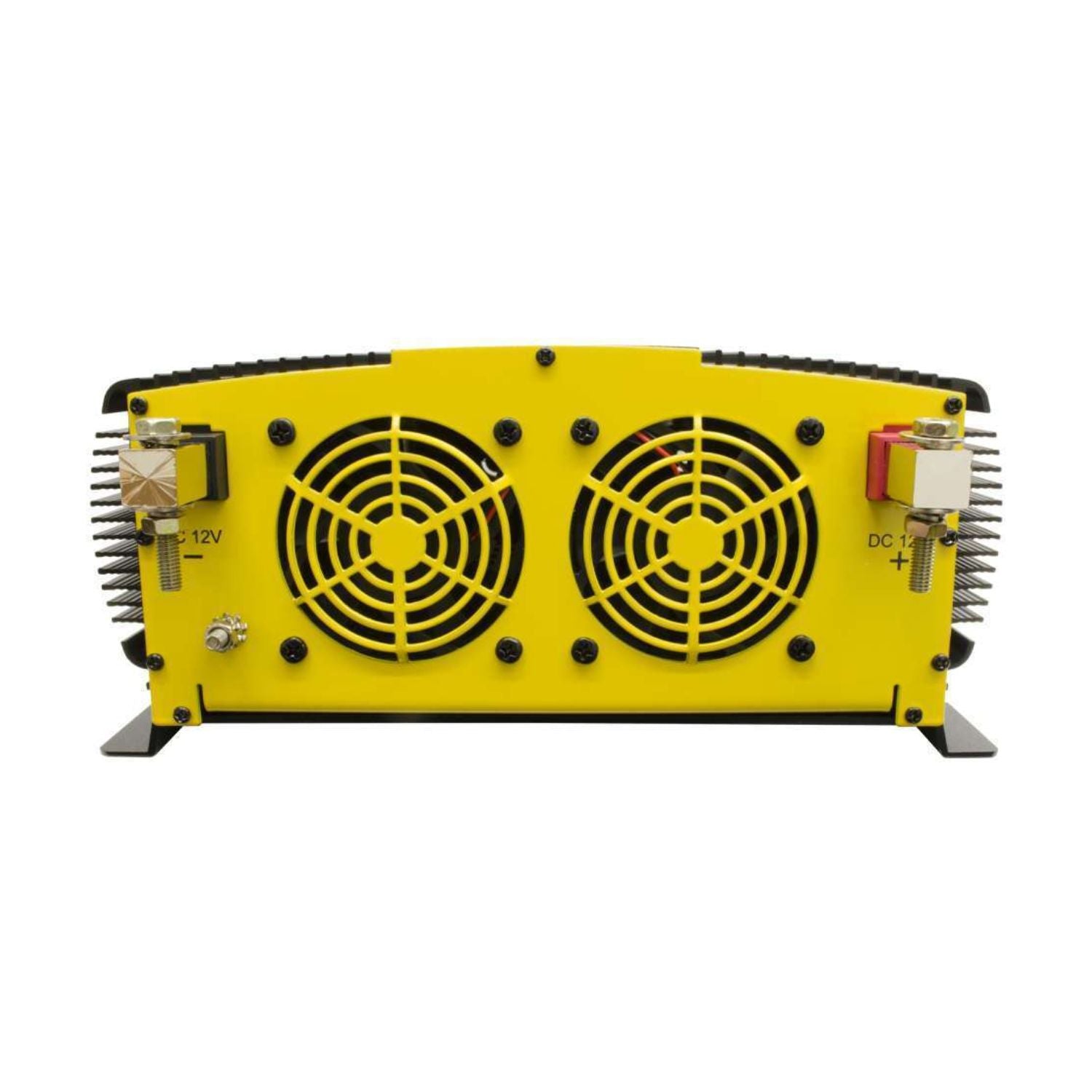

| DC Connection |
Positive and negative terminals, chassis ground stud |
| Input Over Voltage Protection |
16.5 VDC |
| Low Battery Alarm |
10.5 V (±0.5 V) |
| Low Battery Shutdown |
10 V (±0.5 V) |
| Recommended DC Cable |
4/0 AWG |
| Inline Fuse / Circuit Breaker |
F-400 |
| Outlets and Connections |
| AC Outlets |
4 standard North American |
| USB Ports |
1 |
| USB Output |
4.75-5.25 VDC / 2.1 A |
| Remote Option |
Yes, optional remote (sold separately) |
| Remote Range |
Up to 25 ft (8 m) |
| Display |
Digital, battery voltage or wattage (Display Select switch) |
| Indicators |
Single LED, green for power, red for fault |
| Protection |
| Protection |
Overload, over-temperature, over/under voltage, short circuit |
| Short-Circuit Response |
System shutdown |
| Over-Temperature Response |
Shuts down, restarts automatically once cooled |
| Installation |
| Battery Type |
12 V deep-cycle lead-acid; gel and AGM with special charging |
| Battery Connection |
Parallel only |
| Distance to Batteries |
Within 10 ft |
| Total DC Cable Length |
Under 10 ft (3 m), both cables together |
| Fuse Location |
Positive cable, within 12 in (31 cm) of the battery |
| Mounting |
Horizontal |
| Clearance for Airflow |
At least 2 in around the inverter |
| Physical |
| Cooling |
Thermostatically controlled fan |
| Operating Temperature |
32-104 °F (0-40 °C) |
| Storage Temperature |
14-122 °F (-10 to 50 °C) |
| Storage Humidity |
10-95% RH |
| Dimensions (L x W x H) |
18.50 x 9.92 x 4.13 in (470 x 252 x 105 mm) |
| Weight |
15.65 lb (7.10 kg) |
| Certifications and Warranty |
| Warranty |
1 year |
