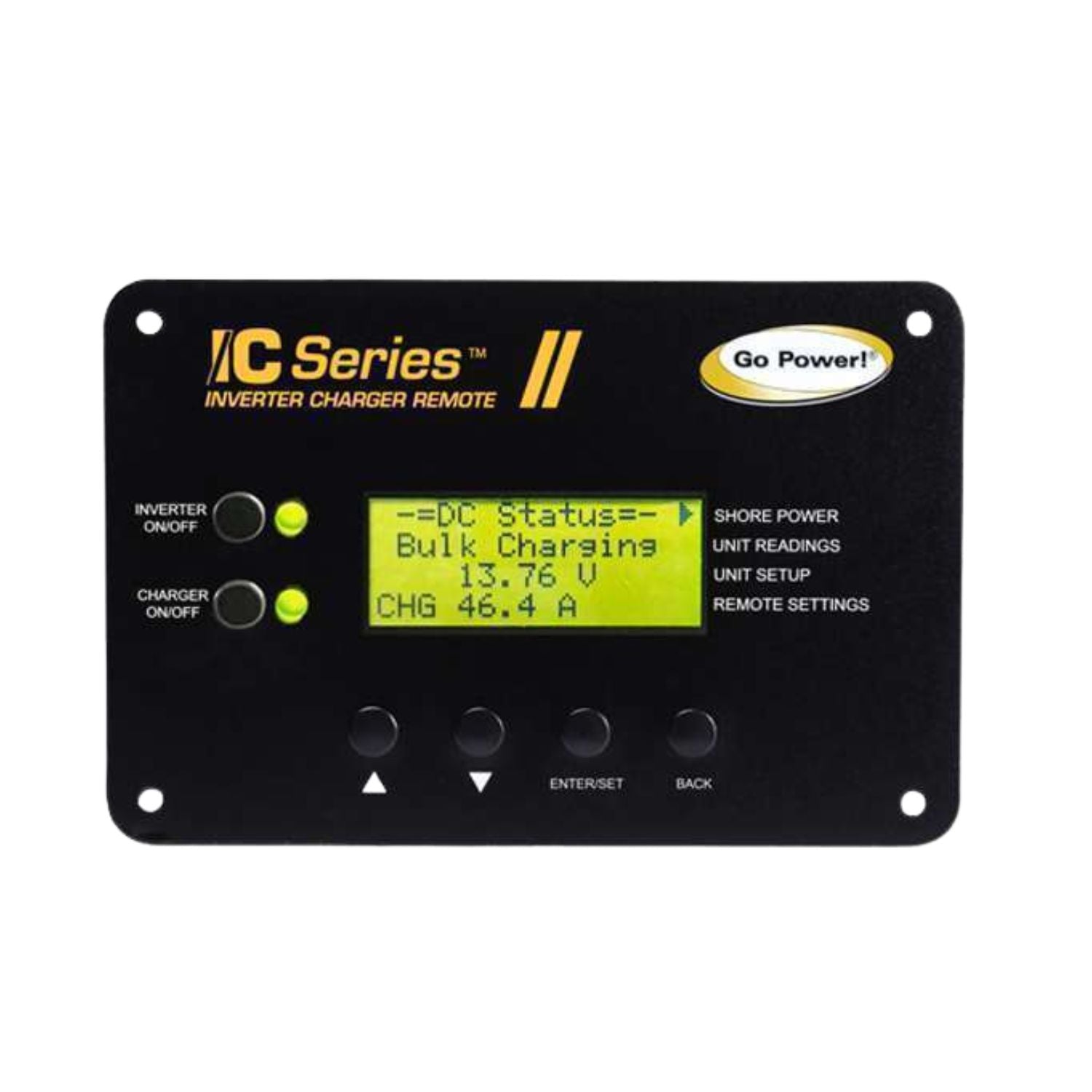

The Go Power! Inverter Charger Remote Puts IC Series Readings and Settings on a 4-Line Display Inside Your RV
The Go Power! GP-ICR-50 is the digital remote for Go Power! IC Series inverter chargers, the GP-IC-2000 and GP-IC-3000. Its 4-line display and simple menus show battery charging, shore power, inverter status and unit readings, and let you change setup and remote settings without going to the inverter charger.
It's the tool you need to move an IC Series unit off its factory defaults. Separate buttons switch the inverter and the charger on and off, and a 50 foot cable is included. It isn't for the AIC Series, which uses the SSW-R switch or a PowerTrak display.
Go Power! Inverter Charger Remote Features
Live Readings at a Glance
The readings menu shows battery voltage to 0.01 volts and battery current, with a negative number while inverting and a positive number while charging, plus a mode tag: PT for pass-through, PS for power sharing, CHG for charging and INV for inverting. It also shows AC input amps, volts and frequency, AC output voltage, battery, transformer and FET temperatures, and any fault code.
Full Control of IC Series Settings
From the setup menu you can set the shore power maximum from 5 to 50 amps, search watts from 5 to 50 watts or off, and the low battery cut-out from 9.0 to 12.2 volts. You can also choose the battery type (gel, flooded, AGM 1, AGM 2 or custom), charge rate, final charge mode (multi-stage, float or silent), absorb time, rebulk voltage and equalize charging.
Separate Inverter and Charger Buttons
Dedicated on/off buttons with green status LEDs control the inverter and charger. The charger button works when shore power is connected, and holding it for 5 seconds starts a bulk charge.
Flush Wall Mounting
The remote draws its power from the inverter charger through the remote cable, so there's no separate power wiring. It mounts in a 3 x 5 inch wall cutout with at least 2 inches of depth behind it, and a PIN lock can keep others from changing your settings.
Real-World Applications
RV control panel. Mount it near your other RV controls and check battery voltage and charging status without opening the inverter compartment.
Matching a smaller pedestal. Lower the shore power maximum so the IC Series trims charging current before your pedestal or generator breaker trips.
Practical Comparison
GP-ICR-50 Versus Running on Factory Defaults
Without the remote, an IC Series unit runs a 30 amp shore input, a 10.5 volt low battery cut-out, the AGM 1 battery type and an 80% charge rate. The IC Series manual says those settings can only be changed with the GP-ICR-50, which also unlocks equalize charging.
Buyer Guidance
Cable and Battery Settings
Use only the supplied remote cable, since Go Power warns that a different cable could permanently damage the IC Series unit. Go Power says the custom battery type can be set up for lithium, but the IC Series manual says to charge only lead-acid type batteries, so check with your battery maker and our team first.
This May Be A Good Fit If
- You own a GP-IC-2000 or GP-IC-3000 inverter charger
- You need to change battery type or charge settings
- You want live readings inside the RV
Common Questions
Which Inverter Chargers Does It Work With?
Go Power! IC Series inverter chargers, the GP-IC-2000 and GP-IC-3000. It doesn't work with AIC Series units.
How Long Is the Cable?
The included remote cable is 50 feet long.
What Warranty Does It Carry?
Go Power lists a 3-year warranty for the GP-ICR-50.
What's Included
- 1 x GP-ICR-50 Inverter Charger Remote
- 1 x 50 Foot Remote Cable
- 4 x Phillips Mounting Screws
Hands-On Control of Your IC Series
The Go Power! Inverter Charger Remote gives you live readings and full setup control for an IC Series inverter charger from a 4-line display inside your RV. If you'd like help choosing settings for your batteries, the Outbound Power team is happy to help.
Go Power! Inverter Charger Remote Specifications
|
| Model |
GP-ICR-50 |
| Fit |
| Compatible With |
Go Power! IC Series inverter chargers (GP-IC-2000, GP-IC-3000) |
| Not Compatible With |
AIC Series inverter chargers |
| Display and Controls |
| Display |
4-line LCD |
| Menus |
Shore Power, Unit Readings, Unit Setup, Remote Settings |
| Buttons |
Inverter on/off, charger on/off, up, down, enter/set, back |
| Status LEDs |
Inverter (green = inverting), charger (green = charging) |
| Readings |
DC volts (0.01 V resolution) and amps, AC input amps/volts/Hz, AC output volts/Hz, battery/transformer/FET temperature, fault code |
| Mode Indicator |
PT (pass-through), PS (power sharing), CHG (charging), INV (inverting) |
| Bulk Charge Start |
Hold charger button 5 seconds (shore power connected) |
| Adjustable IC Series Settings |
| Shore Power Max |
5 to 50 A (30 A default) |
| Search Watts |
Off or 5 to 50 W (5 W default) |
| Low Battery Cut-Out |
9.0 to 12.2 VDC (10.5 VDC default) |
| Max Charge Time |
0 to 25.5 hours (12 hours default) |
| Battery Type |
Gel, Flooded, AGM 1, AGM 2, Custom (AGM 1 default) |
| Custom Absorb, Float and Equalize |
12.0 to 16.0 VDC |
| Charge Rate |
0% to 100% in 10% steps (80% default) |
| Final Charge Mode |
Multi-Stage, Float or Silent (Multi-Stage default) |
| Absorb Charge Time |
0.5 to 24 hours (2 hours default) |
| Equalization |
Active or Inactive (Inactive default) |
| Rebulk Voltage |
12.0 to 16.0 VDC (12.1 VDC default) |
| Remote Settings |
| PIN Lock |
Locked, unlocked or change PIN |
| Backlight Power Save |
Off or 1 to 60 minutes |
| Screen Contrast |
0% to 100% (80% default) |
| Load Defaults |
Restores remote and inverter charger factory settings |
| Physical |
| Faceplate |
5.9 x 3.9 in (149 x 98 mm) |
| Rear Housing |
4.7 x 2.7 in (120 x 69 mm), 1.22 in (31 mm) deep |
| Wall Cutout |
3 x 5 in, 2 in minimum depth behind the wall |
| Mounting Screws |
Four #8 x 3/4 in |
| Cable |
50 ft, RJ11 connection at the remote |
| Power |
Supplied by the inverter charger through the remote cable |
| Warranty |
| Warranty |
3 years |
Go Power! Inverter Charger Remote Manual
