The Go Power! Silver SLIM 100 Watt Solar Kit Puts a Slim 100W Panel on Your RV Roof With the Controller, Cables and Hardware to Charge Your 12V Battery

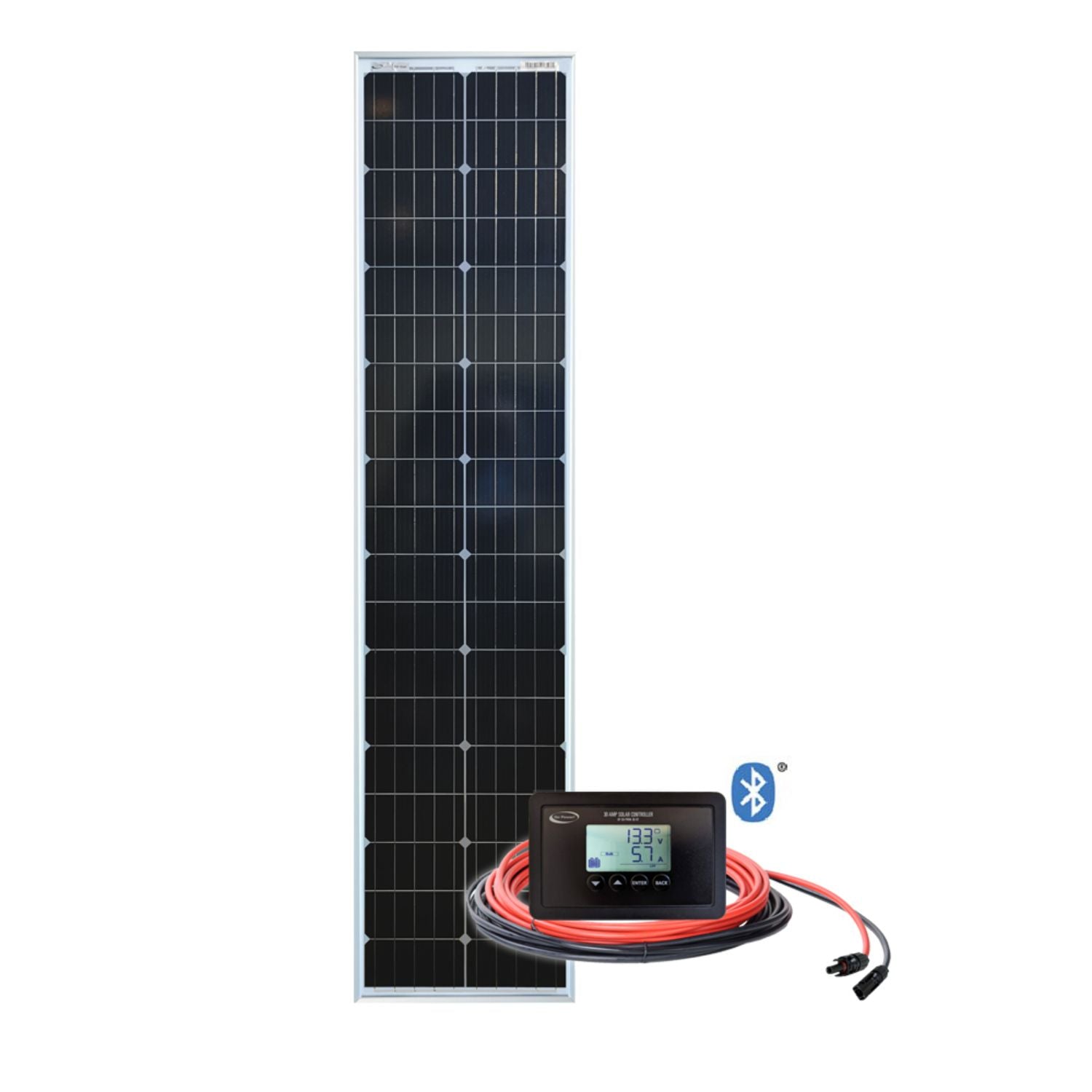

The Go Power! Silver SLIM 100 Watt Solar Kit (GP-SLIM-100-KIT) is a complete 100-watt solar charging kit for a 12 volt RV battery system. It pairs a long, narrow, silver-frame SLIM panel with a 30 amp PWM solar charge controller, 25 feet each of red and black solar extension cable, roof mounting hardware, and the fuse and wiring parts to connect the controller to your battery.
Go Power's RV solar kit manual covers installation on RVs, campers, trailers, fifth wheels and motor homes. The panel turns sunlight into DC electricity, your battery stores it, and the controller keeps the panel from overcharging the battery, so you can run the DC devices connected to your battery without a campsite hookup.
Go Power! Silver SLIM 100 Watt Solar Kit Features

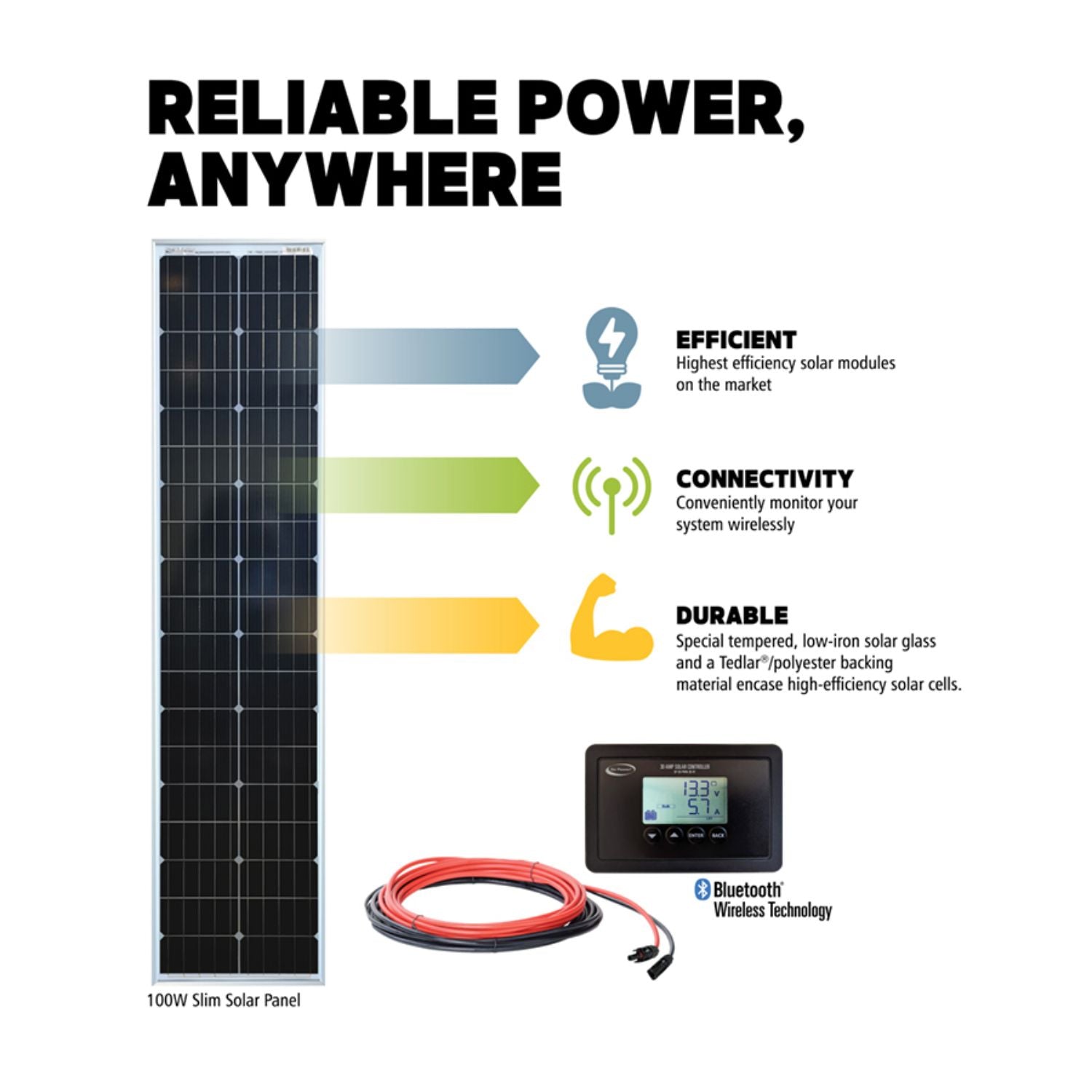

A Slim 100W Panel for Narrow Roof Space

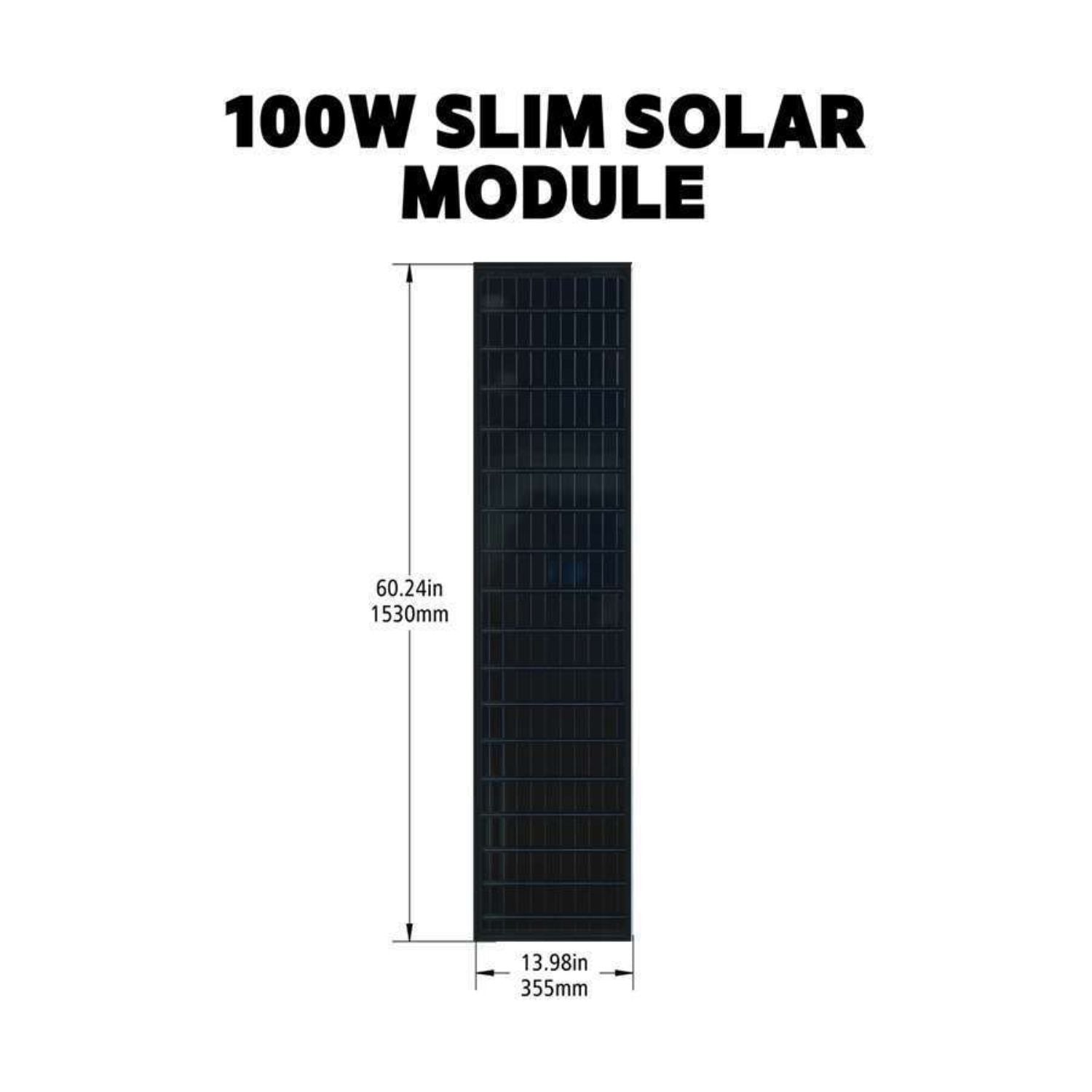

The SLIM panel is long and narrow, with a silver frame, as you can see in the photos. Each panel has 3.3 feet of cable coming from its junction box, and the junction box manufacturer rates the box IP67. Keep it clear of air conditioners and other fixed obstacles, since shading can greatly reduce what the panel produces.

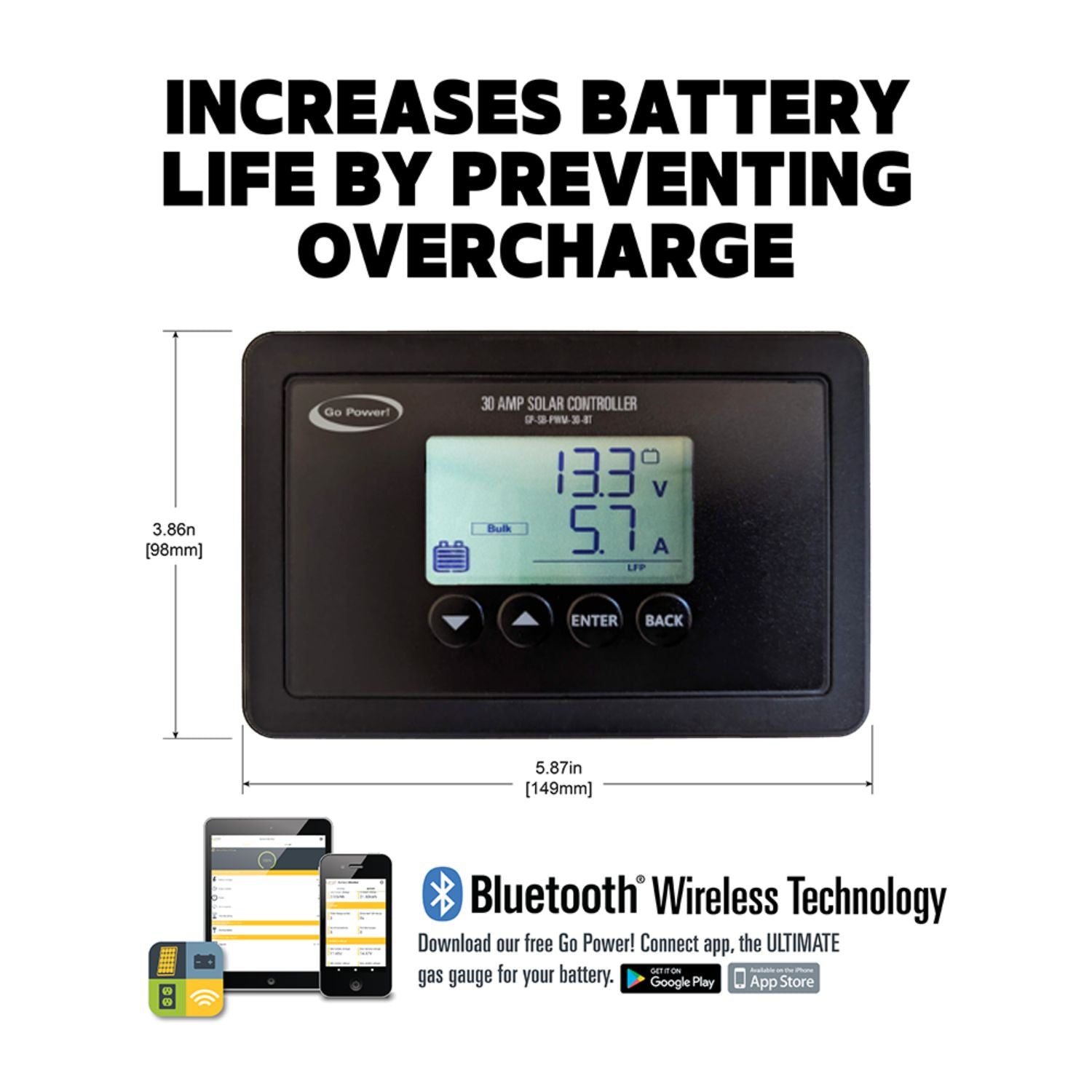

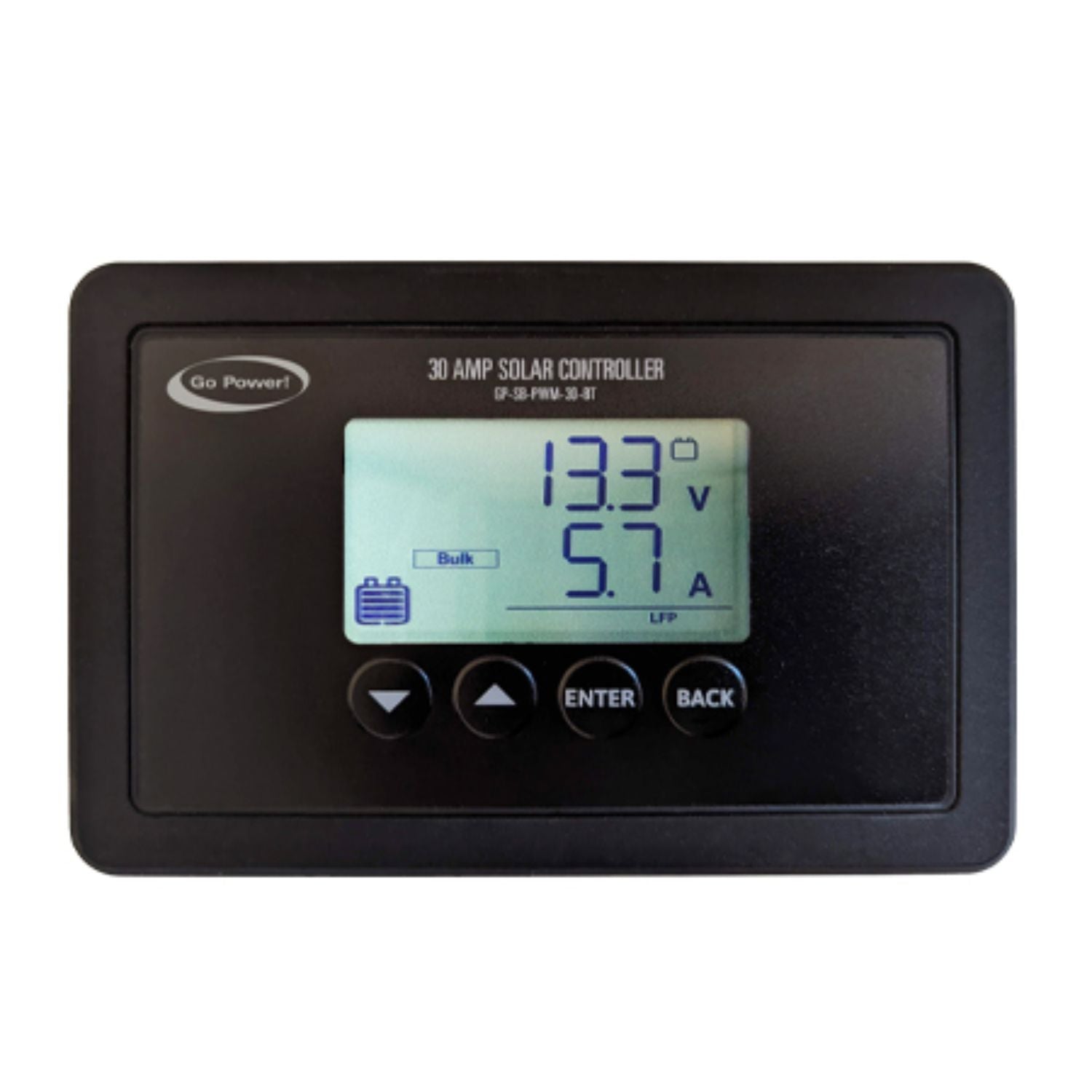

A 30 Amp PWM Controller That Mounts Flush
Per the kit manual, the controller mounts flush in a wall. You mark the four mounting holes and the cutting line with the template in the controller's manual, cut the opening with a keyhole or jig saw, and fasten the controller with four screws. Go Power suggests eye level, where you can easily see it, in a spot the solar cables and battery cables can reach.
25 Feet of Red and Black Solar Cable

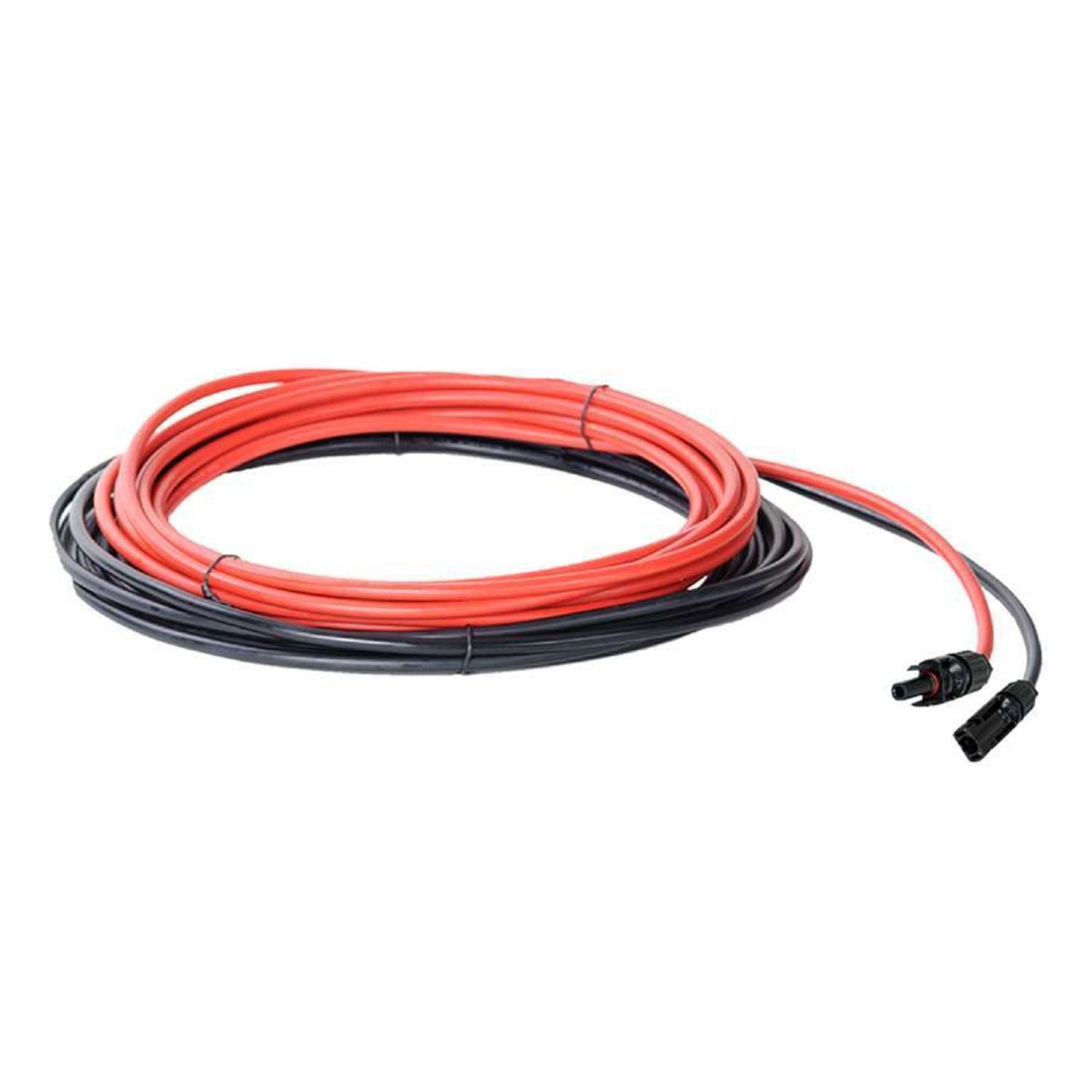

A 25 foot red positive and a 25 foot black negative solar extension cable run from the roof to the controller. The manual says to cut them to length at the controller, leaving some slack for strain relief, and use the leftover cable to connect the controller to the battery. If you need more battery cable, Go Power recommends an equivalent 10 gauge wire rated UL/cUL/USE2.
Fuse and Battery Connection Parts Included
The kit includes a fuse holder, a 30A fuse, two 12-10 AWG butt splices, heat shrink and two ring terminals. The fuse holder splices into the positive cable from the controller, as close to the battery as you can safely reach, and the ring terminals connect the cables directly to the battery.
Roof Hardware and Cable Management
Four mounting feet bolt to the four outer holes in the panel frame with 1/4 inch bolts, lock nuts and washers, then fasten to the roof with eight #10-16 x 1 inch screws. Six cable clamps with #6 x 3/4 inch screws and six tie wraps hold the cable run in place along the roof and inside the RV.
Real-World Applications

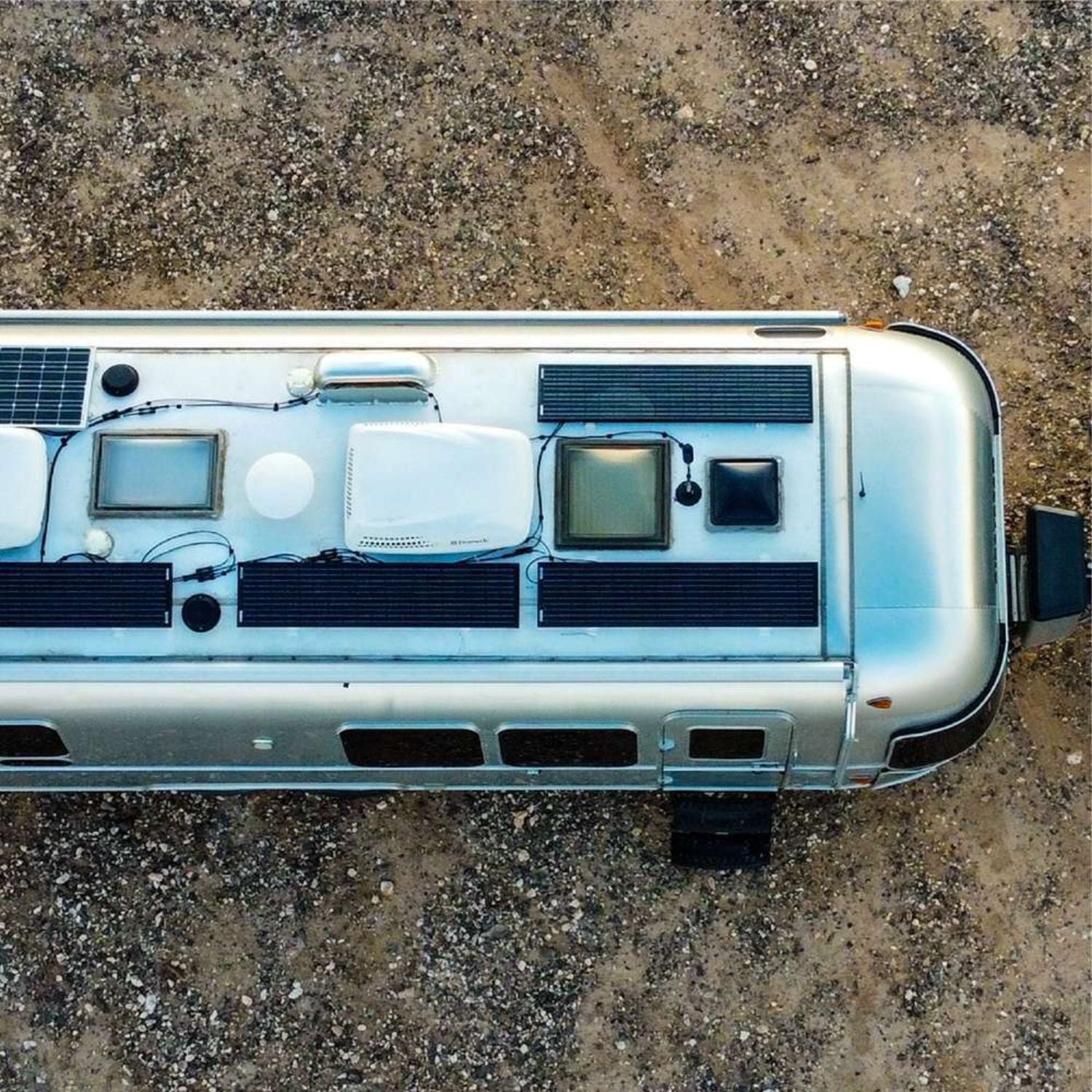

Long, narrow roof space. The slim panel's shape suits a strip of open roof.
Camping without hookups. Keep your RV battery charged from the sun instead of shore power or a generator, as long as you manage your loads.
Starting small. Begin with one panel, then add a SLIM-100E expansion kit if your power needs grow.
Practical Comparison
SLIM-100 Kit Versus the SLIM-100E Expansion Kit
Per the kit manual's parts checklist, the SLIM-100 kit includes the panel, the PWM 30 amp controller, both 25 foot cables, the fuse parts and the cable management hardware. The SLIM-100E includes a panel, its mounting feet and hardware, and two expansion connectors that join it in parallel to the SLIM-100 panel, with no controller or cables.
Solar Charging Kit Versus a Solar and Inverter System
This kit charges your 12V battery and doesn't include an inverter, so it supports the devices that already run from your battery. A solar and inverter system adds an inverter to run AC devices from the same battery bank.
Buyer Guidance
Plan the Battery Bank
Batteries aren't included. The kit manual shows 12V banks made from two or four 12V batteries in parallel, two 6V batteries in series, or four 6V batteries in series and parallel. Go Power recommends connecting the controller directly to the battery and installing the 30A fuse last, after you've checked every connection. As with any off-grid system, you'll need to manage your loads, and your location and season affect how much energy the panel collects.
Plan the Roof Install
Go Power recommends installation by an RV technician or professional electrician. Mount the panel at least 3 feet back from the front of the RV to reduce wind load, on a surface at least 1/2 inch thick. Use all four mounting feet, seal under and around each one, and cover the panel face with an opaque material, such as its shipping box, while you wire it.
This May Be A Good Fit If
- You run a 12V battery system in an RV, camper or trailer
- Your open roof space is long and narrow
- You want a complete kit with fuse and wiring parts
- You'd like to start with one panel and expand later
Common Questions
Does the Kit Include a Battery or Inverter?
No. It charges a 12V battery bank you supply, and it doesn't include an inverter.
How Do the Cables Get Into the RV?
The kit manual gives three routes. You can drill a 5/8 inch hole in the side of the refrigerator vent and fit a rubber grommet (not included), thread the cables through the vent screen, or plug them into a cable entry plate if your RV has one.
Can I Add Another Panel?
Yes. The SLIM-100E expansion kit connects a second panel in parallel. Go Power's manual has you add up the panels' short circuit current, multiply by 1.25 and keep the result within the controller's rating, and keep the combined maximum power current at or below 30A.
How Do I Care for the Panel?
Clean it monthly with water and a soft sponge or cloth, and skip the pressure washer. Check your connections one week after installation, and have the system inspected once a year.
What's Included
- 1 x 100W SLIM Solar Panel
- 1 x PWM 30 Amp Solar Charge Controller
- 1 x SC Red Positive Solar Extension Cable, 25 Ft
- 1 x SC Black Negative Solar Extension Cable, 25 Ft
- 4 x Solar Panel Mounting Feet
- 4 x 1/4 In Bolts
- 4 x 1/4 In Lock Nuts
- 8 x 1/4 In Washers
- 8 x #10-16 x 1 In Screws
- 6 x #6 x 3/4 In Screws
- 2 x Butt Splices, 12-10 AWG
- 1 x Fuse Holder
- 1 x 30A Fuse
- 2 x Heat Shrink
- 6 x Tie Wraps
- 6 x Cable Clamps
- 2 x Ring Terminals
Complete Solar Charging in a Slim Format
The Go Power! Silver SLIM 100 Watt Solar Kit brings a slim 100W panel, a 30 amp PWM controller, 25 foot cables, fuse parts and roof hardware together in one box for your 12V RV battery. If you'd like help planning your battery bank or your install, the Outbound Power team is happy to help.

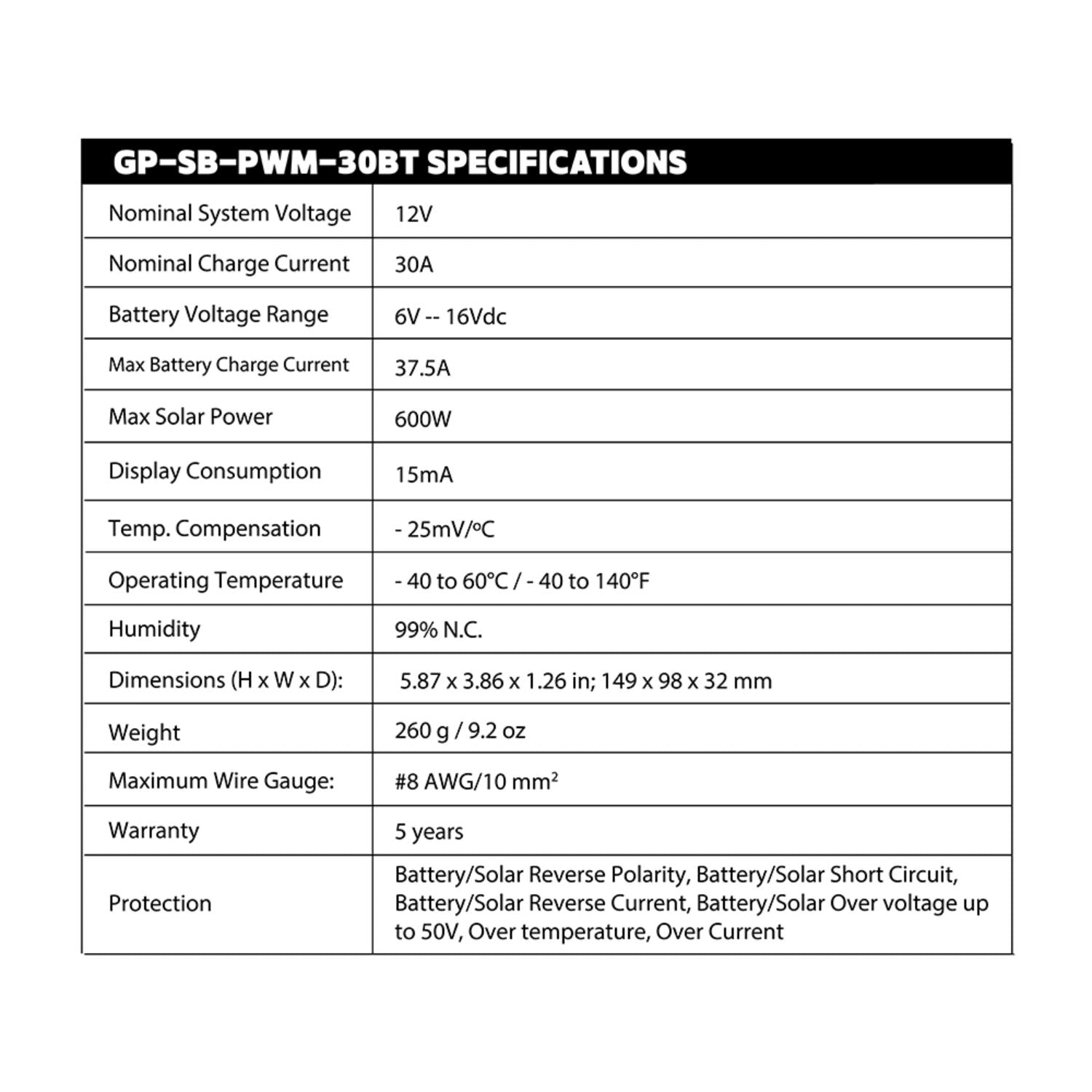

Go Power! Silver SLIM 100 Watt Solar Kit With 30A PWM 30 Bluetooth Controller Specifications
|
| Model |
GP-SLIM-100-KIT |
| Kit Contents |
| Solar Panel |
1 x 100 W SLIM panel |
| Charge Controller |
1 x 30 A PWM |
| Solar Extension Cables |
25 ft red (positive) + 25 ft black (negative), SC |
| Fuse |
1 x 30 A fuse with fuse holder |
| Mounting Hardware |
4 mounting feet, 4 x 1/4 in bolts, 4 x 1/4 in lock nuts, 8 x 1/4 in washers, 8 x #10-16 x 1 in screws |
| Wiring Parts |
2 x 12-10 AWG butt splices, 2 heat shrink, 2 ring terminals |
| Cable Management |
6 cable clamps, 6 x #6 x 3/4 in screws, 6 tie wraps |

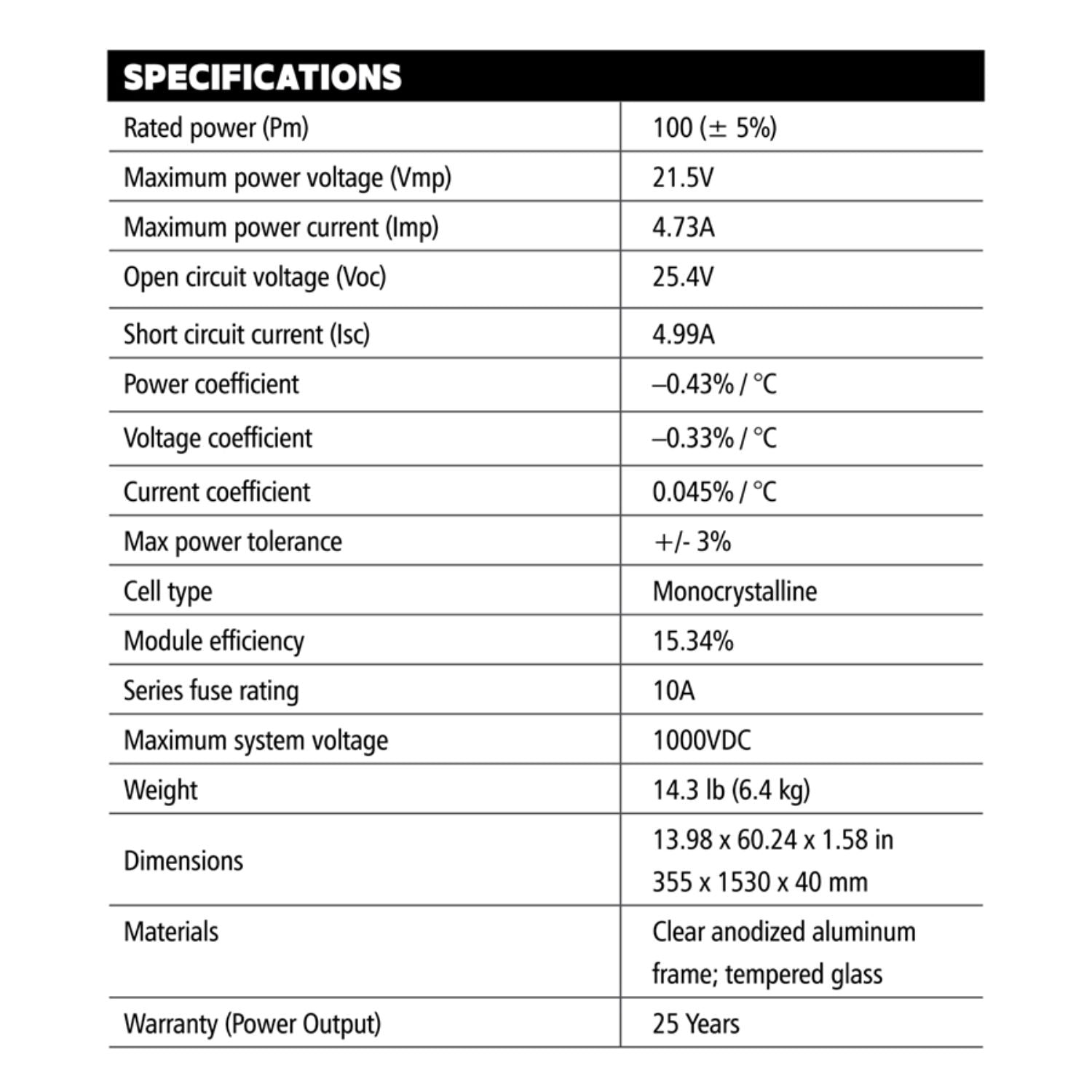

| Solar Panel |
| Rated Power |
100 W |
| Frame Color |
Silver |
| Panel Lead Length |
3.3 ft from junction box |
| Junction Box Rating |
IP67 (junction box manufacturer) |
| Multiple Panels |
Wired in parallel |
| Expansion Kit |
GP-SLIM-100E |
| Charge Controller |
| Controller Type |
PWM |
| Controller Rating |
30 A |
| Mounting |
Flush, wall cut-out, 4 screws |
| Combined Panel Imp |
30 A maximum |
| Battery |
| System Voltage |
12 V |
| Battery Bank |
Not included |
| Installation |
| Battery Fuse |
30 A, positive cable, close to the battery |
| Added Battery Cable |
10 gauge, rated UL/cUL/USE2 |
| Mounting Surface |
At least 1/2 in thick |
| Panel Placement |
At least 3 ft from the front of the RV |
