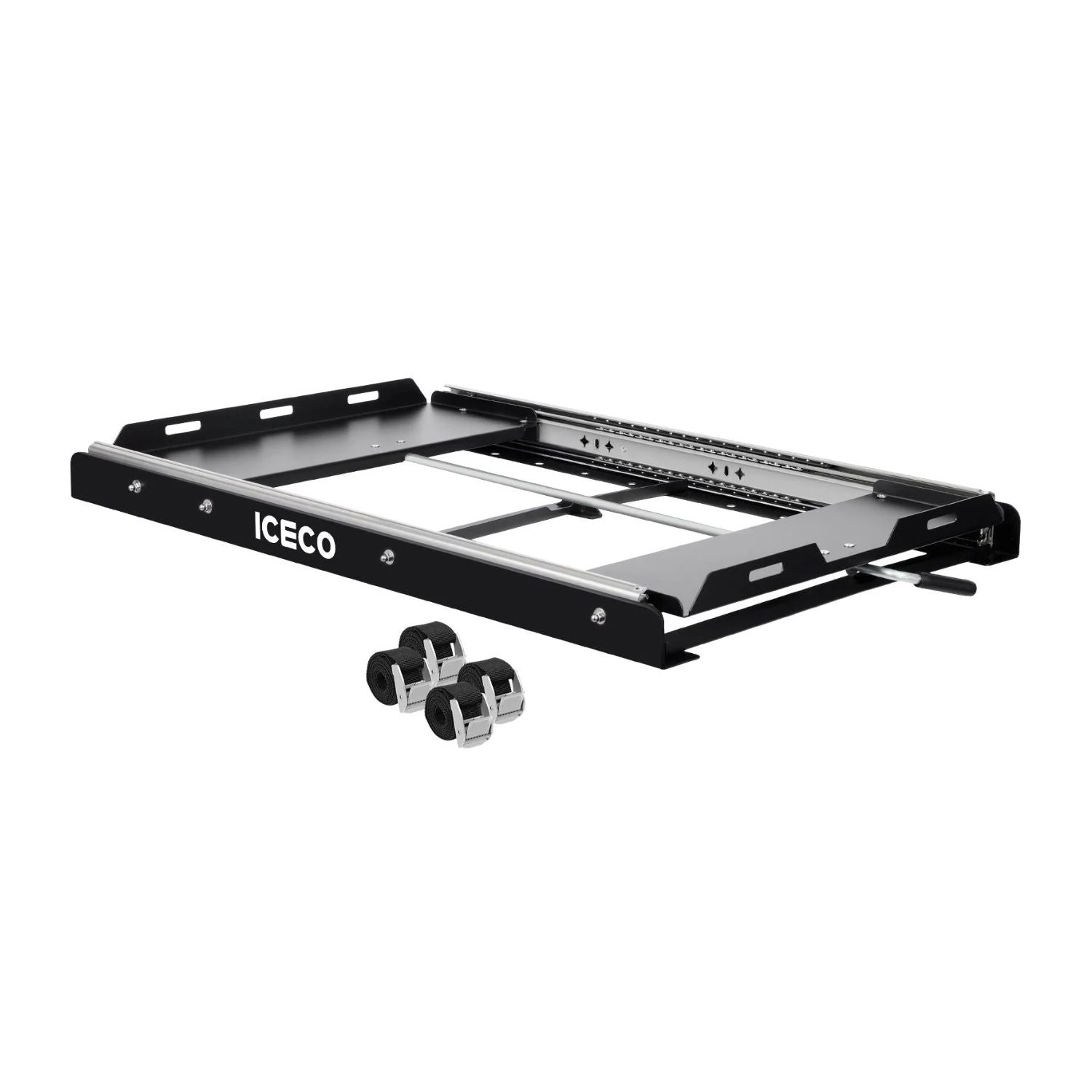

The ICECO Mounting Slide of JPPro/VL45/APL35/VL35Pro/VL45Pro Freezer Pulls Your Fridge Out and Locks It Steady
This ICECO mounting slide is made for six ICECO portable fridges, the APL35, JP40Pro, JP50Pro, VL45, VL35ProS and VL45ProS. It mounts in your vehicle and carries the fridge out on durable slide rails, so you can reach it without climbing into the cargo area.
A 3-position locking mechanism holds it closed, half open or fully extended. It suits road trippers and campers who carry one of these fridges and want it secure while driving and easy to reach at camp.
ICECO Mounting Slide of JPPro/VL45/APL35/VL35Pro/VL45Pro Freezer Features
One Slide for Six ICECO Fridges
The same slide fits the APL35, JP40Pro, JP50Pro, VL45, VL35ProS and VL45ProS, so one slide covers several ICECO models.
Heavy-Duty Steel Construction
Durable slide rails and heavy-duty steel construction give the slide a solid base for the fridge.
3-Position Locking Mechanism

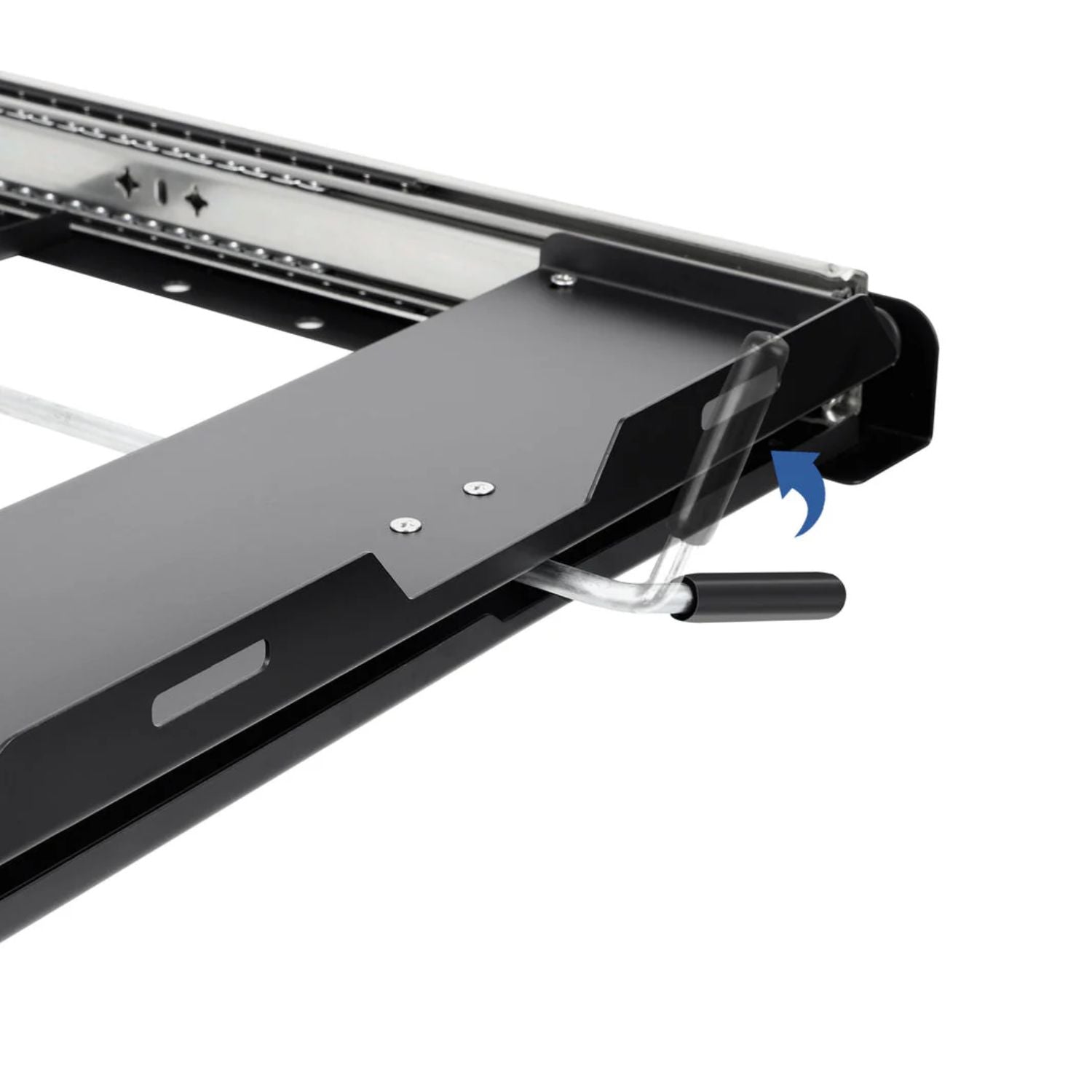

Turn the release handle anticlockwise to unlock, move the tray to closed, half or fully extended, then turn the handle clockwise to lock it there.

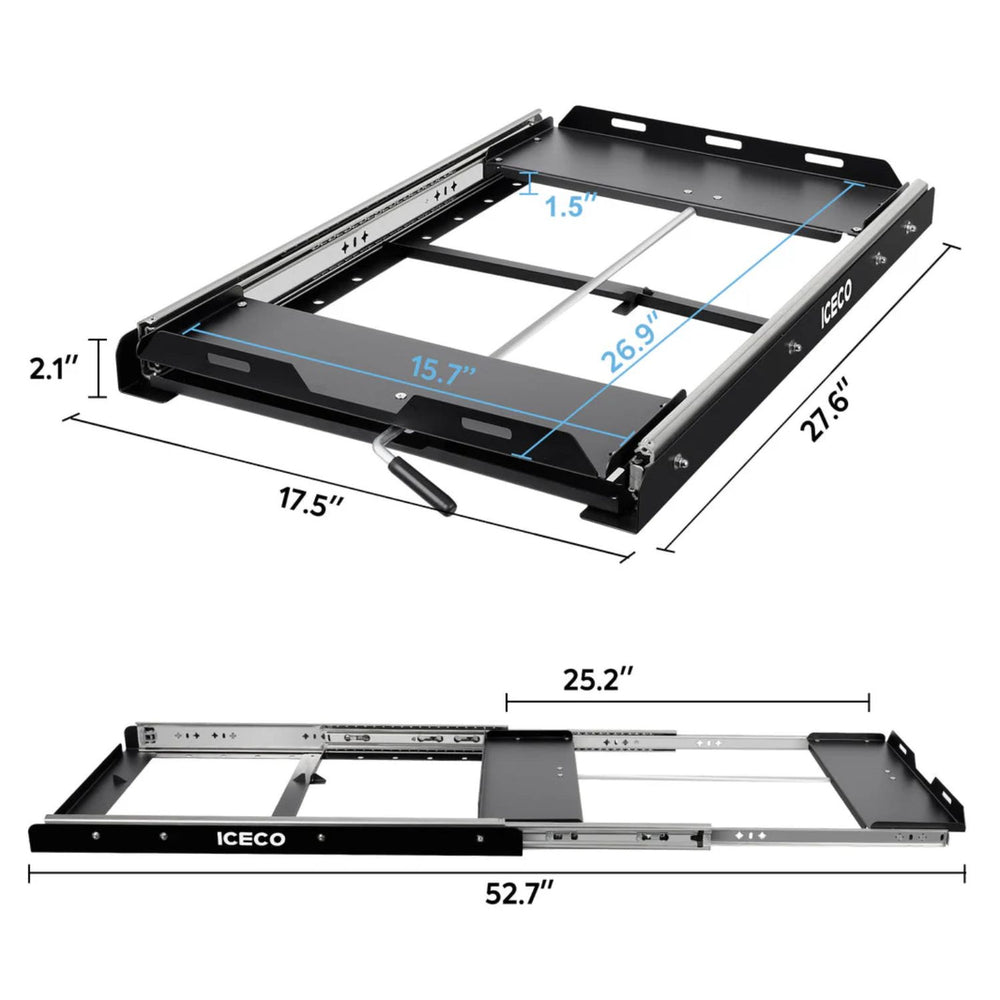

Closed and Open Size
Closed, the slide measures 28.1 x 18.4 x 2.62 in. Fully open, it reaches 53.28 in.
Published Heights With the Slide
ICECO lists the total height with each fridge on the slide, from 17.2 in with the VL35ProS or APL35 to 22.5 in with the JP50Pro. Check these against your cargo area before you buy.
Real-World Applications
SUV cargo areas. Pull the fridge to the tailgate instead of reaching into the back.
Weekend camping. Lock the slide half open for quick access, or fully open to load the fridge.
Daily driving. Lock it closed so the fridge stays put on the road.
How It Compares to Common Alternatives
Versus a fridge tied to the floor. A strapped-down fridge deep in the vehicle is hard to reach. The slide brings it out and locks it in place.
Versus the APL55/VL60PRO Mounting Slide. ICECO makes that slide for the APL55 and VL60Pro. This one is for the six models listed here.
Is This Slide the Right Fit
-

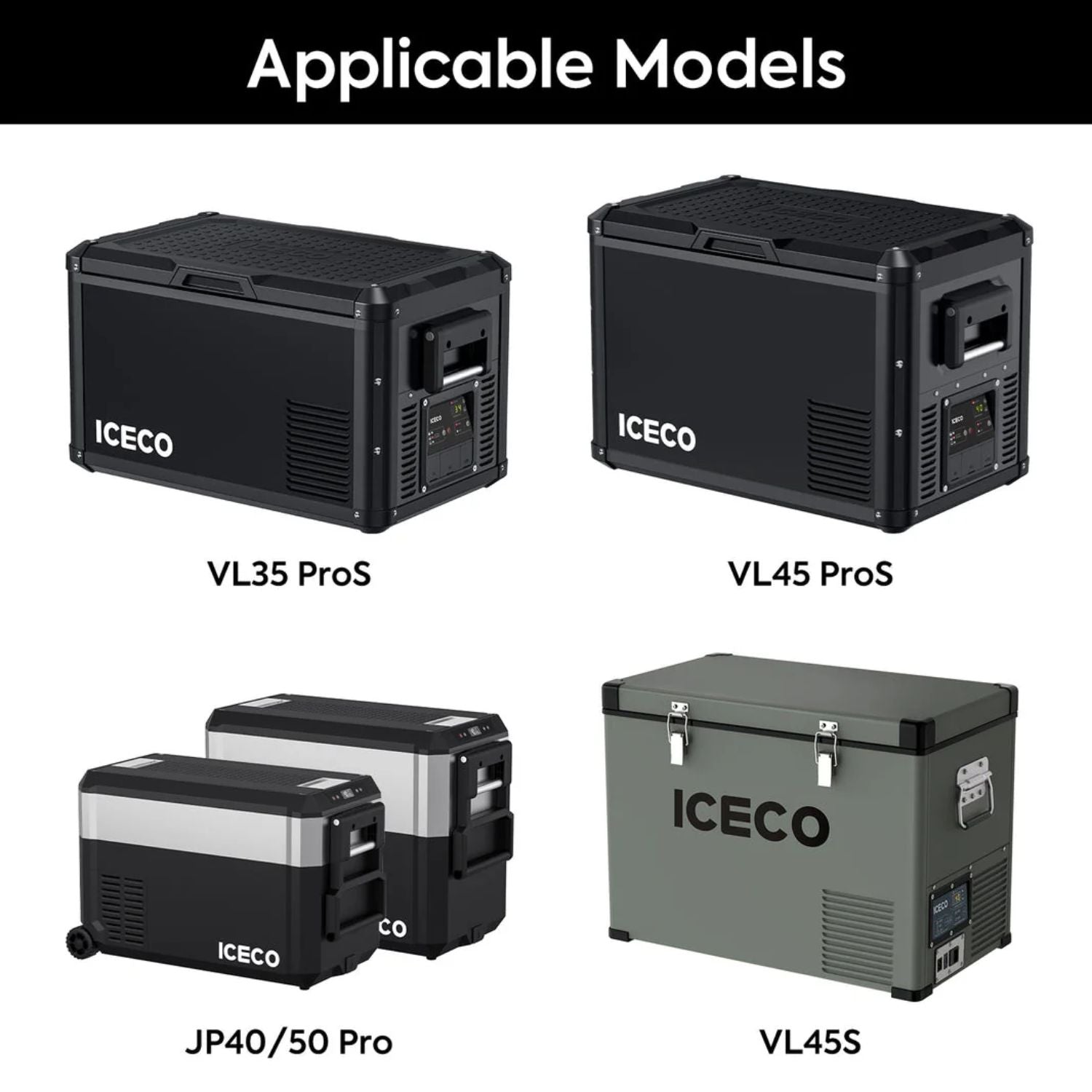

Fridge. Fits the ICECO APL35, JP40Pro, JP50Pro, VL45, VL35ProS and VL45ProS.
-
Space. Closed, it is 29.7 in long with the handle. Fully open, it reaches 54.92 in with the handle.
-

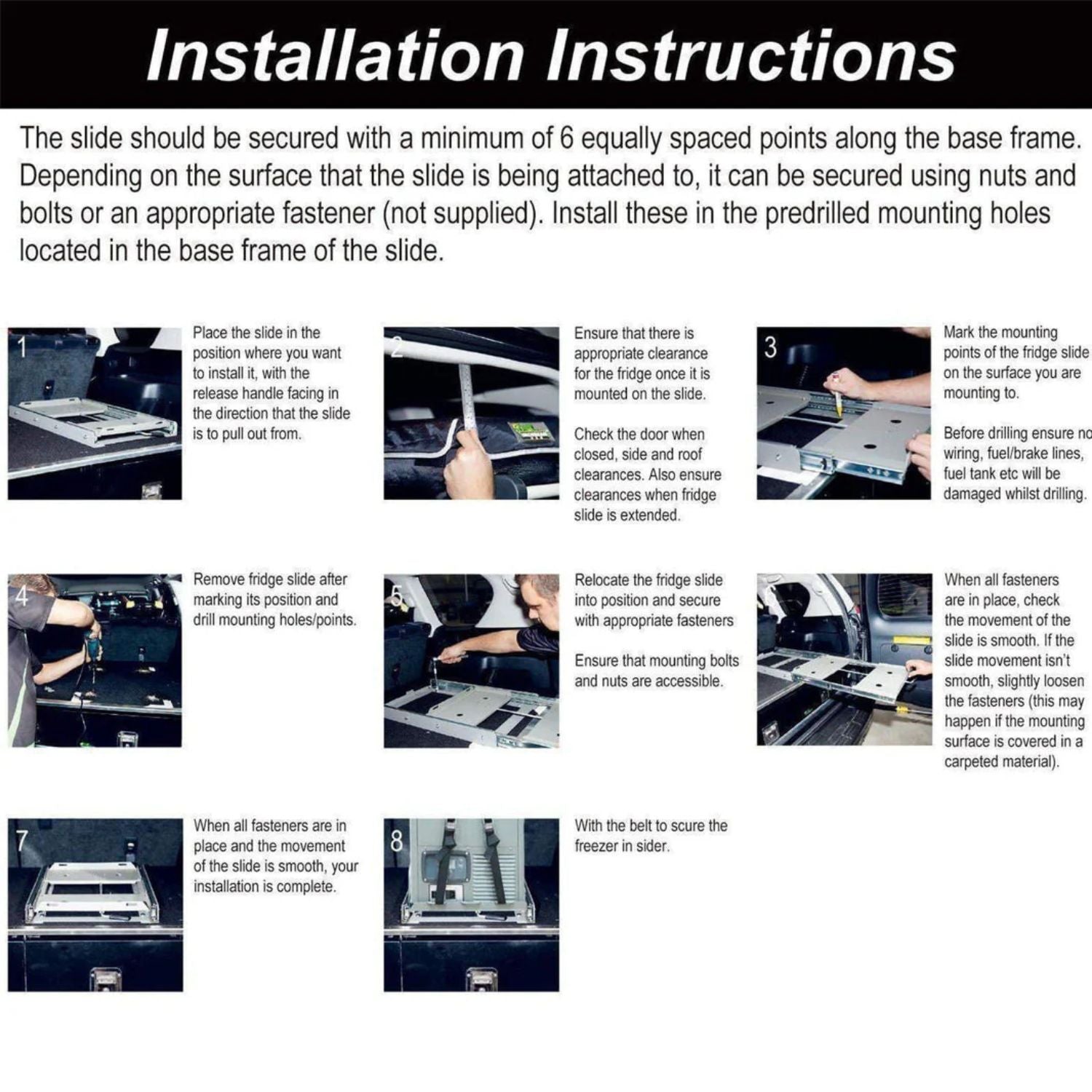

Fasteners. Mounting screws are not included. Secure the slide at a minimum of six equally spaced points with nuts and bolts or another appropriate fastener.
-
Drilling. Before drilling, make sure no wiring, fuel or brake lines, or fuel tank will be damaged.
This may be a good fit if
- You own one of the six listed fridges
- You want the fridge out of the cargo area at camp
- You are comfortable drilling and bolting
Common Questions
How Tall Is My Fridge on the Slide?
VL35ProS 17.2 in, APL35 17.2 in, JP40Pro 19.5 in, VL45ProS 19.6 in, VL45 20.7 in and JP50Pro 22.5 in.
Does It Fit the APL55?
No. ICECO makes the APL55/VL60PRO Mounting Slide for the APL55.
Are Mounting Screws Included?
No. Fasteners are not supplied. Install them in the predrilled holes in the base frame.

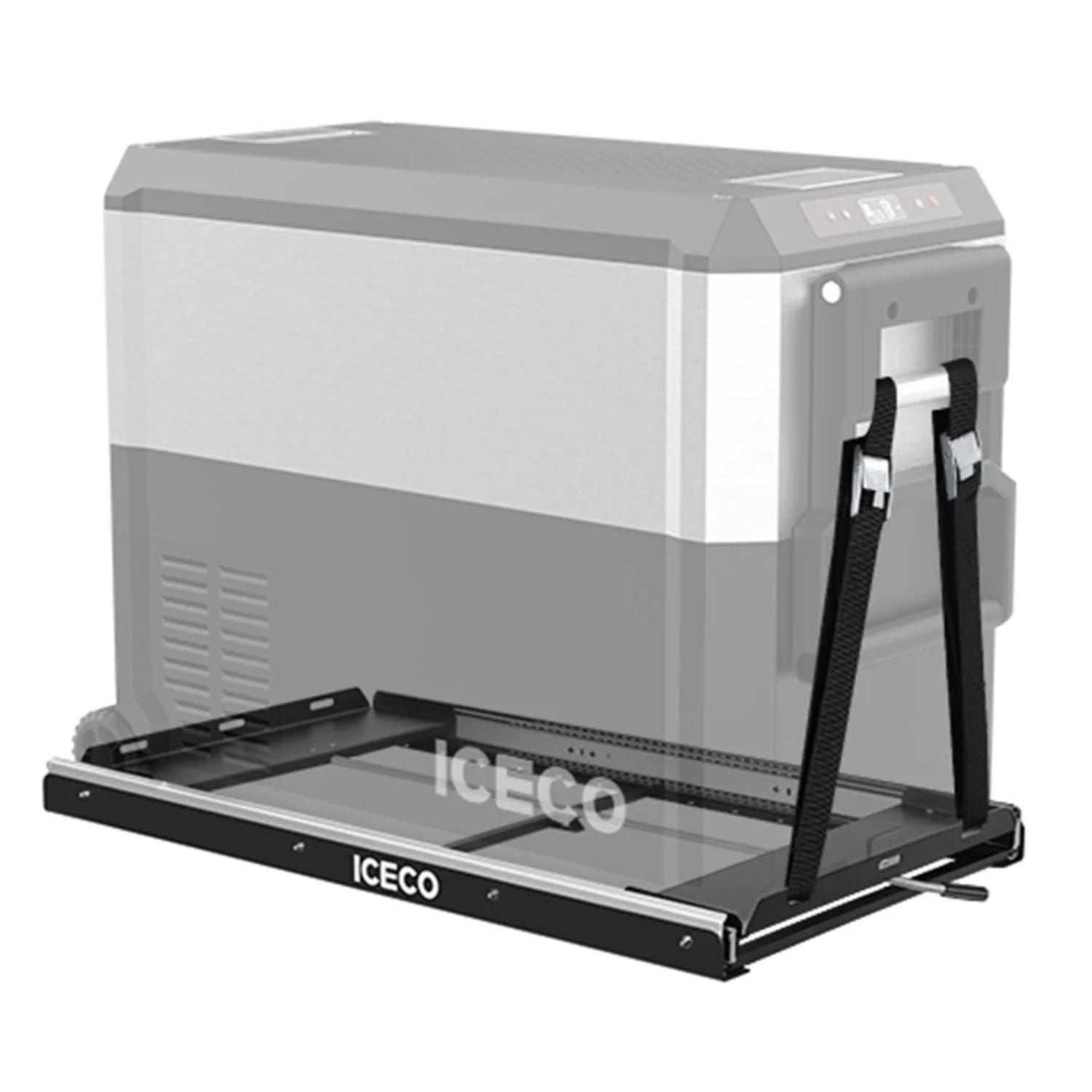

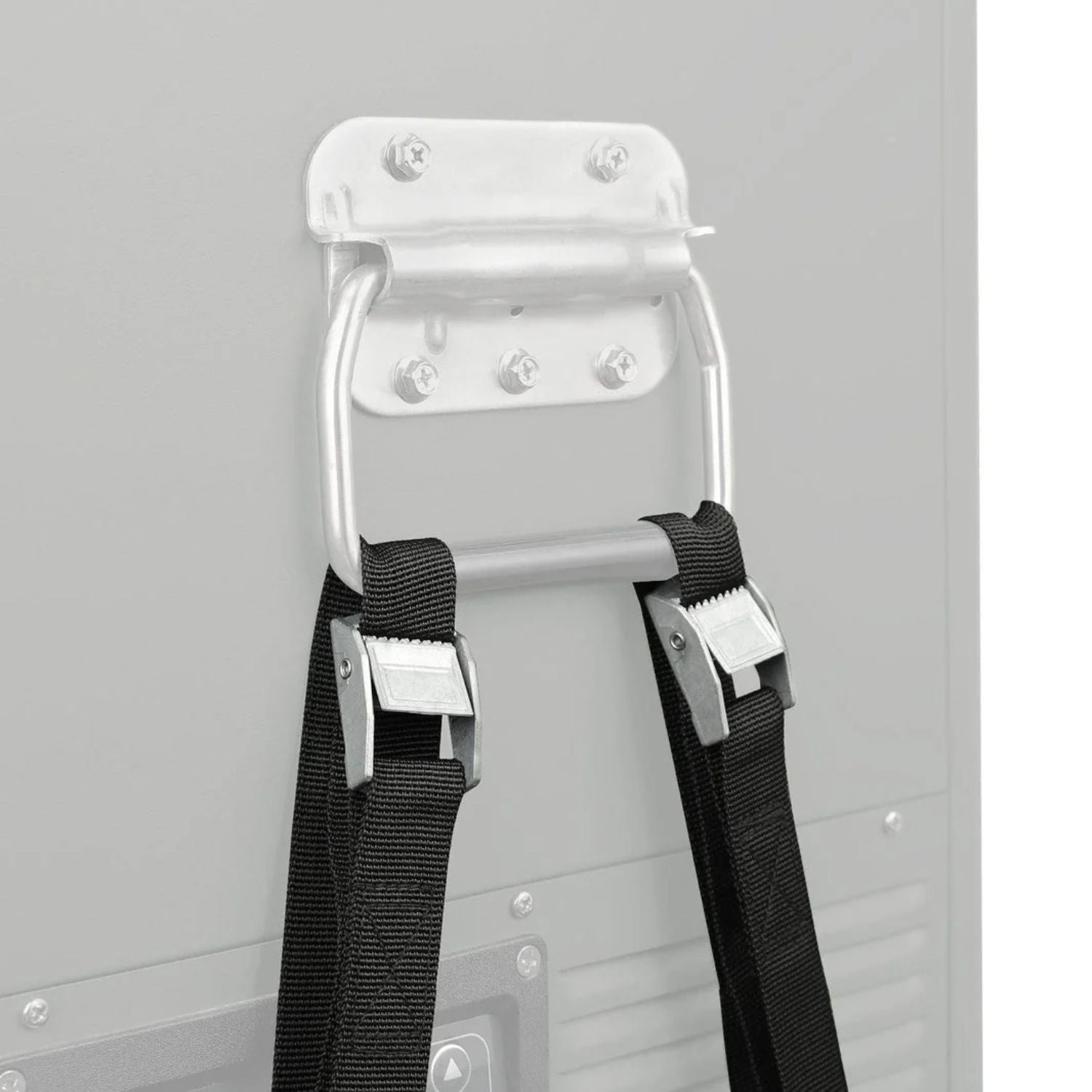

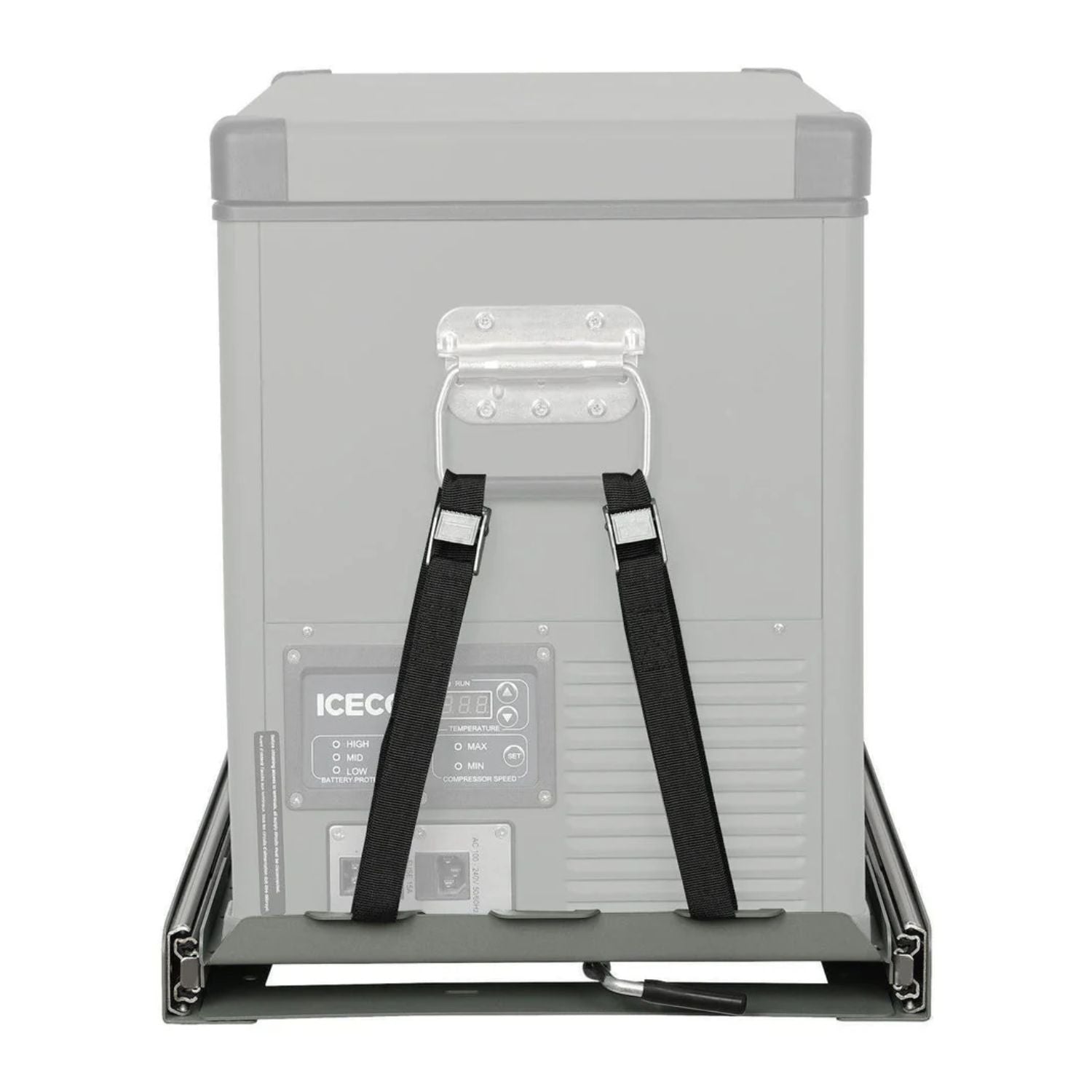

How Do I Secure the Fridge?
Strap it tight so it cannot move. ICECO recommends its fridge straps.
What's Included
Easy Access for Your ICECO Fridge
The ICECO Mounting Slide of JPPro/VL45/APL35/VL35Pro/VL45Pro Freezer gives your fridge a steel base and three locking positions. If you would like help with fit or install planning, the Outbound Power team is happy to help.
ICECO JPPro/VL45/APL35/VL35Pro/VL45Pro Mounting Slide Specifications
|
| Fit |
| Fits |
ICECO APL35, JP40Pro, JP50Pro, VL45, VL35ProS, VL45ProS |
| Construction |
| Material |
Heavy-duty steel |
| Rails |
Durable slide rails |
| Locking |
3 positions (closed, half, fully extended) |
| Release |
Rotating release handle |
| Size |
| Closed (L x W x H) |
28.1 x 18.4 x 2.62 in |
| Length With Handle |
29.7 in |
| Width |
18.4 in including screws on both sides |
| Tray Inside |
26.9 x 15.7 in |
| Fully Open Length |
53.28 in |
| Fully Open Length With Handle |
54.92 in |
| Height With VL35ProS |
17.2 in / 43.69 cm |
| Height With APL35 |
17.2 in / 43.69 cm |
| Height With JP40Pro |
19.5 in / 49.53 cm |
| Height With VL45ProS |
19.6 in / 49.78 cm |
| Height With VL45 |
20.7 in / 52.58 cm |
| Height With JP50Pro |
22.5 in / 57.15 cm |
| Installation |
| Mounting Points |
Minimum 6, equally spaced along base frame |
| Mounting Holes |
Predrilled in base frame |
| Fasteners |
Nuts and bolts or appropriate fastener, not included |
| Mounting Screws |
Not included |
| Securing the Fridge |
Straps, ICECO fridge straps recommended |
