The Renogy 1.2kW Essential Solar Kit Is a Complete 48V Off-Grid Power System With 1,280W of Solar and 10.24kWh of Lithium Storage
The Renogy 1.2kW Essential Solar Kit is an all-in-one off-grid solar system for cabins, tiny homes, sheds, workshops and rural homes. It includes 4 Renogy 320W N-type monocrystalline panels (1,280W total), 4 Renogy 12V 200Ah Core Mini lithium batteries wired as a 48V bank (10.24kWh), a 48V 3500W pure sine wave solar inverter charger, a 5-string solar combiner box, DC circuit breakers and breaker box, heavy-gauge cables and a BT-2 Bluetooth module for remote monitoring.
Renogy positions this 1,280W system as an entry-level solution that can power a tiny home or cabin's appliances for 3 to 4 days on stored energy, depending on use. The inverter charger combines a solar charge controller, a 3500W inverter and a 40A AC battery charger in one unit, so you can charge from solar, a generator or the grid. Panels mount on your roof or the ground, and the batteries can be stored in any convenient, protected space.
Renogy 1.2kW Essential Solar Kit Features

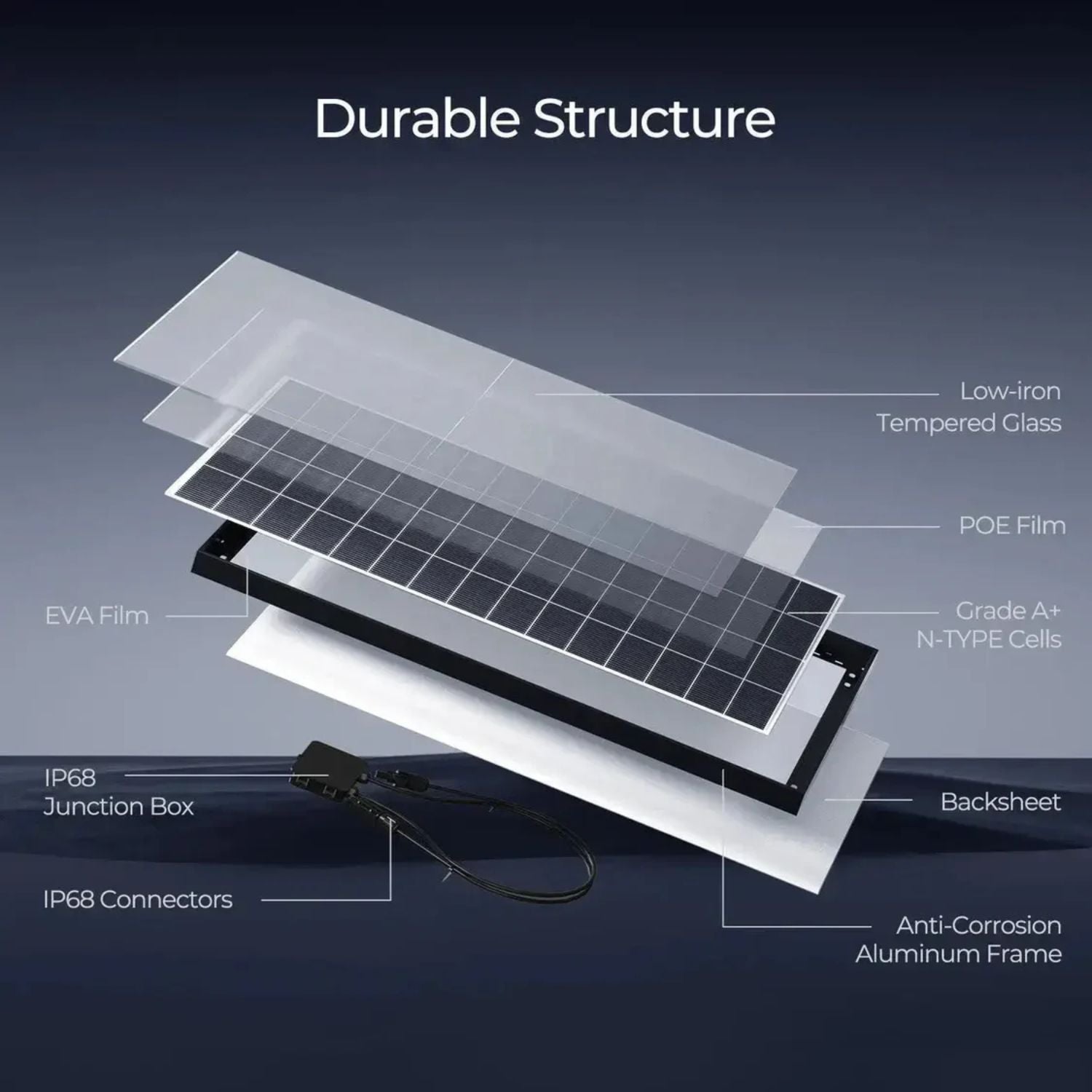

4 x 320W N-Type Panels
N-type cells deliver 22.2% module efficiency in a 64.6 x 34.7 inch frame, with a 10-year output, materials and workmanship warranty.
10.24kWh Lithium Battery Bank
4 Core Mini 12V 200Ah LiFePO4 batteries form a 48V bank rated for 5,000 cycles at 80% depth of discharge. Each battery has a 200A BMS with low-temperature protection and an IP65 case.

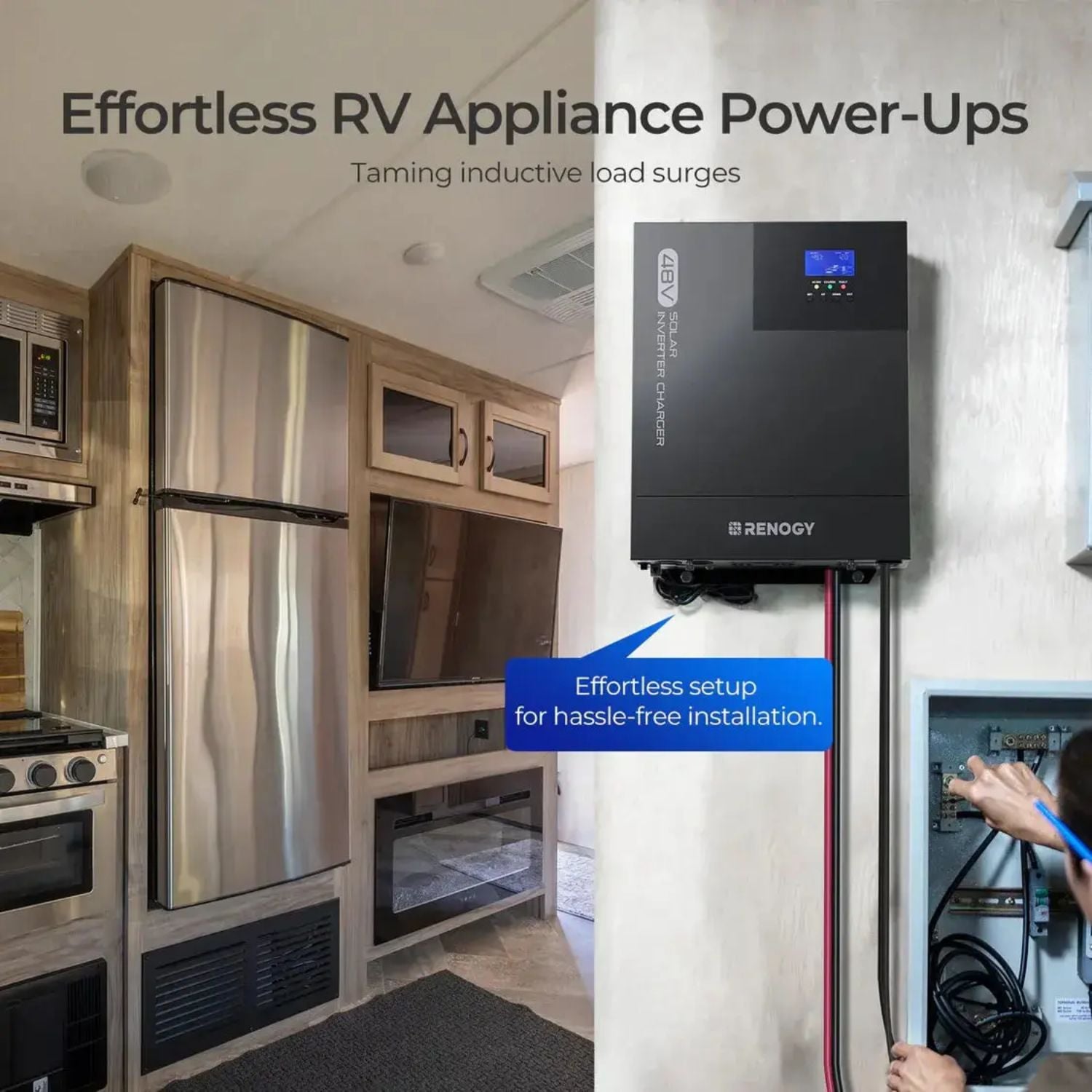

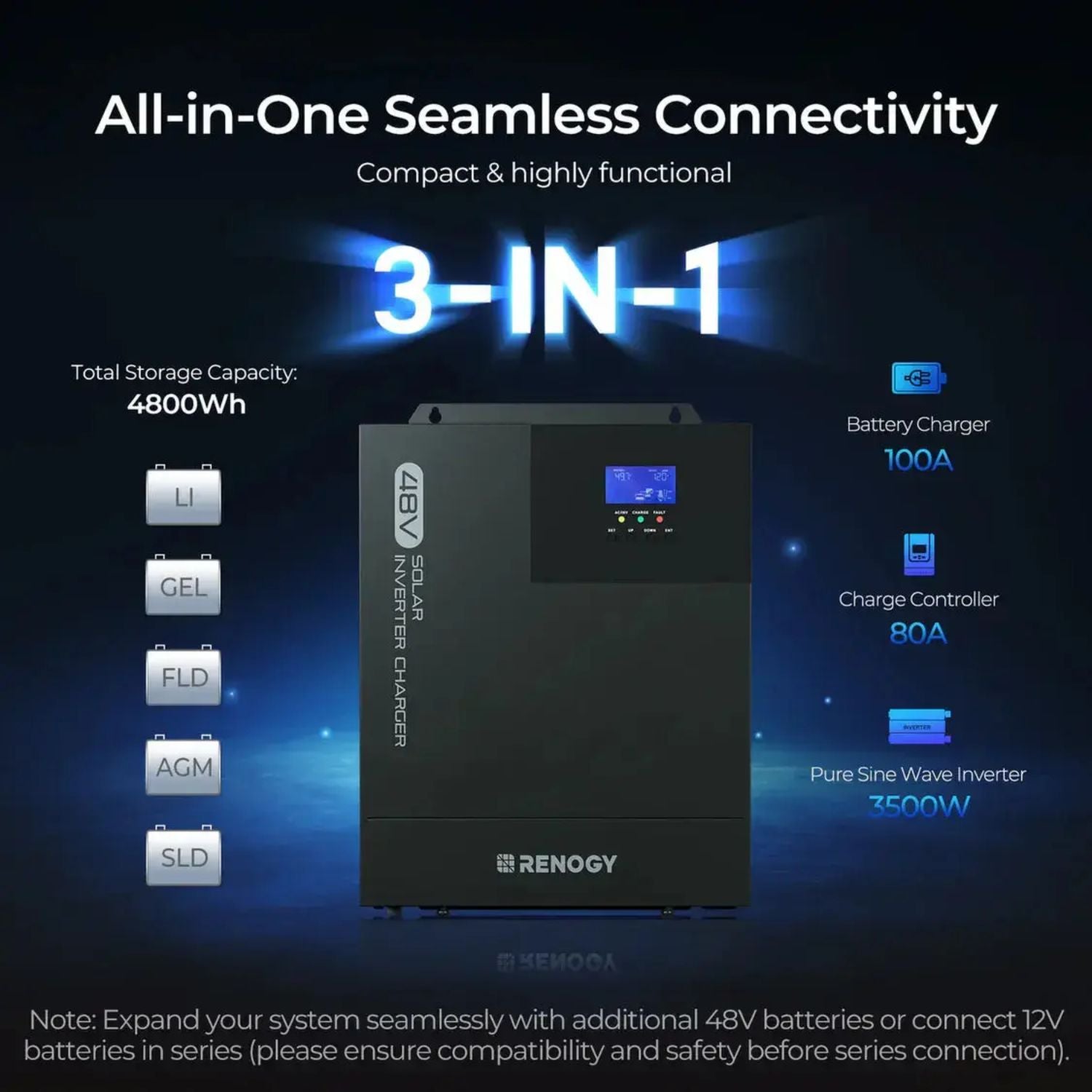

48V 3500W Solar Inverter Charger
The all-in-one unit delivers 3,500W of 120V pure sine wave power at more than 95% peak efficiency, accepts up to 4,400W of solar at up to 150V, charges batteries at up to 80A from solar and 40A from AC, and adjusts output from 100V to 120V.
DC Breaker Protection
A combiner box with 16A breakers for the solar strings, a 32A DC breaker and a 160A 2-pole molded case breaker protect the system from overloads and short circuits and make it easy to isolate components for maintenance.
Bluetooth Monitoring
The included BT-2 module connects the system to the Renogy app for remote monitoring.
Real-World Applications
Off-grid cabins. Power lights, a refrigerator, water pump and electronics for weekends or seasonal stays.
Tiny homes. Cover everyday essentials with solar and fill gaps with a generator or grid charging.
Workshops and sheds. Run power tools, lights and chargers away from the grid.
Rural home backup. Prepare for outages and grid fluctuations, or integrate with a grid-tied home as backup power.
How It Compares to Common Alternatives
Versus the 2.5kW Essential Plus Kit. The Plus kit doubles both the solar array and battery bank for full-time living and larger loads. The 1.2kW kit is the more affordable starting point.
Versus 12V systems. A 48V system carries the same power at a quarter of the current, reducing heat losses and cable size and improving overall efficiency.
Versus gas generators. Once installed, the system generates and stores power quietly with no fuel costs, and it can still accept generator charging when needed.
Is This System the Right Fit
-
Installation. DIY installation is possible with solid electrical knowledge. Otherwise, work with a qualified installer.
-

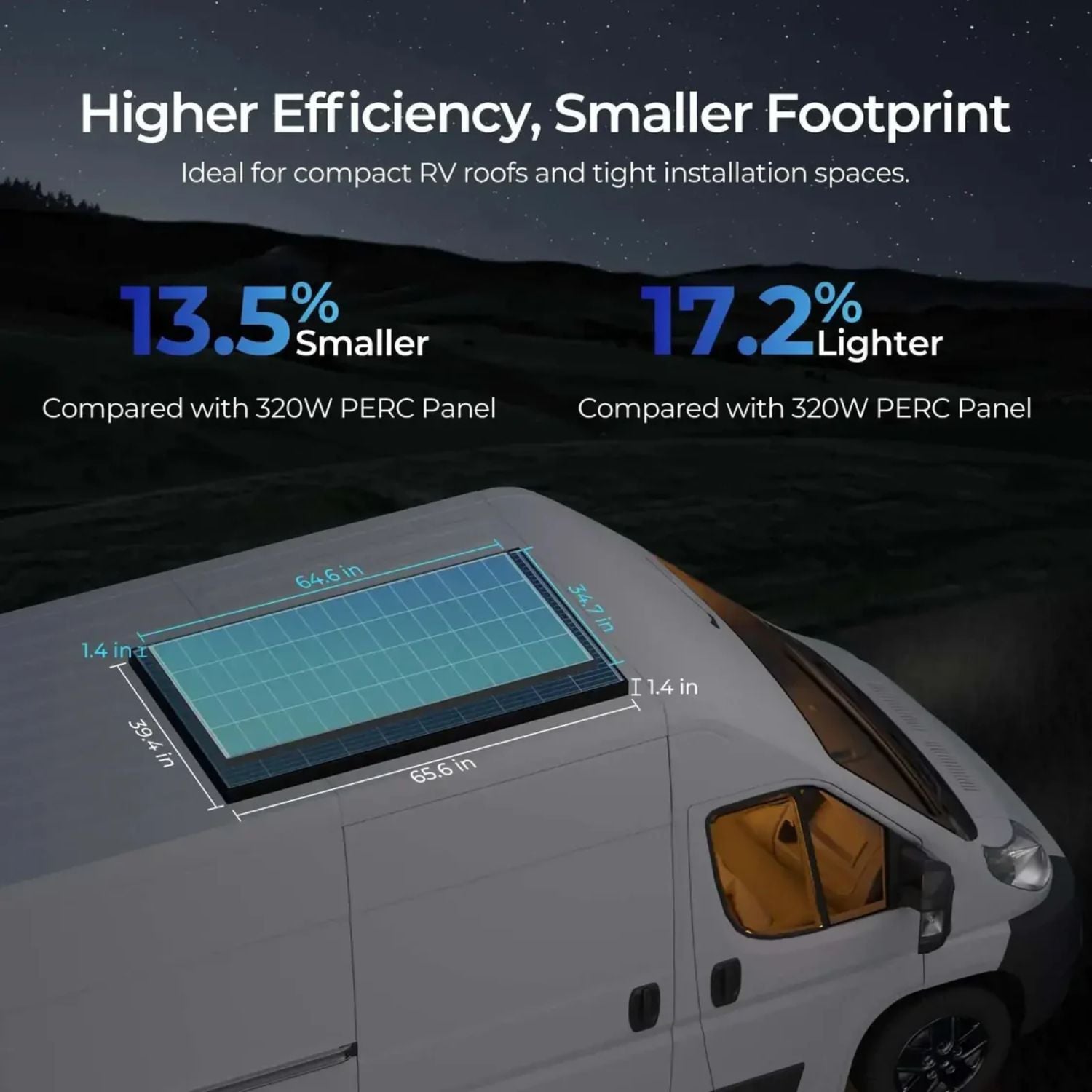

Space. Plan roof or ground space for 4 panels at 64.6 x 34.7 inches each, and a dry, protected location for the batteries and inverter.
-
Grid connection. The system can serve as backup for a grid-tied home but is not designed to feed power back to the grid.
-
Air conditioning. Renogy suggests 1,000 to 2,000W of solar and 4 to 8kWh of storage to run a 12,000 BTU mini-split for several hours a day.
This may be a good fit if
- You want a complete off-grid power system in one order
- You need 10.24kWh of lithium storage
- You want 120V AC power with solar, generator and grid charging
- You are powering a cabin, tiny home or workshop
Common Questions
Should I Mount the Panels on the Roof or the Ground?
Roof mounting is discreet and uses existing space. Ground mounting takes more room but makes cleaning and maintenance easier.
What Is the Difference Between 12V and 48V?
A 48V system runs at higher voltage and lower current, which reduces energy lost as heat and makes the system more efficient.
Can It Run a Mini-Split Air Conditioner?
Renogy suggests 1,000 to 2,000W of solar and 4 to 8kWh of storage to run a 12,000 BTU mini-split for several hours a day, so this kit is at the low end of that range for light AC use.
What's Included
- 4 x Renogy 320W N-Type Monocrystalline Solar Panels
- 4 x Renogy 12V 200Ah Core Mini Lithium Batteries
- 1 x Renogy 48V 3500W Pure Sine Wave Solar Inverter Charger
- 1 x 5-String Solar Combiner Box
- 2 x 16A 1P DC Miniature Circuit Breakers
- 1 x 32A 1P DC Miniature Circuit Breaker
- 1 x DC Circuit Breaker Box
- 1 x 160A 2P DC Molded Case Circuit Breaker
- 2 x 40ft 10 AWG Solar Adaptor Kits (pairs)
- 1 x 16ft 10 AWG Battery Tray Cables (pair, 3/8 in lugs)
- 2 x 8ft 8 AWG Solar Stranded Copper PV Wire
- 3 x 12in 1 AWG Copper Battery Interconnect Cables (3/8 in lugs)
- 2 x 8ft 1 AWG Copper Battery Inverter Cables (pairs, 3/8 in lugs)
- 1 x Renogy BT-2 Bluetooth Module
Complete Off-Grid Power for Your Cabin or Tiny Home
The Renogy 1.2kW Essential Solar Kit brings panels, a lithium battery bank, an inverter charger and protection together in one 48V system. At Outbound Power, we help customers plan installation, mounting and system sizing. If you have questions, our team is happy to help.
Renogy 1.2kW Essential Solar Kit Specifications
|
| Kit Model |
RKIT1200CB-C43D4-A24 |
| Solar Array |
4 x 320W (1,280W) |
| Battery Bank |
48V, 10.24kWh (4 x 12V 200Ah) |
| 320W N-Type Solar Panel (x4) |
| Max Power at STC |
320W |
| Open Circuit Voltage (Voc) |
43.82V |
| Short Circuit Current (Isc) |
8.92A |
| Optimum Operating Voltage (Vmp) |
37.85V |
| Optimum Operating Current (Imp) |
8.46A |
| Maximum System Voltage |
1000VDC |
| Maximum Series Fuse Rating |
20A |
| Module Efficiency |
22.2% |
| Operating Temperature |
-40°F to 185°F (-40°C to 85°C) |
| Dimensions |
64.6 x 34.7 x 1.4 in (1640 x 880 x 35 mm) |
| Weight |
32.9 lbs (14.9 kg) each |
| Warranty |
10-year output, materials and workmanship |
| 12V 200Ah Core Mini Lithium Battery (x4) |
| Rated Capacity |
200Ah (0.5C, 25°C) |
| Energy |
2,560Wh each |
| Cycle Life |
5,000 cycles at 80% DOD, 80% EOL |
| Charge Temperature Range |
32°F to 131°F (0°C to 55°C) |
| Discharge Temperature Range |
-4°F to 149°F (-20°C to 65°C) |
| Storage Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Protection Rating |
IP65 |
| Dimensions |
15.12 x 7.64 x 9.96 in (384 x 194 x 253 mm) |
| Weight |
42.44 lbs (19.25 kg) each |
| 48V 3500W Pure Sine Wave Solar Inverter Charger |
| Max Rated Power |
3,500W |
| AC Input Voltage |
120VAC (85VAC to 140VAC) |
| Output Voltage |
120VAC (adjustable 100VAC to 120VAC in 5V steps) |
| Frequency |
50/60Hz adjustable |
| Peak Efficiency |
More than 95% |
| Max AC Charging Current |
40A |
| Max PV Input Power |
4,400W |
| Max PV Charging Current |
80A |
| Max PV Input Voltage |
150V |
| Dimensions |
17.51 x 12.99 x 4.88 in (444.8 x 330 x 124 mm) |
