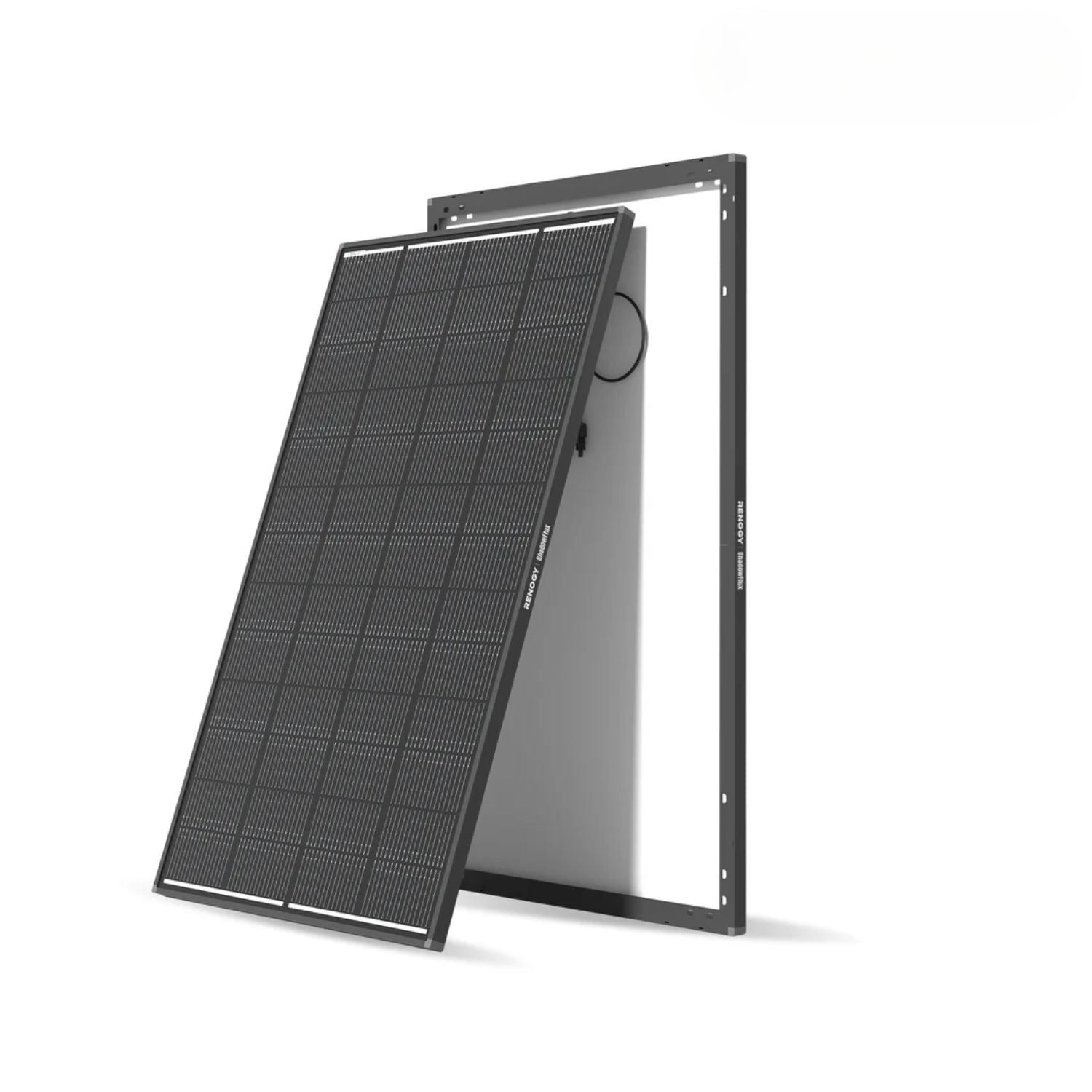

The Renogy ShadowFlux Anti-Shading N-Type Solar Panel Keeps Charging When Shadows Shut Other Panels Down
The Renogy 120W/200W ShadowFlux Anti-Shading N-Type Solar Panel is built for the real world, where roof racks, vents, antennas, trees and rigging cast shadows across panels. On a conventional panel, shading a single cell can cut output dramatically. ShadowFlux cell interconnection technology delivers up to 85% more output in partial shade, so the panel keeps charging when others quit.
N-type cells with 16 busbars reach 25% conversion efficiency and perform well in heat and low light. The panels pack high power density into compact frames, carry an IP67 rating and use a high open circuit voltage that works with standard MPPT controllers on 12V and 24V systems. Choose 120W or 200W, in 1, 2 or 4 packs.
Renogy ShadowFlux Solar Panel Features

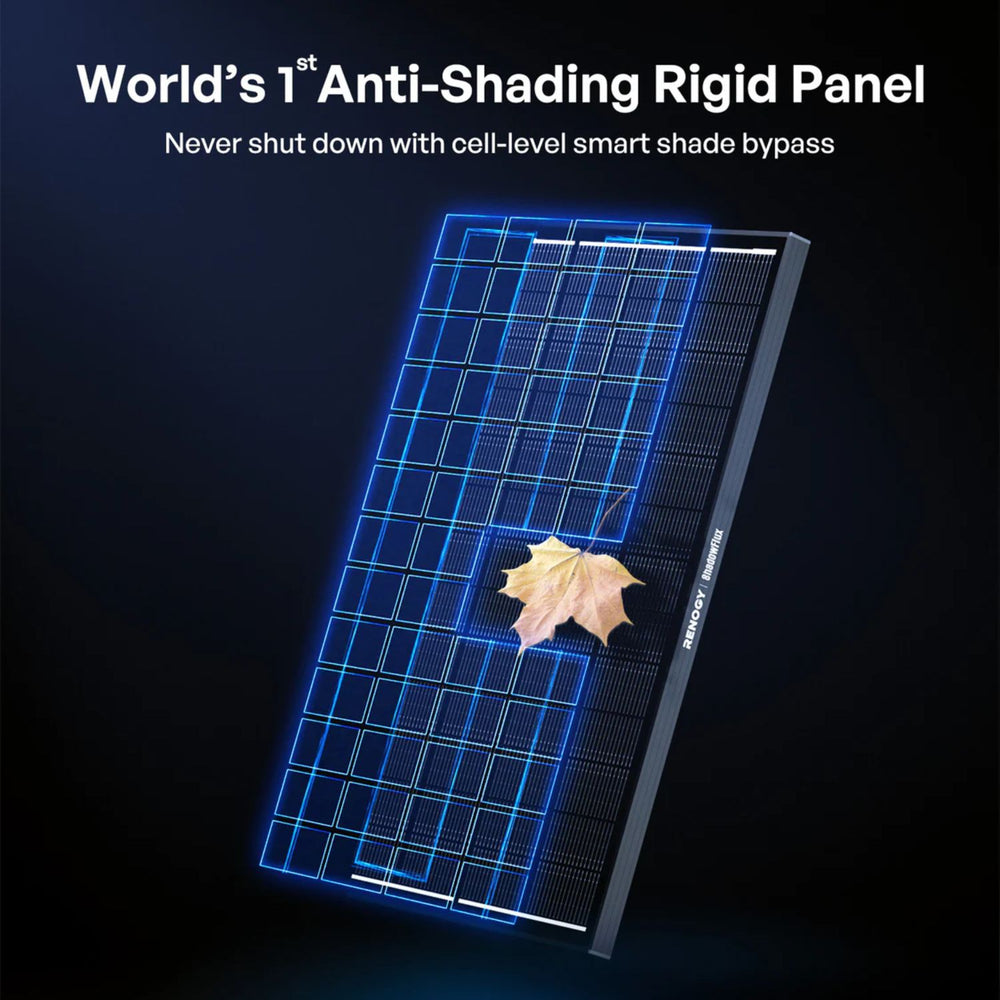

ShadowFlux Anti-Shading Technology
Advanced cell interconnection limits power loss from small shadows like bird droppings and leaves, linear shadows from wires and rigging, patchy shadows from vents and branches, and moving cloud shadows.

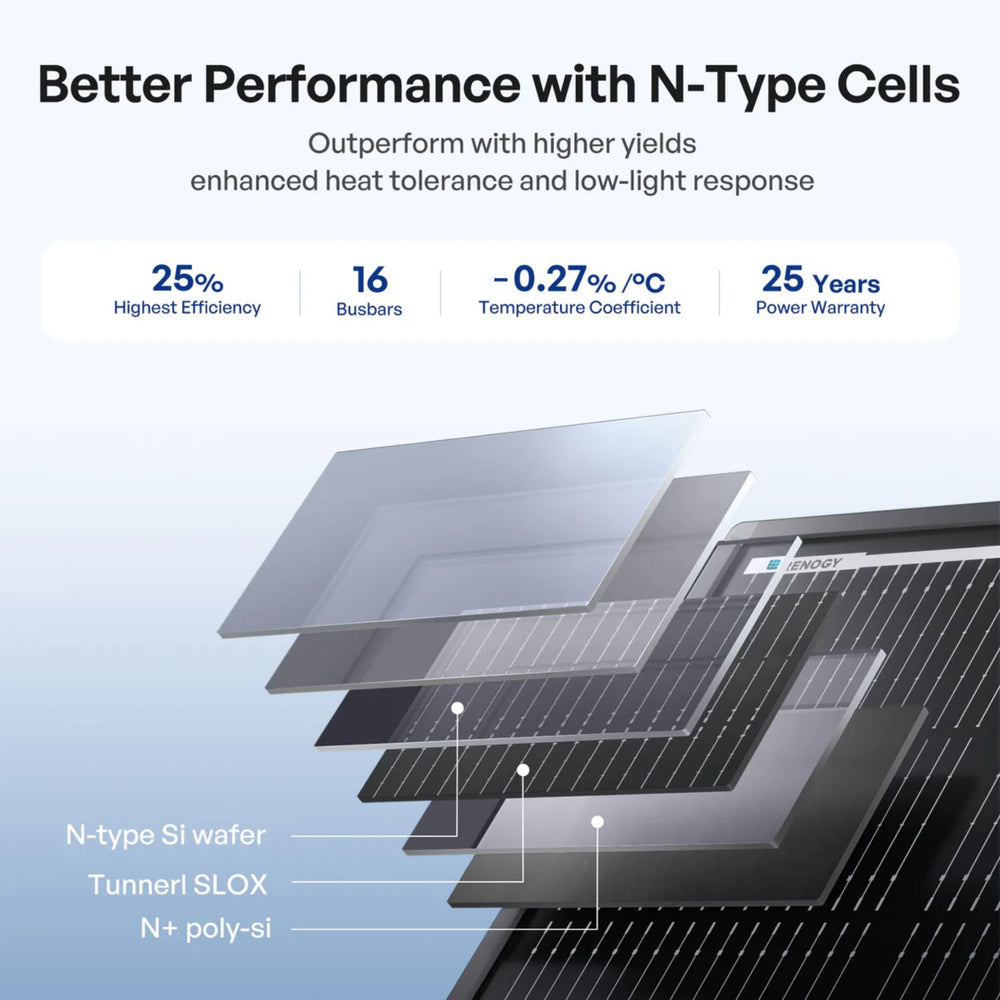

N-Type Cells With 16BB
High-efficiency N-type cells with 16 busbars deliver 25% conversion efficiency and stay productive in heat and dim light.

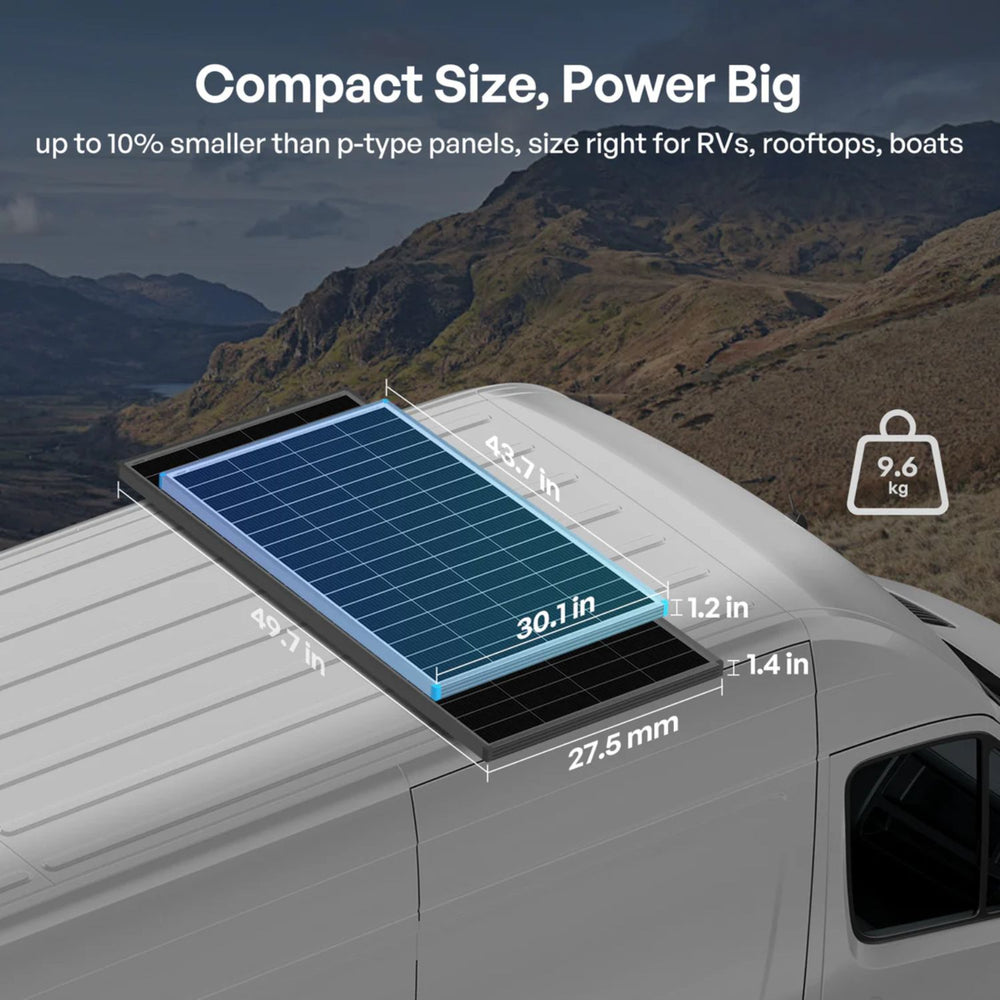

High Power Density
Compact frames maximize watts per square foot. The 200W panel measures 49.69 x 30.08 inches and the 120W panel 41.42 x 22.76 inches.

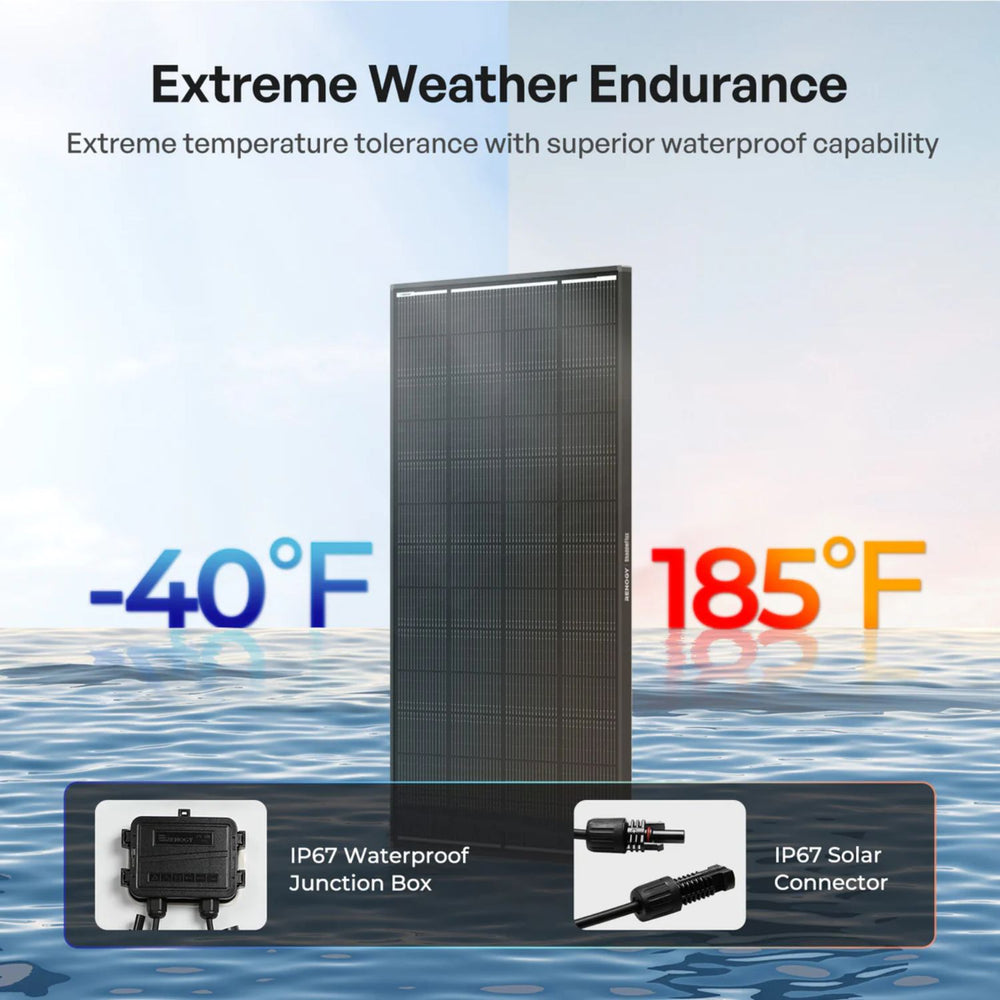

IP67 Durability
The panel is sealed against rain, snow and dust and built to handle vibration on vehicles and boats.
MPPT-Ready Voltage
Open circuit voltages of 36.5V (200W) and 33.69V (120W) work with standard MPPT controllers on 12V and 24V battery systems.

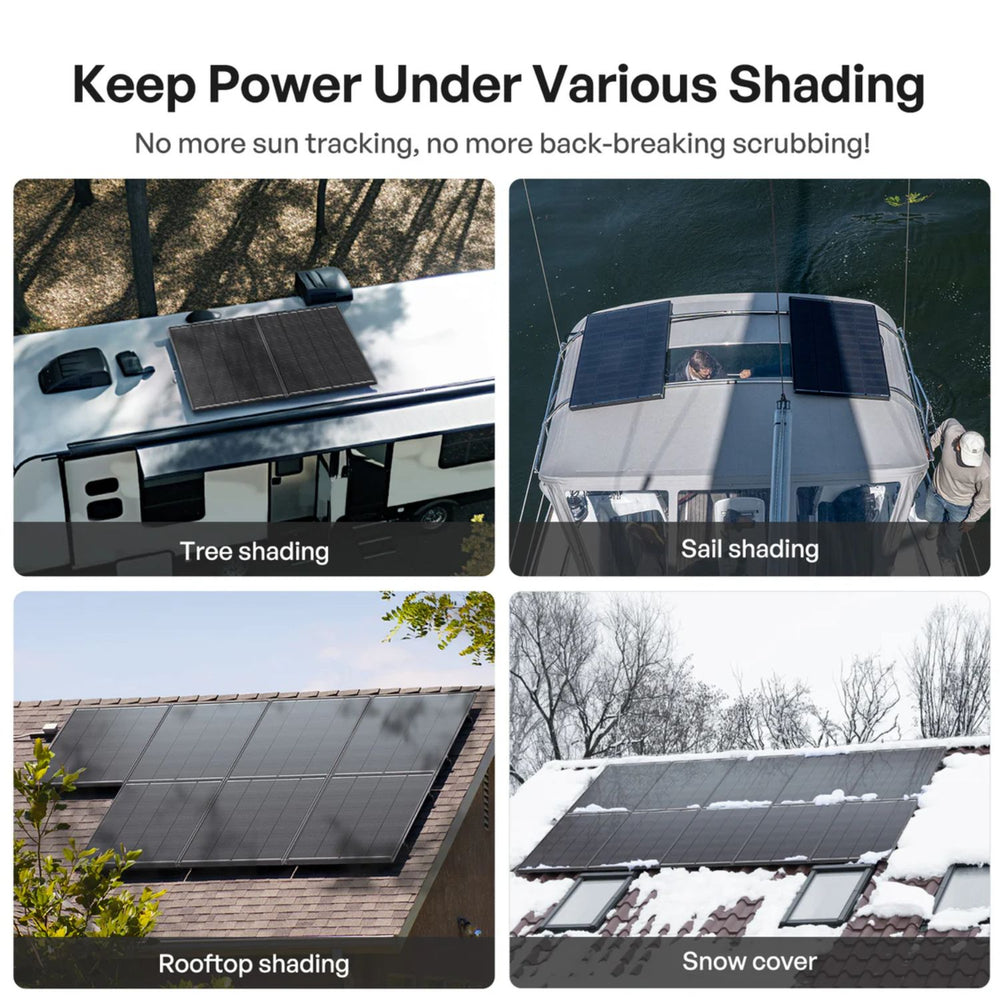

Real-World Applications
RVs and vans. Keep charging around roof vents, AC units, antennas and racks.
Boats. Produce more power under masts, booms and rigging that shade conventional panels.
Wooded campsites and cabins. Get more out of partial sun through branches and around chimneys.
Homes and sheds. Add panels where nearby structures shade part of the day.

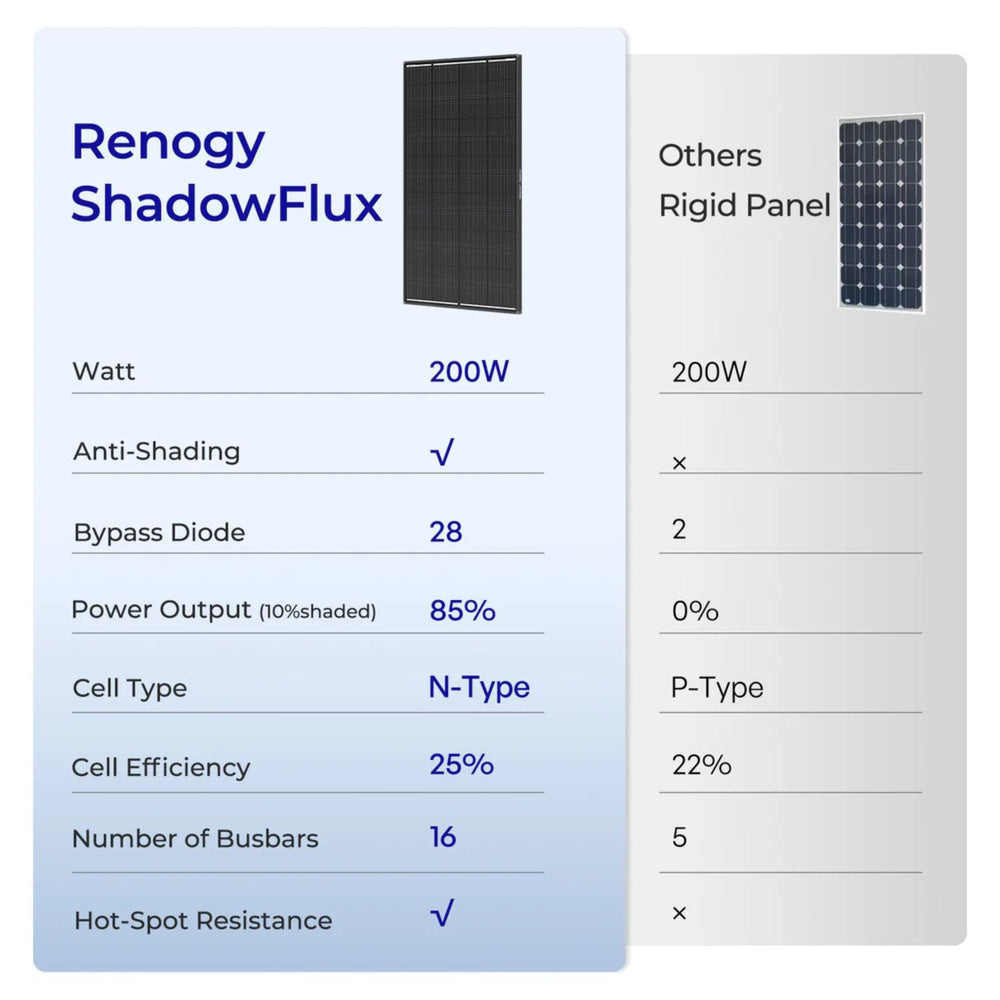

How It Compares to Common Alternatives

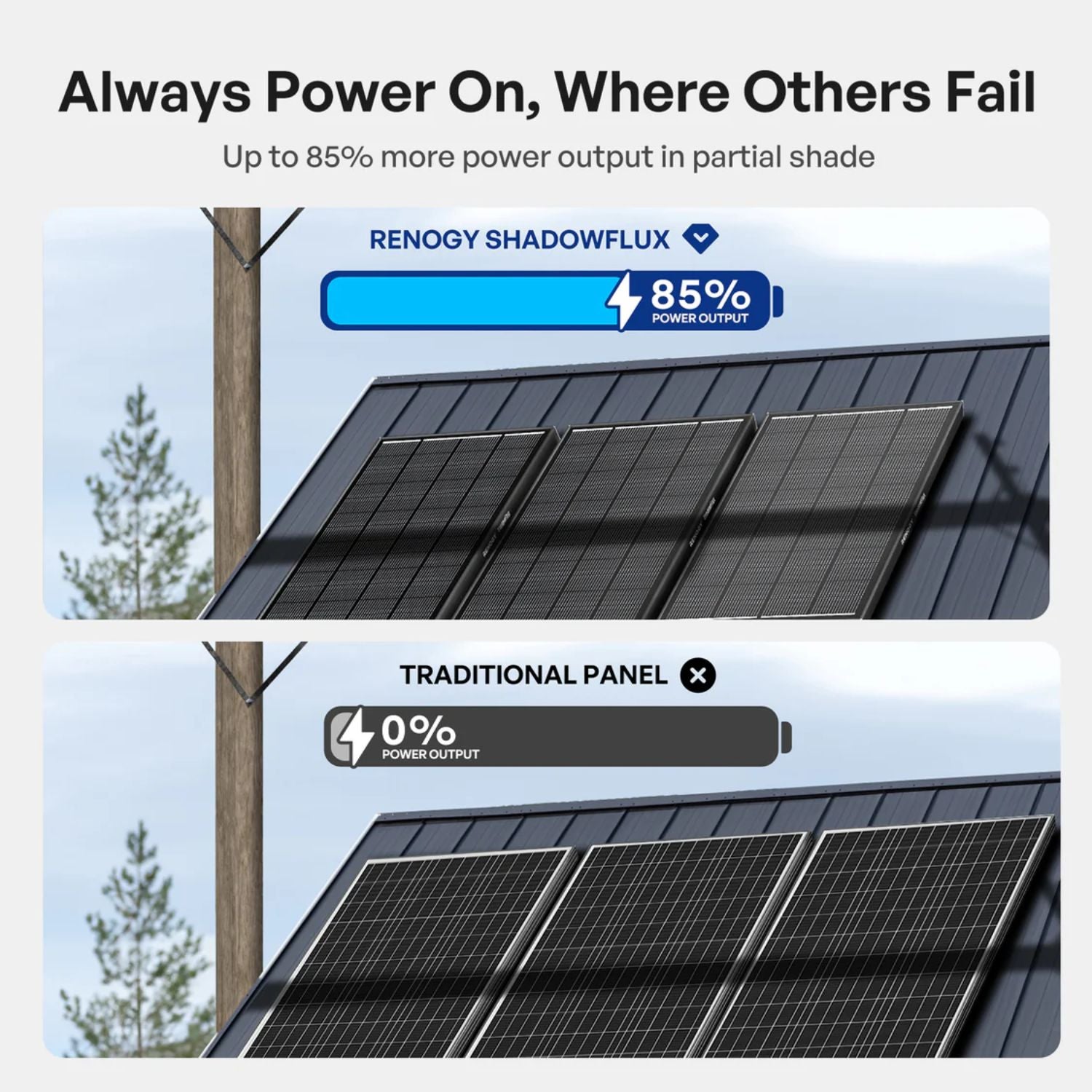

Versus conventional panels. Standard panels can lose most of their output when a few cells are shaded. ShadowFlux loses far less under the same conditions.
120W versus 200W. The 120W panel fits smaller roofs and racks. The 200W panel delivers more power for vans and RVs.
Versus adding more panels. Instead of oversizing an array to make up for shade losses, ShadowFlux panels recover more power from the space you have.
Is This Panel the Right Fit
-
Charge controller. Use an MPPT controller with at least 50V input (or 50V times the number of panels in series) and more than 10A charging current. Some third-party PWM controllers may not work properly.
-
System voltage. Works with 12V and 24V systems. With frequent long-duration shading from a single panel, a 12V system generally charges more reliably.
-
Sun exposure. For best results, keep more than half of the panel in direct sunlight.
This may be a good fit if
- Your roof has vents, racks or equipment that cast shadows
- You camp under trees or moor under rigging
- You want maximum output from limited roof space
- You use an MPPT charge controller
Common Questions
How Does ShadowFlux Outperform Under Shade?
All panels lose some power when shaded, but ShadowFlux's cell interconnection design loses far less, delivering significantly higher wattage under the same shaded conditions.
Is It Designed for 12V or 24V?
Both. Its high open circuit voltage suits 12V and 24V battery systems through an MPPT controller.
What Controller Do I Need?
An MPPT controller is strongly recommended, with at least 50V input per panel in series and more than 10A charging current.
What's Included

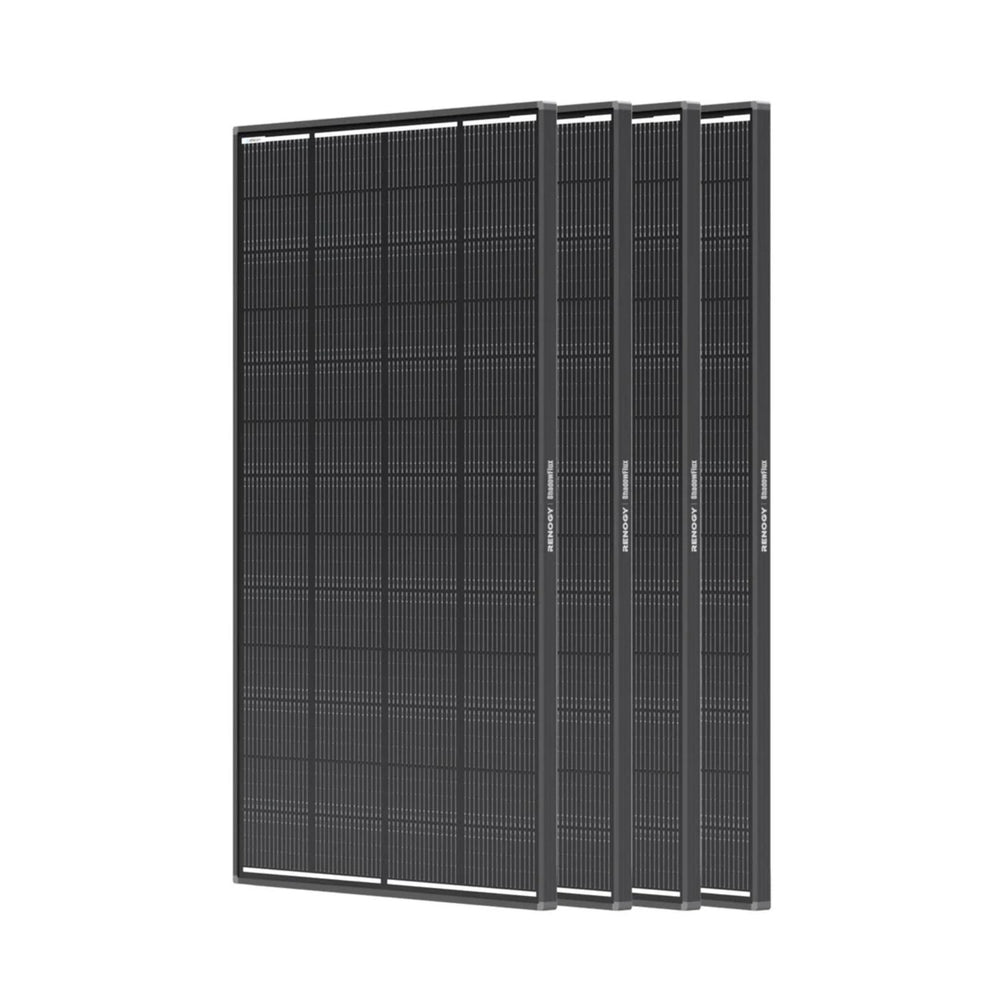

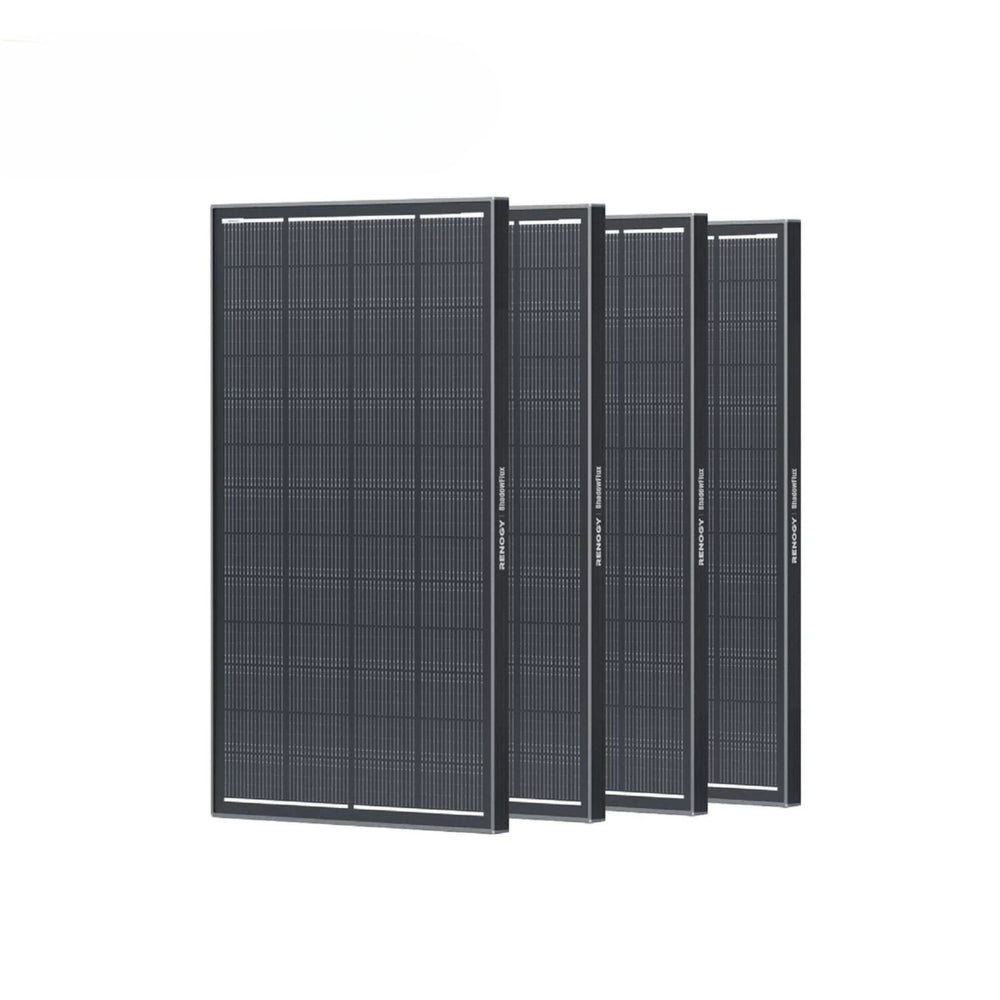

- 1, 2 or 4 x Renogy ShadowFlux N-Type Anti-Shading Solar Panels in the selected size (120W or 200W)
More Power When the Sun Is Not Perfect
The Renogy ShadowFlux Anti-Shading N-Type Solar Panel recovers power that conventional panels lose to shadows, making it a smart choice for RVs, boats and shaded sites. At Outbound Power, we help customers pair panels with the right MPPT controllers and batteries. If you have questions, our team is happy to help.
Renogy 120W/200W ShadowFlux™ Anti-Shading N-Type Solar Panel Specifications
|
| 200W ShadowFlux |
| Model |
RSP200DC-ASR |
| Max Power at STC |
200W |
| Open Circuit Voltage (Voc) |
36.5V |
| Short Circuit Current (Isc) |
6.86A |
| Optimum Operating Voltage (Vmp) |
31.3V |
| Optimum Operating Current (Imp) |
6.38A |
| Module Efficiency |
20.7% |
| Dimensions |
49.69 x 30.08 x 1.18 in |
| Weight |
23.83 lbs (10.81 kg) |
| 120W ShadowFlux |
| Model |
RSP120DC-ASR |
| Max Power at STC |
120W |
| Open Circuit Voltage (Voc) |
33.69V |
| Short Circuit Current (Isc) |
4.57A |
| Optimum Operating Voltage (Vmp) |
28.89V |
| Optimum Operating Current (Imp) |
4.21A |
| Dimensions |
41.42 x 22.76 x 1.18 in (1052 x 578 x 30 mm) |
| Weight |
15.87 lbs (6.80 kg) |
| Both Sizes |
| Cell Type |
N-type monocrystalline, 16BB, 25% conversion efficiency |
| Anti-Shading Technology |
ShadowFlux, up to 85% more output in partial shade |
| Maximum System Voltage |
1000VDC |
| Maximum Series Fuse Rating |
15A |
| Protection Rating |
IP67 |
| Operating Temperature |
-40°F to 185°F (-40°C to 85°C) |
| Recommended Controller |
MPPT, 50V or higher input, more than 10A |
| Certifications |
CE, RoHS; ISO 9001 facility |
| Materials and Workmanship Warranty |
5 years |
| Power Output Warranty |
80% at 25 years |
