The Renogy REGO Series 12V 400Ah Cold Weather Battery Puts 5.12kWh of Self-Heating Lithium Storage in One Aluminum Case

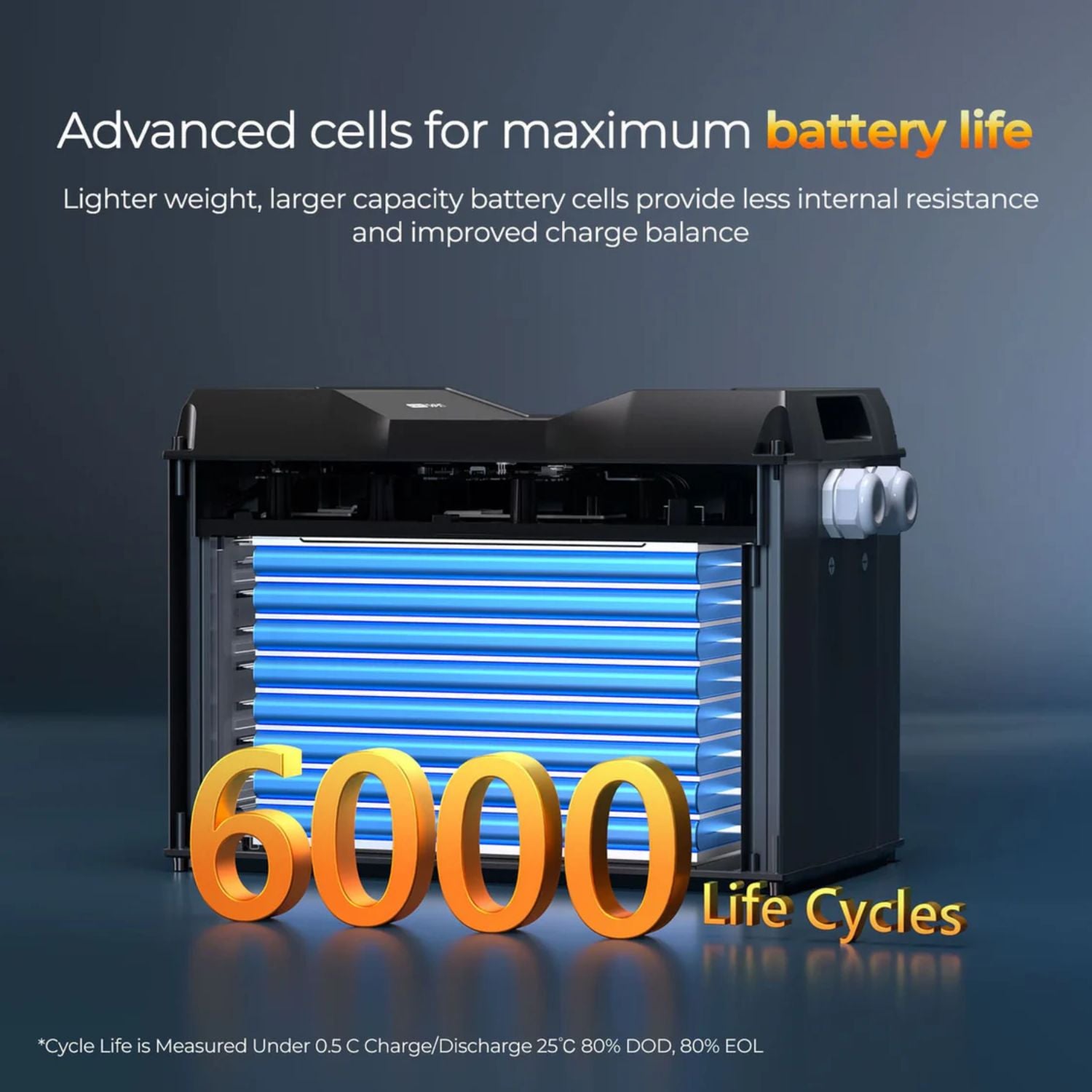

The Renogy REGO Series 12V 400Ah Cold Weather LiFePO4 Battery is designed for RVs, vans and off-grid systems that need a lot of energy in a small footprint. Each battery stores 5.12kWh, supplies 350A continuously and accepts up to 300A of charge current, so it can run large inverters and recharge quickly from alternators, solar and shore power. Renogy rates it for 6,000 cycles, more than 10 years of daily use.
A built-in heater keeps it charging in the cold, more than 60 BMS protections watch over the cells, and a die-cast aluminum case resists vibration. Bluetooth and CAN (RV-C) communication connect the battery to the Renogy app, Renogy ONE monitors and REGO chargers. This listing includes two batteries, with an option to add Renogy's REGO 12V 60A DC-DC battery charger.
Renogy REGO 12V 400Ah Battery Features
5.12kWh in a Single Battery
One REGO battery replaces four 100Ah batteries, saving about 30% of the installation footprint and many of the interconnect cables. Two batteries provide 10.24kWh.
High Charge and Discharge Current
350A continuous discharge supports 3,000W-class inverters, and 300A continuous charge lets the battery take full advantage of high-output alternators and chargers.

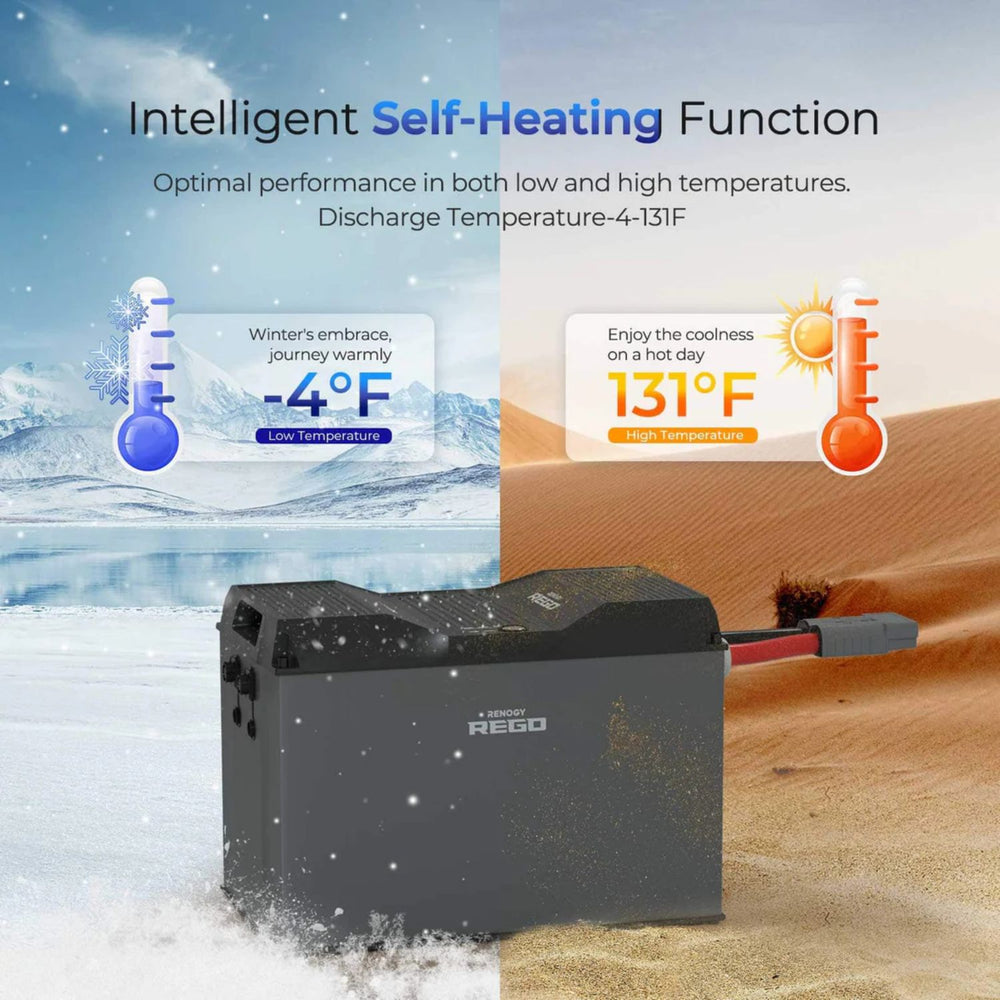

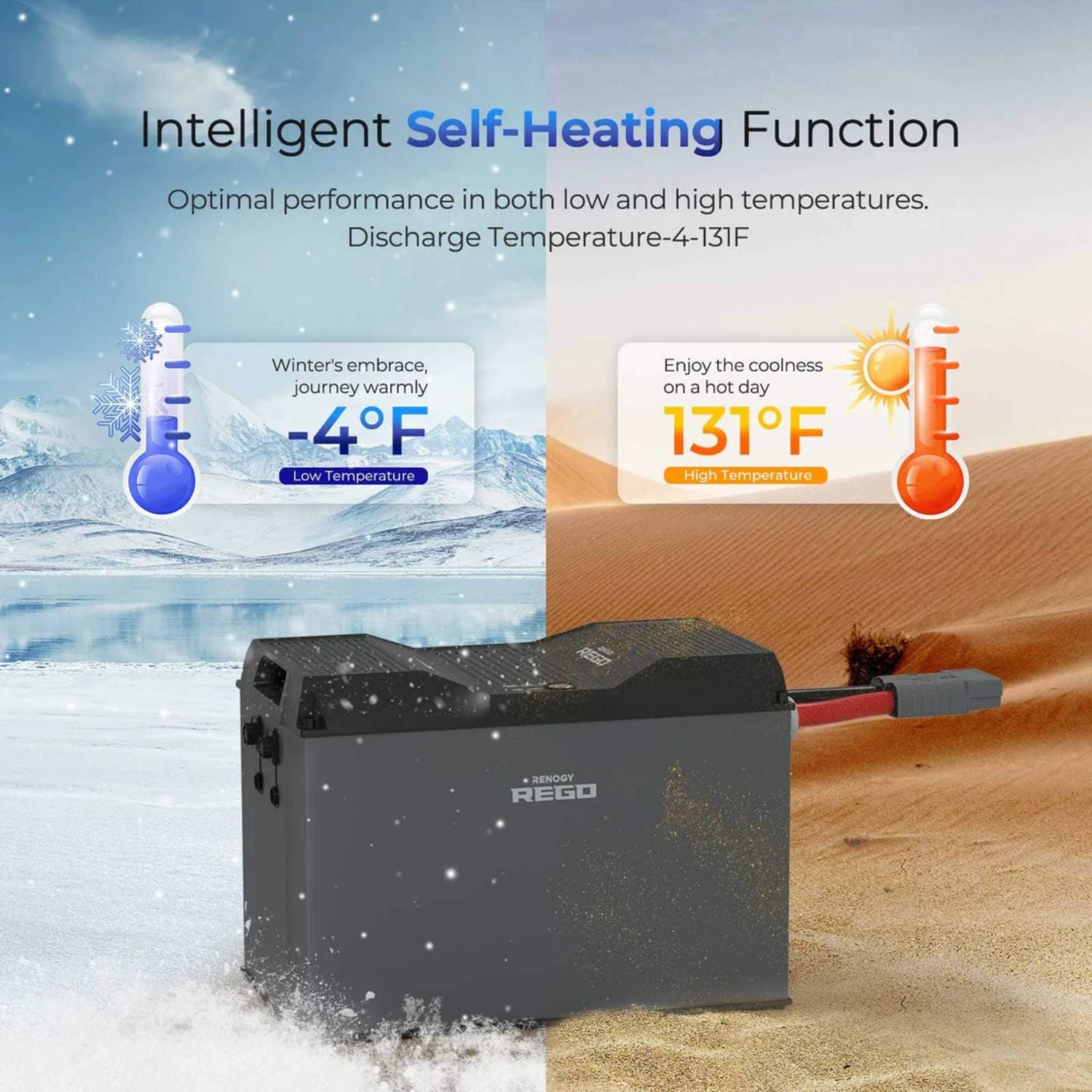

Cold-Weather Self-Heating
When battery temperature drops below 41°F (5°C) and a stable charge current above 15A is present, the heater turns on automatically and a status light glows green. The battery charges from -4°F to 122°F.
60+ BMS Protections
The battery management system monitors voltage, current and temperature and issues alerts for more than 60 conditions.
Plug-and-Play Anderson Connection
A gray Anderson 350 connector with dust cover speeds up installation with Renogy's optional 4/0 AWG Anderson adapter cable.

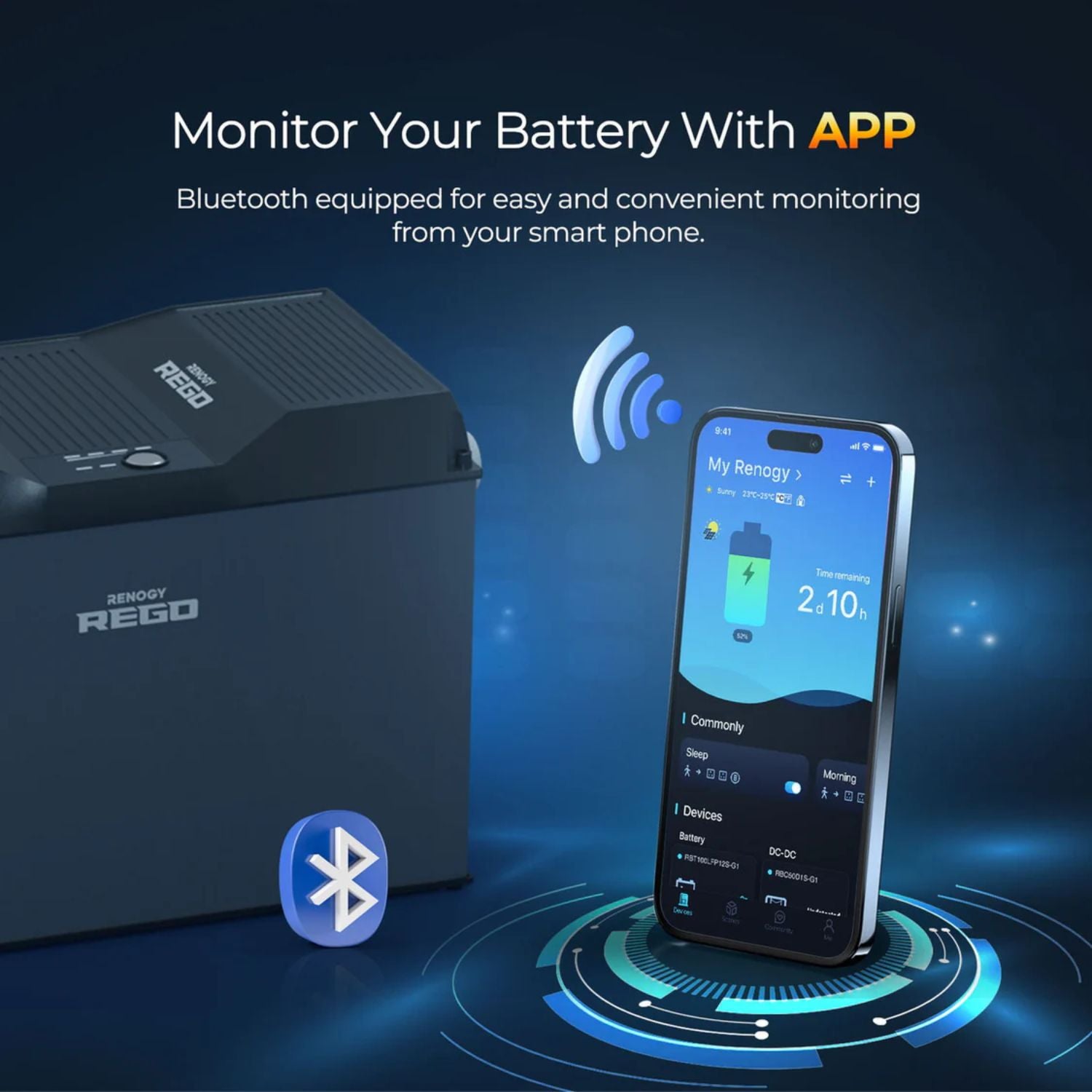

Bluetooth and CAN (RV-C)
Monitor the battery in the Renogy app or on a Renogy ONE M1 or Core, and integrate it with RV-C systems through the CAN port.
Shelf Mode
The battery ships in shelf mode. Hold the button for 1 second to activate it, or 3 seconds to return it to shelf mode for storage.
Optional REGO 12V 60A DC-DC Battery Charger
The bundle option adds Renogy's REGO 12V 60A DC-DC charger, which charges the house batteries from the vehicle alternator while driving at up to 60A and 800W. Bidirectional charging tops up the starter battery once the house bank is full. It works with traditional and smart (Euro 6) alternators, offers 4-stage charging for lithium, AGM, gel, flooded and sealed batteries, and includes built-in Bluetooth, Anderson PP75 terminals and protection against overvoltage, over-temperature and reverse polarity.
Real-World Applications
Full-time RVs and motorhomes. Run air conditioning, induction cooking and residential refrigerators off-grid.
Vans and overland rigs. Pair with the REGO DC-DC charger for fast alternator charging between camps.
Cold-climate living. Self-heating keeps the bank charging through winter van life and ski trips.
Off-grid cabins. Store a full day or more of solar energy in very little floor space.
How It Compares to Common Alternatives
Versus four 12V 100Ah batteries. Four batteries need more space, more cables and more balancing. One REGO 400Ah is cleaner and easier to install.
Versus 48V systems. A 48V bank handles very large loads more efficiently, but many RVs are wired for 12V. The REGO 400Ah delivers high power without rewiring the coach.
Versus non-heated lithium. Standard lithium batteries cannot charge below freezing. The REGO's heater solves that automatically.
Is This Battery the Right Fit
-
System voltage. 12V systems only. The REGO 400Ah connects in parallel, up to 8 batteries, and cannot be wired in series.
-
Weight and space. Each battery weighs 112.4 lbs and measures 18.0 x 10.5 x 13.0 inches. Plan for a sturdy mounting location.
-
Charging. Use a LiFePO4-compatible charger or controller. Renogy recommends its REGO controller for matched communication and wiring.
-
Cables. The Anderson adapter cable is not included.
This may be a good fit if
- You need 10kWh or more in a 12V system
- You run high-draw appliances through a large inverter
- You travel or live in cold weather
- You want Bluetooth and RV-C integration
Common Questions
Can I Connect REGO 400Ah Batteries in Series?
No. They are designed for parallel connection only, up to 8 identical batteries.
Can I Combine It With Lead-Acid Batteries?
No. Batteries connected together should be the same type, capacity, voltage and brand.
Is It Compatible With Renogy ONE?
Yes. It works with the Renogy ONE M1 and Renogy ONE Core.
Does It Come With an Anderson Cable?
No. The battery uses a gray Anderson 350 connector. Renogy's 4/0 AWG Anderson adapter cable is sold separately.

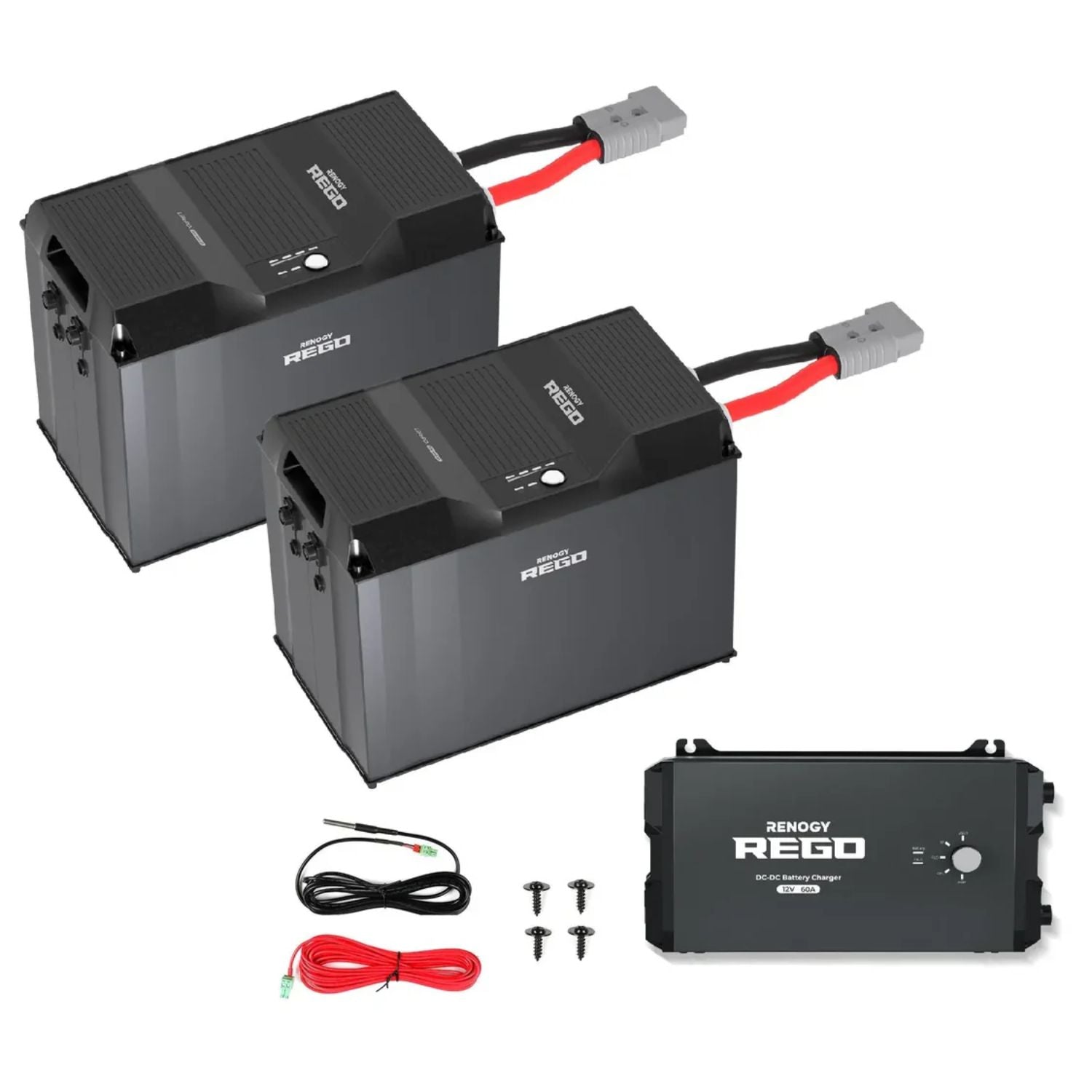

What's Included

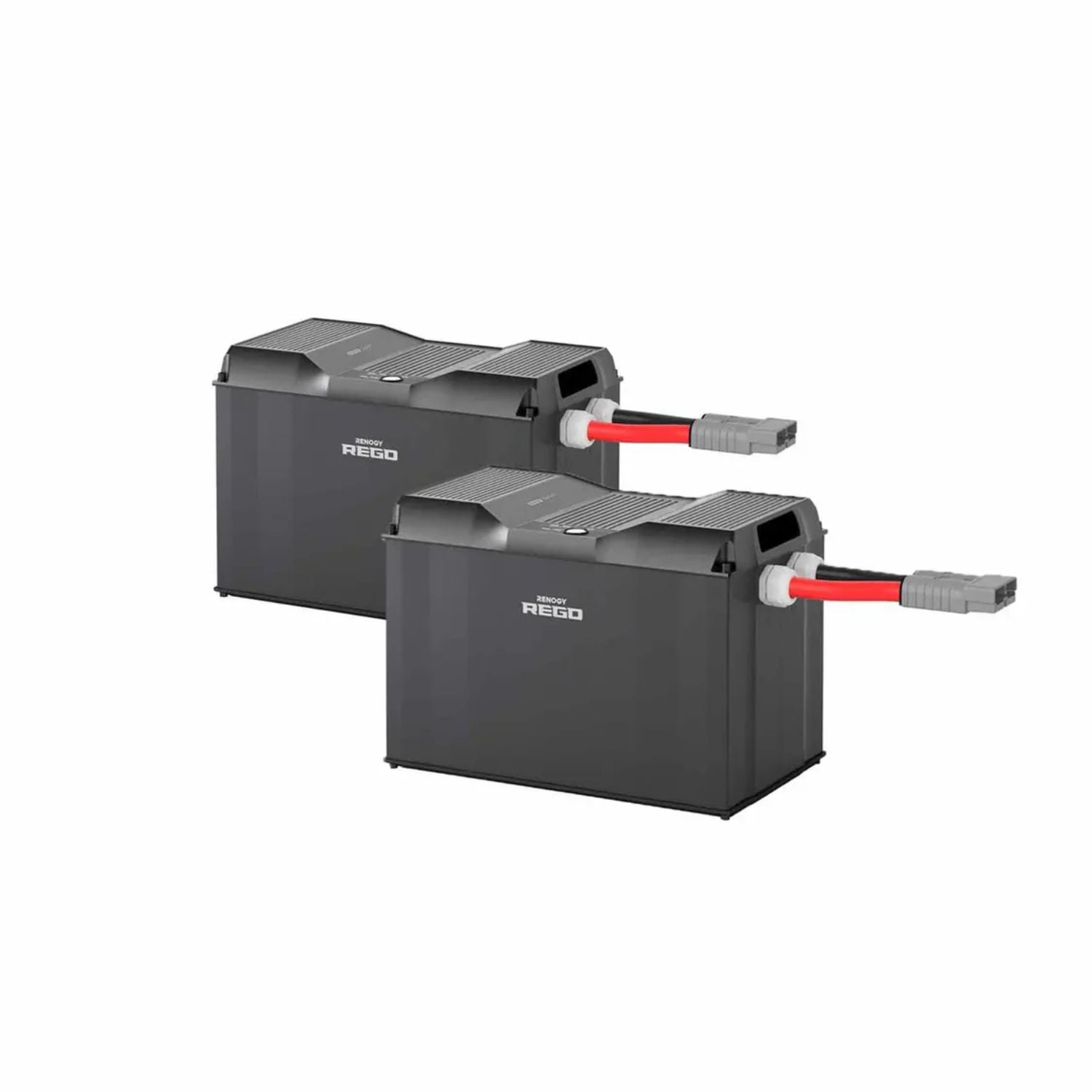

2-Pack
- 2 x Renogy REGO 12V 400Ah LiFePO4 Battery
2-Pack with 60A DC-DC Battery Charger
- 2 x Renogy REGO 12V 400Ah LiFePO4 Battery
- 1 x Renogy REGO 12V 60A DC-DC Battery Charger
- 4 x Mounting Screws
- 1 x IGN Signal Wire
- 1 x Temperature Sensor (for non-lithium batteries)
Big 12V Lithium Power for Cold-Weather Travel
The Renogy REGO Series 12V 400Ah Cold Weather battery packs 5.12kWh, high current and self-heating into one rugged aluminum case, with an optional DC-DC charger for charging on the road. At Outbound Power, we help customers design high-capacity 12V systems for RVs, vans and cabins. If you have questions, our team is happy to help.
Renogy 12V 400Ah Cold Weather LiFePO4 Battery Specifications
|
| REGO 12V 400Ah Battery |
| Model |
RBT12400LFPL-SHBT |
| Chemistry |
Lithium iron phosphate (LiFePO4) |
| Nominal Voltage |
12.8V |
| Rated Capacity |
400Ah |
| Energy |
5,120Wh |
| Cycle Life |
6,000 cycles at 80% DOD (0.5C, 25°C) |
| Voltage Range |
10V to 14.8V |
| Charge Voltage |
14.4V |
| Charge Cut-Off Voltage |
14.8V |
| Max Continuous Charge Current |
300A |
| Max Continuous Discharge Current |
350A |
| Discharge Cut-Off Voltage |
10V |
| Self-Heating |
Yes, below 41°F (5°C) with charge current above 15A |
| Charge Temperature Range |
-4°F to 122°F (-20°C to 50°C) |
| Discharge Temperature Range |
-4°F to 140°F (-20°C to 60°C) |
| Recommended Operating Temperature |
59°F to 86°F (15°C to 30°C) |
| Storage Temperature |
Under 1 week: -22°F to 140°F (-30°C to 60°C); under 6 months: -4°F to 113°F (-20°C to 45°C) |
| Connection |
Parallel only, up to 8 batteries |
| Communication |
Bluetooth and CAN (RV-C), compatible with Renogy ONE M1 and Core |
| Connector |
Gray Anderson 350 with dust cover |
| Housing Material |
Die-cast and extruded aluminum |

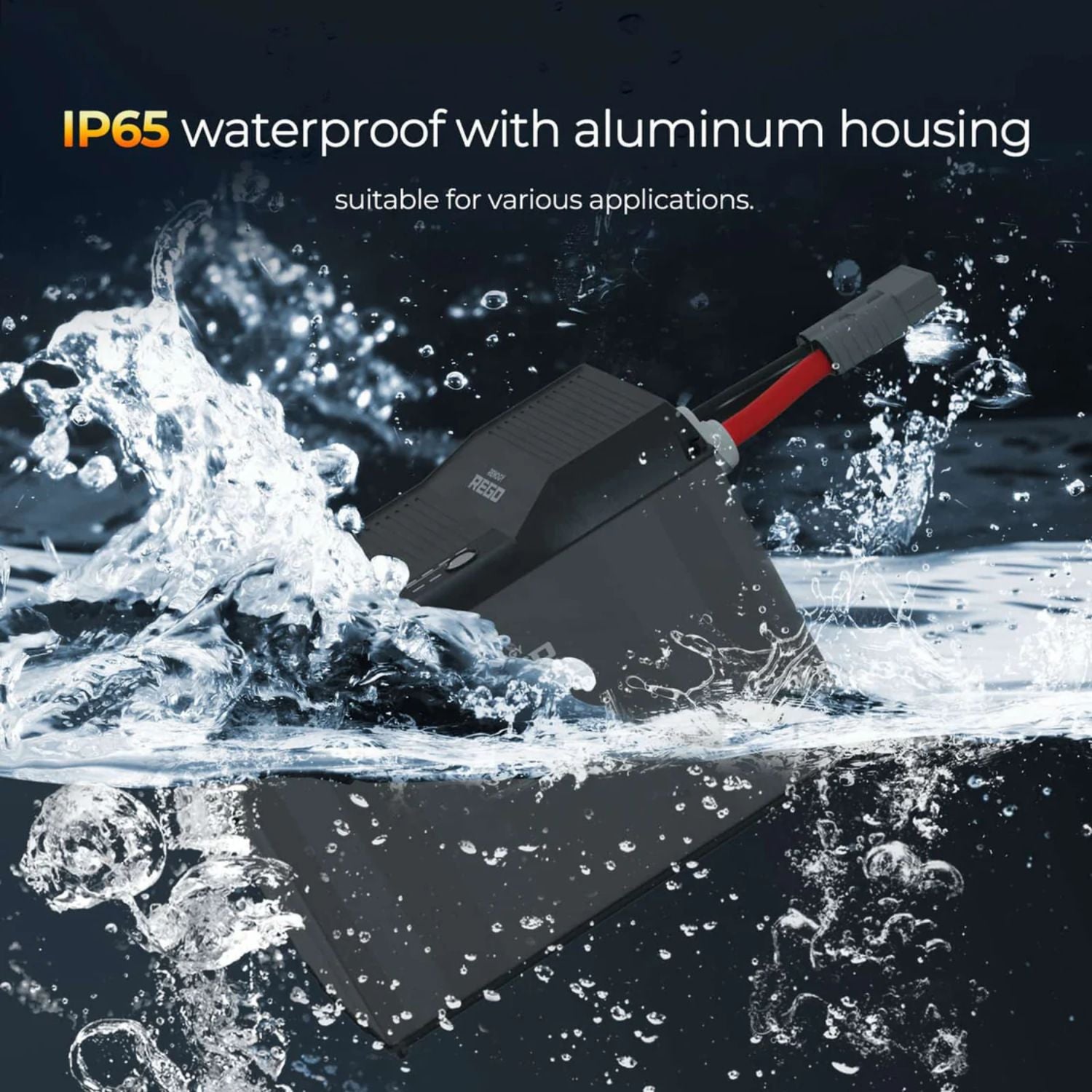

| Protection Rating |
IP65 |
| Dimensions (L x W x H) |
18.0 x 10.5 x 13.0 in (457 x 267.2 x 329 mm) |
| Weight |
112.4 lbs (51 kg) |
| Certifications |
UN38.3, FCC, MSDS |
| Warranty |
5-year prorated material and workmanship warranty |
| Optional Accessory |
4/0 AWG Anderson adapter cable, 1 ft, 405A max |
| REGO 12V 60A DC-DC Charger (Bundle Option) |
| Model |
RBC1260DO-12B |
| Rated Max Charge Current |
60A |
| Rated Max Charge Power |
800W |
| Alternator Input Voltage |
13.5V to 16V (traditional); 12.5V to 16V (smart, Euro 6) |
| Max Alternator Input Current |
70A |
| Charge Efficiency |
Up to 94% |
| Battery Types |
Lithium, AGM/SLD, flooded, gel, user |
| Communication |
Bluetooth, Modbus, RV-C |
| Terminals |
Anderson PP75, 8 AWG to 6 AWG |
| Operating Temperature |
-4°F to 140°F (-20°C to 60°C) |
| Dimensions |
13.91 x 8.37 x 4.02 in (353.5 x 212.8 x 102.2 mm) |
| Weight |
7 lbs (3.12 kg) |
| Warranty |
3-year material and workmanship warranty |
