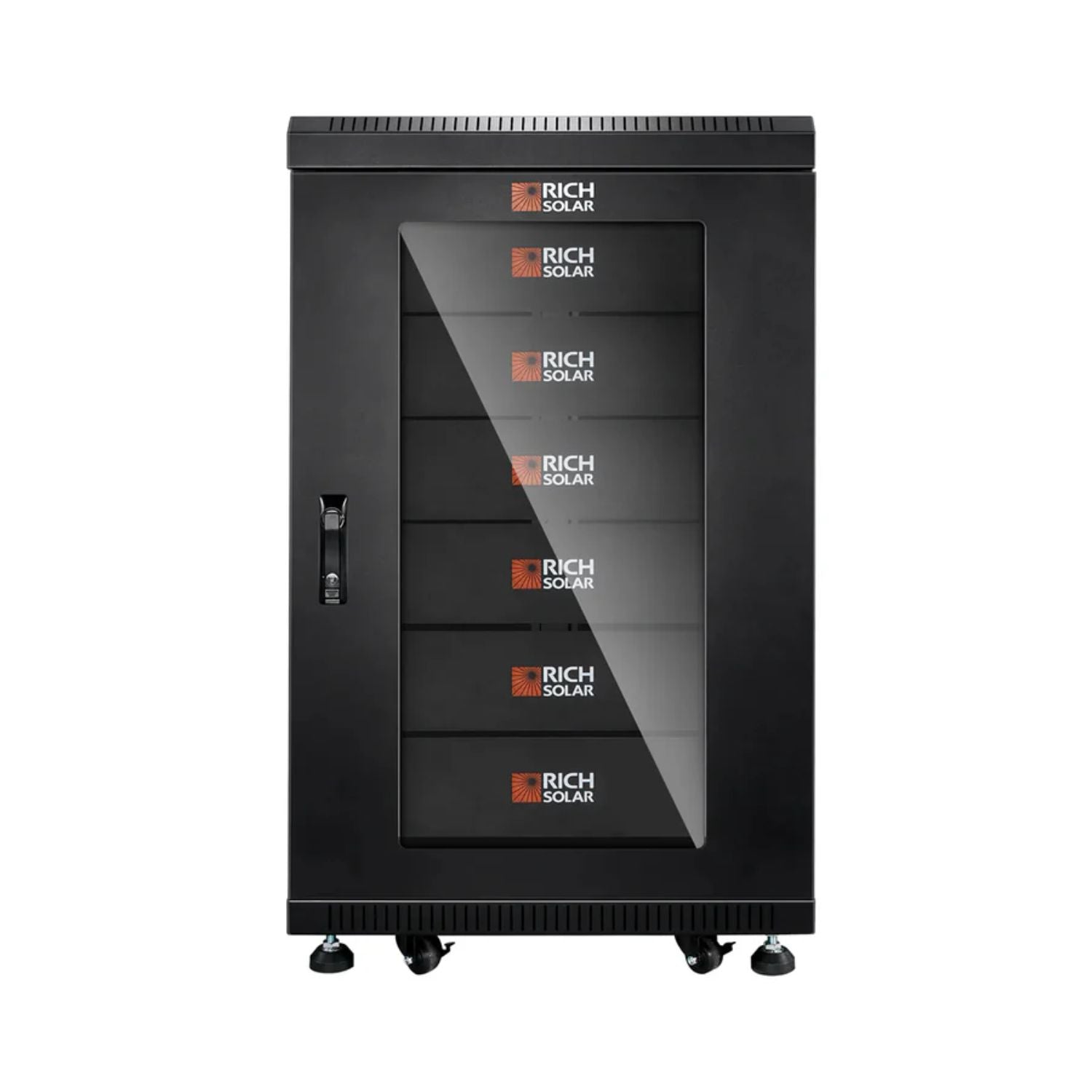

The Rich Solar Battery Server Rack for ALPHA 5 PRO Holds Six Batteries and 30.72kWh in One Enclosed, Mobile Steel Cabinet
The Rich Solar Battery Server Rack for ALPHA 5 PRO (RS-SRA5P) is a pre-assembled, 6-slot enclosed battery cabinet built for Rich Solar's ALPHA 5 PRO 51.2V server rack batteries. Fully loaded, it holds 30.72kWh of storage, and 600A copper busbars with protective covers tie the batteries together for high-current power distribution.
The welded steel cabinet has a powder-coated finish, top and side cable entry points, four-side access for installation and service, and locking casters with leveling feet. Rich Solar backs the rack with a 5-year warranty. Batteries are sold separately.
Rich Solar Battery Server Rack for ALPHA 5 PRO Features
Six Slots for 30.72kWh
The rack supports up to six ALPHA 5 PRO batteries in parallel. At 5,120Wh per battery, a full rack stores 30.72kWh, enough for whole-home backup and off-grid systems. Start with fewer batteries and fill the open slots later.
600A Copper Busbars
Copper busbars rated for 600A distribute current safely between the batteries and your inverter connection, with covers to protect against accidental contact. Six ALPHA 5 PRO batteries at their 100A rating add up to the same 600A.
Heavy-Duty Welded Steel Cabinet
Welded steel construction with a durable powder-coated finish protects and organizes the batteries in an enclosed cabinet.
Pre-Assembled and Easy to Wire

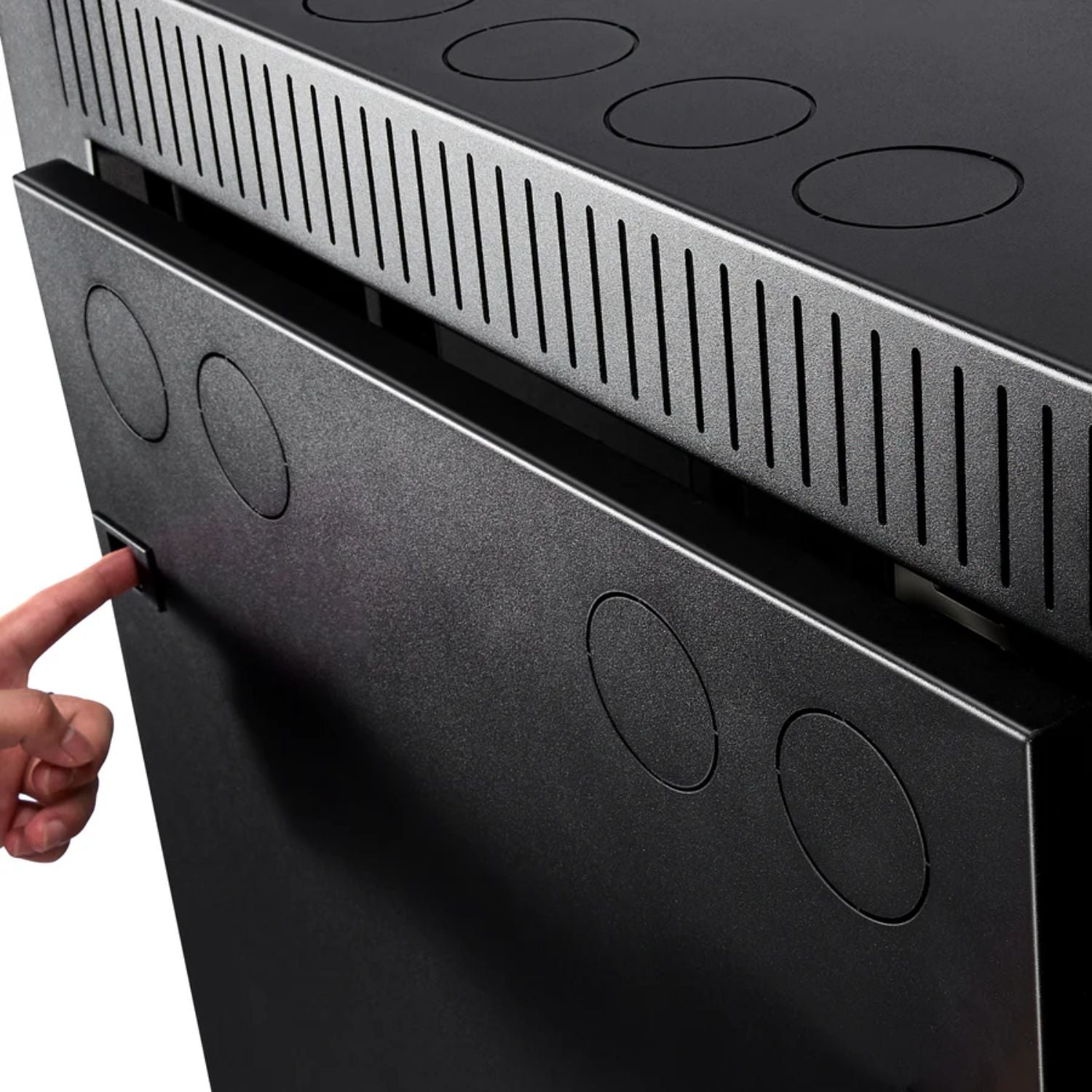

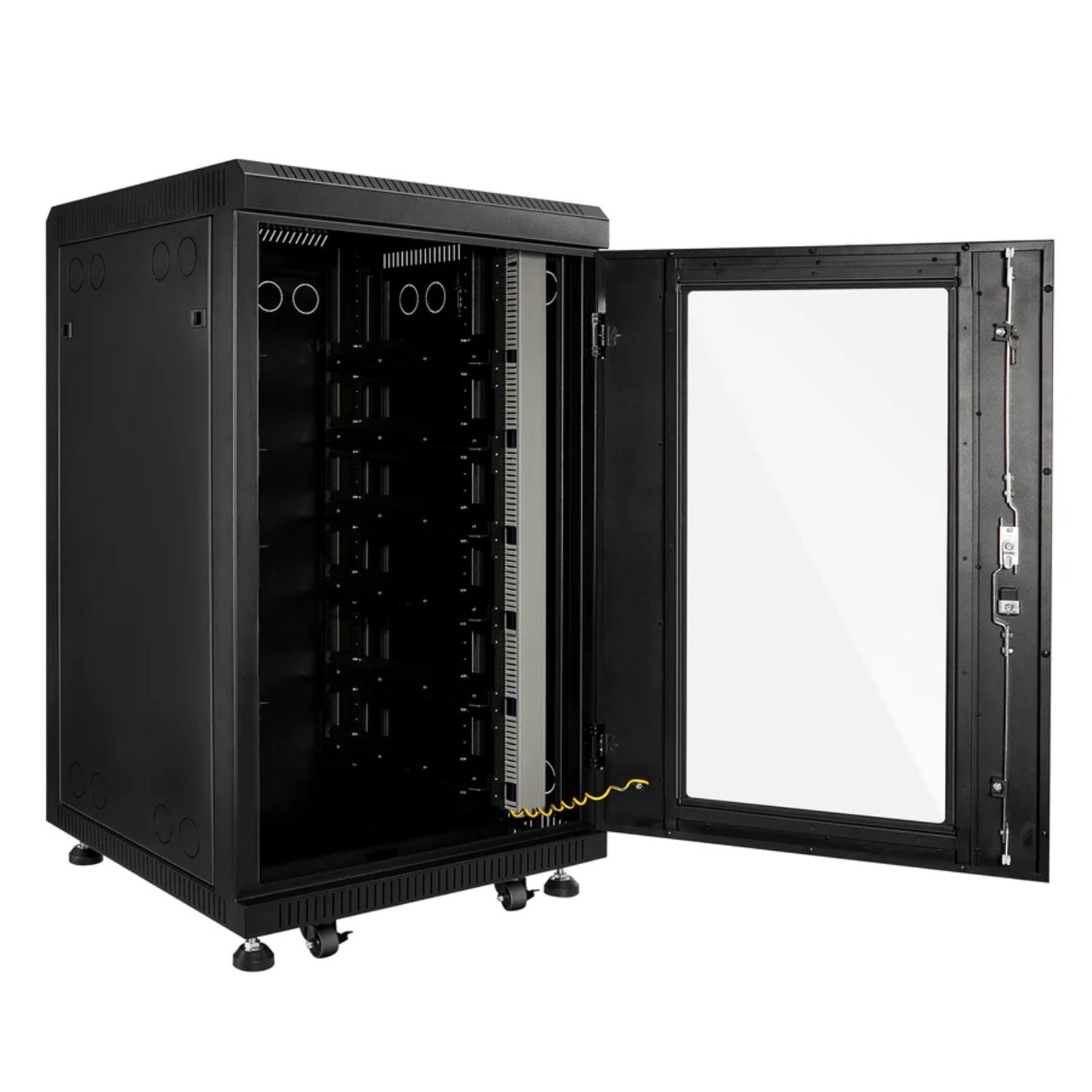

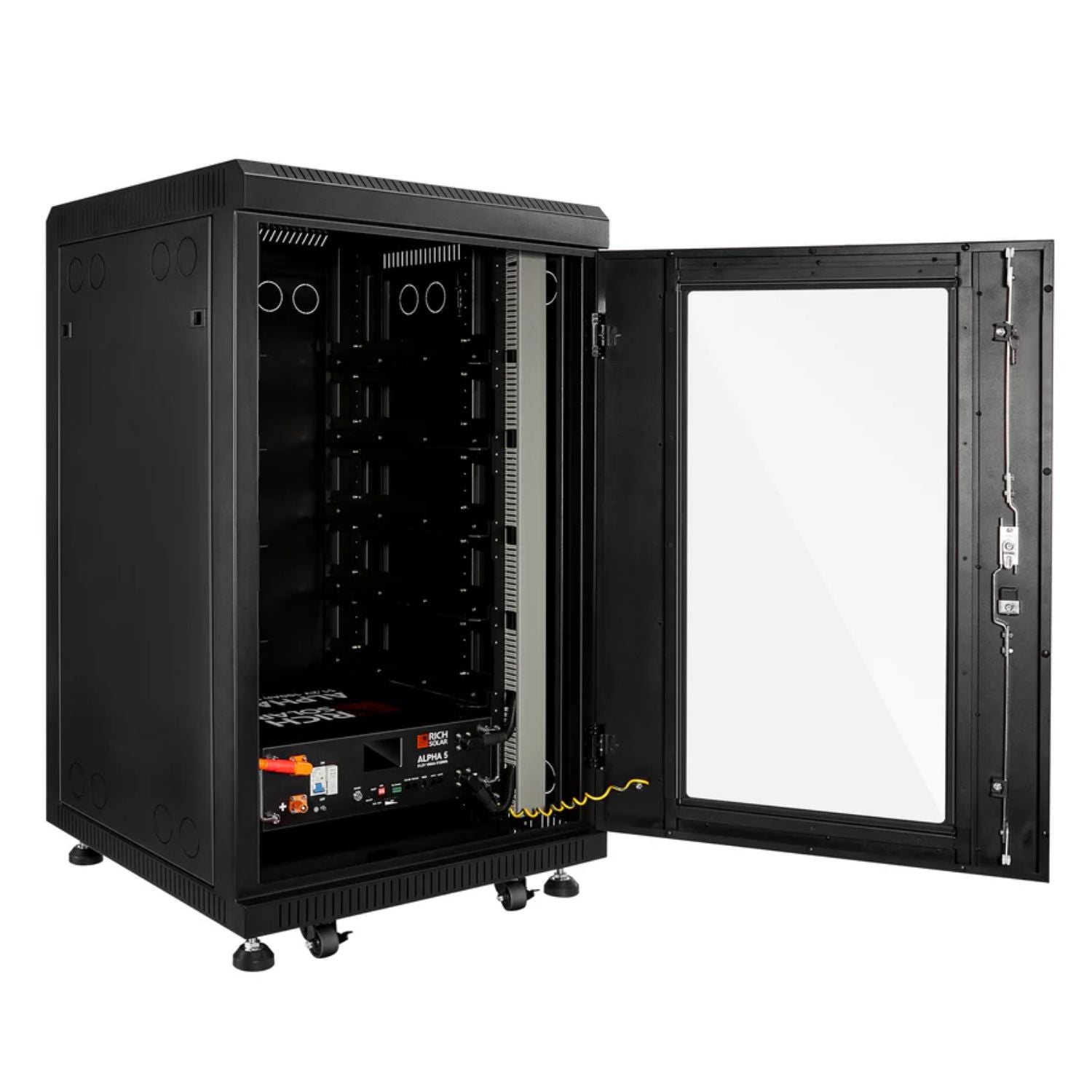

The rack arrives assembled, which reduces setup time and labor. Top and side cable entry points give you flexible routing to your inverter, and four-side access makes battery installation and servicing quicker.

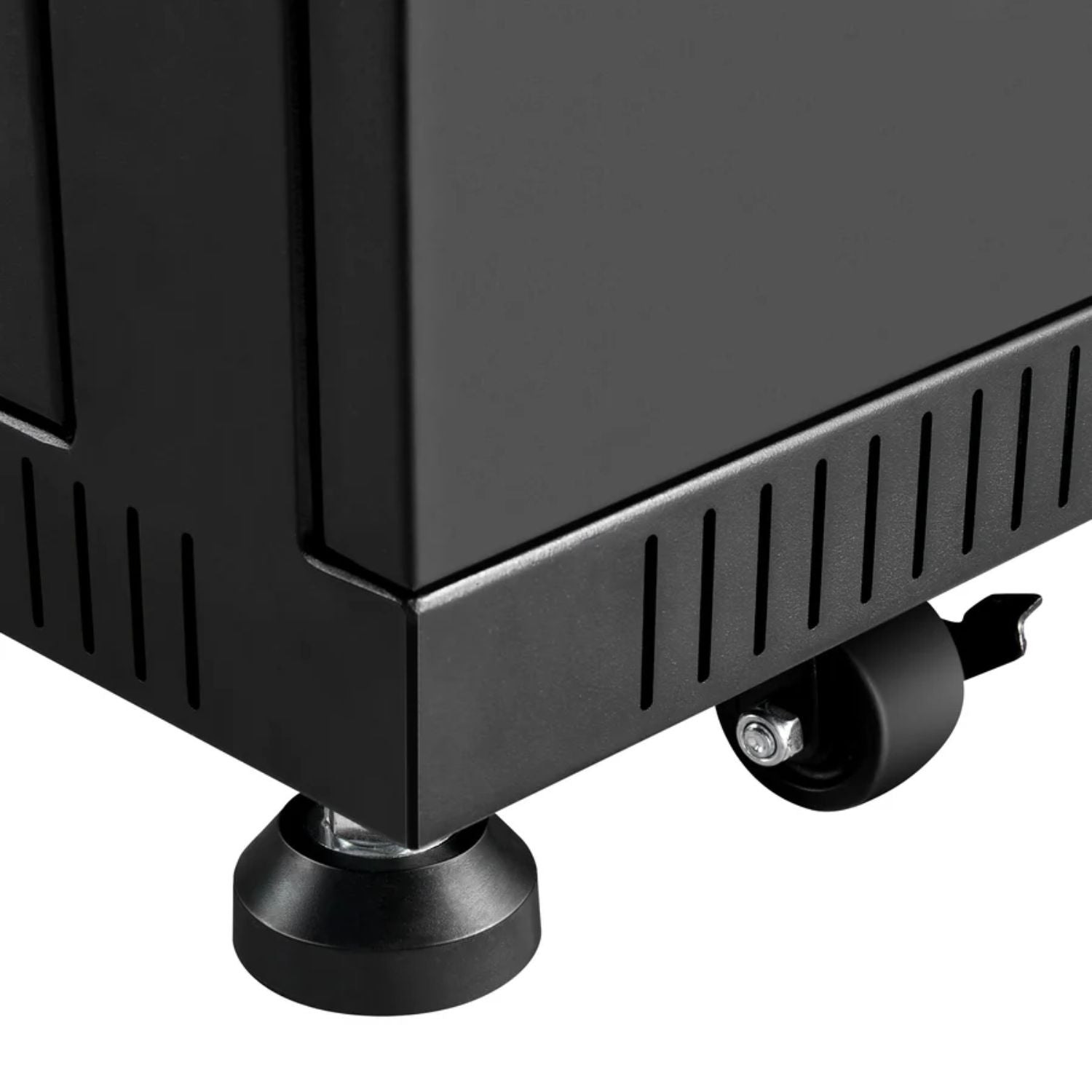

Locking Casters and Leveling Feet
Casters let you roll the cabinet into position, then lock it in place and level it with the adjustable feet for stable operation.
Ready for ESS Integration
The rack supports parallel battery expansion and inverter communication, so the ALPHA 5 PRO batteries can work as one bank with your energy storage system.
Real-World Applications
Whole-home backup. House up to 30.72kWh of storage next to a 48V hybrid inverter.
Off-grid homes and cabins. Build a neat, expandable battery room around one cabinet.
Garages and utility rooms. Keep batteries enclosed and organized on a level, mobile base.
Commercial energy storage. Organize ALPHA 5 PRO batteries for shops, offices and farm buildings.
How It Compares to Common Alternatives
Versus an open-frame rack. Open racks leave terminals and busbars exposed. This enclosed cabinet adds busbar covers and a steel enclosure.
Versus stacking batteries on a shelf. Loose batteries need custom cabling and take more floor space. The rack's busbars and slots give a clean, repeatable layout.
Versus building your own cabinet. A DIY cabinet means sourcing busbars, cable entries and casters. The RS-SRA5P arrives pre-assembled and is sized for the ALPHA 5 PRO.
Is This Rack the Right Fit
-
Batteries. The rack is built for Rich Solar ALPHA 5 PRO batteries. No batteries are included.
-

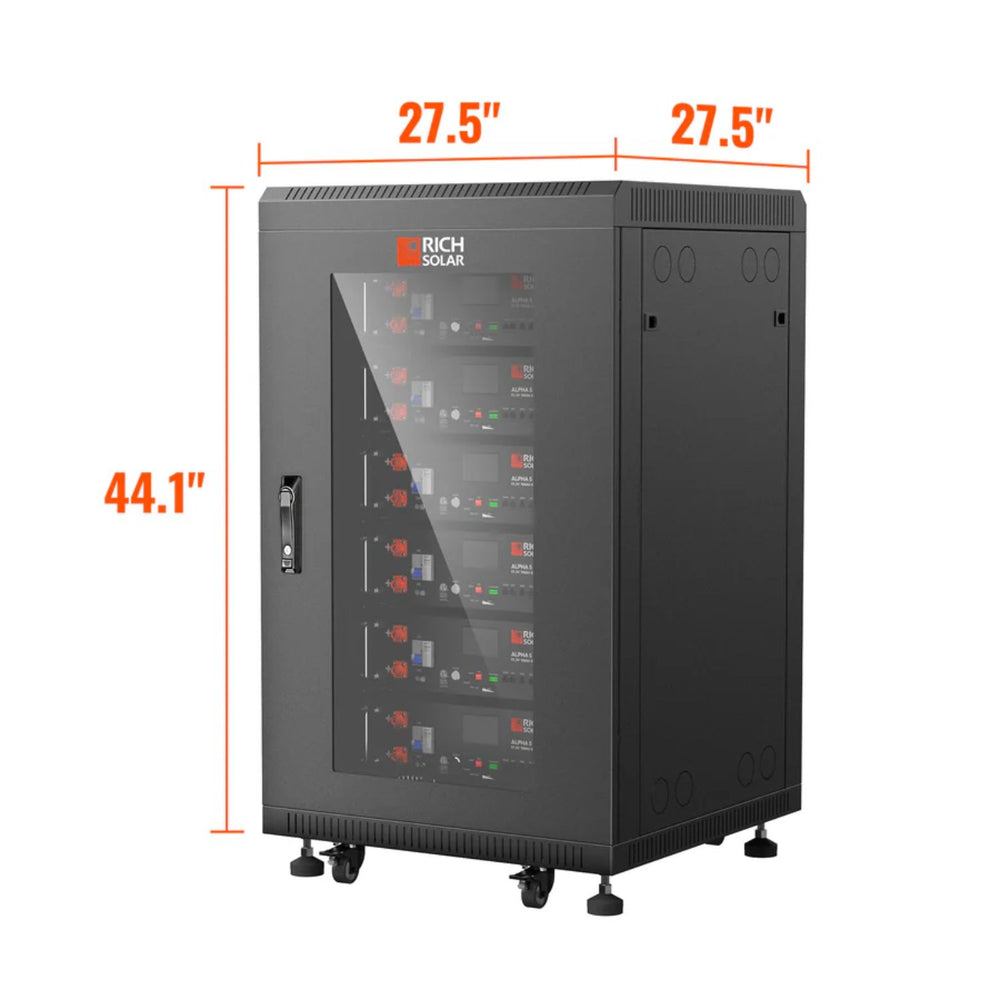

Space. It measures 27.56 x 27.56 x 44.09 inches. Leave room for four-side access and cable entry.
-
Weight. The empty rack weighs 224.87 pounds with casters. With six ALPHA 5 PRO batteries at 100.9 pounds each, a full rack weighs about 830 pounds, so check your floor.
-
Environment. The operating temperature range is 4°F to 113°F. Install it in a garage, utility room or other sheltered space.
This may be a good fit if
- You own or plan to buy ALPHA 5 PRO batteries
- You want an enclosed, organized battery bank of up to 30.72kWh
- You need busbars rated for 600A
- You want to roll the bank into place and lock it there
Common Questions
Are Batteries Included?
No. The RS-SRA5P is the rack only, with casters. ALPHA 5 PRO batteries are sold separately.
How Many Batteries Does It Hold?
Six ALPHA 5 PRO batteries, for 30.72kWh in total.
Does It Arrive Assembled?
Yes. The rack comes pre-assembled with casters.
What Is the Warranty?
Rich Solar provides a 5-year warranty on the rack.
What's Included
- 1 x Rich Solar Assembled 6-Slot Battery Server Rack With Casters (RS-SRA5P), No Batteries Included
An Organized Home for Your ALPHA 5 PRO Bank
The Rich Solar Battery Server Rack for ALPHA 5 PRO gives up to six batteries a pre-assembled, enclosed steel home with 600A busbars, flexible cable routing and locking casters. At Outbound Power, we help customers plan ALPHA 5 PRO battery banks and match them to inverters and solar. If you have questions, our team is happy to help.
Rich Solar Battery Server Rack for ALPHA 5 PRO Specifications
|
| Model |
RS-SRA5P |
| Compatible Batteries |
Rich Solar ALPHA 5 PRO |
| Battery Slots |
6 (modules in parallel) |
| Maximum Storage |
30.72kWh with 6 ALPHA 5 PRO batteries |
| Maximum Busbar Current |
600A, copper with protective covers |
| Construction |
Welded steel, powder-coated, enclosed cabinet |
| Cable Entry |
Top and side |
| Access |
Four sides |
| Mobility |
Locking casters, leveling feet |
| Assembly |
Pre-assembled |
| Operating Temperature |
4°F to 113°F |
| Dimensions |
27.56 x 27.56 x 44.09 in |
| Weight |
224.87 lbs (with casters) |
| Warranty |
5 years |
