RUiXU Lithi2-16 16kWh Battery System For Reliable Power Storage And Efficient Energy Management
The RUiXU Lithi2-16 16kWh Battery System offers a powerful, scalable energy storage solution designed to meet the demands of homeowners, RV enthusiasts, off-grid adventurers, and mobile businesses. With advanced safety features, easy expandability, and user-friendly controls, this battery system ensures your energy needs are met with maximum reliability and long-term value.
Real-World Applications of the RUiXU Lithi2-16 Battery System
Home Backup Power
Ensure your household remains powered during outages by installing the RUiXU Lithi2-16 as part of your home energy system. Its scalable design means you can start with a single unit and expand to meet your future energy needs, ensuring uninterrupted comfort and safety.
Off-Grid Living and Remote Cabins
Power your cabin or remote property with confidence. The durable electro-coating prevents rust and corrosion, even in harsh outdoor environments. Its self-heating feature ensures optimal performance in cold climates, so you can enjoy off-grid living year-round.
Worksites and Emergency Response
Support job sites, emergency operations, or mobile clinics with a dependable energy source. Its high capacity, rapid connection, and safety features enable continuous operation of tools and essential equipment in remote locations.
RUiXU Lithi2-16 Battery Warranty
RUiXU provides a 10-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
What's Included
- 1 x RUiXU Lithi2-16 16kWh Battery System
- 1 x RJ45/CAT5e Patch Cable
- 1 x Ground Cable

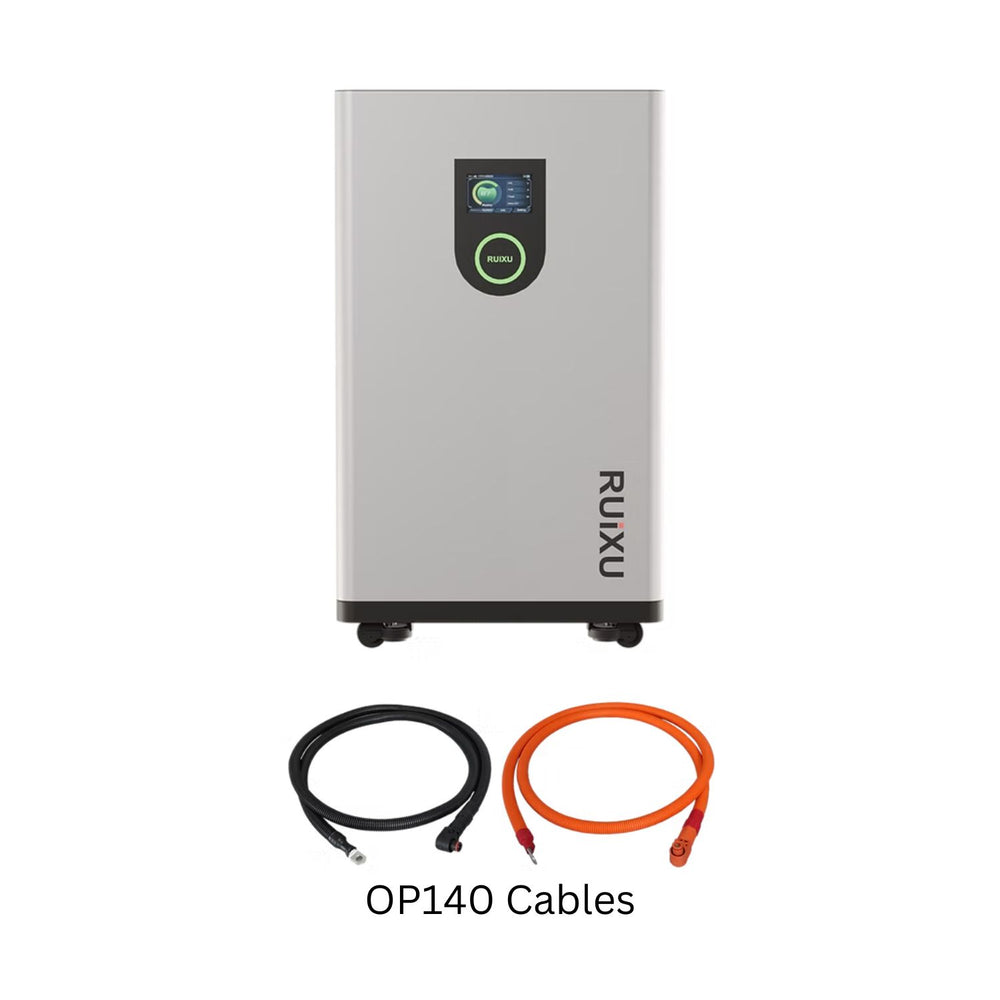

- 1 x Set Of Parallel 1/0 AWG OP140 or PP140 cable
RUiXU Lithi2-16 Battery Specifications
|
| Electrical Specifications |
|
| Nominal Voltage |
51.2V |
| Nominal Capacity |
314Ah |
| Nominal Energy |
16kWh |
| Operating Voltage Range |
43.2V ~ 58.4V |
| Charge Voltage |
56.8V |
| Max Charging Voltage |
58.4V |
| Recommended Charge Current |
140A |
| Max Charge Current |
200A |
| Recommended Discharge Current |
140A |
| Max Discharge Current |
200A |
| Peak Discharge Current |
240A (15s) / 360A (1s) |
| Maximum Discharge Power |
10kW |
| Rated DC Power |
7kW |
| Low Voltage Cut-Off |
43.2V |
| Usable Battery Capacity |
16kWh (DOD 100%) |
| Cycle Life (80% DOD) |
≥ 9,500 cycles |
| Design Life |
10 Years |
| Communication Protocols |
RS485 / CAN |
| Operation Temperature |
Charge: –25°C ~ 55°C (–13°F ~ 131°F) Discharge: –20°C ~ 55°C (–4°F ~ 131°F) |
| Storage Temperature |
–20°C (–4°F) ~ 45°C (113°F) |
| Warranty |
10 Years |
| Mechanical Specifications |
|
| Dimensions (H × W × D) |
924 × 543 × 250 mm (36.3 × 21.3 × 9.8 in, with wheels) |
| Weight |
145 kg |
| Cell Configuration |
16S1P |
| Cell Type |
LiFePO₄ |
| Electrolyte |
Lithium Iron Phosphate |
| Certifications |
CE, IEC62619, UN38.3, UL1973, UL9540 |
| Country of Manufacture |
China |
| Heater Specifications |
|
| Heater Voltage |
56V |
| Power Consumption |
480W |
| Heating Function |
Self-heating starts ≤5°C (41°F); stops ≥12°C (53.6°F) |
RUiXU RUiXU Lithi2-16 Battery Manual
