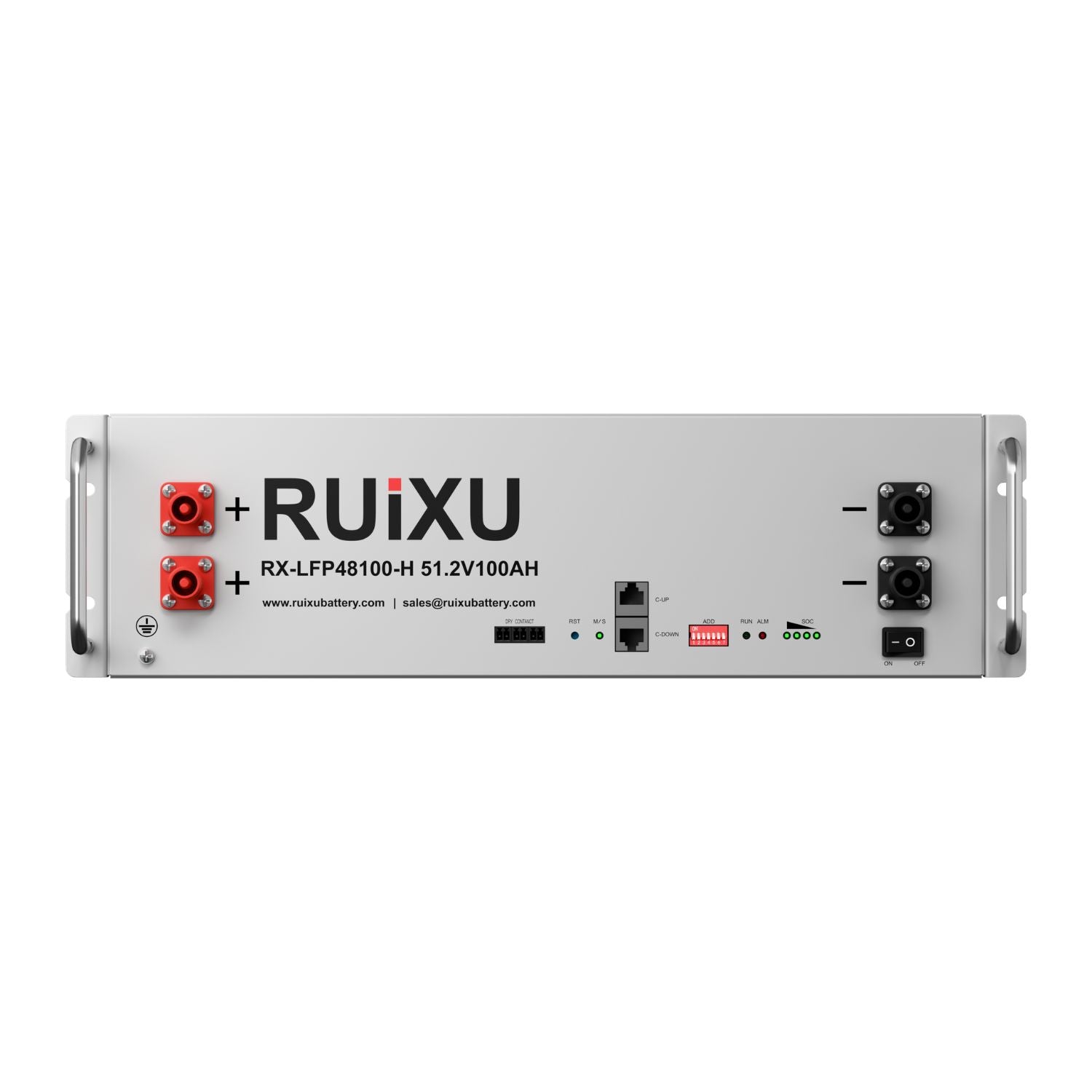

RUiXU 51.2V Server Rack Batteries Deliver Powerful Performance For Uninterrupted Energy Solutions
Are you tired of power interruptions throwing a wrench in your plans? The RUiXU RX-LFP48100 51.2V Server Rack Batteries are here to revolutionize your energy experience. These cutting-edge lithium iron phosphate (LiFePO4) batteries offer a robust 5.12kWh capacity, ensuring you have the power you need when you need it most.
Traditional lead-acid batteries often fall short in staying reliable over time, requiring frequent replacements and maintenance, especially in demanding applications like off-grid living or mobile work. Compared to these conventional options, the RUiXU RX-LFP48100 51.2V Server Rack Batteries offer a longer cycle life, faster charging times, and a more stable performance curve. Plus, with the advanced safety features and self-heating technology, you’re investing in a solution built for real-world, demanding applications—a far better long-term investment than standard batteries.
Choosing your energy backup system isn’t just about the batteries; it’s about trusting a partner with expertise, reliability, and unwavering support. Outbound Power stands behind every product with the knowledge and customer-first approach that ensures your power needs are not just met but exceeded. Our focus is on providing high-quality, durable solutions designed for real-world use, so you can power your life with confidence for years to come.

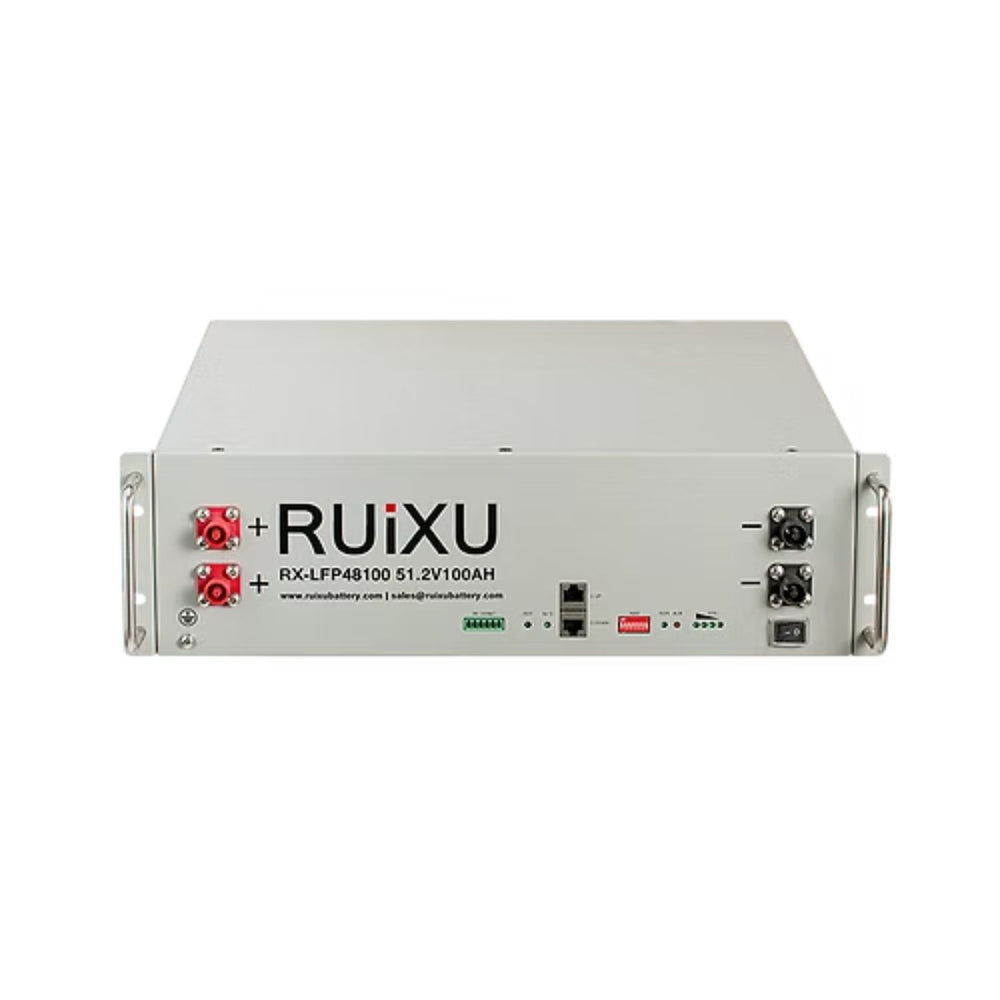

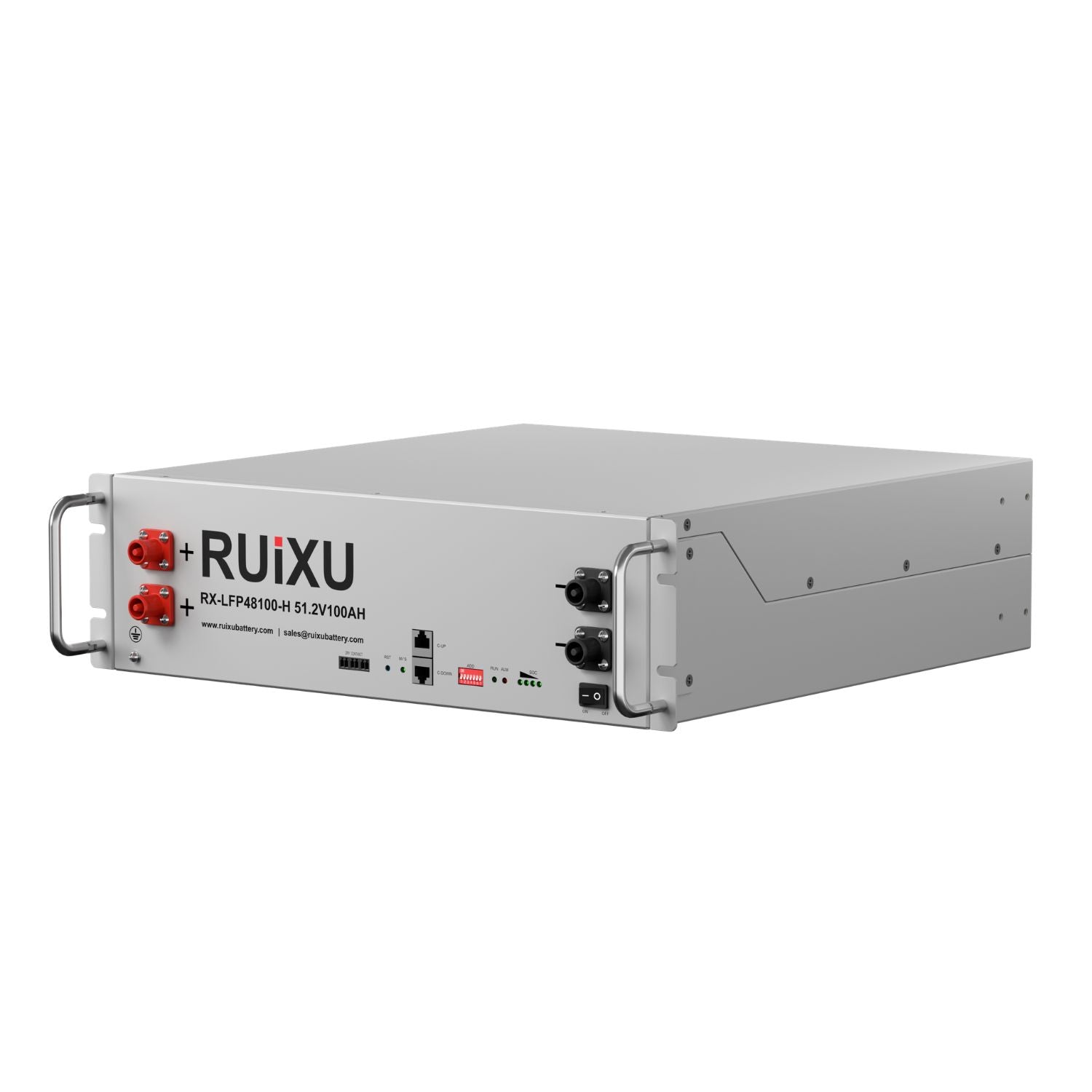

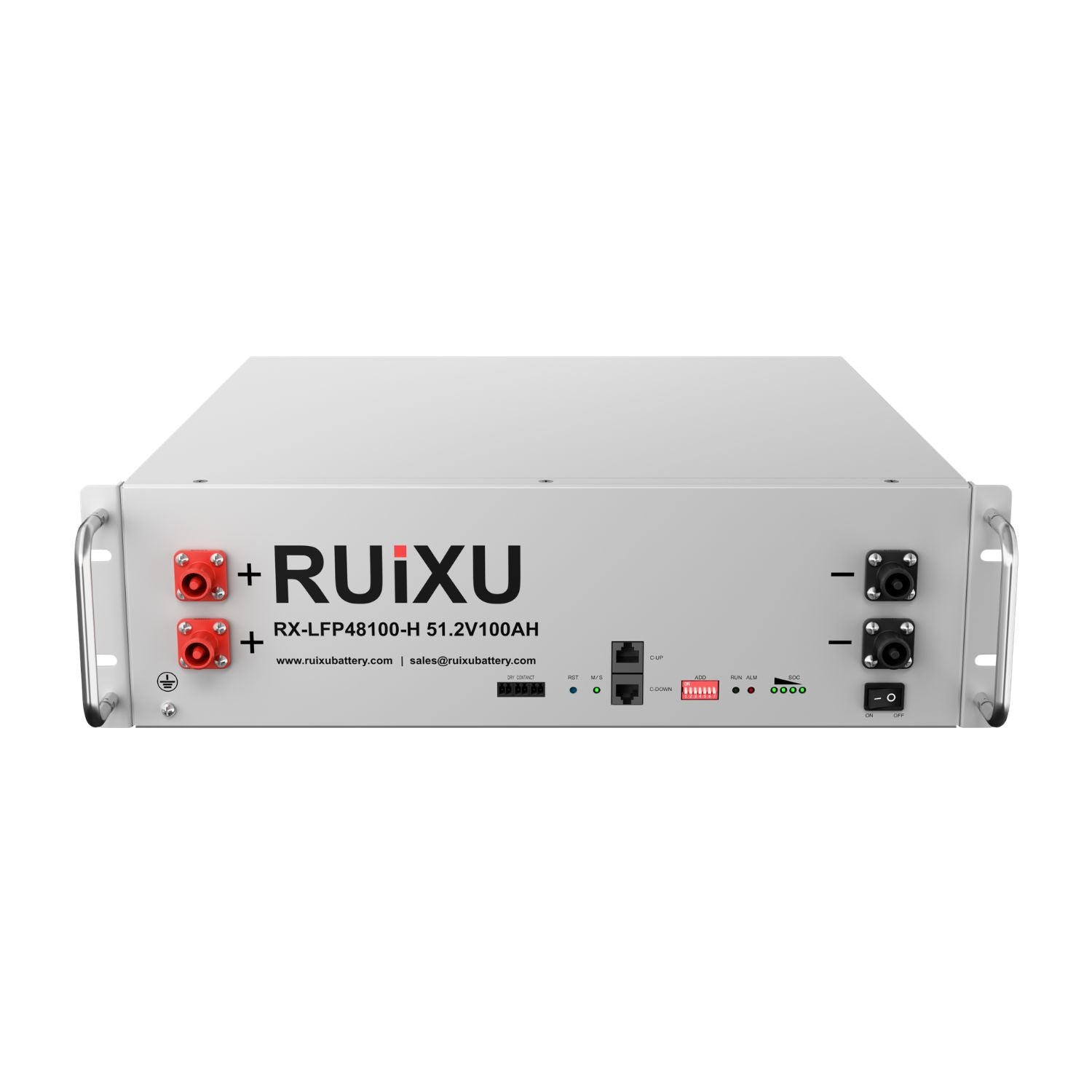

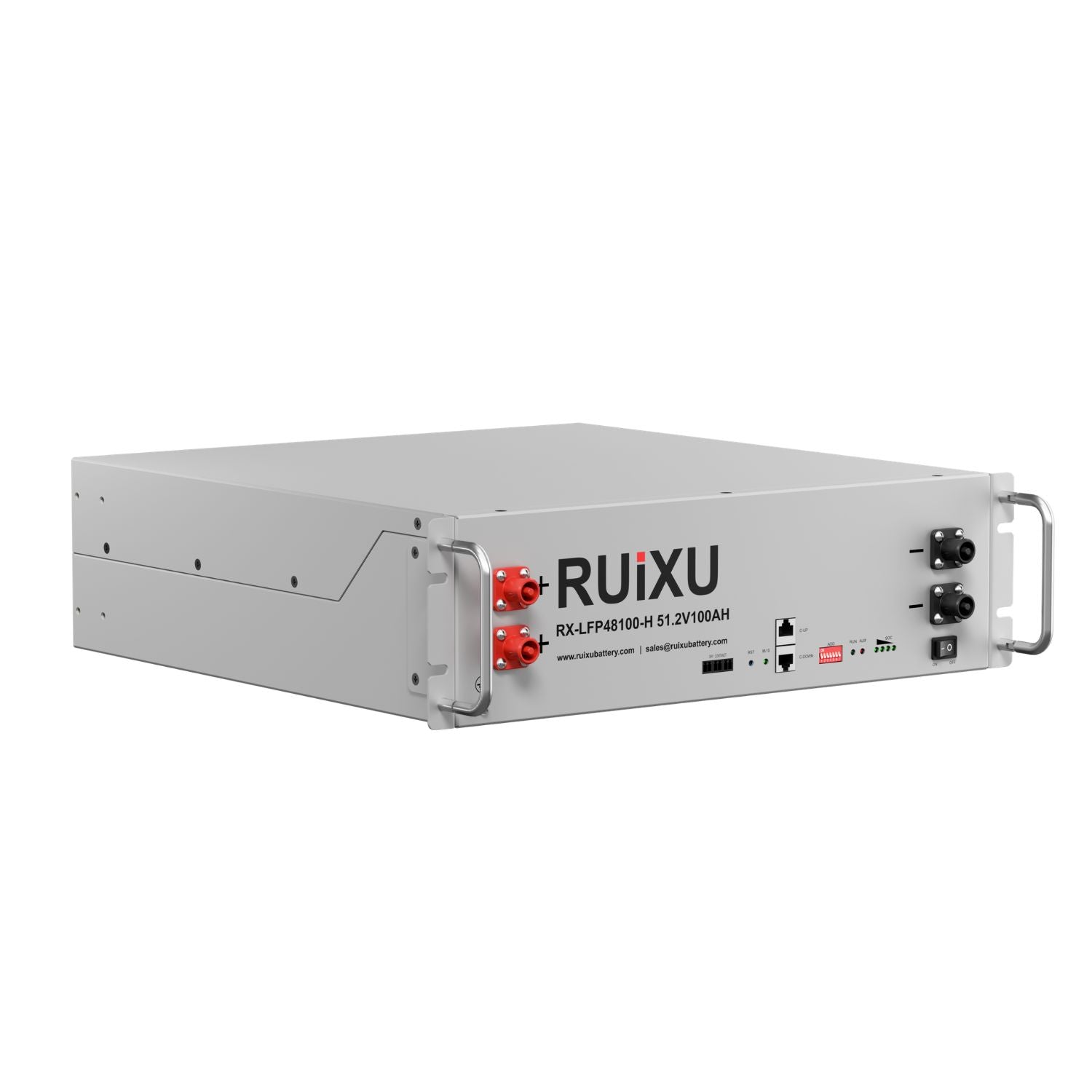

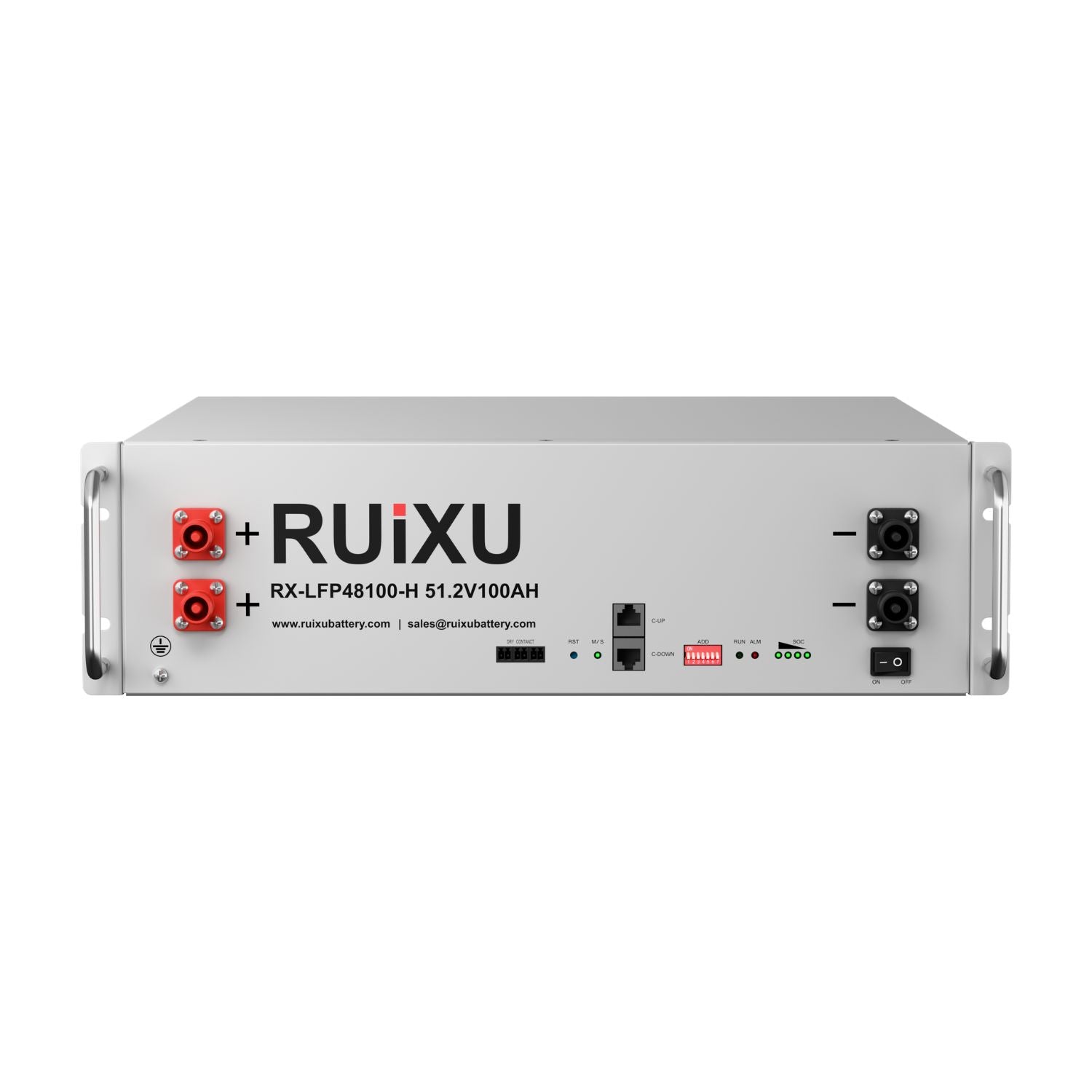

RUiXU RX-LFP48100 51.2V Server Rack Batteries Features

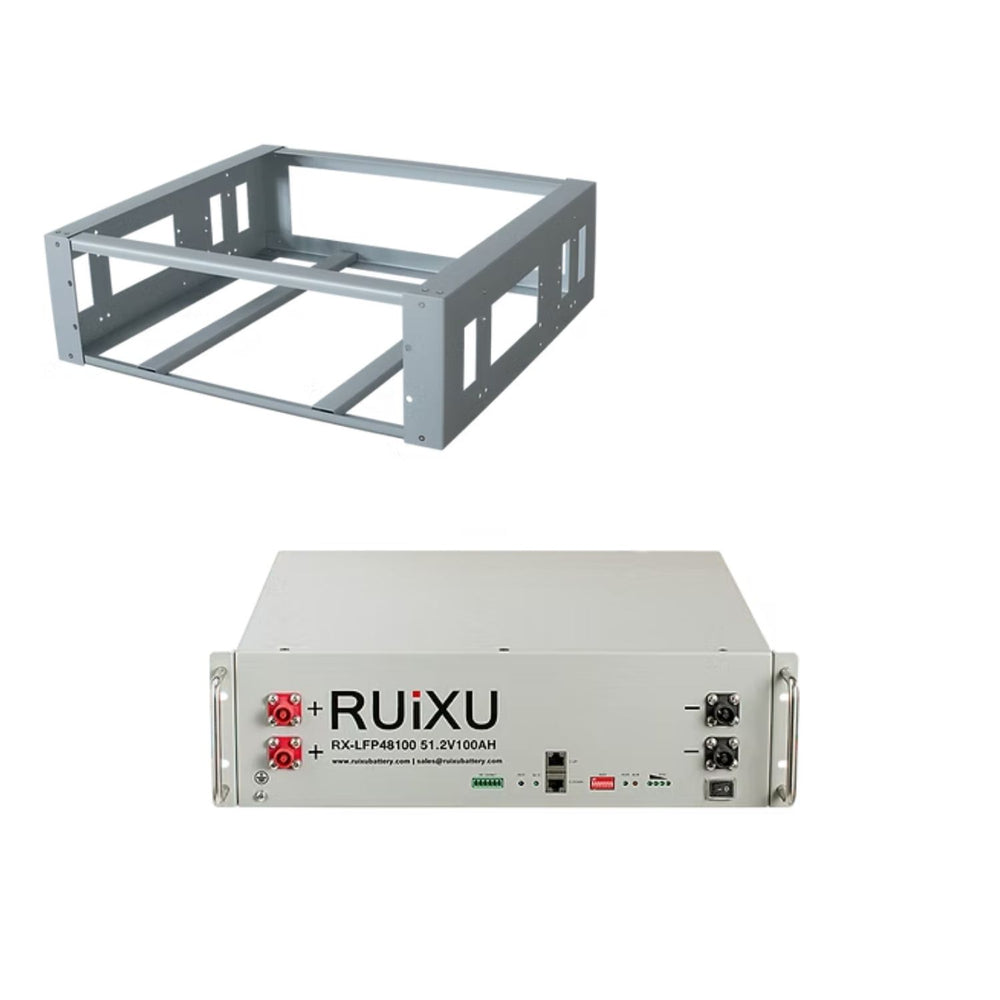

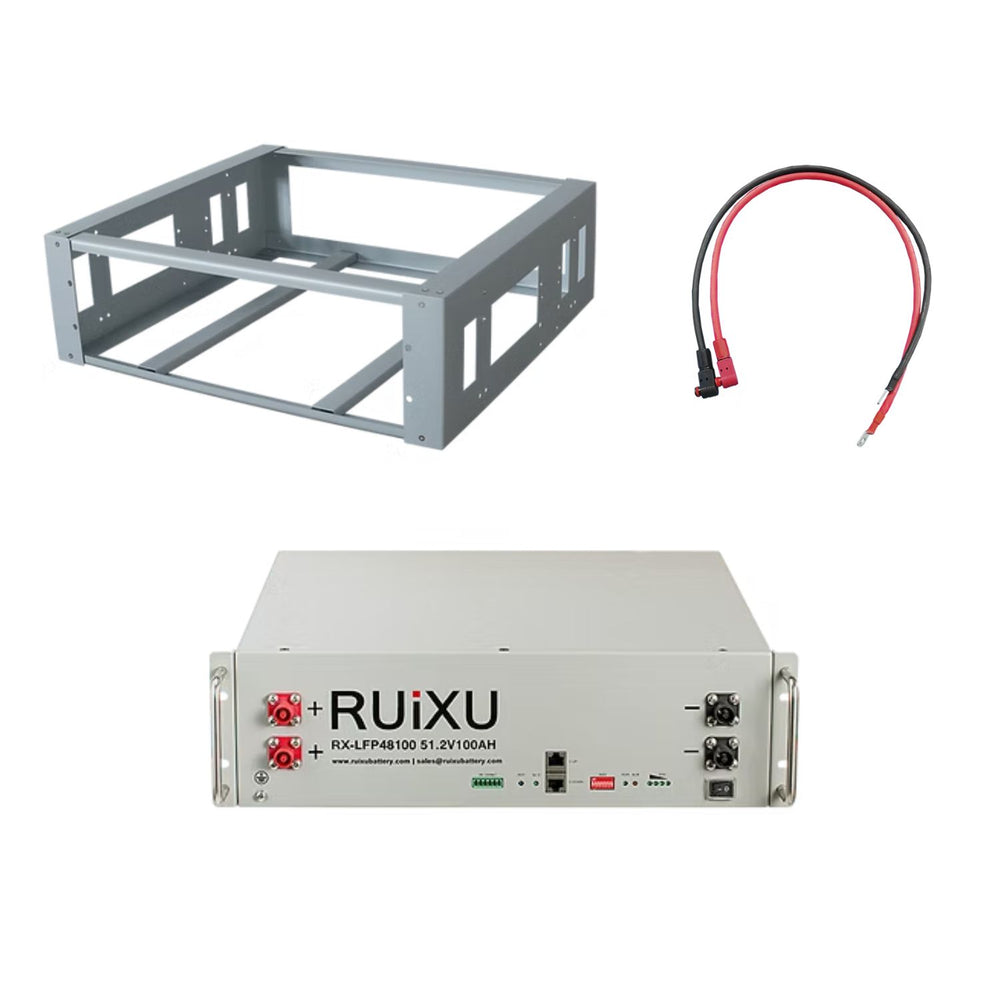

Compact 3U Rack-Mounted Design For Easy Integration Into Existing Systems
Say goodbye to bulky power solutions that hog valuable space. The RUiXU RX-LFP48100 51.2V Server Rack Batteries boast a sleek 3U rack-mounted design, seamlessly fitting into standard 19" server racks. This thoughtful engineering allows for effortless integration into your existing power setup, whether it's a home backup system, an RV power bank, or a mobile worksite solution.
UL1973 Certification Ensures Top-Tier Safety Standards For Your Peace Of Mind
When it comes to energy storage, safety is paramount. That's why the RUiXU RX-LFP48100 51.2V Server Rack Batteries come equipped with UL1973 certification – the gold standard in battery safety. This rigorous certification process ensures that these batteries meet the highest safety requirements for use in light electric rail applications and stationary applications.
Advanced BMS Technology Optimizes Performance And Extends Battery Life
At the heart of these innovative batteries lies a sophisticated Battery Management System (BMS). This intelligent technology constantly monitors and manages each cell, ensuring optimal performance and longevity. The BMS protects against overcharging, over-discharging, and temperature fluctuations, effectively extending the life of your battery investment.

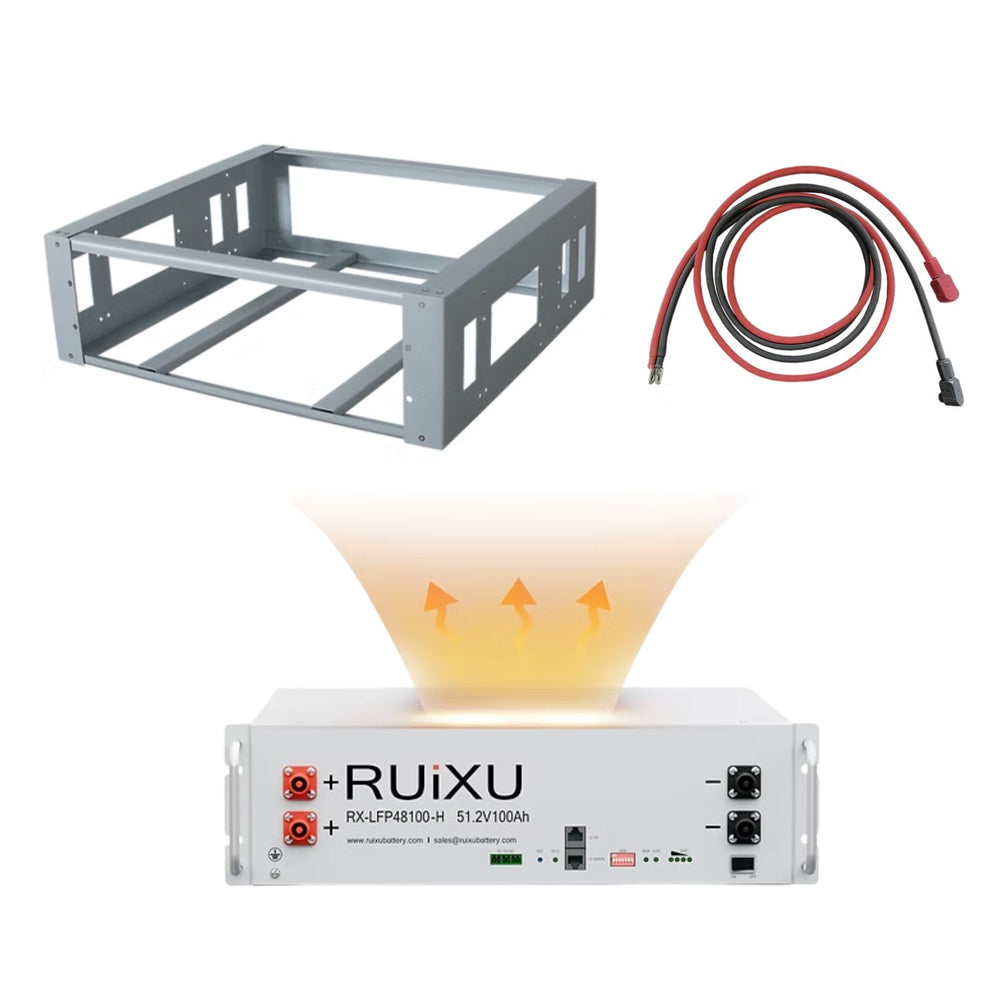

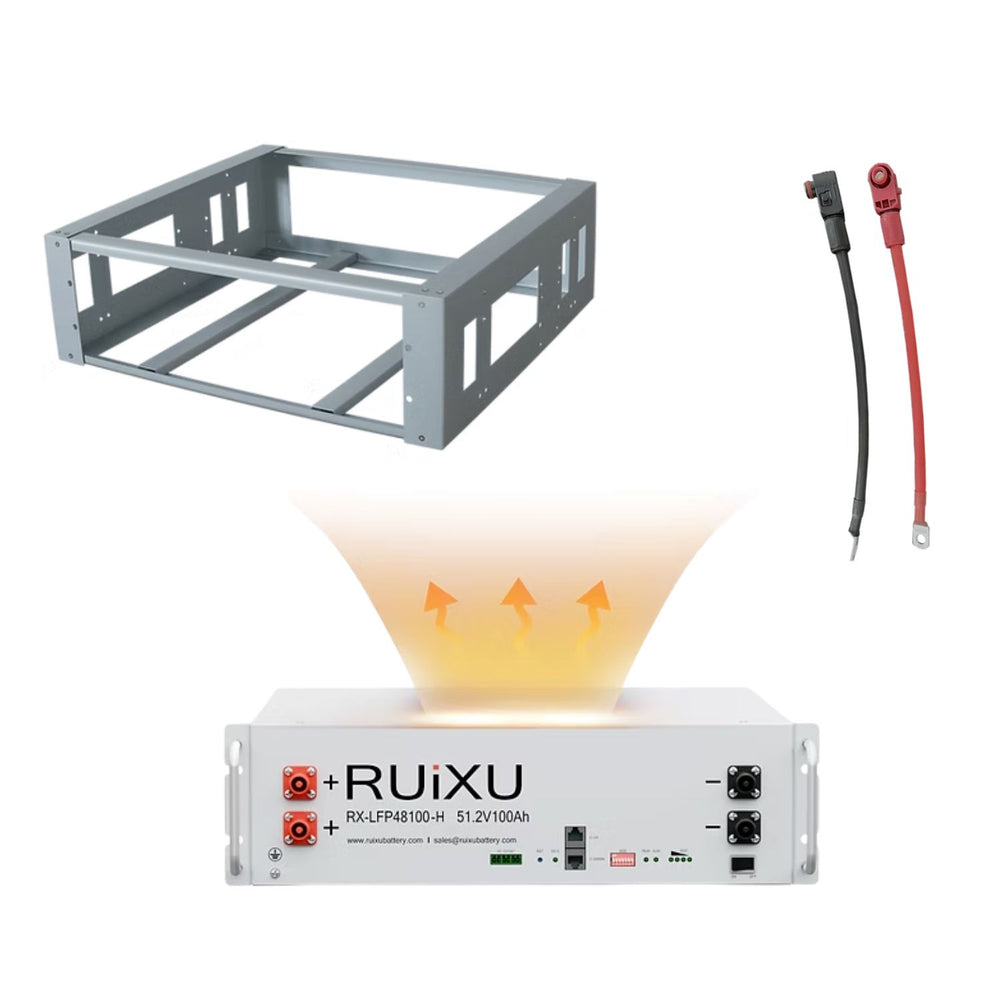

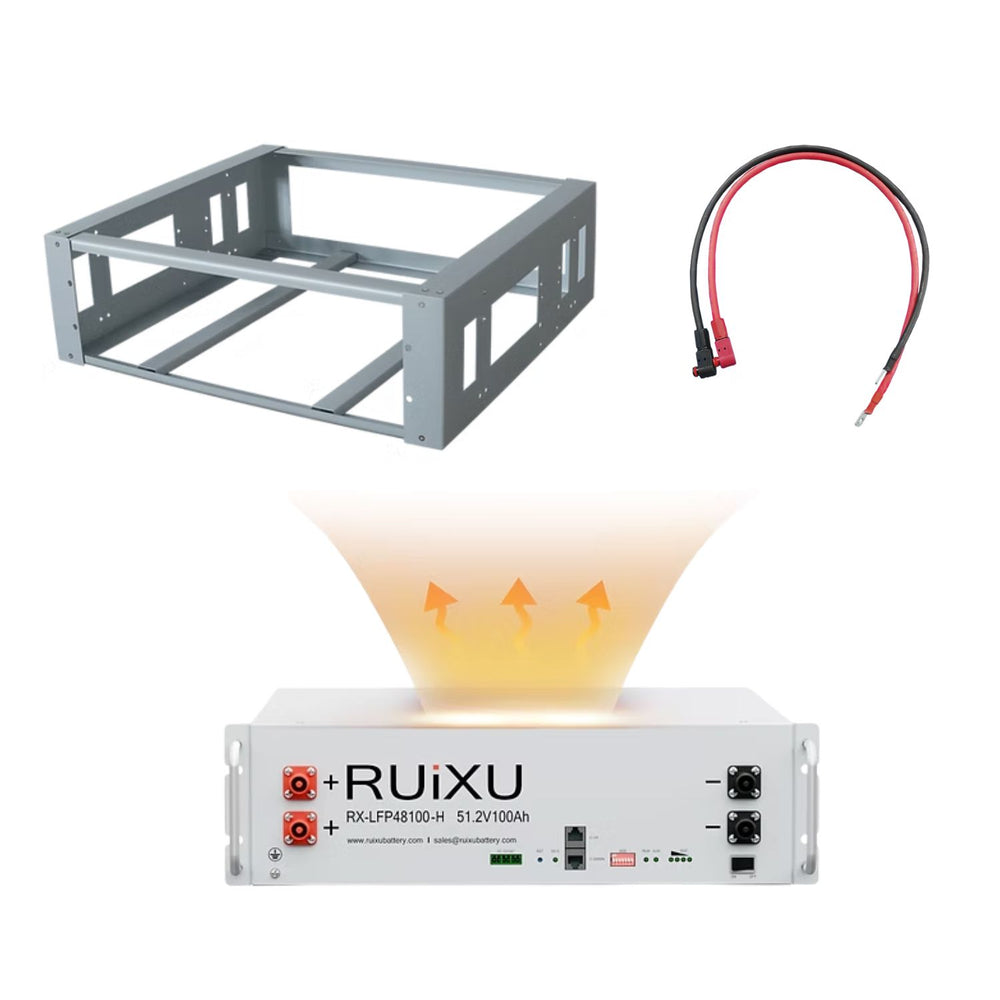

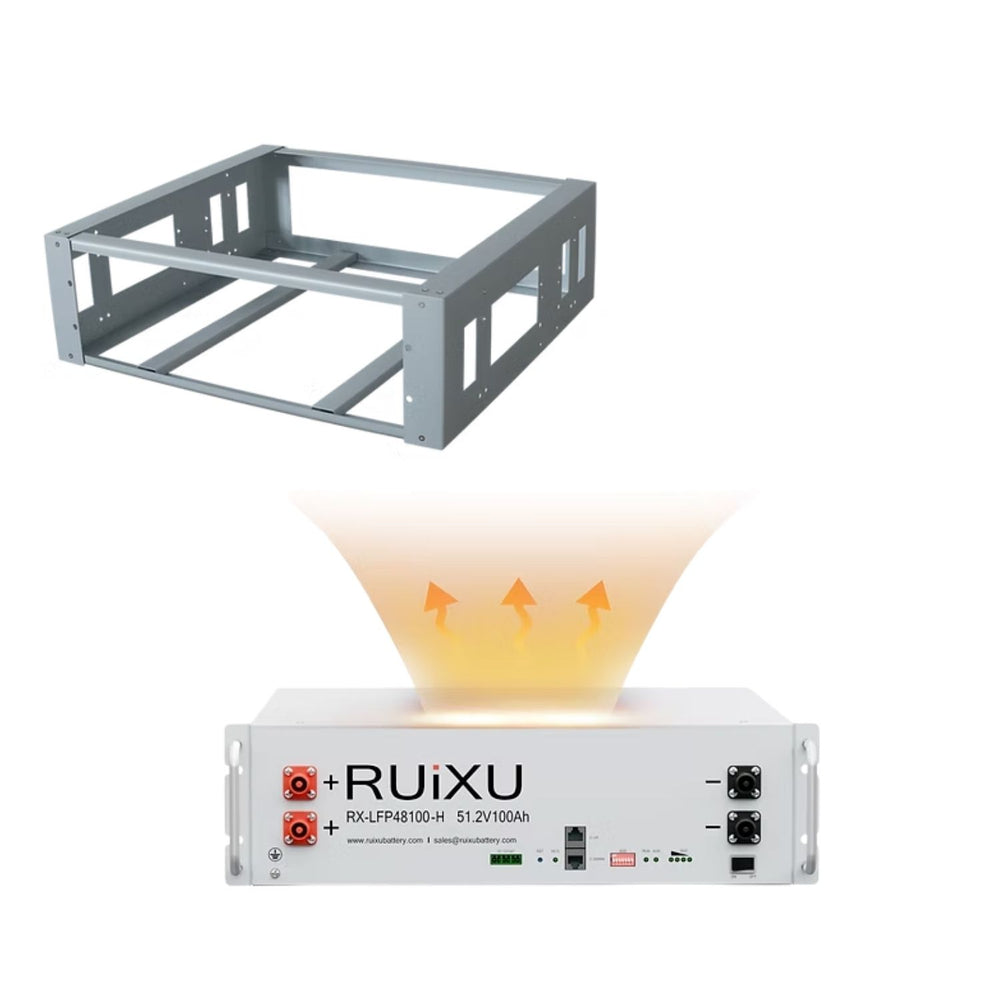

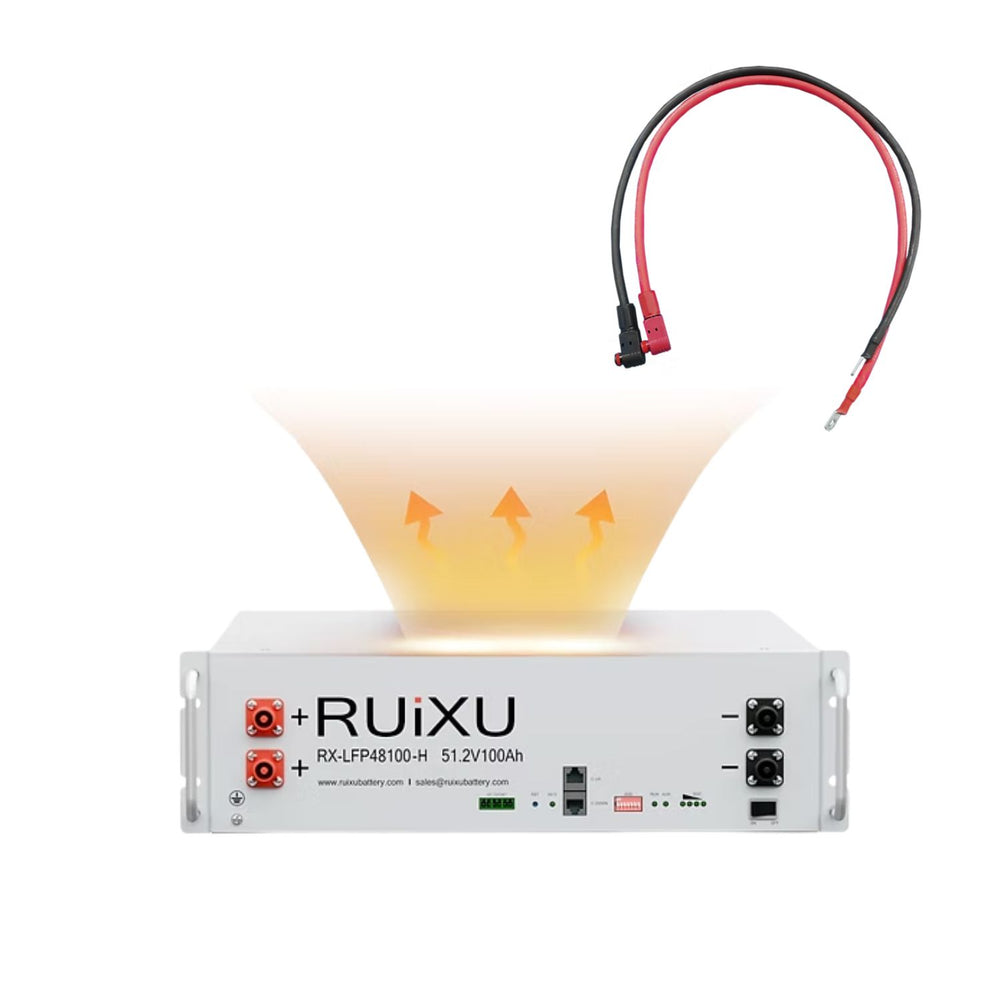

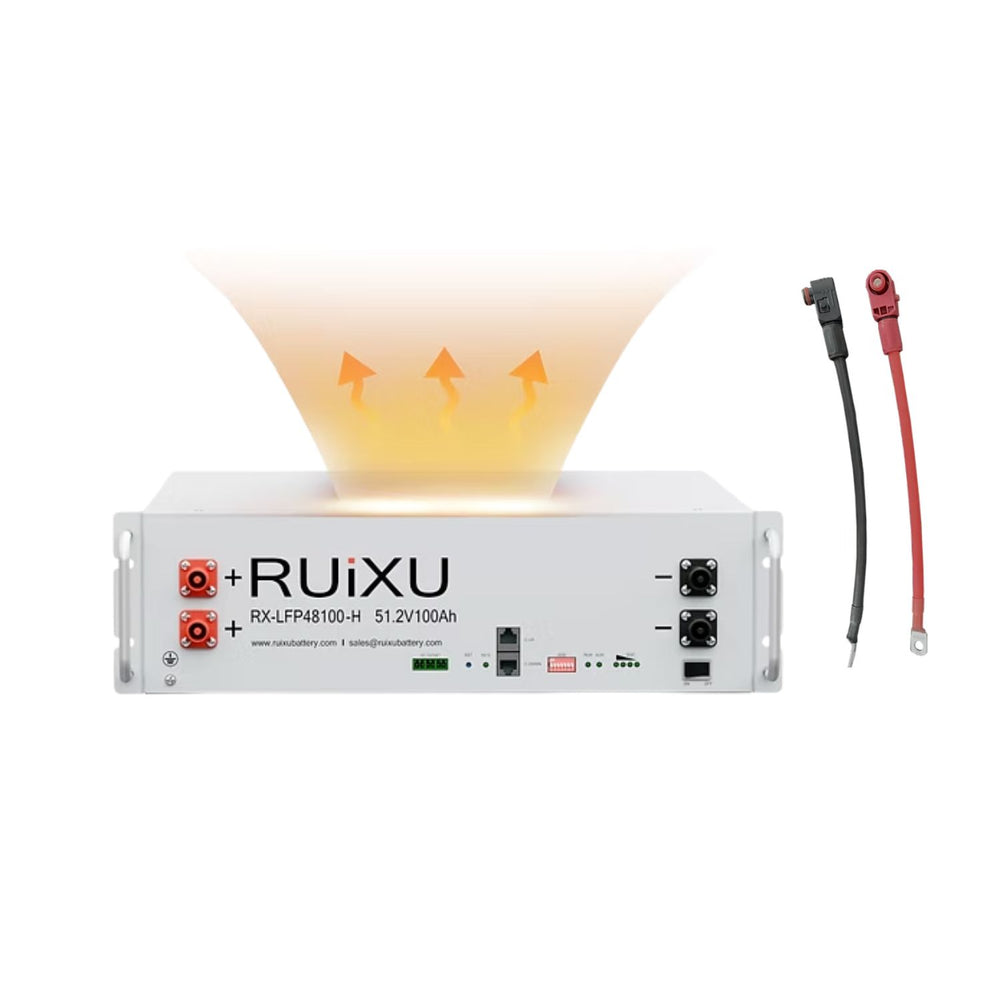

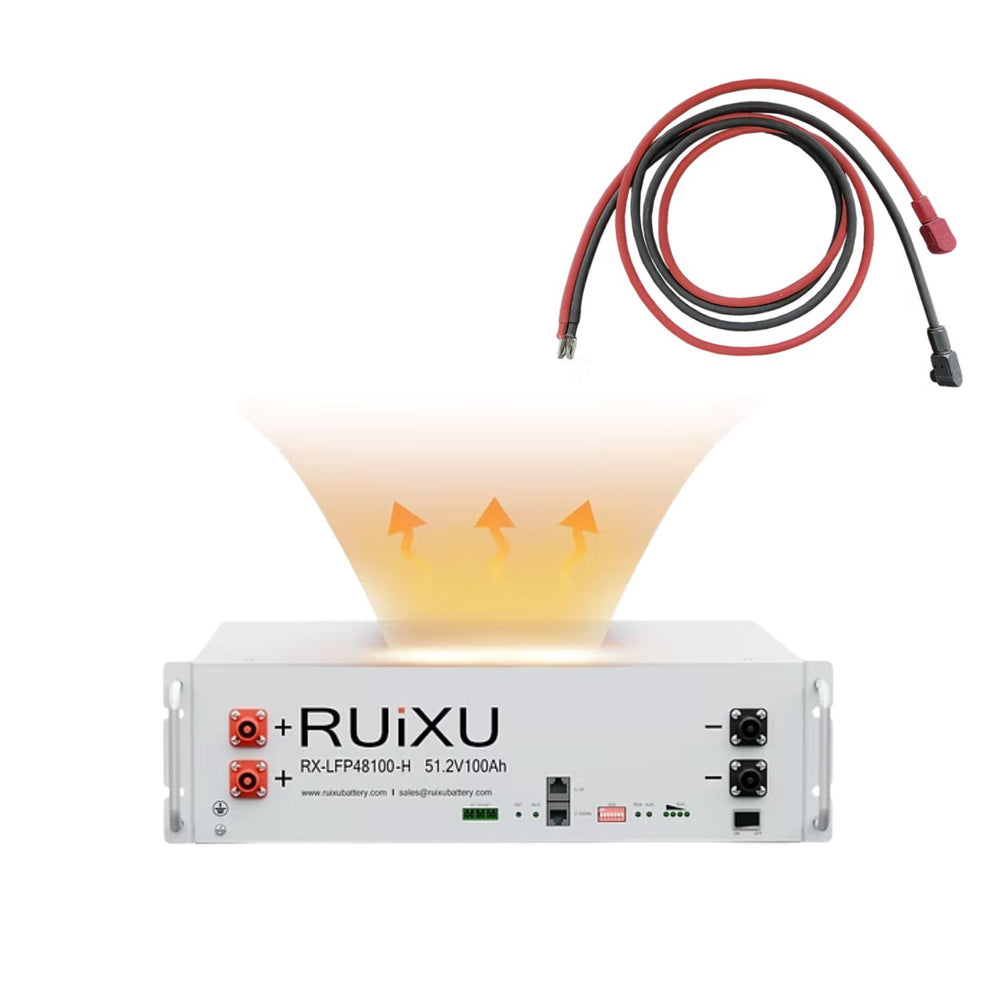

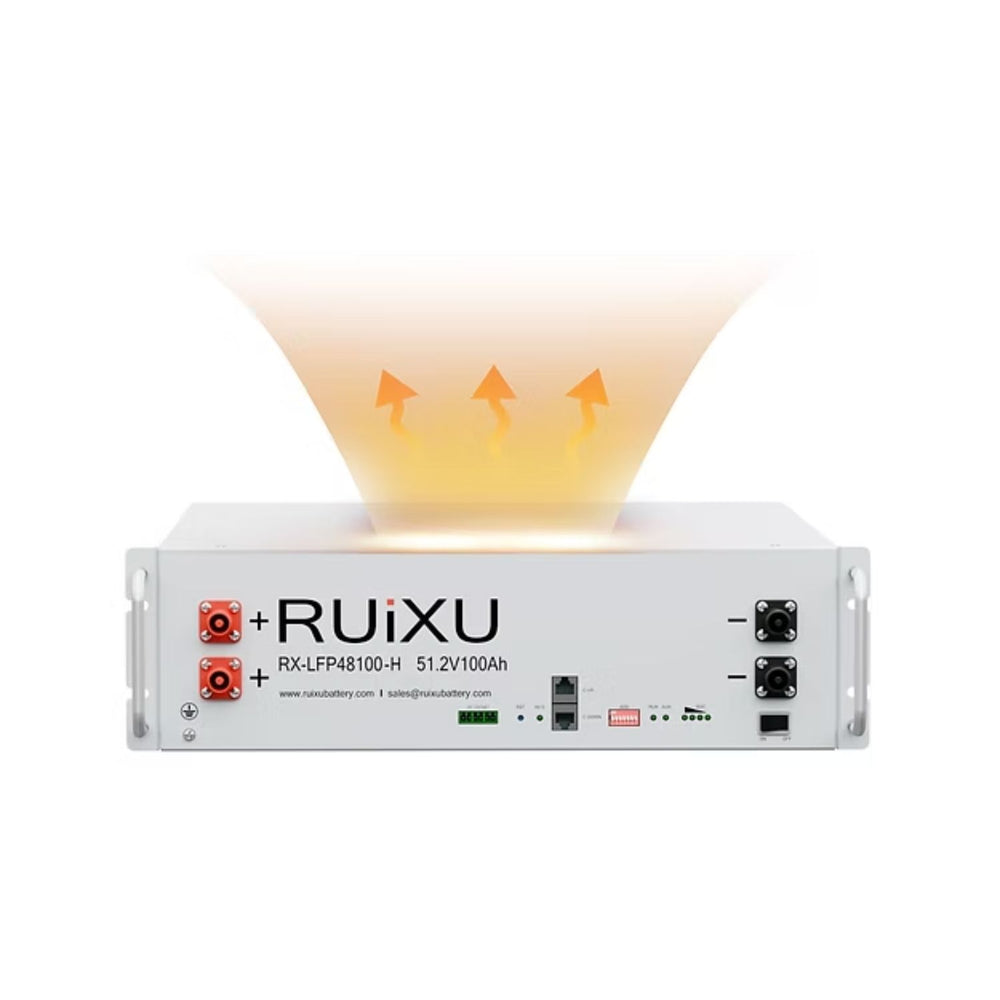

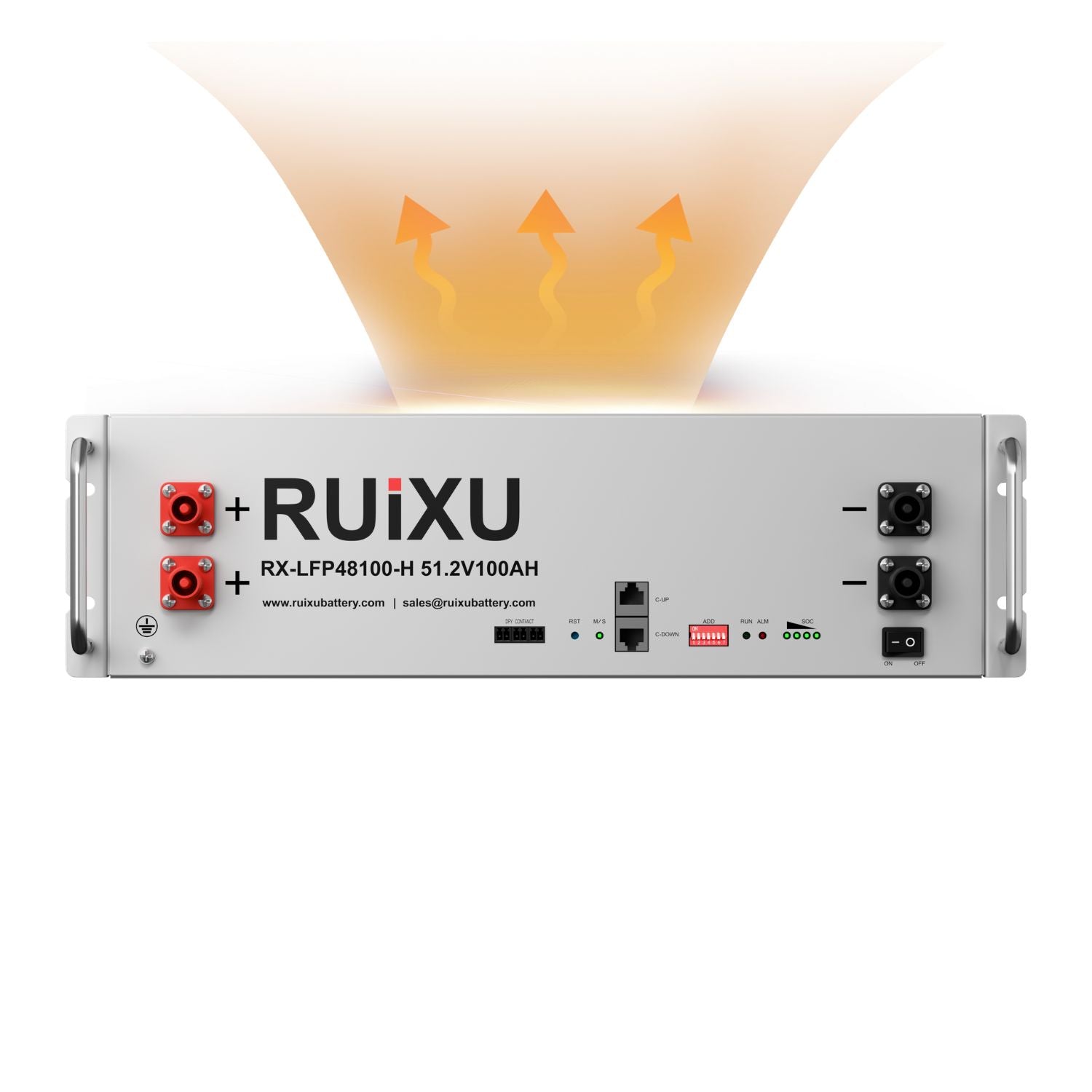

Self-Heating Capability Maintains Optimal Performance In Cold Environments
Don't let chilly weather put a damper on your power needs. The self-heating model of the RUiXU RX-LFP48100 51.2V Server Rack Batteries comes equipped with an innovative heating function. This feature allows the battery to maintain optimal performance even in frigid conditions, ensuring you have access to reliable power no matter where your adventures or work take you.
Impressive 6,000+ Cycle Life For Long-Term Value And Sustainability
In the world of portable power, longevity is key. The RUiXU RX-LFP48100 51.2V Server Rack Batteries shine in this department, boasting an impressive cycle life of over 6,000 cycles. This translates to years of dependable use, far outpacing traditional lead-acid batteries.
Parallel Connection Capability For Scalable Power Solutions
As your power needs grow, so can your energy storage capacity. The RUiXU RX-LFP48100 51.2V Server Rack Batteries are designed with parallel connection capability, allowing you to link multiple units together.
RUiXU RX-LFP48100 51.2V Server Rack Batteries Warranty
RUiXU provides a 10-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
What's Included

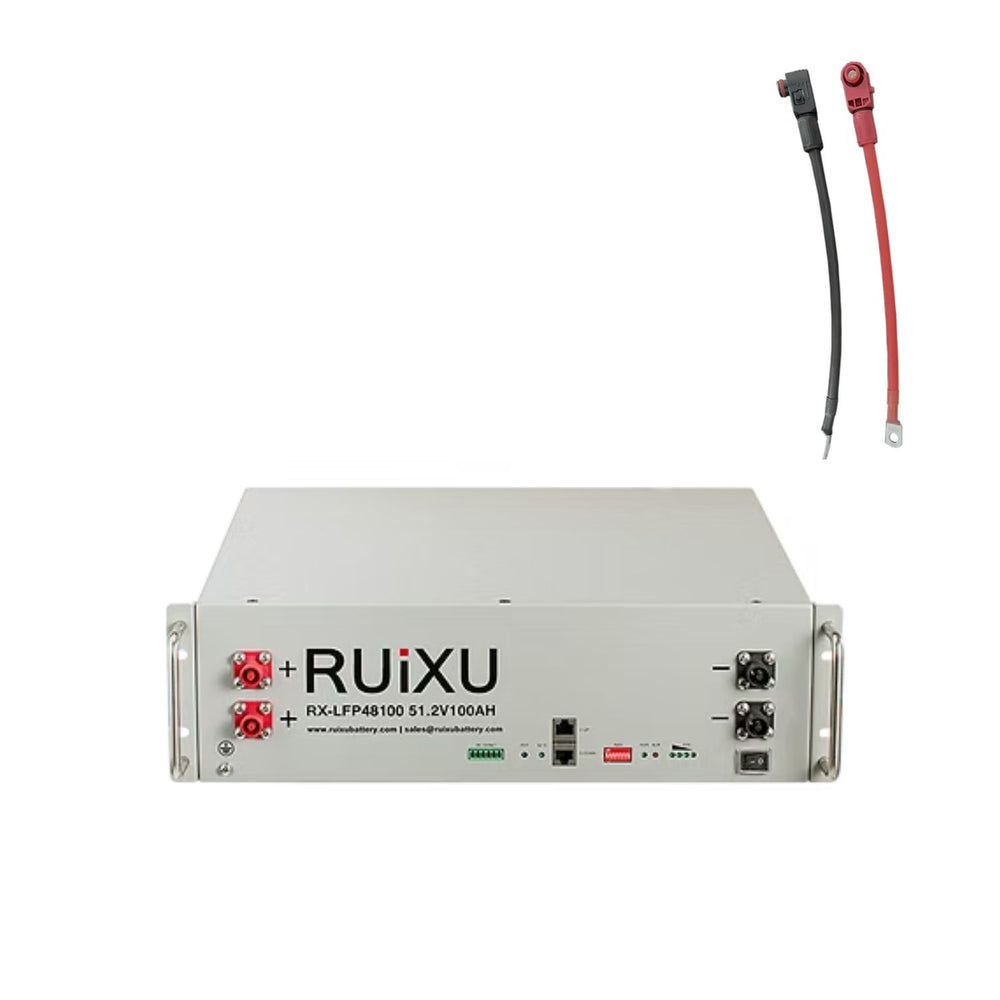

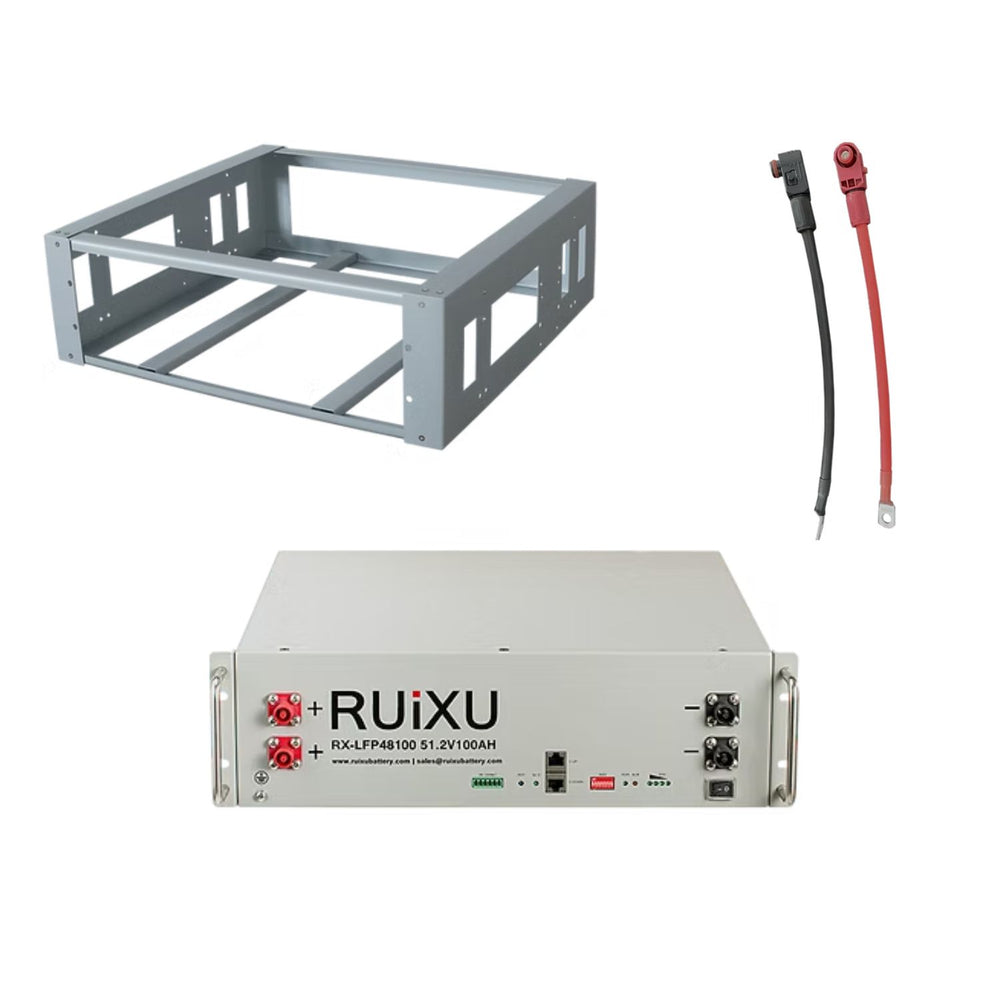

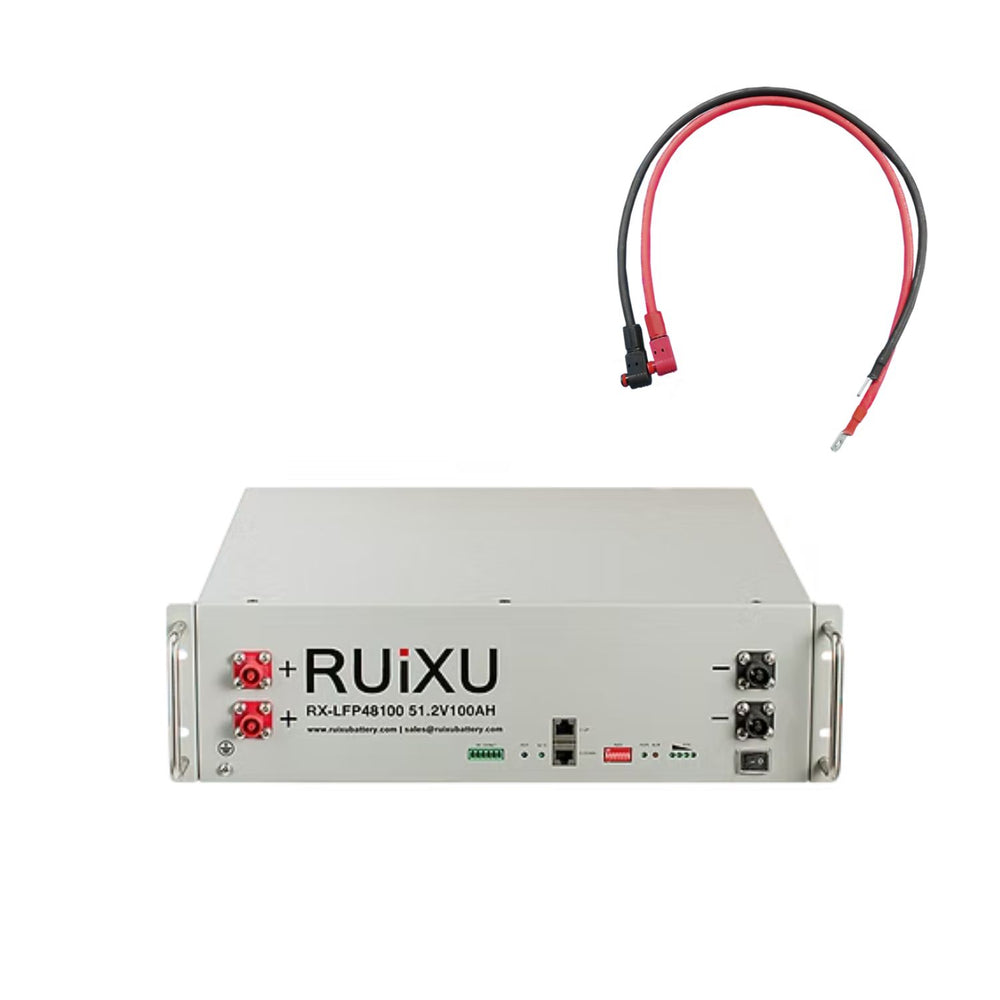

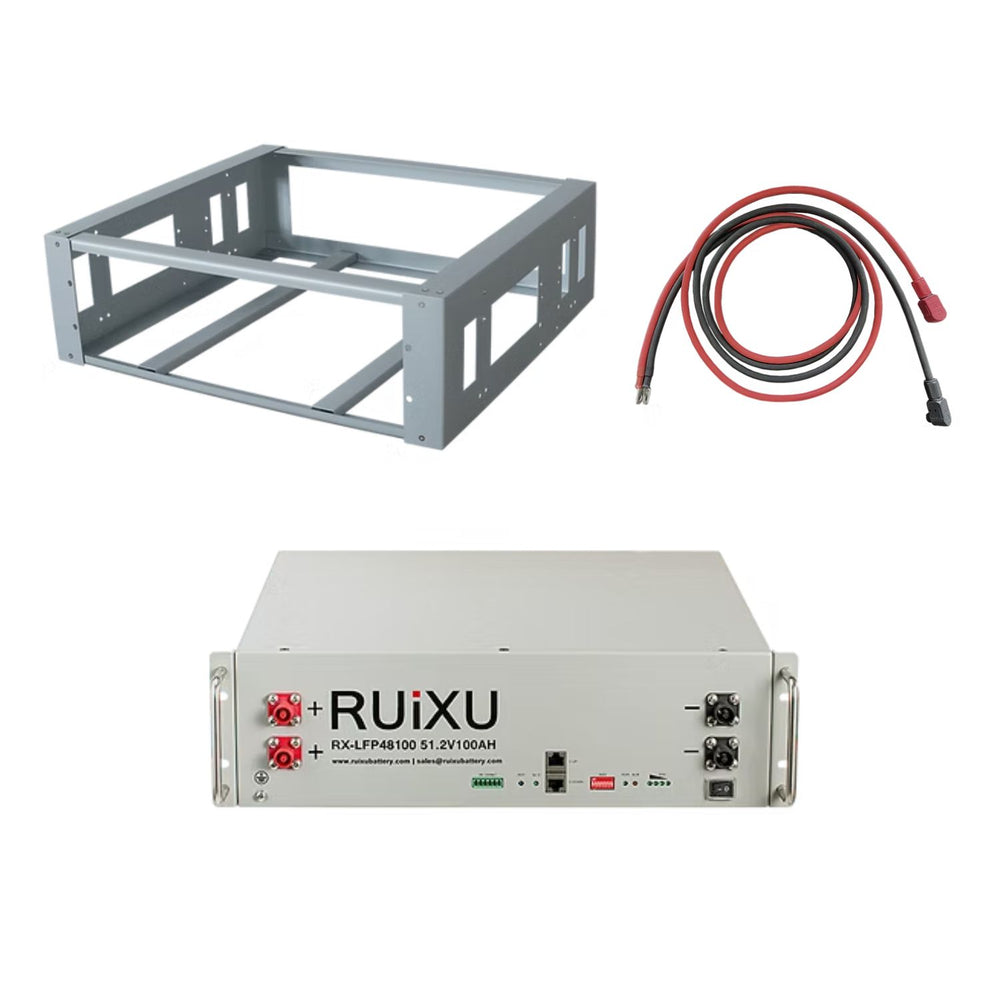

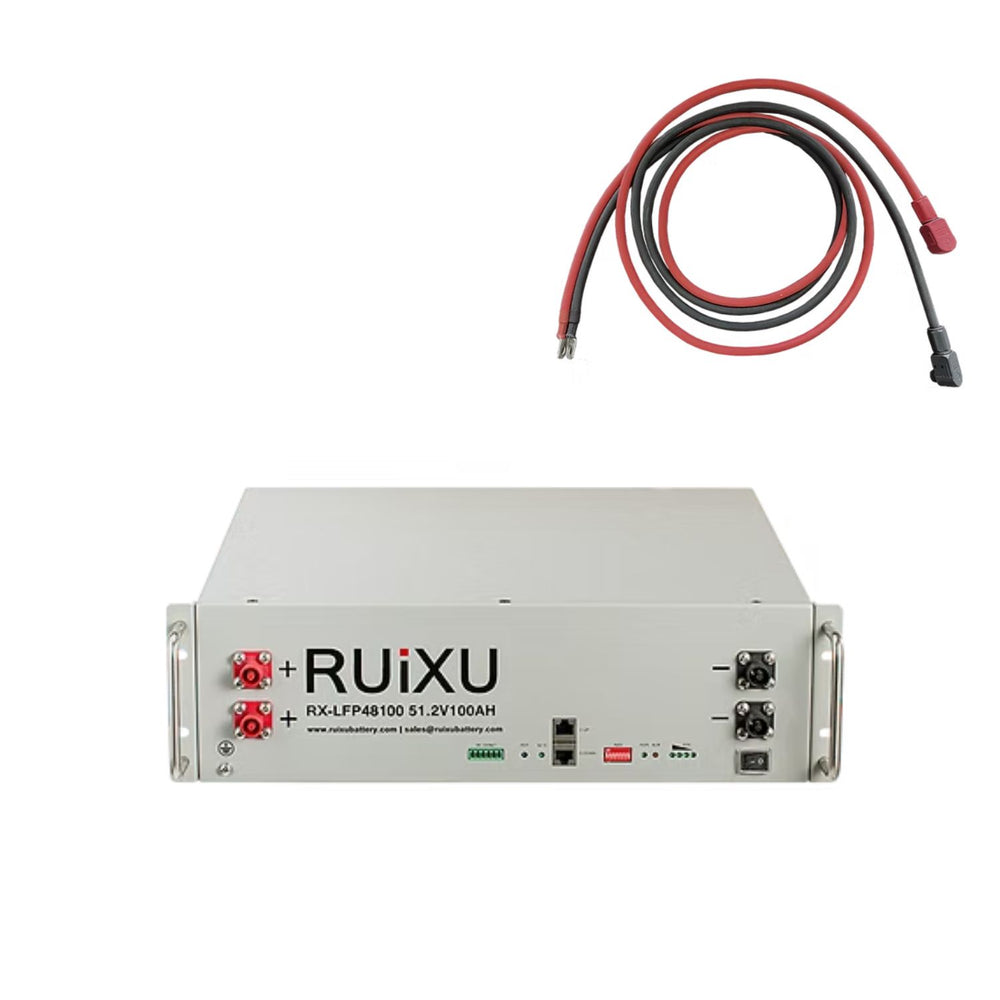

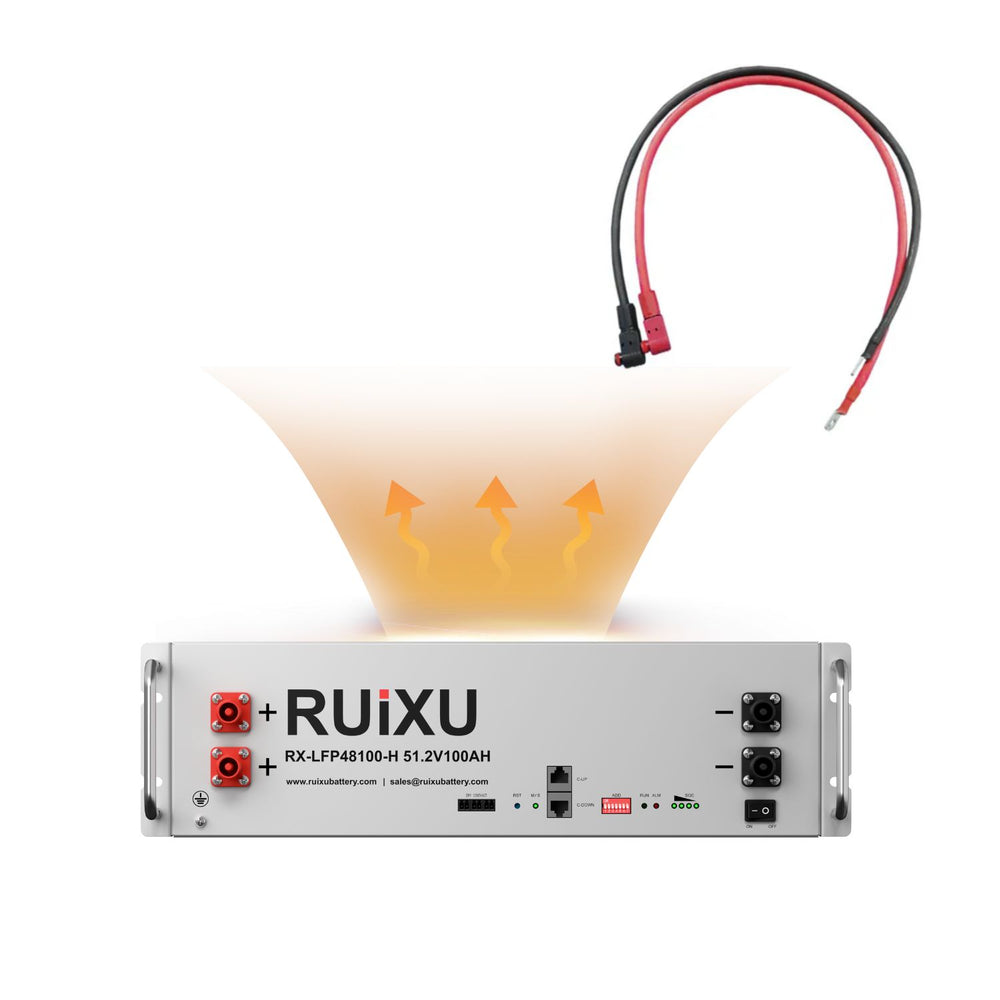

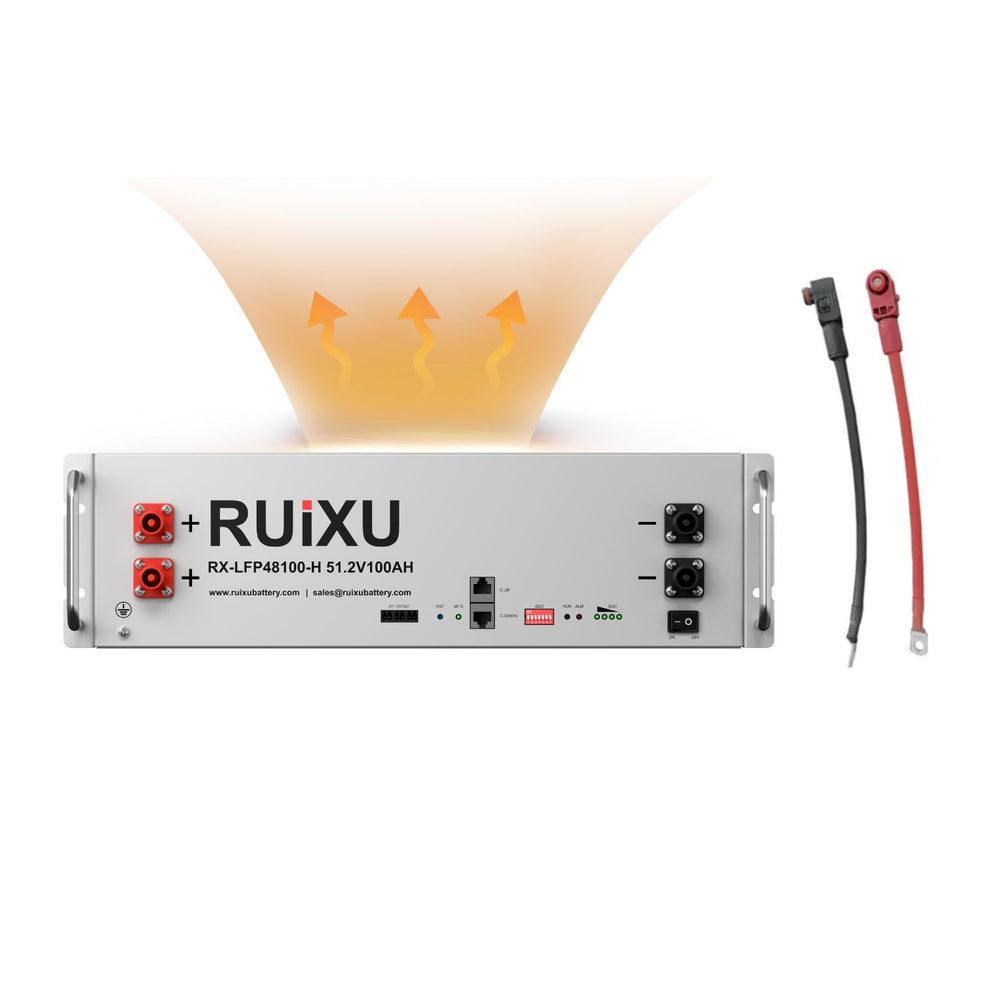

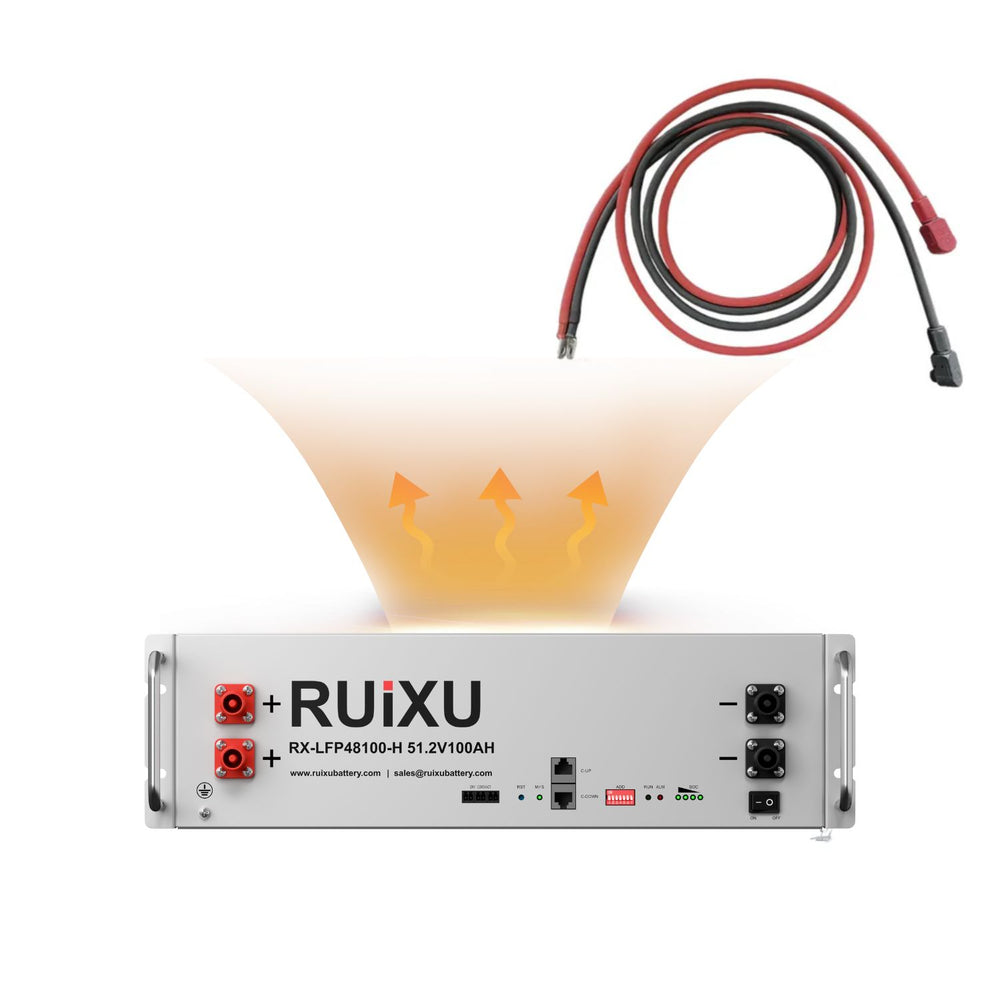

RUiXU RX-LFP48100 51.2V Server Rack Battery (standard and self-heated)
- 1 x RJ45/CAT5e Patch Cable
- 1 x Ground Cable
-
1 x Set of Parallel 4AWG Cables Per Battery

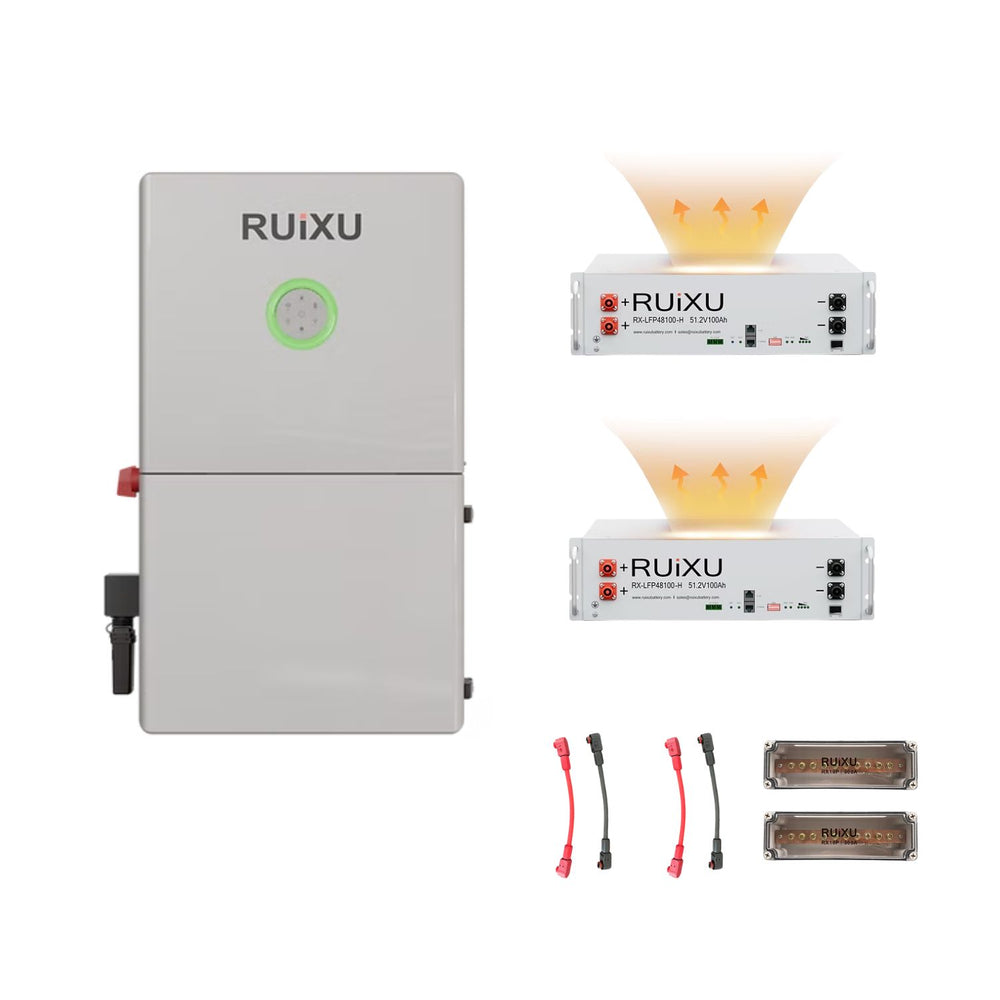

RUiXU 10.24 kWh Home & Commercial Battery Power System
- 1 × RUiXU RX-12K 11.4kW Split-Phase Hybrid Inverter
- 1 x 200CM CAT6 Communication Cable Connect With Battery
- 1 x WiFi Dongle
- 1 x Operation Manual
- 2 × RUiXU RX-LFP48100-H 5.12kWh LiFePO₄ Self-Heating Batteries
- 1 x RJ45/CAT5e Patch Cable Per Battery
- 1 x Ground Cable Per Battery
-
1 x Set of Parallel 4AWG Cables Per Battery
- 2 × RUiXU S80 Battery Cables
- 1 x RUiXU Busbar Set | 10 x 5/16" (M8) Terminal Studs | 300A

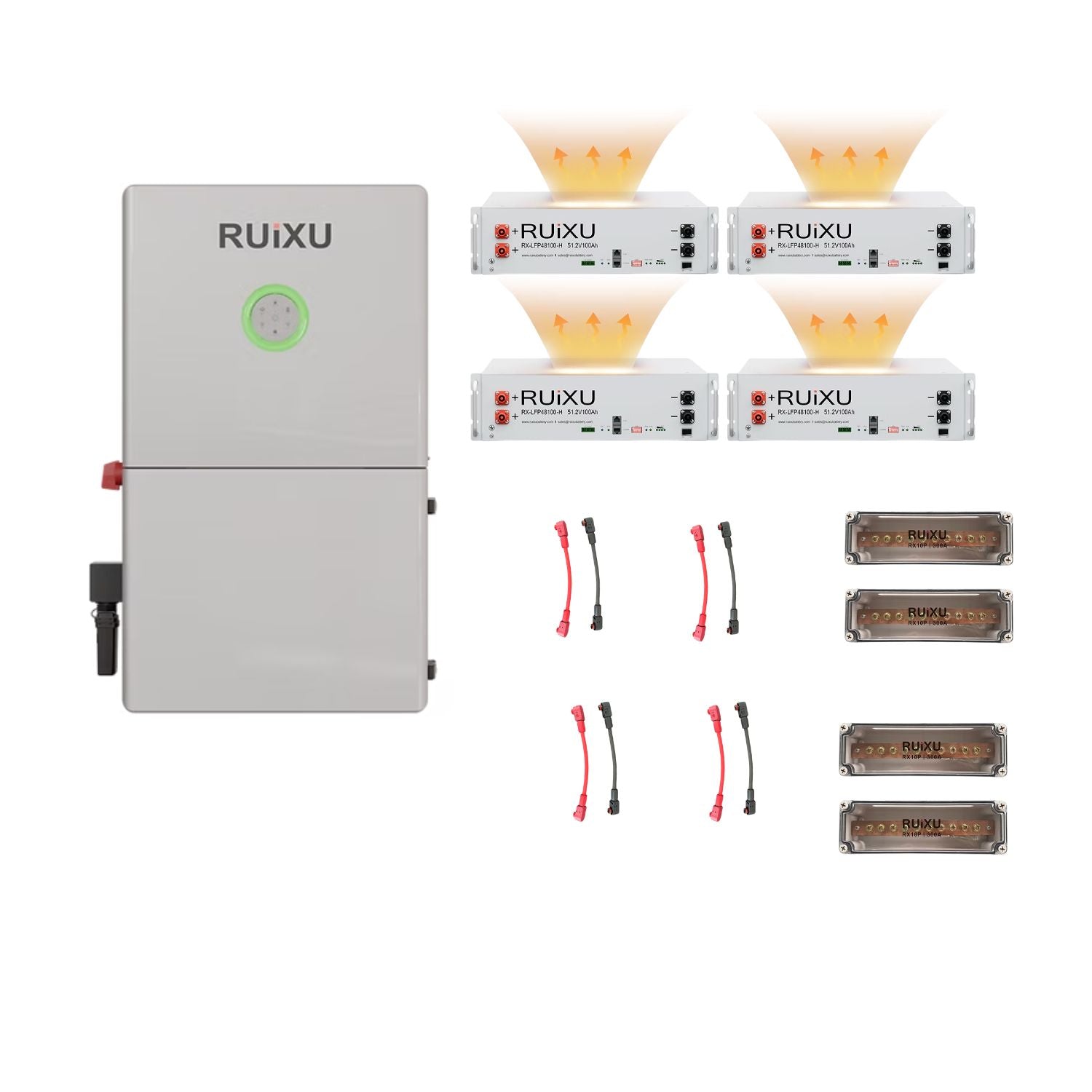

RUiXU 20.48 kWh Home & Commercial Expanded Power System
- 1 × RUiXU RX-12K 11.4kW Split-Phase Hybrid Inverter
- 1 x 200CM CAT6 Communication Cable Connect With Battery
- 1 x WiFi Dongle
- 1 x Operation Manual
- 4 × RUiXU RX-LFP48100-H 5.12kWh LiFePO₄ Self-Heating Batteries
- 1 x RJ45/CAT5e Patch Cable Per Battery
- 1 x Ground Cable Per Battery
- 1 x Set of Parallel 4AWG Cables Per Battery
- 4 × RUiXU S80 Battery Cables
-
1 x RUiXU Busbar Set | 10 x 5/16" (M8) Terminal Studs | 300A

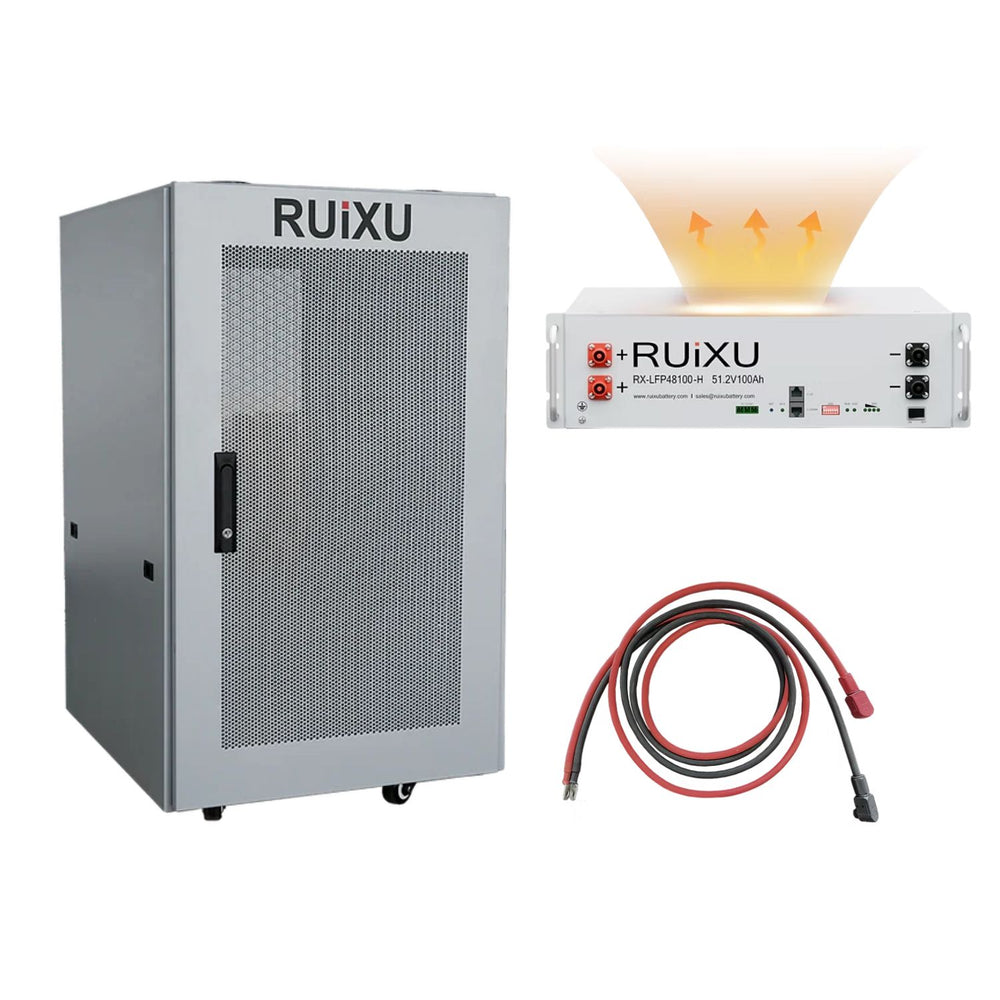

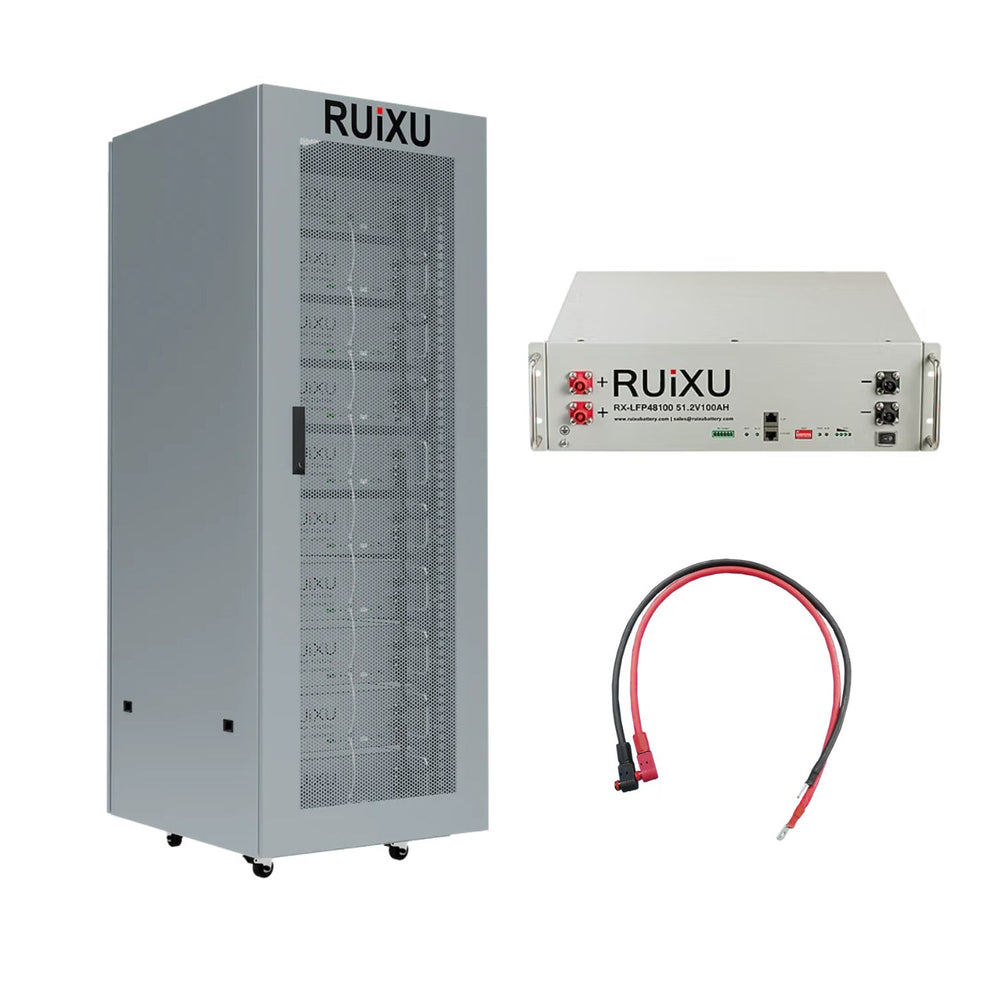

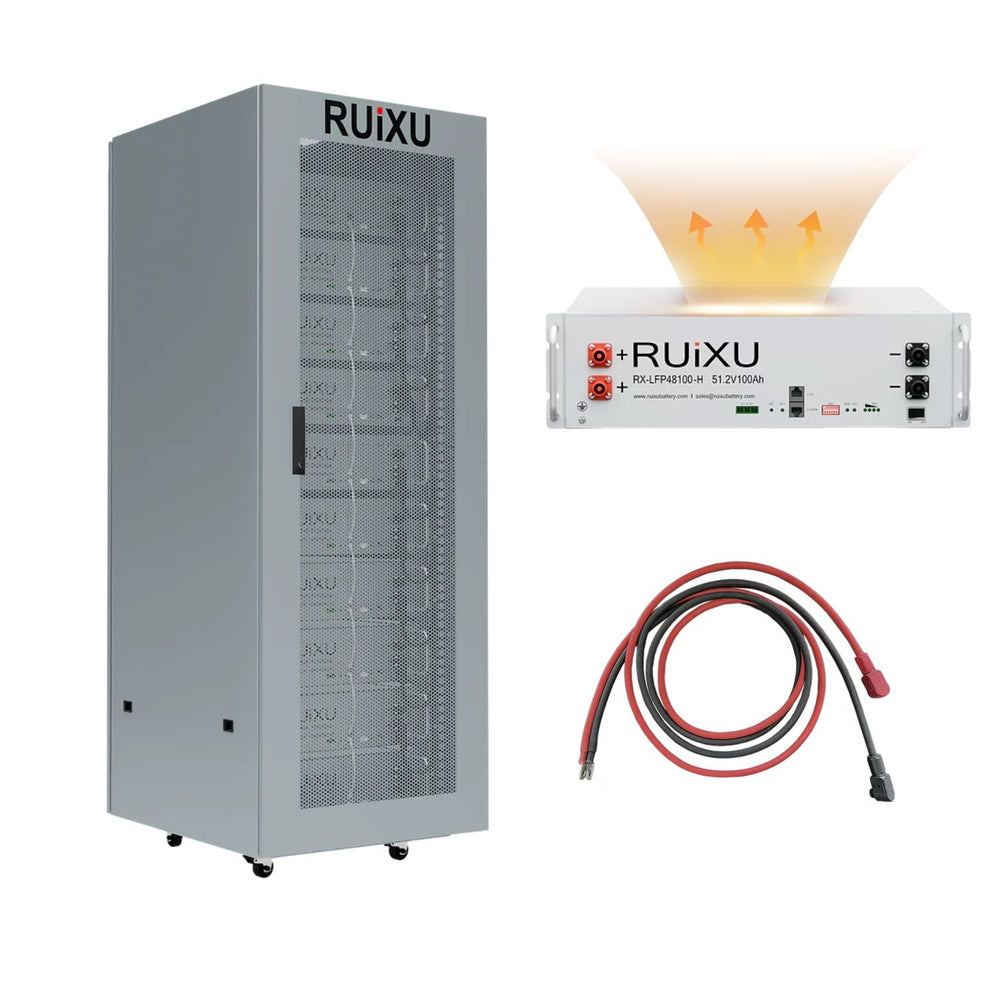

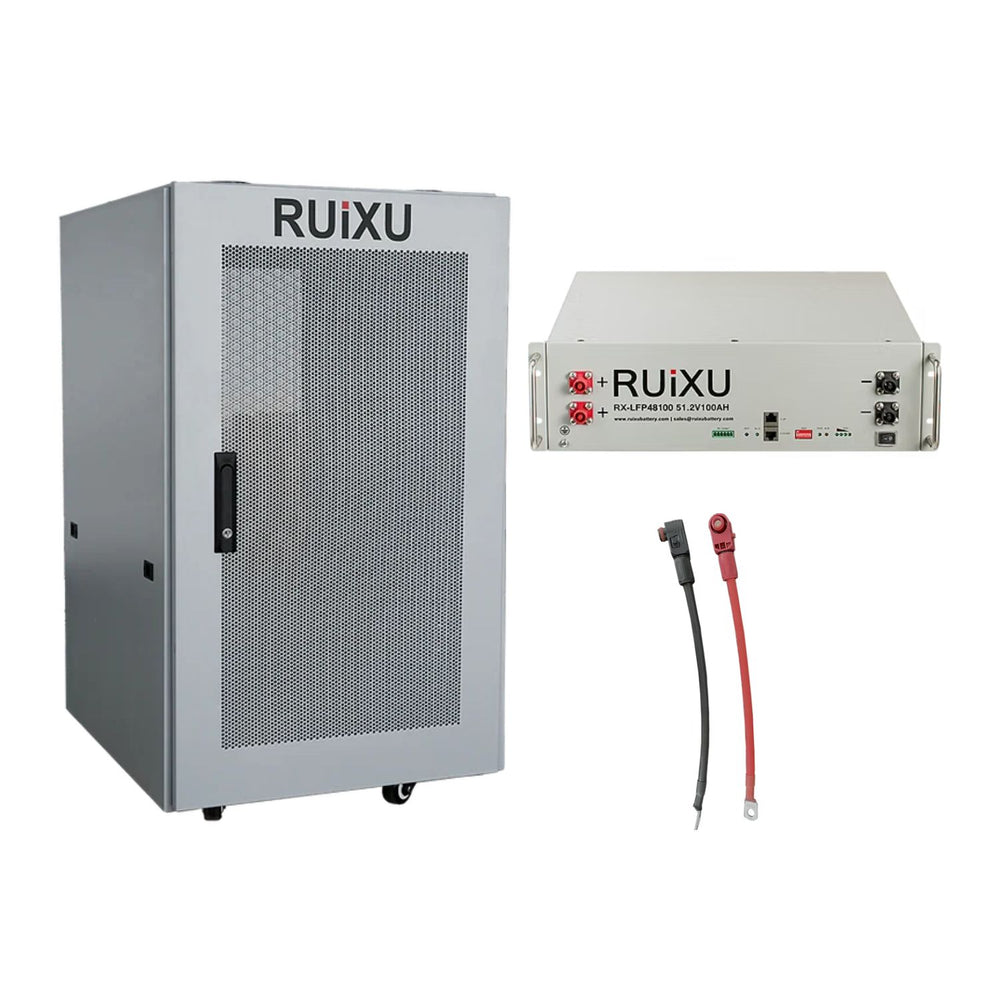

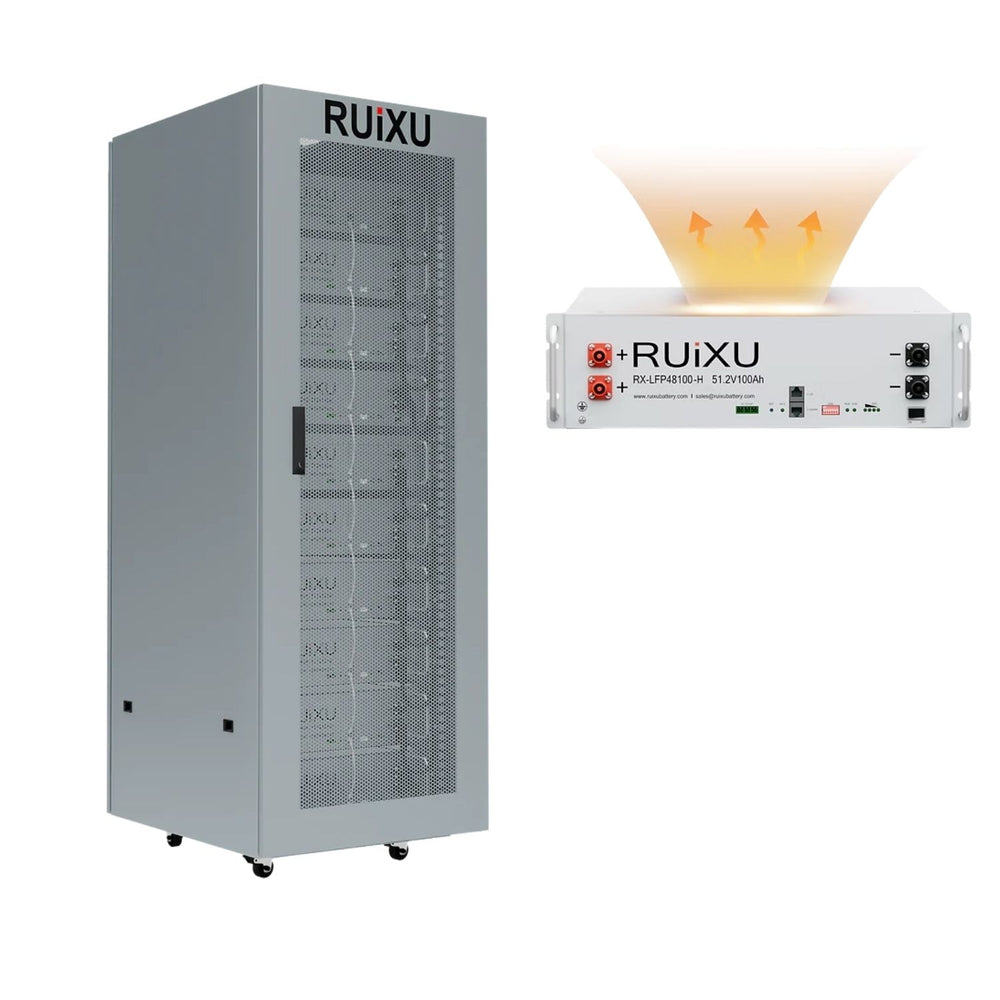

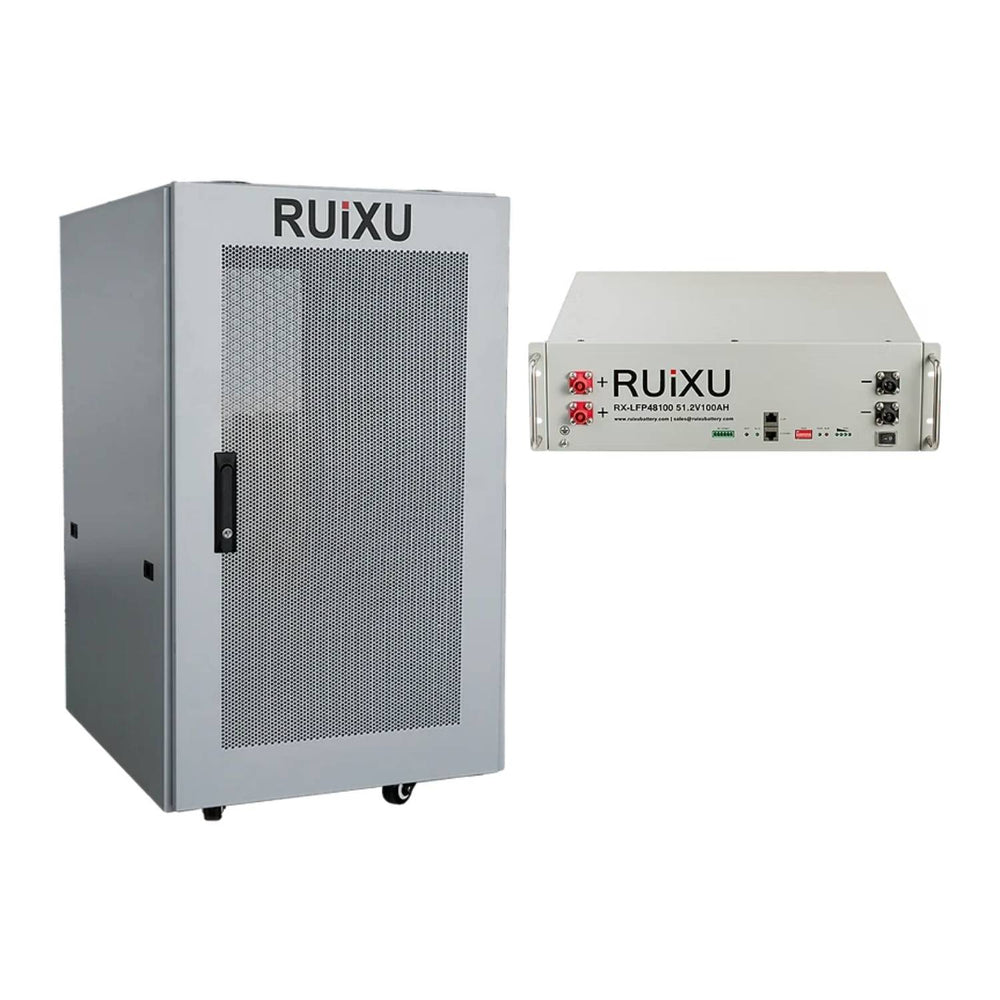

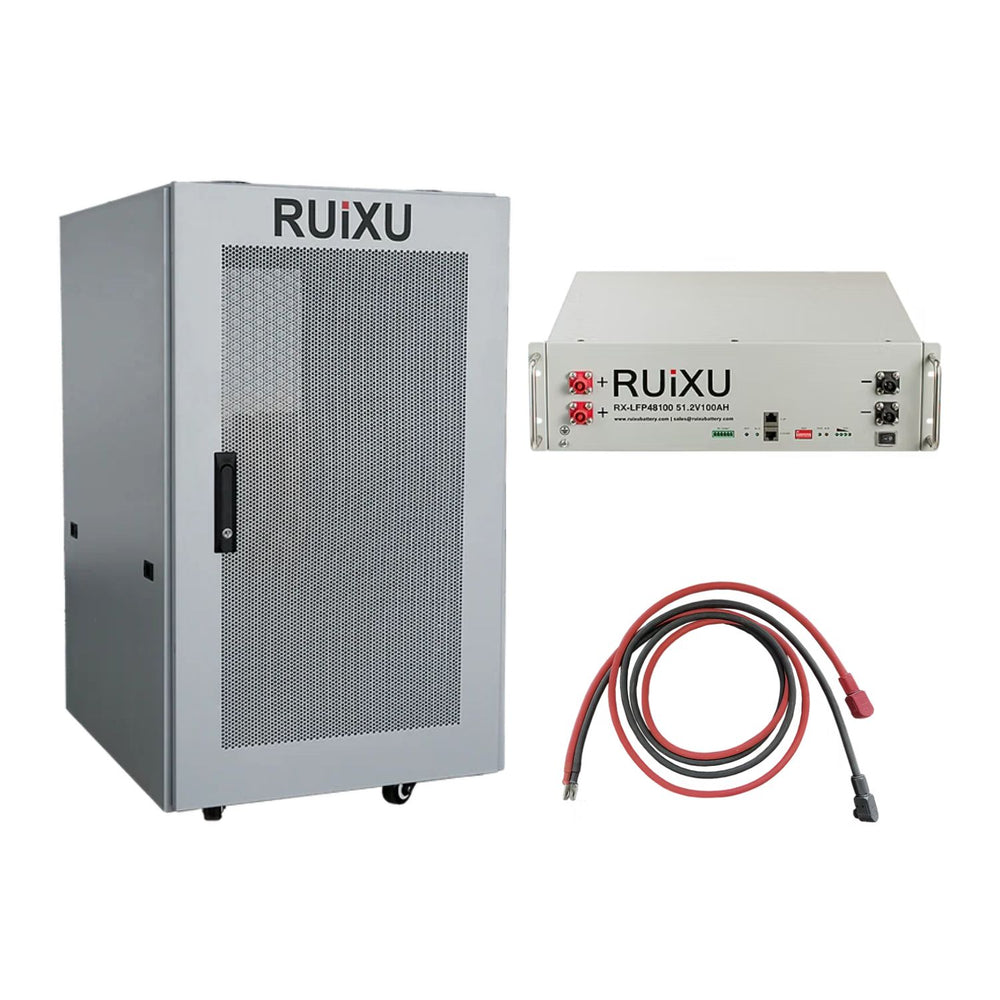

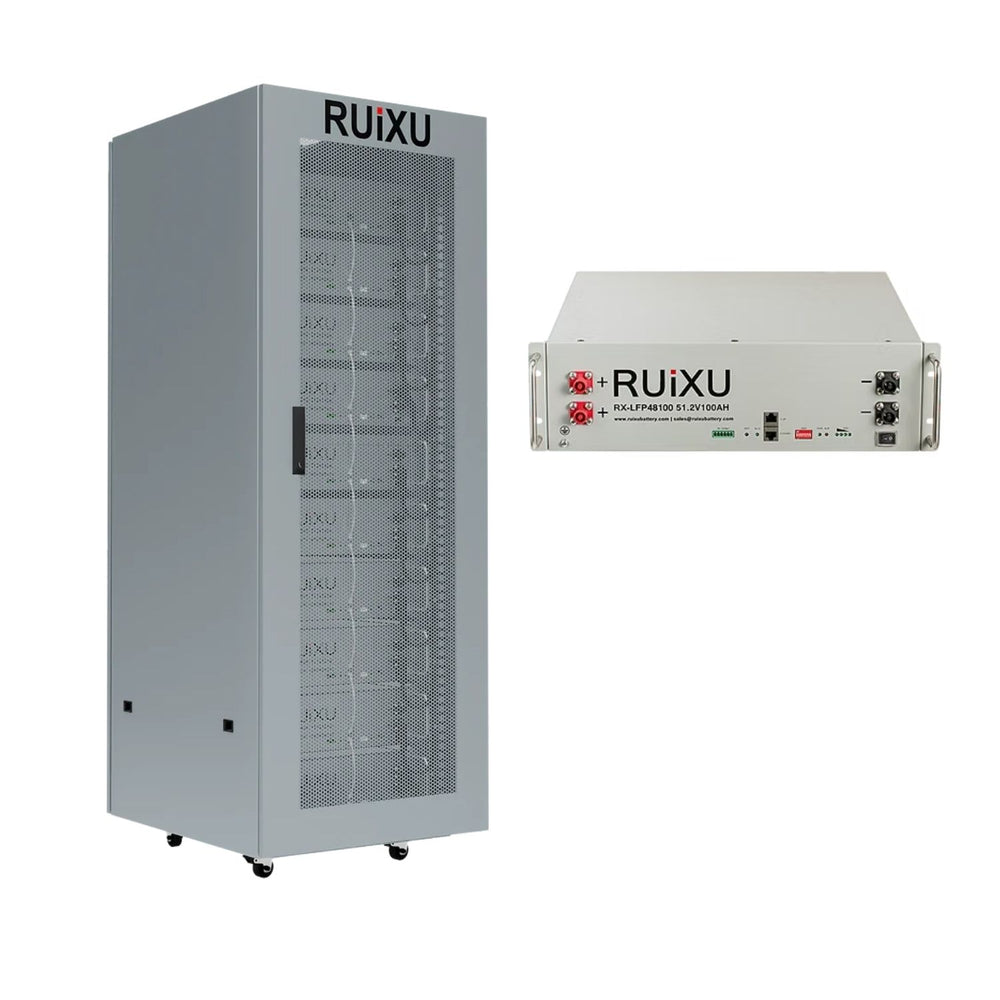

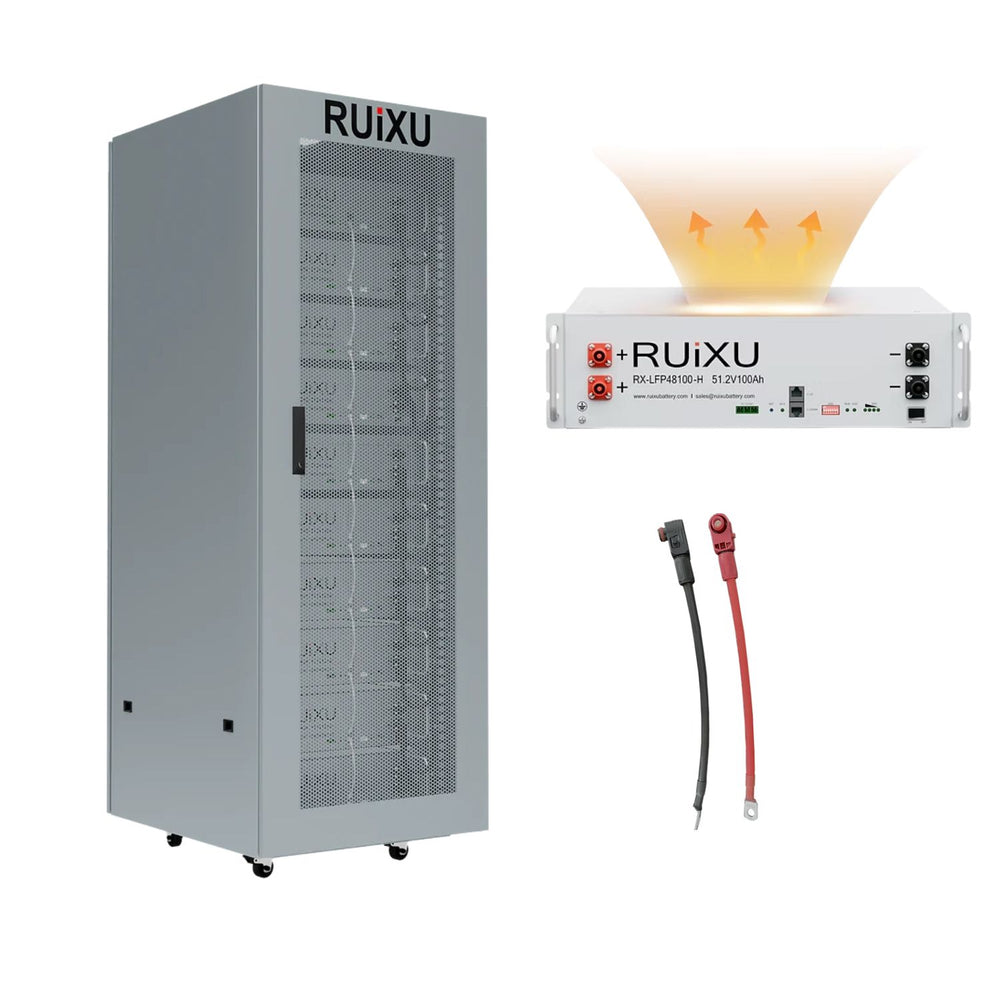

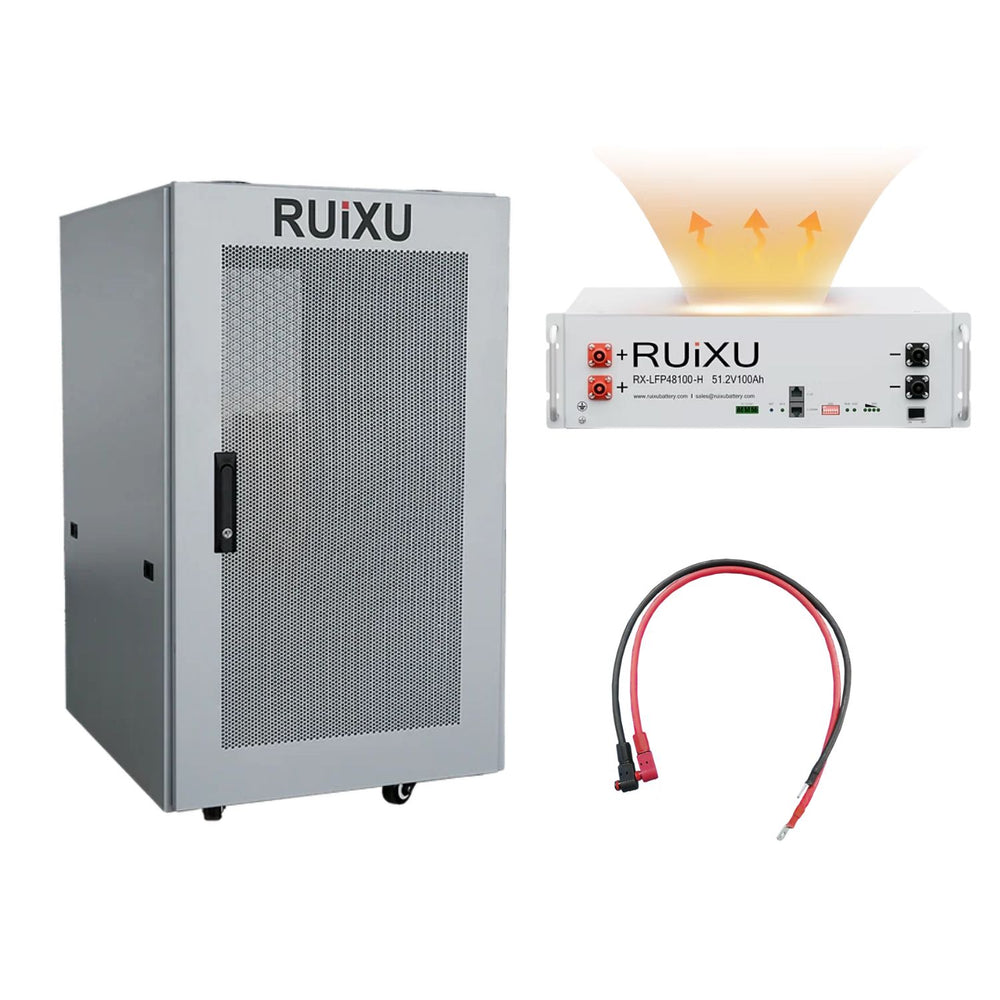

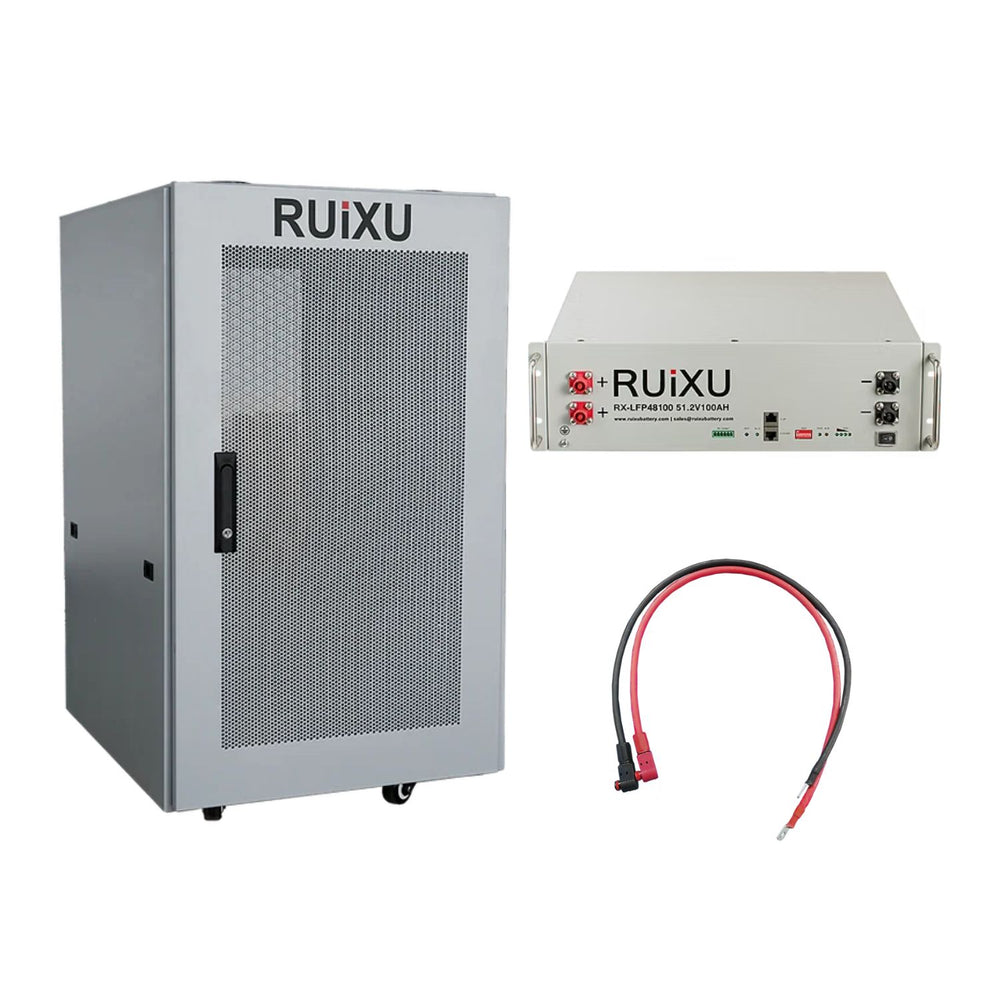

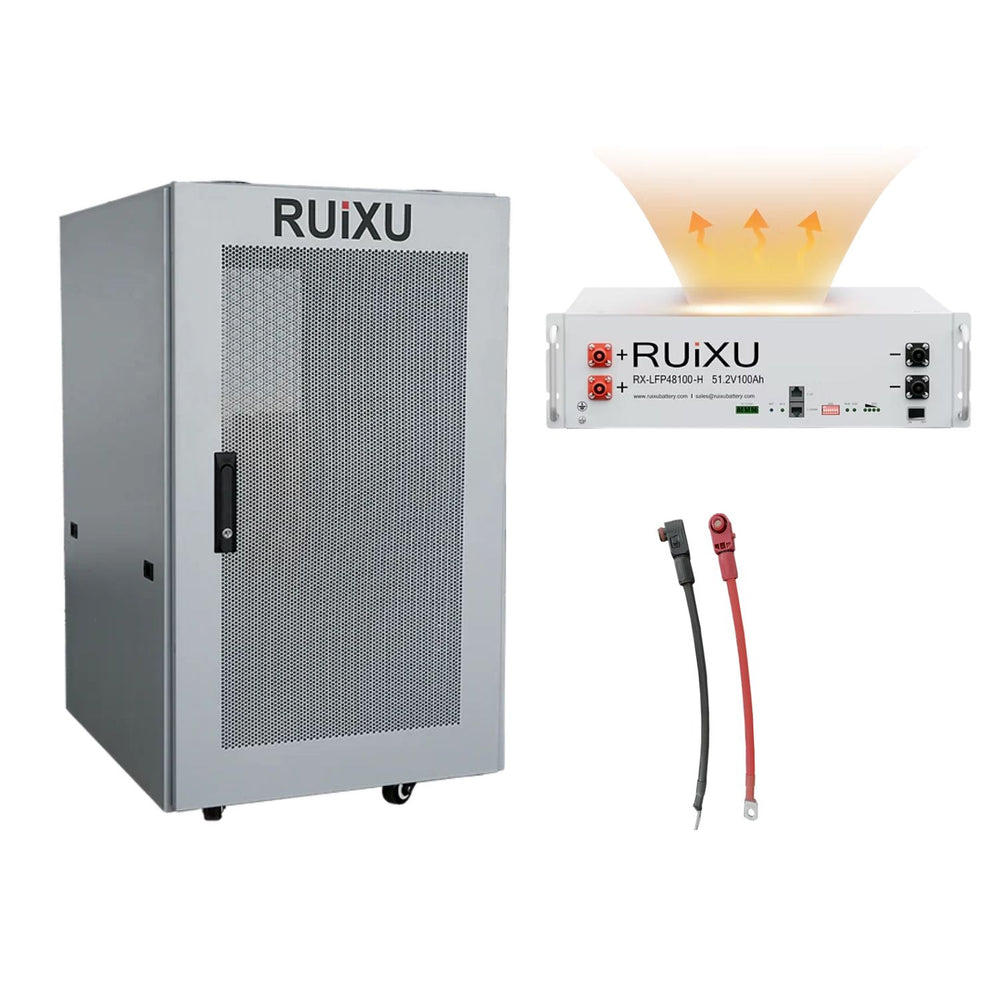

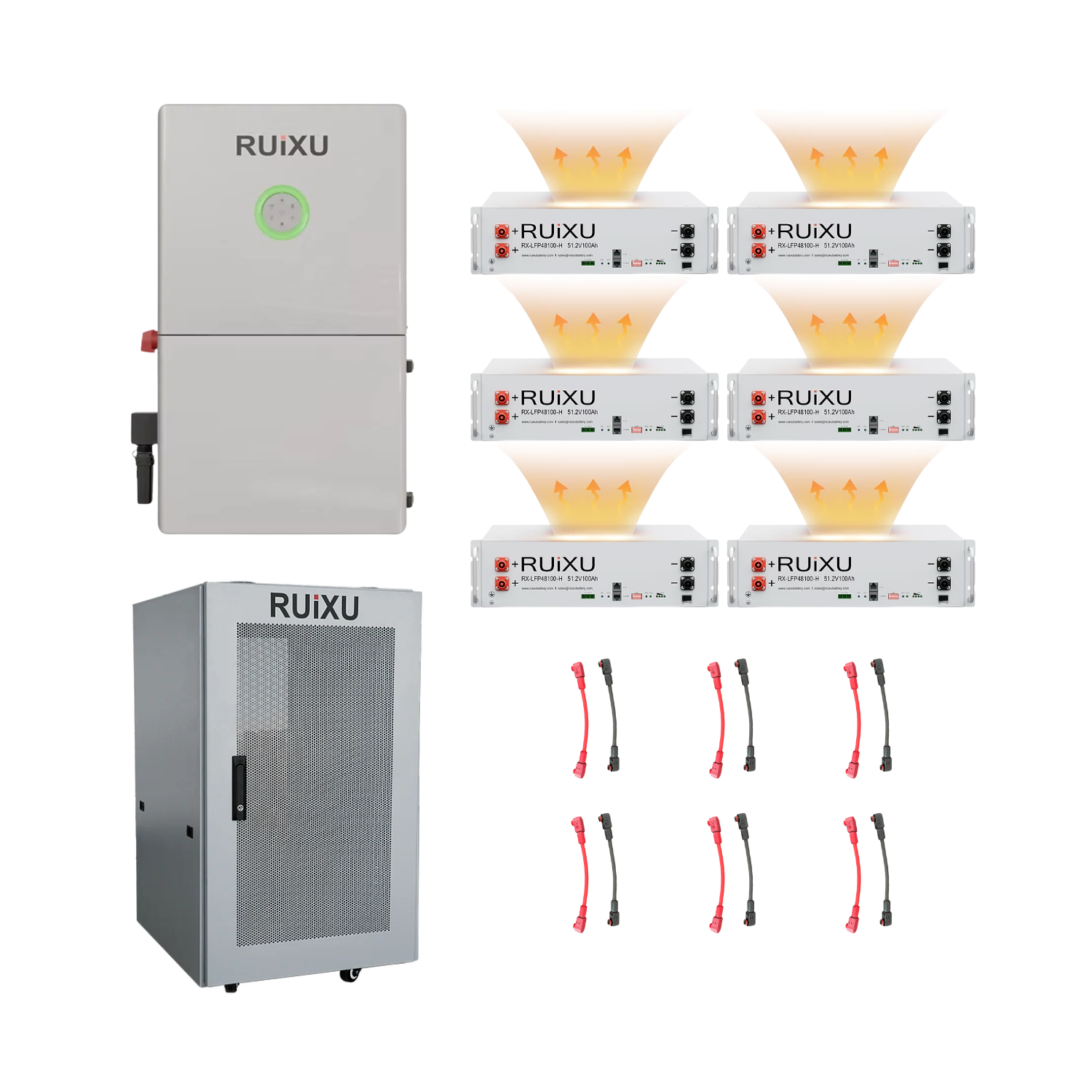

RUiXU 30.72 kWh Whole-Home Cabinet System
- 1 × RUiXU RX-12K 11.4kW Split-Phase Hybrid Inverter
- 1 x 200CM CAT6 Communication Cable Connect With Battery
- 1 x WiFi Dongle
- 1 x Operation Manual
- 6 × RUiXU RX-LFP48100-H 5.12kWh LiFePO₄ Self-Heating Batteries
- 1 x RJ45/CAT5e Patch Cable Per Battery
- 1 x Ground Cable Per Battery
-
1 x Set of Parallel 4AWG Cables Per Battery

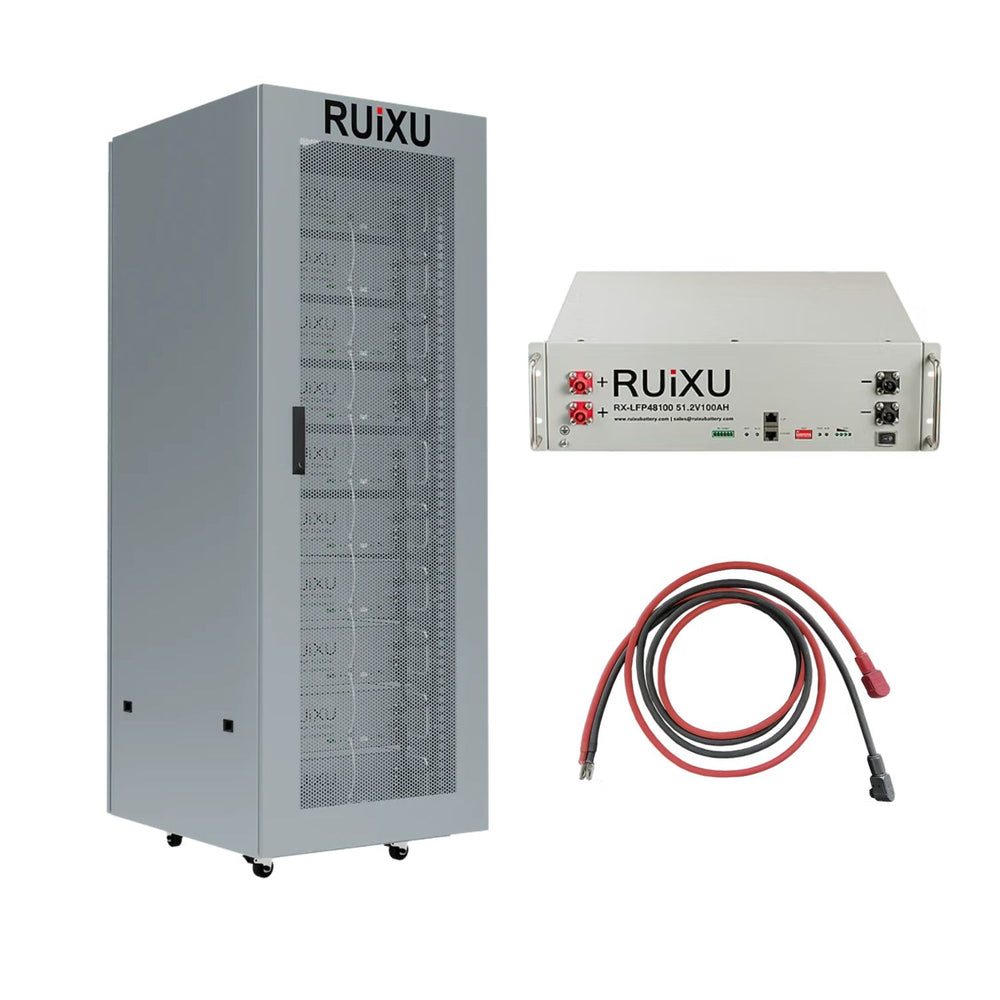

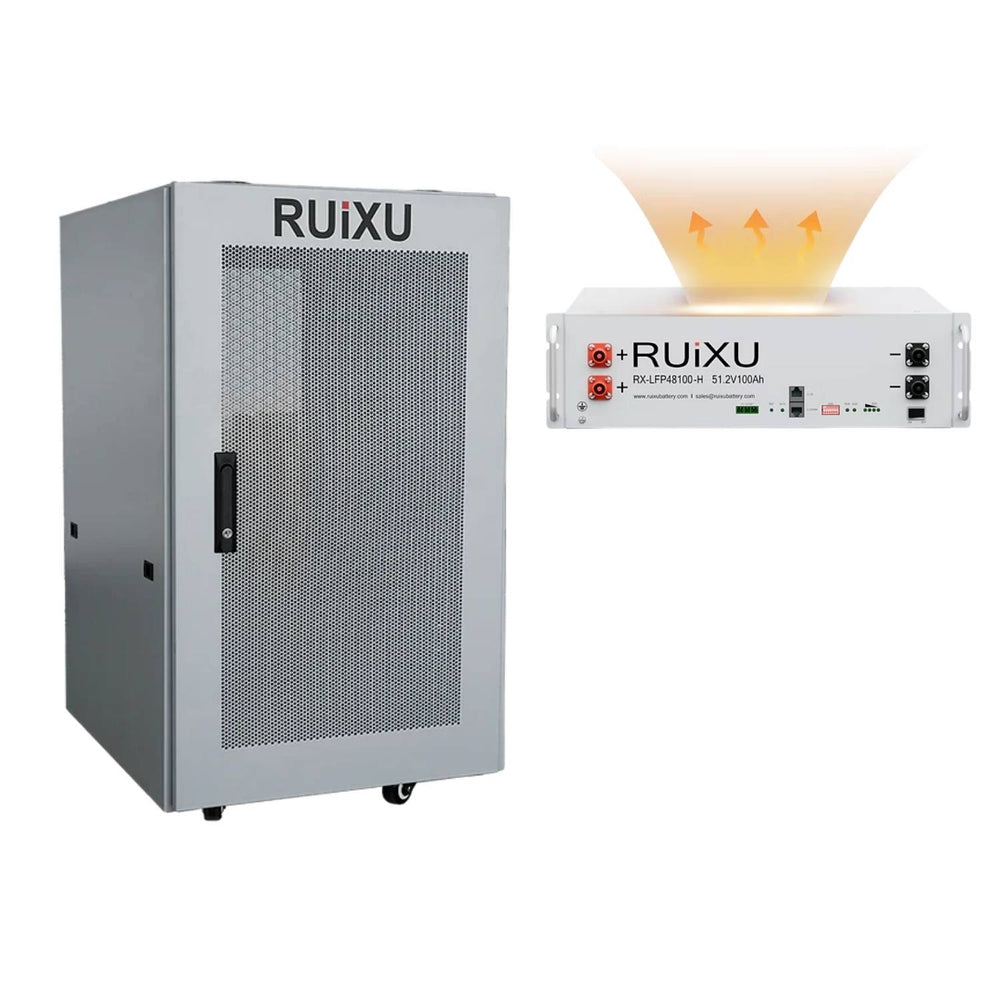

- 1 × RUiXU RX6075100 Pre-Assembled 6-Slot Cabinet With Integrated Busbars And Racks
- 6 × RUiXU S30 Battery Cables

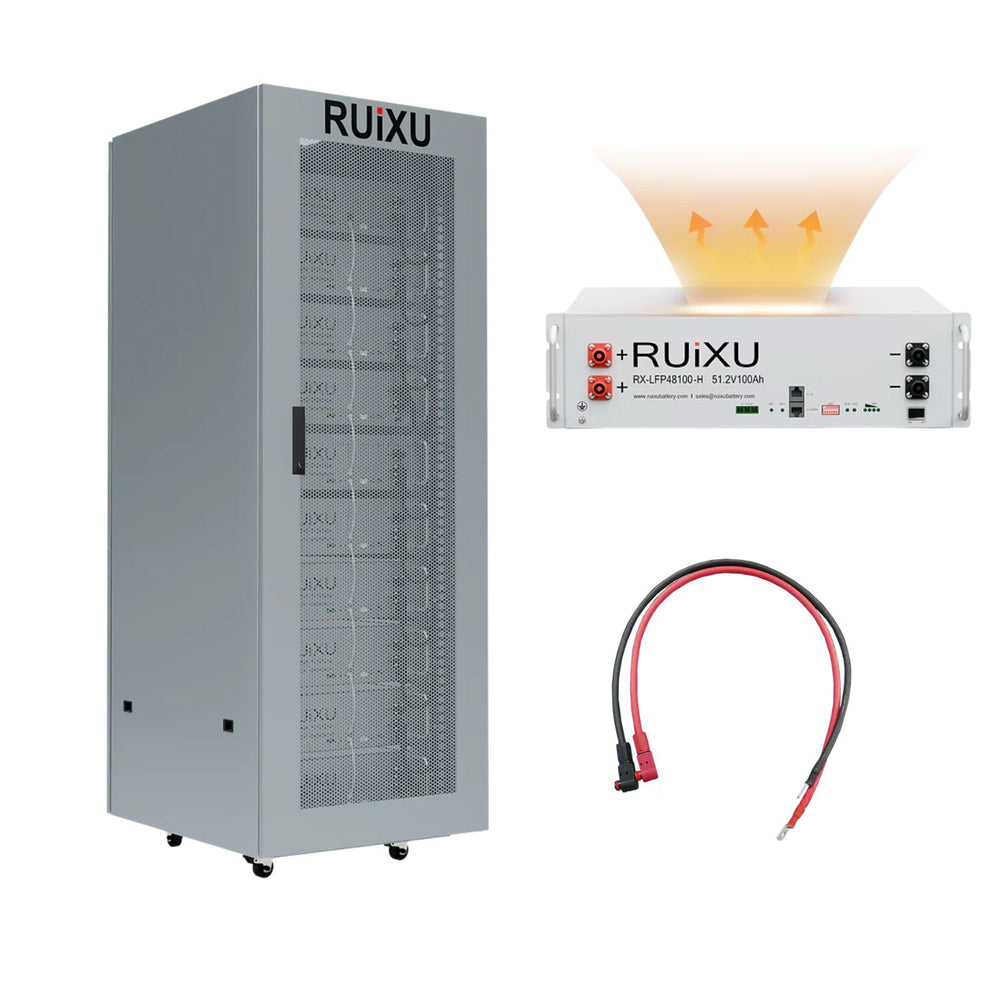

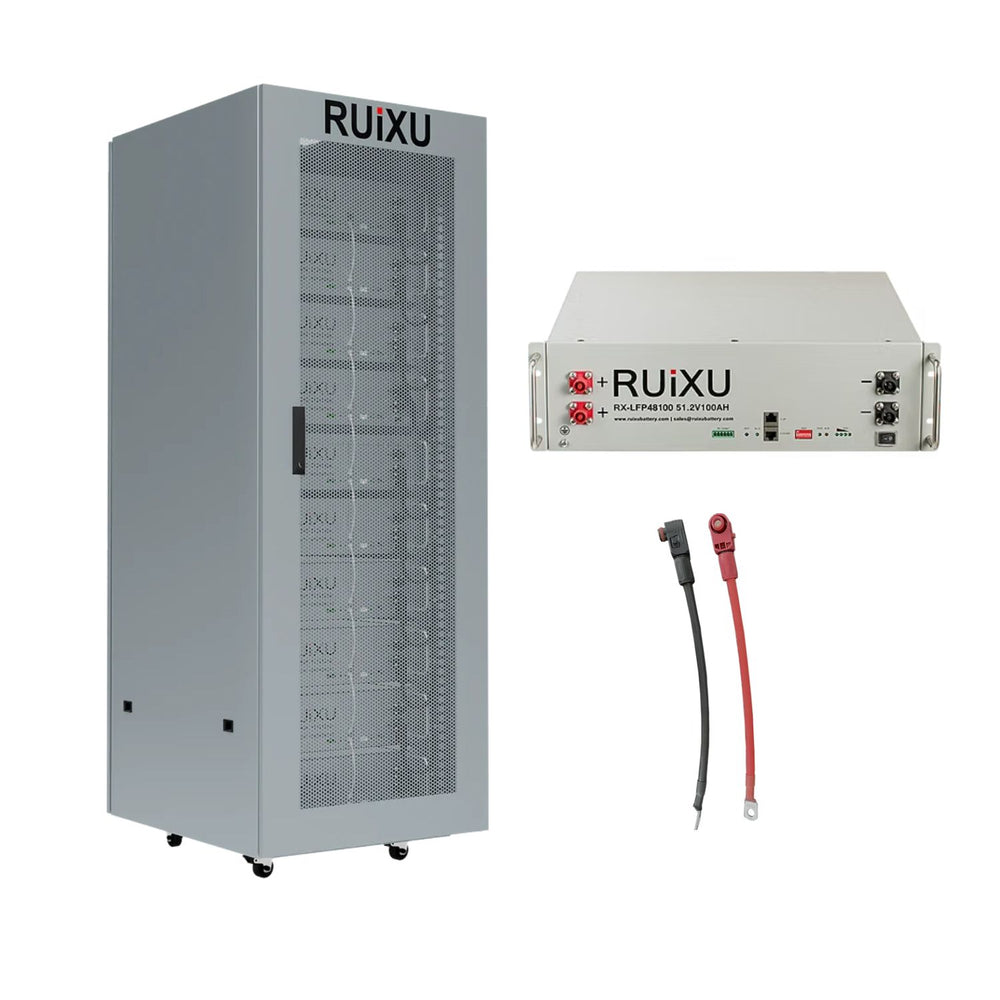

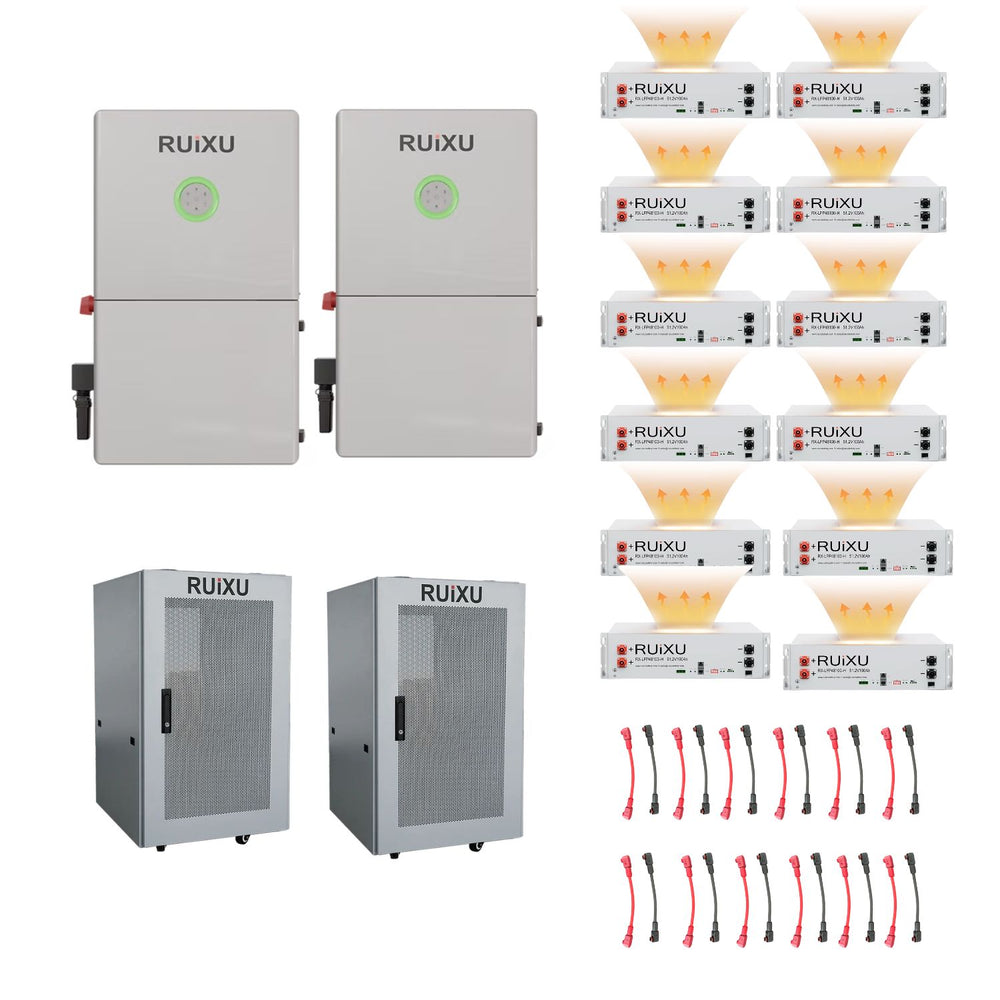

RUiXU 61.44 kWh Commercial Dual Cabinet System
- 2 × RUiXU RX-12K 11.4kW Split-Phase Hybrid Inverters
- 2 x 200CM CAT6 Communication Cables Connect With Battery
- 2 x WiFi Dongles
- 2 x Operation Manuals
- 12 × RUiXU RX-LFP48100 5.12kWh LiFePO₄ Self-Heating Batteries (61.44 kWh total)
- 1 x RJ45/CAT5e Patch Cable Per Battery
- 1 x Ground Cable Per Battery
- 1 x Set of Parallel 4AWG Cables Per Battery
- 2 × RUiXU RX6075100 Pre-Assembled 6-Slot Cabinets With Integrated Busbars And Racks
- 12 x S30 30cm Cables
RUiXU RX-LFP48100 51.2V Server Rack Batteries Specifications
|
| Model |
RX-LFP48100 |
| Rated Voltage |
51.2V |
| Voltage Range |
44.8V ~ 57.6V (Shipping Voltage > 51.2V) |
| Charge Voltage |
56.0V |
| Float Charge Voltage |
54.6V |
| Low Voltage Cut-Off |
44.8V |
| Nominal Energy |
5.12kWh |
| Usable Energy |
5.12kWh |
| Nominal Capacity |
100Ah |

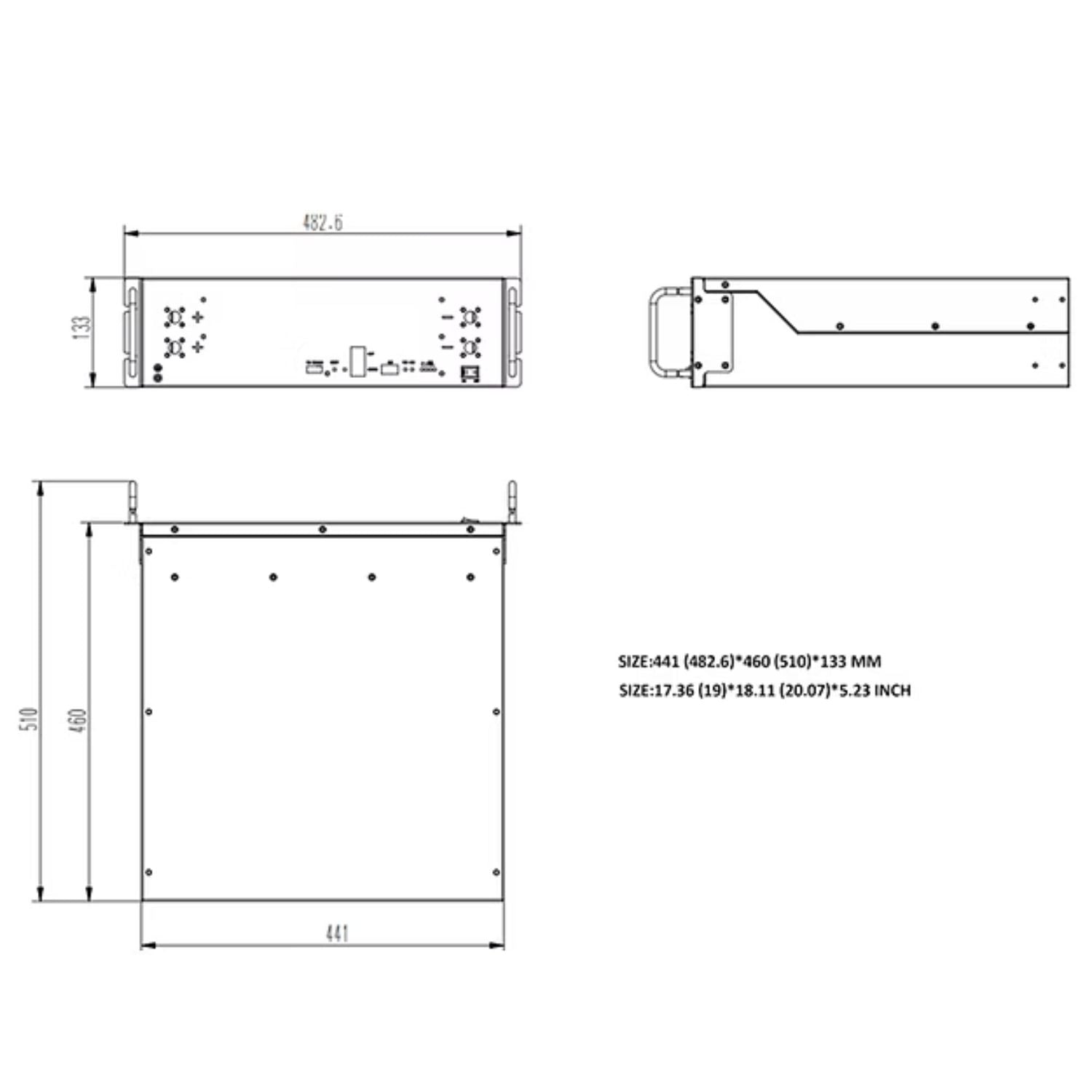

| Dimensions (L × W × H) |
482 × 133.5 × 460 mm (18.9 × 5.2 × 18.1 in) |
| Weight |
~50 kg (110 lb) |
| Standard Charge Current |
≤50A |
| Maximum Charge Current |
70A |
| Standard Discharge Current |
≤50A |
| Maximum Discharge Current |
100A (Initial Temp. ≤35°C) |
| Peak Discharge Current |
101–119A @ 5 min / 120–150A @ 5 sec |
| Communication Protocols |
RS485 / CAN |
| Maximum Parallel Units |
32 pcs |
| Operating Temperature |
Charge: 0°C ~ 50°C (–25°C ~ 50°C for RX-LFP48100-H) Discharge: –20°C ~ 50°C |
| Storage Temperature |
0°C < T < 30°C (≤6 months) –10°C < T < 45°C (≤3 months) |
| Recommended Environment |
15°C ~ 35°C, 5% ~ 75% RH |
| Version |
V1.5 |
RUiXU RX-12K 11.4kW Inverter Specifications
|
| PV String Input |
|
| Max PV Array Power @STC |
17,100 W |
| Max DC Voltage |
600 V |
| MPPT Voltage Range |
90 – 510 V |
| Nominal DC Voltage |
380 V |
| Start Voltage |
100 V |
| Min Input Voltage |
80 V |
| Max Input Current |
16 A × 4 |
| Max Short-Circuit Current |
19.2 A × 4 |
| No. of Strings per MPPT |
1 / 1 / 1 / 1 |
| No. of MPPT |
4 |
| DC Switch |
Integrated |
| Battery Port Connection |
|
| Battery Type |
Lead-acid / Lithium battery |
| Voltage Range |
40 – 60 V |
| Start Voltage |
42 V |
| Max Charging/Discharging Current |
228 A |
| AC Output (On-Grid) |
|
| Rated AC Power @240 V AC |
11,400 W |
| Rated AC Current @208/240 V AC |
47.5 A |
| Rated AC Voltage / Range |
L1/L2/N/PE 120 V (split-phase), L1/L2/PE 240 V AC ; 120 V = 106 – 132 V ; 240 V = 211 – 264 V |
| Rated Output Frequency / Range |
50 Hz = 47 – 53 Hz ; 60 Hz = 57 – 63 Hz |
| Power Factor |
0.8 leading – 0.8 lagging |
| Total Harmonic Distortion (THDi) |
< 3% |
| AC Output (Back-Up Mode) |
|
| Rated Apparent Power |
5,700 VA @ 120 V / 11,400 VA @ 240 V |
| Rated AC Current |
47.5 A |
| Peak Output Power (1 min) |
12,540 VA @ 240 V |
| Peak Output Power (10 s) |
17,100 VA |
| Rated Output Voltage |
120 / 240 V |
| Rated Output Frequency / Range |
50 Hz = 45 – 55 Hz ; 60 Hz = 55 – 65 Hz |
| Output THDV (@ Linear Load) |
< 3% |
| Switching Time |
< 10 ms |
| AC Input (GEN) |
|
| Max Continuous Input Power @240 V |
11,400 W |
| Rated Voltage |
240 V |
| Rated Current |
47.5 A |
| Efficiency |
|
| Maximum Efficiency |
97.20% |
| CEC Efficiency |
96.50% |
| AC-Battery Maximum Efficiency |
94.20% |
| Protection & Features |
|
| Overvoltage Protection |
Integrated |
| ISO Monitoring |
Integrated |
| DC Component Monitoring |
Integrated |
| Ground Fault Current Monitoring |
Integrated |
| Grid Monitoring |
Integrated |
| AC Output Short Circuit Protection |
Integrated |
| AC Grounding Detection |
Integrated |
| DC Surge Protection |
Type II |
| AC Surge Protection |
Type II |
| Island Protection Monitoring |
Integrated |
| AFCI |
Integrated |
| RSD |
Integrated |
| Interface |
|
| Display |
LED / App (via Bluetooth) |
| Communication Port |
RS485 / Wi-Fi / CAN |
| Optional Communication |
Wi-Fi / 4G |
| Load Monitoring |
24 hours |
| General Data |
|
| Topology Type |
Transformer-less (DC–AC) |
| Standby Power Consumption |
< 35 W |
| Operating Temperature Range |
-40 °C to +60 °C (-40 °F to 140 °F) |
| Cooling Method |
Air-fan cooling |
| Relative Humidity |
0% – 100% RH (no condensation) |
| Altitude |
< 2000 m |
| Noise Level |
< 50 dB |
| Ingress Protection |
NEMA 4X |
| Mounting |
Wall mounting |
| Dimensions (H × W × D) |
810 × 470 × 247 mm (31.89 × 18.50 × 9.72 in) |
| Weight |
48 kg (105.82 lb) |
| Warranty |
10 Years |
| Applicable Standards |
UL 1741, UL 1741SB, IEEE 1547 & 1547.1, UL 1699B, UL 1998, CSA C22.2 No.107.1, FCC Part 15 Class B, Rule 21, HE CO 14H |
