The SunGold Power 250 Amp 48VDC Bus Bar with Cover Keeps High-Current DC Wiring Safe and Organized
The SunGold Power 250 Amp 48VDC Bus Bar with Cover is a pair of covered bus bars, one on a red base and one on a black base. Each is rated for 250 amperes DC continuous at up to 48 volts DC and serves as a central connection point for batteries, inverters, charge controllers and other DC components.
It is made for solar energy storage, battery banks, RVs, marine systems and off-grid power. It suits builders who want to cut down on wiring clutter and keep exposed terminals covered in a 48V system.
SunGold Power 250 Amp 48VDC Bus Bar with Cover Features
250A Continuous Rating
Each bar carries up to 250 amperes DC continuously. That supports high-current DC distribution for battery and inverter systems.
Tin-Plated Solid Copper Bar
The bar is tin-plated solid copper. Solid copper gives efficient current transfer, and SunGold lists the bar as corrosion resistant.

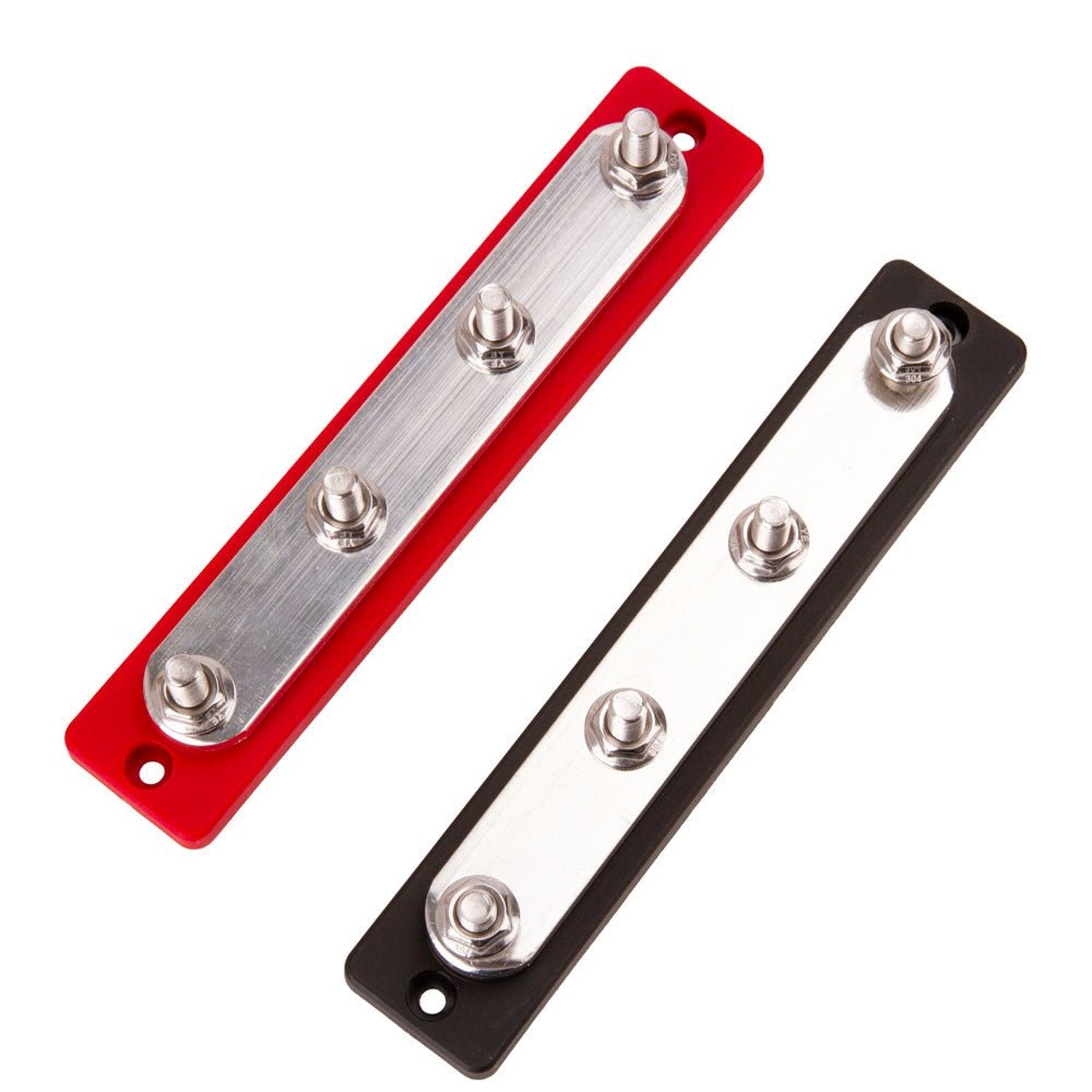

Four M8 Terminal Studs
Each bar has 4 x M8 (5/16") studs in a single row. That gives you several connection points for batteries, an inverter, charge controllers and other DC equipment.

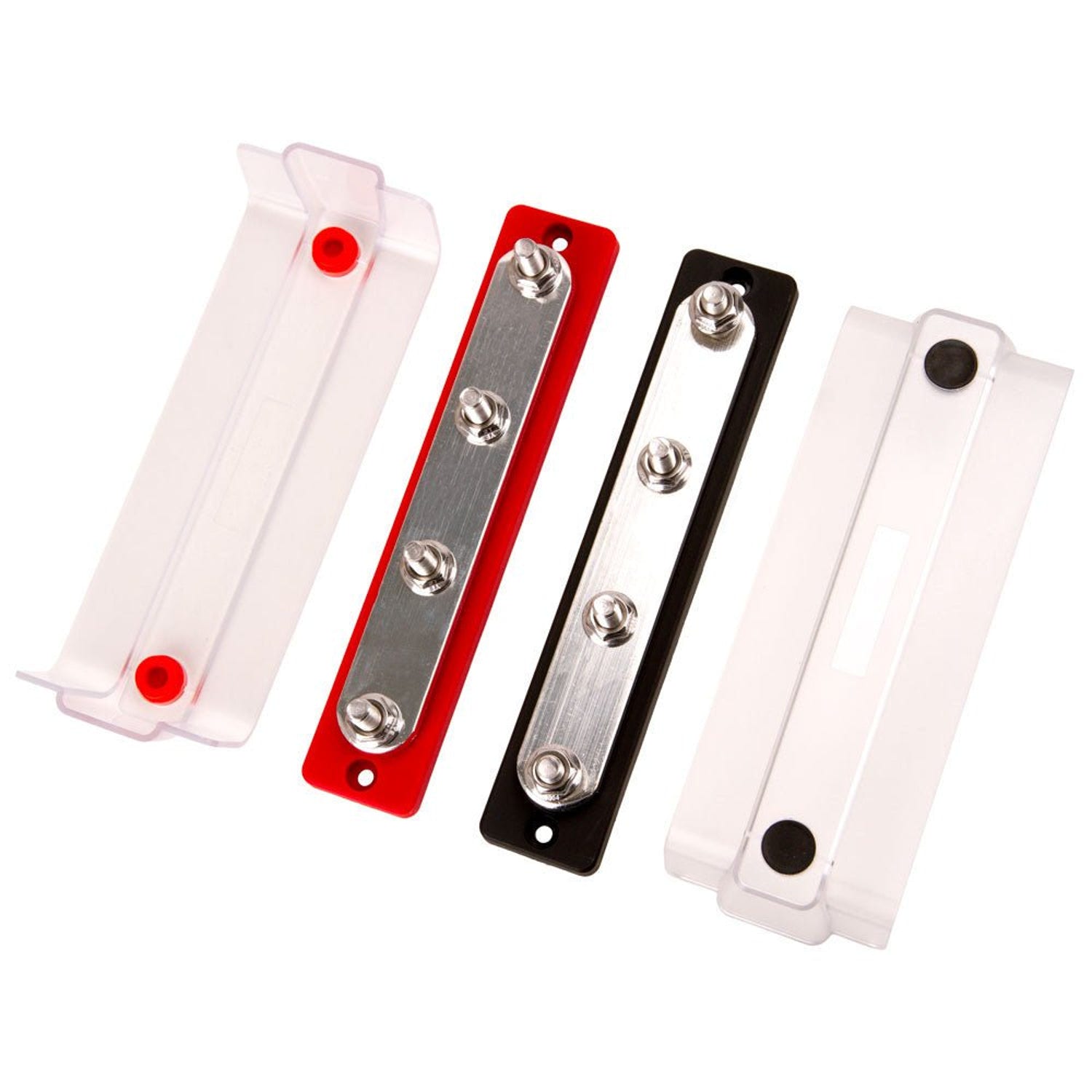

Clear Protective Covers

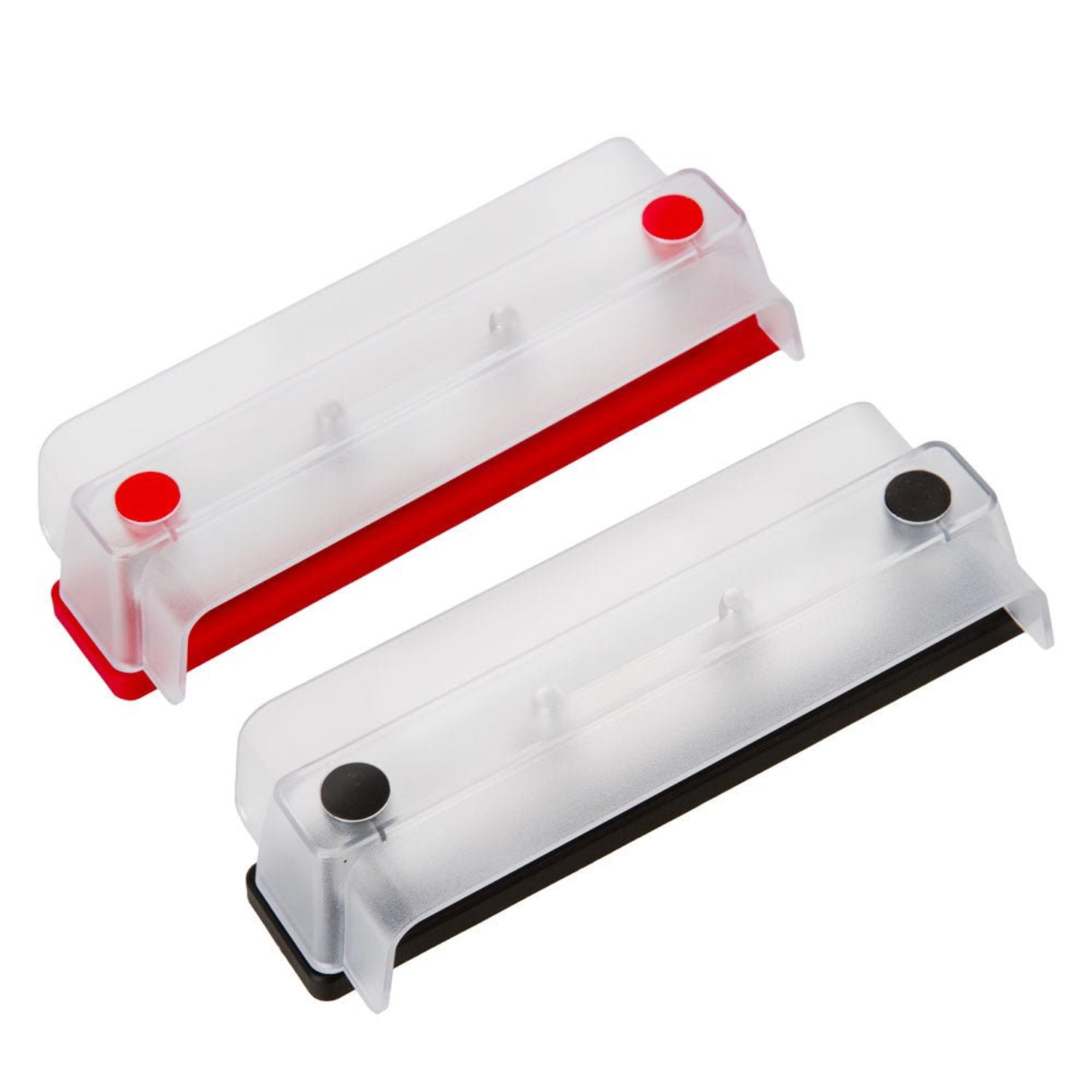

A clear cover fits over each bar to help prevent accidental contact with exposed terminals. Red and black caps on the covers match the color of each base.
Real-World Applications
Battery banks. Gather the positive and negative cables from several batteries in one place.
Solar energy storage. Connect batteries, an inverter and charge controllers through one hub.
RVs and boats. Keep DC wiring neat in tight vehicle and marine spaces.
Practical Comparison
SunGold Power 250 Amp Bus Bar Versus Direct Battery Connections
Running every cable to the battery terminals crowds the posts and clutters the wiring. A bus bar spreads the connections across its own studs.
SunGold Power 250 Amp Bus Bar Versus a Bus Bar Without a Cover
A bare bus bar leaves its studs exposed. The clear covers on this pair shield the terminals while still letting you see the connections.
Buyer Guidance
Check the Limits
SunGold rates the bar for 48 volts DC maximum, so it is meant for 48V and lower battery systems, not high-voltage solar strings. Keep the continuous current within 250 amperes, and make sure your cable lugs fit M8 (5/16") studs. SunGold does not list stud torque or a box list.
This May Be A Good Fit If
- Your DC system runs at 48V or less
- Your main current stays within 250A
- You want color-coded positive and negative bars
- You want covered terminals for a safer install
Common Questions
How Many Bus Bars Come in the Pair?
Two, one with a red base and one with a black base, each with a clear cover.
What Are the Dimensions?
Each unit measures 7.76 x 2.68 x 1.73 inches (197 x 68 x 44mm).
Does It Come With Mounting Screws?

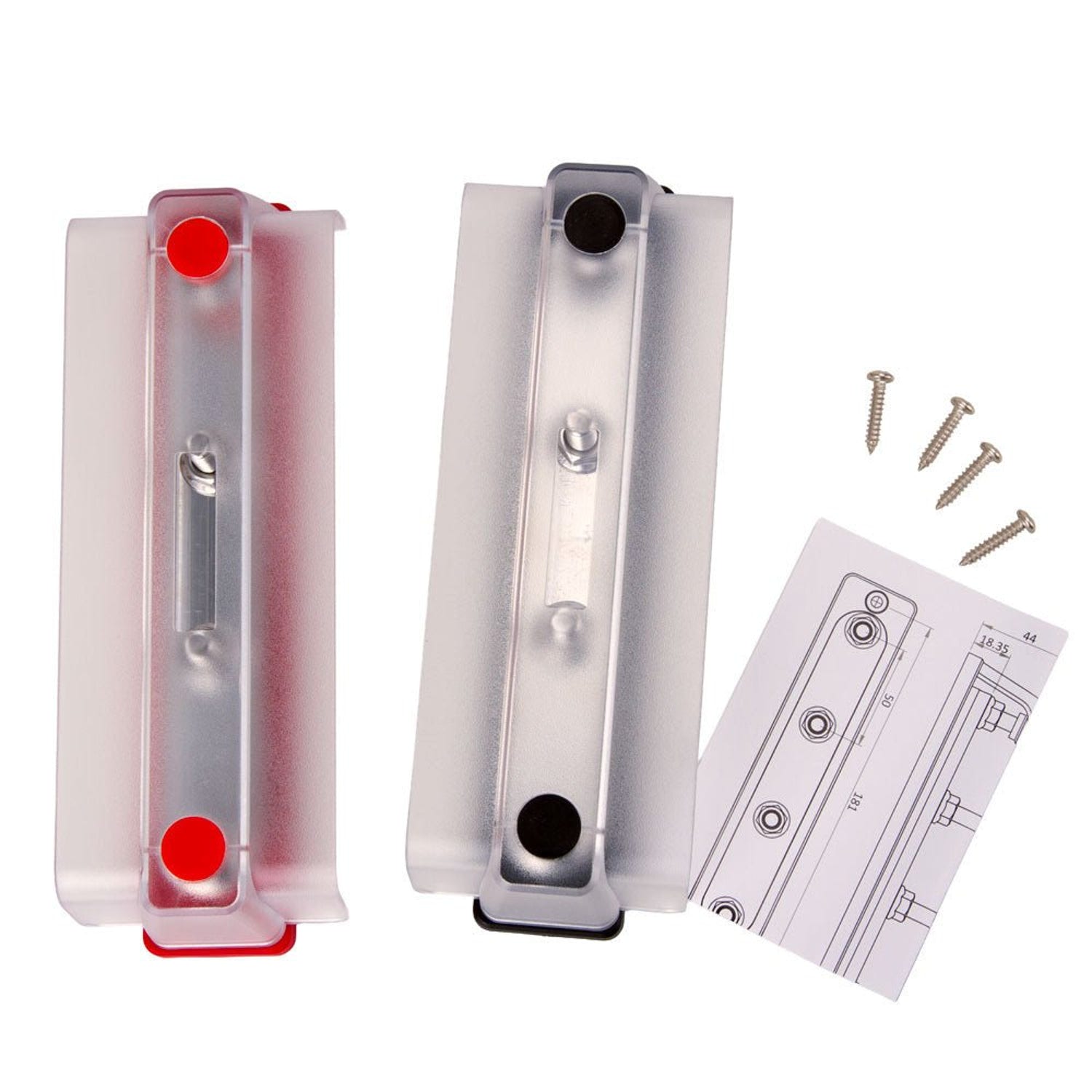

SunGold does not publish a box list. One product photo shows four screws and a dimension sheet with the pair, so ask our team if you need to confirm.
What's Included
- 1 x SunGold Power 250 Amp 48VDC Bus Bar Pair with Covers
Covered Connections for Your Battery Bank
The SunGold Power 250 Amp 48VDC Bus Bar with Cover gives a 48V system a covered, color-coded connection point rated at 250A. At Outbound Power, we help customers plan battery banks, cables and DC distribution. If you have questions, our team is happy to help.

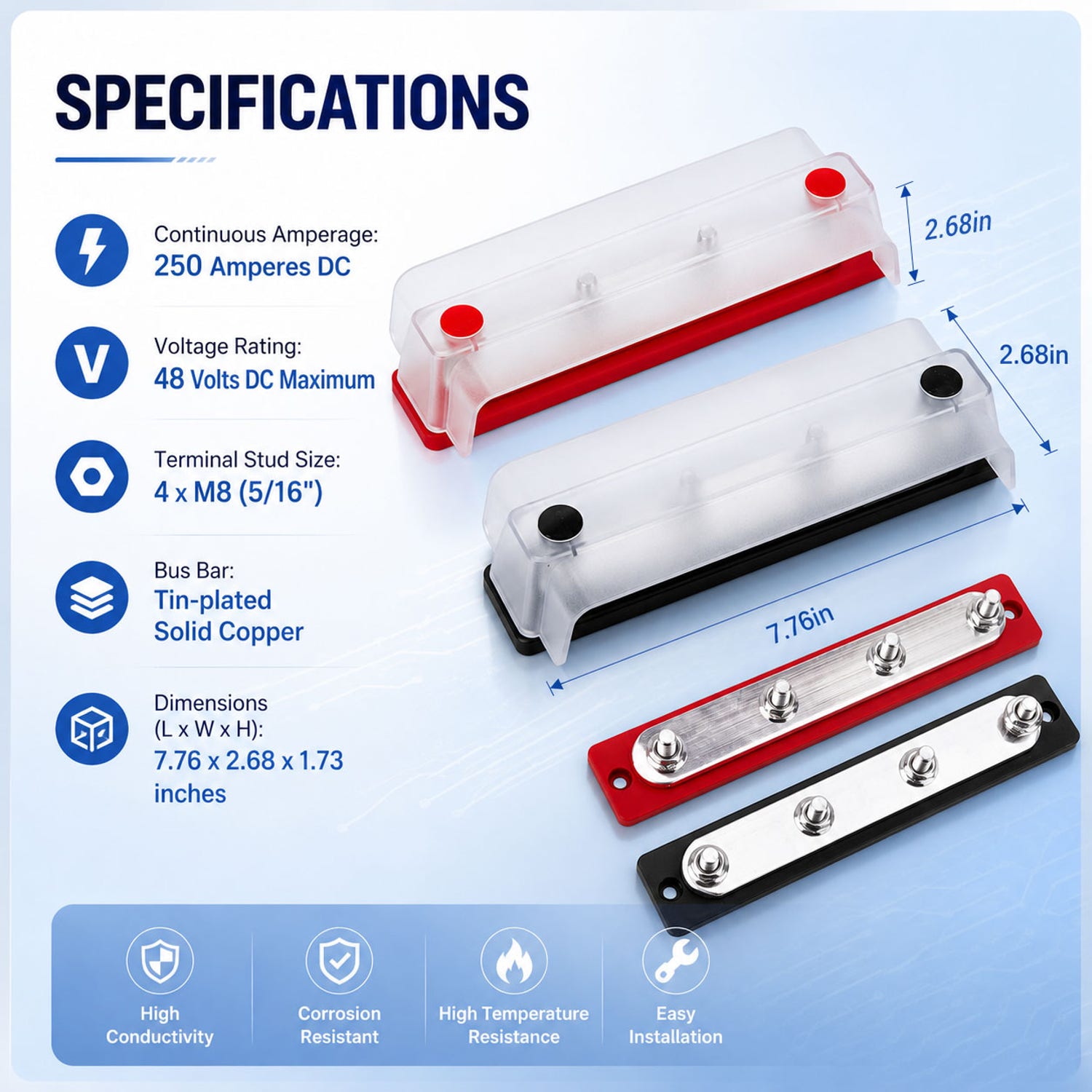

SunGold Power 250 Amp 48VDC Bus Bar with Cover Specifications
|
| Ratings |
| Brand |
SunGold Power |
| Model |
Bus-Bar-250A |
| Product Type |
DC Bus Bar with Cover |
| Quantity |
1 pair (red base and black base) |
| Continuous Amperage |
250 Amperes DC |
| Voltage Rating |
48 Volts DC maximum |
| Construction |
| Bus Bar Material |
Tin-plated solid copper |
| Terminal Studs |
4 x M8 (5/16") |
| Cover |
Clear, with red or black caps |
| Dimensions (L x W x H) |
7.76 x 2.68 x 1.73 in (197 x 68 x 44 mm) |
| Applications |
Solar energy storage, battery banks, RVs, marine, off-grid systems |
