The SunGold Power 400 Amp 48VDC Bus Bar with Cover Gives Large Battery Banks One Organized Connection Point

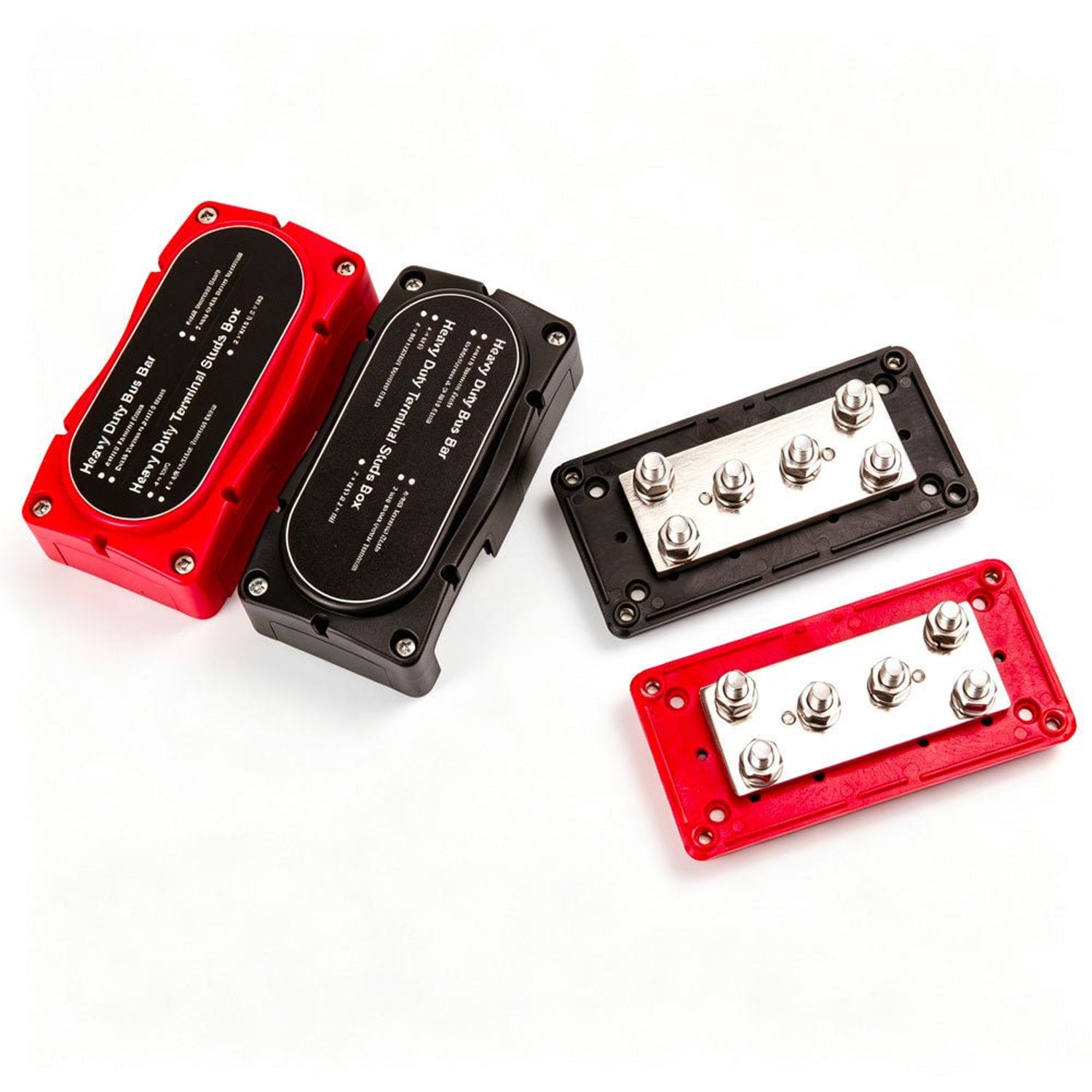

The SunGold Power 400 Amp 48VDC Bus Bar with Cover is sold as a pair, shown in red and black. Each bar is rated for 400A continuous current at up to 48V DC and gives you a central point to join batteries, inverters, charge controllers and other high-current DC components.
SunGold made it for larger battery banks, solar energy storage, RVs, marine use and off-grid power systems. It suits anyone building a 48V system who wants the main positive and negative connections organized and covered.
SunGold Power 400 Amp 48VDC Bus Bar with Cover Features
400A Continuous Current
Each bar is rated for up to 400A continuous at a maximum operating voltage of DC 48V. That suits demanding battery and inverter circuits in high-power energy systems.
Nickel-Plated Brass Conductor
The bus is brass with nickel plating. SunGold chose it for dependable conductivity and corrosion resistance.

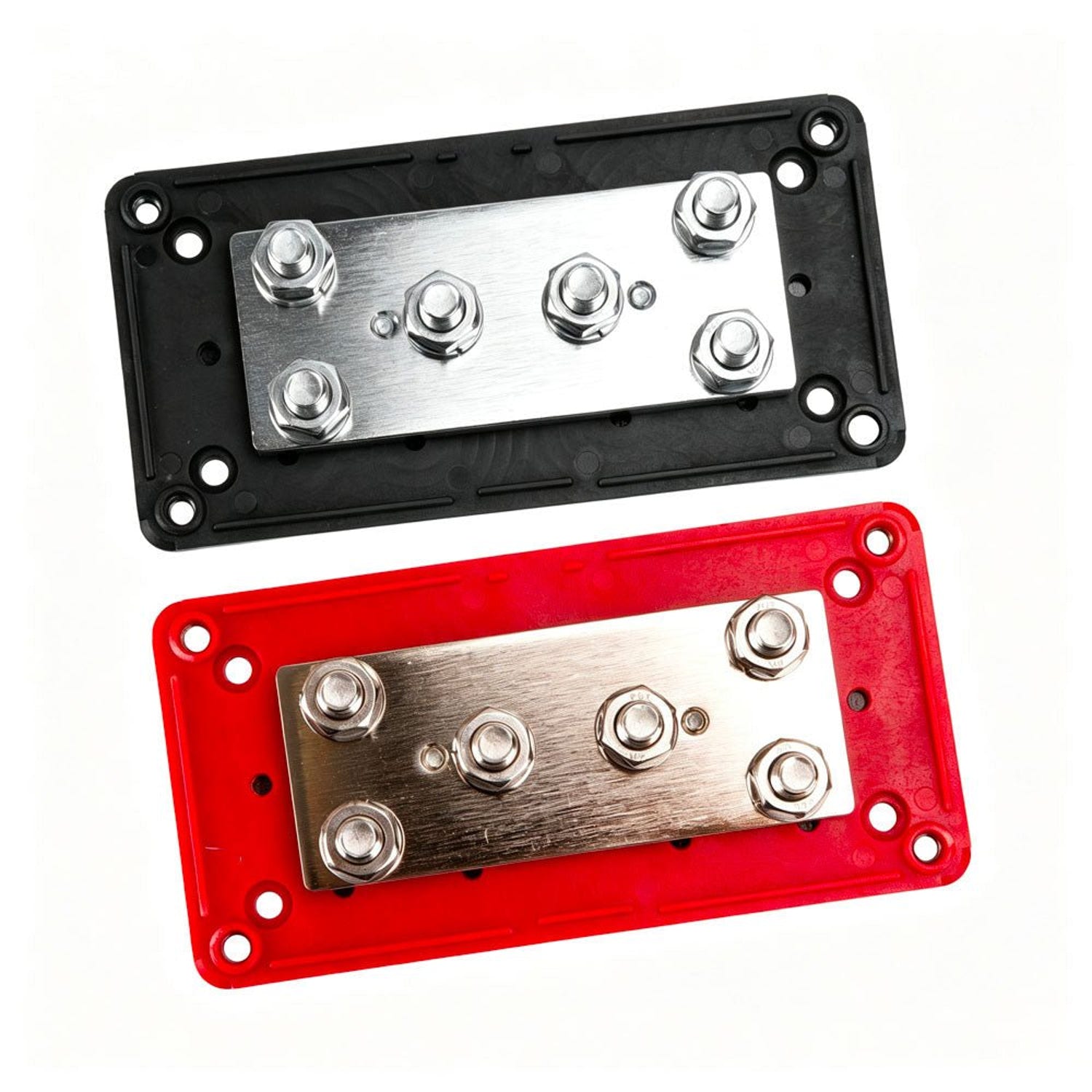

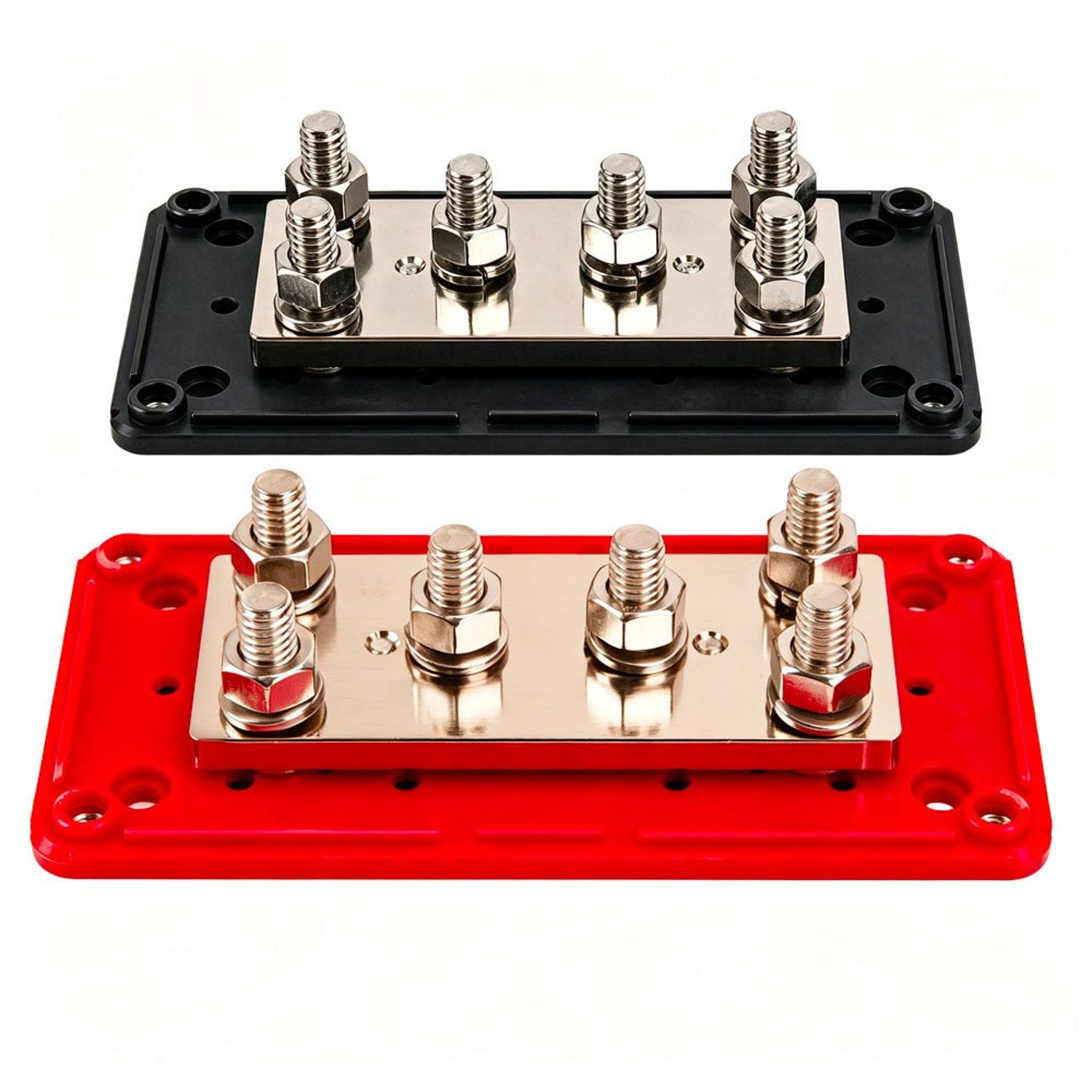

Six M8 Terminal Studs
Each bar has 6 x M8 (5/16") terminal studs, so several high-current cables can land on one bar for a flexible system layout.
Glass Fiber Reinforced Base and Cover
The base and cover are made of glass fiber reinforced nylon. The cover helps protect exposed connections and keeps the wiring organized.
Red and Black Pair
One red and one black unit make it easy to keep the positive and negative sides of your system apart.
Real-World Applications
Large battery banks. Connect several batteries at one point before the inverter.
Solar energy storage. Bring together batteries, an inverter and charge controllers.
RVs and marine systems. Organize the high-current DC wiring in a vehicle or boat.
Off-grid power. Build a tidy DC distribution point for an off-grid power system.
Practical Comparison
SunGold Power 400 Amp Bus Bar Versus Stacking Lugs on Battery Terminals
Stacking several cable lugs on one battery post makes connections harder to check and service. A bus bar gives each cable its own stud.
SunGold Power 400 Amp Bus Bar Versus an Open Bus Bar
An uncovered bar leaves live studs exposed. This pair comes with covers that shield the connections once the wiring is done.
Buyer Guidance
Ratings and Fit
The maximum operating voltage is DC 48V, so this bus bar is not for higher-voltage battery banks or PV strings. Keep the current through each bar within 400A, and check that your cable lugs fit M8 (5/16") studs. SunGold does not list stud torque, mounting screw size or whether mounting hardware is included.
This May Be A Good Fit If
- You run a 48V battery system
- Your main DC current stays within 400A
- You need several cable connections on each side
- You want covered, color-coded bus bars
Common Questions
Is It One Bus Bar or Two?
Two. The listing is one pair, one red and one black, each with its own cover.
How Big Is Each Bus Bar?
Each unit measures 138 x 69 x 48mm, or 5.44 x 2.72 x 1.89 inches.
Which Lugs Does It Take?
The studs are M8 (5/16"). Use ring lugs sized for that stud and for your cable gauge.
What's Included
- 1 x SunGold Power 400 Amp 48VDC Bus Bar Pair with Covers
A Cleaner Hub for Your DC Wiring
The SunGold Power 400 Amp 48VDC Bus Bar with Cover gives a 48V battery system a covered, 400A connection point for positive and negative cables. At Outbound Power, we help customers plan battery banks, cabling and DC distribution. If you have questions, our team is happy to help.
SunGold Power 400 Amp 48VDC Bus Bar with Cover Specifications
|
| Ratings |
| Brand |
SunGold Power |
| Model |
Bus-Bar-400A |
| Product Type |
DC Bus Bar with Cover |
| Quantity |
1 pair (red and black) |
| Max Continuous Current |
400A |
| Max Operating Voltage |
DC 48V |
| Construction |
| Bus Material |
Brass, nickel plated |
| Base and Cover Material |
Nylon, glass fiber reinforced |
| Terminal Studs |
6 x M8 (5/16") |
| Dimensions (L x W x H) |
138 x 69 x 48 mm (5.44 x 2.72 x 1.89 in) |
| Applications |
Battery banks, solar energy storage, RVs, marine, off-grid power systems |
SunGold Power 400A Bus Bar Data Sheet
