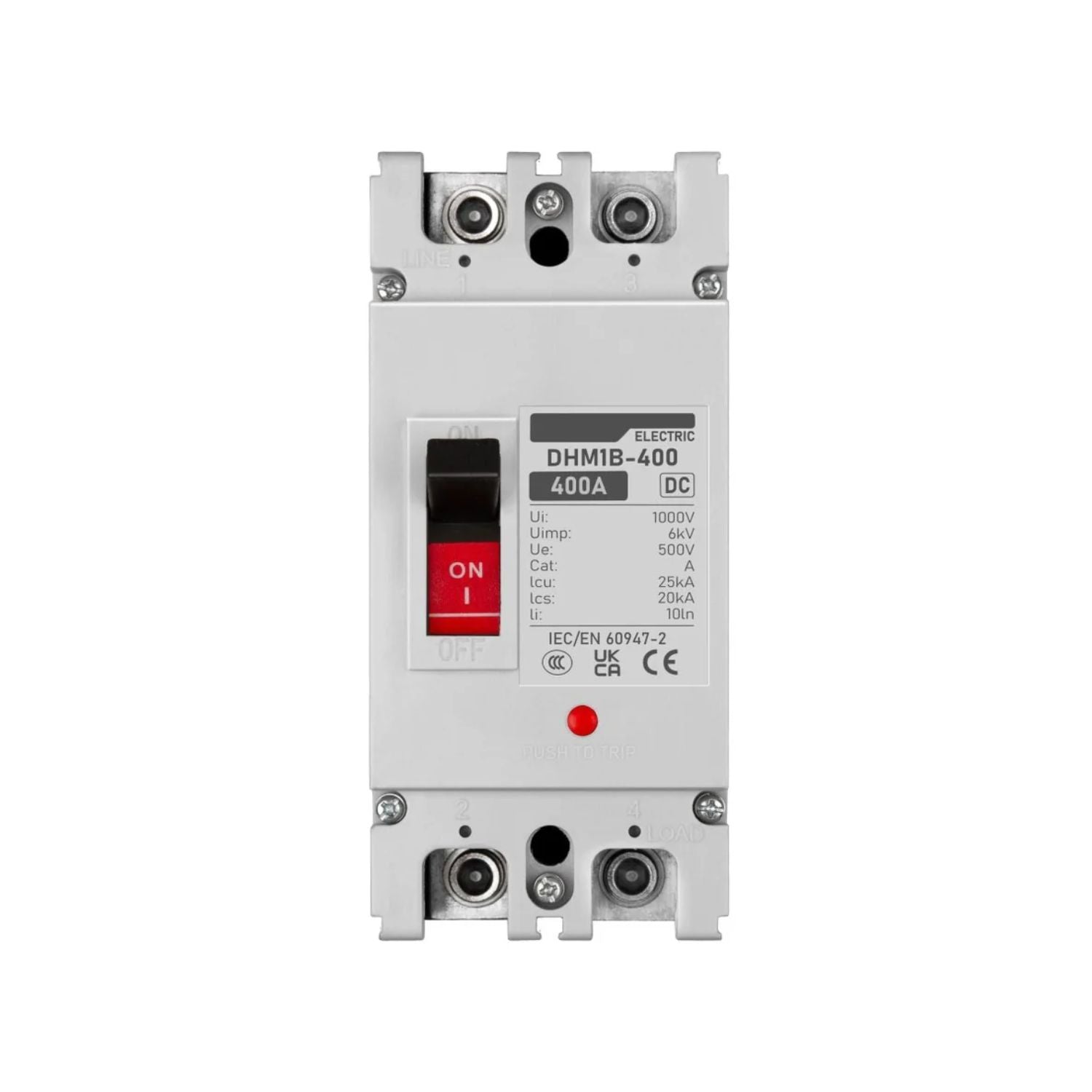

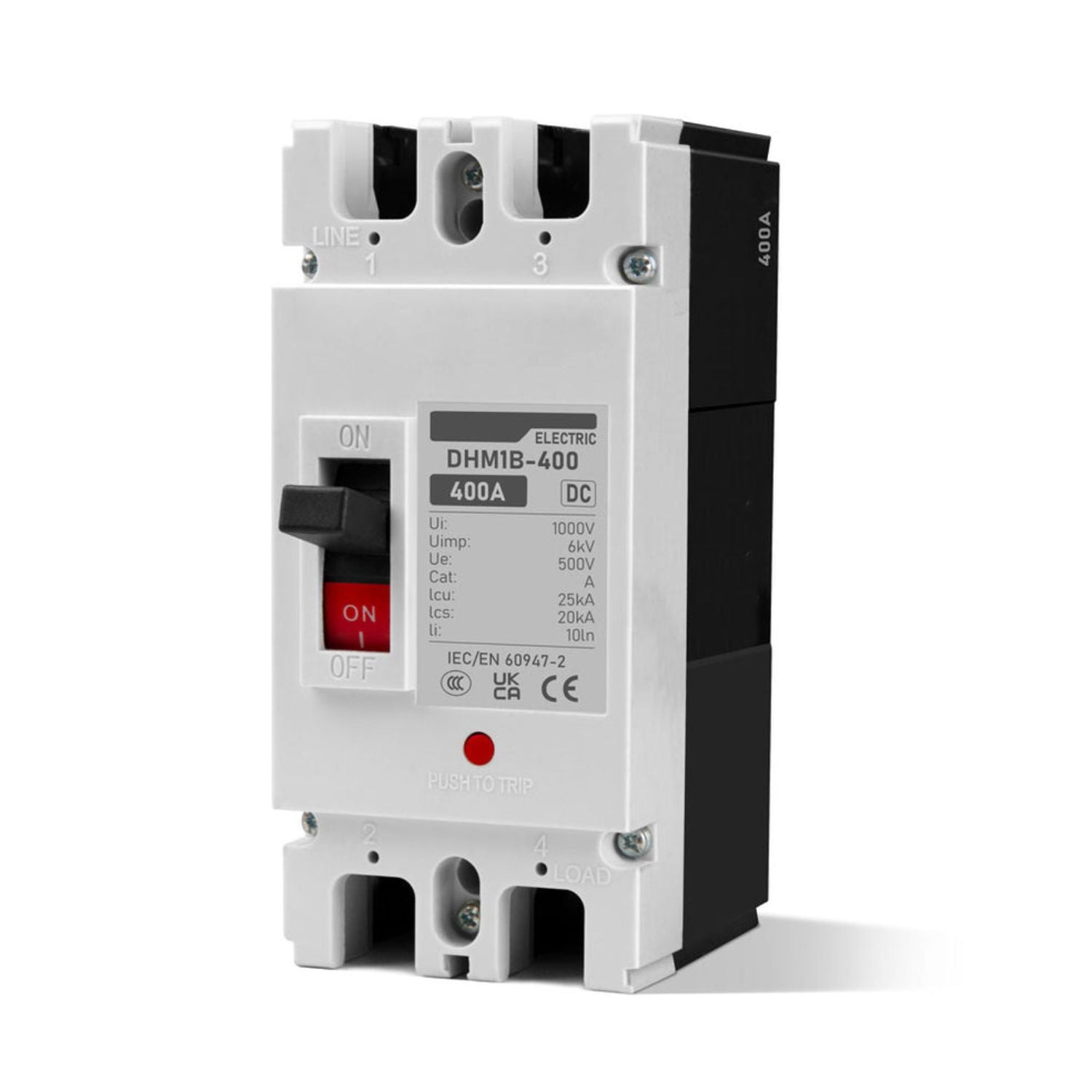

The SunGold Power 400 Amp DC Breaker Is a Heavy Duty Battery Disconnect With Built-In Overload and Short Circuit Protection
The SunGold Power 400 Amp DC Breaker is a heavy duty battery disconnect switch and 400 amp DC circuit breaker. A thermal magnetic trip guards against overloads and short circuits, and switching it off isolates the circuit.
It is for high-current DC systems. SunGold lists photovoltaic, UPS, battery and datacenter applications, as well as boat trolling motor setups. It suits installers and DIY builders who need a 400 amp disconnect on a main battery feed.
SunGold Power 400 Amp DC Breaker Features
400 Amp DC Rating
The breaker is rated at 400 amps for DC circuits. That suits large battery banks and main feeds that carry heavy current.
Thermal Magnetic Trip
The trip unit responds to sustained overloads and to short circuits. That protects the cables and equipment on the circuit.
Heavy Duty Battery Disconnect
Switching it off isolates the circuit, so you can service an inverter or battery with the DC feed disconnected.
Front-Accessible Installation
SunGold notes that it installs in compartments and stays accessible from the front, which helps inside an enclosure or equipment bay.
Real-World Applications
Main battery disconnect. Protect and switch the main DC feed from a large battery bank.
Solar and battery systems. SunGold lists photovoltaic and battery use.
UPS and datacenter power. Add a protected disconnect to DC backup equipment.
Boat trolling motors. SunGold also names boat trolling motor setups.
How It Compares to Common Alternatives
Versus a fuse. A fuse must be replaced after it blows. A breaker can be switched back on after a trip and doubles as a disconnect.
Versus a plain disconnect switch. A switch alone isolates the circuit but does not trip on an overload or short circuit. This breaker does both.
Is This DC Breaker the Right Fit
-
Current. Rated at 400 amps. Match it to your circuit current and cable size.
-
Voltage. SunGold does not state a voltage rating for this breaker. Confirm it suits your system voltage before you install.
-
Fit. SunGold does not list the dimensions, terminal size or mounting hardware. Check your enclosure and cable lugs.
-
Installation. High-current DC wiring should be done by a qualified installer.
This may be a good fit if
- You need a 400 amp DC breaker
- You want protection and a disconnect in one part
- You run a large battery bank or high-current DC load
Common Questions
What Does the Breaker Protect Against?
Overloads and short circuits, through its thermal magnetic trip. It also isolates the circuit when switched off.
Can It Be Used as a Battery Disconnect Switch?
Yes. SunGold describes it as a heavy duty battery disconnect switch.
What Systems Is It Made For?
DC applications such as photovoltaic, UPS, battery and datacenter systems, plus boat trolling motors.
What's Included
- 1 x SunGold Power 400 Amp DC Breaker
Heavy Duty Protection for High-Current DC
The SunGold Power 400 Amp DC Breaker gives a high-current DC system overload and short circuit protection plus a battery disconnect. At Outbound Power, we help customers size breakers, cables and batteries for their inverter setups. If you have questions, our team is happy to help.
SunGold Power 400 Amp DC Breaker Specifications
|
| Brand |
SunGold Power |
| Model |
DHM1B-400 |
| Product Type |
DC Circuit Breaker / Battery Disconnect Switch |
| Rated Current |
400A |
| Trip Type |
Thermal Magnetic |
| Protection |
Overload, Short Circuit, Circuit Isolation |
| Applications |
Photovoltaic, UPS, Battery, Datacenter, Boat Trolling Motor |
| Installation |
Compartment mounting, accessible from the front |
