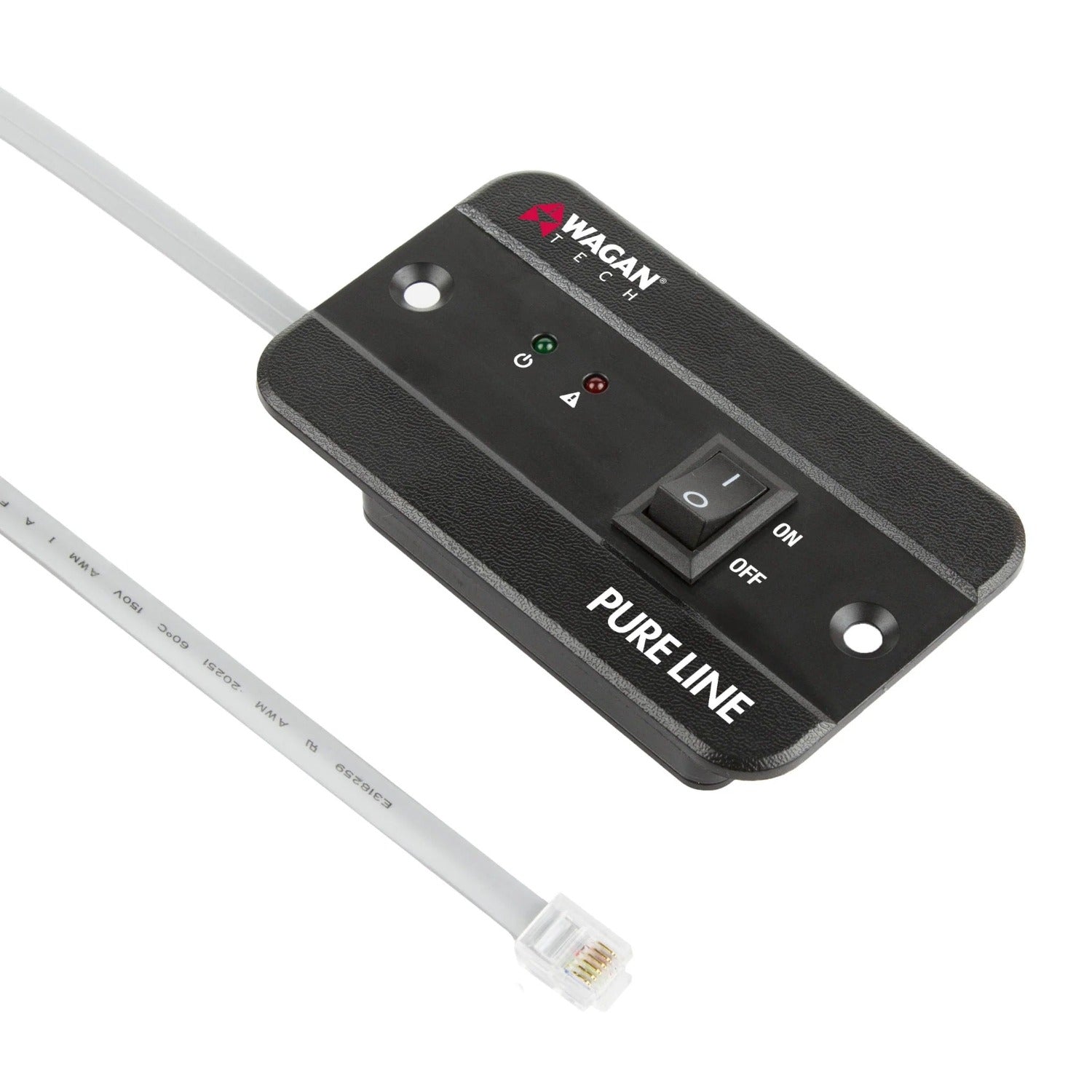

When an inverter is installed in a vehicle, RV, or another power system, having its controls available at a convenient location can make everyday operation simpler. The Wagan Tech Digital Remote Interface provides a dedicated display and control point for compatible equipment, allowing you to view inverter status, turn the inverter on or off, and adjust supported settings without relying solely on the inverter's physical location.
The remote uses a full-color LCD display with Up, Down, and Select buttons, along with RJ45 ports for connection. It is not a universal inverter remote, however. Wagan Tech specifically states that the display is designed for the listed compatible devices and should not be used with other equipment.
The full-color LCD display provides the interface for viewing information and accessing available controls. Pressing the Up and Down buttons lets you move between views, while the Select button is used to operate functions within the remote. This gives supported Wagan Tech equipment a dedicated user interface rather than requiring every adjustment to be made directly at the inverter.

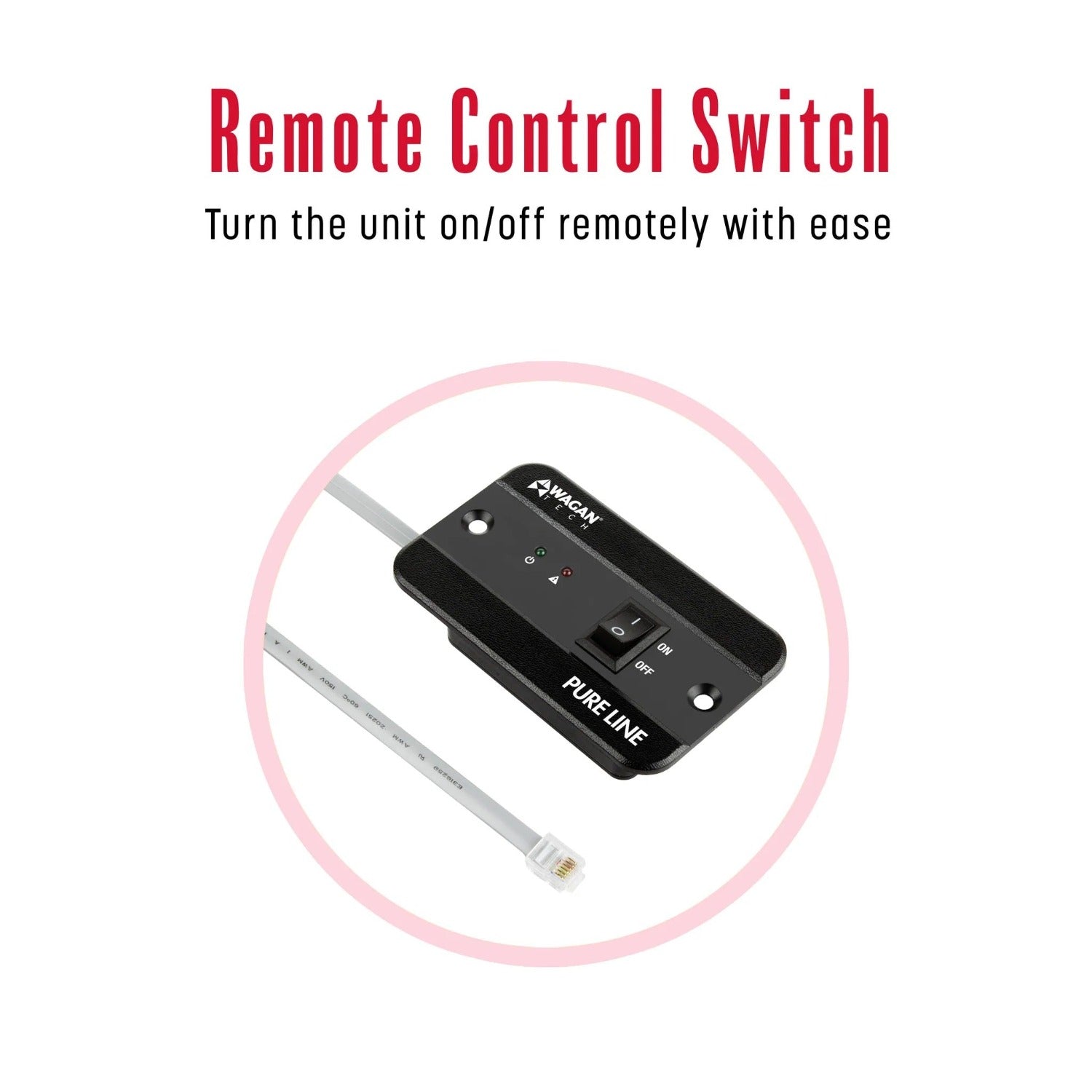

When connected to a compatible inverter, the remote display can control the inverter's on/off function. The manual specifies that the inverter should be switched to its “remote” setting, after which the inverter on/off function is controlled through the remote display.
This can be particularly useful when the inverter is installed somewhere that is less convenient to access. Instead of treating the inverter as the only control point, the remote provides a separate interface for supported systems.
The remote provides access to several inverter settings. Pressing the Select button enters setting mode, where the Up and Down buttons can be used to move between available settings. The Select button is then used to change a setting, and holding Select for three seconds saves the programmed changes and restarts the remote.
Supported settings include:
The AC frequency setting defaults to 60Hz, and Wagan Tech advises confirming the frequency requirements of connected appliances before changing this setting.
The remote includes access to the inverter's Power Save function. When enabled, the inverter can enter standby mode when no load is applied. This setting gives compatible system owners another way to configure how their inverter behaves when connected equipment is not drawing power.
The battery type setting adjusts operational and alarm settings according to the selected battery type. The manual identifies Lead Acid and Lithium settings, with different low-voltage alarm and shutoff values for each.
The remote also provides a manually adjustable low-voltage alarm setting. Changing this setting overrides the default low-voltage settings associated with the selected battery type, so system configuration should be approached carefully.
For inverter installations, the manual specifies using the included RJ45-to-RJ45 cable between the inverter remote port and the remote display. The cable connects to either RJ45 port on the remote display. When the inverter is connected to the remote, the remote receives power from the inverter.
Wagan Tech also specifically cautions against modifying the connectors or wiring. Only the connection cables provided with the display should be used, while additional or replacement cables are available from Wagan Tech.
This remote is best understood as a control and display accessory for a compatible Wagan Tech power system rather than as a standalone power device. Its usefulness depends heavily on whether your existing equipment is one of the models supported by the manual.
The available documentation does not establish that this remote is intended for every RV, marine, camping, off-grid, worksite, or home backup system. Compatibility with the specific equipment in your installation should therefore be confirmed before purchase.
A compatible inverter can provide its own physical controls, but the Wagan Tech Pure Line Inverter Remote adds a separate display and control interface. Its purpose is not to replace the inverter or provide additional electrical output. Instead, it gives compatible equipment a remote point for viewing status and managing supported inverter functions.
That distinction matters when planning a power system. If your priority is adding another control interface for a supported Wagan Tech inverter, this remote can be a practical accessory. If your equipment is not one of the models listed in the manual, the remote should not be assumed to work with it. Wagan Tech specifically warns against attempting to use the display with other devices.
The most important buying consideration is compatibility. According to the manual, the Digital Remote Interface is designed for Wagan Tech EL7410 and EL7411 DC to DC chargers and EL3814, EL3816, and EL3818 Pure Line Inverters (2nd Gen).
This May Be A Good Fit If:
Before Purchase, Confirm:
The manual lists Wagan Tech EL7410 and EL7411 DC to DC chargers and EL3814, EL3816, and EL3818 Pure Line Inverters (2nd Gen). It should not be assumed to work with other devices.
Yes. When the compatible inverter is connected to the remote and its power switch is set to the “remote” setting, the inverter on/off function is controlled through the remote display.
The remote provides access to supported settings including AC frequency, Power Save, battery type, and the low-voltage alarm setting. Changing settings can affect inverter operation, so the manual's instructions should be followed carefully.
Yes. The unit features a full-color LCD display with Up, Down, and Select buttons, providing the interface for viewing supported information and controlling available functions.
No. Wagan Tech specifically states that the remote display is designed for the devices listed in the manual and should not be used with other devices. Confirm your exact equipment model before purchasing.
The Wagan Tech Pure Line Inverter Remote is a focused accessory for compatible Wagan Tech equipment, providing a dedicated LCD interface for monitoring and controlling supported inverter functions. Its value comes from making compatible power-system controls easier to access while providing additional visibility into settings and operating information.
At Outbound Power, we believe good power-system planning starts with matching every component to the equipment it is actually designed to support. Check your Wagan Tech model carefully, review the connection requirements, and make sure this remote fits your system before ordering. When the compatibility is right, this compact control interface can be a practical addition to a properly configured Wagan Tech inverter setup.
Wagan Tech Pure Line Inverter Remote Specifications |
|
|---|---|
| Brand | Wagan Tech |
| Product Type | Digital Remote Interface |
| Item Number | EL5605 |
| Display | Full-color LCD display |
| Controls | Up/Down buttons and Select button |
| Ports | RJ45 ports |
| Compatible Pure Line Inverters | EL3814, EL3816, EL3818 Pure Line Inverters (2nd Gen) |
| Compatible DC To DC Chargers | EL7410, EL7411 |
| Inverter Control | On/off control through the remote display |
| Inverter Settings | AC frequency, Power Save, Battery Type, Low Voltage Alarm |
| AC Frequency Default | 60Hz |
| Battery Type Settings | Lead Acid, Lithium |
| Connection | RJ45-to-RJ45 cable |
| Mounting Dimensions | 4" × 2.2" |
| Manual Revision | REV20230613 |
