ACOPower 200W Mono RV Solar System

Achieve Off-Grid Freedom With The ACOPower 200W Mono RV Solar System

Take control of your RV's energy consumption and experience true off-grid independence with the ACOPower 200W Mono RV Solar System. This meticulously designed solar kit empowers you to harness the sun's clean, renewable energy to charge your batteries and operate essential appliances, all while reducing reliance on campground hookups and noisy generators.

This system is perfect for RV's, boats, cabins and back-up power.

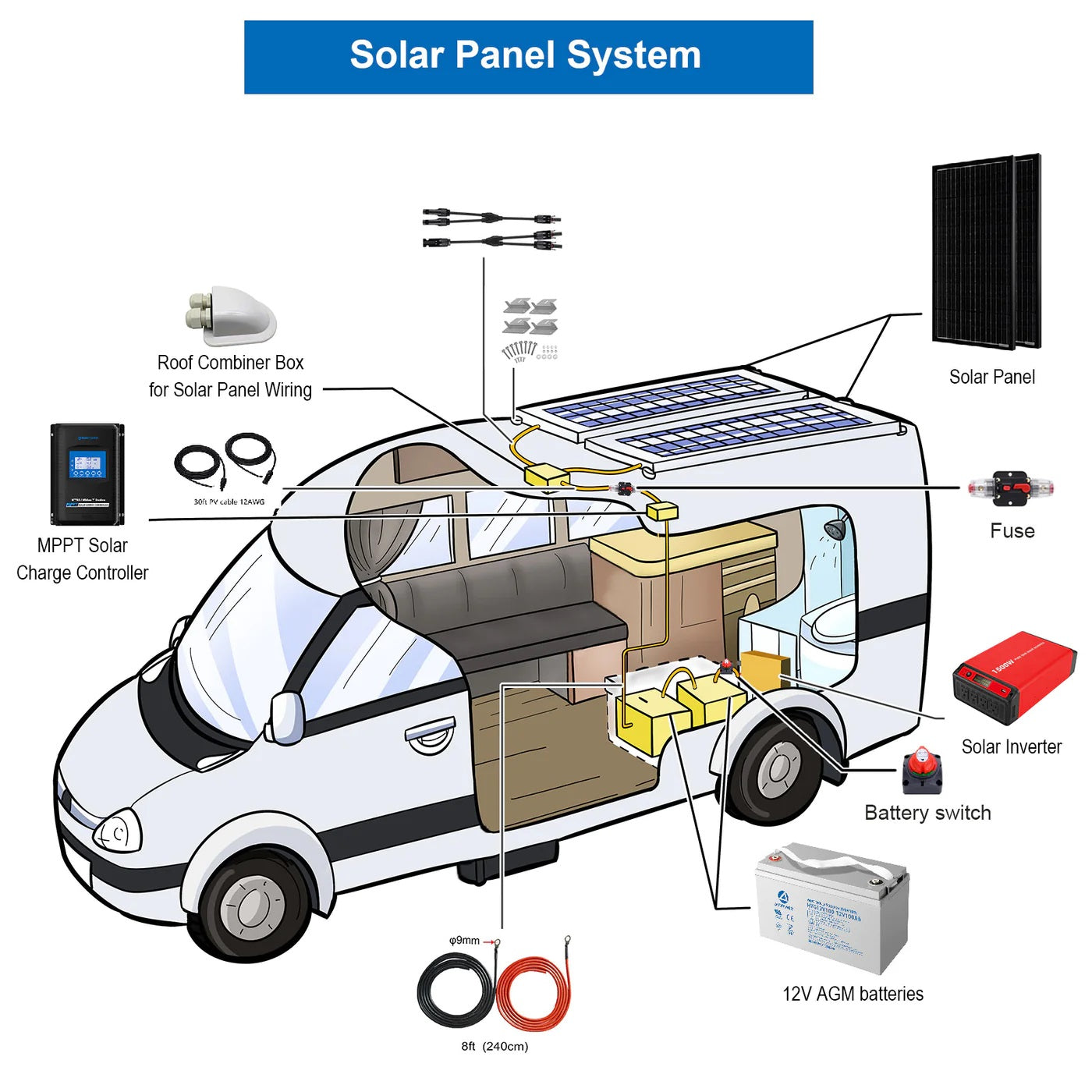

ACOPOWER’s 200 Watt Solar Kit includes everything you need to get started: 2 100 Watt Monocrystalline Solar Panels, 1500W 12VDC to 120AC Modified Sine Wave Power Inverter (inverter cables are included), 1 100Ah Gel Deep Cycle Battery, 30-Amp MPPT Solar Charge Controller, a 50A fuse, and a battery switch.

ACOPower 200W Mono RV Solar System Features

• Solar charging will provide about 960 Watt Hours (Wh) or 80 Amp hours of charge per day (depends on sunlight availability)
• Perfect kit for having an off-grid 12 volt battery system. 1500 Watt Inverter provides plenty of AC power to run your household appliances and the battery bank will supply plenty of energy for moderate use; Designed for RVs, cabins, homes, boats, back-up and remote power use
• Bundle and save! Purchase all the components together and save time and money!

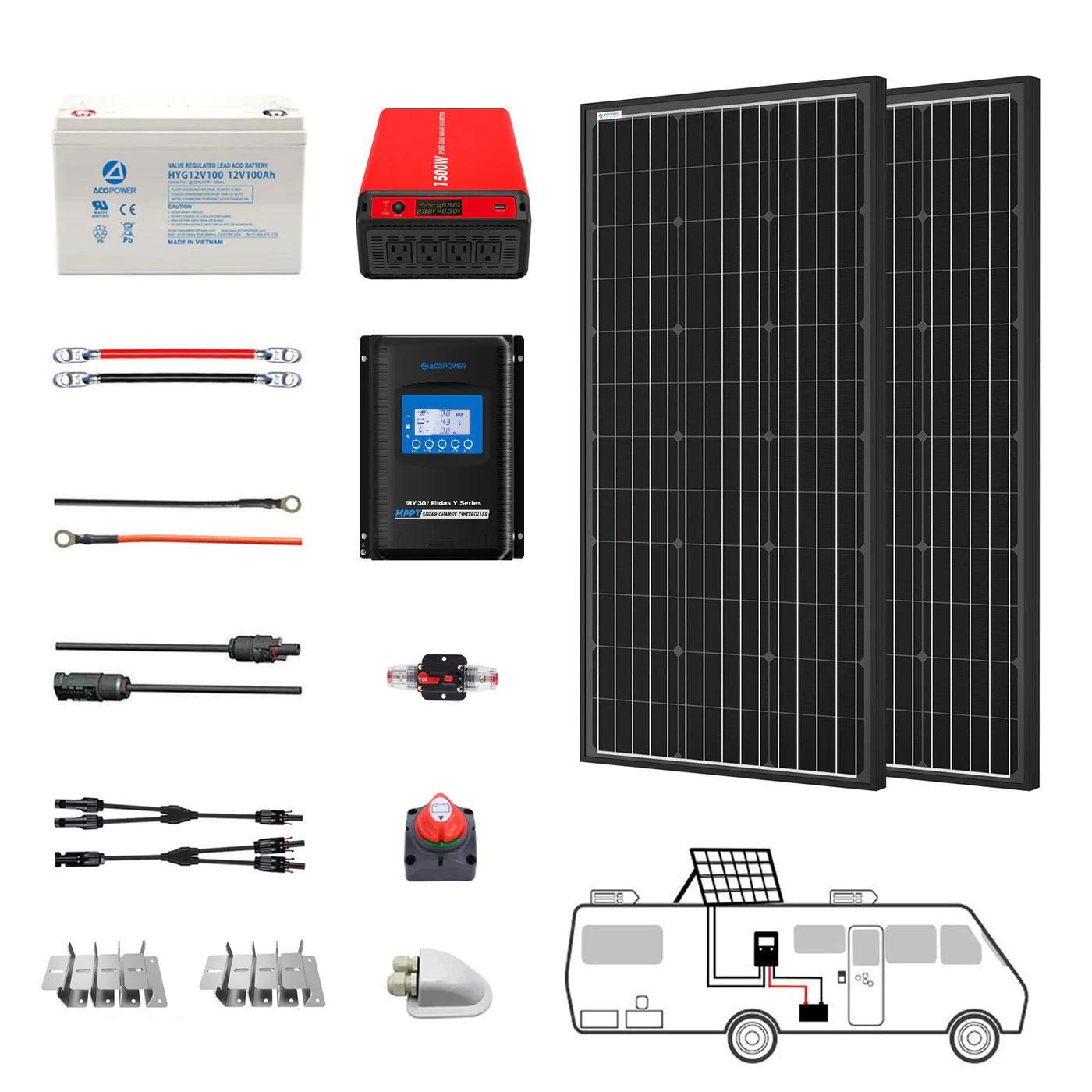

• Complete kit includes: 2pcs 100 Watt Monocrystalline Solar Panel, 1pc 100Ah Gel(Maintenance Free) Deep Cycle Battery,1500W 1500 Watt DC to AC Power Inverter, 30-amp MPPT Solar Charge Controller (w/ LCD Display), a 50A fuse, a battery switch, all necessary Cables, all necessary solar mounting Z brackets.

Warranty

• Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
• Solar Charge Controllers: The controller itself comes with a 1-year warranty.
• Accessories: 1-year material warranty.

What's In The Box

• 2 x 100W Mono Solar Panel
• 1 x 1500W Inverter
• 1 x 100Ah Gel Battery
• 1 x 30A MPPT Charge Controller
• 1 x 50A Fuse
• 1 x Battery Switch
• 2 x Mounting Z Bracket
• 1 x 30ft 12AWG PV Cable
• 1 x 1Ft 4AWG Battery Cable
• 1 x 8FT 8AWG Tray Cable
• 1 x Cable Entry Housing
• 1 x Y Branch Solar Panel Connectors

ACOPOWER 200W Mono RV Solar System Specifications

100W Monocrystalline Solar Panel

• Nominal for 12V battery charger
• Peak Power (Pmax): 100W
• Peak Circuit Voltage(Voc): 22V
• Max Power Voltage(Vmp): 17.48V
• Short Circuit Current(Isc): 6.14A
• Max Power Current(Imp): 5.71A
• Weight:12.8 lb

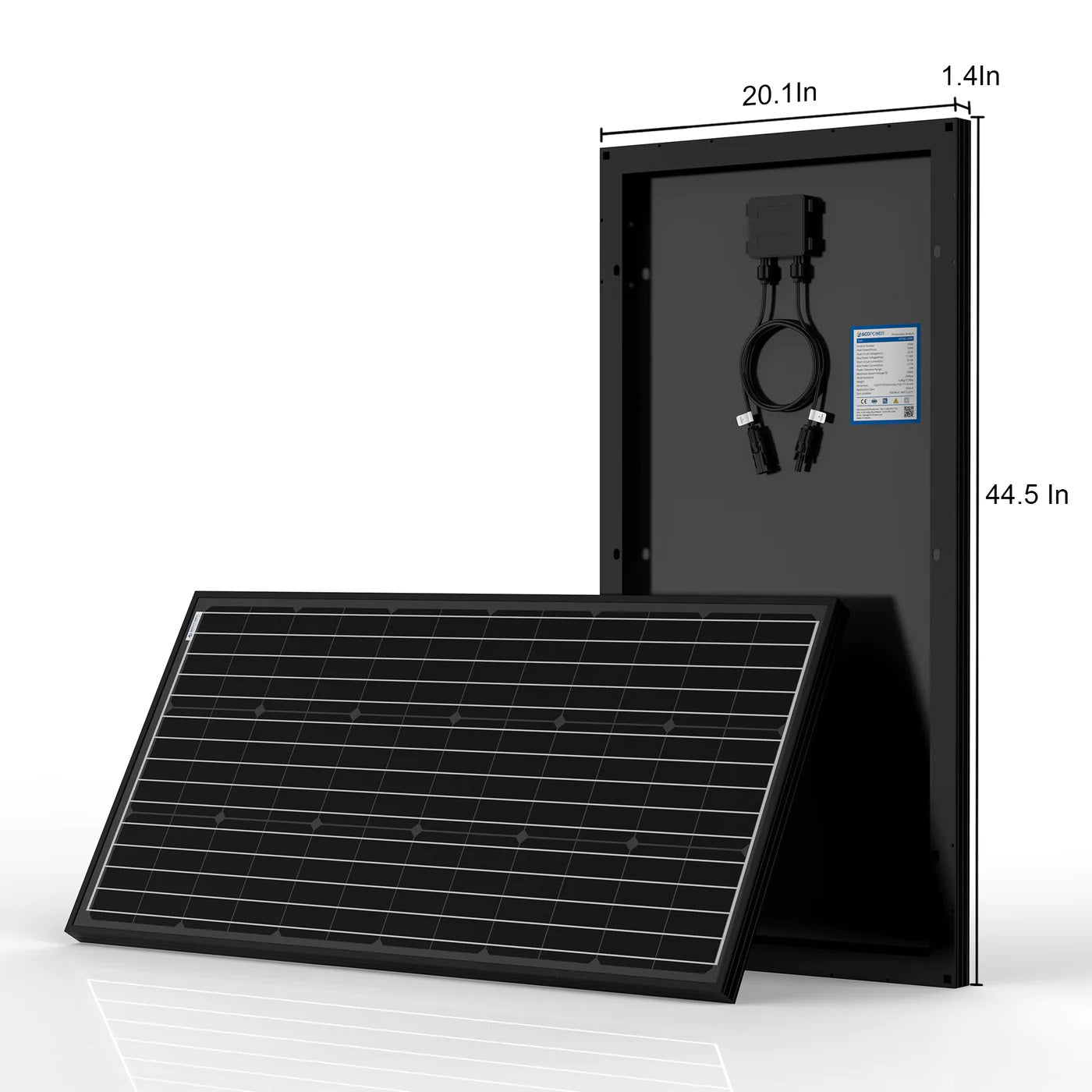

• Dimensions: 40.2*20.1*1.4 Inch
• Application Class: Class A

1500W Inverter 12VDC to 120VAC

• Continuous Output: 1500W
• Surge Power: 3000W
• Wave Form: Pure Sine Wave

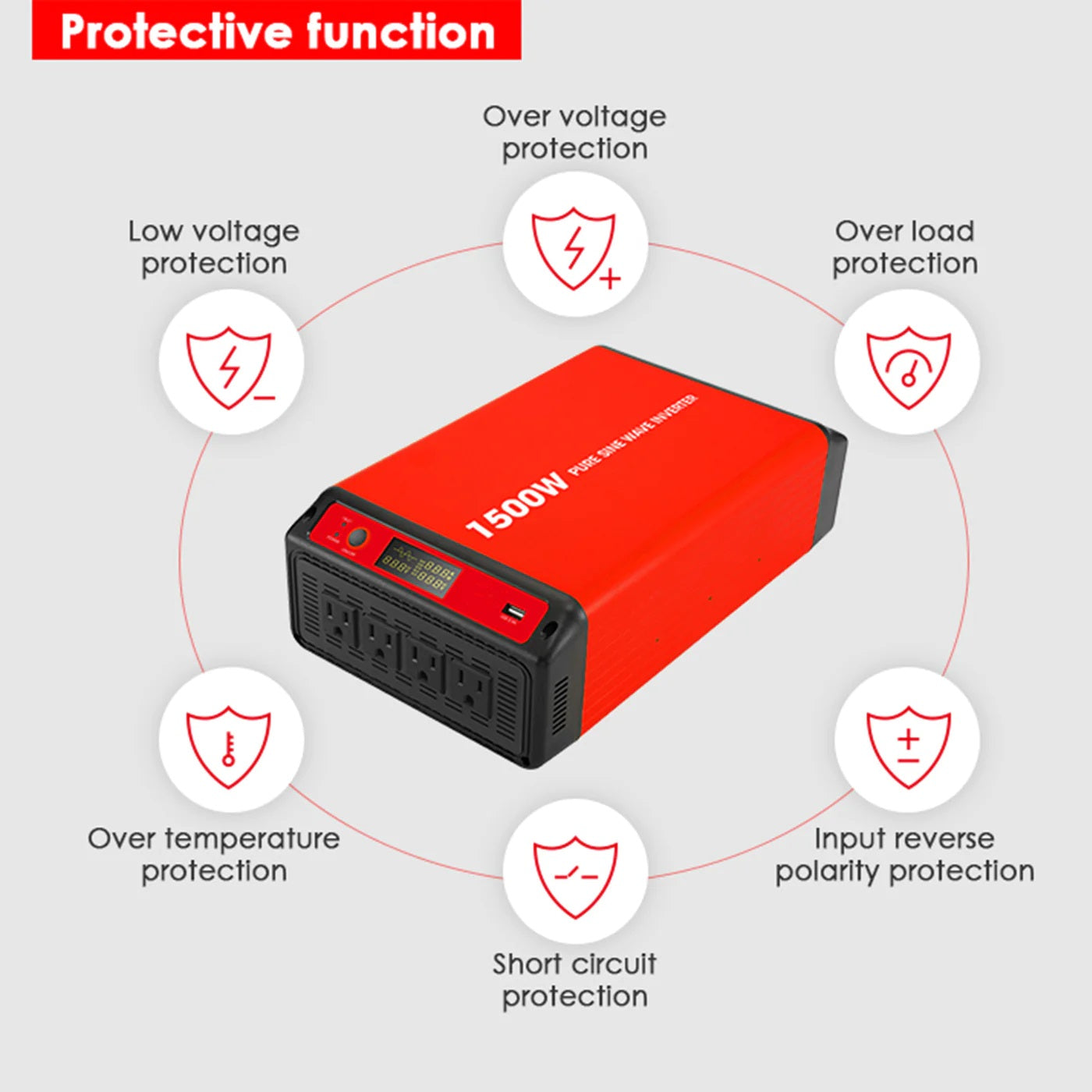

• Protection: Under voltage protection, Overvoltage protection, Overload Protection, Output short circuit protection
• Weight: 7.79lb
• Dimensions: 12.94+1.34 (D) x 7.52(W) x 3.86(H) inch

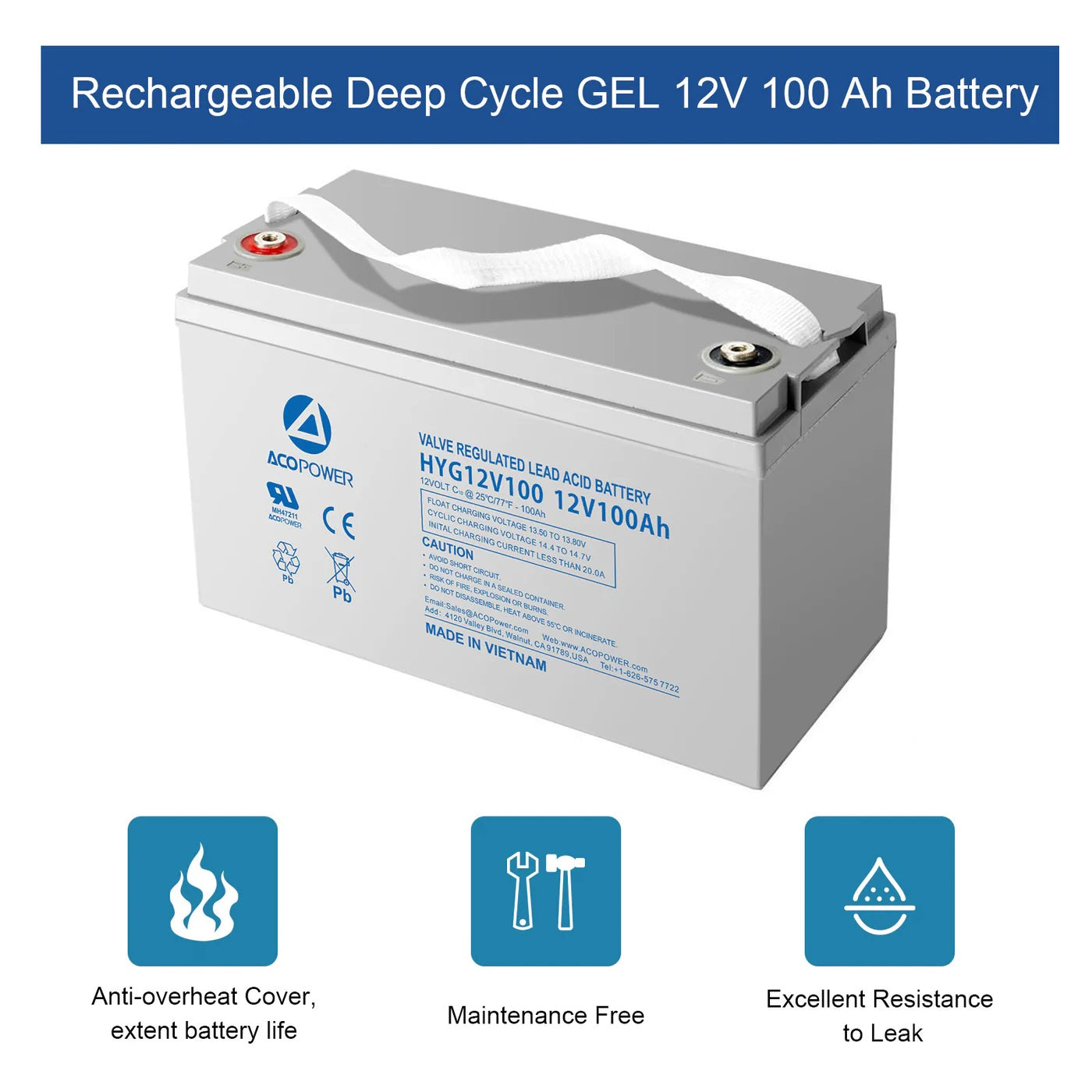

12V 100 Ah Rechargeable Deep Cycle GEL Battery

• Nominal Voltage: 12V
• Rated Capacity (10 hour rate): 100Ah
• Dimensions:12.99 x 6.73 (W) x 8.43 (H) inch
• Total Height: 8.66inch
• Approximate Weight: 30.5kg (67.2lbs)±3%

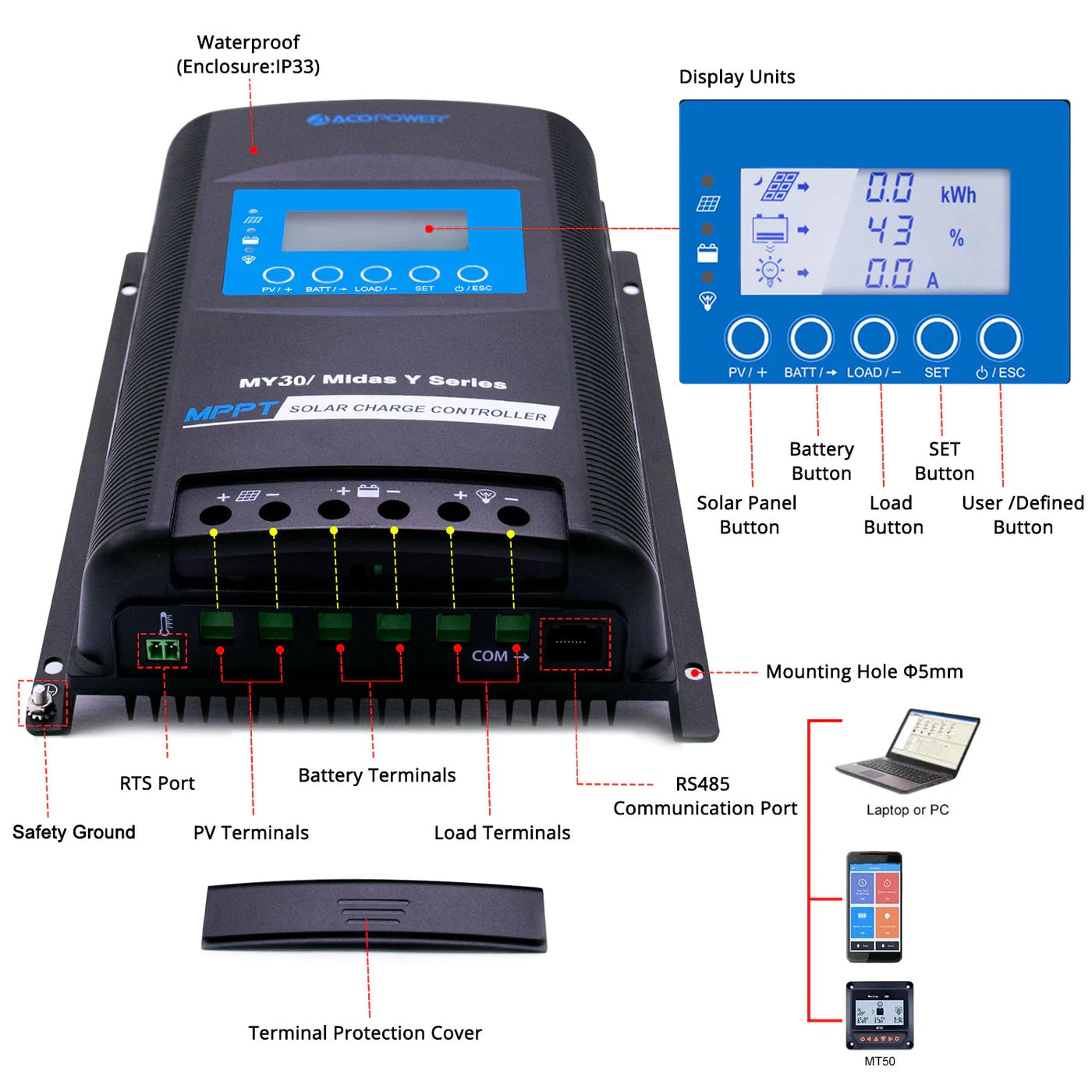

MPPT 30A Charge Controller

• Rated Charge Current: 30A
• Battery Voltage Range: 8V~32V
• Max. PV open circuit voltage: 100VDC
• Max. PV input power: 12V/390W,24V/780W
• Common positive grounding design
• Compatible with Various Deep Cycle Battery Options: Sealed, Gel, Flooded and Lithium-Ion. LiFePO4 Multiple Load Control Method

Manuals

• ACOPower Rechargeable Deep Cycle Gel 12V 200 Ah Battery Manual
• ACOPower Pure Sine Wave Inverter Manual
