ACOPower 30A MPPT Solar Charge Controller with Remote Meter MT-50

The ACOPower Midas 30A MPPT Solar Charge Controller With MT-50 Remote Meter Pairs Fast MPPT Charging With a Full-Featured Remote Display for 12V and 24V Solar Systems

The ACOPower Midas 30A MPPT Solar Charge Controller With MT-50 Remote Meter is a 30 amp maximum power point tracking controller for 12 volt and 24 volt battery banks. It tracks the maximum power point of your solar array with up to 99.5% tracking efficiency, then converts the panel voltage down to the right charging voltage for your battery with a peak conversion efficiency of 98.6%. ACOPower rates it for up to 390 watts of charging power on a 12V system and 780 watts on a 24V system.

A 100 volt PV input limit lets you wire panels in series, which keeps array current and wire size down on longer runs from the roof or ground mount to the battery. The controller works with sealed, gel, flooded and user-defined lead-acid settings, plus LiFePO4 and NCM lithium profiles.

This bundle adds the MT-50 remote meter, a wall-mount display that connects to the controller with a standard 2 meter cable over RS485. It draws its power from the controller, so no separate supply is needed, and lets you watch system data and change settings from inside the RV, cabin or utility room.

ACOPower Midas 30A MPPT Solar Charge Controller With MT-50 Remote Meter Features

Up to 99.5% MPPT Tracking Efficiency

An MPPT controller adjusts its input to the voltage where your panels produce the most power. ACOPower says this can raise energy use by 20% to 30% compared with PWM charging. The Midas 30A also recognizes multiple power peaks, which helps when part of an array is shaded.

12V and 24V Auto Detection

With lead-acid batteries the controller identifies a 12V or 24V system automatically. With lithium batteries the system voltage has to be set manually, because lithium voltage cannot be identified automatically. The working battery voltage range is 8 to 32 volts.

Lead-Acid and Lithium Charging Profiles

Built-in profiles cover sealed (the default), gel and flooded lead-acid batteries, plus LiFePO4 and Li(NiCoMn)O2 lithium. A user mode allows custom voltage settings through the MT-50 or ACOPower's PC software. Temperature compensation defaults to -3mV per °C per 2V cell for lead-acid and is fixed at zero for lithium.

30 Amp Load Output With Timer Modes

The load terminals can switch up to 30 amps of DC loads. Load modes include manual control, light on and off (dusk to dawn), light on plus timer, and real-time clock control, which suits lighting, pumps and monitoring equipment.

Built to Protect Itself and Your Battery

Electronic protection covers PV short circuit, PV and battery reverse polarity, battery over-voltage and over-discharge, and load overload. If the internal temperature reaches 81°C the controller steps down its charging power, and it stops charging above 85°C until it cools.

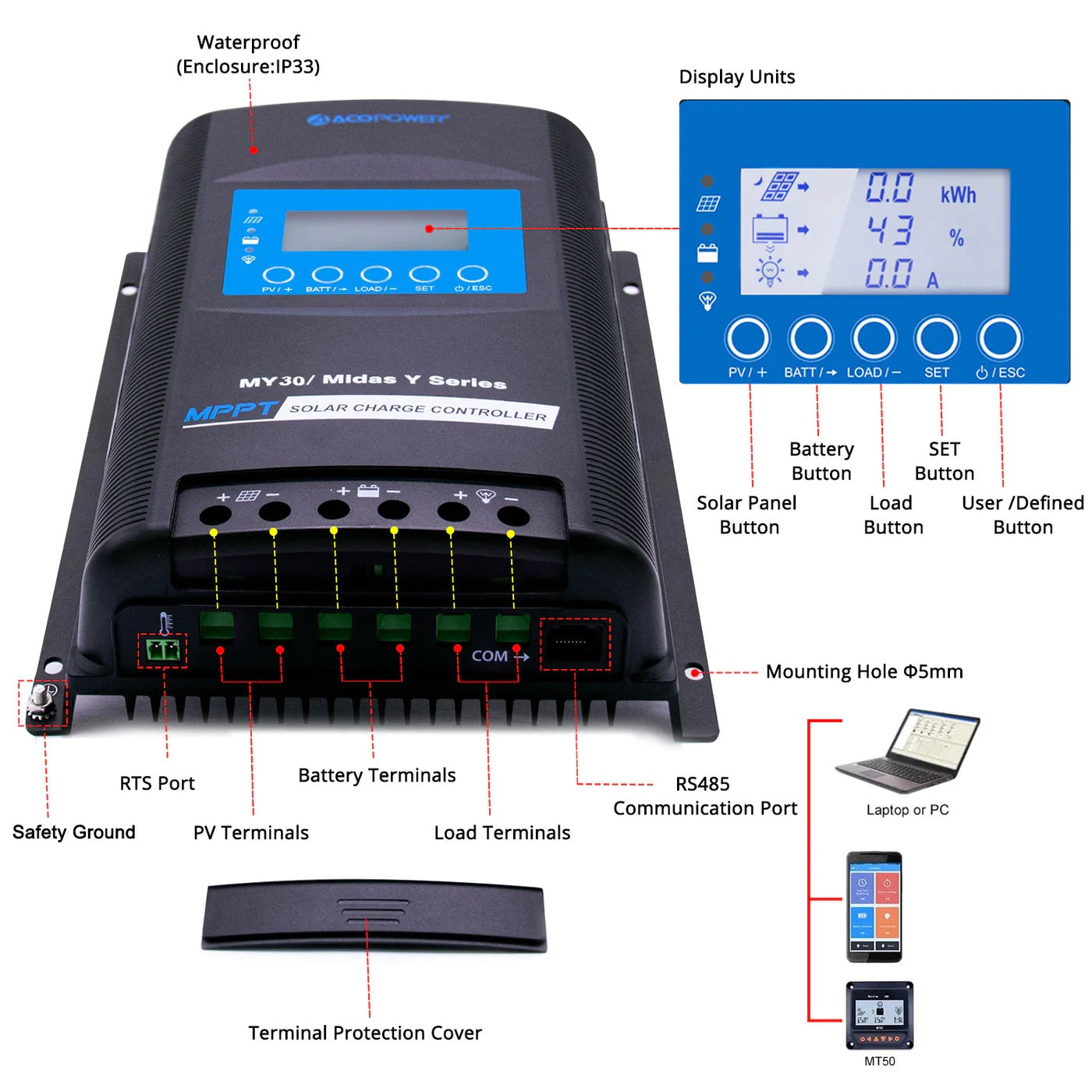

RS485 Communication

An isolated RS485 port (RJ45, 5V and 200mA) uses the Modbus protocol. In this bundle it feeds the MT-50 remote meter, and the same port can also connect a USB to RS485 cable for PC monitoring.

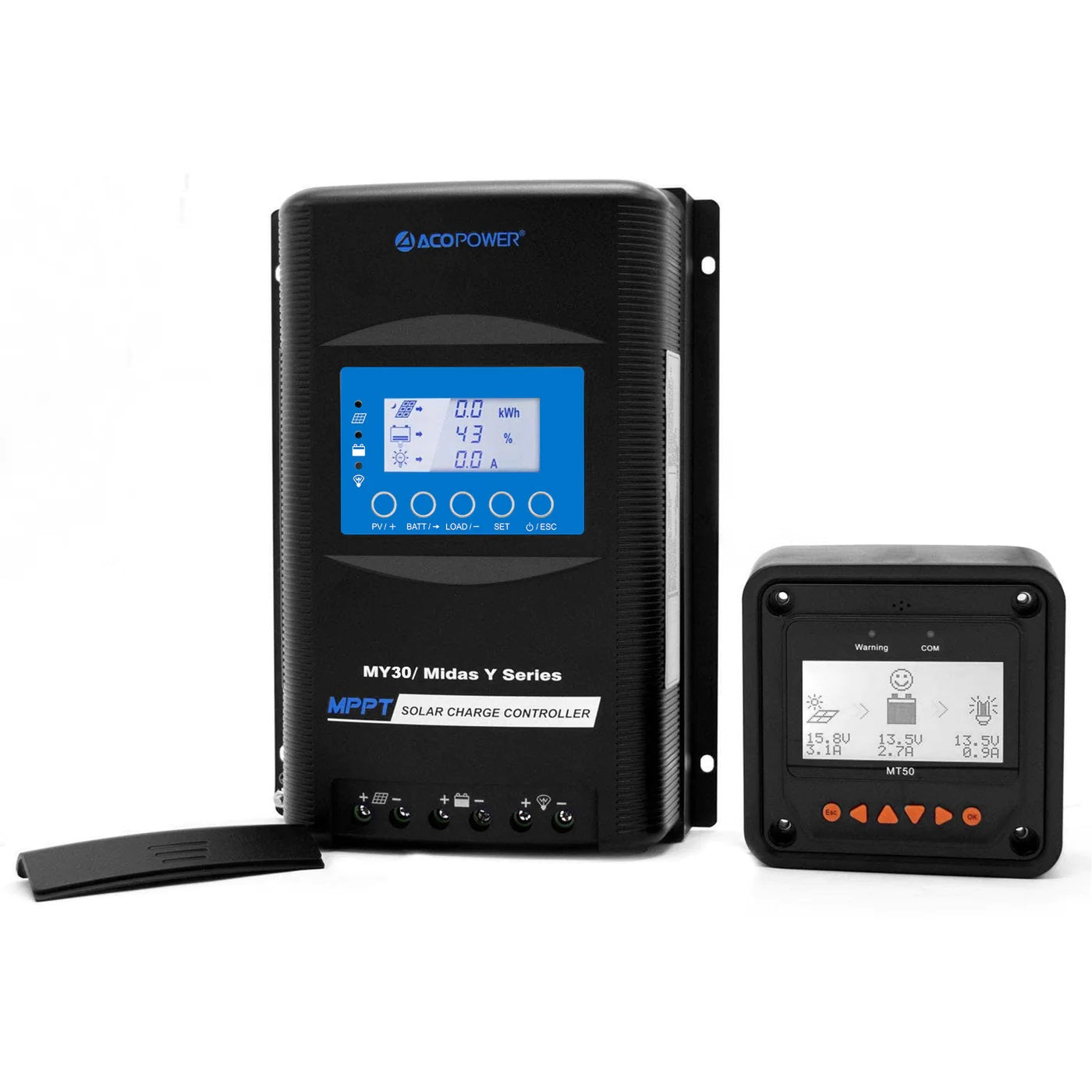

MT-50 Remote Meter Included

The MT-50 identifies the connected controller automatically and shows real-time operating data and status on a large multifunction LCD. Six navigation keys let you browse and change charge and load parameters, switch the load remotely, and restore factory defaults. It sounds an alarm and displays fault information. The faceplate is 98 x 98 mm and the meter cable can be extended up to 50 meters.

Real-World Applications

RV and van solar. Charge a 12V house battery from roof panels and keep an eye on it from the living area.

Cabins and sheds. Run lights and small DC loads from a 12V or 24V battery bank.

Remote monitoring and lighting. Use the timer and dusk-to-dawn modes for lights, cameras or gate openers.

Boats and trailers. Keep batteries topped up between trips.

How It Compares to Common Alternatives

Versus PWM controllers. A PWM controller such as ACOPower's ProteusX 20A connects the panel almost directly to the battery, so panel voltage above battery voltage is wasted. MPPT converts that extra voltage into charging current, which matters most in cold weather and with higher voltage panels wired in series.

Versus the Midas 40A. The Midas 40A uses the same platform and features. The 40A version is rated for more charging current and larger arrays. Choose the 30A when your array is up to about 390W at 12V or 780W at 24V.

With or without the MT-50. The controller has its own LCD and buttons. This bundle adds the MT-50 so you can monitor and adjust it from up to 50 meters away.

Versus the 50A and 60A MPPT controllers. ACOPower's 50A and 60A models add 36V and 48V support and a 150V PV input for larger systems.

Is This Charge Controller the Right Fit

• Battery bank. 12V or 24V lead-acid or lithium.
• Solar array. Open circuit voltage below 100V at the coldest expected temperature (92V at 25°C). ACOPower recommends keeping array power within 1.5 times the rated charging power.
• Wiring. Recommended cable is 8 AWG (10 mm²).

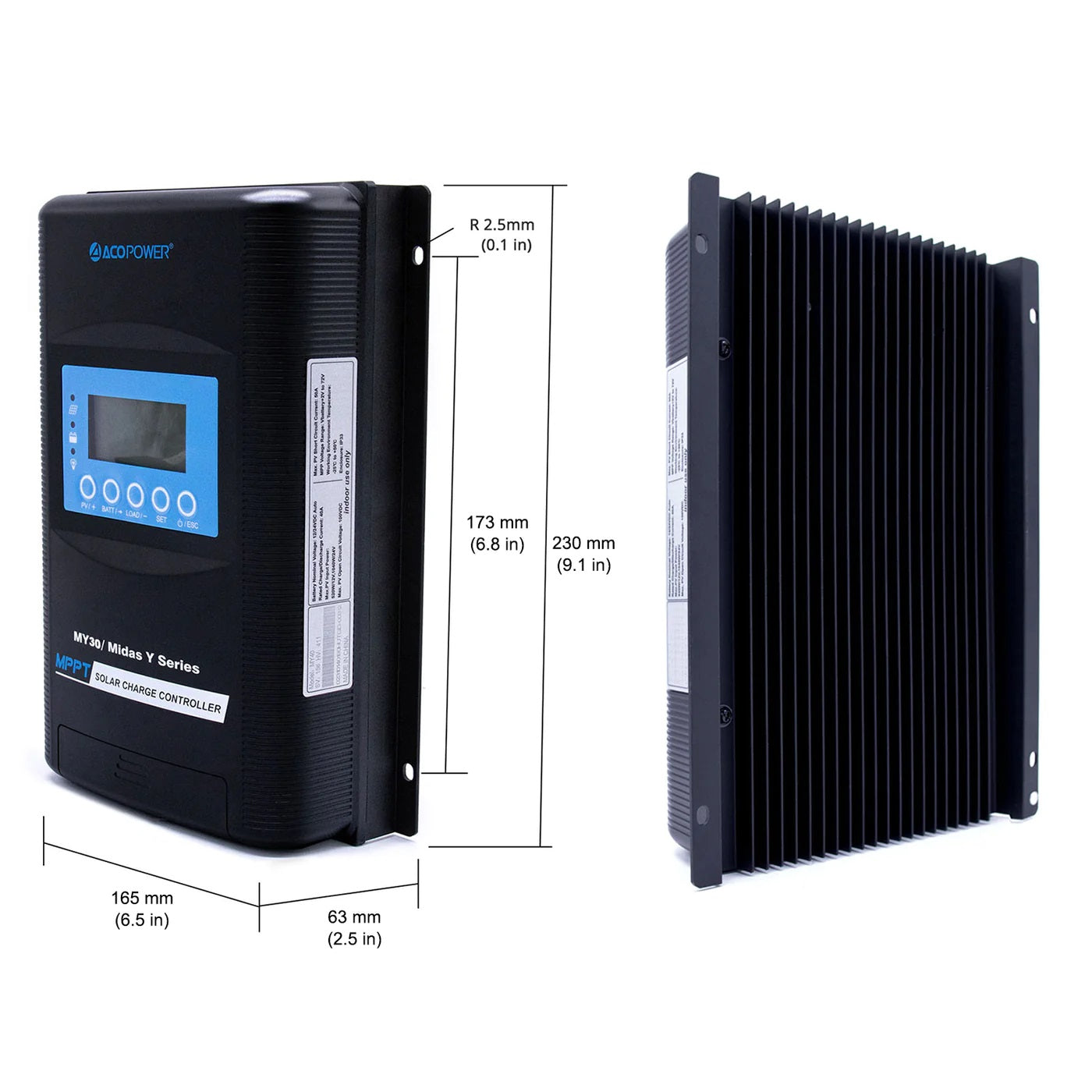

• Mounting. Indoor or sheltered location. The enclosure is rated IP33.

This may be a good fit if

• You want MPPT efficiency at a modest price
• You have a 12V or 24V system with panels wired in series
• You need a timer or dusk-to-dawn load output
• You want to monitor the system from a separate room

Common Questions

How Many Panels Can the Midas 30A Handle?

ACOPower rates it for 390W at 12V and 780W at 24V. With typical 100W 12V panels that is about 4 panels on a 12V battery or 8 on a 24V battery, as long as the series open circuit voltage stays below the 100V limit at the coldest temperature.

Does It Work With Lithium Batteries?

Yes. It has LiFePO4 and Li(NiCoMn)O2 profiles plus a user mode. Set the system voltage manually when using lithium, since it cannot be detected automatically.

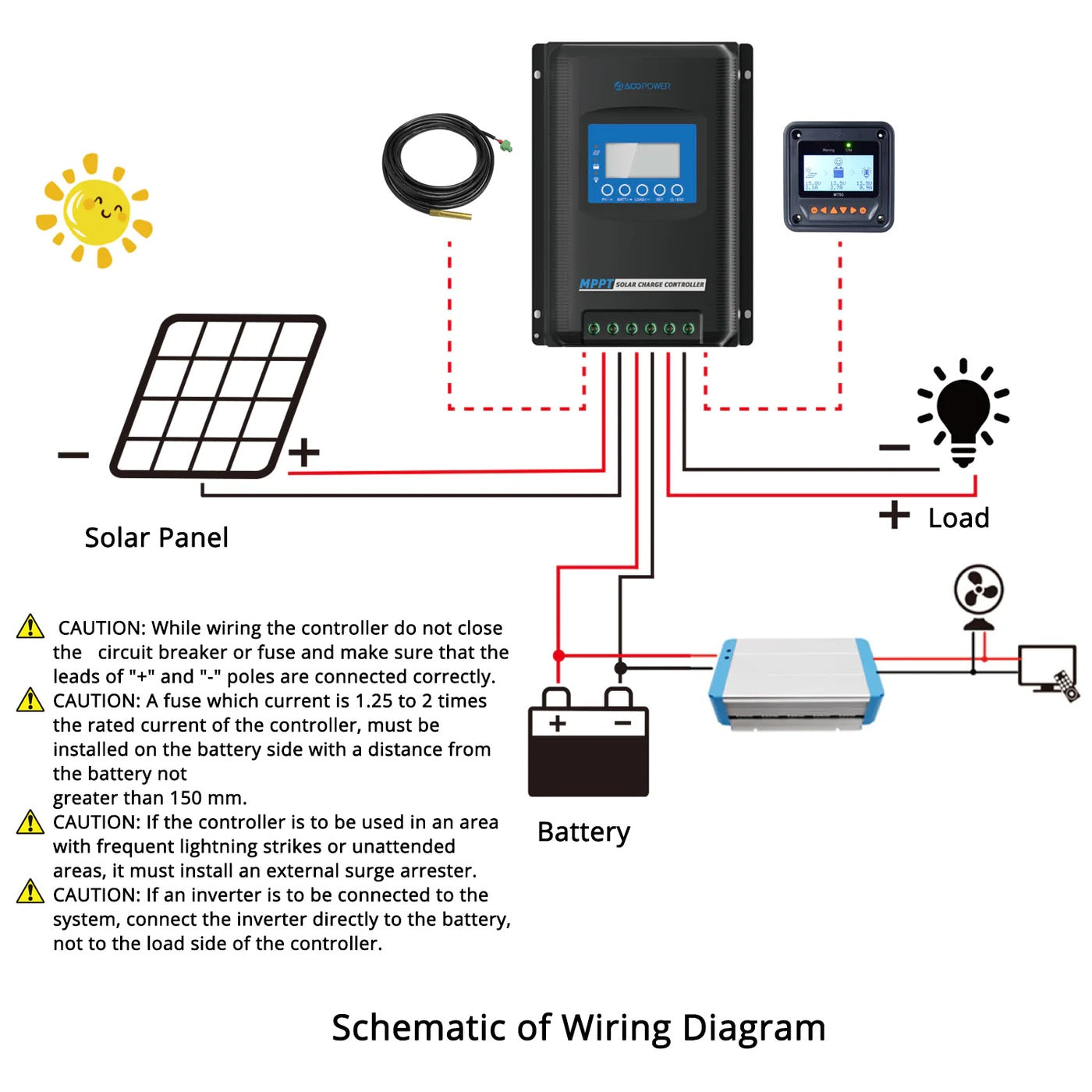

What Order Should I Connect It In?

ACOPower says to connect the battery first, then the load, and the solar panels last.

Can I Monitor It From My Phone?

The MT-50 handles local monitoring. For phone monitoring ACOPower offers an optional RS485 to Bluetooth adapter.

What's Included

• 1 x ACOPower Midas 30A MPPT Solar Charge Controller
• 1 x MT-50 Remote Meter with communication cable
• 2 x User Manuals

Efficient 30 Amp MPPT Charging With Remote Monitoring

The ACOPower Midas 30A MPPT Solar Charge Controller With MT-50 Remote Meter brings MPPT efficiency, lithium-ready charging profiles and flexible load control to 12V and 24V solar systems, with a remote meter to keep watch from anywhere in your space. At Outbound Power, we help customers match controllers to their panels and batteries. If you have questions, our team is happy to help.
