ACOPower Flexible Solar Panel Kit + MPPT / PWM Charge Controller

ACOPower Flexible Solar Panel Kit Maximizes Your Off-Grid Power Generation

Are you ready to take control of your power needs, whether you're on a camping trip, living in an RV, or looking to reduce your reliance on the grid? The ACOPower Flexible Solar Panel Kit + MPPT / PWM Charge Controller is your ticket to energy independence. This cutting-edge solar solution combines flexibility, efficiency, and portability to deliver a power generation system that adapts to your lifestyle.

Why Choose the ACOPower Flexible Solar Panel Kit?

In today's world, where energy costs are soaring and environmental concerns are at the forefront, having a reliable and sustainable power source is more important than ever. The ACOPower Flexible Solar Panel Kit stands out from the crowd by offering:

1. Unparalleled Flexibility: ACOPower's solar panels aren't just flexible in name – they're designed to bend up to 30 degrees, allowing you to install them on curved surfaces or in tight spaces where traditional rigid panels simply won't fit. This flexibility opens up a world of possibilities for mounting and positioning, ensuring you can capture maximum sunlight in any situation.
2. Lightweight and Portable Design: Weighing in at a fraction of what traditional solar panels do, the ACOPower Flexible Solar Panel Kit is a game-changer for those on the move. Whether you're outfitting an RV, a boat, or need a portable power solution for your outdoor adventures, these panels won't weigh you down.
3. High Efficiency Solar Cells: ACOPower incorporated the latest in solar cell technology to ensure that every ray of sunlight is converted into usable power with maximum efficiency. Our panels boast an impressive conversion rate, meaning you'll generate more power from less surface area.
4. Dual Charge Controller Options: The included MPPT (Maximum Power Point Tracking) and PWM (Pulse Width Modulation) charge controllers give you the flexibility to choose the best charging method for your specific needs and battery setup.
5. Durability for the Long Haul: Built to withstand the elements, our flexible solar panels are water-resistant and designed to handle extreme temperatures. This durability ensures that your investment will continue to pay off for years to come.

MPPT vs. PWM Charge Controllers

ACOPower included both MPPT and PWM charge controllers because they understand that different setups have different needs:

MPPT (Maximum Power Point Tracking):

• Offers up to 30% more efficiency compared to PWM
• Ideal for larger systems or when panel voltage is significantly higher than battery voltage
• Performs better in colder temperatures and low-light conditions

PWM (Pulse Width Modulation):

• Simpler and more cost-effective
• Great for smaller systems where panel voltage is close to battery voltage
• Highly reliable and with fewer components that could potentially fail

By providing both options, ACOPower ensures that you can optimize your system's performance regardless of your specific setup or environmental conditions.

Versatility in Application

The ACOPower Flexible Solar Panel Kit isn't just for one type of user. Its versatility makes it an ideal choice for a wide range of applications:

1. RV and Van Life Enthusiasts: For those embracing the freedom of life on the road, ACOPower's flexible solar panels are a perfect fit. They can be easily mounted on the curved roofs of RVs and vans, providing a constant source of clean energy to power your adventures.
2. Boating and Marine Use: The lightweight, water-resistant design of ACOPower panels makes them ideal for marine applications. Install them on your sailboat or yacht to keep your batteries charged and your onboard systems running smoothly.
3. Off-Grid Cabins and Tiny Homes: Building a sustainable, off-grid living space? ACOPower's flexible solar panels can be integrated into your design, providing reliable power without the need for unsightly rigid panels that can detract from your home's aesthetic.
4. Emergency Preparedness: In an age where natural disasters and power outages are becoming more common, having a portable power solution is crucial. The ACOPower Flexible Solar Panel Kit can be quickly deployed to provide emergency power when you need it most.
5. Outdoor Events and Festivals: Organizers of outdoor events can benefit from ACOPower's portable solar solution to power sound systems, lighting, and other equipment without the noise and pollution of traditional generators.

Installation Made Easy

One of the biggest advantages of the ACOPower Flexible Solar Panel Kit is its ease of installation. Unlike rigid panels that require complex mounting systems and professional installation, our flexible panels can be installed using a variety of methods:

• Adhesive backing for direct application to smooth surfaces
• Grommets for secure tie-down in temporary installations
• Lightweight mounting brackets for semi-permanent setups

This flexibility in installation means you can have your solar power system up and running in no time, without the need for specialized tools or expertise.

Maximizing Your Solar Investment

To get the most out of your ACOPower Flexible Solar Panel Kit, consider these tips:

1. Positioning: While the flexible nature of the panels allows for creative mounting solutions, aim to position them where they'll receive the most direct sunlight throughout the day.
2. Cleaning: Keep your panels clean to ensure maximum efficiency. A simple wipe-down with a soft cloth and mild soap solution is usually all that's needed.
3. Battery Bank: Pair your solar panel kit with an appropriately sized battery bank to store the energy you generate for use when the sun isn't shining.
4. Expand Your System: The modular nature of our kit means you can easily expand your solar setup as your energy needs grow.
5. Monitor Your Usage: Use energy monitoring tools to understand your power consumption and optimize your system accordingly.

Warranty

• Panels: The solar panel itself comes with a 5-year workmanship warranty and a 25-year 85% output warranty.
• Solar Charge Controllers: The controller itself comes with a 1-year warranty.
• Accessories: 1-year material warranty.

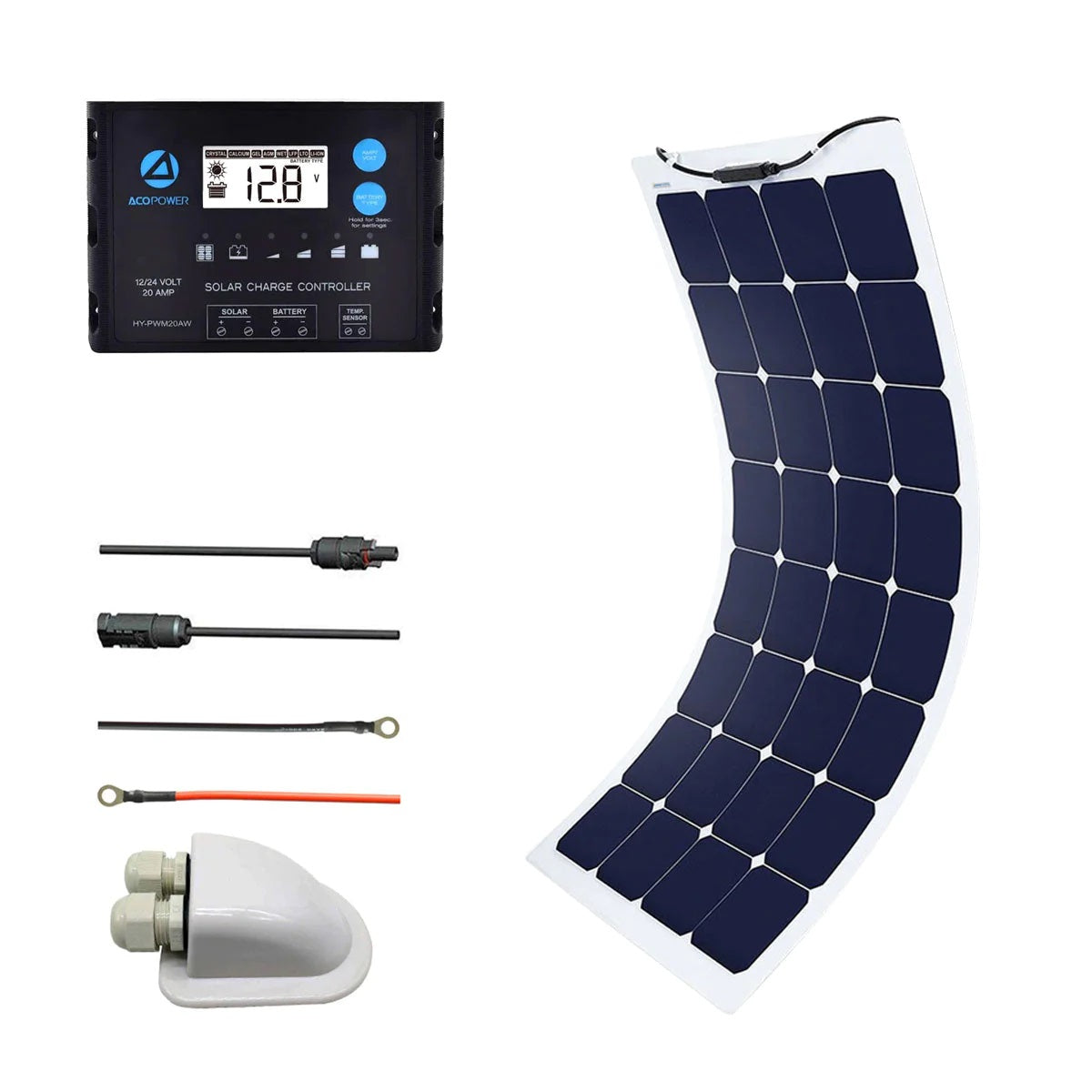

What's In The Box

• 1 x HY-FL-110W Flexible Solar Panel
• 1 x HY-PWM20AW Charge Controller
• 1 x 8FT 8AWG Tray Cable
• 1 x 30ft 12AWG PV Cable
• 1 x Cable Entry Housing

ACOPOWER Flexible Solar Panel Kit Specifications

ACOPOWER 110W FLEXIBLE SOLAR PANEL

• Maximum Power at STC (Pmax): 110W
• Maximum Operating Voltage (Vmp): 17.6V
• Maximum Operating Current (Imp): 6.25A
• Dimension: 1070x540x3mm / 44.7x21.3x0.12 in
• Open-Circuit Voltage (Voc): 20.8V
• Short-Circuit Current (Isc): 6.9A
• Operating Temperature: -20ºC to 65ºC
• Weight: 2.2kg / 4.85 lbs

ACOPOWER 50A MPPT SOLAR CHARGE CONTROLLER

• Nominal System Voltage: 12v/24v/36v/48v DC Auto
• Rated Charge Current: 50A
• Max. PV Open Circuit Voltage: 150V/138V
• MPP Voltage Range: V(BAT)+2V～108V
• Working temperature: -25℃～+50℃
• RS485 Interface: RS485(RJ45)
• Dimension: 261*216*119mm
• Grounding: Common negative Design
• Battery Input Voltage Range: 8V～68V
• Rated charge Power: 625W/12V 1250W/24V 1875W/36V 2500W/48V
• Battery type: Sealed(Default)/Gel/Flooded/User. Lead-acid batteries and Lithium-ion batteries
• Storage temperature: -20℃～+70℃
• Enclosure: IP33
• Terminals: 16mm2/6AWG

ACOPOWER MIDAS 40A MPPT SOLAR CHARGE CONTROLLER

• Nominal System Voltage: 12/24VDC Auto
• Rated Charge Current: 40A
• Max. PV Open Circuit Voltage: 100V (1) 92V (2)
• MPPT Voltage Range: (Battery Voltage+2V) ~72V
• Working temperature: -25℃～+50℃
• Terminals: Up to 6 AWG
• Dimension: 10x7.28x2.67 in / 255×185×67.8mm
• Grounding: Common negative
• Battery Input Voltage Range: 8V～32V
• Rated charge Power: 520W/12V 1040W/24V
• RS485 Interface: 5VDC/200mA(RJ45)
• Storage temperature: -20℃～+70℃
• Enclosure: IP33
• Weight: 3.75lbs / 1.7kg

ACOPOWER 30A MPPT SOLAR CHARGE CONTROLLER

• Nominal system voltage: 12/24VDC Auto
• Battery input voltage range: 8V～32V
• Max.PV input power: 12V/390W, 24V/780W
• Working environment temperature: -25℃～+50℃
• Grounding: Common negative
• Power Terminals: 6AWG(16mm2)
• Dimensions: 228x164x55mm
• Rated charge current: 30A
• Max.PV open circuit voltage: 100VDC
• MPP voltage range: V(BAT+2V)～72V
• Storage temperature range: -35℃～+80℃
• Communication: RS485
• Enclosure: IP30
• Weight: 1.2kg

ACOPOWER 20A PWM CHARGE CONTROLLER

• Nominal Voltage: 12V/24V DC
• Rated Charge Current: 20A
• Battery Start Charging Voltage: 3V
• Operating Temperature: -40°F to 140°F
• Terminals: Up to 10 AWG
• Dimensions: 5.59x 3.7x 1.06 inches
• Grounding: Common Negative
• Max. PV Input Voltage: 50V
• Temperature Compensation Coefficient: -24mV/°C
• Storage Temperature: -40°F to 185°F
• Enclosure: IP65
• Weight: 1.1 lbs
