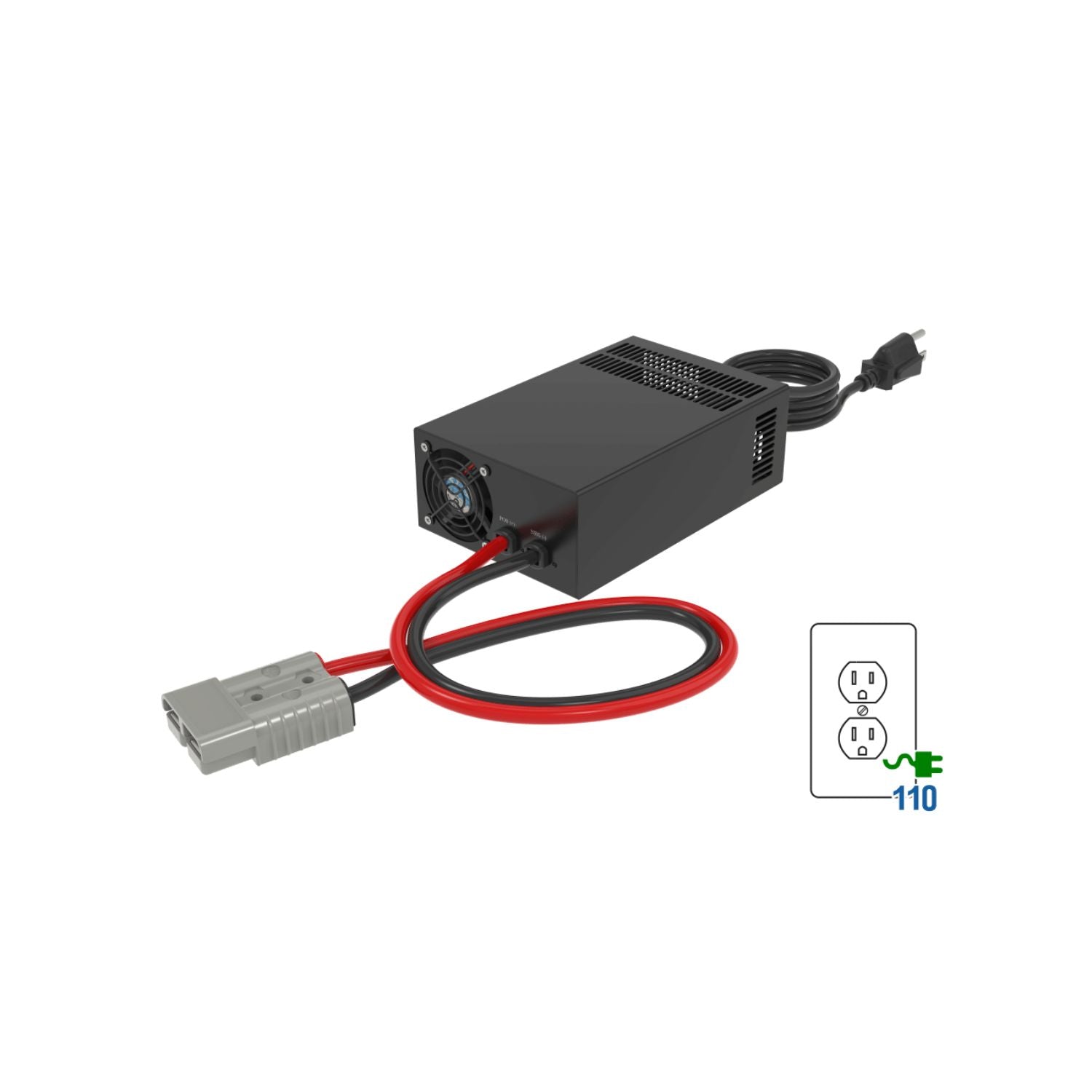

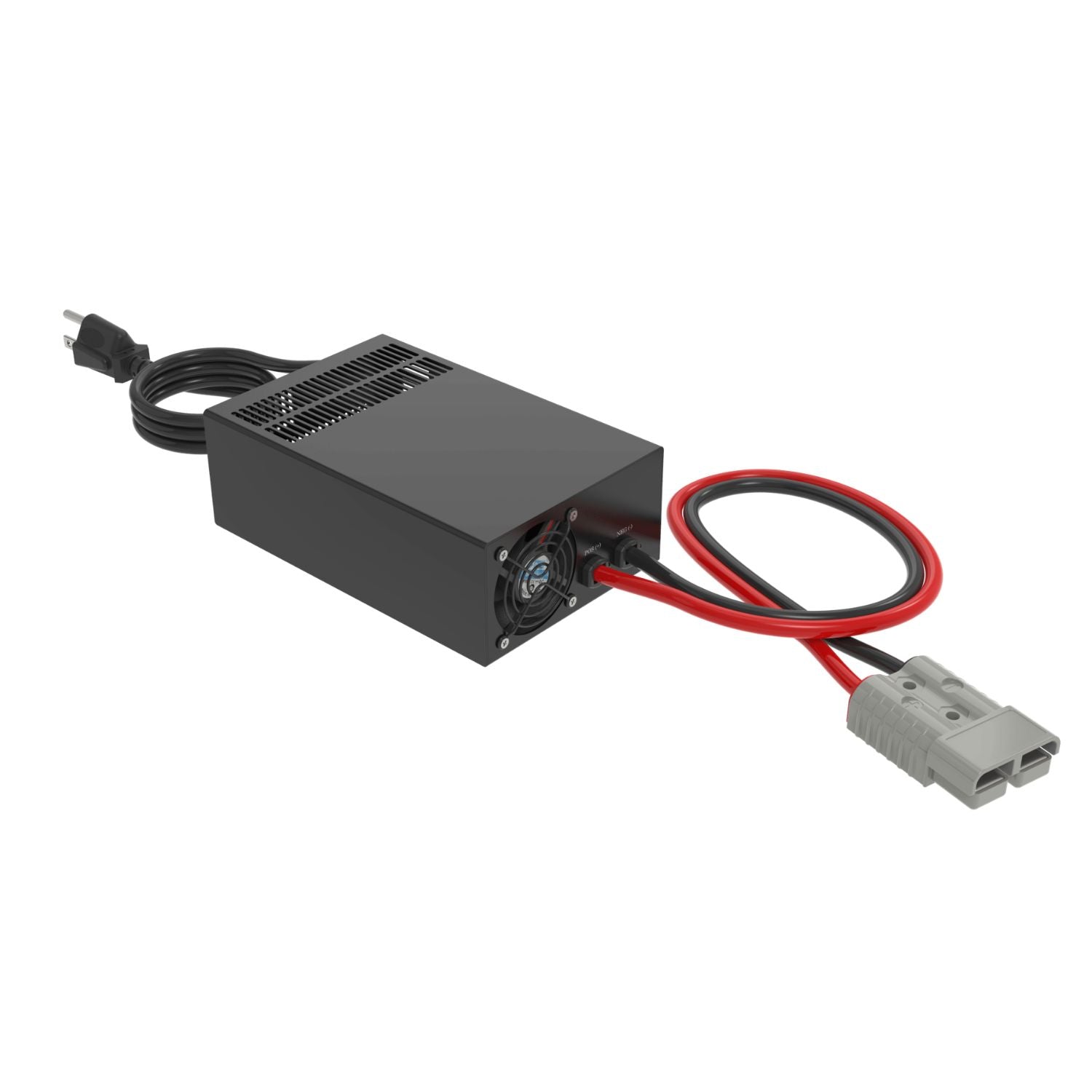

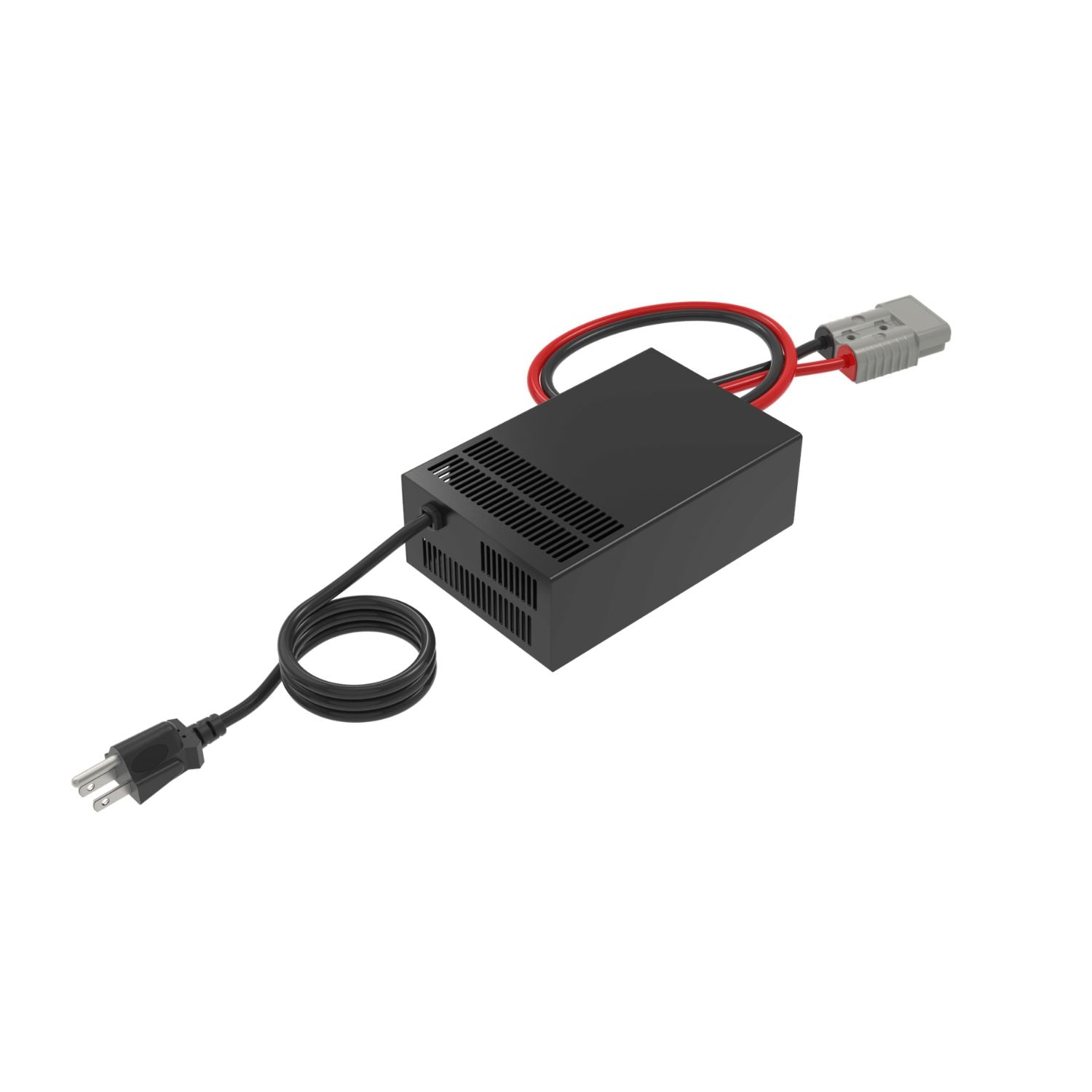

The BigBattery 12V 60A Lithium Charger Refills 12V RAZORBACK, OWL and SEAL Batteries Fast From a Standard Outlet
The BigBattery 12V 60A Lithium Charger delivers up to 60 amps at 14.6V DC, the full charge voltage a 12.8V LiFePO4 battery needs. It plugs into any standard 110V AC outlet and connects to the battery with a 175A Anderson-style connector, so charging is plug and go.
BigBattery built this charger for its 12V RAZORBACK, OWL, OWL MAX 2 and SEAL batteries. It is compact at 3.4 lbs, so it is easy to keep in an RV, boat or shop. BigBattery provides lifetime USA-based technical support, and the charger ships from Texas.
BigBattery 12V 60A Lithium Charger Features
60A Charging Current
At up to 60A, a 200Ah battery charges from empty in a little over three hours, allowing for the taper near full.
Correct LiFePO4 Voltage
The 14.6V DC maximum output is the full-charge voltage for a 12V LiFePO4 battery. Higher voltage would risk tripping the BMS, and lower voltage would leave capacity unused.
175A Anderson-Style Connector
A polarized Anderson-style connector makes connecting and disconnecting quick and prevents reversed polarity.
Compact and Portable
At 8 x 5.2 x 2.75 in and 3.4 lbs, with a 22.3 in DC cable and 23.2 in AC cable, it stores easily.
Real-World Applications
RVs and campers. Recharge a 12V house battery from shore power or a generator.
Boats. Top up 12V lithium batteries at the dock.
Shops and job sites. Keep portable 12V power ready between uses.
How It Compares to Common Alternatives
Versus a lead-acid charger. A lead-acid charger cannot fully and safely charge LiFePO4. This charger uses the lithium charge profile BigBattery batteries need.
Versus a generic lithium charger. BigBattery matches this charger to its own batteries, so it delivers the correct voltage for those models and avoids tripping the BMS.
Is This Charger the Right Fit
-
Battery. The 12V BigBattery RAZORBACK, OWL, OWL MAX 2 and SEAL only. It is not for the HUSKY 2, which needs a different BigBattery charger.
-
Power source. A standard 110V AC outlet.
-
Connection. 175A Anderson-style connector on the DC side and a 110V AC plug.
This may be a good fit if
- You own a compatible BigBattery battery
- You need a replacement or second charger
- You are switching from a lead-acid charger
Common Questions
Which Batteries Does It Work With?
The 12V BigBattery RAZORBACK, OWL, OWL MAX 2 and SEAL only. It is not for the HUSKY 2, which needs a different BigBattery charger.
How Long Does It Take to Charge?
Divide the battery's amp hours by the charge current. A 200Ah battery takes a little over three hours from empty at 60A.
Can I Use a Lead-Acid Charger Instead?
No. Lead-acid chargers use absorption and float voltages designed for a different chemistry, which typically leaves a LiFePO4 battery undercharged and can trip its BMS. A matched lithium charger delivers the correct profile.
Will It Work With My HUSKY 2?
No. BigBattery says this charger is built for the 12V RAZORBACK, OWL, OWL MAX 2 and SEAL. Pairing a charger with the wrong battery risks incorrect charge voltage.
What's Included
- 1 x BigBattery 12V 60A Lithium Charger
The Right Charger for Your Battery
The BigBattery 12V 60A Lithium Charger keeps your BigBattery lithium battery properly charged with a matched 14.6V DC profile. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
BigBattery 12V 110V AC 60A Lithium Charger Specifications
|
| SKU |
PWS015 |
| Battery Voltage |
12V LiFePO4 |
| Input Voltage |
110V AC |
| Max Output Voltage |
14.6V DC |
| Max Output Current |
60A |
| Output Frequency |
50/60Hz |
| Connection Type |
175A Anderson |
| Compatible Batteries |
BigBattery 12V RAZORBACK, OWL, OWL MAX 2, SEAL |
| Weight |
3.4 lbs |
| Dimensions (D x W x H) |
8 x 5.2 x 2.75 in |
| DC Cable Length |
22.3 in |
| AC Cable Length |
23.2 in |
