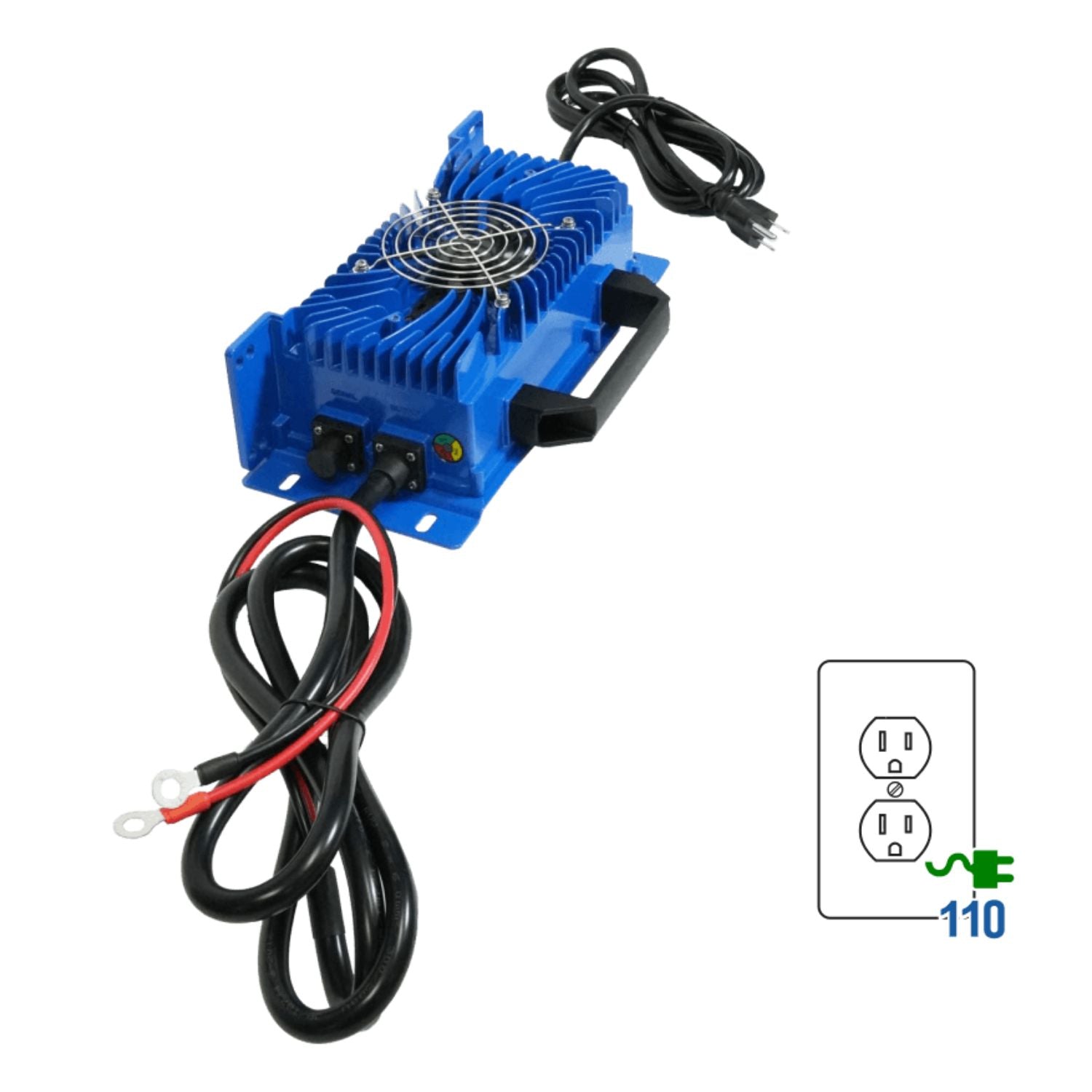

The BigBattery 36V 25A Charger Delivers the 43.2V Lithium Charge 36V Golf Carts and EAGLE 2 Batteries Need
The BigBattery 36V 25A Charger delivers up to 25 amps at 43.2V DC, the charge voltage 36V LiFePO4 batteries need. It plugs into a standard 110V AC outlet and connects to the battery with ring terminals.
This is the charger BigBattery ships with its 36V EAGLE 2 golf cart kits, and it is sold separately for batteries bought on their own, for replacing a failed charger, or as a second charger for another location. BigBattery provides lifetime USA-based technical support, and the charger ships from Texas.
BigBattery 36V 25A Lithium Charger Features
25A Charging Current
A 2x 36V EAGLE 2 kit (3.08kWh) recharges from empty in about three and a half hours.
43.2V LiFePO4 Profile
The 43.2V DC output keeps 36V lithium batteries properly charged and protected.
Ring Terminal Connection
Ring terminals give a secure, bolted connection to the battery.
Compact Design
At 4.9 lbs with a 21.7 in DC cable and 19.3 in AC cable, it can be stored on the cart or moved between vehicles.
Real-World Applications
36V golf carts. Charge a converted lithium golf cart overnight or between rounds.
NEVs and utility vehicles. Recharge 36V lithium vehicles from any outlet.
Industrial equipment. Charge 36V tuggers, pallet jacks and sweepers.
How It Compares to Common Alternatives
Versus a lead-acid charger. A lead-acid charger cannot fully and safely charge LiFePO4. This charger uses the lithium charge profile BigBattery batteries need.
Versus a generic lithium charger. BigBattery matches this charger to its own batteries, so it delivers the correct voltage for those models and avoids tripping the BMS.
Is This Charger the Right Fit
-
Battery. BigBattery 36V LiFePO4 batteries, including the 36V EAGLE 2. It is the charger BigBattery includes with its 36V EAGLE 2 kits.
-
Power source. A standard 110V AC outlet.
-
Connection. Ring terminals on the DC side and a 110V AC plug.
This may be a good fit if
- You own a compatible BigBattery battery
- You need a replacement or second charger
- You are switching from a lead-acid charger
Common Questions
Which Batteries Does It Work With?
BigBattery 36V LiFePO4 batteries, including the 36V EAGLE 2. It is the charger BigBattery includes with its 36V EAGLE 2 kits.
How Long Does It Take to Charge?
At 25A, a 2x 36V EAGLE 2 kit (3.08kWh) takes about three and a half hours from empty. A 4x kit takes proportionally longer.
Can I Use a Lead-Acid Charger Instead?
No. Lead-acid chargers use absorption and float voltages designed for a different chemistry, which typically leaves a LiFePO4 battery undercharged and can trip its BMS. A matched lithium charger delivers the correct profile.
Is It Included With 36V EAGLE 2 Kits?
Yes. BigBattery ships this charger with its 36V EAGLE 2 kits and also sells it separately.
What's Included
- 1 x BigBattery 36V 25A Lithium Charger
The Right Charger for Your Battery
The BigBattery 36V 25A Lithium Charger keeps your BigBattery lithium battery properly charged with a matched 43.2V DC profile. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
BigBattery 36V 25A Charger Specifications
|
| SKU |
PWS052 |
| Battery Voltage |
36V LiFePO4 |
| Input Voltage |
110V AC |
| Max Output Voltage |
43.2V DC |
| Max Output Current |
25A |
| Output Frequency |
50/60Hz |
| Connection Type |
Ring terminals |
| Weight |
4.9 lbs |
| Dimensions (D x W x H) |
6.2 x 9.1 x 3.2 in |
| DC Cable Length |
21.7 in |
| AC Cable Length |
19.3 in |
