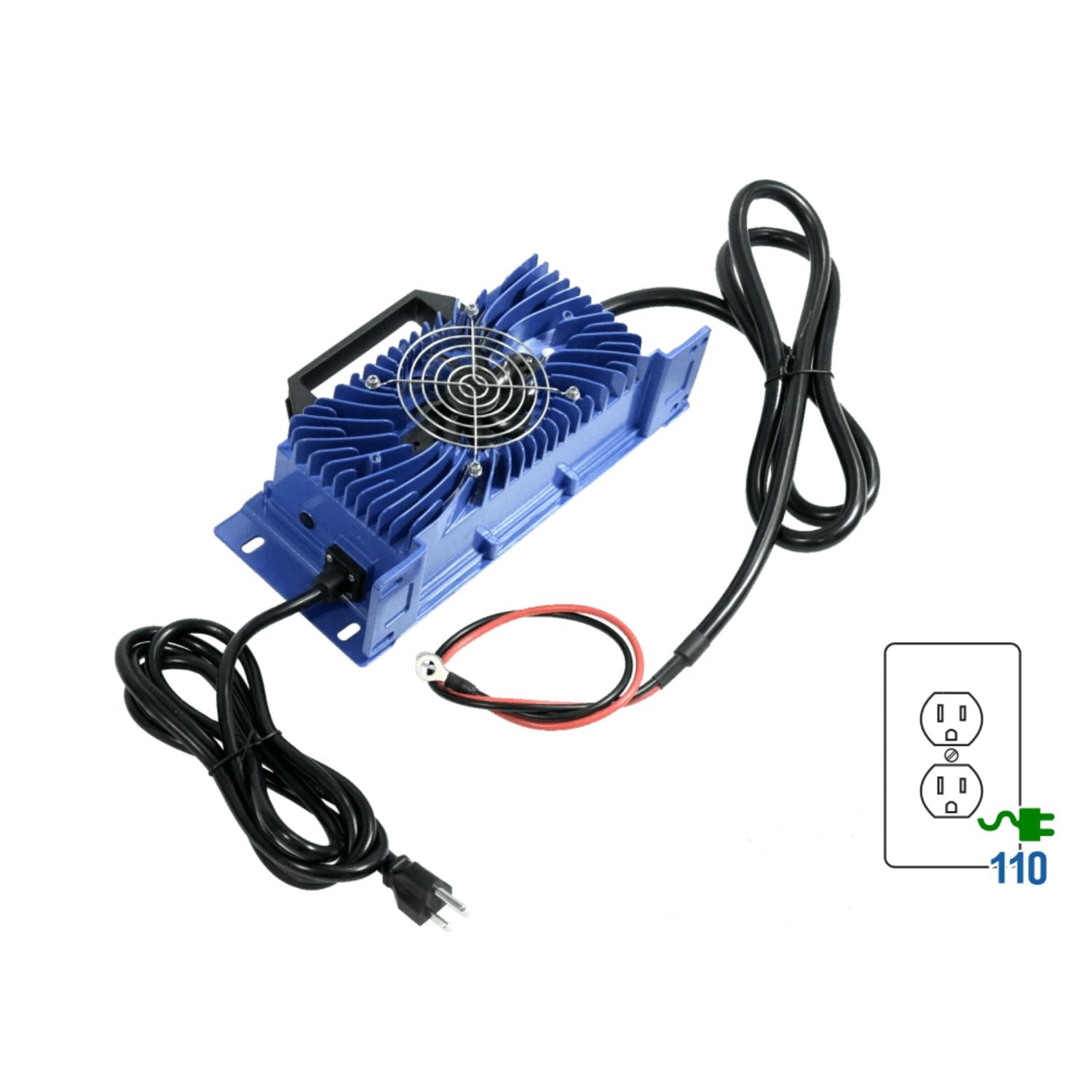

The BigBattery 48V 20A IP65 Blue Charger delivers up to 20 amps at 57.6V DC with 91% or better efficiency at full load. It accepts 110V or 220V AC input, connects to the battery with M8 ring terminals, and carries an IP65 rating, so it can live outdoors with a golf cart or equipment.
BigBattery lists it as compatible with the 48V HUSKY 2, 48V EAGLE 2, 48V EAGLE and 48V Falcon Elite only. BigBattery provides lifetime USA-based technical support, and the charger ships from Texas.
Protected against dust and low-pressure water jets from any direction, so it handles rain and washdown. It is not rated for immersion.
Plug into a standard wall outlet or a 220V supply.
A 48V HUSKY 2 (100Ah) recharges from empty in about five to six hours, which suits overnight charging.
Bolted ring terminals give a secure connection.
Efficiency of 91% or better at full load.
Golf carts. Charge 48V EAGLE 2 or HUSKY 2 carts overnight, indoors or out.
Outdoor equipment. Leave the charger with equipment stored outside.
Single-battery systems. A cost-effective charger for one 48V battery.
Versus a lead-acid charger. A lead-acid charger cannot fully and safely charge LiFePO4. This charger uses the lithium charge profile BigBattery batteries need.
Versus a generic lithium charger. BigBattery matches this charger to its own batteries, so it delivers the correct voltage for those models and avoids tripping the BMS.
This may be a good fit if
The 48V HUSKY 2, 48V EAGLE 2, 48V EAGLE and 48V Falcon Elite only.
A 5.12kWh, 100Ah 48V HUSKY 2 takes about five to six hours from empty at 20A.
No. Lead-acid chargers use absorption and float voltages designed for a different chemistry, which typically leaves a LiFePO4 battery undercharged and can trip its BMS. A matched lithium charger delivers the correct profile.
The 20A suits overnight charging of a single battery and costs less. BigBattery recommends the 50A IP65 charger for larger banks, quick turnaround or fleets. The 50A model needs 220V input.
The BigBattery 48V 20A IP65 Blue Charger keeps your BigBattery lithium battery properly charged with a matched 57.6V DC profile. At Outbound Power, we help customers choose the right parts for their solar and battery systems. If you have questions, our team is happy to help.
BigBattery 48V 110V AC 20A IP65 Blue Charger Specifications |
|
|---|---|
| SKU | PWS053 |
| Battery Voltage | 48V LiFePO4 |
| Input Voltage | 110V or 220V AC |
| Input Current | 12A or less |
| Output Voltage | 57.6V DC |
| Output Current | 20A |
| Output Frequency | 50/60Hz |
| Efficiency (Full Load) | 91% or better |
| Connection Type | M8 ring terminals |
| Protection Rating | IP65 |
| Compatible Batteries | BigBattery 48V HUSKY 2, 48V EAGLE 2, 48V EAGLE, 48V Falcon Elite |
| Weight | 9.2 lbs |
| Dimensions (D x W x H) | 6.7 x 11.1 x 5 in |
| DC Cable Length | 45.6 in |
| AC Cable Length | 44.3 in |
