The BLUETTI EP900 PV Inverter Energy Meter Lets Your Existing Solar System Charge the EP900 Through AC Coupling
The BLUETTI EP900 PV Inverter Energy Meter is required if you want to connect an existing rooftop PV inverter to a BLUETTI EP900 energy storage system. The meter measures the power flowing from your solar inverter so solar energy can feed into the EP900's batteries through AC coupling.

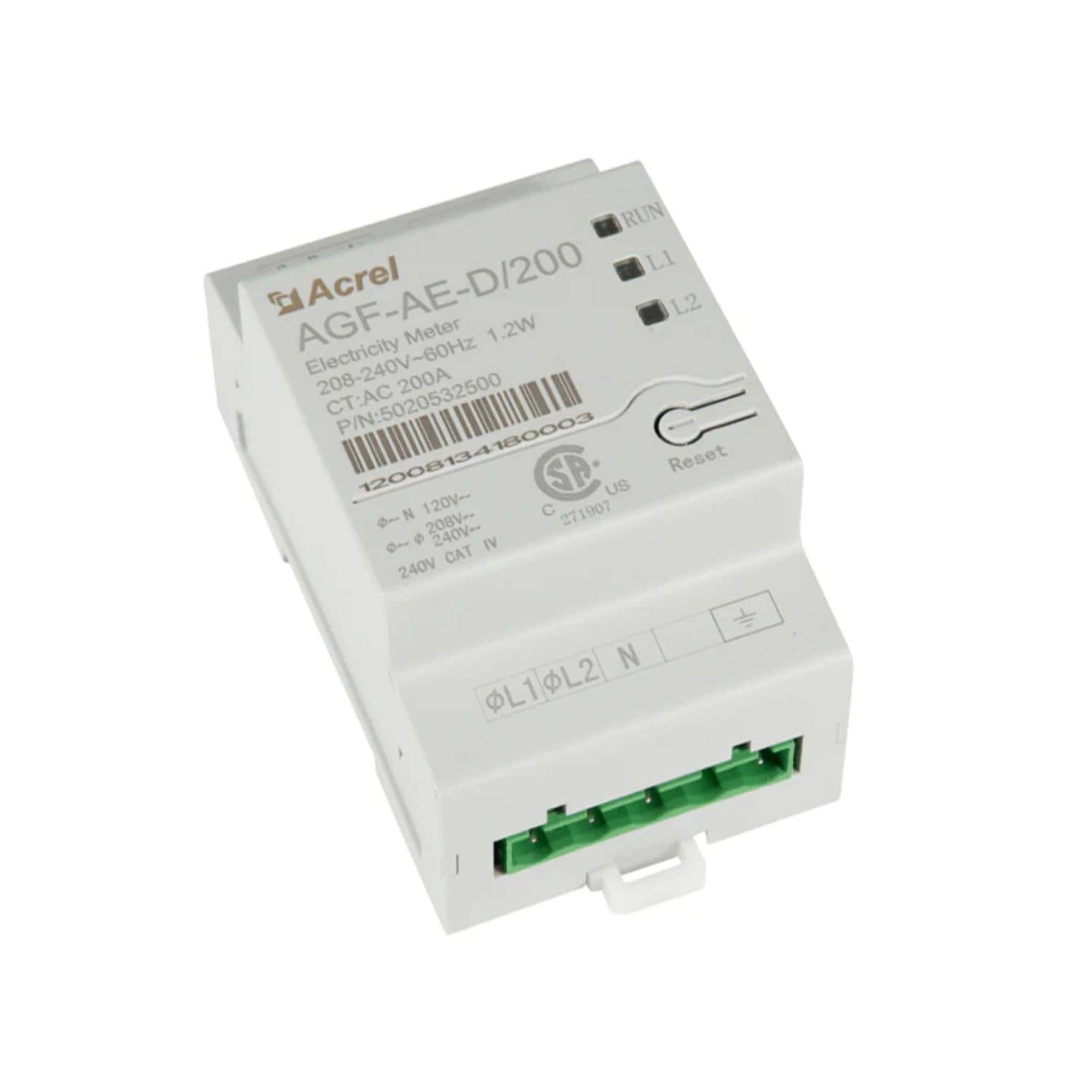

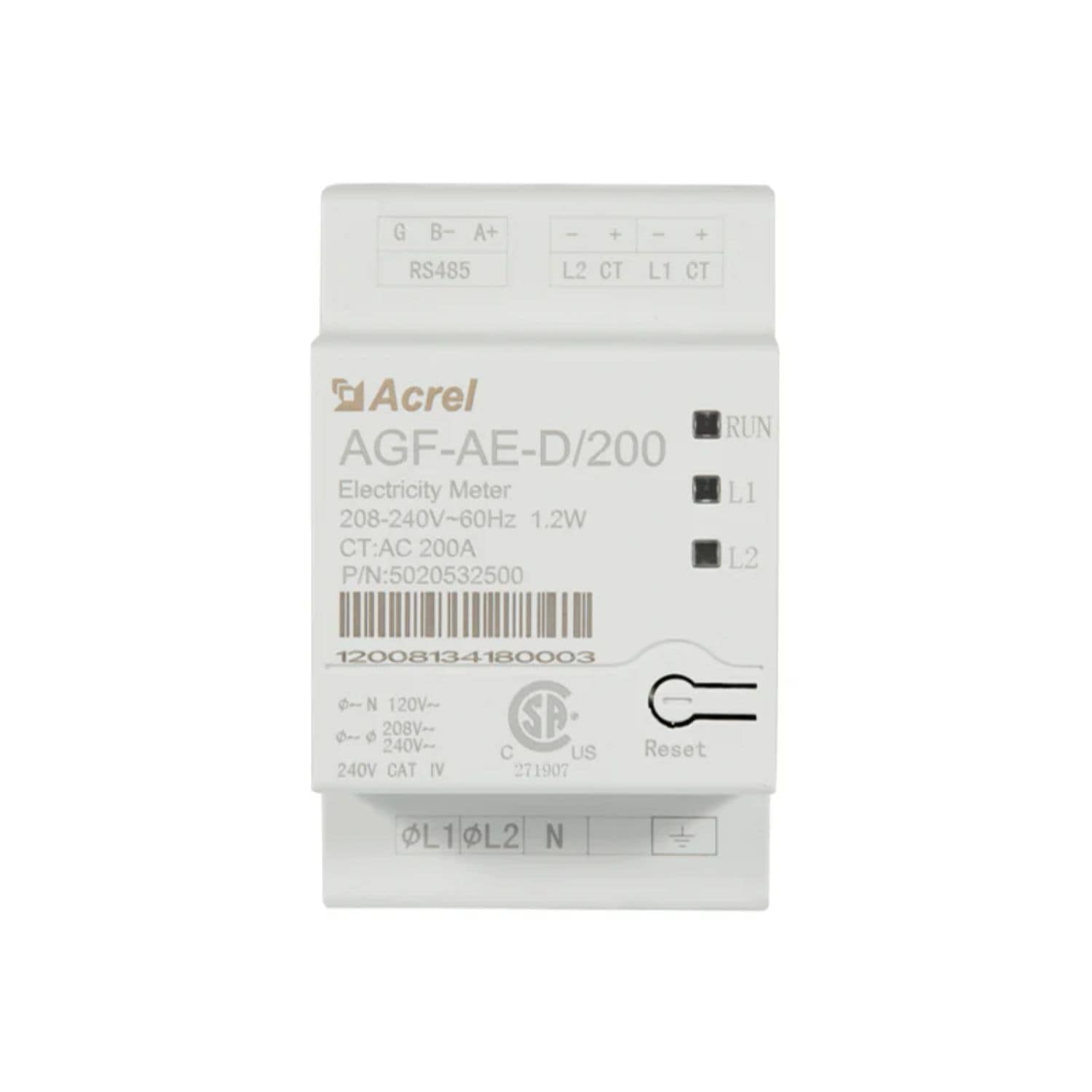

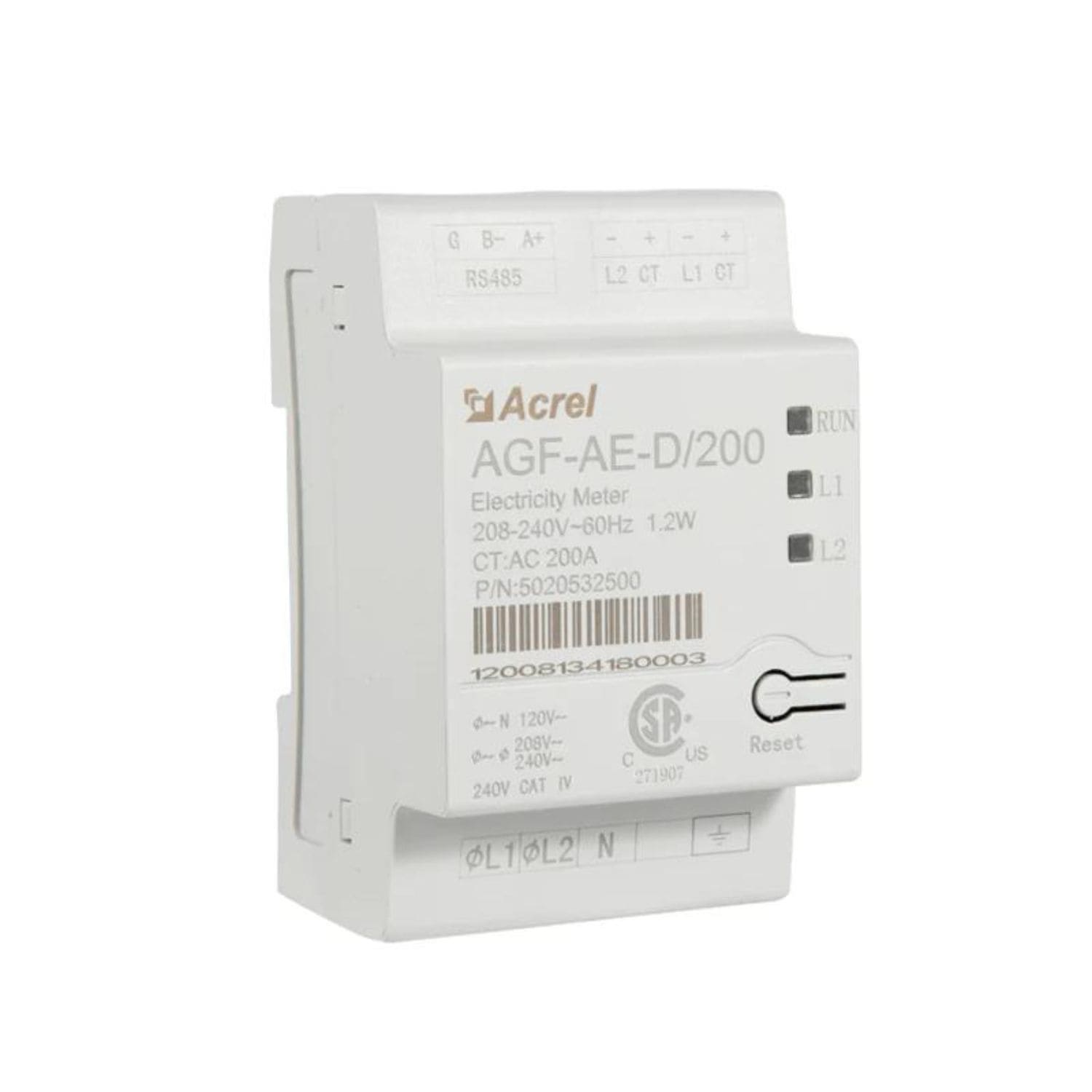

The meter is an Acrel AGF-AE-D revenue-grade style meter for 120/240V split-phase service. It mounts on a 35mm DIN rail in a distribution box, communicates with the inverter over RS485 and comes with two split-core current transformers (CTs).
BLUETTI EP900 PV Inverter Energy Meter Features
Enables AC Coupling With Existing Solar
Keep your existing PV inverter and add battery storage. While the grid is up, your batteries charge from solar, and the BLUETTI app shows how much energy your panels generate.
Split-Phase Measurement
The meter is rated for 120V line to neutral and 208/240V line to line at 60 Hz, supporting L1/L2/N/PE grids.
Two Split-Core CTs
The included current transformers clamp around the conductors without disconnecting them. Install them with the arrow pointing toward the grid.
Accurate, Fast Reporting
Accuracy is within ±0.5% to ±1% across 1% to 100% of CT current, with a response time of 1 second or less.
Compact DIN-Rail Mount
The meter measures about 54.1 x 87.8 x 52 mm, weighs 0.2 kg and uses a UL94V-0 PC enclosure. It draws only 1.2W.
Real-World Applications
Adding storage to existing solar. Retrofit an EP900 to a home that already has grid-tied solar.
Solar self-consumption. Store surplus solar for evening use instead of exporting it.
How It Compares to Common Alternatives
Versus rewiring panels to the EP900. The meter lets you keep your existing PV inverter in place and integrate it through AC coupling.
Is the EP900 PV Inverter Energy Meter the Right Fit
-
Compatibility. BLUETTI lists the meter for the EP900.
-
Grid outages. Existing PV inverters (except the IQ7 model) cannot charge the EP900 during a grid outage.
-
Installation. The meter is permanently connected equipment that needs a disconnect and overcurrent protection rated 20A or less. A licensed electrician should install it.
This may be a good fit if
- You have an existing PV inverter and are adding an EP900
- You want your rooftop solar to charge your batteries

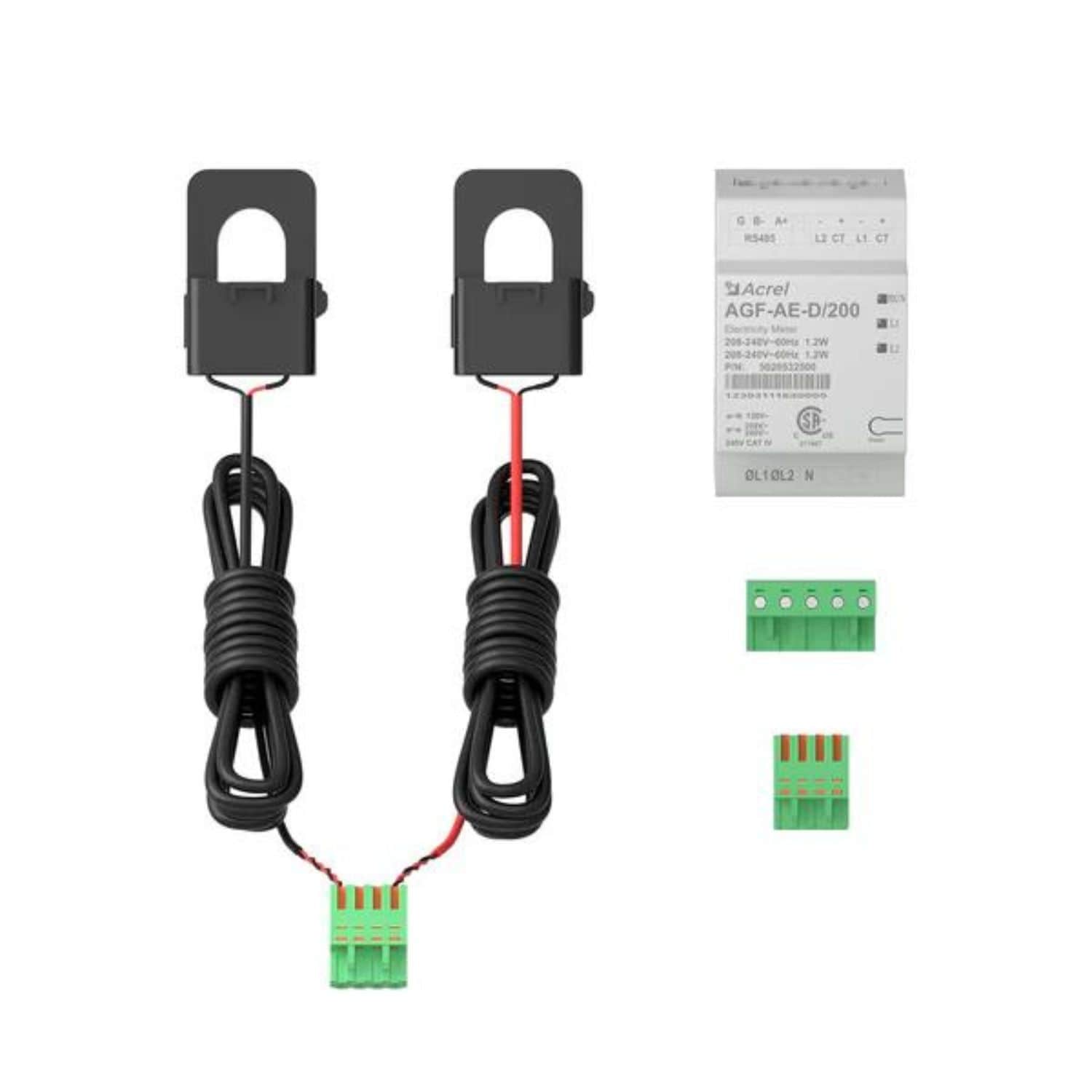

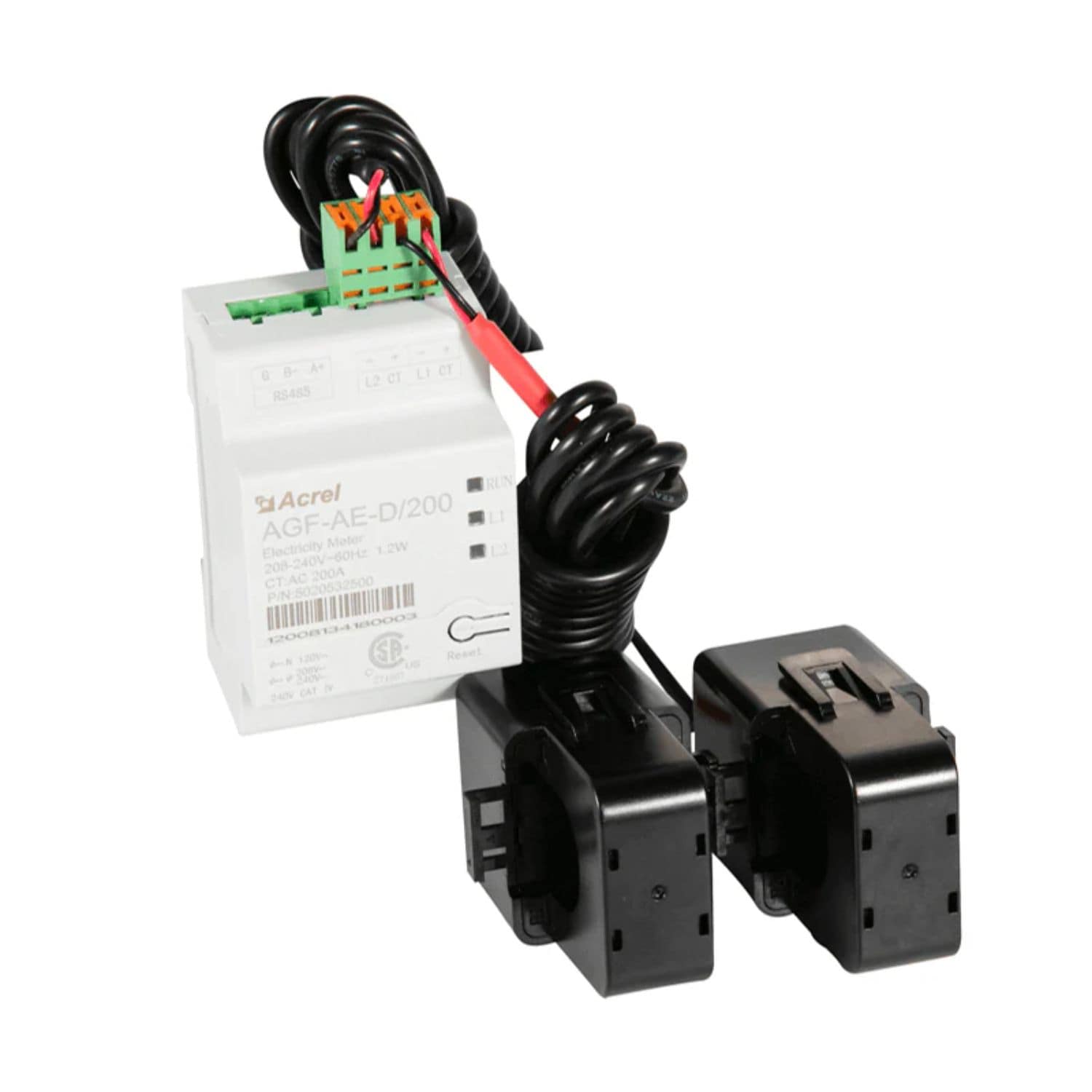

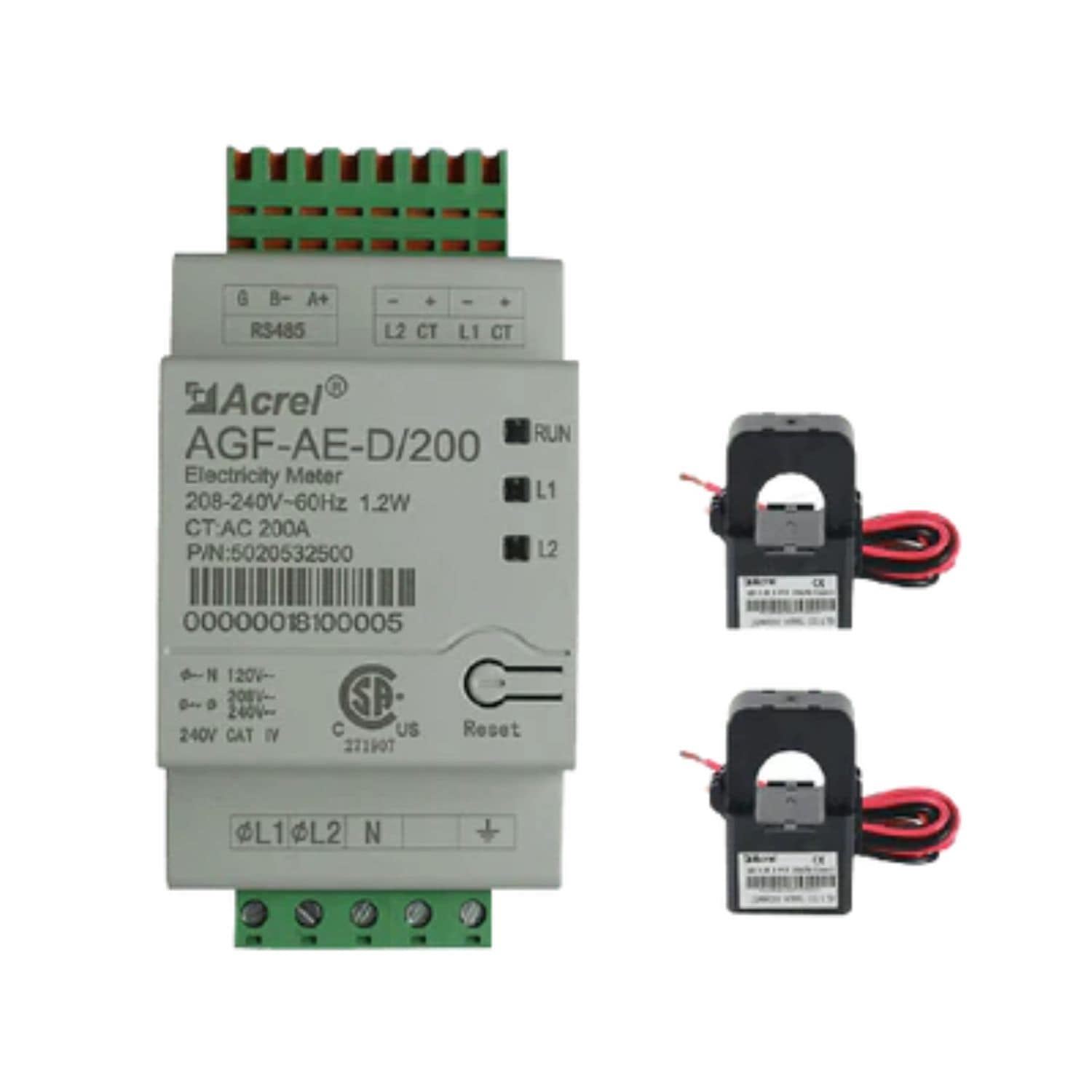

What's Included
- 1 x BLUETTI EP900 PV Inverter Energy Meter (Acrel AGF-AE-D)
- 2 x Current Transformers
- 1 x User Manual
Add Battery Storage to the Solar You Already Have
The BLUETTI EP900 PV Inverter Energy Meter connects your existing solar inverter to your EP900 so you can store and use more of your own solar energy. At Outbound Power, we can help you plan an EP900 retrofit. If you have questions, our team is happy to help.
BLUETTI EP900 PV Inverter Energy Meter Specifications
|
| Model |
Acrel AGF-AE-D |
| Compatibility |
BLUETTI EP900 Home Battery Backup |
| Function |
Enables an existing PV inverter to charge the EP900 through AC coupling |
| Electrical |
| Rated Voltage (Line to Neutral) |
120V |
| Rated Voltage (Line to Line) |
208/240V |
| Extended Voltage Range |
88% to 110% |
| AC Frequency |
60 Hz |
| Grids Supported |
L1/L2/N/PE |
| Power Consumption |
1.2W |
| Communication and Accuracy |
| Interface |
RS485 |
| Response Time |
1 second or less |
| Accuracy |
±0.5% to ±1% (1% to 100% of CT current) |
| Current Transformers |
2 x split-core CTs |
| Installation |

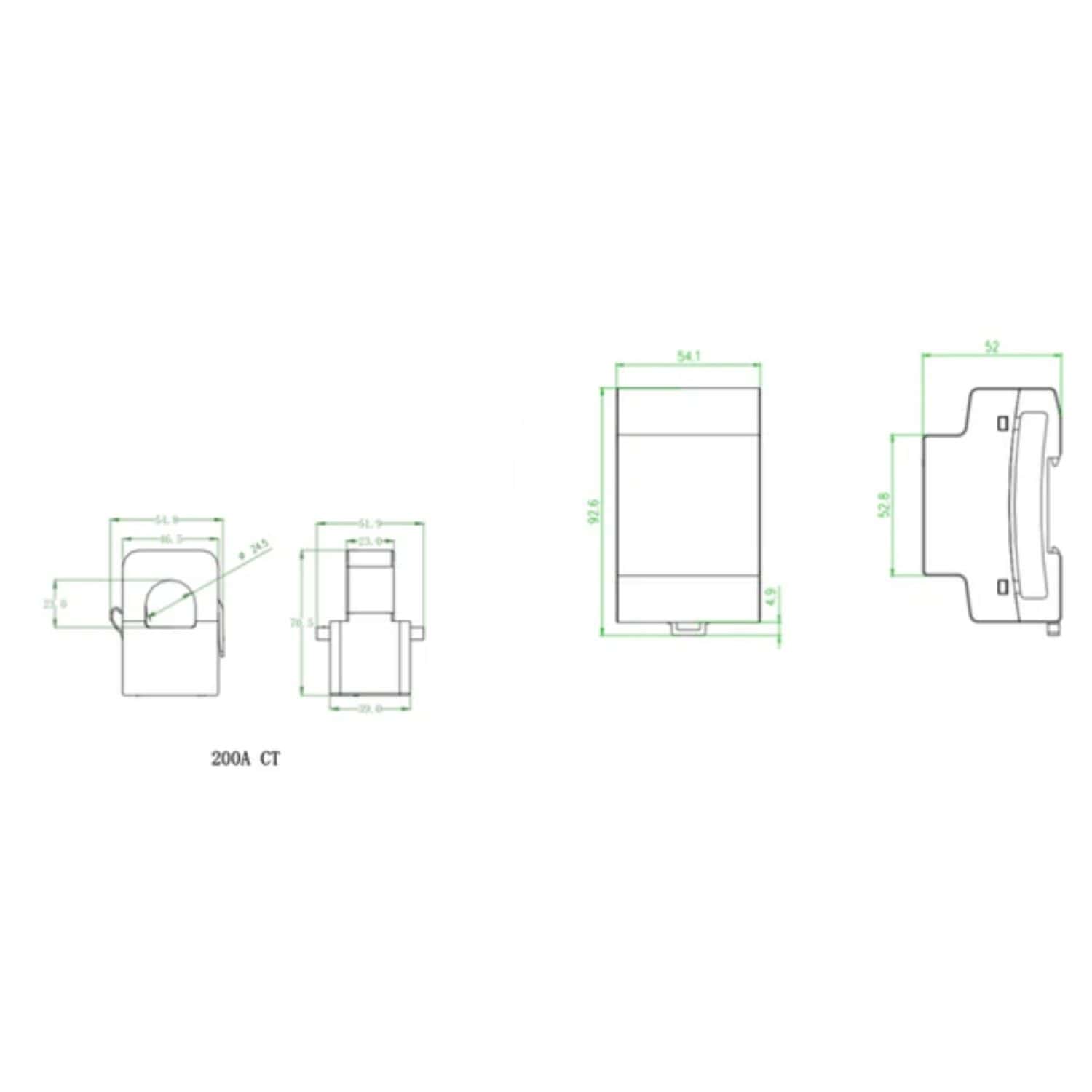

| Dimensions (H x W x D) |
54.1 x 87.8 x 52 mm |
| Weight |
0.2 kg |
| Enclosure |
Type 1, PC plastic, UL94V-0 |

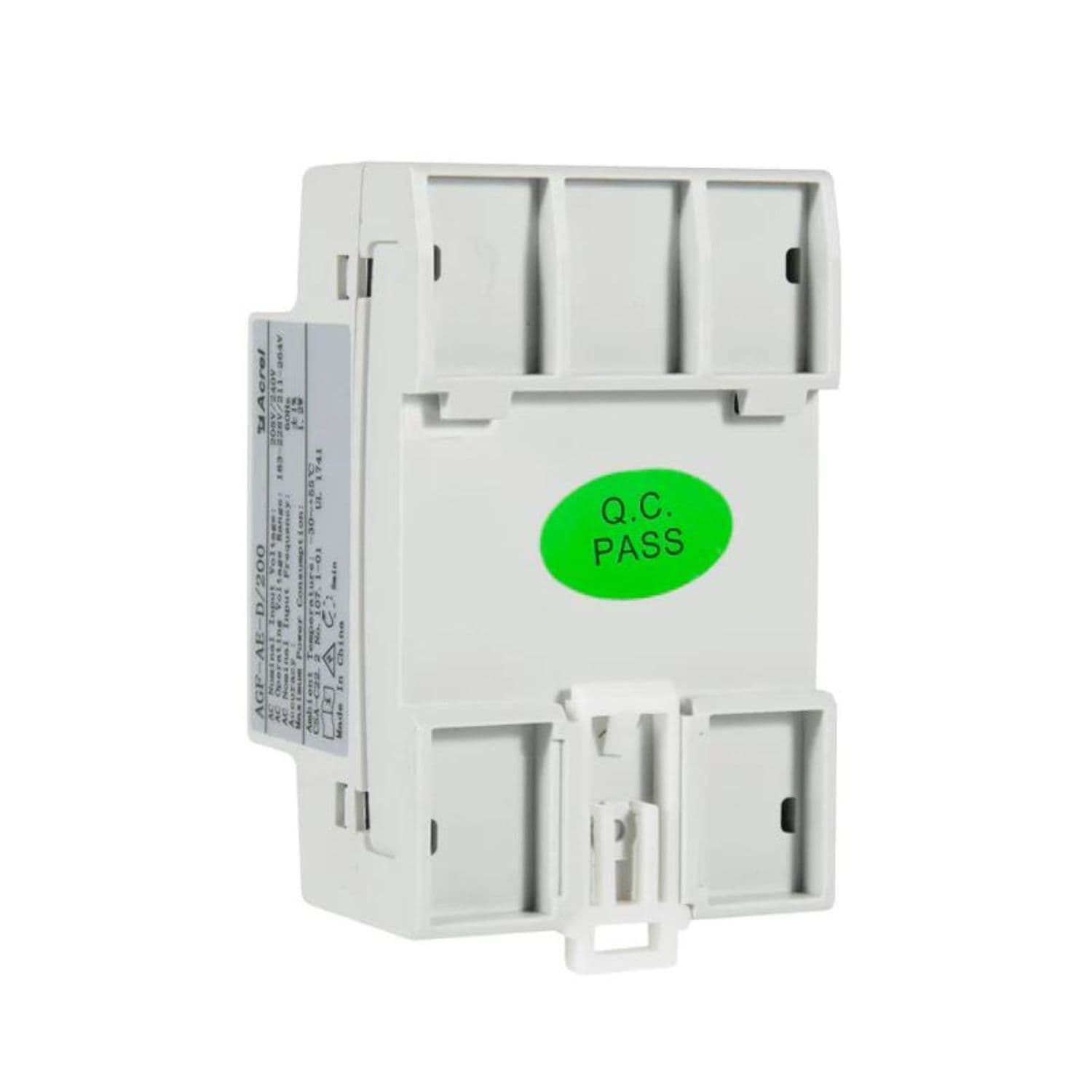

| Mounting |
35mm DIN rail |
| Operating Temperature |
-22°F to 158°F (-30°C to 70°C) |
| Relative Humidity |
5% to 90% non-condensing |
| Safety |
UL1741 |
