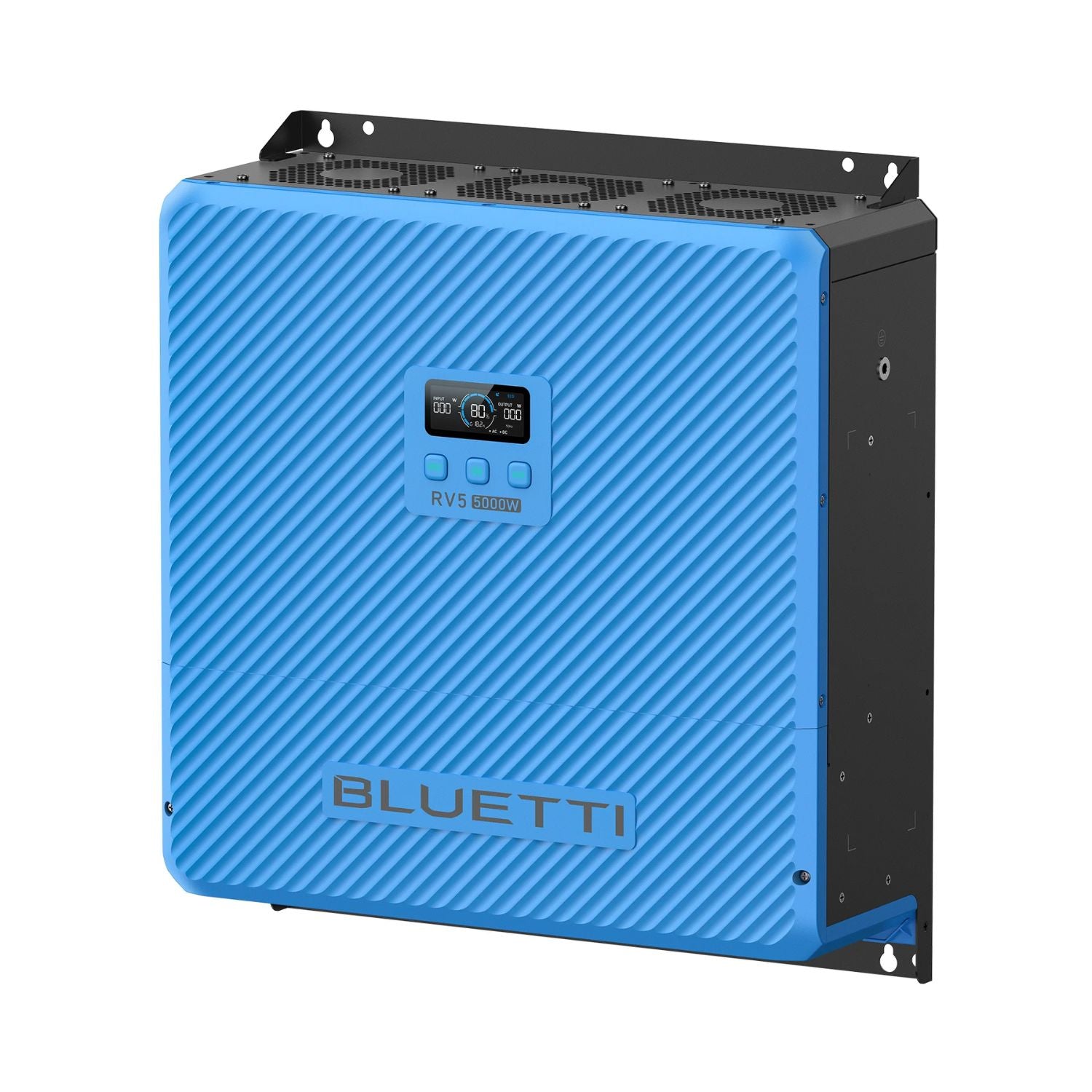

The BLUETTI RV5 Power Hub is the core of BLUETTI's RVSolar 48V power system. It combines a 5,000W pure sine inverter (10,000W surge), a shore power and generator charger, an 1,800W solar charge controller, an alternator charger and a 12V or 24V DC supply in one wall-mounted unit, so you no longer have to build your RV's power system piece by piece.
Pair the RV5 with BLUETTI B4810 LiFePO4 batteries (5,120Wh each), the Epanel AC/DC smart distribution panel and the Epad touchscreen controller for a complete system. Our listing offers the RV5 Power Hub alone, the RV5 with a B4810 battery, or the full 5kWh RV kit with B4810, Epanel and Epad.
The RV5 delivers 5,000W of continuous 120V power at 42A, enough to run your air conditioner, fridge, microwave, water pump and electronics at the same time.
A configurable DC output supplies 12V at 100A (1,360W) or 24V at 60A (1,620W) to your existing 12V or 24V circuits and DC panel, so lights, fans and slide motors keep working.
AC charging runs at up to 5,000W from standard 120V shore power or 208V EV input, reaching 80% in about 50 minutes. BLUETTI estimates a full charge of one B4810 in about 1.6 hours from 3,600W shore power, or about 1.1 hours when blended with solar.
Two PV inputs accept up to 1,800W at 12V to 50V and 50A. The PV2 input also charges from your vehicle's alternator at up to 600W (12V) or 1,200W (24V).
If shore or generator power drops, the RV5 switches to battery within 20ms. On shore power, it passes through up to 6,000W of load with a 50A bypass.
Start with one B4810 and expand to as many as 24 for up to 122kWh. The RV5 also works with BLUETTI B1210/B1228 and B300/B300K/B300S batteries, or third-party 48V lead-acid and lithium banks configured in the app.
The system handles vibration, heat and long travel days, runs under 50 dB and carries UL458 certification. The B4810 battery is IP65 rated.
The Epad touchscreen and BLUETTI app show battery status, power use, charging inputs and system health, with AI-assisted diagnostics. The Epad also includes a generator start signal port for automatic generator start and stop.
Boondocking with A/C. Run a 15,000 BTU air conditioner overnight with two B4810 batteries, and recharge from solar and your alternator during the day.
Full-time RV living. Replace an aging inverter, converter and solar controller with one integrated system.
Quiet campgrounds. Skip the generator and keep full hookup comfort without noise or fumes.
Versus building a component system. The RV5 replaces a separate inverter, inverter charger, solar controller, alternator charger, DC system and protection devices with one platform, cutting wiring and installation time.
Versus 12V systems. BLUETTI says its 48V design has up to 30% less energy loss, supports thinner cables and runs cooler.
Versus a portable power station. The RV5 integrates directly with your RV's wiring and breaker panel for whole-coach power.
This may be a good fit if
Yes. The RV5 can integrate with your existing wiring and breaker panel.
With BLUETTI batteries, the RV5 detects and configures components automatically. Third-party batteries need to be set up in the app, and LiFePO4 batteries require a 10K 3435 NTC thermistor on the TEMP port.
Yes, as long as each input stays within 12V to 50V and 50A.

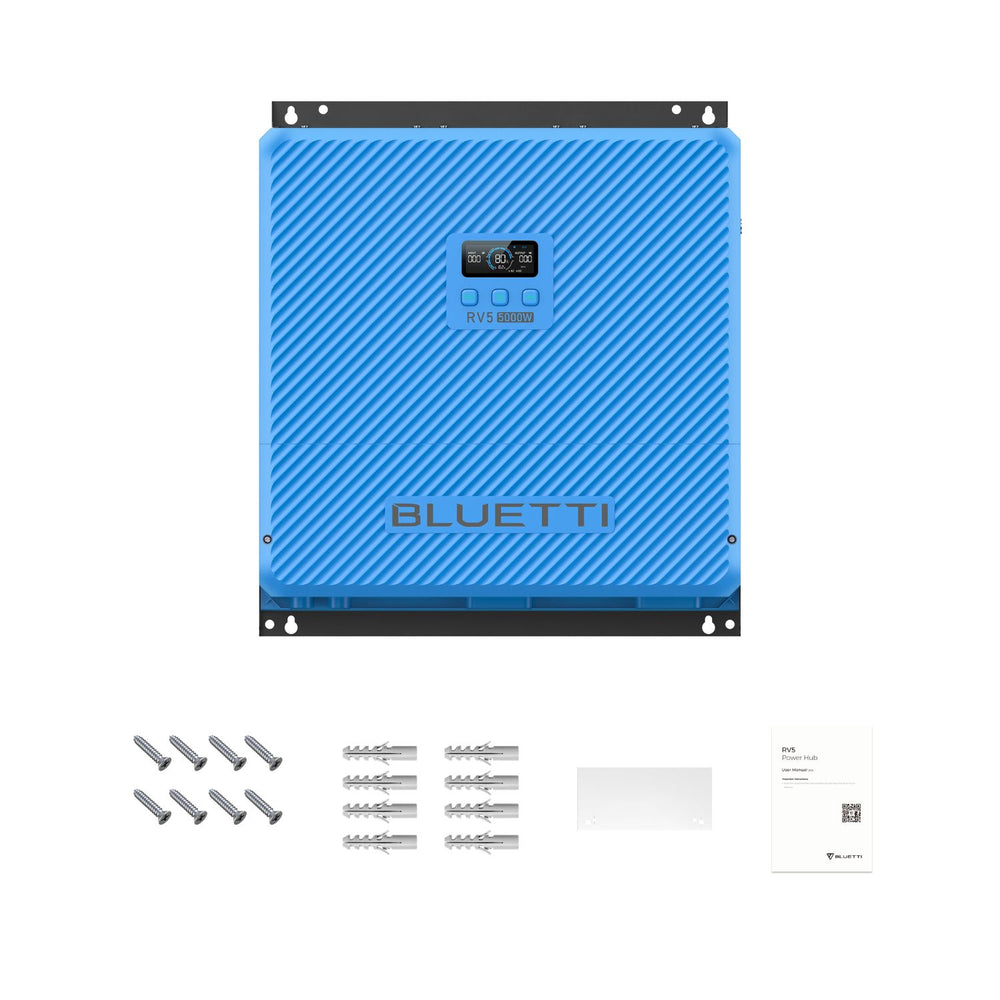

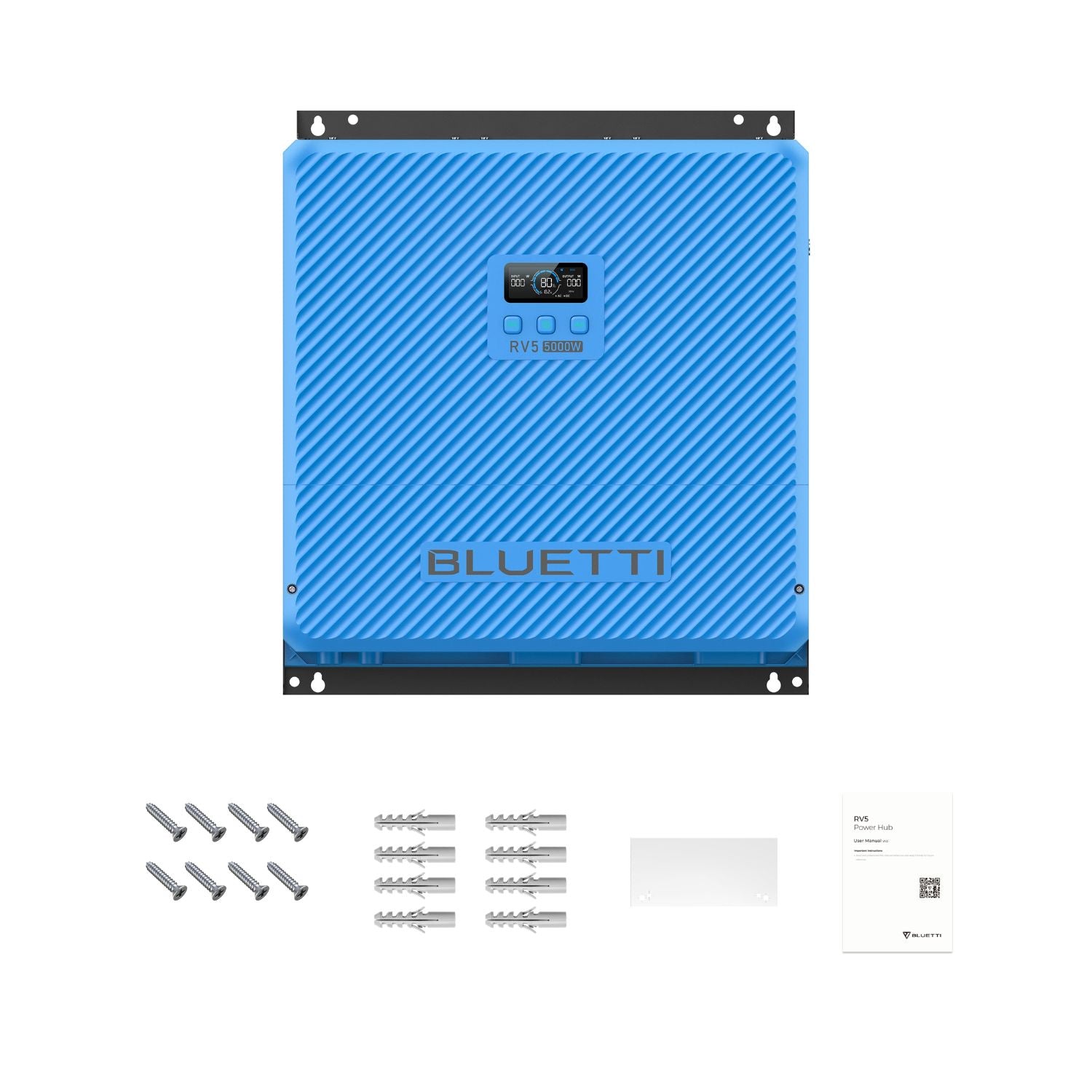

RV5 Power Hub

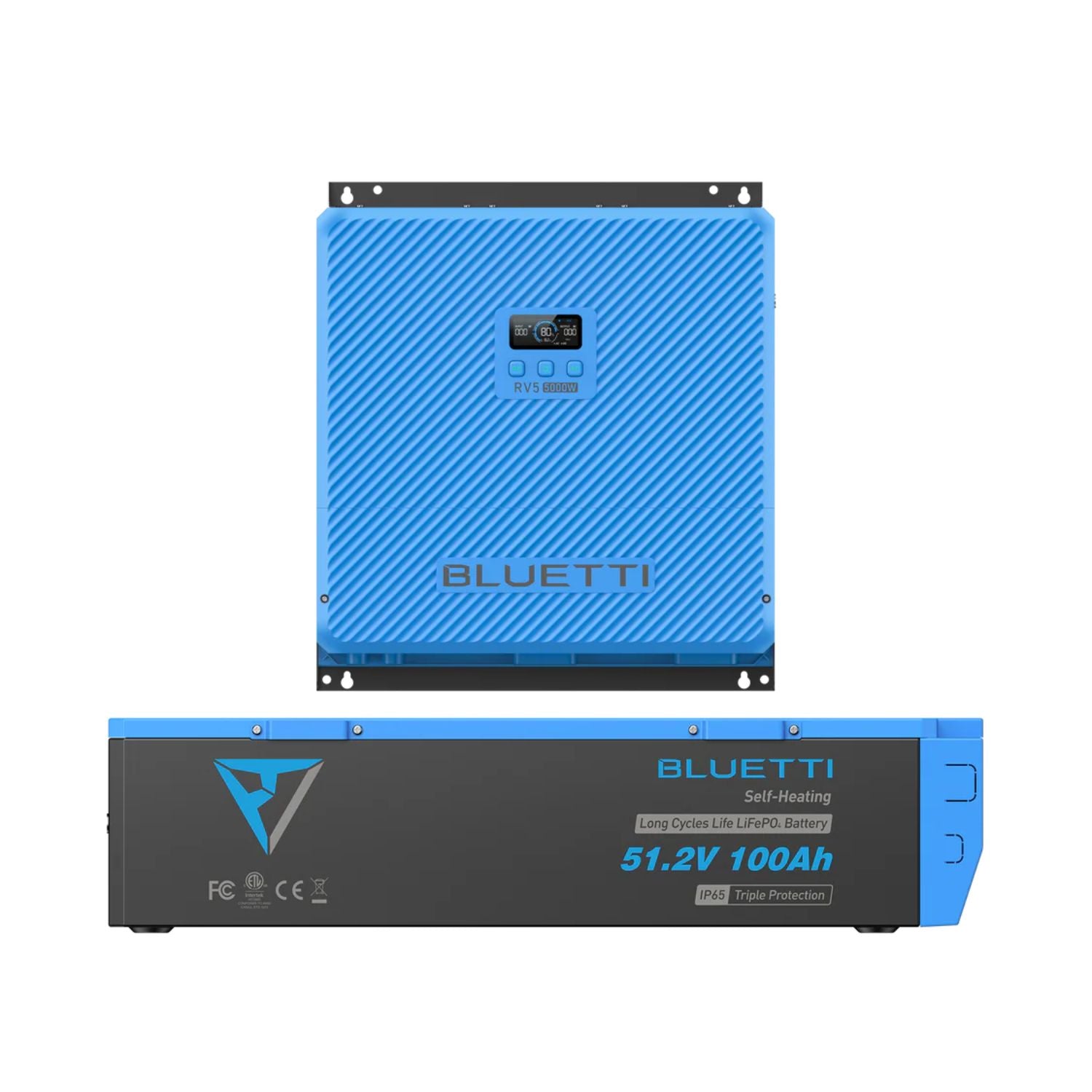

RV5 Power Hub + B4810 Battery adds 1 x BLUETTI B4810 LiFePO4 Battery (51.2V, 100Ah).

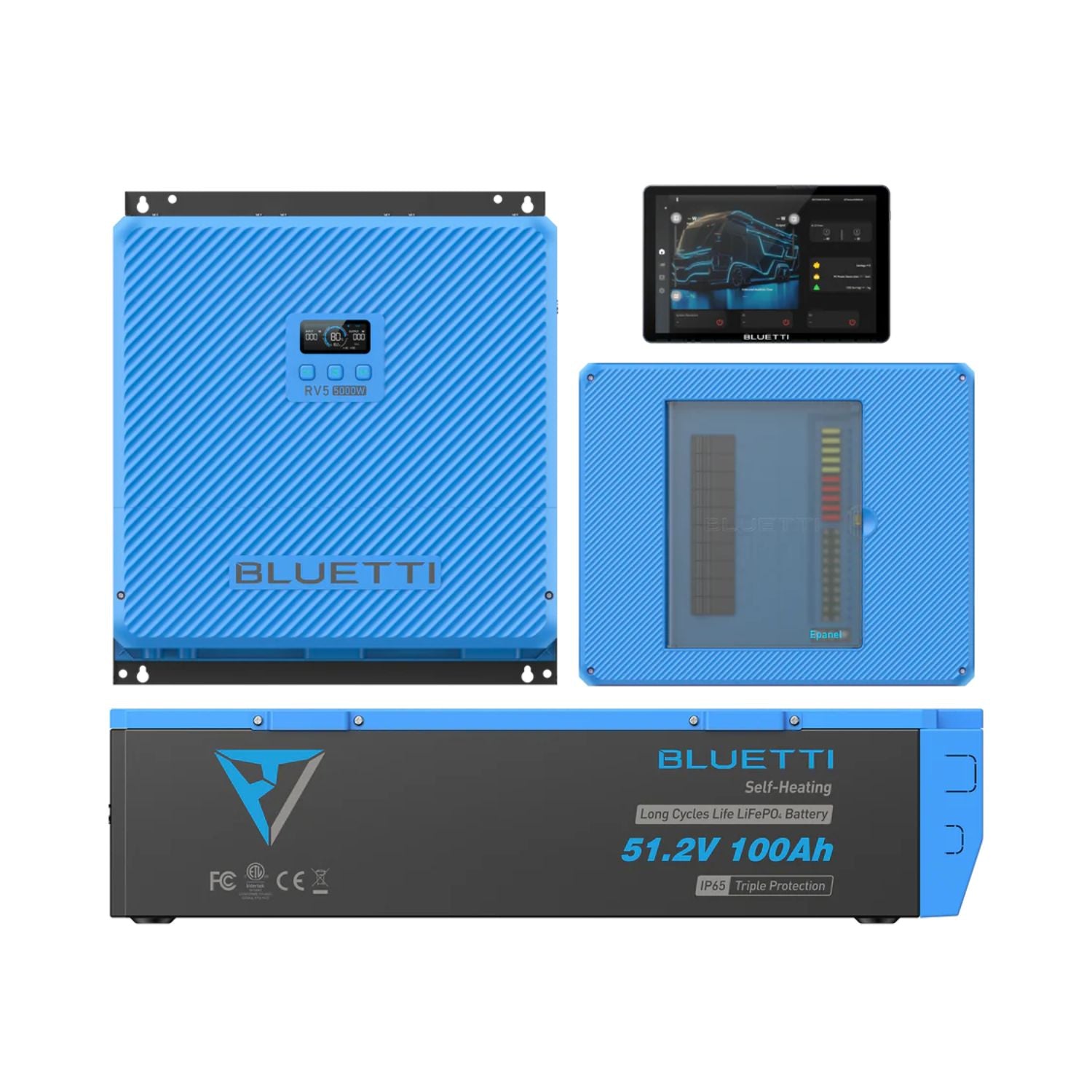

RV5 Power Hub + B4810 Battery + Epanel + Epad adds 1 x B4810 Battery, 1 x Epanel AC/DC Smart Panel, 1 x Epad Control Screen and BLUETTI's Battery Connection, Alternator Charger and Distribution Panel Wiring Packs.
The BLUETTI RV5 Power Hub brings inverter, charging, solar and DC power together for quiet, generator-free RV travel. At Outbound Power, we can help you size batteries and solar for your rig. If you have questions, our team is happy to help.
BLUETTI RV5 Power Hub Specifications |
|
|---|---|
| Model | BLUETTI RV5 Power Hub |
| AC Input | |
| Rated Input Voltage | Standard AC input (N/L1/G) 120V; EV input (L1/L2/G) 208V |
| UPS | Switchover 20ms or less |
| Charging Power | 5,000W Max. (limited by the battery terminal's maximum current) |
| AC Output | |
| Rated Output Voltage | 120V |
| Rated Output Current | 42A |
| Rated Output Power | 5,000W |
| Surge | 10,000W |
| Solar Charging (PV1 / PV2) | |
| Max. Input Power | 1,800W |
| Input Voltage | 12V to 50V |
| Max. Input Current | 50A |
| Vehicle Charging (PV2) | |
| Max. Input Power | 600W (12V) / 1,200W (24V) |
| Input Voltage | 12V to 14.4V (12V battery) / 24V to 28.8V (24V battery) |
| Max. Input Current | 50A |
| DC Output | |
| Rated Output Voltage | 12V / 24V |
| Rated Output Current | 100A (12V) / 60A (24V) |
| Rated Output Power | 1,360W (12V) / 1,620W (24V) |
| Total Load Power | 6,000W Max. (varies based on battery type and quantity) |
| AC + DC Input Power | 6,000W Max. |
| General | |
| Battery System | 48V (B4810 recommended; up to 24 x B4810) |
| Weight | About 30.86 lbs (14 kg) |
| Dimensions | 17.72 x 19.69 x 6.30 in (450 x 500 x 159.9 mm) |
| Operating Temperature | -4°F to 131°F (-20°C to 55°C) |
| Operating Humidity | 95% Max. |
| Certification | UL458 |
| Warranty | 5 Years |
| B4810 Battery (Kit Options) | |
| Capacity | 5,120Wh (51.2V, 100Ah) |
| Chemistry | LiFePO4 |
