Are you tired of running out of power during your outdoor adventures? Say goodbye to battery anxiety and hello to unlimited clean energy with the Jackery SolarSaga 200W Solar Panel. This cutting-edge solar solution is designed to keep your devices charged and your adventures going, no matter where the road takes you.
Crafted for durability and easy portability, the SolarSaga 200W is built to withstand the elements while delivering high conversion efficiency, ensuring you get the most out of every ray of sunlight. It's compatible with various Jackery power stations, making it a versatile choice for on-the-go power needs.

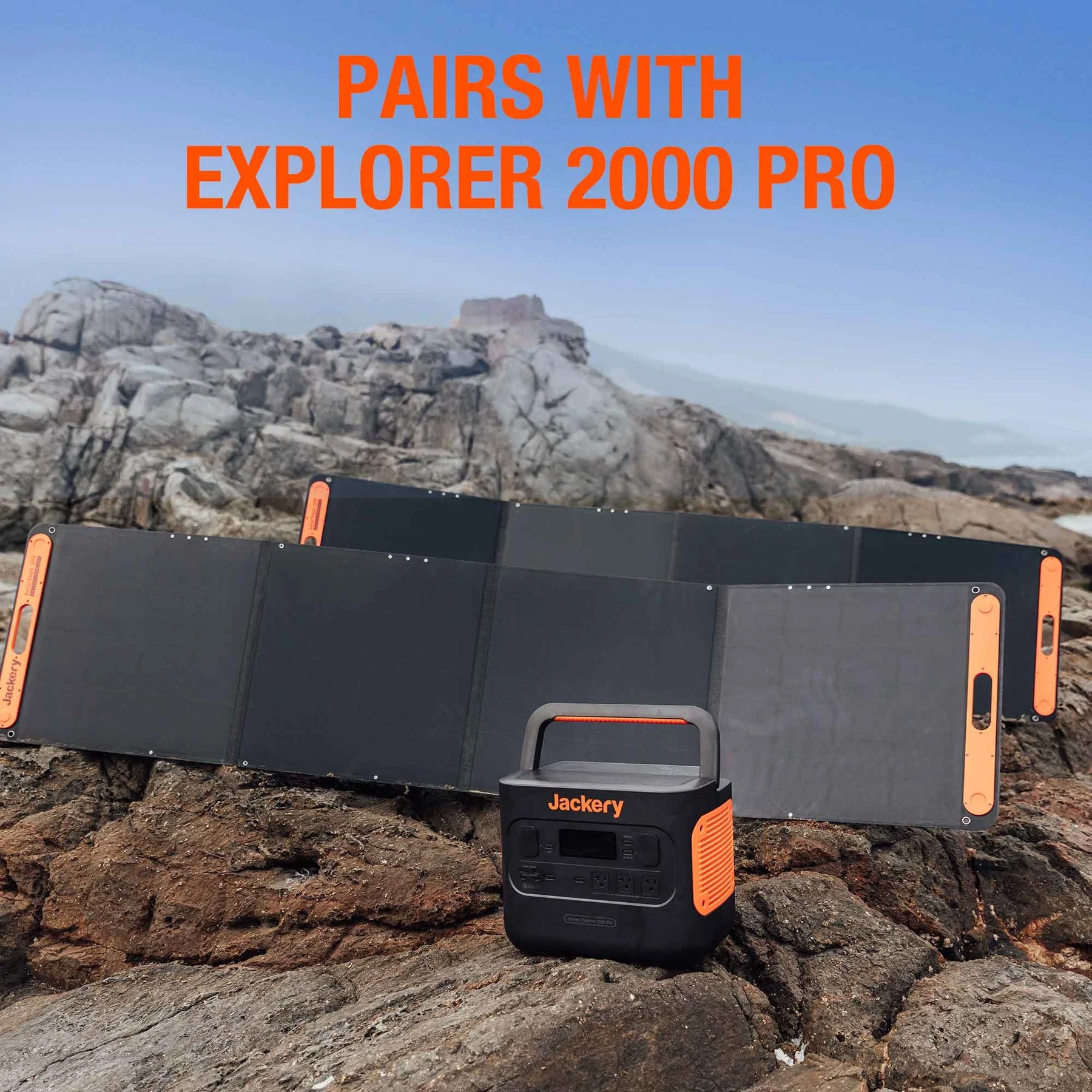

When paired with the Jackery Explorer 2000 PRO: the SolarSaga 200W Solar Panel offers impressive charging capabilities. With optimal sunlight conditions, it takes just 2.5 hours to fully charge a Jackery Portable Power Station Explorer 2000 PRO using six SolarSaga 200 panels. This efficient charging time ensures you’re never left without power during your adventures.
Equipped with advanced monocrystalline solar cells, the SolarSaga 200W Solar Panel boasts a remarkable conversion efficiency of up to 24.3%. This high efficiency means the panel can convert more sunlight into usable energy than comparable models, ensuring you get the most power even on cloudy days.

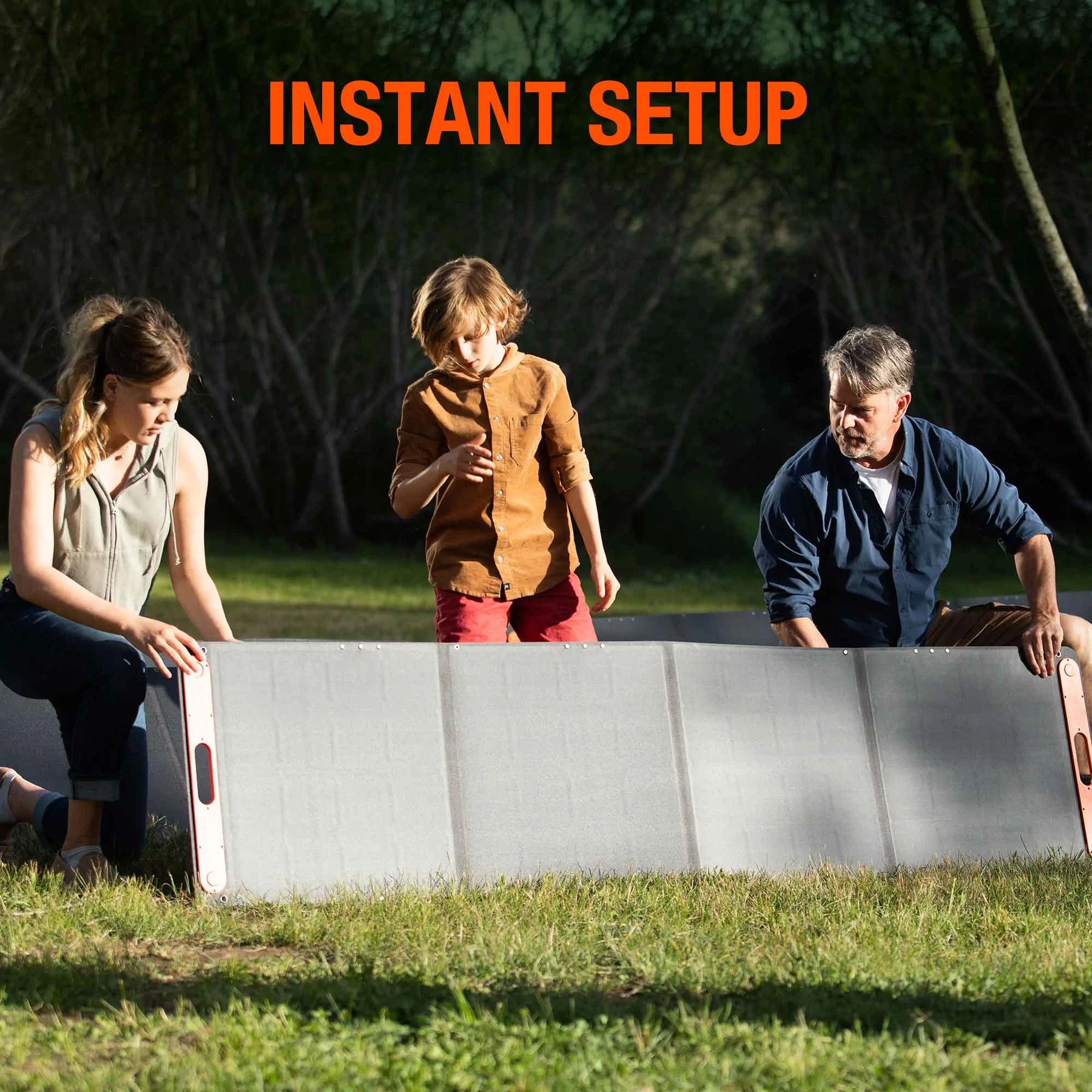

Setting up the SolarSaga 200W Solar Panel is incredibly straightforward and can be done in a matter of seconds. The panel is supported by three robust kickstands, allowing it to stand firmly and securely on various terrains.

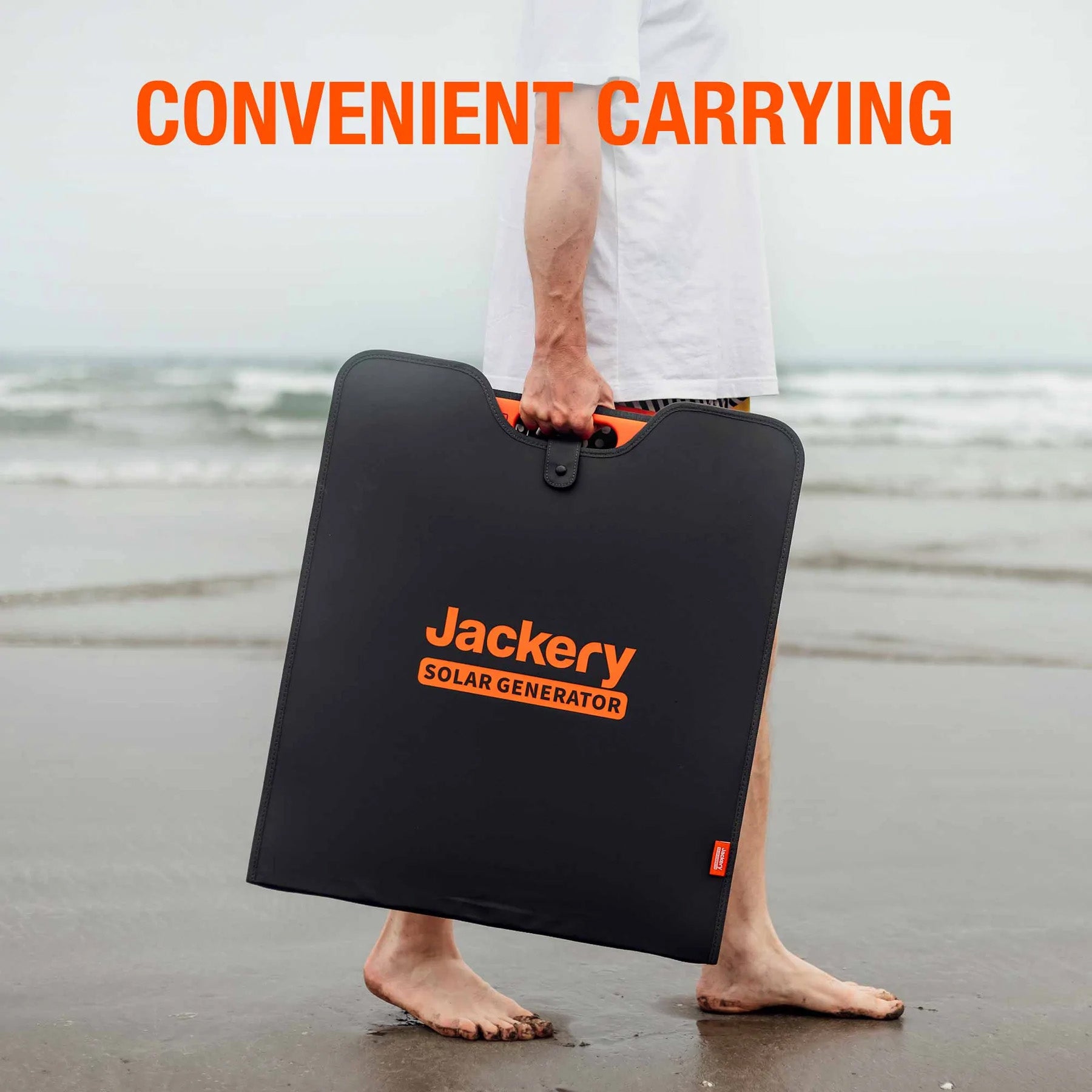

The SolarSaga 200W Solar Panel is designed with portability in mind. It comes with a practical carrying bag that makes transportation easy and convenient. The panel itself features magnetic pads, allowing it to fold up tightly for secure and compact storage.

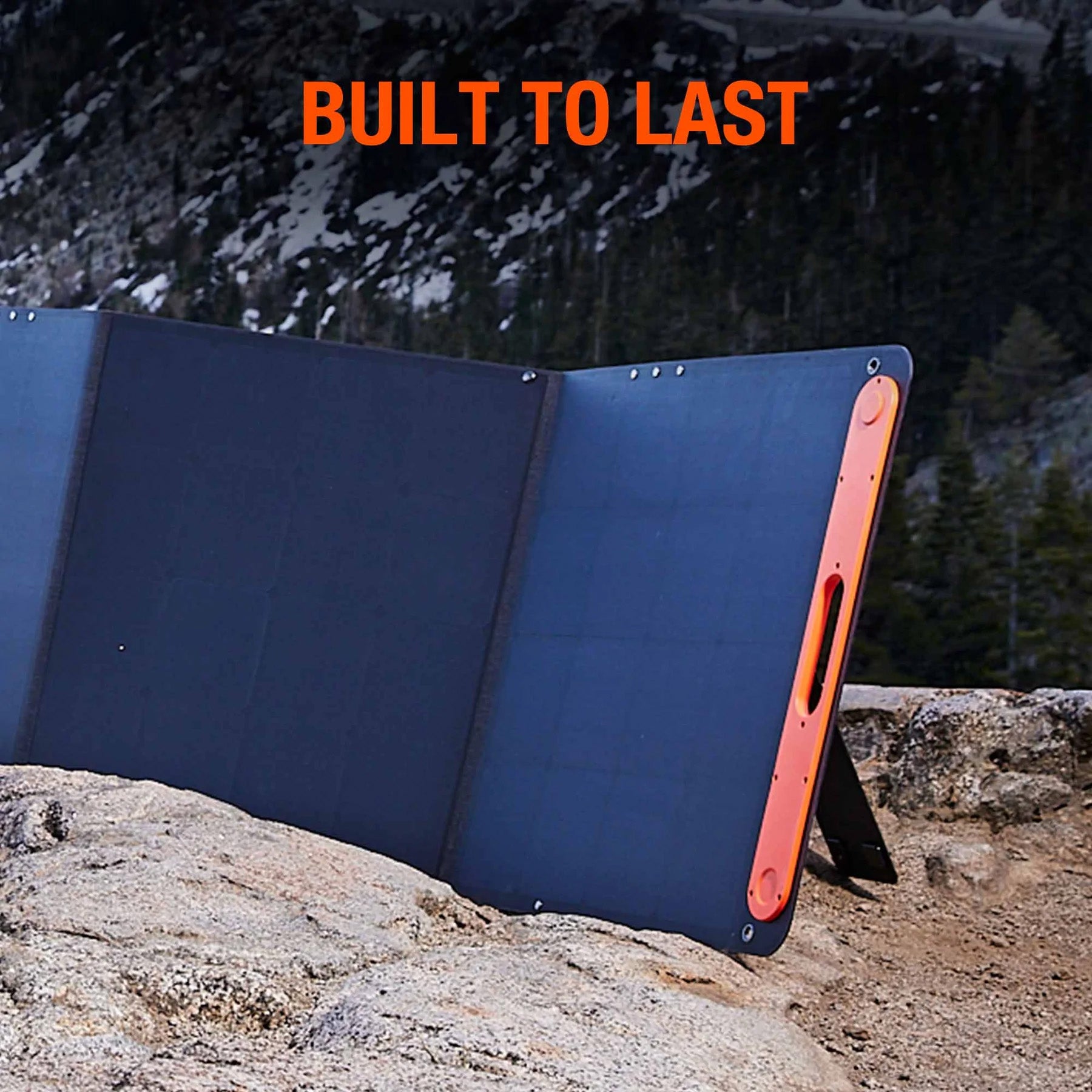

Built to withstand the rigors of outdoor use, the SolarSaga 200W Solar Panel features an ETFE-laminated case, providing enhanced durability and longevity. The panel’s construction ensures it can handle the wear and tear of regular use, offering a prolonged lifespan.
Jackery provides a 3-year warranty policy, ensuring the absence of defects in materials, workmanship, and performance during the warranty period.
Solar Output Specifications | |
Maximum Power (Pmax) | 200W ± 5% |
Voltage at Open Circuit (Voc) | 24.8V ± 5% |
Current at Short Circuit (Isc) | 11.2A ± 5% |
Optimum Operating Voltage (Vmp)
|
20V ± 5%
|
Optimum Operating Current (Imp) | 10A ± 5% |
Dimensions |
|
Folded |
24.21 x 21.73 x 1.57 in | 615 x 552 x 40 mm
|
Unfolded | 92.13 x 21.73 x 0.98 in | 2340 x 552 x 25 mm |
Weight
|
14.1 lbs ± 0.7 lbs | 6.4 kg±0.3 kg |
General Specifications |
|
Warranty |
3+2 Years
|
Maximum System Voltage | 60V |
Maximum Reverse Current | 15A |
Protection Class Against Electric Shock |
Class II
|
Waterproof |
IP68
|
Operating temperature |
-4℉~149℉(-20°C~65°C)
|
Voltage Temperature Coefficient | -0.268%/°C |
Power Temperature Coefficient | -0.29%/°C |
As you know , the solar panels are affected by many factors. such as the intensity of the light and the angle of the panel put on the ground. 200W is tested in an ideal laboratory. However, the intensity of the light constantly changes. In addition, the angle of the light illuminating the solar panel also changes with the rotation of the sun. Please try test your solar panel under the full sunlight to see, and make sure there is no shadow cast on the panel.
It is rated as IP68 water-resistant, offering protection against water splashes (Please avoid exposing it to heavy rain or submerging it in water). The pocket's zippers are designed to secure power cords and cover the power port.
We mentioned this point in the manual. Please use a soft cloth to remove the dust and dirt on the surface. Use a damp cloth to wipe the surface of the solar module to remove any remaining dust or dirt. Any guano or other adhesive should be removed as soon as possible from the solar surface to avoid a reduction in performance.
Jackery has made changes to the version of the product and the newer ones will only have 2 support legs, and will no longer come with an external bag. The Solar Panel can fold, and the two ends of it will line up as a handle. The new design enhances its portability and solar energy conversion rate up to 25%.
