The Renogy Golf Cart 51.2V 105Ah Lithium Iron Phosphate Battery is a complete lithium conversion for 48V golf carts. One 5,376Wh battery takes the place of a bank of lead-acid batteries, cuts more than 200 pounds from the cart and provides enough energy for two or more rounds on an 18-hole course, with up to 52 miles of range per charge depending on terrain, speed and vehicle.

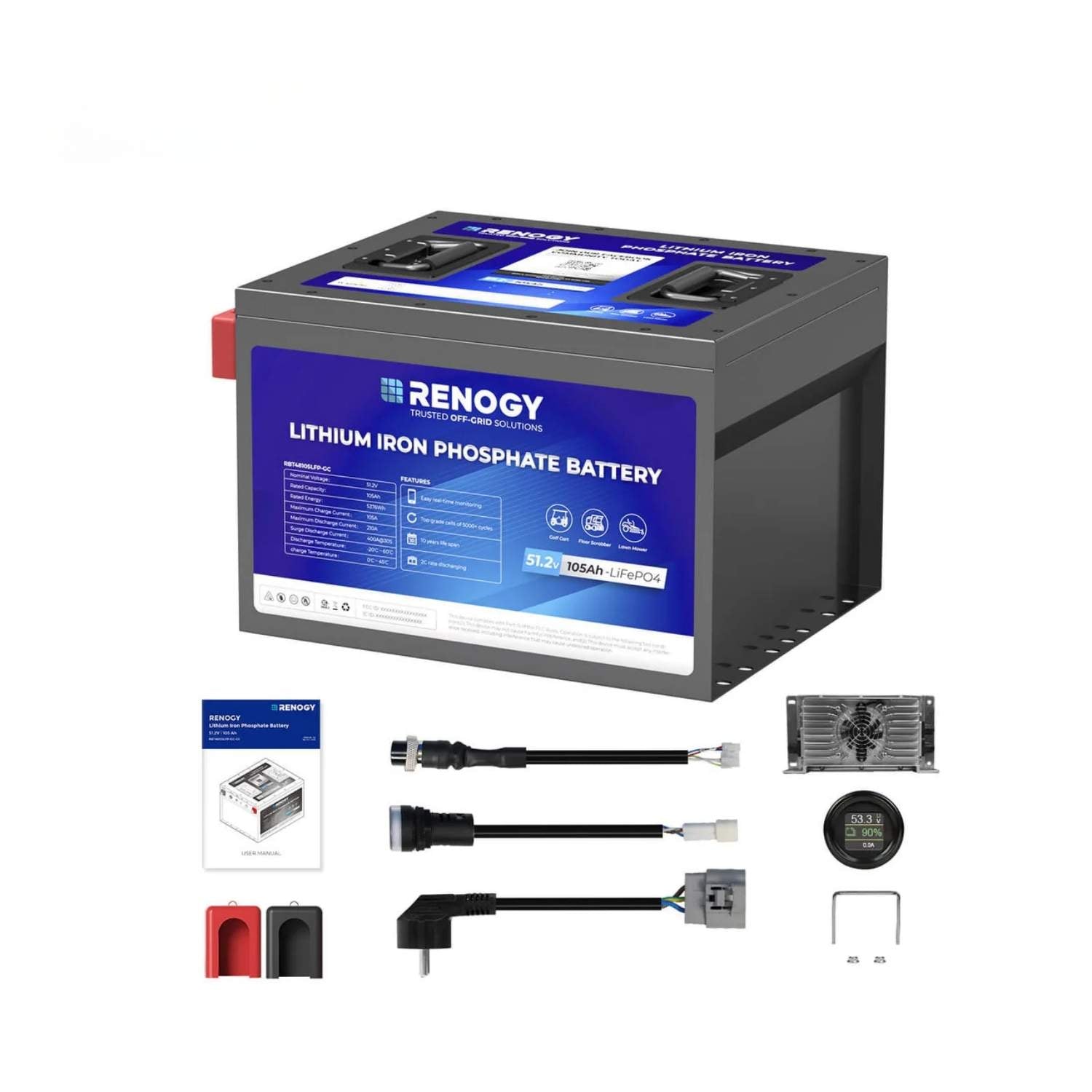

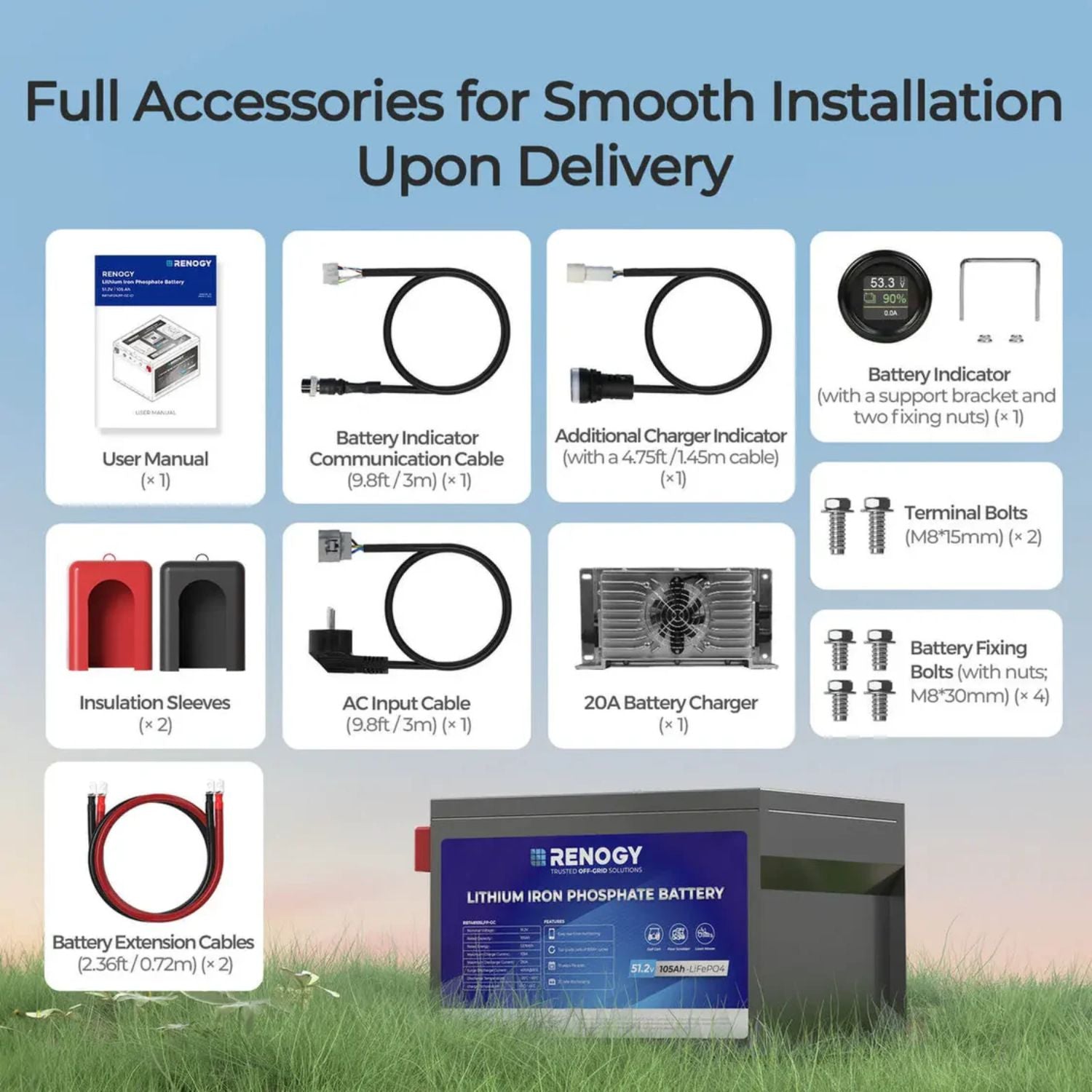

It ships with everything needed for the switch, including a 20A lithium battery charger, a dash-mount battery indicator, extension cables and mounting hardware. Inside, a 220A battery management system balances the cells and handles protection, Bluetooth links the battery to the Renogy app, and a FireFade fire suppression system and pressure-relief valve add extra layers of safety.
With 105Ah at 51.2V, the battery stores 5,376Wh. That is enough for two or more rounds of golf, or up to 52 miles of driving, before it needs a charge.
The battery supplies 210A continuously and up to 400A for 30 seconds, which helps on hills, in wet grass and when carrying passengers. Renogy recommends it for golf cart motors rated from 3.5kW to 7.5kW.
At 106.92 lbs, the battery weighs a fraction of a typical lead-acid set. A lighter cart is easier on turf, accelerates more readily and puts less strain on the motor and suspension.

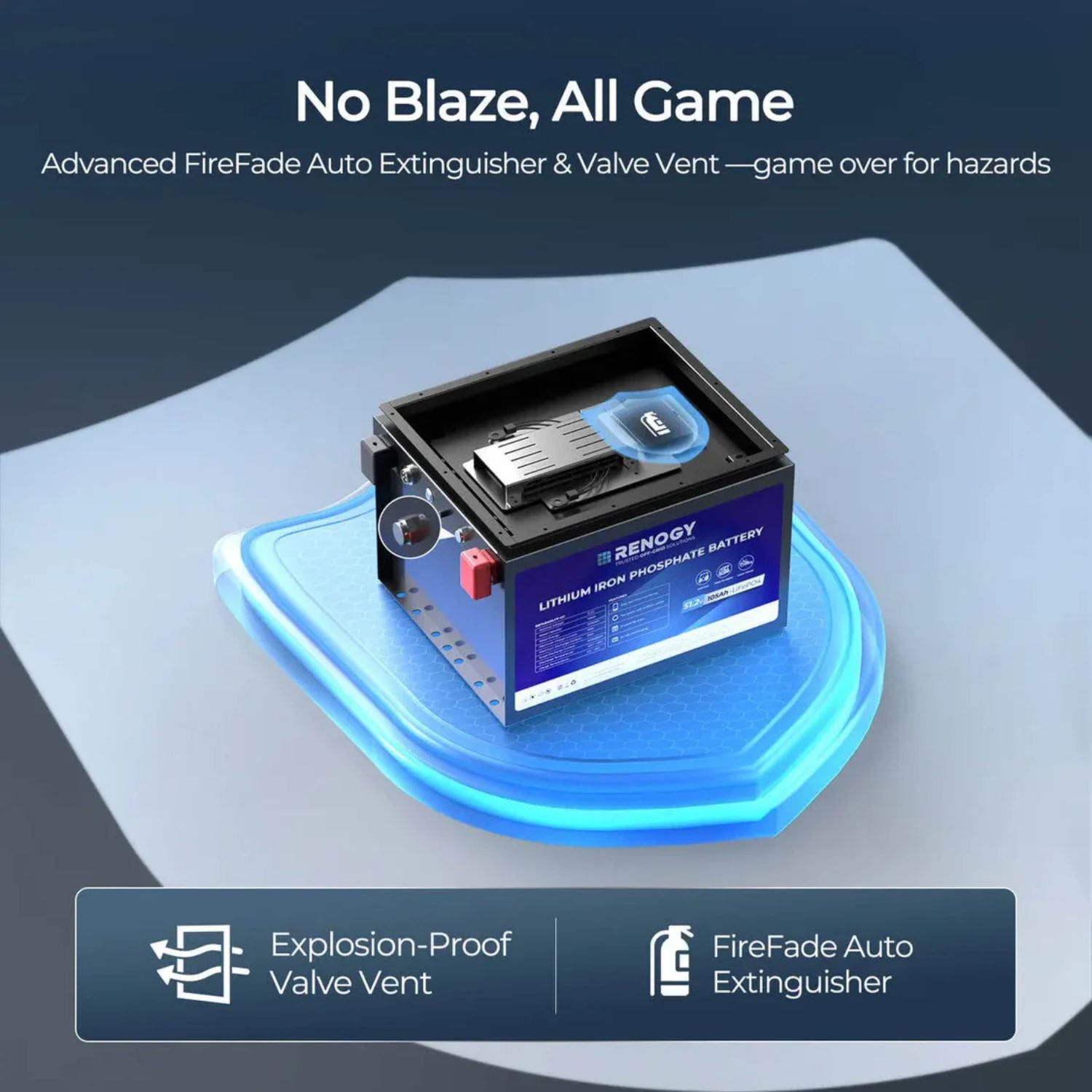

If internal temperature reaches 338°F (170°C), the built-in FireFade extinguisher releases suppressant to cool the battery and stop flames from spreading. A one-way vent valve releases internal pressure that can build up over long use.

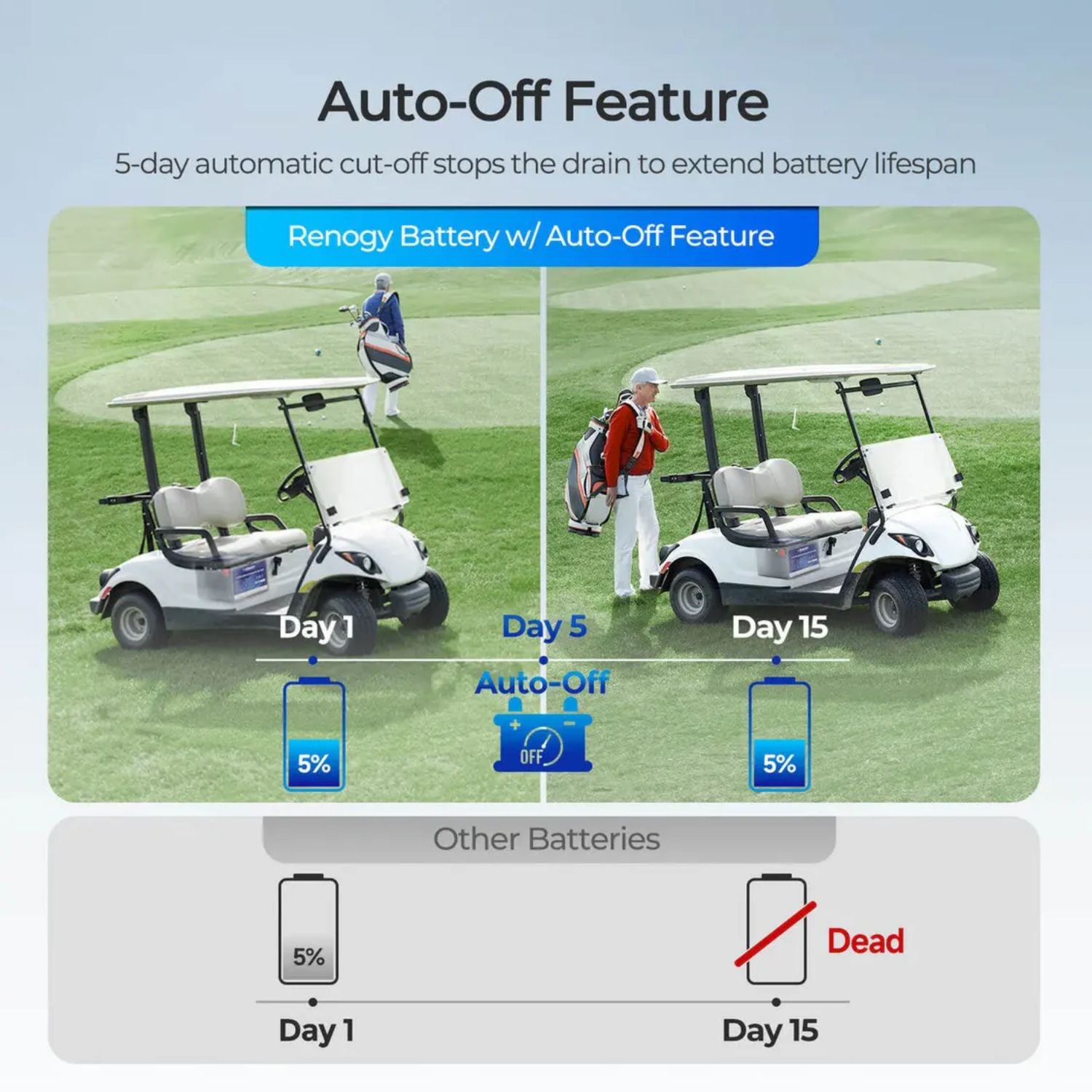

The battery switches itself off after 5 days of inactivity, so a cart left on over a long break does not drain the battery.

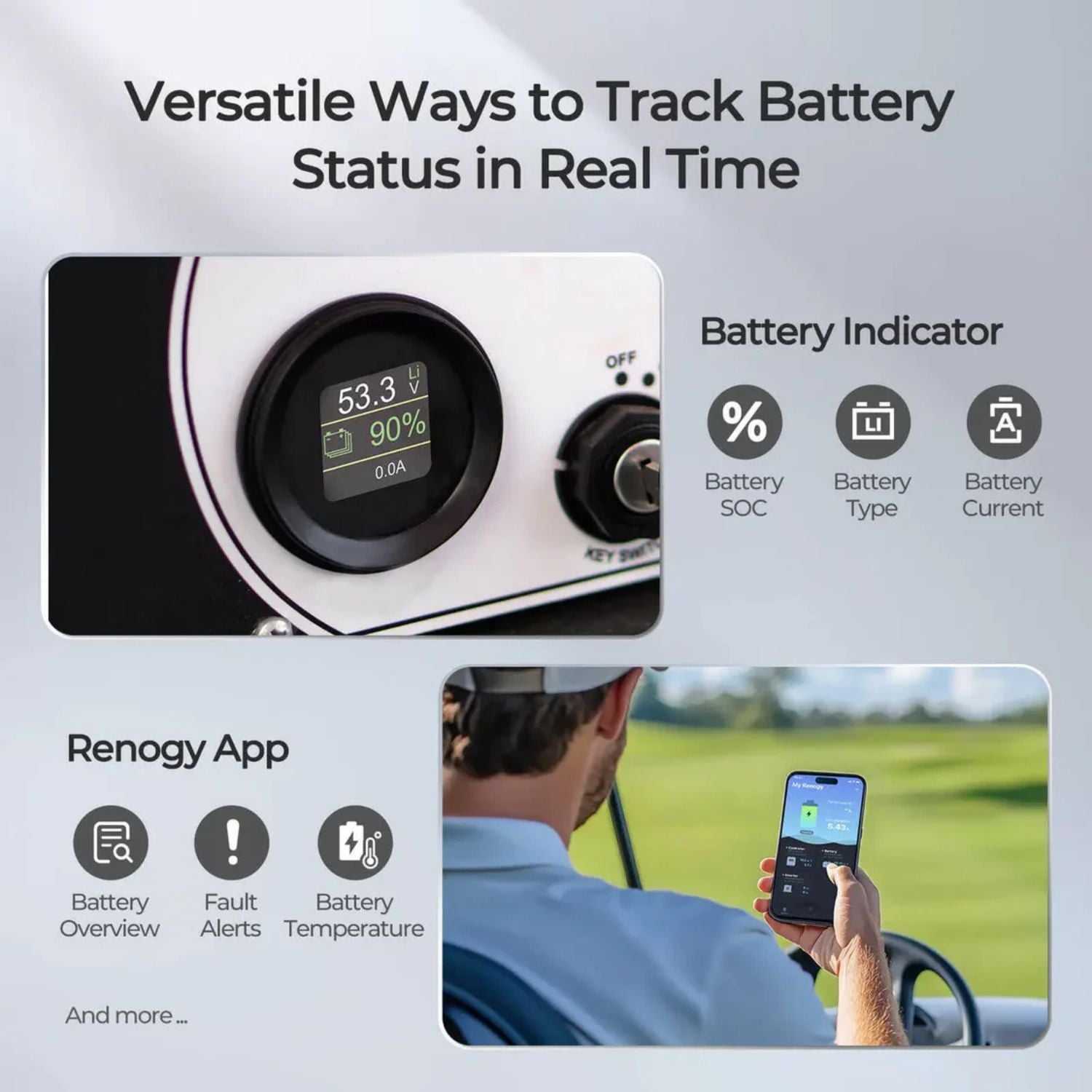

Built-in Bluetooth connects to the Renogy app for live voltage, current and state of charge. The included battery indicator mounts on the dash for an at-a-glance reading.
A corrosion-resistant metal case with an IP65 rating keeps out dirt and water.
Golf carts. Convert Club Car, EZGO, Yamaha and other 48V carts from lead-acid to lithium.
Neighborhood and utility vehicles. Power 48V community carts, utility vehicles and people movers.
Ride-on mowers and equipment. Replace lead-acid batteries in electric mowers and other 48V machines.
Resort, campus and facility fleets. Reduce maintenance and charging time across a fleet of carts.

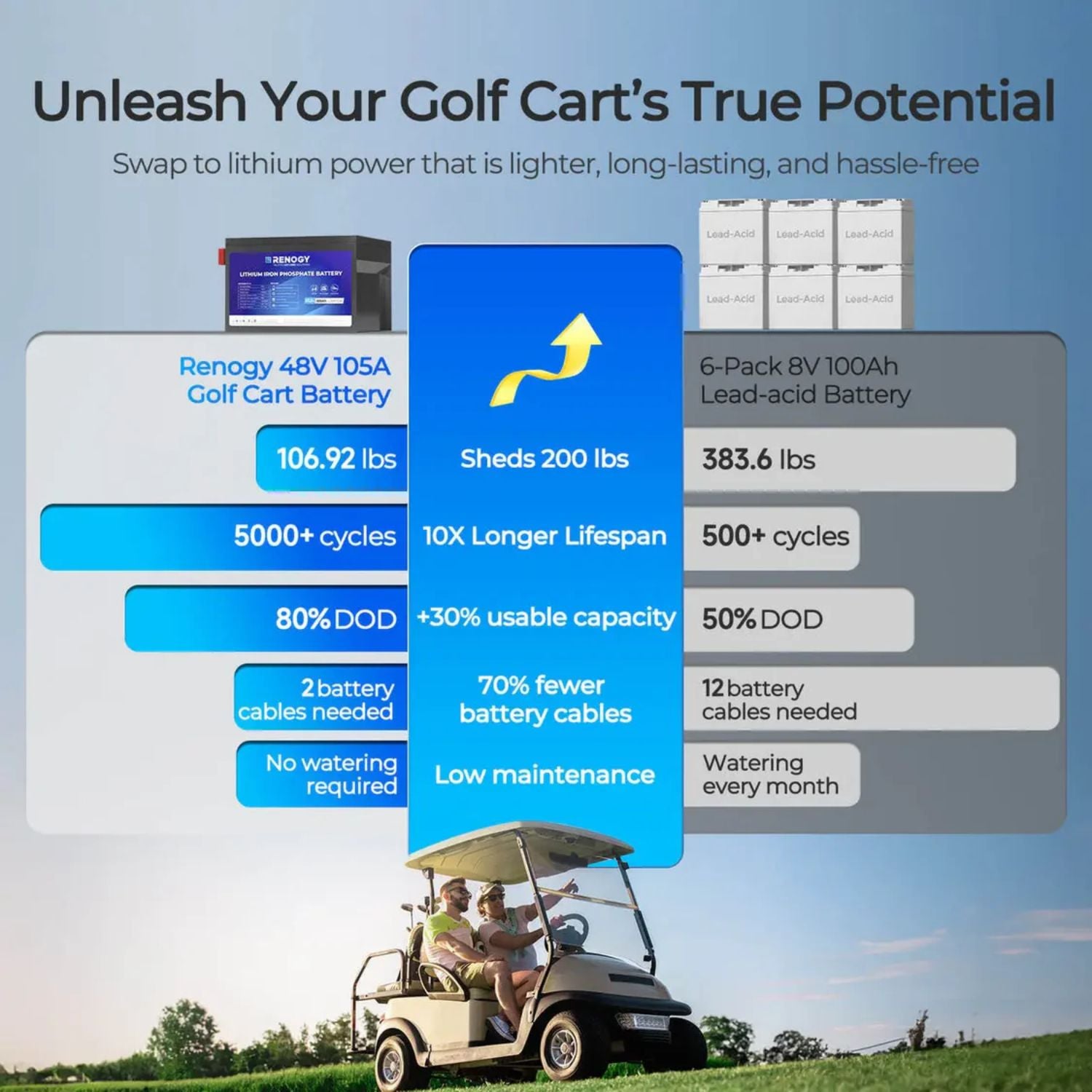

Versus a lead-acid battery set. Lead-acid sets weigh far more, need watering and lose power as they discharge. This battery holds steady voltage, needs no maintenance and is rated for 5,000 cycles.
Versus battery-only lithium upgrades. Many lithium packs ship without a charger or indicator. This kit includes a matched 20A charger, indicator and cables, so the swap can be done right away.
Versus smaller 48V lithium batteries. A 50Ah or 60Ah pack costs less but gives roughly half the range. The 105Ah size suits regular play, hilly courses and carts with lift kits or extra seats.
This may be a good fit if
It works with carts that use a 48V battery system and motors rated from 3.5kW to 7.5kW. Check your cart's battery compartment dimensions before ordering.
Up to 52 miles. Actual range depends on terrain, speed, load and the cart.
Yes. Bluetooth is built in, so you can add the battery in the Renogy app. The included dash indicator shows basic readings without a phone.
The battery may arrive at a low state of charge after shipping, so charge it fully right away. For long storage, keep it at 30% to 50% and top it up every three months.
The Renogy Golf Cart 51.2V 105Ah Lithium Iron Phosphate Battery gives your cart more range, more power on hills and far less weight, with everything needed for the conversion in the box. At Outbound Power, we help customers choose the right battery for their cart or vehicle. If you have questions, our team is happy to help.
Renogy Golf Cart 51.2V 105Ah Lithium Iron Battery Specifications |
|
|---|---|
| Model | RBT48105LFP-GC-US |
| Chemistry | Lithium iron phosphate (LiFePO4) |
| Nominal Voltage | 51.2V (48V systems) |
| Rated Capacity | 105Ah (0.5C, 25°C) |
| Energy | 5,376Wh |
| Cycle Life | 5,000 cycles at 80% DOD, 80% EOL (0.5C/1C, 25°C) |
| Voltage Range | 40V to 58.4V |
| Recommended Charge Current | 15A to 105A |
| Max Continuous Discharge Current | 210A |
| Peak Discharge Current | 400A for 30 seconds |
| BMS | 220A |
| Recommended Motor Size | 3.5kW to 7.5kW |
| Range | Up to 52 miles per charge (varies with conditions) |
| Bluetooth | Built in (Renogy app) |
| Safety Features | FireFade fire suppression, one-way vent valve, 5-day auto-off |
| Charge Temperature Range | 32°F to 113°F (0°C to 45°C) |
| Discharge Temperature Range | -4°F to 140°F (-20°C to 60°C) |
| Storage Temperature Range | 41°F to 113°F (5°C to 45°C) |
| Operating Humidity | 10% to 95% |

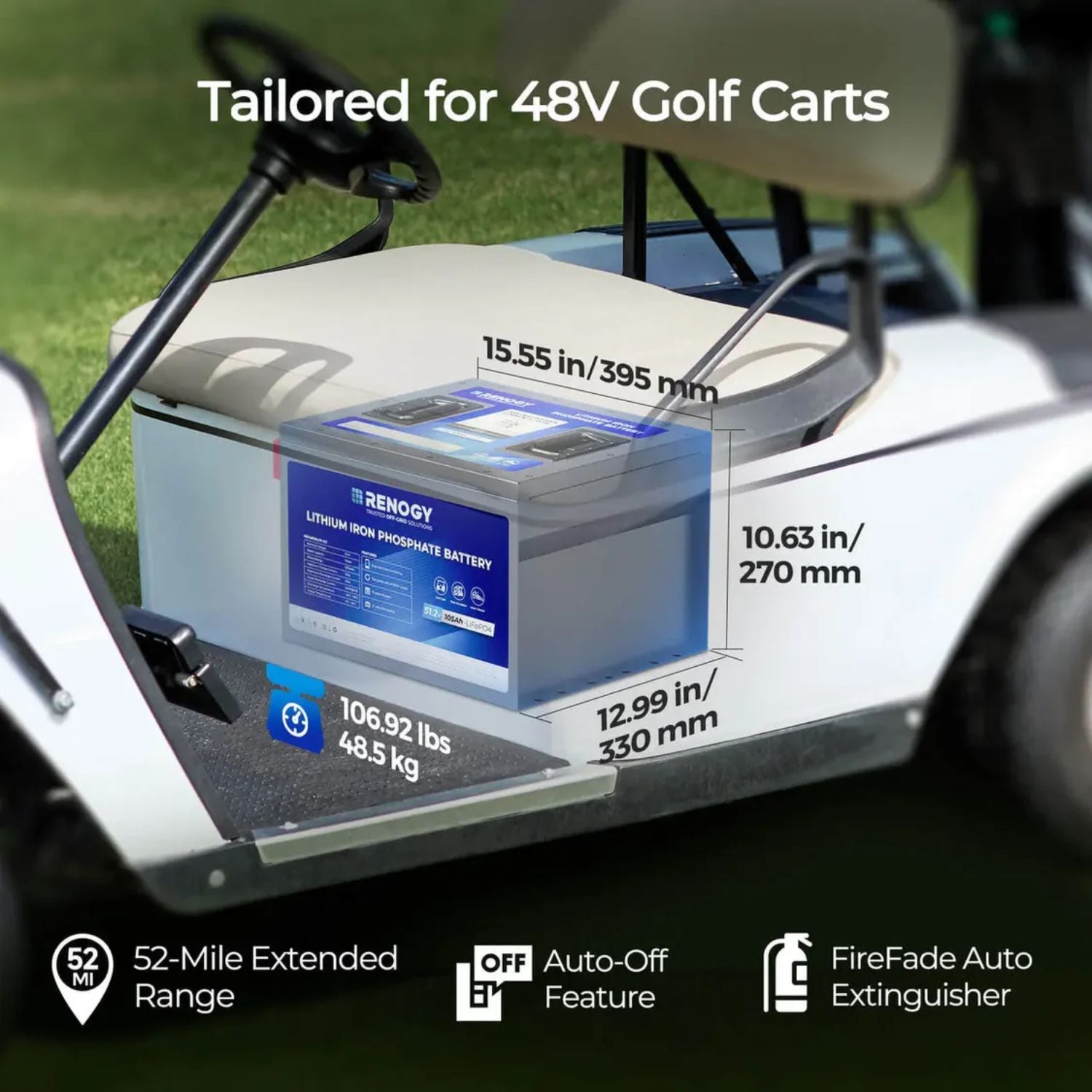

| Dimensions (L x W x H) | 15.55 x 12.99 x 10.63 in (395 x 330 x 270 mm) |
| Weight | 106.92 lbs (48.5 kg) |
| Terminal Bolt Size | M8 x 15 mm |
| Protection Rating | IP65 |
| Certifications | UN38.3, MSDS, FCC ID, IC ID |
| Warranty | 5-year prorated material and workmanship warranty |
| Included 20A Battery Charger | |
| Nominal Charge Voltage | 51.2V |
| Maximum Charge Voltage | 58.4V |
| Max Continuous Charge Current | 20A |
| AC Input Voltage Range | 90V to 264V |
| Operating Temperature | -40°F to 122°F (-40°C to 50°C) |
| Protection Rating | IP66 |
| Dimensions (L x W x H) | 11.1 x 5.75 x 3.24 in (282 x 146 x 82.4 mm) |
